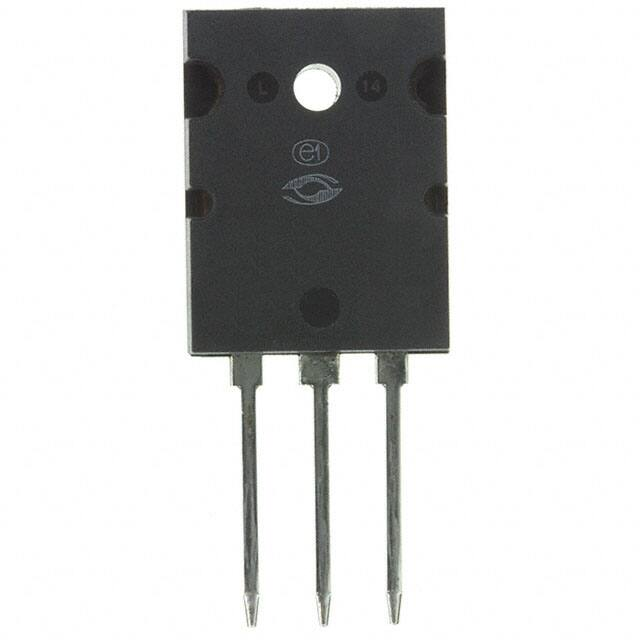

APT5010LVR
500V
47A 0.100Ω
POWER MOS V ®
Power MOS V® is a new generation of high voltage N-Channel enhancement
mode power MOSFETs. This new technology minimizes the JFET effect,
increases packing density and reduces the on-resistance. Power MOS V®
also achieves faster switching speeds through optimized gate layout..
• Faster Switching
• 100% Avalanche Tested
• Lower Leakage
• Popular TO-264 Package
TO-264
D
G
S
MAXIMUM RATINGS
Symbol
VDSS
ID
All Ratings: TC = 25°C unless otherwise specified.
Parameter
Drain-Source Voltage
APT5010LVR
UNIT
500
Volts
47
Continuous Drain Current @ TC = 25°C
1
Amps
IDM
Pulsed Drain Current
VGS
Gate-Source Voltage Continuous
±30
Gate-Source Voltage Transient
±40
Total Power Dissipation @ TC = 25°C
520
Watts
Linear Derating Factor
4.16
W/°C
VGSM
PD
TJ,TSTG
188
-55 to 150
Operating and Storage Junction Temperature Range
TL
Lead Temperature: 0.063" from Case for 10 Sec.
IAR
Avalanche Current
1
47
1
Repetitive Avalanche Energy
EAS
Single Pulse Avalanche Energy
°C
300
(Repetitive and Non-Repetitive)
EAR
Volts
Amps
50
4
mJ
2500
STATIC ELECTRICAL CHARACTERISTICS
BVDSS
ID(on)
RDS(on)
IDSS
IGSS
VGS(th)
Characteristic / Test Conditions
MIN
Drain-Source Breakdown Voltage (VGS = 0V, I D = 250µA)
500
Volts
47
Amps
On State Drain Current
2
(VDS > I D(on) x R DS(on) Max, VGS = 10V)
Drain-Source On-State Resistance
2
TYP
(VGS = 10V, 0.5 ID[Cont.])
MAX
0.100
Zero Gate Voltage Drain Current (VDS = VDSS, VGS = 0V)
25
Zero Gate Voltage Drain Current (VDS = 0.8 VDSS, VGS = 0V, TC = 125°C)
Ohms
µA
250
Gate-Source Leakage Current (VGS = ±30V, VDS = 0V)
Gate Threshold Voltage (VDS = VGS, ID = 2.5mA)
UNIT
±100
nA
4
Volts
2
CAUTION: These Devices are Sensitive to Electrostatic Discharge. Proper Handling Procedures Should Be Followed.
USA
APT Website - http://www.advancedpower.com
405 S.W. Columbia Street
Bend, Oregon 97702-1035
Phone: (541) 382-8028
FAX: (541) 388-0364
F-33700 Merignac - France
Phone: (33) 5 57 92 15 15
FAX: (33) 5 56 47 97 61
EUROPE
Avenue J.F. Kennedy Bât B4 Parc Cadéra Nord
050-5536 Rev C
Symbol
DYNAMIC CHARACTERISTICS
Symbol
APT5010LVR
Characteristic
Test Conditions
MIN
TYP
MAX
Ciss
Input Capacitance
VGS = 0V
7400
8900
Coss
Output Capacitance
VDS = 25V
1000
1400
Reverse Transfer Capacitance
f = 1 MHz
380
570
Crss
Qg
Total Gate Charge
Qgs
3
VGS = 10V
312
470
VDD = 0.5 VDSS
50
75
ID = ID[Cont.] @ 25°C
127
190
Gate-Source Charge
Qgd
Gate-Drain ("Miller ") Charge
td(on)
Turn-on Delay Time
tr
VGS = 15V
14
30
VDD = 0.5 VDSS
16
32
ID = ID[Cont.] @ 25°C
54
80
RG = 0.6Ω
5
10
TYP
MAX
Rise Time
td(off)
Turn-off Delay Time
tf
Fall Time
UNIT
pF
nC
ns
SOURCE-DRAIN DIODE RATINGS AND CHARACTERISTICS
Symbol
IS
ISM
VSD
Characteristic / Test Conditions
MIN
47
Continuous Source Current (Body Diode)
Pulsed Source Current
1
(Body Diode)
188
Diode Forward Voltage
2
(VGS = 0V, IS = -ID[Cont.])
1.3
UNIT
Amps
Volts
t rr
Reverse Recovery Time (IS = -ID[Cont.], dl S/dt = 100A/µs)
620
ns
Q rr
Reverse Recovery Charge (IS = -ID[Cont.], dl S/dt = 100A/µs)
14.7
µC
THERMAL CHARACTERISTICS
Symbol
Characteristic
MIN
RθJC
Junction to Case
RθJA
Junction to Ambient
TYP
MAX
0.24
40
1 Repetitive Rating: Pulse width limited by maximum junction
temperature.
2 Pulse Test: Pulse width < 380 µS, Duty Cycle < 2%
3 See MIL-STD-750 Method 3471
4 Starting T = +25°C, L = 2.26mH, R = 25Ω, Peak I = 47A
j
G
L
APT Reserves the right to change, without notice, the specifications and information contained herein.
D=0.5
0.1
0.05
0.2
0.1
0.05
Note:
0.01
PDM
Z JC, THERMAL IMPEDANCE (°C/W)
θ
050-5536 Rev C
0.3
0.02
0.005
0.01
SINGLE PULSE
t1
t2
Duty Factor D = t1/t2
Peak TJ = PDM x ZθJC + TC
0.001
10-5
10-4
10-3
10-2
10-1
1.0
10
RECTANGULAR PULSE DURATION (SECONDS)
FIGURE 1, MAXIMUM EFFECTIVE TRANSIENT THERMAL IMPEDANCE, JUNCTION-TO-CASE vs PULSE DURATION
UNIT
°C/W
APT5010LVR
VGS=7V, 8V, 10V & 15V
100
80
5.5V
60
40
VGS=15V
6V
5V
20
4.5V
ID, DRAIN CURRENT (AMPERES)
TJ = +25°C
80
TJ = +125°C
VDS> ID (ON) x RDS (ON)MAX.
250µSEC. PULSE TEST
@
