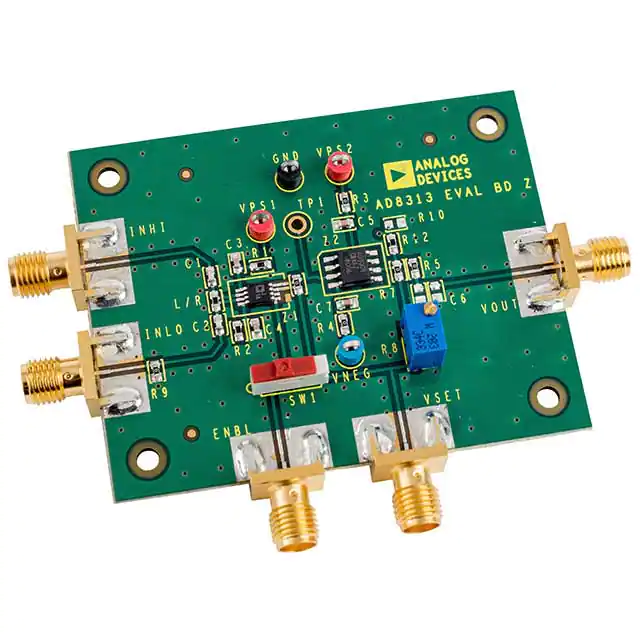

AD8313-EVALZ

0.1 GHz to 2.5 GHz 70 dB Logarithmic Detector/Controller AD8313 Data Sheet FEATURES FUNCTIONAL BLOCK DIAGRAM + NINE DETECTOR CELLS + + + + I→V 8 VOUT 7 VSET 6 COMM 5 PWDN VPOS 1 CINT INHI 2 8dB 8dB 8dB LP 8dB INLO 3 V→I EIGHT 8dB 3.5GHz AMPLIFIER STAGES INTERCEPT CONTROL AD8313 VPOS 4 SLOPE CONTROL APPLICATIONS BAND GAP REFERENCE GAIN BIAS 01085-C-001 Wide bandwidth: 0.1 GHz to 2.5 GHz min High dynamic range: 70 dB to ±3.0 dB High accuracy: ±1.0 dB over 65 dB range (@ 1.9 GHz) Fast response: 40 ns full-scale typical Controller mode with error output Scaling stable over supply and temperature Wide supply range: 2.7 V to 5.5 V Low power: 40 mW at 3 V Power-down feature: 60 mW at 3 V Complete and easy to use Figure 1. RF transmitter power amplifier setpoint control and level monitoring Logarithmic amplifier for RSSI measurement cellular base stations, radio link, radar GENERAL DESCRIPTION Part Number ADL5513 AD8318 AD8317 AD8319 Comments Improved range and temperature stability, operation up to 4 GHz Improved temperature stability, operation up to 8 GHz Lower input range, improved temperature stability, operation up to 10 GHz Lower input range, improved temperature stability, operation up to 10 GHz 2.0 5 4 1.6 3 1.4 2 1.2 1 1.0 0 0.8 –1 0.6 –2 0.4 –3 0.2 –4 0 –80 –70 –60 –50 –40 –30 INPUT AMPLITUDE (dBm) –20 –10 0 –5 OUTPUT ERROR (dB) FREQUENCY = 1.9GHz 1.8 01085-C-002 The AD8313 is fabricated on Analog Devices, Inc., advanced 25 GHz silicon bipolar IC process and is available in an 8-lead MSOP package. The operating temperature range is −40°C to +85°C. Table 1. Next Generation Upgrades for AD8313 OUTPUT VOLTAGE (V DC) The AD8313 is a complete multistage demodulating logarithmic amplifier that can accurately convert an RF signal at its input to an equivalent decibel-scaled value at its dc output. The AD8313 maintains a high degree of log conformance for signal frequencies from 0.1 GHz to 2.5 GHz. Application is straightforward, requiring only a single supply of 2.7 V to 5.5 V and the addition of a suitable input and supply decoupling. Operating on a 3 V supply, its 13.7 mA consumption (for TA = 25°C) is only 41 mW. A power-down feature is provided; the input is taken high to initiate a low current (20 µA) sleep mode, with a threshold at half the supply voltage. Figure 2. Typical Logarithmic Response and Error vs. Input Amplitude Rev. E Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. Tel: 781.329.4700 ©1998–2015 Analog Devices, Inc. All rights reserved. Technical Support www.analog.com AD8313 Data Sheet TABLE OF CONTENTS Features .............................................................................................. 1 Basic Connections for Log (RSSI) Mode ................................ 15 Applications ....................................................................................... 1 Operating in Controller Mode ................................................. 15 Functional Block Diagram .............................................................. 1 Input Coupling ........................................................................... 16 General Description ......................................................................... 1 Narrow-Band LC Matching Example at 100 MHz ................ 16 Revision History ............................................................................... 2 Adjusting the Log Slope............................................................. 18 Specifications..................................................................................... 3 Increasing Output Current........................................................ 18 Absolute Maximum Ratings ............................................................ 6 Effect of Waveform Type on Intercept .................................... 19 ESD Caution .................................................................................. 6 Evaluation Board ............................................................................ 20 Pin Configuration and Function Description .............................. 7 Schematic and Layout ................................................................ 20 Typical Performance Characteristics ............................................. 8 General Operation ..................................................................... 20 Circuit Description ......................................................................... 11 Using the AD8009 Operational Amplifier .............................. 20 Interfaces .......................................................................................... 13 Varying the Logarithmic Slope ................................................. 20 Power-Down Interface, PWDN ................................................ 13 Operating in Controller Mode ................................................. 20 Signal Inputs, INHI, INLO ........................................................ 13 RF Burst Response ..................................................................... 20 Logarithmic/Error Output, VOUT .......................................... 13 Outline Dimensions ....................................................................... 24 Setpoint Interface, VSET ........................................................... 14 Ordering Guide .......................................................................... 24 Applications Information .............................................................. 15 REVISION HISTORY 9/15—Rev. D to Rev. E Changes to General Description Section ...................................... 1 Added Table 1; Renumbered Sequentially .................................... 1 Updated Outline Dimensions ....................................................... 24 Changes to Ordering Guide .......................................................... 24 6/04—Rev. C to Rev. D Updated Evaluation Board Section .............................................. 21 2/03—Rev. B to Rev. C TPCs and Figures Renumbered ........................................ Universal Edits to Specifications ...................................................................... 2 Updated ESD Caution ...................................................................... 4 Updated Outline Dimensions ......................................................... 7 8/99—Rev. A to Rev. B 5/99—Rev. 0 to Rev. A 8/98—Revision 0: Initial Version Rev. E | Page 2 of 24 Data Sheet AD8313 SPECIFICATIONS TA = 25°C, VS = 5 V1, RL = 10 kΩ, unless otherwise noted. Table 2. Parameter SIGNAL INPUT INTERFACE Specified Frequency Range DC Common-Mode Voltage Input Bias Currents Input Impedance LOG (RSSI) MODE 100 MHz5 ±3 dB Dynamic Range6 Range Center ±1 dB Dynamic Range Slope Intercept Test Conditions/Comments Min2 Typ Max2 Unit 2.5 VPOS – 0.75 10 900||1.1 GHz V µA Ω||pF4 65 −31.5 56 19 −88 dB dBm dB mV/dB dBm 0.1 fRF < 100 MHz3 Sinusoidal, input termination configuration shown in Figure 29 Nominal conditions 53.5 17 −96 21 −80 2.7 V ≤ VS ≤ 5.5 V, −40°C ≤ T ≤ +85°C ±3 dB Dynamic Range Range Center ±1 dB Dynamic Range Slope Intercept Temperature Sensitivity 900 MHz5 ±3 dB Dynamic Range Range Center ±1 dB Dynamic Range Slope Intercept 51 16 −99 PIN = −10 dBm Nominal conditions 60 15.5 −105 64 −31 55 19 −89 −0.022 69 −32.5 62 18 −93 22 −75 20.5 −81 dB dBm dB mV/dB dBm dB/°C dB dBm dB mV/dB dBm 2.7 V ≤ VS ≤ 5.5 V, –40°C ≤ T ≤ +85°C ±3 dB Dynamic Range Range Center ±1 dB Dynamic Range Slope Intercept Temperature Sensitivity 1.9 GHz7 ±3 dB Dynamic Range Range Center ±1 dB Dynamic Range Slope Intercept 55.5 15 –110 PIN = –10 dBm Nominal conditions 52 15 –115 68.5 –32.75 61 18 –95 –0.019 73 –36.5 62 17.5 –100 21 –80 20.5 –85 dB dBm dB mV/dB dBm dB/°C dB dBm dB mV/dB dBm 2.7 V ≤ VS ≤ 5.5 V, –40°C ≤ T ≤ +85°C ±3 dB Dynamic Range Range Center ±1 dB Dynamic Range Slope Intercept Temperature Sensitivity 50 14 –125 PIN = –10 dBm Rev. E | Page 3 of 24 73 –36.5 60 17.5 –101 –0.019 21.5 –78 dB dBm dB mV/dB dBm dB/°C AD8313 Parameter 2.5 GHz7 ±3 dB Dynamic Range Range Center ±1 dB Dynamic Range Slope Intercept Data Sheet Test Conditions/Comments Nominal conditions Min2 Typ 48 66 –34 46 20 –92 16 –111 Max2 Unit 25 –72 dB dBm dB mV/dB dBm 2.7 V ≤ VS ≤ 5.5 V, –40°C ≤ T ≤ +85°C ±3 dB Dynamic Range Range Center ±1 dB Dynamic Range Slope Intercept Temperature Sensitivity 3.5 GHz5 ±3 dB Dynamic Range ±1 dB Dynamic Range Slope Intercept CONTROL MODE Controller Sensitivity Low Frequency Gain Open-Loop Corner Frequency Open-Loop Slew Rate VSET Delay Time VOUT INTERFACE Current Drive Capability Source Current Sink Current Minimum Output Voltage Maximum Output Voltage Output Noise Spectral Density Small Signal Response Time Large Signal Response Time VSET INTERFACE Input Voltage Range Input Impedance POWER-DOWN INTERFACE PWDN Threshold Power-Up Response Time PWDN Input Bias Current 47 14.5 –128 PIN =–10 dBm Nominal conditions f = 900 MHz VSET to VOUT8 VSET to VOUT8 f = 900 MHz Open-loop Open-loop PIN = –60 dBm, fSPOT = 100 Hz PIN = –60 dBm, fSPOT = 10 MHz PIN = –60 dBm to –57 dBm, 10% to 90% PIN = No signal to 0 dBm; settled to 0.5 dB 68 –34.5 46 20 –92 –0.040 43 35 24 –65 dB dB mV/dB dBm 23 84 700 2.5 150 V/dB dB Hz V/µs ns 400 10 50 VPOS – 0.1 2.0 1.3 40 110 µA mA mV V µV/√Hz µV/√Hz ns ns 0 Time delay following high to low transition until device meets full specifications. PWDN = 0 V PWDN = VS Rev. E | Page 4 of 24 25 –56 dB dBm dB mV/dB dBm dB/°C 60 160 18||1 VPOS V kΩ||pF4 VPOS/2 1.8 V µs 5 V SET VOUT → 0 when V SLOPE log ( PIN / 100) < V SET when the input is stated in terms of the power of a sinusoidal signal across a net termination impedance of 50 Ω. The transition zone between high and low states is very narrow since the output stage behaves essentially as a fast integrator. The above equations can be restated as VOUT = 20 × VSLOPE × log × (VIN / 2.2 µV) where VIN is the rms value of a sinusoidal input appearing across Pins 2 and 3; here, 2.2 µV corresponds to the intercept, expressed in voltage terms. For detailed information on the effect of signal waveform and metrics on the intercept positioning for a log amp, refer to the AD8307 data sheet. VOUT → V S VOUT → VS when VSLOPE log (VIN / 2.2 µV) > VSET VOUT → 0 when VSLOPE log (VIN / 2.2 µV) < VSET Another use of the separate VOUT and VSET pins is in raising the load-driving current capability by including an external NPN emitter follower. More complete information about usage in these modes is provided in the Applications section. Rev. E | Page 12 of 24 Data Sheet AD8313 INTERFACES For high frequency use, Figure 26 shows the input impedance plotted on a Smith chart. This measured result of a typical device includes a 191 mil 50 Ω trace and a 680 pF capacitor to ground from the INLO pin. POWER-DOWN INTERFACE, PWDN VPOS 4 50kΩ 150kΩ 150kΩ COMM 6 01085-C-024 TO BIAS ENABLE 75kΩ PWDN 5 Figure 24. Power-Down Threshold Circuitry SIGNAL INPUTS, INHI, INLO The simplest low frequency ac model for this interface consists of just a 900 Ω resistance, RIN, in shunt with a 1.1 pF input capacitance, CIN, connected across INHI and INLO. Figure 25 shows these distributed in the context of a more complete schematic. The input bias voltage shown is for the enabled chip; when disabled, it rises by a few hundred millivolts. If the input is coupled via capacitors, this change may cause a low level signal transient to be introduced, having a time constant formed by these capacitors and RIN. For this reason, large coupling capacitors should be well matched. This is not necessary when using the small capacitors found in many impedance transforming networks used at high frequencies. TO STAGES 1 TO 4 VPOS 1 ~0.75V 0.5pF 2.5kΩ 125Ω 2.5kΩ 125Ω 1.25kΩ INHI 2 TO 2ND STAGE 1.25kΩ GAIN BIAS (1ST DETECTOR) 250Ω 1.24V ~1.4mA COMM j j j j j X 400 135 65 43 100MHz AD8313 MEASURED 900MHz 2.5GHz 1.9GHz 1.1pF 900Ω Figure 26. Typical Input Impedance LOGARITHMIC/ERROR OUTPUT, VOUT The rail-to-rail output interface is shown in Figure 27. VOUT can run from within about 50 mV of ground, to within about 100 mV of the supply voltage, and is short-circuit safe to either supply. However, the sourcing load current, ISOURCE, is limited to that which is provided by the PNP transistor, typically 400 µA. Larger load currents can be provided by adding an external NPN transistor (see the Applications section). The dc open-loop gain of this amplifier is high, and it may be regarded as an integrator having a capacitance of 2 pF (CINT) driven by the current-mode signal generated by the summed outputs of the nine detector stages, which is scaled approximately 4.0 µA/dB. 1 VPOS BIAS FROM SETPOINT SUMMED DETECTOR OUTPUTS ISOURCE 400µA gm STAGE CINT 8 VOUT LP LM 10mA MAX CL 6 COMM Figure 27. Output Interface Circuitry Thus, for midscale RF input of about 3 mV, which is some 40 dB above the minimum detector output, this current is 160 µA, and the output changes by 8 V/µs. When VOUT is connected to VSET, the rise and fall times are approximately 40 ns (for RL ≥ 10 kΩ). 01085-C-025 VPOS 4 + – – – – The nominal slew rate is 2.5 V/µs. The HF compensation technique results in stable operation with a large capacitive load, CL, though the positive-going slew rate is then limited by ISOURCE/CL to 1 V/µs for CL = 400 pF. 0.7pF INLO 3 0.5pF R 650 55 22 23 01085-C-026 The power-down threshold is accurately centered at the midpoint of the supply as shown in Figure 24. If Pin 5 is left unconnected or tied to the supply voltage (recommended), the bias enable current is shut off, and the current drawn from the supply is predominately through a nominal 300 kΩ chain (20 µA at 3 V). When grounded, the bias system is turned on. The threshold level is accurately at VPOS/2. When operating in the device ON state, the input bias current at the PWDN pin is approximately 5 µA for VPOS = 3 V. Frequency 100MHz 900MHz 1.9GHz 2.5GHz 01085-C-027 This section describes the signal and control interfaces and their behavior. On-chip resistances and capacitances exhibit variations of up to ±20%. These resistances are sometimes temperature-dependent, and the capacitances may be voltagedependent. Figure 25. Input Interface Simplified Schematic Rev. E | Page 13 of 24 AD8313 Data Sheet SETPOINT INTERFACE, VSET VPOS 1 Rev. E | Page 14 of 24 FDBK TO O/P STAGE 25µA R1 12kΩ LP VSET 8 R2 6kΩ R3 1.5kΩ COMM 6 Figure 28. Setpoint Interface Circuitry 01085-C-028 The setpoint interface is shown in Figure 28. The voltage, VSET, is divided by a factor of 3 in a resistive attenuator of 18 kΩ total resistance. The signal is converted to a current by the action of the op amp and the resistor R3 (1.5 kΩ), which balances the current generated by the summed output of the nine detector cells at the input to the previous cell. The logarithmic slope is nominally 3 µs × 4.0 µA/dB × 1.5 kΩ = 18 mV/dB. 25µA Data Sheet AD8313 APPLICATIONS INFORMATION BASIC CONNECTIONS FOR LOG (RSSI) MODE OPERATING IN CONTROLLER MODE Figure 29 shows the AD8313 connected in its basic measurement mode. A power supply between 2.7 V and 5.5 V is required. The power supply to each of the VPOS pins should be decoupled with a 0.1 µF surface-mount ceramic capacitor and a 10 Ω series resistor. Figure 30 shows the basic connections for operation in controller mode. The link between VOUT and VSET is broken and a setpoint is applied to VSET. Any difference between VSET and the equivalent input power to the AD8313 drives VOUT either to the supply rail or close to ground. If VSET is greater than the equivalent input power, VOUT is driven toward ground, and vice versa. As stated in the Absolute Maximum Ratings table, an externally applied overvoltage on the VOUT pin, which is outside the range 0 V to VPOS, is sufficient to cause permanent damage to the device. If overvoltages are expected on the VOUT pin, a series resistor, RPROT, should be included as shown. A 500 Ω resistor is sufficient to protect against overvoltage up to ±5 V; 1000 Ω should be used if an overvoltage of up to ±15 V is expected. Since the output stage is meant to drive loads of no more than 400 µA, this resistor does not impact device performance for higher impedance drive applications (higher output current applications are discussed in the Increasing Output Current section). R1 10Ω +VS VPOS VOUT 8 2 INHI VSET 7 3 INLO COMM 6 4 VPOS PWDN 5 AD8313 2 INHI VSET 7 3 INLO COMM 6 4 VPOS PWDN 5 0.1µF RPROT AD8313 R3 10Ω 0.1µF This mode of operation is useful in applications where the output power of an RF power amplifier (PA) is to be controlled by an analog AGC loop (Figure 31). In this mode, a setpoint voltage, proportional in dB to the desired output power, is applied to the VSET pin. A sample of the output power from the PA, via a directional coupler or other means, is fed to the input of the AD8313. ENVELOPE OF TRANSMITTED SIGNAL POWER AMPLIFIER RF IN DIRECTIONAL COUPLER AD8313 VOUT RFIN VSET SETPOINT CONTROL DAC RPROT RL = 1MΩ Figure 31. Setpoint Controller Operation 0.1µF Figure 29. Basic Connections for Log (RSSI) Mode 01085-C-029 R2 10Ω VPOS VOUT 8 Figure 30. Basic Connections for Operation in the Controller Mode 53.6Ω 680pF +VS 1 0.1µF 680pF +VS 1 01085-C-031 VSET is connected to VOUT to establish a feedback path that controls the overall scaling of the logarithmic amplifier. The load resistance, RL, should not be lower than 5 kΩ so that the full-scale output of 1.75 V can be generated with the limited available current of 400 µA max. R1 10Ω +VS 01085-C-030 The PWDN pin is shown as grounded. The AD8313 may be disabled by a logic high at this pin. When disabled, the chip current is reduced to about 20 µA from its normal value of 13.7 mA. The logic threshold is at VPOS/2, and the enable function occurs in about 1.8 µs. However, that additional settling time is generally needed at low input levels. While the input in this case is terminated with a simple 50 Ω broadband resistive match, there are many ways in which the input termination can be accomplished. These are discussed in the Input Coupling section. VOUT is applied to the gain control terminal of the power amplifier. The gain control transfer function of the power amplifier should be an inverse relationship, that is, increasing voltage decreases gain. A positive input step on VSET (indicating a demand for increased power from the PA) drives VOUT toward ground. This should be arranged to increase the gain of the PA. The loop settles when VOUT settles to a voltage that sets the input power to the AD8313 to the dB equivalent of VSET. Rev. E | Page 15 of 24 AD8313 Data Sheet INPUT COUPLING 3 BALANCED The signal can be coupled to the AD8313 in a variety of ways. In all cases, there must not be a dc path from the input pins to ground. Some of the possibilities include dual-input coupling capacitors, a flux-linked transformer, a printed circuit balun, direct drive from a directional coupler, or a narrow-band impedance matching network. 2 Figure 32 shows a simple broadband resistive match. A termination resistor of 53.6 Ω combines with the internal input impedance of the AD8313 to give an overall resistive input impedance of approximately 50 Ω. It is preferable to place the termination resistor directly across the input pins, INHI to INLO, where it lowers the possible deleterious effects of dc offset voltages on the low end of the dynamic range. At low frequencies, this may not be quite as beneficial, since it requires larger coupling capacitors. The two 680 pF input coupling capacitors set the high-pass corner frequency of the network at 9.4 MHz. MATCHED TERMINATED DR = 66dB 0 BALANCED DR = 71dB –1 MATCHED DR = 69dB –2 –3 –90 –80 –70 –60 –50 –40 –30 –20 INPUT AMPLITUDE (dBm) –10 0 10 01085-C-033 ERROR (dB) 1 Figure 33. Comparison of Terminated, Matched, and Balanced Input Drive at 900 MHz 3 TERMINATED DR = 75dB 2 MATCHED C1 680pF RMATCH 53.6Ω CIN 1 ERROR (dB) C2 680pF AD8313 RIN 01085-C-032 50Ω SOURCE 50Ω TERMINATED 0 MATCHED DR = 73dB BALANCED –1 Figure 32. A Simple Broadband Resistive Input Termination –3 –90 1 2 × π × C × 50 –10 0 10 NARROW-BAND LC MATCHING EXAMPLE AT 100 MHz C1 × C2 C1 × C2 In high frequency applications, the use of a transformer, balun, or matching network is advantageous. The impedance matching characteristics of these networks provide what is essentially a gain stage before the AD8313 that increases the device sensitivity. This gain effect is explored in the following matching example. Figure 33 and Figure 34 show device performance under these three input conditions at 900 MHz and 1.9 GHz. While the 900 MHz case clearly shows the effect of input matching by realigning the intercept as expected, little improvement is seen at 1.9 GHz. Clearly, if no improvement in sensitivity is required, a simple 50 Ω termination may be the best choice for a given design based on ease of use and cost of components. –60 –50 –40 –30 –20 INPUT AMPLITUDE (dBm) Figure 34. Comparison of Terminated, Matched, and Balanced Input Drive at 1.9 GHz where: C= –70 –80 While numerous software programs provide an easy way to calculate the values of matching components, a clear understanding of the calculations involved is valuable. A low frequency (100 MHz) value has been used for this example because of the deleterious board effects at higher frequencies. RF layout simulation software is useful when board design at higher frequencies is required. A narrow-band LC match can be implemented either as a series-inductance/shunt-capacitance or as a series-capacitance/ shunt-inductance. However, the concurrent requirement that the AD8313 inputs, INHI and INLO, be ac-coupled, makes a series-capacitance/shunt-inductance type match more appropriate (Figure 35). 50Ω SOURCE 50Ω AD8313 C1 C2 LMATCH CIN Figure 35. Narrow-Band Reactive Match Rev. E | Page 16 of 24 RIN 01085-C-035 f 3 dB = BALANCED DR = 75dB –2 01085-C-034 The high-pass corner frequency can be set higher according to the equation Data Sheet AD8313 Typically, the AD8313 needs to be matched to 50 Ω. The input impedance of the AD8313 at 100 MHz can be read from the Smith chart (Figure 26) and corresponds to a resistive input impedance of 900 Ω in parallel with a capacitance of 1.1 pF. To make the matching process simpler, the AD8313 input capacitance, CIN, can be temporarily removed from the calculation by adding a virtual shunt inductor (L2), which resonates away CIN (Figure 36). This inductor is factored back into the calculation later. This allows the main calculation to be based on a simple resistive-to-resistive match, that is, 50 Ω to 900 Ω. The resonant frequency is defined by the equation 1 ω= L2 × C IN therefore, L2 = 1 ω2 C IN AD8313 C1 L1 L2 (C1 × C2) (C1 + C2) (C1 × C2) LMATCH = (C1 + C2) CMATCH = CIN Gain dB = 20 × log RIN 01085-C-036 C2 TEMPORARY INDUCTANCE Figure 36. Input Matching Example With CIN and L2 temporarily out of the picture, the focus is now on matching a 50 Ω source resistance to a (purely resistive) load of 900 Ω and calculating values for CMATCH and L1. When RS RIN = C MATCH 1 2π L1 × C MATCH = 100 MHz 1 RS RIN × 1 = 7.5 pF 2πf 0 Solving for L1 gives L1 = RS RIN 2πf 0 Table 5. Recommended Values for C1, C2, and LMATCH in Figure 35 = 337.6 nH Because L1 and L2 are parallel, they can be combined to give the final value for LMATCH, that is, L MATCH = Because the AD8313 input responds to voltage and not to true power, the voltage gain of the matching network increases the effective input low-end power sensitivity by this amount. Thus, in this case, the dynamic range is shifted downward, that is, the 12.6 dB voltage gain shifts the 0 dBm to −65 dBm input range downward to −12.6 dBm to −77.6 dBm. However, because of network losses, this gain is not be fully realized in practice. Refer to Figure 33 and Figure 34 for an example of practical attainable voltage gains. As previously discussed, a modification of the board layout produces networks that may not perform as specified. At 2.5 GHz, a shunt inductor is sufficient to achieve proper matching. Consequently, C1 and C2 are set sufficiently high that they appear as RF shorts. Solving for CMATCH gives C MATCH = RIN = 12.6 dB RS Table 5 shows recommended values for the inductor and capacitors in Figure 35 for some selected RF frequencies in addition to the associated theoretical voltage gain. These values for a reactive match are optimal for the board layout detailed as Figure 45. L1 the input looks purely resistive at a frequency given by f0 = In all cases, the values of CMATCH and LMATCH must be chosen from standard values. At this point, these values need now be installed on the board and measured for performance at 100 MHz. Because of board and layout parasitics, the component values from the preceding example had to be tuned to the final values of CMATCH = 8.9 pF and LMATCH = 270 nH as shown in Table 5. Assuming a lossless matching network and noting conservation of power, the impedance transformation from RS to RIN (50 Ω to 900 Ω) has an associated voltage gain given by = 2.3 µH 50Ω SOURCE 50Ω CMATCH. Alternatively, C1 and C2 can each be set to twice CMATCH so that the total series capacitance is equal to CMATCH. By making C1 and C2 slightly unequal (that is, select C2 to be about 10% less than C1) but keeping their series value the same, the amplitude of the signals on INHI and INLO can be equalized so that the AD8313 is driven in a more balanced manner. Any of the options detailed above can be used provided that the combined series value of C1 and C2, that is, C1 × C2/(C1 + C2) is equal to CMATCH. L1 × L2 = 294 nH L1 + L2 C1 and C2 can be chosen in a number of ways. First, C2 can be set to a large value, for example, 1000 pF, so that it appears as an RF short. C1 would then be set equal to the calculated value of Freq. (MHz) 100 CMATCH (pF) 8.9 C1 (pF) 22 900 1.5 1900 1.5 2500 Large 3 1.5 3 1.5 390 Rev. E | Page 17 of 24 C2 (pF) 15 1000 3 1000 3 1000 390 LMATCH (nH) 270 270 8.2 8.2 2.2 2.2 2.2 Voltage Gain(dB) 12.6 9.0 6.2 3.2 AD8313 Data Sheet Figure 37 shows the voltage response of the 100 MHz matching network. Note the high attenuation at lower frequencies typical of a high-pass network. R1 10 +VS 1 VPOS 0.1F VOUT 8 20mV/dB AD8313 2 INHI REXT VSET 7 15 4 VPOS PWDN 5 0.1F Figure 39. Adjusting the Log Slope to a Fixed Value 5 Table 6. Values for REXT in Figure 39 01085-C-037 0 –5 50 100 FREQUENCY (MHz) 200 Figure 37. Voltage Response of 100 MHz Narrow-Band Matching Network ADJUSTING THE LOG SLOPE Figure 38 shows how the log slope can be adjusted to an exact value. The idea is simple: the output at the VOUT pin is attenuated by the variable resistor R2 working against the internal 18 kΩ of input resistance at the VSET pin. When R2 is 0, the attenuation it introduces is 0, and thus the slope is the basic 18 mV/dB. Note that this value varies with frequency, (Figure 10). When R2 is set to its maximum value of 10 kΩ, the attenuation from VOUT to VSET is the ratio 18/(18 + 10), and the slope is raised to (28/18) × 18 mV, or 28 mV/dB. At about the midpoint, the nominal scale is 23 mV/dB. Thus, a 70 dB input range changes the output by 70 × 23 mV, or 1.6 V. REXT kV 0.953 2.00 2.55 0 29.4 32.4 33.2 26.7 Slope mV/dB 20 20 20 20 50 50.4 49.8 49.7 VOUT Swing for Pin −65 dBm to 0 dBm – V 0.44 to 1.74 0.58 to 1.88 0.70 to 2.00 0.54 to 1.84 1.10 to 4.35 1.46 to 4.74 1.74 to 4.98 1.34 to 4.57 The value for REXT is calculated by REXT  New Slope  Original Slope   18 k Original Slope The value for the Original Slope, at a particular frequency, can be read from Figure 10. The resulting output swing is calculated by simply inserting the New Slope value and the intercept at that frequency (Figure 10 and Figure 13) into the general equation for the AD8313’s output voltage: VOUT = Slope(PIN − Intercept) 1 VPOS 0.1F 2 INHI 3 INLO R3 10 VOUT 8 18–30mV/dB AD8313 COMM 6 R2 10k 4 VPOS PWDN 5 0.1F INCREASING OUTPUT CURRENT To drive a more substantial load, either a pull-up resistor or an emitter-follower can be used. VSET 7 01085-C-038 R1 10 +VS Frequency MHz 100 900 1900 2500 100 900 1900 2500 Figure 38. Adjusting the Log Slope As stated, the unadjusted log slope varies with frequency from 17 mV/dB to 20 mV/dB, as shown in Figure 10. By placing a resistor between VOUT and VSET, the slope can be adjusted to a convenient 20 mV/dB as shown in Figure 39. In Figure 40, a 1 kΩ pull-up resistor is added at the output, which provides the load current necessary to drive a 1 kΩ load to 1.7 V for VS = 2.7 V. The pull-up resistor slightly lowers the intercept and the slope. As a result, the transfer function of the AD8313 is shifted upward (intercept shifts downward). Table 6 shows the recommended values for this resistor, REXT. Also shown are values for REXT, which increase the slope to approximately 50 mV/dB. The corresponding voltage swings for a −65 dBm to 0 dBm input range are also shown in Table 7. +VS +VS 1k R1 10 1 VPOS 0.1F AD8313 2 INHI 3 INLO +VS VOUT 8 20mV/dB RL = 1k VSET 7 COMM 6 R3 10 4 VPOS PWDN 5 0.1F Figure 40. Increasing AD8313 Output Current Capability Rev. E | Page 18 of 24 01085-C-040 VOLTAGE GAIN (dB) COMM 6 01085-C-039 +VS 10 +VS 3 INLO R3 10 Data Sheet AD8313 In Figure 41, an emitter-follower provides the current gain, when a 100 Ω load can readily be driven to full-scale output. While a high ß transistor such as the BC848BLT1 (min ß = 200) is recommended, a 2 kΩ pull-up resistor between VOUT and +VS can provide additional base current to the transistor. +VS R1 10 MIN = 200 1 0.1F VPOS VOUT 8 AD8313 2 INHI BC848BLT1 13k OUTPUT VSET 7 10k +VS 3 INLO 4 VPOS PWDN 5 R3 10 RL 100 COMM 6 0.1F 01085-C-041 +VS Figure 41. Output Current Drive Boost Connection In addition to providing current gain, the resistor/potentiometer combination between VSET and the emitter of the transistor increases the log slope to as much as 45 mV/dB, at maximum resistance. This gives an output voltage of 4 V for a 0 dBm input. If no increase in the log slope is required, VSET can be connected directly to the emitter of the transistor. EFFECT OF WAVEFORM TYPE ON INTERCEPT Although specified for input levels in dBm (dB relative to 1 mW), the AD8313 responds to voltage and not to power. A direct consequence of this characteristic is that input signals of equal rms power but differing crest factors produce different results at the log amp’s output. Different signal waveforms vary the effective value of the log amp’s intercept upward or downward. Graphically, this looks like a vertical shift in the log amp’s transfer function. The device’s logarithmic slope, however, is in principle not affected. For example, if the AD8313 is being fed alternately from a continuous wave and from a single CDMA channel of the same rms power, the AD8313 output voltage differs by the equivalent of 3.55 dB (64 mV) over the complete dynamic range of the device (the output for a CDMA input being lower). Table 7 shows the correction factors that should be applied to measure the rms signal strength of a various signal types. A continuous wave input is used as a reference. To measure the rms power of a square wave, for example, the mV equivalent of the dB value given in the table (18 mV/dB × 3.01 dB) should be subtracted from the output voltage of the AD8313. Table 7. Shift in AD8313 Output for Signals with Differing Crest Factors Signal Type CW Sine Wave Square Wave or DC Triangular Wave GSM Channel (All Time Slots On) CDMA Channel PDC Channel (All Time Slots On) Gaussian Noise Rev. E | Page 19 of 24 Correction Factor (Add to Output Reading) 0 dB −3.01 dB +0.9 dB +0.55 dB +3.55 dB +0.58 dB +2.51 dB AD8313 Data Sheet EVALUATION BOARD SCHEMATIC AND LAYOUT Figure 44 shows the schematic of the AD8313 evaluation board. Note that uninstalled components are indicated as open. This board contains the AD8313 as well as the AD8009 currentfeedback operational amplifier. This is a 4-layer board (top and bottom signal layers, ground, and power). The top layer silkscreen and layout are shown in Figure 42 and Figure 43. A detailed drawing of the recommended PCB footprint for the MSOP package and the pads for the matching components are shown in Figure 45. The vacant portions of the signal and power layers are filled out with ground plane for general noise suppression. To ensure a low impedance connection between the planes, there are multiple through-hole connections to the RF ground plane. While the ground planes on the power and signal planes are used as general-purpose ground returns, any RF grounds related to the input matching network (for example, C2) are returned directly to the RF internal ground plane. GENERAL OPERATION The AD8313 should be powered by a single supply in the range of 2.7 V to 5.5 V. The power supply to each AD8313 VPOS pin is decoupled by a 10 Ω resistor and a 0.1 µF capacitor. The AD8009 can run on either single or dual supplies, +5 V to ±6 V. Both the positive and negative supply traces are decoupled using a 0.1 µF capacitor. Pads are provided for a series resistor or inductor to provide additional supply filtering. The two signal inputs are ac-coupled using 680 pF high quality RF capacitors (C1, C2). A 53.6 Ω resistor across the differential signal inputs (INHI, INLO) combines with the internal 900 Ω input impedance to give a broadband input impedance of 50.6 Ω. This termination is not optimal from a noise perspective due to the Johnson noise of the 53.6 Ω resistor. Neither does it account for the AD8313’s reactive input impedance nor for the decrease over frequency of the resistive component of the input impedance. However, it does allow evaluation of the AD8313 over its complete frequency range without having to design multiple matching networks. For optimum performance, a narrow-band match can be implemented by replacing the 53.6 Ω resistor (labeled L/R) with an RF inductor and replacing the 680 pF capacitors with appropriate values. The Narrow-Band LC Matching Example at 100 MHz section includes a table of recommended values for selected frequencies and explains the method of calculation. Switch 1 is used to select between power-up and power-down modes. Connecting the PWDN pin to ground enables normal operation of the AD8313. In the opposite position, the PWDN pin can be driven externally (SMA connector labeled ENBL) to either device state, or it can be allowed to float to a disabled device state. The evaluation board comes with the AD8313 configured to operate in RSSI/measurement mode. This mode is set by the 0 Ω resistor (R11), which shorts the VOUT and VSET pins to each other. When using the AD8009, the AD8313 logarithmic output appears on the SMA connector labeled VOUT. Using only the AD8313, the log output can be measured at TP1 or the SMA connector labeled VSET. USING THE AD8009 OPERATIONAL AMPLIFIER The AD8313 can supply only 400 µA at VOUT. It is also sensitive to capacitive loading, which can cause inaccurate measurements, especially in applications where the AD8313 is used to measure the envelope of RF bursts. The AD8009 alleviates both of these issues. It is an ultrahigh speed current feedback amplifier capable of delivering over 175 mA of load current, with a slew rate of 5,500 V/µs, which results in a rise time of 545 ps, making it ideal as a pulse amplifier. The AD8009 is configured as a buffer amplifier with a gain of 1. Other gain options can be implemented by installing the appropriate resistors at R10 and R12. Various output filtering and loading options are available using R5, R6, and C6. Note that some capacitive loads may cause the AD8009 to become unstable. It is recommended that a 42.2 Ω resistor be installed at R5 when driving a capacitive load. More details can be found in the AD8009 data sheet. VARYING THE LOGARITHMIC SLOPE The slope of the AD8313 can be increased from its nominal value of 18 mV/dB to a maximum of 40 mV/dB by removing R11, the 0 Ω resistor, which shorts VSET to VOUT. VSET and VOUT are now connected through the 20 kΩ potentiometer. The AD8009 must be configured for a gain of 1 to accurately vary the slope of the AD8313. OPERATING IN CONTROLLER MODE To put the AD8313 into controller mode, R7 and R11 should be removed, breaking the link between VOUT and VSET. The VSET pin can then be driven externally via the SMA connector labeled VSET. RF BURST RESPONSE The VOUT pin of the AD8313 is very sensitive to capacitive loading, as a result care must be taken when measuring the device’s response to RF bursts. For best possible response time measurements it is recommended that the AD8009 be used to buffer the output from the AD8313. No connection should be made to TP1, the added load will effect the response time. Rev. E | Page 20 of 24 AD8313 Figure 42. Layout of Signal Layer 01085-C-049 001085-C-048 Data Sheet Figure 43. Signal Layer Silkscreen Rev. E | Page 21 of 24 AD8313 Data Sheet VNEG C7 0.1µF R4 0Ω R12 301Ω Z1 VPS1 C1 680pF C3 0.1µF INHI 1 VSET 7 R9 0Ω 3 INLO COMM 6 4 VPOS PWDN 5 C5 0.1µF R3 0Ω L/R 53.6Ω INLO R2 10Ω AD8009 R11 0Ω AD8313 C4 0.1µF R7 0Ω VOUT R6 OPEN C6 OPEN R8 20kΩ EXT VSET VPS2 R2 10Ω VPS1 R5 0Ω Z2 VOUT 8 INHI 2 C2 680pF VPOS TP1 EXT ENABLE SW1 B 01085-C-046 R1 10Ω R10 OPEN A Figure 44. Evaluation Board Schematic Table 8. Evaluation Board Configuration Options Component VPS1, VPS2, GND, VNEG Z1 Z1 SW1 R7, R8 L/R, C1, C2, R9 R10, R12 R5, R6, C6 R1, R2, R3, R4, C3, C4, C5, C7 Function Supply Pins. VPS1 is the positive supply pin for the AD8313. VPS2 and VNEG are the positive and negative supply pins for the AD8009. If the AD8009 is being operated from a single supply, VNEG should be connected to GND. VPS1 and VPS2 are independent. GND is shared by both devices. AD8313 Logarithmic Amplifier. If the AD8313 is used in measurement mode, it is not necessary to power up the AD8009 op amp. The log output can be measured at TP1 or at the SMA connector labeled VSET. AD8009 Operational Amplifier. Device Enable. When in Position A, the PWDN pin is connected to ground and the AD8313 is in normal operating mode. In Position B, the PWDN pin is connected to an SMA connector labeled ENBL. A signal can be applied to this connector. Slope Adjust. The slope of the AD8313 can be increased from its nominal value of 18 mV/dB to a maximum of 40 mV/dB by removing R11, the 0 Ω resistor, which shorts VSET to VOUT, and installing a 0 Ω resistor at R7. The 20 kΩ potentiometer at R8 can then be used to change the slope. Operating in Controller Mode. To put the AD8313 into controller mode, R7 and R11 should be removed, breaking the link between VOUT and VSET. The VSET pin can then be driven externally via the SMA connector labeled VSET. Input Interface. The 52.3 Ω resistor in position L/R, along with C1 and C2, create a wideband 50 Ω input. Alternatively, the 52.3 Ω resistor can be replaced by an inductor to form an input matching network. See Input Coupling section for more details. Remove the 0 Ω resistor at R9 for differential drive applications. Op Amp Gain Adjust. The AD8009 is initially configured as a buffer; gain = 1. To increase the gain of the op amp, modify the resistor values R10 and R12. Op Amp Output Loading/Filtering. A variety of loading and filtering options are available for the AD8009. The robust output of the op amp is capable of driving low impedances such as 50 Ω or 75 Ω, configure R5 and R6 accordingly. See the AD8009 data sheet for more details. Supply Decoupling. Rev. E | Page 22 of 24 Default Not Applicable Installed Installed SW1 = A R7 = 0 Ω (Size 0603) R8 = installed L/R = 53.6 Ω (Size 0603) C1 = C2 = 680 pF (Size 0603) R9 = 0 Ω (Size 0603) R10 = open (Size 0603) R12 = 301 Ω (Size 0603) R5 = 0 Ω (Size 0603) R6 = open (Size 0603) C6 = open (Size 0603) R1 = R2 = 10 Ω (Size 0603) R3 = R4 = 0 Ω (Size 0603) C3 = C4 = 0.1 µF (Size 0603) C5 = C7 = 0.1 µF (Size 0603) Data Sheet AD8313 NOT CRITICAL DIMENSIONS 35 TRACE WIDTH 15.4 48 54.4 90.6 50 16 28 41 22 75 20 10 19 UNIT = MILS 50 20 27.5 51 91.3 48 126 51.7 01085-C-047 46 Figure 45. Detail of PCB Footprint for Package and Pads for Matching Network Rev. E | Page 23 of 24 AD8313 Data Sheet OUTLINE DIMENSIONS 3.20 3.00 2.80 8 3.20 3.00 2.80 1 5.15 4.90 4.65 5 4 PIN 1 IDENTIFIER 0.65 BSC 0.95 0.85 0.75 15° MAX 1.10 MAX 0.40 0.25 6° 0° 0.23 0.09 COMPLIANT TO JEDEC STANDARDS MO-187-AA 0.80 0.55 0.40 10-07-2009-B 0.15 0.05 COPLANARITY 0.10 Figure 46 . 8-Lead Mini Small Outline Package [MSOP] (RM-8) Dimensions shown in millimeters ORDERING GUIDE Model1 AD8313ARM AD8313ARM-REEL AD8313ARM-REEL7 AD8313ARMZ AD8313ARMZ-REEL AD8313ARMZ-REEL7 AD8313-EVAL AD8313-EVALZ 1 Temperature Range −40°C to +85°C −40°C to +85°C −40°C to +85°C −40°C to +85°C −40°C to +85°C −40°C to +85°C Package Descriptions 8-Lead MSOP 8-Lead MSOP, 13" Tape and Reel 8-Lead MSOP, 7" Tape and Reel 8-Lead MSOP 8-Lead MSOP, 13" Tape and Reel 8-Lead MSOP, 7" Tape and Reel Evaluation Board Evaluation Board Z = RoHS Compliant Part ©1998–2015 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. D01085-0-9/15(E) Rev. E | Page 24 of 24 Package Option RM-8 RM-8 RM-8 RM-8 RM-8 RM-8 Branding J1A J1A J1A J1A J1A J1A
