1 MHz to 2.7 GHz
RF Gain Block
AD8354
Data Sheet
FUNCTIONAL BLOCK DIAGRAM
Fixed gain of 20 dB
Operational frequency of 1 MHz to 2.7 GHz
Linear output power up to 4 dBm
Input/output internally matched to 50 Ω
Temperature and power supply stable
Noise figure: 4.2 dB
Power supply: 3 V or 5 V
BIAS AND VREF
INPT
COM1
APPLICATIONS
VPOS
VOUT
AD8354
COM2
02722-001
FEATURES
Figure 1.
VCO buffers
General Tx/Rx amplification
Power amplifier predrivers
Low power antenna drivers
GENERAL DESCRIPTION
The AD8354 is a broadband, fixed-gain, linear amplifier that
operates at frequencies from 1 MHz up to 2.7 GHz. It is
intended for use in a wide variety of wireless devices, including
cellular, broadband, CATV, and LMDS/MMDS applications.
The noise figure is 4.2 dB at 900 MHz. The reverse isolation
(S12) is −33 dB at 900 MHz.
By taking advantage of ADI’s high performance, complementary Si
bipolar process, these gain blocks provide excellent stability
over process, temperature, and power supply. This amplifier is
single-ended and internally matched to 50 Ω with a return loss
of greater than 10 dB over the full operating frequency range.
The AD8354 can also operate with a 5 V power supply; in
which case, no external inductor is required. Under these
conditions, the AD8354 delivers 4.88 dBm with 20 dB of gain
at 900 MHz. The dc supply current is 26 mA. At 900 MHz, the
OIP3 is greater than 19 dBm; at 2.7 GHz, the OIP3 is 15 dBm.
The noise figure is 4.4 dB at 900 MHz. The reverse isolation
(S12) is −33 dB.
The AD8354 provides linear output power of nearly 4.3 dBm
with 20 dB of gain at 900 MHz when biased at 3 V and an
external RF choke is connected between the power supply and
the output pin. The dc supply current is 24 mA. At 900 MHz,
the output third-order intercept (OIP3) is greater than 18 dBm;
at 2.7 GHz, the OIP3 is 14 dBm.
The AD8354 is fabricated on ADI’s proprietary, high performance,
25 GHz, Si complementary, bipolar IC process. The AD8354 is
available in a chip scale package that uses an exposed paddle for
excellent thermal impedance and low impedance electrical
connection to ground. It operates over a −40°C to +85°C
temperature range, and an evaluation board is also available.
Rev. E
Document Feedback
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700 ©2002–2013 Analog Devices, Inc. All rights reserved.
Technical Support
www.analog.com
AD8354
Data Sheet
TABLE OF CONTENTS
Features .............................................................................................. 1
Typical Performance Characteristics ..............................................7
Applications ....................................................................................... 1
Theory of Operation ...................................................................... 13
Functional Block Diagram .............................................................. 1
Basic Connections ...................................................................... 13
General Description ......................................................................... 1
Applications Information .............................................................. 14
Revision History ............................................................................... 2
Low Frequency Applications Below 100 MHz ........................... 14
Specifications..................................................................................... 3
Evaluation Board ............................................................................ 15
Absolute Maximum Ratings ............................................................ 5
Outline Dimensions ....................................................................... 16
ESD Caution .................................................................................. 5
Ordering Guide .......................................................................... 16
Pin Configuration and Function Descriptions ............................. 6
REVISION HISTORY
11/13—Rev. D to Rev. E
Changes to Figure 2 .......................................................................... 6
Added Figure 35, Renumbered Sequentially .............................. 12
Added Exposed Pad Notation to Outline Dimensions ............. 16
Changes to Ordering Guide .......................................................... 16
3/09—Rev. C to Rev. D
Changes to Lead Temperature (Soldering, 60 sec) Parameter,
Table 3 ................................................................................................ 5
Changes to Ordering Guide .......................................................... 16
12/05—Rev. B to Rev. C
Changes to Table 1 ............................................................................ 3
Changes to Table 2 ............................................................................ 4
Moved Figure 39 to Page 15; Renumbered Sequentially ........... 15
Changes to Ordering Guide .......................................................... 16
8/05—Rev. A to Rev. B
Updated Format .................................................................. Universal
Changes to Product Title, Features, and General Description ....1
Changes to Basic Connections Section ....................................... 13
Added Low Frequency Applications Below 100 MHz Section 14
Changes to Ordering Guide .......................................................... 16
Updated Outline Dimensions ....................................................... 16
6/02—Rev. 0 to Rev. A
Changes to Ordering Guide .............................................................4
Replaced TPC 34 ............................................................................ 10
Updated Outline Dimensions ....................................................... 13
2/02—Revision 0: Initial Version
Rev. E | Page 2 of 16
Data Sheet
AD8354
SPECIFICATIONS
VS = 3 V, TA = 25°C, 100 nH external inductor between VOUT and VPOS, ZO = 50 Ω, unless otherwise noted.
Table 1.
Parameter
OVERALL FUNCTION
Frequency Range
Gain
Delta Gain
Gain Supply Sensitivity
Reverse Isolation (S12)
RF INPUT INTERFACE
Input Return Loss
RF OUTPUT INTERFACE
Output Compression Point
Delta Compression Point
Output Return Loss
DISTORTION/NOISE
Output Third-Order Intercept
Output Second-Order Intercept
Noise Figure
POWER INTERFACE
Supply Voltage
Total Supply Current
Supply Voltage Sensitivity
Temperature Sensitivity
Conditions
Min
Typ
1
Max
Unit
2700
f = 900 MHz
f = 1.9 GHz
f = 2.7 GHz
f = 900 MHz, −40°C ≤ TA ≤ +85°C
f = 1.9 GHz, −40°C ≤ TA ≤ +85°C
f = 2.7 GHz, −40°C ≤ TA ≤ +85°C
VPOS ± 10%, f = 900 MHz
f = 1.9 GHz
f = 2.7 GHz
f = 900 MHz
f = 1.9 GHz
f = 2.7 GHz
Pin INPT
f = 900 MHz
f = 1.9 GHz
f = 2.7 GHz
Pin VOUT
f = 900 MHz, 1 dB compression
f = 1.9 GHz
f = 2.7 GHz
f = 900 MHz, −40°C ≤ TA ≤ +85°C
f = 1.9 GHz, −40°C ≤ TA ≤ +85°C
f = 2.7 GHz, −40°C ≤ TA ≤ +85°C
f = 900 MHz
f = 1.9 GHz
f = 2.7 GHz
19.5
18.6
17.1
−0.97
−1.05
−1.33
0.54
0.37
0.2
−33.5
−38
−32.9
MHz
dB
dB
dB
dB
dB
dB
dB/V
dB/V
dB/V
dB
dB
dB
24.4
23
12.7
dB
dB
dB
4.6
3.7
2.7
0.7
0.7
0.8
23.6
16.5
14.6
dBm
dBm
dBm
dB
dB
dB
dB
dB
dB
f = 900 MHz, ∆f = 1 MHz, PIN = −28 dBm
f = 1.9 GHz, ∆f = 1 MHz, PIN = −28 dBm
f = 2.7 GHz, ∆f = 1 MHz, PIN = −28 dBm
f = 900 MHz, ∆f = 1 MHz, PIN = −28 dBm
f = 900 MHz
f = 1.9 GHz
f = 2.7 GHz
Pin VPOS
19
16
14.2
29.7
4.2
4.8
5.4
dBm
dBm
dBm
dBm
dB
dB
dB
2.7
16
−40°C ≤ TA ≤ +85°C
Rev. E | Page 3 of 16
3
23
6.2
33
3.3
31
V
mA
mA/V
µA/°C
AD8354
Data Sheet
VS = 5 V, TA = 25°C, no external inductor between VOUT and VPOS, ZO = 50 Ω, unless otherwise noted.
Table 2.
Parameter
OVERALL FUNCTION
Frequency Range
Gain
Delta Gain
Gain Supply Sensitivity
Reverse Isolation (S12)
RF INPUT INTERFACE
Input Return Loss
RF OUTPUT INTERFACE
Output Compression Point
Delta Compression Point
Output Return Loss
DISTORTION/NOISE
Output Third-Order Intercept
Output Second-Order Intercept
Noise Figure
POWER INTERFACE
Supply Voltage
Total Supply Current
Supply Voltage Sensitivity
Temperature Sensitivity
Conditions
Min
Typ
1
Max
Unit
2700
f = 900 MHz
f = 1.9 GHz
f = 2.7 GHz
f = 900 MHz, −40°C ≤ TA ≤ +85°C
f = 1.9 GHz, −40°C ≤ TA ≤ +85°C
f = 2.7 GHz, −40°C ≤ TA ≤ +85°C
VPOS ± 10%, f = 900 MHz
f = 1.9 GHz
f = 2.7 GHz
f = 900 MHz
f = 1.9 GHz
f = 2.7 GHz
Pin INPT
f = 900 MHz
f = 1.9 GHz
f = 2.7 GHz
Pin VOUT
f = 900 MHz
f = 1.9 GHz
f = 2.7 GHz
f = 900 MHz, −40°C ≤ TA ≤ +85°C
f = 1.9 GHz, −40°C ≤ TA ≤ +85°C
f = 2.7 GHz, −40°C ≤ TA ≤ +85°C
f = 900 MHz
f = 1.9 GHz
f = 2.7 GHz
19.5
18.7
17.3
−0.93
−0.99
−1.21
0.32
0.21
0.08
−33.5
−37.6
−32.9
MHz
dB
dB
dB
dB
dB
dB
dB/V
dB/V
dB/V
dB
dB
dB
24.4
23.9
13.5
dB
dB
dB
4.8
4.6
3.6
0.37
−0.14
−0.05
23.7
22.5
17.6
dBm
dBm
dBm
dB
dB
dB
dB
dB
dB
f = 900 MHz, ∆f = 50 MHz, PIN = −30 dBm
f = 1.9 GHz, ∆f = 50 MHz, PIN = −30 dBm
f = 2.7 GHz, ∆f = 50 MHz, PIN = −30 dBm
f = 900 MHz, ∆f = 1 MHz, PIN = −28 dBm
f = 900 MHz
f = 1.9 GHz
f = 2.7 GHz
Pin VPOS
19.3
17.3
15.3
28.7
4.4
5
5.6
dBm
dBm
dBm
dBm
dB
dB
dB
4.5
17
TA = 27°C
−40°C ≤ TA ≤ +85°C
Rev. E | Page 4 of 16
5
25
4
28
5.5
34
V
mA
mA/V
µA/°C
Data Sheet
AD8354
ABSOLUTE MAXIMUM RATINGS
Table 3.
Parameter
Supply Voltage, VPOS
Input Power (re: 50 Ω)
Equivalent Voltage
Internal Power Dissipation
Paddle Not Soldered
Paddle Soldered
θJA (Paddle Soldered)
θJA (Paddle Not Soldered)
Maximum Junction Temperature
Operating Temperature Range
Storage Temperature Range
Lead Temperature (Soldering, 60 sec)
AD8354ACP (Non-RoHS Compliant)
AD8354ACPZ (RoHS Compliant)
Rating
5.5 V
10 dBm
700 mV rms
325 mW
812 mW
80°C/W
200°C/W
150°C
−40°C to +85°C
−65°C to +150°C
Stresses above those listed under Absolute Maximum Ratings
may cause permanent damage to the device. This is a stress
rating only; functional operation of the device at these or any
other conditions above those indicated in the operational
section of this specification is not implied. Exposure to absolute
maximum rating conditions for extended periods may affect
device reliability.
ESD CAUTION
240°C
260°C
Rev. E | Page 5 of 16
AD8354
Data Sheet
PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
8 COM1
COM1 1
INPT 3
COM2 4
AD8354
TOP VIEW
7 VOUT
6 VPOS
5 COM2
NOTES
1. NC = NO CONNECT.
2. THE EXPOSED PAD MUST BE CONNECTED
TO A LOW IMPEDANCE GROUND PAD.
02722-041
NC 2
Figure 2. Pin Configuration
Table 4. Pin Function Descriptions
Pin No.
1, 8
2
3
4, 5
6
7
Mnemonic
COM1
NC
INPT
COM2
VPOS
VOUT
Description
Device Common. Connect to low impedance ground.
No Connection.
RF Input Connection. Must be ac-coupled.
Device Common. Connect to low impedance ground.
Positive Supply Voltage.
RF Output Connection. Must be ac-coupled.
Rev. E | Page 6 of 16
Data Sheet
AD8354
TYPICAL PERFORMANCE CHARACTERISTICS
90
90
120
60
150
150
30
180
330
0
330
210
02722-002
300
240
30
180
0
210
60
300
240
270
02722-005
120
270
Figure 3. S11 vs. Frequency, VS = 3 V, TA = 25°C, 100 MHz ≤ f ≤ 3 GHz
Figure 6. S22 vs. Frequency, VS = 3 V, TA = 25°C, 100 MHz ≤ f ≤ 3 GHz
25
25
GAIN AT 3.3V
20
GAIN AT –40°C
20
GAIN AT 3.0V
GAIN (dB)
10
5
GAIN AT +25°C
GAIN AT +85°C
10
0
500
1000
1500
2000
FREQUENCY (MHz)
2500
3000
02722-003
5
0
0
500
1000
1500
2000
2500
3000
Figure 7. Gain vs. Frequency, VS = 3 V, TA = −40°C, +25°C, and +85°C
0
0
–5
–5
REVERSE ISOLATION (dB)
–10
–15
–20
–25
–30
0
FREQUENCY (MHz)
Figure 4. Gain vs. Frequency, VS = 2.7 V, 3 V, and 3.3 V, TA = 25°C
REVERSE ISOLATION (dB)
15
02722-006
GAIN (dB)
GAIN AT 2.7V
15
S12 AT 3.3V
–10
–15
–20
–25
S12 AT –40°C
–30
S12 AT +25°C
S12 AT 2.7V
0
500
S12 AT 3.0V
1000
1500
2000
FREQUENCY (MHz)
2500
3000
Figure 5. Reverse Isolation vs. Frequency, VS = 2.7 V, 3 V, and 3.3 V, TA = 25°C
S12 AT +85°C
–40
02722-004
–40
0
500
1500
2000
1000
FREQUENCY (MHz)
2500
3000
02722-007
–35
–35
Figure 8. Reverse Isolation vs. Frequency, VS = 3 V, TA = −40°C, +25°C, and +85°C
Rev. E | Page 7 of 16
AD8354
Data Sheet
7
6
P1dB AT +85°C
6
5
P1dB AT 3.3V
5
4
P1dB (dBm)
P1dB (dBm)
4
3
P1dB
(dBm)
P1dB AT
3.0V
2
P1dB AT +25°C
3
P1dB AT –40°C
2
P1dB AT 2.7V
1
1
0
500
1000
1500
2000
2500
3000
0
0
500
1000
FREQUENCY (MHz)
2500
3000
Figure 12. P1dB vs. Frequency, VS = 3 V, TA = −40°C, +25°C, and +85°C
50
50
45
45
40
40
35
35
30
30
PERCENT
25
20
25
20
15
15
5
5
2.6 2.7 2.8 2.9 3.0 3.1 3.2 3.3 3.4 3.5 3.6 3.7 3.8
OUTPUT 1dB COMPRESSION POINT (dBm)
0
14.4
02722-009
0
2.5
14.6
14.8
15.0
15.2
15.4
OIP3 (dBm)
15.6
15.8
16.0
02722-012
10
10
Figure 13. Distribution of OIP3, VS = 3 V, TA = 25°C, f = 2.2 GHz
Figure 10. Distribution of P1dB, VS = 3 V, TA = 25°C, f = 2.2 GHz
22
22
OIP3 AT 3.3V
20
18
18
OIP3 (dBm)
20
16
OIP3 AT 3.0V
14
OIP3 AT +25°C
16
OIP3 AT +85°C
14
OIP3 AT 2.7V
12
12
10
0
500
1000
1500
2000
2500
3000
02722-010
OIP3 AT –40°C
10
0
500
1000
1500
2000
2500
3000
FREQUENCY (MHz)
FREQUENCY (MHz)
Figure 11. OIP3 vs. Frequency, VS = 2.7 V, 3 V, and 3.3 V, TA = 25°C
Figure 14. OIP3 vs. Frequency, VS = 3 V, TA = −40°C, +25°C, and +85°C
Rev. E | Page 8 of 16
02722-013
PERCENTAGE
2000
FREQUENCY (MHz)
Figure 9. P1dB vs. Frequency, VS = 2.7 V, 3 V, and 3.3 V, TA = 25°C
OIP3 (dBm)
1500
02722-011
–1
02722-008
0
Data Sheet
AD8354
6.5
6.0
5.8
6.0
5.4
5.2
5.0
5.5
NOISE FIGURE (dB)
NOISE FIGURE (dB)
5.6
NF AT 3.0V
4.8
NF AT 3.3V
4.6
5.0
NF AT +85°C
4.5
NF AT +25°C
4.0
NF AT –40°C
4.4
02722-017
3.5
4.2
NF AT 2.7V
0
500
1000
1500
2500
2000
3000
FREQUENCY (MHz)
3.0
02722-014
4.0
Figure 15. Noise Figure vs. Frequency, VS = 2.7 V, 3 V, and 3.3 V, TA = 25°C
0
1000
2000
1500
FREQUENCY (MHz)
500
2500
3000
Figure 18. Noise Figure vs. Frequency, VS = 3 V, TA = −40°C, +25°C, and +85°C
40
30
IS AT 3.3V
35
25
SUPPLY CURRENT (mA)
30
PERCENTAGE
25
20
15
10
20
IS AT 2.7V
IS AT 3.0V
15
10
5
NOISE FIGURE (dB)
0
–60
02722-015
0
4.70 4.75 4.80 4.85 4.90 4.95 5.00 5.05 5.10 5.15 5.20 5.25
Figure 16. Distribution of Noise Figure, VS = 3 V, TA = 25°C, f = 2.2 GHz
02722-018
5
–40
60
80
100
90
120
60
150
30
0
180
270
0
330
210
02722-016
300
30
180
330
210
60
300
240
270
Figure 20. S22 vs. Frequency, VS = 5 V, TA = 25°C, 100 MHz ≤ f ≤ 3 GHz
Figure 17. S11 vs. Frequency, VS = 5 V, TA = 25°C, 100 MHz ≤ f ≤ 3 GHz
Rev. E | Page 9 of 16
02722-019
150
240
0
20
40
TEMPERATURE (°C)
Figure 19. Supply Current vs. Temperature, VS = 2.7 V, 3 V, and 3.3 V
90
120
–20
AD8354
Data Sheet
25
25
GAIN AT –40°C
�
GAIN AT 5.5V
20
GAIN AT 5.0V
15
GAIN AT 4.5V
GAIN (dB)
GAIN (dB)
20
10
15
�
GAIN AT +25°C
10
GAIN AT +85°C
5
0
0
500
1000
1500
2000
2500
02722-023
02722-020
5
0
3000
0
500
1000
FREQUENCY (MHz)
0
0
–5
–5
–10
–10
2500
3000
–20
S12 AT 4.5V
S12 AT 5.5V
–30
–35
–15
–20
S12 AT –40°C
–25
S12 AT +85°C
S12 AT +25°C
–30
02722-024
–15
S12 AT 5.0V
2000
Figure 24. Gain vs. Frequency, VS = 5 V, TA = −40°C, +25°C, and +85°C
REVERSE ISOLATION (dB)
REVERSE ISOLATION (dB)
Figure 21. Gain vs. Frequency, VS = 4.5 V, 5 V, and 5.5 V, TA = 25°C
–25
1500
FREQUENCY (MHz)
–40
0
500
1000
1500
2000
FREQUENCY (MHz)
2500
3000
02722-021
–35
–40
0
500
1000
1500
2000
2500
3000
FREQUENCY (MHz)
Figure 22. Reverse Isolation vs. Frequency, VS = 4.5 V, 5 V, and 5.5 V, TA = 25°C
Figure 25. Reverse Isolation vs. Frequency, VS = 5 V, TA = −40°C, +25°C, and +85°C
6
7
P1dB AT +85°C
6
P1dB AT 5.5V
5
5
P1dB AT –40°C
P1dB (dBm)
4
P1dB AT 5.0V
3
P1dB AT 4.5V
P1dB AT +25°C
3
2
2
0
0
500
1000
1500
2000
FREQUENCY (MHz)
2500
02722-025
1
1
02722-022
P1dB (dBm)
4
0
3000
0
500
1000
1500
2000
2500
3000
FREQUENCY (MHz)
Figure 26. P1dB vs. Frequency, VS = 5 V, TA = –40°C, +25°C, and +85°C
Figure 23. P1dB vs. Frequency, VS = 4.5 V, 5 V, and 5.5 V, TA = 25°C
Rev. E | Page 10 of 16
Data Sheet
AD8354
35
50
45
30
40
25
PERCENTAGE
PERCENTAGE
35
30
25
20
15
20
15
10
10
02722-029
5
02722-026
5
0
16.0 16.1 16.2 16.3 16.4 16.5 16.6 16.7 16.8 16.9 17.0 17.1 17.2
OIP3 (dBm)
0
3.95 4.00 4.05 4.10 4.15 4.20 4.25 4.30 4.35 4.40 4.45 4.50
OUTPUT 1dB COMPRESSION POINT (dBm)
Figure 27. Distribution of P1dB, VS = 5 V, TA = 25°C, f = 2.2 GHz
Figure 30. Distribution of OIP3, VS = 5 V, TA = 25°C, f = 2.2 GHz
22
22
OIP3 AT –40°C
18
18
16
OIP3 AT 5.0V
OIP3 AT 4.5V
OIP3 AT +25°C
16
14
14
12
12
10
0
500
1000
1500
2000
2500
OIP3 AT +85°C
02722-030
OIP3 (dBm)
20
02722-027
OIP3 (dBm)
OIP3 AT 5.5V
20
10
3000
0
500
FREQUENCY (MHz)
1000
1500
2000
2500
3000
FREQUENCY (MHz)
Figure 31. OIP3 vs. Frequency, VS = 5 V, TA = –40°C, +25°C, and +85°C
Figure 28. OIP3 vs. Frequency, VS = 4.5 V, 5 V, and 5.5 V, TA = 25°C
7.5
7.0
7.0
6.5
NOISE FIGURE (dB)
6.0
5.5
NF AT 5.5V
5.0
6.0
5.5
5.0
NF AT +85°C
4.5
NF AT +25°C
4.0
NF AT 4.5V
NF AT 5.0V
4.0
0
500
1000
1500
2000
2500
02722-031
4.5
02722-028
NOISE FIGURE (dB)
6.5
NF AT –40°C
3.5
3.0
0
3000
500
1000
1500
2000
2500
3000
FREQUENCY (MHz)
FREQUENCY (MHz)
Figure 29. Noise Figure vs. Frequency, VS = 4.5 V, 5 V, and 5.5 V, TA = 25°C
Figure 32. Noise Figure vs. Frequency, VS = 5 V, TA = –40°C, +25°C, and +85°C
Rev. E | Page 11 of 16
AD8354
Data Sheet
40
15
20
10
19
5
18
0
17
–5
16
–10
15
35
20
15
GAIN (dB)
25
POUT (dBm)
PERCENTAGE
30
0
4.5
02722-032
5
4.6
4.7
4.8
4.9 5.0 5.1 5.2
NOISE FIGURE (dB)
5.3
5.4
5.5
–15
–15
–10
–5
0
Figure 36. Output Power and Gain vs. Input Power, VS = 3 V, TA = 25°C, f = 900 MHz
IS AT 5.5V
15
20
10
19
5
18
0
17
–5
16
–10
15
IS AT 4.5V
20
IS AT 5.0V
15
GAIN (dB)
25
POUT (dBm)
10
0
–60
02722-033
5
–40
–20
0
20
40
60
80
–15
–30
100
Figure 34. Supply Current vs. Temperature, VS = 4.5 V, 5 V, and 5.5 V
IS AT 5V, +85°C
IS AT 3V, +85°C
26
24
22
IS AT 5V, +25°C
IS AT 3V, +25°C
IS AT 5V, –40°C
IS AT 3V, –40°C
20
–8
–6
–4
–2
0
2
4
POUT (dBm)
6
02722-135
18
16
–10
–15
–10
–5
0
14
Figure 37. Output Power and Gain vs. Input Power, VS = 5 V, TA = 25°C, f = 900 MHz
32
28
–20
PIN (dBm)
TEMPERATURE (°C)
30
–25
02722-035
SUPPLY CURRENT (mA)
–20
PIN (dBm)
35
SUPPLY CURRENT (mA)
–25
5.6
Figure 33. Distribution of Noise Figure, VS = 5 V, TA = 25°C, f = 2.2 GHz
30
14
–30
02722-034
10
Figure 35. Supply Current vs. POUT and Temperature, VS = 5 V
Rev. E | Page 12 of 17
Data Sheet
AD8354
THEORY OF OPERATION
The AD8354 is a 2-stage, feedback amplifier employing both
shunt-series and shunt-shunt feedback. The first stage is
degenerated and resistively loaded and provides approximately
10 dB of gain. The second stage is a PNP-NPN Darlington
output stage, which provides another 10 dB of gain. Seriesshunt feedback from the emitter of the output transistor sets the
input impedance to 50 Ω over a broad frequency range. Shuntshunt feedback from the amplifier output to the input of the
Darlington stage helps to set the output impedance to 50 Ω. The
amplifier can be operated from a 3 V supply by adding a choke
inductor from the amplifier output to VPOS. Without this
choke inductor, operation from a 5 V supply is also possible.
It is critical to supply very low inductance ground connections
to the ground pins (Pin 1, Pin 4, Pin 5, and Pin 8) as well as to
the backside exposed paddle. This ensures stable operation.
BASIC CONNECTIONS
When the supply voltage is 3 V, it is recommended that an
external RF choke be connected between the supply voltage
and the output pin, VOUT. This increases the dc voltage applied
to the collector of the output amplifier stage, which improves
performance of the AD8354 to be very similar to the performance
produced when 5 V is used for the supply voltage. The inductance
of the RF choke should be approximately 100 nH, and care
should be taken to ensure that the lowest series self-resonant
frequency of this choke is well above the maximum frequency
of operation for the AD8354.
The AD8354 RF gain block is a fixed gain amplifier with singleended input and output ports whose impedances are nominally
equal to 50 Ω over the frequency range 1 MHz to 2.7 GHz.
Consequently, it can be directly inserted into a 50 Ω system
with no impedance matching circuitry required. The input and
output impedances are sufficiently stable vs. variations in
temperature and supply voltage that no impedance matching
compensation is required. A complete set of scattering
parameters is available at www.analog.com.
The input pin (INPT) is connected directly to the base of the
first amplifier stage, which is internally biased to approximately 1 V;
therefore, a dc blocking capacitor should be connected between the
source that drives the AD8354 and the input pin, INPT.
The AD8354 is designed to operate over a wide supply voltage
range, from 2.7 V to 5.5 V. The output of the part, VOUT, is
taken directly from the collector of the output amplifier stage.
This node is internally biased to approximately 3.2 V when the
supply voltage is 5 V. Consequently, a dc blocking capacitor
should be connected between the output pin, VOUT, and the
load that it drives. The value of this capacitor is not critical, but
it should be 100 pF or larger.
Bypass the supply voltage input, VPOS, using a large value
capacitance (approximately 0.47 µF or larger) and a smaller,
high frequency bypass capacitor (approximately 100 pF)
physically located close to the VPOS pin.
The recommended connections and components are shown in
Figure 41.
Rev. E | Page 13 of 16
AD8354
Data Sheet
APPLICATIONS INFORMATION
The AD8354 RF gain block can be used as a general-purpose,
fixed gain amplifier in a wide variety of applications, such as a
driver for a transmitter power amplifier (see Figure 38). Its
excellent reverse isolation also makes this amplifier suitable for
use as a local oscillator buffer amplifier that would drive the
local oscillator port of an upconverter or downconverter mixer
(see Figure 39).
LOW FREQUENCY APPLICATIONS BELOW 100 MHz
The AD8354 RF gain block can be used below 100 MHz. To
accomplish this, the series dc blocking capacitors, C1 and C2,
need to be changed to a higher value that is appropriate for the
desired frequency. C1 and C2 were changed to 0.1 µF to accomplish
the sweeps in Figure 40.
21.5
dB-S21
Mkr 1:
97.638034MHz
19.40dB
21.0
HIGH POWER
AMPLIFIER
02722-036
20.5
AD8354
20.0
1
19.5
Figure 38. AD8354 as a Driver Amplifier
19.0
18.5
MIXER
18.0
02722-042
17.5
AD8354
LOCAL OSCILLATOR
02722-037
17.0
16.5
CH 1: START 300.000kHz
Figure 39. AD8354 as a LO Driver Amplifier
STOP 100.000MHz
Figure 40. Low Frequency Application from
300 kHz to 100 MHz at 5 V VPOS, −12 dBm Input Power
Rev. E | Page 14 of 16
Data Sheet
AD8354

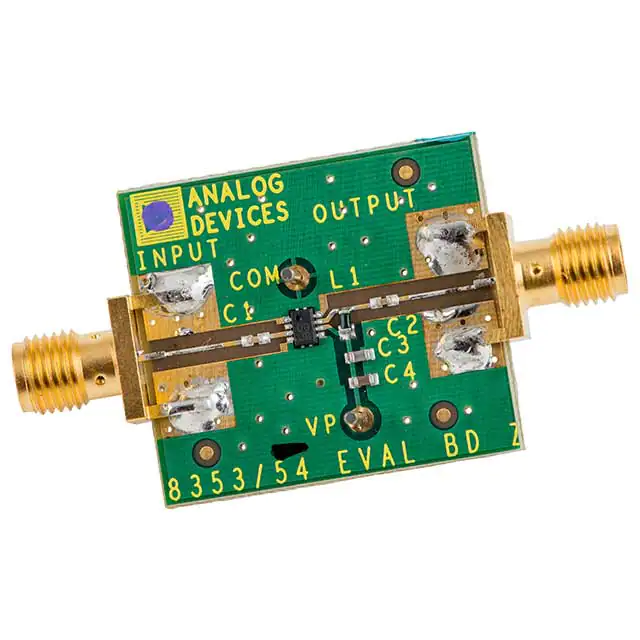

EVALUATION BOARD
Figure 41 shows the schematic of the AD8354 evaluation board.
Note that L1 is shown as an optional component that is used to
obtain maximum gain only when VP = 3 V. The board is powered
by a single supply in the 2.7 V to 5.5 V range. The power supply
is decoupled by a 0.47 µF and a 100 pF capacitor.
AD8354
1
2
NC
COM1 8
VOUT
C2
1000pF
OUTPUT
C3
100pF
C4
0.47µF
7
C1
1000pF
L1
4
INPT
COM2
VPOS 6
COM2 5
NC = NO CONNECT
02722-039
3
02722-038
INPUT
COM1
Figure 42. Silkscreen Top
Figure 41. Evaluation Board Schematic
Table 5. Evaluation Board Configuration Options
Function
AC coupling capacitors.
C3
High frequency bypass capacitor.
C4
Low frequency bypass capacitor.
L1
Optional RF choke, used to increase
current through output stage when
VP = 3 V. Not recommended for use
when VP = 5 V.
Default
Value
1000 pF,
0603
100 pF,
0603
0.47 µF,
0603
100 nH,
0603
02722-040
Component
C1, C2
Figure 43. Component Side
Rev. E | Page 15 of 16
AD8354
Data Sheet
OUTLINE DIMENSIONS
3.25
3.00
2.75
4
BOTTOM VIEW
2.95
2.75
2.55
12° MAX
1
0.15
0.10
0.05
0.50 BSC
FOR PROPER CONNECTION OF
THE EXPOSED PAD, REFER TO
THE PIN CONFIGURATION AND
FUNCTION DESCRIPTIONS
SECTION OF THIS DATA SHEET.
0.80 MAX
0.65 TYP
0.05 MAX
0.02 NOM
0.30
0.23
0.18
0.20 REF
03-11-2013-B
SEATING
PLANE
EXPOSEDPAD
0.60
0.45
0.30
TOP VIEW
PIN 1
INDICATOR
0.25
0.20
0.15
8
5
2.25
2.00
1.75
1.95
1.75
1.55
1.00
0.85
0.80
1.89
1.74
1.59
0.55
0.40
0.30
Figure 44. 8-Lead Lead Frame Chip Scale Package [LFCSP_VD]
2 mm × 3 mm Body, Very Thin, Dual Lead
CP-8-1
Dimensions shown in millimeters
ORDERING GUIDE
Model 1
AD8354ACPZ-REEL7
AD8354-EVALZ
1
Temperature Range
−40°C to +85°C
Package Description
8-Lead LFCSP_VD, 7" Tape and Reel
Evaluation Board
Z = RoHS Compliant Part.
©2002–2013 Analog Devices, Inc. All rights reserved. Trademarks and
registered trademarks are the property of their respective owners.
D02722-0-11/13(E)
Rev. E | Page 16 of 16
Package Option
CP-8-1
Branding
0G
工商网监
湘ICP备2023018690号
