LTC3310S/LTC3310S-1
LTC3310/LTC3310-1
5V, 10A Synchronous Step-Down
Silent Switcher 2 in 3mm × 3mm LQFN
FEATURES
DESCRIPTION
Silent Switcher®2 Architecture: Ultralow EMI
Emissions (LTC3310S and LTC3310S-1)
n High Efficiency: 4.5mΩ NMOS and 16mΩ PMOS
n Wide Bandwidth, Fast Transient Response
n Safely Tolerates Inductor Saturation in Overload
n V Range: 2.25V to 5.5V
IN
n V
OUT Range: 0.5V to VIN
n V
OUT Accuracy: ±1% with Remote Sense
n Peak Current Mode Control
n 35ns Minimum On-Time
n Programmable Frequency to 5MHz
n Shutdown Current: 1µA
n Precision 400mV Enable Threshold
n Output Soft-Start with Voltage Tracking
n Power Good Output
n Die Temperature Monitor
n Configurable for Paralleling Power Stages
n Thermally-Enhanced 3mm × 3mm LQFN Package
n AEC-Q100 Qualified for Automotive Applications
The LTC®3310S is a very small, low noise, monolithic
step-down DC/DC converter capable of providing up to
10A of output current from a 2.25V to 5.5V input supply.
The device employs Silent Switcher 2 architecture with
internal hot loop bypass capacitors to achieve both low
EMI and high efficiency at switching frequencies as high
as 5MHz. For systems with higher power requirements,
multi-phasing parallel converters is readily implemented.
PART NUMBER
Silent Switcher
VOUT
APPLICATIONS
LTC3310S
SS2
Adjustable
LTC3310S-1
SS2
Fixed 1V
LTC3310
SS1
Adjustable
LTC3310-1
SS1
Fixed 1V
n
The LTC3310S uses a constant-frequency, peak current
mode control architecture for fast transient response. A
500mV reference allows for low voltage outputs. 100%
duty cycle operation delivers low drop out.
Other features include a power good signal when the output is in regulation, precision enable threshold, output
overvoltage protection, thermal shutdown, a temperature
monitor, clock synchronization, mode selection and output short circuit protection.
Automotive/Industrial/Communications
n Servers, Telecom Power Supplies
n Distributed DC Power Systems (POL)
n FPGA, ASIC, µP Core Supplies
n
All registered trademarks and trademarks are the property of their respective owners.
TYPICAL APPLICATION
Efficiency vs Load Current
1.2V 10A Step-Down Converter
VIN
2.25V TO 5V
100
3.0
90
MODE/SYNC
PGOOD LTC3310S
80
100nH
70
2.1
60
1.8
50
1.5
40
1.2
SW
15pF
FB
100k
SSTT
0.1µF
ITH
PGND
10k
140k
VOUT
1.2V
10A
22µF
×3
AGND
30
RT
20
3310S1 TA01a
274k
220pF
L = XEL4030-101ME, COILCRAFT
0.9
POWER LOSS
10
0
2.4
0
1
2
0.6
VIN = 3.3V
VOUT = 1.2V
fOSC = 2MHz
3 4 5 6 7
LOAD CURRENT (A)
8
9
0.3
10
3310S1 TA01b
Document Feedback
For more information www.analog.com
POWER LOSS (W)
EN
VIN
2.7
EFFICIENCY
22µF
EFFICIENCY (%)
22µF
0
Rev. F
1
LTC3310S/LTC3310S-1
LTC3310/LTC3310-1
ABSOLUTE MAXIMUM RATINGS
PIN CONFIGURATION
(Note 1)
FB or VOUT
ITH
SSTT
RT
TOP VIEW
18
17
16
15
14 PGOOD
EN 1
13 MODE/SYNC
AGND 2
19
PGND
VIN 3
12 VIN
11 VIN
VIN 4
10 PGND
6
7
8
9
SW
SW
SW
PGND 5
SW
VIN .............................................................. –0.3V to 6V
EN, SSTT.............. –0.3V to Lesser of (VIN + 0.3V) or 6V
MODE/SYNC......... –0.3V to Lesser of (VIN + 0.3V) or 6V
RT......................... –0.3V to Lesser of (VIN + 0.3V) or 6V
FB or VOUT............ –0.3V to Lesser of (VIN + 0.3V) or 6V
PGOOD.......................................................... –0.3V to 6V
IPGOOD.......................................................................5mA
Operating Junction Temperature Range (Notes 2, 3)
LTC3310SE/LTC3310SE-1................... –40°C to 125°C
LTC3310SI/LTC3310SI-1..................... –40°C to 125°C
LTC3310J/LTC3310J-1........................ –40°C to 150°C
LTC3310H/LTC3310H-1...................... –40°C to 150°C
Storage Temperature............................. –65˚C to +150°C
Maximum Reflow (Package Body) Temperature.... 260°C

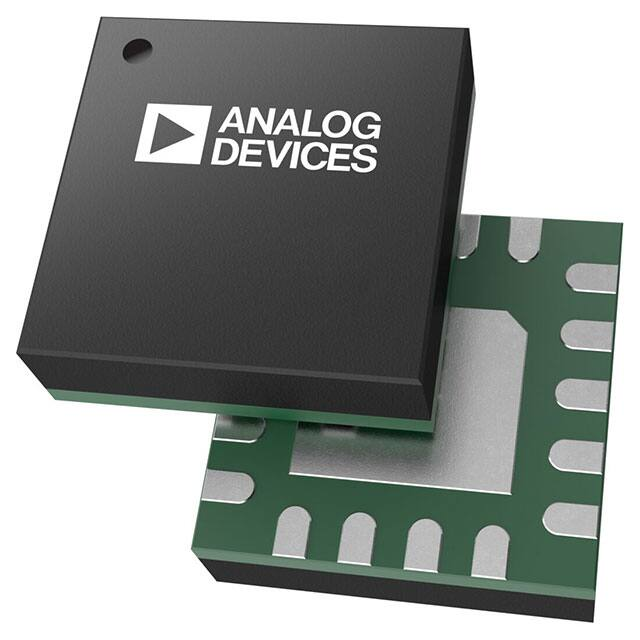

LQFN PACKAGE
18-LEAD (3mm × 3mm)
θJA = 42°C/W, θJCbottom = 9°C/W, θJCtop = 62°C/W, θJB = 14°C/W
ΨJT = 1.25°C/W, θ VALUES DETERMINED PER JESD51-12
EXPOSED PAD (PIN 19) IS PGND, MUST BE SOLDERED TO PCB
ORDER INFORMATION
LEAD FREE FINISH
AUTOMOTIVE PRODUCTS**
PART MARKING*
PACKAGE DESCRIPTION
TEMPERATURE RANGE
LTC3310S
LTC3310SEV#PBF
LTC3310SEV#WPBF
LTC3310SIV#PBF
LTC3310SIV#WPBF
LTC3310SEV#TRPBF
LTC3310SEV#WTRPBF
LTC3310SIV#TRPBF
LTC3310SIV#WTRPBF
LTC3310SEV#TRMPBF
LTC3310SEV#WTRMPBF
LTC3310SIV#TRMPBF
LTC3310SIV#WTRMPBF
LHCN
18-Lead (3mm × 3mm) LQFN (Laminate
Package with QFN Footprint)
–40°C to 125°C
LHKG
18-Lead (3mm × 3mm) LQFN (Laminate
Package with QFN Footprint)
–40°C to 125°C
LTC3310S-1
LTC3310SEV-1#PBF
LTC3310SEV-1#WPBF
LTC3310SIV-1#PBF
LTC3310SIV-1#WPBF
LTC3310SEV-1#TRPBF
LTC3310SEV-1#WTRPBF
LTC3310SIV-1#TRPBF
LTC3310SIV-1#WTRPBF
LTC3310SEV-1#TRMPBF
LTC3310SEV-1#WTRMPBF
LTC3310SIV-1#TRMPBF
LTC3310SIV-1#WTRMPBF
Rev. F
2
For more information www.analog.com
LTC3310S/LTC3310S-1
LTC3310/LTC3310-1
ORDER INFORMATION
LEAD FREE FINISH
AUTOMOTIVE PRODUCTS**
PART MARKING*
PACKAGE DESCRIPTION
TEMPERATURE RANGE
LTC3310
LTC3310JV#PBF
LTC3310JV#WPBF
LTC3310HV#PBF
LTC3310HV#WPBF
LTC3310JV#TRPBF
LTC3310JV#WTRPBF
LTC3310HV#TRPBF
LTC3310HV#WTRPBF
LTC3310JV#TRMPBF
LTC3310JV#WTRMPBF
LTC3310HV#TRMPBF
LTC3310HV#WTRMPBF
LHGW
18-Lead (3mm × 3mm) LQFN (Laminate
Package with QFN Footprint)
–40°C to 150°C
LHMP
18-Lead (3mm × 3mm) LQFN (Laminate
Package with QFN Footprint)
–40°C to 150°C
LTC3310-1
LTC3310JV-1#PBF
LTC3310JV-1#WPBF
LTC3310HV-1#PBF
LTC3310HV-1#WPBF
LTC3310JV-1#TRPBF
LTC3310JV-1#WTRPBF
LTC3310HV-1#TRPBF
LTC3310HV-1#WTRPBF
LTC3310JV-1#TRMPBF
LTC3310JV-1#WTRMPBF
LTC3310HV-1#TRMPBF
LTC3310HV-1#WTRMPBF
Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container.
Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
**Versions of this part are available with controlled manufacturing to support the quality and reliability requirements of automotive applications. These
models are designated with a #W suffix. Only the automotive grade products shown are available for use in automotive applications. Contact your
local Analog Devices account representative for specific product ordering information and to obtain the specific Automotive Reliability reports for
these models.
ELECTRICAL CHARACTERISTICS
The l denotes the specifications which apply over the specified
operating temperature range, otherwise specifications are at TA = 25°C. (Notes 2, 3) VIN = 3.3V, VEN = VIN, MODE/SYNC = 0V,
unless otherwise noted.
PARAMETER
CONDITIONS
MIN
TYP
MAX
UNITS
Input Supply
Operating Supply Voltage (VIN)
VIN Undervoltage Lockout
VIN Undervoltage Lockout Hysteresis
VIN Rising
VIN Quiescent Current
VIN Quiescent Current in Shutdown
(Note 4)
VEN = 0.1V
EN Threshold
EN Hysteresis
VEN Rising
EN Pin Leakage Current
VEN = 0.4V
l
2.25
l
2.0
l
0.375
5.5
V
2.1
150
2.2
V
mV
1.3
1
2.0
2
mA
μA
0.4
60
0.425
V
mV
±20
nA
mV
Voltage Regulation
Regulated Feedback Voltage (VFB)
Regulated Output Voltage
LTC3310S-1, LTC3310-1, IOUT = 4A
Output Line Regulation
2.5V ≤ VIN ≤ 5.0V
VOUT Active Voltage Positioning
LTC3310S-1, LTC3310-1,
l
495
500
505
l
0.990
1.000
1.010
0.002
0.025
%/V
l
1.7
2.4
3.1
mV/A
±20
nA
V
Feedback Pin Input Current
VFB = 0.5V
Error Amp Transconductance
LTC3310S, LTC3310
400
µS
Error Amp Transconductance
LTC3310S-1, LTC3310-1
800
µS
Rev. F
For more information www.analog.com
3
LTC3310S/LTC3310S-1
LTC3310/LTC3310-1
ELECTRICAL CHARACTERISTICS
The l denotes the specifications which apply over the specified
operating temperature range, otherwise specifications are at TA = 25°C. (Notes 2, 3) VIN = 3.3V, VEN = VIN, MODE/SYNC = 0V,
unless otherwise noted.
PARAMETER
CONDITIONS
MIN
Error Amp Sink/Source Current
TYP
MAX
±25
UNITS
µA
Top Switch Current Limit
VOUT/VIN ≤ 0.2, Current Out of SW
l
14.5
16
18.5
A
Bottom Switch Current Limit (IVALLEYMAX)
Current Out of SW
l
10
12
14
A
Top Switch ON-Resistance
Bottom Switch ON-Resistance
SW Leakage Current
VEN = 0.1V
VITH to IPeak Current Gain
16
mΩ
4.5
mΩ
±100
nA
18
35
Minimum On-Time
l
Maximum Duty cycle
l
100
A/V
60
ns
%
Power Good/Soft-Start/Temp Monitor
PGOOD Rising Threshold
PGOOD Hysteresis
As a Percentage of the Regulated VOUT
l
l
97
0.5
98
1
99
1.5
%
%
Overvoltage Rising Threshold
Overvoltage Hysteresis
As a Percentage of the Regulated VOUT
l
l
106
1
110
2.5
112.5
3.5
%
%
PGOOD Leakage Current
VPGOOD = 5.5V
20
nA
PGOOD Pull-Down Resistance
VPGOOD = 0.1V
20
Ω
13
µA
12
PGOOD Delay
Soft-Start Charge Current
100
VSSTT = 0.5V
l
7
Temp Monitor Slope
10
µs
4
mV/°C
Oscillator
Switching Frequency Range
RT Programmable
l
Switching Frequency
RT = 274k
l
1.8
Synchronization Frequency Range
RT = VIN
l
0.5
Default Frequency
RT = VIN
l
1.8
l
l
1.2
SYNC Level High on MODE/SYNC
SYNC Level Low on MODE/SYNC
Minimum MODE/SYNC Pulse Width
0.5
5
2
2
40
MHz
2.2
MHz
2.25
MHz
2.2
MHz
0.4
V
V
ns
MODE/SYNC Input Resistance
200
kΩ
MODE/SYNC No Clock Detect Time
20
µs
MODE/SYNC Clock Out Rise/Fall Time
CMODE/SYNC = 50pF
10
ns
MODE/SYNC Clock Low Output Voltage
IMODE/SYNC = 100µA
0.2
V
MODE/SYNC Clock High Output Voltage
IMODE/SYNC = 100µA
VIN – 0.2
V
50
%
MODE/SYNC Clock Out Duty Cycle
Note 1: Stresses beyond those listed under Absolute Maximum Ratings
may cause permanent damage to the device. Exposure to any Absolute
Maximum Rating condition for extended periods may affect device
reliability and lifetime.
Note 2: The LTC3310SE/LTC3310SE-1 is guaranteed to meet performance
specifications from 0°C to 125°C junction temperature. Specifications over
the –40°C to 125°C operating junction temperature range are assured by
design, characterization, and correlation with statistical process controls.
The LTC3310SI/LTC3310SI-1 is guaranteed over the –40°C to 125°C
operating junction temperature range. The LTC3310J/LTC3310J-1 and
LTC3310H/LTC310H-1 are guaranteed over the -40°C to 150°C operating
junction temperature range.
Note 3: The LTC3310S includes overtemperature protection which
protects the device during momentary overload conditions. Junction
temperatures will exceed 150°C when overtemperature protection is
active. Continuous operation above the specified maximum operating
junction temperature may impair device reliability.
Note 4: Supply current specification does not include switching currents.
Actual supply currents will be higher.
Rev. F
4
For more information www.analog.com
LTC3310S/LTC3310S-1
LTC3310/LTC3310-1
TYPICAL PERFORMANCE CHARACTERISTICS
1.210
1.208
1.208
1.206
1.206
1.204
1.204
1.202
1.202
1.200
1.198
1.194
1.194
1.190
1.188
0
2
4
6
ILOAD (A)
1.08
1.06
1.04
1.198
1.196
VIN = 2.25V
VIN = 3.3V
VIN = 5V
1.10
1.200
1.196
1.192
1.190
10
1.188
2
2.5
3
3.5
4
4.5
INPUT VOLTAGE (V)
5
3310S1 G01
0.92
0.90
5.5
100
20.0
0
1
2
3
4 5 6
ILOAD (A)
7
8
9
10
3310S1 G03
Efficiency, Forced Continuous
Mode,
ForcedVContinuous
IN = 3.3V Mode Operation
90
1.06
80
PMOS CURRENT (A)
1.02
1.00
0.98
0.96
0.94
2
2.5
3
3.5
4
4.5
INPUT VOLTAGE (V)
5
16.0
14.0
12.0
1A
5A
9A
0.92
EFFICIENCY (%)
18.0
1.04
VOUT (V)
25°C
–45°C
125°C
0.94
1.08
5.5
10.0
0
VOUT = 0.5V
VOUT = 1.2V
VOUT = 1.8V
fSW = 2MHz
COILCRAFT XEL4030-101MEC
1
ILOAD (A)
40
30
10
0
0.01
10 20 30 40 50 60 70 80 90 100
DUTY CYCLE (%)
10
3310S1 G07
VOUT = 0.5V
VOUT = 1.2V
VOUT = 1.8V
fSW = 2MHz
COILCRAFT XEL4030-101MEC
0.1
100
100
90
95
80
90
70
85
60
50
40
30
20
10
0
0.001
FSW = 2MHz
FSW = 4MHz
4MHz XFMRS XF303020-50NM
2MHz COILCRAFT XEL4030-101MEC
0.01
0.1
ILOAD (A)
1
3310S1 G06
80
75
70
VIN = 2.5V
VIN = 3.3V
VIN = 5.0V
fSW = 2MHz COILCRAFT
XEL4030-101MEC
65
55
3310S1 G08
10
Efficiency, Pulse‑Skipping Mode,
VPulse
Skip Mode Operation
IN = 3.3V
60
10
1
ILOAD (A)
EFFICIENCY (%)
70
EFFICIENCY (%)
80
0.1
50
Efficiency, Pulse‑Skipping Mode
VPulse
VOUT = 1.2V
Skip Mode
IN = 3.3V,
90
50
0.01
60
3310S1 G05
Efficiency, Pulse‑Skipping Mode,
VIN = 3.3V
60
70
20
VIN = 2.5V
VIN = 3.3V
VIN = 5V
3310S4 G04
EFFICIENCY (%)
0.98
PMOS Current Limit
1.10
100
1.00
3310S1 G02
VOUT Line Regulation
(LTC3310S-1,
LTC3310-1)
Vout Line Regulation
0.90
1.02
0.96
LOAD = 1A
LOAD = 3A
LOAD = 6A
LOAD = 9A
1.192
8
VOUT Load Regulation
(LTC3310S-1,
LTC3310-1)
Vout Load Regulation
VOUT Line Regulation,
VOUTOUT
= 1.2V
VOUT (V)
1.212
1.210
VOUT (V)
VOUT (V)
1.212
VOUT Load Regulation,
VOUTOUT
= 1.2V
TA = 25°C, VIN = 3.3V, unless otherwise noted.
50
0.01
0.1
1
ILOAD (A)
10
3310S1 G09
Rev. F
For more information www.analog.com
5
LTC3310S/LTC3310S-1
LTC3310/LTC3310-1
TYPICAL PERFORMANCE CHARACTERISTICS
Switch On-Resistance
VOUT Voltage vs Temperature
24
505
1.05
504
1.04
22
503
1.03
20
502
1.02
501
1.01
500
499
1.00
0.99
498
0.98
497
0.97
496
0.96
495
–50
0.95
–50
–25
0
50
25
75
TEMPERATURE (°C)
100
125
Switch On-Resistance
–25
10
5
0
25
50
75
TEMPERATURE (°C)
0
25
50
75
TEMPERATURE (°C)
100
100
1
0
25
50
75
100
TEMPERATURE (°C)
2.1
2.0
1.9
1.8
1.6
–50
125
0
25
50
75
TEMPERATURE (°C)
100
125
3310S1 G16
0
25
50
75
TEMPERATURE (°C)
125
EN Pin Thresholds
RT = 274kΩ
EN RISING
400
2.05
2.00
1.95
390
380
370
360
EN FALLING
350
1.85
1.80
–50
100
410
1.90
RISING
FALLING
–25
3310S1 G15
EN THRESHOLD (mV)
FREQUENCY (MHz)
VIN UVLO (V)
2.2
1.7
2.10
1.7
5.5
2.3
3310S1 G14
2.3
50
3310S1 G12
Switching Frequency
1.9
3.0 3.5 4.0 4.5
INPUT VOLTAGE (V)
Default Switching Frequency
2
2.20
2.1
2.5
2.4
3
2.15
–25
2
2.0
125
4
–1
125
VIN UVLO
1.5
–50
4
PMOS
NMOS
5
3310S1 G13
2.5
10
6
DEFAULT FREQUENCY (MHz)
SWITCH LEAKAGE CURRENT (µA)
RDS(ON) (mΩ)
15
–25
12
Switch Leakage
6
0
–50
14
3310S1 G11
25
20
16
8
0A
5A
10A
3310S1 G10
VIN = 3.3V
PMOS
NMOS
PMOS
NMOS
18
RDS(ON) (mΩ)
VOUT (V)
REFERENCE VOLTAGE (mV)
Feedback Reference Voltage
TA = 25°C, VIN = 3.3V, unless otherwise noted.
–25
0
25
50
75
TEMPERATURE (°C)
100
125
3310S1 G17
340
–50
–25
0
25
50
75
TEMPERATURE (°C)
100
125
3310S1 G18
Rev. F
6
For more information www.analog.com
LTC3310S/LTC3310S-1
LTC3310/LTC3310-1
TYPICAL PERFORMANCE CHARACTERISTICS
Soft-Start Current
VIN Quiescent Current
Soft-Start Tracking
10.8
600
10.7
2.5
500
2.0
10.5
10.4
10.3
VIN CURRENT (mA)
10.6
FB VOLTAGE (mV)
400
300
200
10.2
10.0
–50
–25
0
25
50
75
TEMPERATURE (°C)
100
0
125
0
100
3310S1 G19
VIN Shutdown Current
200
300
400
SSTT VOLTAGE (mV)
500
CURRENT (A)
12
10
8
6
4
0.5
NMOS I LIMIT
PMOS I LIMIT
2
100
0
–50
125
–25
0
25
50
75
TEMPERATURE (°C)
100
3310S1 G22
80
9.5
70
MINIMUM ON-TIME (ns)
9.0
8.5
8.0
7.5
7.0
6.5
6.0
5.0
–50
FB RISING
FB FALLING
–25
100
125
125
–3.5
–3.0
–2.5
–2.0
–1.5
–1.0
–0.5
0
–50
FB RISING
FB FALLING
–25
0
25
50
75
TEMPERATURE (°C)
100
125
3310S1 G24
Minimum On-Time
10.0
5.5
0
25
50
75
TEMPERATURE (°C)
3310S1 G23
OV PGOOD Threshold
PGOOD THRESHOLD OFFSET FROM VREF (%)
VIN CURRENT (µA)
14
1.0
–25
UV PGOOD Threshold
16
1.5
VIN = 2.25V
VIN = 3.3V
VIN = 5.5V
3310S1 G21
Switch Current Limit
2.0
0
25
50
75
TEMPERATURE (°C)
0
–50
600
18
–25
1.0
3310S1 G20
2.5
0
–50
1.5
0.5
100
10.1
PGOOD THRESHOLD OFFSET FROM VREF (%)
SOFT-START CURRENT (µA)
TA = 25°C, VIN = 3.3V, unless otherwise noted.
0
25
50
75
TEMPERATURE (°C)
100
125
60
50
40
30
20
VIN = 2.25V
VIN = 3.3V
VIN = 5.5V
10
0
–50
3310S1 G25
–25
0
25
50
75
TEMPERATURE (°C)
100
125
3310S1 G26
Rev. F
For more information www.analog.com
7
LTC3310S/LTC3310S-1
LTC3310/LTC3310-1
TYPICAL PERFORMANCE CHARACTERISTICS
Start-Up Waveforms
Pulse‑Skipping Mode
TA = 25°C, VIN = 3.3V, unless otherwise noted.
Start-Up Waveforms Forced
Continuous Mode
EN
2V/DIV
VOUT
1V/DIV
PGOOD
5V/DIV
EN
2V/DIV
VOUT
1V/DIV
PGOOD
5V/DIV
IL
1A/DIV
IL
1A/DIV
3310S1 G27
400µs/DIV
400µs/DIV
3310S1 G28
Switching Waveforms, Forced
Continuous Mode
Switching Waveforms,
Pulse‑Skipping Mode
SW
2V/DIV
SW
2V/DIV
IL
500mA/DIV
IL
1A/DIV
VOUT
10mV/DIV
VOUT
10mV/DIV
3310S1 G29
200ns/DIV
200ns/DIV
Load Transient Response Forced
Continuous Mode
Load Transient Response
Pulse‑Skipping Mode
ILOAD
5A/DIV
ILOAD
5A/DIV
IL
5A/DIV
IL
5A/DIV
VOUT
20mV/DIV
VOUT
20mV/DIV
40µs/DIV
3.3VIN TO 1.2VOUT, 2MHz
COUT = 110µF, L = 100nH
LOAD STEP: 0.1A TO 9A
1A/μs SLEW RATE
3310S1 G30
3310S1 G31
40µs/DIV
3310S1 G32
3.3VIN TO 1.2VOUT, 2MHz
COUT = 110µF, L = 100nH
LOAD STEP: 1A TO 9A
1A/µs SLEW RATE
Rev. F
8
For more information www.analog.com
LTC3310S/LTC3310S-1
LTC3310/LTC3310-1
TYPICAL PERFORMANCE CHARACTERISTICS
TA = 25°C, VIN = 3.3V, unless otherwise noted.
CISPR25 Conducted EMI Emissions with Class 5 Peak
Limits (Voltage Method)
60
AMPLITUDE (dBµV/m)
50
40
30
20
10
0
–10
–20
PEAK LIMIT
PEAK
0
10
20
30
40
50
60
70
FREQUENCY (MHz)
80
90
50
Radiated EMI Performance (CISPR25 Radiated Emissions
Test with Class 5 Peak Limits)
50
HORIZONTAL POLARIZATION
PEAK DETECTOR
45
40
35
AMPLITUDE (dBµV/m)
AMPLITUDE (dBµV/m)
VERTICAL POLARIZATION
PEAK DETECTOR
45
40
30
25
20
15
10
35
30
25
20
15
10
PEAK LIMIT
PEAK
5
0
110
3310S1 G33
LTC3310S
DC2629A DEMO BOARD
(WITH EMI FILTER INSTALLED)
3.3V INPUT TO 1.2V OUTPUT AT 7.5A, fSW = 2MHz
Radiated EMI Performance (CISPR25 Radiated Emissions
Test with Class 5 Peak Limits)
100
0
100
200
300
400
500
600
FREQUENCY (MHz)
LTC3310S
DC2629A DEMO BOARD
(WITH EMI FILTER INSTALLED)
3.3V INPUT TO 1.2V OUTPUT AT 7.5A, fSW = 2MHz
700
800
900
1000
3310S1 G34
PEAK LIMIT
PEAK
5
0
0
100
200
300
400
500
600
FREQUENCY (MHz)
LTC3310S
DC2629A DEMO BOARD
(WITH EMI FILTER INSTALLED)
3.3V INPUT TO 1.2V OUTPUT AT 7.5A, fSW = 2MHz
700
800
900
1000
3310S1 G35
Rev. F
For more information www.analog.com
9
LTC3310S/LTC3310S-1
LTC3310/LTC3310-1
PIN FUNCTIONS
EN (Pin 1): The EN pin has a precision enable threshold
with hysteresis. An external resistor divider, from VIN or
from another supply, programs the threshold below which
the LTC3310S will shut down. If the precision threshold
is not used, directly connect the pin to VIN. When the EN
pin is low, the LTC3310S enters a low current shutdown
mode where all internal circuitry is disabled.
Operation in Applications Information). The MODE/SYNC
pin also programs the mode of operation: pulse skip or
forced continuous.
AGND (Pin 2): The AGND pin is the output voltage remote
ground sense. Connect the AGND pin directly to the negative terminal of the output capacitor at the load and to
the feedback divider resistor.
RT (Pin 15): The RT pin sets the oscillator frequency
with an external resistor to AGND or sets the phasing
for multiphase operation. (see Multiphase Operation in
Applications Information).
VIN (Pins 3, 4, 11, 12): The VIN pins supply current to the
internal circuitry and topside power switch. All of the VIN
pins must be connected together with short, wide traces
and bypassed to PGND with low ESR capacitors located
as close as possible to the pins.
The Silent Switcher 2 LTC3310S/LTC3310S-1 include
internal bypass capacitors between VIN and PGND and
VIN and AGND. The Silent Switcher 1 LTC3310/LTC3310-1
do not include these capacitors. It is recommended to
include them externally. See the Applications Information
section for more details.
PGND (Pins 5, 10, 19): The PGND pins are the return
path of the internal bottom side power switch. Connect
the PGND pins together and to the exposed pad. Connect
the negative terminal of the input capacitors as close to
the PGND pins as possible. The PGND node is the main
thermal highway and should be connected to a large PCB
ground plane with many large vias.
SW (Pins 6–9): The SW pins are the switching outputs of
the internal power switches. Connect these pins together
to the inductor with short, wide traces.
MODE/SYNC (Pin 13): The MODE/SYNC pin facilitates
multiphase operation and synchronization to an external
clock. Depending on the mode of operation, the MODE/
SYNC pin either accepts an input clock pulse or outputs
a clock pulse at its operating frequency. (see Multiphase
PGOOD (Pin 14): The PGOOD pin is a power good pin and
is the open drain output of an internal comparator. The
PGOOD output is pulled low when VIN is above 2.25V and
the part is in shutdown.
SSTT (Pin 16): Soft-Start, Track, Temperature Monitor.
An internal 10µA current into an external capacitor on
the soft-start pin programs the output voltage ramp rate
during start-up. During the soft-start cycle, the FB pin
voltage will track the SSTT pin voltage. When the soft-start
cycle is complete, the tracking function is disabled, the
internal reference resumes control of the error amplifier
and the SSTT pin servos to a voltage representative of
junction temperature. For a clean recovery from an output
short circuit condition, the SSTT pin is pulled down to
approximately 140mV above the VFB voltage and a new
soft-start cycle is initiated. During shutdown and fault
conditions, the SSTT pin is pulled to ground.
ITH (Pin 17): The ITH pin is the compensation node for
the output voltage regulation control loop. Compensation
components connected to this pin are referenced to AGND.
FB (Pin 18): The LTC3310S output voltage feedback pin is
externally connected to the output voltage via a resistive
divider and is internally connected to the inverting input
of the error amplifier. The LTC3310S regulates the FB pin
to 500mV. A phase lead capacitor connected between VFB
and VOUT is used to optimize the transient response.
VOUT (Pin 18): The output voltage pin is externally connected to the output voltage and is internally connected
to a resistive divider. The LTC3310S-1 regulates the VOUT
pin to 1.0V.
Rev. F
10
For more information www.analog.com
LTC3310S/LTC3310S-1
LTC3310/LTC3310-1
BLOCK DIAGRAM
VIN
R1
EN
R2
+
–
0.4V
RT
RT
INTERNAL
REFERENCE
S
OSCILLATOR
Q
R
0.55V
0.5V
0.49V
VIN
SWITCH LOGIC
AND
ANTI-SHOOT THROUGH
SW
VIN
CIN
L
VOUT
COUT
SENSE+
+
–
MODE/SYNC
VIN
0.1µF
×2
PGND
SENSE–
SLOPE COMP
RC
+
FB
0.5V
RA
CFF
RB
AGND
CC
0.49V
–
+
0.55V
+
–
10µA
SSTT
CSS
+
–
ERROR
AMP
ITH
FAULT
+
–
VTEMP
PGOOD
FAULT
3310S1 BD
Note 1: On the LTC3310S-1 the RA and RB resistors are internal.
Note 2: The LTC3310/LTC3310-1 do not include internal bypass capacitors.
Rev. F
For more information www.analog.com
11
LTC3310S/LTC3310S-1
LTC3310/LTC3310-1
OPERATION
Voltage Regulation
The LTC3310S is a monolithic, constant frequency, current mode step-down DC/DC converter. An oscillator turns
on the internal top power switch at the beginning of each
clock cycle. Current in the inductor increases until the
top switch current comparator trips and turns off the top
power switch. The peak inductor current at which the top
switch turns off is controlled by the voltage on the ITH
node. The error amplifier servos the ITH node by comparing the voltage on the FB pin with an internal 500mV
reference. When the load current increases, it causes a
reduction in the feedback voltage relative to the reference
leading the error amplifier to raise the ITH voltage until the
average inductor current matches the new load current.
When the top power switch turns off, the synchronous
power switch turns on until the next clock cycle begins
or, in pulse-skipping mode, inductor current falls to zero.
If overload conditions result in excessive current flowing
through the bottom switch, the next clock cycle will be
delayed until switch current returns to a safe level.
The output voltage is resistively divided externally to create a feedback voltage for the regulator. In high current
operation, a ground offset may be present between the
LTC3310S local ground and ground at the load. To overcome this offset, AGND should have a Kelvin connection
to the load ground, and the lowest potential node of the
resistor divider should be connected to AGND. The internal error amplifier senses the difference between this
feedback voltage and a 0.5V AGND referenced voltage.
This scheme overcomes any ground offsets between
local ground and remote output ground, resulting in a
more accurate output voltage. The LTC3310S allows for
remote output ground deviations as much as ±100mV
with respect to local ground.
If the EN pin is low, the LTC3310S is shut down and in a
low quiescent current state. When the EN pin is above its
threshold, the switching regulator will be enabled.
Silent Switcher
The “S” in LTC3310S/LTC3310S-1 refers to the second
generation Silent Switcher 2 technology, allowing fast
switching edges for high efficiency at high switching
frequencies, while simultaneously achieving good EMI
performance. Ceramic capacitors on VIN keep all the fast
AC current loops small, improving EMI performance.
The LTC3310S/LTC3310S-1 also include an internal
bypass capacitor connected between VIN and AGND. The
Silent Switcher 1 LTC3310/LTC3310-1 do not include any
ceramic capacitors.
Synchronizing the Oscillator to an External Clock
The LTC3310S’s internal oscillator is synchronized
through an internal PLL circuit to an external frequency
by applying a square wave clock signal to the MODE/
SYNC pin.
During synchronization, the top power switch turn-on is
locked to the rising edge of the external frequency source.
While synchronizing, the switcher operates in pulse skip
mode. The slope compensation is automatically adapted
to the external clock frequency.
After detecting an external clock on the first rising edge
of the MODE/SYNC pin, the internal PLL gradually adjusts
its operating frequency to match the frequency and phase
of the signal on the MODE/SYNC pin. When the external clock is removed, the LTC3310S detects the absence
of the external clock within approximately 20µs. During
this time, the PLL will continue to provide clock cycles.
Once the external clock removal has been detected, the
oscillator gradually adjusts its operating frequency back
to the default frequency.
Mode Selection
The MODE/SYNC pin either synchronizes the switching
frequency to an external clock, is a clock output, or sets
the PWM mode. The PWM modes of operation are either
pulse skip or forced continuous. See Table 6 or Table 7 in
the Applications Information section. In pulse skip mode,
switching cycles are skipped at light loads to regulate the
output voltage. During forced continuous mode, the top
switch turns on every cycle and light load regulation is
achieved by allowing negative inductor current.
Rev. F
12
For more information www.analog.com
LTC3310S/LTC3310S-1
LTC3310/LTC3310-1
OPERATION
Output Power Good
Low Supply Operation
Comparators monitoring the FB pin voltage pull the
PGOOD pin low if the output voltage varies from the
nominal set point or if a fault condition is present. The
comparator includes voltage hysteresis. A time delay
to report PGOOD is used to filter short duration output
voltage transients.
The LTC3310S is designed to operate down to an input
supply voltage of 2.25V. An important thermal design
consideration is that the RDS(ON) of the power switches
increase at low VIN. Calculate the worst case LTC3310S
power dissipation and die junction temperature at the
lowest input voltages.
Soft-Start/Tracking/Temperature Monitor
Output Short-Circuit Protection and Recovery
The soft-start tracking function facilitates supply sequencing, limits VIN inrush current and reduces start-up output
overshoot. When soft-starting is completed, the SSTT pin
parks itself at a voltage representative of the LTC3310S
die junction temperature. The SSTT capacitor is reset
during shutdown, VIN UVLO and thermal shutdown. See
Application section.
The peak inductor current level, at which the current comparator shuts off the top power switch, is controlled by the
voltage on the ITH pin. If the output current increases, the
error amplifier raises the ITH pin voltage until the average
inductor current matches the load current. The LTC3310S
clamps the maximum ITH pin voltage, thereby limiting the
peak inductor current.
Dropout Operation
When the output is shorted to ground, the inductor current decays very slowly during a single switching cycle
because the voltage across the inductor is low. To keep
the inductor current in control, a secondary limit is
imposed on the valley of the inductor current. If the inductor current measured through the bottom power switch
is greater than the IVALLEY(MAX) the top power switch will
be held off. Subsequent switching cycles will be skipped
until the inductor current is reduced below IVALLEY(MAX).
As the input supply voltage approaches the output voltage,
the duty cycle increases. Further reduction of the supply
voltage forces the main switch to remain on for more
than one cycle, eventually reaching 100% duty cycle.
The output voltage will then be determined by the input
voltage minus the DC voltage drop across the internal
main P-channel MOSFET and the inductor.
In many designs when the input voltage approaches the
output voltage, the amplitude of the output ripple voltage
increases from its normally low value. To avoid any
increase in output ripple voltage under these conditions,
it is recommended to utilize a resistor divider on the EN
input and limit the VIN turn-on and turn-off thresholds to
where the output ripple voltage is acceptable for the given
application (typically 500mV above VOUT).
Recovery from an output short circuit goes through a
soft-start cycle. When VOUT goes below regulation, as
defined by the PGOOD threshold, the SSTT voltage is
pulled to a voltage just above the FB voltage. Because
the SSTT pin is pulled low, a soft-start cycle is initiated
once the output short is removed.
Active Voltage Positioning
The LTC3310S-1/LTC3310-1 includes Active Voltage
Positioning (AVP) where the output voltage is dependent
on load current. At light loads the output voltage is regulated above the nominal value. At full load the output
voltage is regulated below the nominal value. The DC load
regulation is adjusted to improve transient performance
and reduce output capacitor requirements.
Rev. F
For more information www.analog.com
13
LTC3310S/LTC3310S-1
LTC3310/LTC3310-1
APPLICATIONS INFORMATION
Refer to the Block Diagram for reference.
switching frequency (fSW(MAX)) for a given application
can be calculated as follows:
FB Resistor Network
The output voltage is programmed with a resistor divider
between the output and the FB pin. Choose the resistor
values according to:
⎛ V
⎞
RA = RB ⎜ OUT – 1⎟ (1)
⎝ 500mV ⎠
as shown in Figure 1:
VOUT
BUCK
SWITCHING FB
REGULATOR
RA
RB
CFF
+
COUT
(OPTIONAL)
3310S1 F01
fSW (MAX ) =
(
VOUT + VSW (BOT )
tON(MIN) VIN(MAX ) – VSW ( TOP ) + VSW (BOT )
)
(3)
where VIN(MAX) is the maximum input voltage, VOUT is
the output voltage, VSW(TOP) and VSW(BOT) are the internal switch drops and tON(MIN) is the minimum top switch
on-time. This equation shows that a slower switching
frequency is necessary to accommodate a high VIN/VOUT
ratio.
The LTC3310S is capable of a maximum duty cycle of
100%, therefore, the VIN-to-VOUT dropout is limited by
the RDS(ON) of the top switch, the inductor DCR and the
load current.
Setting the Switching Frequency
Figure 1. Feedback Resistor Network
Reference designators refer to the Block Diagram. 1%
resistors are recommended to maintain output voltage
accuracy. When optimizing the control loop for high bandwidth and optimal transient response add a phase-lead
capacitor connected from VOUT to FB.
Operating Frequency Selection and Trade-Offs
Selection of the operating frequency is a trade-off between
efficiency, component size, transient response and input
voltage range.
The advantage of high frequency operation is that smaller
inductor and capacitor values may be used. Higher
switching frequencies allow for higher control loop
bandwidth and, therefore, faster transient response. The
disadvantages of higher switching frequencies are lower
efficiency, because of increased switching losses, and a
smaller input voltage range, because of minimum switch
on-time limitations.
Although the maximum programmable switching frequency is 5MHz, the minimum on-time of the LTC3310S
imposes a minimum operating duty cycle. The highest
The LTC3310S uses a constant frequency PWM architecture. There are three methods to set the switching frequency. The first method is with a resistor (RT) tied from
the RT pin to ground. The frequency can be programmed
to switch from 500kHz to 5MHz. Table 1 shows the necessary RT value for a desired switching frequency.
The RT resistor required for a desired switching frequency
is calculated using the following formula:
RT = 568 • fSW(–1.08) (2)
where RT is in kΩ and fSW is the desired switching frequency in MHz.
Table 1. SW Frequency vs RT Value
fSW (MHz)
RT (kΩ)
0.5
1210
1
549
2
274
2.2
243
3
178
4
130
5
100
Rev. F
14
For more information www.analog.com
LTC3310S/LTC3310S-1
LTC3310/LTC3310-1
APPLICATIONS INFORMATION
The second method to set the LTC3310S switching frequency is by synchronizing the internal PLL circuit to an
external frequency applied to the MODE/SYNC pin. The
synchronization frequency range is 0.5MHz to 2.25MHz.
The internal PLL starts up at the 2MHz default frequency.
After detecting an external clock on the first rising edge
of the MODE/SYNC pin, the internal PLL gradually adjusts
its operating frequency to match the frequency and phase
of the MODE/SYNC signal.
The LTC3310S detects when the external clock is removed
and will gradually adjust its operating frequency to the
2MHz default frequency.
The third method of setting the LTC3310S switching frequency is to use the internal nominal 2MHz default clock.
See Table 4 for pin configuration.
Inductor Selection and Maximum Output Current
Considerations in choosing an inductor are inductance,
RMS current rating, saturation current rating, DCR and
core loss.
A good first choice for the inductor value is:
L
VOUT
VOUT
VOUT
• 1
for
3A • fSW
VIN(MAX )
VIN(MAX )
L
0.25 • VIN(MAX )
VOUT
for
> 0.5 (5)
3A • fSW
VIN(MAX )
0.5 (4)
where ILOAD(MAX) is the maximum output load current for
a given application and ΔIL is the inductor ripple current
calculated as:
∆IL =
⎞
VOUT ⎛
V
• ⎜⎜1– OUT ⎟⎟ (7)
L • fSW ⎝ VIN(MAX) ⎠
where VIN(MAX) is the maximum application input voltage.
To keep the efficiency high, choose an inductor with the
lowest series resistance (DCR). The core material should
be intended for high frequency applications.
The LTC3310S limits the peak switch current in order
to protect the switches and the system from overload
faults. The inductor value must then be sufficiently large
to supply the desired maximum output current, IOUT(MAX),
which is a function of the switch current limit, ILIM, and
the ripple current.
IOUT (MAX ) = ILIM – ΔIL (8)
Therefore, the maximum output current that the LTC3310S
will deliver depends on the switch current limit, the inductor value, and the input and output voltages. The inductor
value may have to be increased if the inductor ripple current does not allow sufficient maximum output current
(IOUT(MAX)) given the switching frequency, and maximum
input voltage used in the desired application.
Table 2. Inductor Manufacturers
VENDOR
URL
where fSW is the switching frequency in MHz, VIN is the
input voltage and L is the inductor value in μH.
Coilcraft
www.coilcraft.com
Sumida
www.sumida.com
To avoid overheating of the inductor, choose an inductor
with an RMS current rating that is greater than the maximum expected output load of the application. Overload
and short circuit conditions may need to be taken into
consideration.
Toko
www.toko.com
Wurth Elektronik
www.we-online.com
Vishay
www.vishay.com
XFMRS
www.xfmrs.com
In addition, the saturation current (ISAT) rating of the
inductor must be higher than the load current plus 1/2 of
the inductor ripple current:
1
I SAT ≥ILOAD(MAX ) + ∆IL
2
(6)
Input Capacitors
Bypass the input of the LTC3310S with at least two
ceramic capacitors close to the part, one on each side
from VIN to PGND. These capacitors should be 0603 or
0805 in size. See layout section for more detail. X7R or
Rev. F
For more information www.analog.com
15
LTC3310S/LTC3310S-1
LTC3310/LTC3310-1
APPLICATIONS INFORMATION
X5R capacitors are recommended for best performance
across temperature and input voltage variations. Note
that larger input capacitance is required when a lower
switching frequency is used. If the input power source has
high impedance, or there is significant inductance due to
long wires or cables, additional bulk capacitance may be
necessary. This can be provided with a low performance
electrolytic capacitor.
A ceramic input capacitor combined with trace or cable
inductance forms a high quality (under damped) tank
circuit. If the LTC3310S circuit is plugged into a live supply, the input voltage can ring to twice its nominal value,
possibly exceeding the LTC3310S’s voltage rating. This
situation is easily avoided (see Analog Devices Application
Note 88).
have very low equivalent series resistance (ESR) and provide the best ripple performance. For good starting values, see the Typical Application section.
X5R or X7R type capacitors will provide low output ripple and good transient response. Transient performance
is improved with a higher value output capacitor and
the addition of a feedforward capacitor placed between
VOUT and FB. Increasing the output capacitance will also
decrease the output voltage ripple. A lower value of output
capacitor saves space and cost but transient performance
will suffer and may cause loop instability. See the Typical
Application in this data sheet for suggested capacitor
values.
Multiphase Operation
The LTC3310S is easily configurable for multiphase operation. See Table 4.
Table 3. Ceramic Capacitor Manufacturers
VENDOR
URL
AVX
www.avxcorp.com
Murata
www.murata.com
TDK
www.tdk.com
Taiyo Yuden
www.t-yuden.com
Samsung
www.samsungsem.com
Connecting the RT pin, of the master phase, to a resistor to AGND programs the frequency and configures the
MODE/SYNC pin to become clock output used to drive
the MODE/SYNC pin of the slave phase(s).
Output Capacitor and Output Ripple
The output capacitor has two essential functions. Along
with the inductor, it filters the square wave, generated by
the LTC3310S, to produce the DC output. In this role it
determines the output ripple, thus, low impedance at the
switching frequency is important. The second function
is to store energy in order to satisfy transient loads and
stabilize the LTC3310S’s control loop. Ceramic capacitors
Connecting the RT pin of the master phase to VIN configures the MODE/SYNC pin to become an input capable
of accepting an external clock. The switching frequency
defaults to the nominal 2MHz internal frequency when
the external clock is unavailable, such as during start-up.
Connecting the FB pin to VIN configures a phase as a
slave. The MODE/SYNC becomes an input and the voltage
control loop is disabled. The slave phase current control
loop is still active and the peak current is controlled via
the shared ITH node.
Table 4. LTC3310S Multiphase Configuration
Master/Slave
RT Pin
FB Pin
MODE/SYNC Pin
Switching Frequency (fSW)
Master
VIN
VOUT Divider
Clock Input
External Clock/2MHz Default
Master
Resistor to AGND
VOUT Divider
Clock Output
RT programmed
Slave
VIN Divider
VIN
Clock Input
External Clock
Rev. F
16
For more information www.analog.com
LTC3310S/LTC3310S-1
LTC3310/LTC3310-1
APPLICATIONS INFORMATION
The phasing of a slave phase relative to the master phase
is programmed with a resistor divider on the RT pin. Use
of 1% resistors is recommended. See Table 5 for more
information.
Table 5. LTC3310S Programming Slave Phase Angle
Table 6. LTC3310S Single Phase Configuration
RT Pin
Connection
MODE/SYNC
Pin Connection
MODE of
Operation
Switching
Frequency
VIN
Clock Input
Pulse Skip
External Clock
VIN
AGND
Pulse Skip
2MHz Default
VIN
VIN
Forced
Continuous
2MHz Default
Resistor to AGND
Clock Output
Pulse Skip
RT Programmed
SYNC
Phase
Angle
R3
Ratio
R4
Ratio
R3
Example
R4
Example
0°
0Ω
NA
0Ω
NA
90°
3•R
R
301k
100k
LTC3310S-1 Mode of Operation
120°
7•R
5•R
243k
174k
180°
NA
0Ω
NA
0Ω
240°
5•R
7•R
174k
243k
270°
R
3•R
100k
300k
For most configurations, the LTC3310S-1 operates in
forced continuous mode. While in forced continuous mode,
regulation at low currents is achieved by allowing negative
inductor current. Switching cycles are not skipped.
When configured for master/slave operation, the slave
regulator(s) operates in pulse skip mode where negative
inductor currents are disallowed and regulation at low
currents is achieved by skipping switching cycles.
VIN
Table 7. LTC3310S-1 Single Phase Configuration
FB
LTC3310S
The LTC3310S-1 operates in pulse skip mode when both
RT and MODE/SYNC pins are connected to VIN. In this
mode, the switching frequency is set with the nominal
2MHz internal clock. While in pulse skip mode negative
current is disallowed and regulation at low currents is
achieved by skipping switching cycles.
R3
RT
R4
3310S1 F02
AGND
Figure 2. Phase Programming
LTC3310S Mode of Operation
RT Pin
Connection
MODE/SYNC
Pin Connection
MODE of
Operation
Switching
Frequency
VIN
Clock Input
Forced
Continuous
External Clock
VIN
AGND
Forced
Continuous
2MHz Default
VIN
VIN
Pulse Skip
2MHz Default
Resistor to AGND
Clock Output
Forced
Continuous
RT Programmed
For most configurations, the LTC3310S operates in pulse
skip mode where negative inductor current is disallowed
and regulation at low currents is achieved by skipping
switching cycles.
The LTC3310S operates in forced continuous mode when
both the RT and MODE/SYNC pins are connected to VIN. In
this mode, the switching frequency is set with the nominal
2MHz internal clock. While in forced continuous mode,
regulation at low currents is achieved by allowing negative
inductor current. Switching cycles are not skipped.
Rev. F
For more information www.analog.com
17
LTC3310S/LTC3310S-1
LTC3310/LTC3310-1
APPLICATIONS INFORMATION
Synchronization
To synchronize the LTC3310S oscillator to an external
frequency, configure the MODE/SYNC pin as an input by
connecting the RT pin to VIN. Drive the MODE/SYNC pin
with a square wave in the frequency range of 500 kHz to
2.25MHz range, an amplitude greater than 1.2V and less
than 0.4V with a pulse width greater than 40ns.
The LTC3310S phase locked loop (PLL) will synchronize
the internal oscillator to the clock applied to the MODE/
SYNC pin. At start up, before the LTC3310S recognizes
the external clock applied to MODE/SYNC, the LTC3310S
will switch at its default frequency of 2MHz. Once the
externally applied clock is recognized, the switching frequency will gradually transition from the default frequency
to the applied frequency. If the external clock is removed,
the LTC3310S will slowly transition back to the default
frequency.
The LTC3310S operates in pulse skip mode during synchronization. An internal 200kΩ resistor on MODE/SYNC
pin to AGND allows the MODE/SYNC pin to be left floating.
Transient Response and Loop Compensation
When determining the compensation components, CFF,
RC, and CC, control loop stability and transient response
are the two main considerations.
The LTC3310S has been designed to operate at a high
bandwidth for fast transient response capability. Operating
at a high loop bandwidth reduces the output capacitance
required to meet transient response requirements.
Applying a load transient and monitoring the response of
the system or using a network analyzer to measure the
actual loop response are two ways to verify and optimize
the control loop stability. LTpowerCAD® is a useful tool to
help optimize the compensation components.
When using the load transient response method to stabilize the control loop, apply an output current pulse of
20% to 100% of full load current having a rise time of
1µs. This will produce a transient on the output voltage
and ITH pin waveforms.
Switching regulators take multiple cycles to respond
to a step in load current. When a load step occurs,
VOUT is immediately perturbed, generating a feedback
error signal used by the regulator to return VOUT to its
steady-state value.
During this recovery time, monitor VOUT for overshoot
or ringing that would indicate a stability problem. The
initial output voltage step may not be within the bandwidth of the feedback loop, so the standard second order
overshoot/DC ratio cannot be used to determine phase
margin. The gain of the loop increases with the RC and the
bandwidth of the loop increases with decreasing CC. If RC
is increased by the same factor that CC is decreased, the
zero frequency will be kept the same, thereby keeping the
phase the same in the most critical frequency range of the
feedback loop. In addition, adding a feed forward capacitor, CFF, improves the high frequency response. Capacitor
CFF provides phase lead by creating a high frequency zero
with RA to improve the phase margin. The compensation
components of the typical application circuits are a good
starting point for component values.
On the LTC3310S-1 an internal voltage regulation adjustment circuit modifies the regulated output voltage based
on load current. This circuit effectively increases the output impedance of the supply, reducing the output voltage
during a heavy load, and raising the voltage during light
loads. The output is centered at 1V at an average load current of 4.5A; the regulated output voltage varies typically,
2.4mV per Amp of average load current. This variation in
output voltage helps compensate for the short-duration
voltage spikes created during a fast load step, reducing
the overall voltage perturbation in response to these
load steps.
The output voltage settling behavior is related to the stability of the closed-loop system. For a detailed explanation
of optimizing the compensation components, including
a review of control loop theory, refer to Analog Devices
Application Note 76.
Rev. F
18
For more information www.analog.com
LTC3310S/LTC3310S-1
LTC3310/LTC3310-1
APPLICATIONS INFORMATION
Output Overvoltage Protection
During an output overvoltage event, when the FB pin
voltage is greater than 110% of nominal, the LTC3310S
top power switch will be turned off. If the output remains
out of regulation for more than 100µs, the PGOOD pin
will be pulled low.
An output overvoltage event should not happen under
normal operating conditions.
Output Voltage Sensing
The LTC3310S AGND pin is the ground reference for the
internal analog circuitry, including the bandgap voltage
reference. To achieve good load regulation, connect the
AGND pin to the negative terminal of the output capacitor (COUT) at the load. A drop in the high current power
ground return path will be compensated. All of the signal
components, such as the FB resistor dividers and softstart capacitor, should be referenced to the AGND node.
The AGND node carries very little current and, therefore,
can be a minimal size trace. See the example PCB Layout
for more information.
Enable Threshold Programming
The LTC3310S has a precision threshold enable pin
to enable or disable switching. When forced low, the
LTC3310S enters a low current shutdown mode.
The rising threshold of the EN comparator is 400mV, with
60mV of hysteresis. Connect the EN pin to VIN if the shutdown feature is not used. Adding a resistor divider from
VIN to EN programs the LTC3310S to regulate the output
only when VIN is above a desired voltage (see the Block
Diagram). Typically, this threshold, VIN(EN), is used in situations where the input supply is current limited or has
a relatively high source resistance. A switching regulator
draws constant power from the source, so source current
increases as source voltage drops. This looks like a negative resistance load to the source and can cause the source
to current limit or latch low under low source voltage conditions. The VIN(EN) threshold prevents the regulator from
operating at source voltages where problems may occur.
This threshold can be adjusted by setting the values R1
and R2 such that they satisfy the following equation:
⎛ R1 ⎞
VIN(EN) = ⎜ + 1⎟ • 400mV (9)
⎝ R2 ⎠
where the LTC3310S will remain off until VIN is above
VIN(EN). Due to the comparator’s hysteresis, switching
will not stop until the input falls slightly below VIN(EN).
Alternatively, a resistor divider from an output of another
regulator to the enable pin of the LTC3310S provides event-based power-up sequencing, enabling the
LTC3310S when the output of the other regulator reaches
a predetermined level.
Output Voltage Tracking and Soft-Start
The LTC3310S allows the user to program its output
voltage ramp rate by means of the SSTT pin.
An internal 10μA pulls up the SSTT pin. Putting an external capacitor on SSTT enables soft-starting the output
to prevent current surge on the input supply and output
voltage overshoot. During the soft-start ramp, the output
voltage will proportionally track the SSTT pin voltage.
When the soft-start is complete, the pin will servo to a
voltage proportional to the LTC3310S junction temperature. See Figure 3 showing the SSTT pin operating range.
The soft-start time is calculated as follows:
t SS = CSS •
500mV
10µA
(10)
For output tracking applications, SSTT can be externally
driven by another voltage source. From 0V to 0.5V, the
SSTT voltage will override the internal 0.5V reference
input to the error amplifier, thus regulating the FB pin
voltage to that of SSTT pin. When SSTT is above 0.5V,
tracking is disabled and the feedback voltage will regulate
to the internal reference voltage
An active pull-down circuit is connected to the SSTT pin
to discharge the external soft-start capacitor in the case
of fault conditions. The ramp will restart when the fault is
cleared. Fault conditions that clear the soft-start capacitor
are the EN/UV pin transitioning low, VIN voltage falling too
low or thermal shutdown.
Rev. F
For more information www.analog.com
19
LTC3310S/LTC3310S-1
LTC3310/LTC3310-1
APPLICATIONS INFORMATION
Temperature Monitor
Output Power Good
Once the soft-start cycle has completed and the output
power good flag thrown, the SSTT pin reports the die
junction temperature. The LTC3310S regulates the SSTT
pin to a voltage proportional to the junction temperature.
While reporting the temperature, the SSTT voltage is not
valid below 1V. The junction temperature is calculated
with the following formula:
When the LTC3310S’s output voltage is within the
–2/+10% window of the nominal regulation voltage the
output is considered good and the open-drain PGOOD pin
goes high impedance and is typically pulled high with an
external resistor. Otherwise, the internal pull-down device
will pull the PGOOD pin low. To prevent glitching both the
upper and lower thresholds, include 1% of hysteresis as
well as a built in time delay, typically 100µs. The PGOOD
pin is also actively pulled low during fault conditions: EN
pin is low, VIN is too low or in thermal shutdown.
TJ (°C) =
VSSTT
– 273
4mV
The following procedure is used for a more accurate measurement of the junction temperature:
1. Measure the ambient temperature TA.
2. Measure the SSTT voltage while in pulse skip mode
with the VOUT pulled up slightly higher than the
regulated VOUT.
3. Calculate the slope of the temperature sensing circuit
as follows:
Slope (mV / °C) =
VSSTT
TA + 273
4. Calculate the junction temperature with the new calibrated slope.
When the output voltage goes out of regulation and the
power good pin is pulled low, the soft-start pin no longer
reports the temperature.
125
SSTT PIN VOLTAGE
OPERATING RANGE
TEMP
MONITOR
~4mV/°C
50
25
0.6
0.5
0.4
FB
0.3
(V)
0.2
0.1
0
The peak inductor current at which the current comparator shuts off the top power switch is controlled by the
voltage on the ITH pin. If the output current increases,
the error amplifier raises the ITH pin voltage until the
average inductor current matches the new load current.
In normal operation, the LTC3310S clamps the maximum
ITH pin voltage.
When the output is shorted to ground, the inductor current decays very slowly during the switch off time because
of the low voltage across the inductor. To keep the current
in control, a secondary limit is also imposed on the valley
inductor current. If the inductor current measured through
the bottom power switch increases beyond IVALLEY(MAX),
the top power switch will be held off and switching cycles
will be skipped until the inductor current is reduced.
Recovery from a short circuit can be abrupt and because
the output is shorted and below regulation the regulator
is requesting the maximum current to charge the output.
When the short circuit condition is removed, the inductor
current could cause an extreme voltage overshoot in the
output. The LTC3310S addresses this potential issue by
regulating the SSTT voltage just above the FB voltage anytime the output is out of regulation. Therefore, a recovery
from an output short circuit goes through a soft-start
cycle. The output ramp is controlled and the overshoot
is minimized.
150
DIE TEMP 100
(°C) 75
Output Short Circuit Protection and Recovery
SOFT-START
AND TRACKING
0 0.1 0.2 0.3 0.4 0.5 0.6 1.2 1.3 1.4 1.5 1.6 1.7
SSTT (V)
3310S1 F03
Figure 3. Soft-Start and Temperature Monitor Operation
20
For more information www.analog.com
Rev. F
LTC3310S/LTC3310S-1
LTC3310/LTC3310-1
APPLICATIONS INFORMATION
Low EMI PCB Layout
The LTC3310S is specifically designed to minimize EMI/
EMC emissions and also to maximize efficiency when
switching at high frequencies. For optimal performance,
the LTC3310S/LTC3310 requires the use of multiple VIN
bypass capacitors.
Many designs will benefit from additional 0402 ceramic
capacitors (CIN3 and CIN4) placed between the larger bulk
input ceramic capacitors as shown in Figure 4. These
capacitors range from 0.1μF to 0.47μF and are often
needed for high frequency designs. If the additional 0402
capacitors are not added to the layout then the bulk input
ceramic capacitors should be moved as close as possible
to the VIN pins.
The LTC3310/LTC3310-1 does not have any internal
bypass capacitors and hence requires three additional
0201 external capacitors (CIN5, CIN6, and CIN7), as shown
in Figure 5. Place these capacitors as close as possible
to the ICs.
To avoid noise coupling into FB, the resistor divider should
be placed near the FB and AGND pins and physically
close to the LTC3310S. The remote output and ground
traces should be routed together as a differential pair to
the remote output. These traces should be terminated as
close as physically possible to the remote output point
that is to be accurately regulated through remote differential sensing.
See Figure 4 and Figure 5 for a recommended PCB layouts.
Large, switched currents flow in the LTC3310S VIN, SW
and PGND pins and the input capacitors. The loops formed
by the input capacitors should be as small as possible by
placing the capacitors adjacent to the VIN and PGND pins.
Place the input capacitors, inductor and output capacitors on the same layer of the circuit board. Place a local,
unbroken ground plane under the application circuit on
the layer closest to the surface layer.
The SW node should be as short as possible. Finally,
keep the FB and RT nodes small and away from the noisy
SW node.
GROUND PLANE ON LAYER 2
VIN
CC1
CC1
CSS
CFF
RT
CSS
CFF
CC2
RB
RC
CIN7 1
14
18
CC2
RB
1
15
CIN3
14
6
9
(OPT)
19
10
5
CIN1
CIN2
(OPT)
9
10
CIN2
GND
GND
VOUT
6
CIN5
GND
L
15
CIN6
CIN4
5
CIN1
RC
18
19
TO VOUT & GND
REMOTE SENSE
RT
RA
RA
COUT1
GROUND PLANE ON LAYER 2
VIN
GND
COUT1
COUT2
3310S1 F04
Figure 4. Recommended PCB Layout for the LTC3310S
TO VOUT & GND
REMOTE SENSE
L
VOUT
COUT2
3310S1 F05
Figure 5. Recommended PCB Layout for the LTC3310
Rev. F
For more information www.analog.com
21
LTC3310S/LTC3310S-1
LTC3310/LTC3310-1
APPLICATIONS INFORMATION
High Temperature Considerations
heat dissipated by the LTC3310S. Placing additional vias
can reduce thermal resistance further. The maximum load
current should be derated as the ambient temperature
approaches the maximum junction rating. Power dissipation within the LTC3310S can be estimated by calculating
the total power loss from an efficiency measurement and
subtracting the inductor loss. The die temperature is monitored with the SSTT pin.
For higher ambient temperatures, care should be taken in
the layout of the PCB to ensure good heat sinking of the
LTC3310S. The PGND pins and the exposed pad on the
bottom of the package should be soldered to a ground
plane. This ground should be tied to large copper layers
below with many thermal vias; these layers will spread
TYPICAL APPLICATIONS
Dual Phase 5V to 3.3V, 20A
VIN
4.5V TO 5.5V
1µF
47µF
0.22µF
1M
0.22µF
VIN
EN
PGOOD
100k
SW
100k
ITH
SSTT
4.7pF
15k
274k
FB
RT
AGND PGND
PGOOD
VOUT
3.3V
20A
200nH
LTC3310S
MODE/SYNC
1.0pF
47µF
22µF
x2
48.7k
274k
0.1µF
390pF
VIN
1µF
47µF
0.22µF
47µF
0.22µF
EN
VIN
PGOOD
MODE/SYNC
LTC3310S
ITH
SW
FB
200nH
22µF
x2
VIN
1.0pF
AGND PGND RT
180°
3310S1 TA03
L = COILCRAFT, XEL4030-201ME
Rev. F
22
For more information www.analog.com
LTC3310S/LTC3310S-1
LTC3310/LTC3310-1
TYPICAL APPLICATIONS
Three Phase, 0.6V, 30A
VIN
2.25V TO 4.5V
1µF
47µF
0.22µF
VIN
EN
100k
PGOOD
MODE/SYNC
SW
0.22µF
100nH
12pF
LTC3310S
ITH
10k
86.6k
FB
SSTT
390pF
47µF
RT
AGND PGND
432k
47µF
x2
10µF
x2
VOUT
0.6V
30A
274K
0.1µF
VIN
1µF
47µF
0.22µF
EN
VIN
0.22µF
PGOOD
MODE/SYNC
SW
LTC3310S
ITH
47µF
100nH
47µF
x2
10µF
x2
VIN
FB
243k
120°
AGND PGND RT
174k
VIN
1µF
47µF
0.22µF
EN
VIN
0.22µF
PGOOD
MODE/SYNC
LTC3310S
ITH
SW
47µF
x2
10µF
x2
VIN
FB
174k
240°
AGND PGND RT
3310S1 TA04
47µF
100nH
243k
L = WURTH ELEKTRONIK, 744373240010
Rev. F
For more information www.analog.com
23
LTC3310S/LTC3310S-1
LTC3310/LTC3310-1
TYPICAL APPLICATIONS
Four Phase, 2MHz, 1.2V, 40A
VIN
2.25V TO 5.5V
1µF
47µF
0.22µF
VIN
EN
0.22µF
PGOOD
MODE/SYNC
SW
100nH
6.8pF
LTC3310S
ITH
10k
SSTT
390pF
FB
RT
AGND PGND
47µF
140k
22µF
x2
10µF
x2
100k
274k
VOUT
1.2V
40A
0.1µF
VIN
1µF
47µF
0.22µF
EN
VIN
0.22µF
PGOOD
MODE/SYNC
SW
LTC3310S
ITH
47µF
100nH
22µF
x2
10µF
x2
VIN
FB
301k
90°
AGND PGND RT
100k
VIN
1µF
47µF
0.22µF
EN
VIN
0.22µF
PGOOD
MODE/SYNC
100nH
SW
LTC3310S
ITH
FB
47µF
22µF
x2
10µF
x2
VIN
180°
AGND PGND RT
VIN
1µF
47µF
0.22µF
EN
VIN
PGOOD
MODE/SYNC
LTC3310S
ITH
SW
0.22µF
100nH
22µF
x2
10µF
x2
VIN
FB
100k
270°
AGND PGND RT
3310S1 TA05
47µF
301k
L = COILCRAFT, XEL4030-101ME
Rev. F
24
For more information www.analog.com
LTC3310S/LTC3310S-1
LTC3310/LTC3310-1
TYPICAL APPLICATIONS
Four Phase, 2MHz, 1.2V, 40A Driven with External Clock
VIN
2.25V TO 5.5V
1µF
47µF
0.22µF
VIN
EN
0.22µF
PGOOD
MODE/SYNC
EXTERNAL
CLOCK
SW
100nH
6.8pF
LTC3310S
ITH
10k
SSTT
390pF
47µF
FB
RT
AGND PGND
VIN
140k
22µF
x2
10µF
x2
100k
VOUT
1.2V
40A
0.1µF
VIN
1µF
47µF
0.22µF
EN
VIN
0.22µF
PGOOD
MODE/SYNC
SW
LTC3310S
ITH
47µF
100nH
22µF
x2
10µF
x2
VIN
FB
301k
90°
AGND PGND RT
100k
VIN
1µF
47µF
0.22µF
EN
VIN
0.22µF
PGOOD
MODE/SYNC
100nH
SW
LTC3310S
ITH
47µF
22µF
x2
10µF
x2
VIN
FB
180°
AGND PGND RT
VIN
1µF
47µF
0.22µF
EN
VIN
PGOOD
MODE/SYNC
LTC3310S
ITH
SW
0.22µF
47µF
100nH
22µF
x2
10µF
x2
VIN
FB
100k
270°
AGND PGND RT
3310S1 TA06
301k
L = COILCRAFT, XEL4030-101ME
Rev. F
For more information www.analog.com
25
LTC3310S/LTC3310S-1
LTC3310/LTC3310-1
TYPICAL APPLICATIONS
LTC3310S, 5MHz, 1V, 10A
VIN
3.0V TO 3.6V
22µF
0.22µF
649k
0.22µF
VIN
EN
22µF
PGOOD
100k
50nH
MODE/SYNC
0.1µF
10pF
100k
22µF
×3
FB
LTC3310S
SSTT
VOUT
1V
10A
SW
100k
AGND
ITH
10pF
15k
RT
PGND
220pF
100k
3310S1 TA07
L = XF303020LT-50NM, XFMR INC.
LTC3310S, 2MHz, 3.3V, 10A, Forced Continuous
VIN
4.5V TO 5.5V
22µF
22µF
1M
VIN
EN
PGOOD
100k
VOUT
PGOOD
100k
VIN
200nH
MODE/SYNC
15pF
LTC3310S
SSTT
0.1µF
SW
562k
FB
100k
ITH
VOUT
3.3V
10A
22µF
x2
AGND
10k
RT
PGND
220pF
VIN
3310S1 TA08
L = COILCRAFT, XEL4030-201ME
LTC3310, 1.2V 10A, Step-Down Converter
VIN
2.25V TO 5.5V
22µF
0.1µF
0.1µF
EN
VIN
MODE/SYNC
PGOOD LTC3310
100nH
SW
15pF
FB
SSTT
0.1µF
VIN
0.1μF
140k
100k
VOUT
1.2V
10A
22µF
×3
AGND
ITH
PGND
10k
22µF
RT
3310S1 TA09
274k
220pF
L = XEL4030-101ME, COILCRAFT
Rev. F
26
For more information www.analog.com
LTC3310S/LTC3310S-1
LTC3310/LTC3310-1
TYPICAL APPLICATIONS
LTC3310S, High Efficiency, 2MHz, 0.5V, 10A, Pulse Skip, Low Part Count
VIN
2.25V TO 4.3V
22µF
22µF
VIN
EN
PGOOD
100nH
MODE/SYNC
0.1µF
VOUT
0.5V
10A
SW
SSTT
47µF
×4
FB
LTC3310S
ITH
1MΩ
AGND
15k
270pF
RT
PGND
VIN
3310S1 TA10
L = COILCRAFT, XEL4030-101ME
LTC3310S-1, 2MHz, 1.0V, Forced Continuous
1.5A DC to 7.5A Step Load 6A/µs Transient,
