MABAES0060
RF 1:1 Flux Coupled Transformer
0.3 - 200 MHz
Rev. V9
Functional Schematic
Features
•
•
•
•
•
Surface Mount
1:1 impedance
Available on Tape and Reel
RoHS Compliant and Lead free
260°C Reflow Compatible
1
5
2
PRI
Description

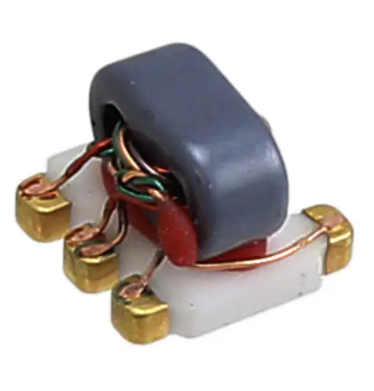

MABAES0060 is a RoHS compliant device that is
equivalent to the ETC1-1T transformer. This device
is a 1:1 RF flux coupled transformer in a SM-22
surface mount package and is designed to be
utilized in both standard reflow and high temperature
soldering
Ideally suited for high volume cellular and wireless
applications. Typical applications include single to
balanced mode conversion and impedance
matching.
SEC
3
4
Pin Configuration2
Pin #
Function
Pin #
Function
1
Secondary
4
Primary dot
2
Secondary CT
5
Primary
3
Secondary Dot
2. MACOM recommends connecting unused package pins to
ground.
Electrical Specifications: Freq. = 0.3 - 200 MHz, TA = 25°C, Pin = 0 dBm
Parameter
Units
Min.
Typ.
Max.
dB
—
—
1.5
dB
—
—
Degree
—
—
dB
—
—
dB
—
—
dB
—
—
Degree
—
—
dB
7
19
15
—
Z0 = 50 Ω
Insertion Loss
Amplitude Balance
Phase Balance
Input Return Loss
0.3 - 200
0.3 - 50
0.3 - 200
0.3 - 50
0.3 - 200
0.3 - 200
5 - 120
0.1
0.5
1.0
5.0
10.0
15.0
Z0 = 75 Ω
Insertion Loss
Amplitude Balance
Phase Balance
Input Return Loss
0.3 - 5
5 - 200
0.3 - 50
0.3 - 200
0.3 - 50
0.3 - 200
0.3 - 5
5 - 120
120 - 200
1.7
0.9
0.1
0.5
2.0
5.0
—
Ordering Information1
MABAES0060
2000 piece reel
1. Reference Application Note M513 for reel size information.
1
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DS-MABAES0060
MABAES0060
RF 1:1 Flux Coupled Transformer
0.3 - 200 MHz
Rev. V9
Absolute Maximum Ratings1,2
Parameter
Units
DC Power
500 mW
DC Current
500 mA
Operating Temperature
-40ºC to +85ºC
1. Exceeding any one or combination of these limits may cause permanent damage to this device.
2. The maximum DC current applies to the secondary center tap in applications where the secondary is balanced.
Application Schematic
2
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DS-MABAES0060
MABAES0060
RF 1:1 Flux Coupled Transformer
0.3 - 200 MHz
Rev. V9
Typical Performance Curves: Freq. = 0.3 - 200 MHz, TA = 25°C, Z0 = 50 Ω, PIN = 0 dBm
Insertion Loss
Input Return Loss
-0.2
-15
-0.4
-20
(dB)
-10
(dB)
0.0
-0.6
-25
-0.8
-30
-1.0
0.3
40.2
80.2
120.1
160.1
-35
200.0
0.3
40.2
Frequency (MHz)
Amplitude Balance
160.1
200.0
160.1
200.0
185
183
(degrees)
0.25
(dB)
120.1
Phase Balance
0.50
0.00
-0.25
-0.50
80.2
Frequency (MHz)
181
179
177
0.3
40.2
80.2
120.1
Frequency (MHz)
160.1
200.0
175
0.3
40.2
80.2
120.1
Frequency (MHz)
3
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DS-MABAES0060
MABAES0060
RF 1:1 Flux Coupled Transformer
0.3 - 200 MHz
Rev. V9
Typical Performance Curves: Freq. = 0.3 - 200 MHz, TA = 25°C, Z0 = 75 Ω, PIN = 0 dBm
Insertion Loss (pin 4_3)
Insertion Loss (pin 4_1)
-0.2
-0.2
-0.4
-0.4
(dB)
0.0
(dB)
0.0
-0.6
-0.6
-0.8
-0.8
-1.0
0.3
40.2
80.2
120.1
160.1
-1.0
0.3
200.0
40.2
Frequency (MHz)
Amplitude Balance
160.1
200.0
160.1
200.0
185
183
(degree)
0.25
(dB)
120.1
Phase Balance
0.50
0.00
-0.25
-0.50
80.2
Frequency (MHz)
181
179
177
0.3
40.2
80.2
120.1
Frequency (MHz)
160.1
200.0
175
0.3
40.2
80.2
120.1
Frequency (MHz)
4
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DS-MABAES0060
MABAES0060
RF 1:1 Flux Coupled Transformer
0.3 - 200 MHz
Outline Drawing
Rev. V9
PCB Layout
Dimensions in mm.
Tolerance: ±0.38 mm unless otherwise noted.
Model number and lot code are printed on the reel.
Lead plating: ENIG on both sides, 0.05 to 0.1 µm gold over 3 to 6 µm nickel.
Carrier Tape Orientation
Tape & Reel Information
Parameter
Units
Value
Qty per reel
-
2000
Reel Size
mm
330
Tape Width
mm
12
Pitch
mm
8
Orientation
-
F5
Reference Application Note ANI-019 for orientation
5
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DS-MABAES0060
MABAES0060
RF 1:1 Flux Coupled Transformer
0.3 - 200 MHz
Rev. V9
MACOM Technology Solutions Inc. All rights reserved.
Information in this document is provided in connection with MACOM Technology Solutions Inc ("MACOM")
products. These materials are provided by MACOM as a service to its customers and may be used for
informational purposes only. Except as provided in MACOM's Terms and Conditions of Sale for such products or
in any separate agreement related to this document, MACOM assumes no liability whatsoever. MACOM
assumes no responsibility for errors or omissions in these materials. MACOM may make changes to
specifications and product descriptions at any time, without notice. MACOM makes no commitment to update
the information and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future
changes to its specifications and product descriptions. No license, express or implied, by estoppels or otherwise,
to any intellectual property rights is granted by this document.
THESE MATERIALS ARE PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, RELATING TO SALE AND/OR USE OF MACOM PRODUCTS INCLUDING LIABILITY OR
WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, CONSEQUENTIAL OR
INCIDENTAL DAMAGES, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR
OTHER INTELLECTUAL PROPERTY RIGHT. MACOM FURTHER DOES NOT WARRANT THE ACCURACY
OR COMPLETENESS OF THE INFORMATION, TEXT, GRAPHICS OR OTHER ITEMS CONTAINED WITHIN
THESE MATERIALS. MACOM SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR LOST PROFITS,
WHICH MAY RESULT FROM THE USE OF THESE MATERIALS.
MACOM products are not intended for use in medical, lifesaving or life sustaining applications. MACOM
customers using or selling MACOM products for use in such applications do so at their own risk and agree to
fully indemnify MACOM for any damages resulting from such improper use or sale.
6
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DS-MABAES0060
