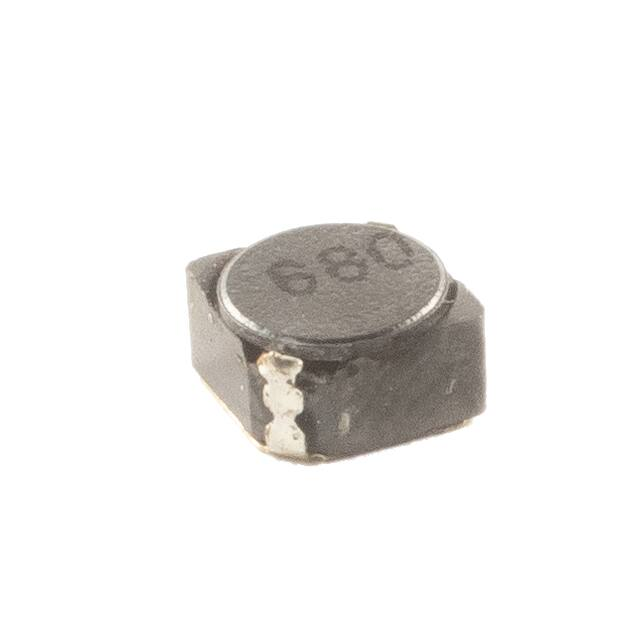

PCSN5D33-680M-RC

RoHS Shielded Power Inductor Dimensions: PCSN5D33 Inches (mm) Allied Part Number Inductance (µH) Tolerance (%) Test Freq. 100KHz,V DCR mΩ Max Rated Current (A) PCSN5D33-6R8M-RC PCSN5D33-100M-RC PCSN5D33-150M-RC PCSN5D33-330M-RC PCSN5D33-470M-RC PCSN5D33-680M-RC PCSN5D33-101M-RC PCSN5D33-221M-RC 6.8 10 15 33 47 68 100 220 20 20 20 20 25 20 20 20 0.1 0.1 0.3 0.1 0.1 0.1 0.1 0.1 75 100 110 240 330 380 795 1527 2.80 2.50 1.90 0.88 0.84 0.75 0.46 0.41 All specifications subject to change without notice. Land Pattern Features • • • • • SMD Power Inductor Magnetically shielded Low DC resistance High Current Ideal for DC-DC converter applications Electrical Inductance Range: 6.8µH to 220µH Additional values available Tolerance: 20%, available in tighter tolerances Operating Temp: -55ºC to +125ºC Isat: Current at which Inductance drops by no more than 30% of initial value. Irms: Current at which the temperature rise is 40ºC Test Equipment (L): TH2817 (RDC): TH2512B (Isat & Irms): WK3260B & WK3265B Physical Schematic Packaging: 2000 pieces per 13 inch reel. Marking: EIA Inductance Code 949-356-1780 ALLIED COMPONENTS INTERNATIONAL REVISED 09/06/2017 15 www.alliedcomponents.com
