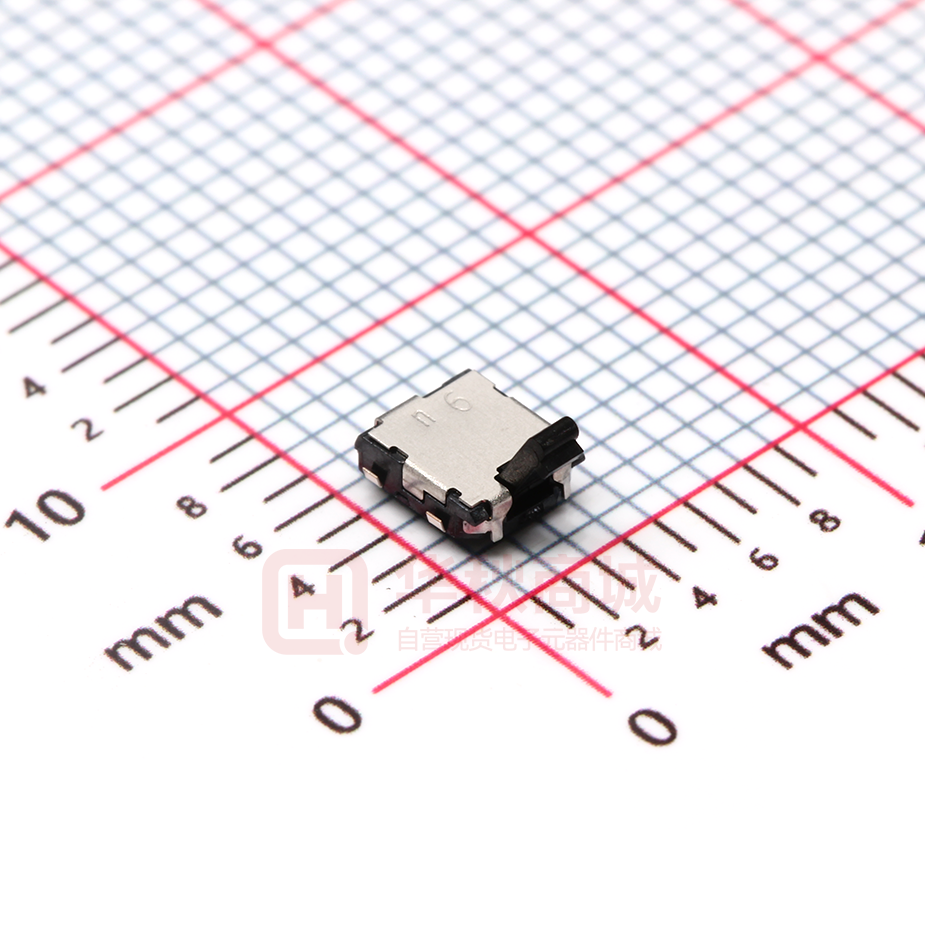

SPVR110102

SPVR Low-profile Lever Type Low-profile, 1.2mm height, long travel type Detector ■ Typical Specifications Items Specifications Slide Rating（max.）（ / min.） （Resistive load） 1mA 5V DC / 100μA 3V DC Contact resistance （Initial / After operating life） 3Ω max. / 5Ω max. Operating force 0.35N max. Push Without load 50,000cycles Operating life With load 50,000cycles（1mA 5V DC） Rotary Product Line Positions Total travel（mm） Terminal type 1 1 1.93 For PC board （Reflow） Power Poles Location lug Minimum order unit（pcs） Japan Export 2,500 10,000 Product No. SPVR110102 With Packing Specifications Taping Unit:mm Number of packages（pcs.） Generalpurpose Type 1 reel 1 case /Japan 1 case /export packing Tape width （mm） 2,500 5,000 10,000 16 Export package measurements （mm） 417×409×139 Water-proof Type Dimensions Reel size Unit:mm PC board mounting hole and land dimensions （Viewed from direction A） Style 4.2 0.8 Frame 4 3 2.9 2.2 0.2 e 4 l ho R0. 2 1 3 4 (0.95) 1 Total travel position Center of rotation 0. 2 (2.98) C (0.92) 1.2 0.4 A Circuit Diagram .7 ø0 2.7 3 2- 3.13 0.9 5 0.6 ˚) ON starting position 1 2 0.8 (60 1.72 (0.31) 0.2 4.5 4-0.5 2.2 2 1.05 Terminal No.1 1.2 3.6 Fast Switching Type With boss Terminal Layout （Viewed from Direction A） 0.5 Dual-in-line Package Type SPVR120102 Without ø0.6 Note Dimensions drawing is for type with location lugs. 26 Refer to P.73 for soldering conditions. Detector Switches List of Varieties SPVS SPVN SPVT SPVM SPVR SPVE Slide Photo Operation type Two-way One-way W 3.5 3.8 5.6 2.8 3.6 3.4 D 3.3 3.6 4.7 3.5 4.2 3 1.9 1.5 1.2 2.3 H 1 Automotive use −40℃ to ＋85℃ ● ● −10℃ to ＋60℃ ● ● ● — Power Life cycle (availability) Poles / Positions 1/1 50mA 20V DC Rating（min.） （Resistive load） 50μA 3V DC 100μA 3V DC Operating life without load 50,000cycles 5Ω max. 100,000cycles 1Ω max. 50,000cycles 5Ω max. 50,000cycles 1Ω max. Operating life with load Rating（max.） （Resistive load） 50,000cycles 5Ω max. 100,000cycles 1Ω max. 50,000cycles 5Ω max. 50,000cycles 1Ω max. Initial contact resistance 2Ω max. 500mΩ max. 2Ω max. Insulation resistance 100MΩ min. 100V DC Voltage proof 100V AC for 1 minute 0.5N for 1minute Actuator strength 5N 1N for  1minute 10N 5N 3Ω max. Damp heat 40℃, 90 to 95％RH 96h 0.35N max. 16 0.4N max. 19 21 500mΩ max. 2N 5N −20℃ 96h 85℃ 96h Operation force 50μA 3V DC 0.5N for 1minute −40℃ 96h Dry heat Page 100μA 3V DC Fast Switching Type Terminal strength Cold Environmental performance 50μA 3V DC 0.1A 30V DC Water-proof Type Mechanical performance 1mA 5V DC Generalpurpose Type 1mA 5V DC Dual-in-line Package Type Rating（max.） （Resistive load） Electrical performance Rotary Operating temperature range Push Dimensions （mm） Durability Detector General-purpose Type Series 24 0.35N max. 0.3N max. 26 27 Detector Switches Soldering Conditions・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 73 Detector Switches Cautions・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 74 Note ● Indicates applicability to all products in the series. 11 Detector Switches Soldering Conditions 1. 2. 　 3. Heating method: Double heating method with infrared heater. Temperature measurement: Thermocouple φ0.1 to 0.2 CA（K）or CC（T）at soldering portion（copper foil surface）. A heat resisting tape should be used for fixed measurement. Temperature profile Detector Example of Reflow Soldering Condition Slide A max. B 200 Push D E 100 Rotary Temperature (˚C ) 300 Room temperature Time (s) A（℃）3s max. SPPB B（℃） C（s） D（℃） E（℃） F（s） 180 150 120 40 250 SPPW8 C Dual-in-line Package Type Series（Reflow type） Power Pre-heating F max. 35 SPVE SPVL SPVN 230 SPVR 40 260 Water-proof Type SPVS Generalpurpose Type SPVM SPVT SSCM SPVQC, SPVQE Fast Switching Type SSCQ 250 Notes 1. The condition mentioned above is the temperature on the mounting surface of a PC board. There are cases where the PC board's temperature greatly differs from that of the switch, surface depending on the PC board's material, size, thickness, etc. The above-stated conditions shall also apply to switch surface temperatures. 2. Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering condition is highly recommended. Reference for Hand Soldering Series Soldering temperature Reference for Dip Soldering Soldering time (For PC board terminal types) Items Series SPVS, SPVN, SPVT, SPVM, SPVR, SPVE, SPPW8,SSCQ, SSCM, SPVL, SSCT, SPVQC, SPVQE 350±5℃ SPVQ1, SPVQ3, SPVQ6, SPVQ7, SPVQ8, SPVQ9, SSCN, SPVQA 300±10℃ 3 +1 / 0s SPPB（Reflow） 300±5℃ 5s max. SSCF, SPPB（For Lead, Dip） 350±10℃ 3 +1 / 0s 3s max. Preheating temperature Preheating time Dip soldering Soldering temperature SSCT, SPVQ1, SPVQ3, SPVQ6, SPVQ7, SPVQ8, 100±10℃ 60s max. 260±5℃ SPVQ9, SPVQA SPPW8, SPPB SSCF 100 ℃ max. 60s max. 255±5℃ ー 260±5℃ Duration of immersion 5±1s 5±1s 5±1s 73
