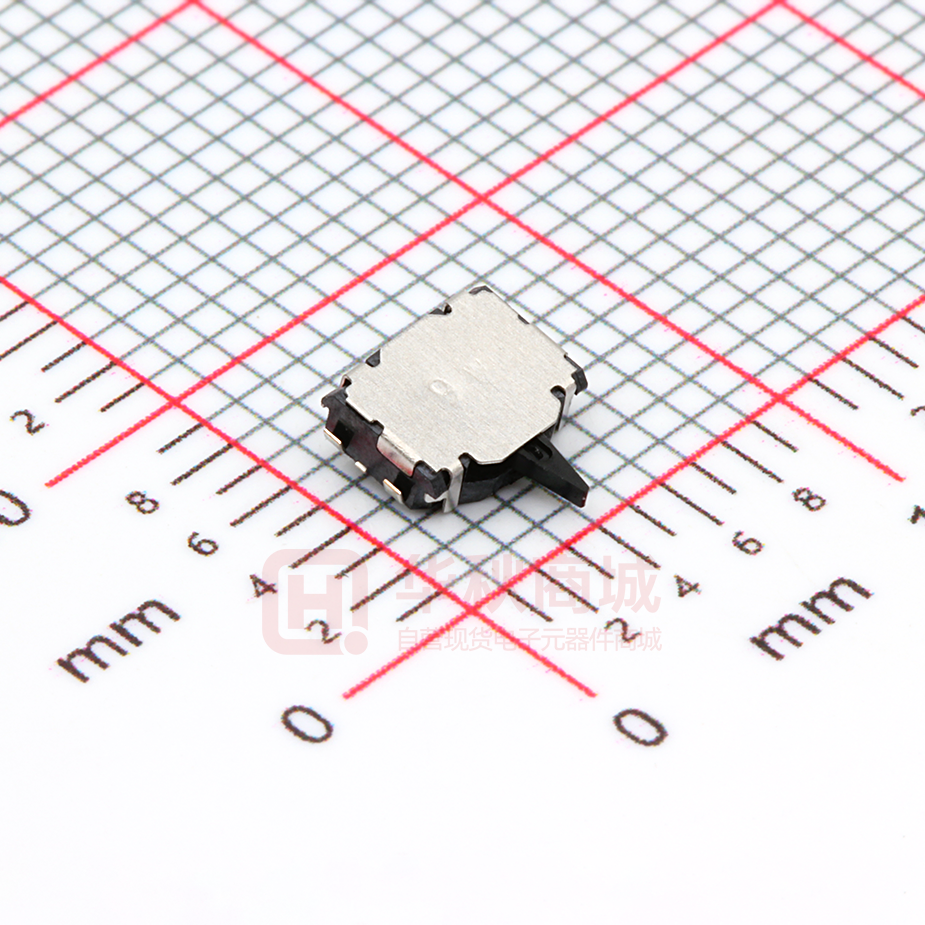

SSCM110100

2017/6/19 SSCM Series - Basic information Compact Two-way Detection Type SSCM Series Part number SSCM110100 Poles 1 Positions 2 Terminal type For PC board (Reflow) Operating force 0.35N max. Total travel position (mm) 1.57 Location lug With Operating temperature range -10℃ to +60℃ Rating (max.)/(min.) (Resistive load) 1mA 5V DC/50μA 3V DC Electrical performance 2Ω max./5Ω max. Contact resistance （Initial/After operating life） Insulation resistance 100MΩ min. 100V DC Mechanical performance Durability Voltage proof 100V AC for 1 minute Terminal strength 0.5N for 1 minute Actuator strength 2N Operating life without load 50,000 cycles 5Ω max. Operating life with 50,000 cycles 5Ω max. load Rating （max.）（Resistive load） Environmental performance Cold -20℃ 96h Dry heat 85℃ 96h Damp heat 40℃, 90 to 95%RH 96h http://www.alps.com/prod/info/E/HTML/Switch/Detector/SSCM/SSCM110100.html 1/4 2017/6/19 SSCM Series - Basic information Minimum order unit Japan (pcs.) Export 3,000 12,000 Dimensions Land Dimensions Viewed from direction A in the dimensions. Terminal Layout http://www.alps.com/prod/info/E/HTML/Switch/Detector/SSCM/SSCM110100.html 2/4 2017/6/19 SSCM Series - Basic information Circuit Diagram Packing Specifications Taping Number of packages １ reel 3,000 (pcs.) 1 case / Japan 6,000 1 case / export 12,000 packing Tape width (mm) 16 Export package measurements (mm) 417×409×139 http://www.alps.com/prod/info/E/HTML/Switch/Detector/SSCM/SSCM110100.html 3/4 2017/6/19 SSCM Series - Basic information Soldering Conditions Example of Reflow Soldering Condition 1. Heating method Double heating method with infrared heater. 2. Temperature measurement Thermocouple 0.1 to 0.2VCA（K）or CC（T）at soldering portion （copper foil surface）. A heat resisting tape should be used for fixed measurement. 3. Temperature profile A(℃) B(℃) C(s) D(℃) E(℃) F(s) 230 40 180 150 120 3s max. 260 (1) The condition mentioned above is the temperature on the mounting surface of a PC board. There are cases where the PC board's temperature greatly differs from that of the switch, surface depending on the PC board's material, size, thickness, etc. The above-stated conditions shall also apply to switch surface temperatures. (2) Soldering conditions differ depending on reflow soldering machines. Prior verification of soldering condition is highly recommended. Reference for Hand Soldering Soldering temperature 350±5℃ Soldering time 3s max. Notes are common to this series/models. 1. This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply. 2. Please place purchase orders per minimum order unit (integer). http://www.alps.com/prod/info/E/HTML/Switch/Detector/SSCM/SSCM110100.html 4/4
