AT60-204-12141

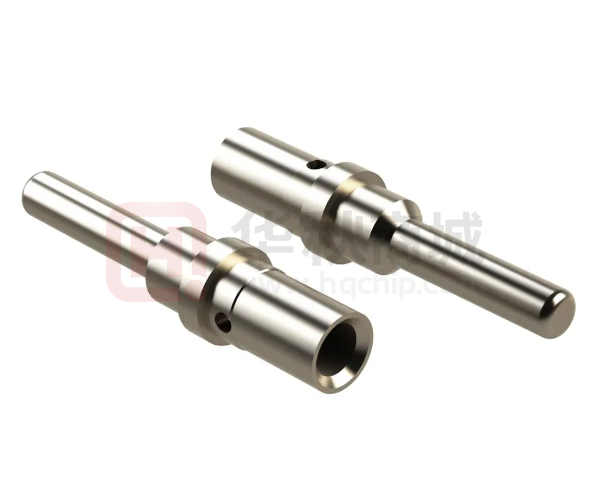

TITLE: PIN, SOLID, SIZE 12, 12-14 AWG, ATP & AHD-6 SERIES AT60-204-12141 DWG NO: REV: A4 SH: 1 OF: 1 REVISIONS REV INSPECTION HOLE ECO DESCRIPTION DATE BY A3 RELEASE NEW DRAWING FORMAT 08/OCT/13 DRP A4 MATCHED DIMS TO NEW TOOLING 28JAN15 JAH APPR 1.35 ø2.8 ø2.37 ø4.0 6.4 ø4.8 7 20.6 NOTES: UNLESS OTHERWISE SPECIFIED 1. MATERIAL: COPPER ALLOY; NICKEL PLATED 2. CONTACT SIZE: 12 3. SPECIFICATIONS: 3.1 CURRENT RATING: 25 AMP 3.2 CONTACT MILLIVOLT DROP: 60 MILLIVOLT DROP @ 25 AMP TEST CURRENT. 3.3 ROHS COMPLIANT AT60-204-12141 DESCRIPTION PART NUMBER MATERIALS LIST QUANTITY UNLESS OTHERWISE SPECIFIED 1) All dimensions are in metric(mm). 2) Tolerances are as follows: 1 PL DEC ±0.30 Fractions ±1/64 2 PL DEC ±0.15 Angles ±1° 3 PL DEC ±0.08 3) Note reference = X SIGNATURES DRAWN: D.PARKS ITEM Amphenol DATE 08/OCT/13 CHECKED: Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: APPROVAL: MATERIAL SPECIFICATIONS: CUSTOMER: 4. RECOMMENDED WIRE RANGE: 12 - 14 AWG 5. AVAILABLE HAND CRIMPER: CA-5D12 6. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY PROCESS SPECIFICATIONS: THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. CONTACT, PIN, SOLID, SIZE 12, 12-14 AWG, ATP & AHD-6 SERIES TYPE A C- NEXT ASS'Y: NONE DWG NO: REVISION AT60-204-12141 SHEET 1 A4 OF 1
