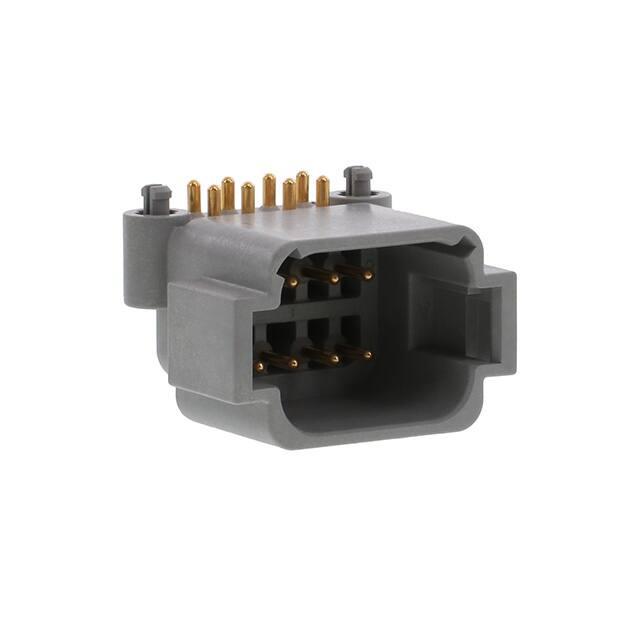

ATF13-08PA-BM01

REVISIONS REV ECO A1 - A2 A3 DESCRIPTION DATE BY RELEASE 2JUL2018 JAH APPR - UPDATE DRAWING 25/MAR/19 BROOK TOMMY - MODIFIED DESCRIPTION 12JUL19 BROOK TOMMY TITLE: RIGHT ANGLE RECEPTACLE, AT 8 PIN,SNAP FIT,BOARDLOCK 29.9 36.8±0.40 23.3 4.42 5.45 4.42 1 SEE SHEET 2 FOR KEY ARRANGEMENTS AND COLORS. 8X Ø1.70 2. MATERIAL: HOUSING: THERMOPLASTIC; COLOR: SEE SHEET 2 CONTACT: COPPER ALLOY PLATING: NICKEL UNDERPLATE SEE CHART FOR OVERALL FINISH 2X Ø3.30 A3 RECOMMENDED PCB LAYOUT 4.42 OF: 26.5 1 SEE PART NUMBER CHART PART NUMBER DESCRIPTION QUANTITY MATERIALS LIST 5.45 4.42 UNLESS OTHERWISE SPECIFIED 1) All dimensions are in metric(mm). 2) Tolerances are as follows: 1 PL DEC ±0.30 Fractions ±1/64 2 PL DEC ±0.15 Angles ±1° 3 PL DEC ±0.08 3) Note reference = X SIGNATURES DRAWN: CHECKED: MATERIAL SPECIFICATIONS: CUSTOMER: 25.4 PROCESS SPECIFICATIONS: 12/JUL/19 12/JUL/19 TOMMY.XIE 12/JUL/19 Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: APPROVAL: 4.42 Amphenol DATE BROOK.DING ORION.LI RIGHT ANGLE RECEPTACLE, AT 8 PIN, SNAP FIT, BOARDLOCK THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. TYPE B C- NEXT ASS'Y: ITEM NONE DWG NO: REVISION ATF13-08PX-BM0X SHEET 1 A3 OF 2 2 6. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. SH: 5. MATING PART: AT06-08SX* PLUG ( X = A,B,C,D KEYS; * = MODIFICATIONS AND COLORS ) REV: 4.42 3. MODIFICATIONS: RIGHT ANGLE PCB MOUNT, SNAP FIT 4. SPECIFICATIONS: 4.1 CURRENT RATING: 13 AMPS 4.2 OPERATING TEMPERATURE: -55°C TO +125°C 4.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2 MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC. 4.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 25°C. 4.5 MOISTURE RESISTANCE: IP67 ( MATED CONDITION ) 4.6 MATING CYCLE DURABILITY: 100 CYCLES 4.7 RoHS COMPLIANT ATF13-08PX-BM0X NOTES: UNLESS OTHERWISE SPECIFIED 26.50 0.18 1.70TYP 8xØ1.57 DWG NO: 8x3.05±0.30 REVISIONS P/N ATF13-08PA-BM0X KEY-A CONFIGURATION COLOR: GREY P/N ATF13-08PB-BM0X KEY-B CONFIGURATION COLOR: BLACK REV ECO A1 - A2 A3 DESCRIPTION DATE BY RELEASE 2JUL2018 JAH - UPDATE DRAWING 25/MAR/19 BROOK TOMMY - MODIFIED DESCRIPTION 12JUL19 BROOK TOMMY P/N ATF13-08PC-BM0X KEY-C CONFIGURATION COLOR: GREEN APPR P/N ATF13-08PD-BM0X KEY-D CONFIGURATION COLOR: BROWN TITLE: RIGHT ANGLE RECEPTACLE, AT 8 PIN,SNAP FIT,BOARDLOCK KEYWAY (2) PLACES KEYWAY (2) PLACES KEYWAY (2) PLACES DWG NO: KEYWAY (2) PLACES ATF13-08PB-BM0X VARIANTS ATF13-08PC-BM0X VARIANTS ATF13-08PD-BM0X VARIANTS PART NUMBER CONTACT PLATING PART NUMBER CONTACT PLATING PART NUMBER CONTACT PLATING PART NUMBER GOLD ATF13-08PA-BM01 GOLD ATF13-08PB-BM01 GOLD ATF13-08PC-BM01 GOLD ATF13-08PD-BM01 TIN ATF13-08PA-BM03 TIN ATF13-08PB-BM03 TIN ATF13-08PC-BM03 TIN ATF13-08PD-BM03 ATF13-08PX-BM0X ATF13-08PA-BM0X VARIANTS CONTACT PLATING REV: A3 SH: 2 OF: UNLESS OTHERWISE SPECIFIED 1) 2) 1 2 3 All dimensions are in metric(mm). Tolerances are as follows: PL DEC ±0.30 Fractions ±1/64 PL DEC ±0.15 Angles ±1° PL DEC ±0.08 3) Note reference = X SIGNATURES DRAWN: CHECKED: 12/JUL/19 12/JUL/19 TOMMY.XIE 12/JUL/19 Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: APPROVAL: MATERIAL SPECIFICATIONS: CUSTOMER: PROCESS SPECIFICATIONS: Amphenol DATE BROOK.DING ORION.LI RIGHT ANGLE RECEPTACLE, AT 8 PIN, SNAP FIT, BOARDLOCK THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. TYPE B C- NEXT ASS'Y: ITEM NONE DWG NO: REVISION ATF13-08PX-BM0X SHEET 2 A3 OF 2 2 SEE PART NUMBER CHART PART NUMBER DESCRIPTION QUANTITY MATERIALS LIST
