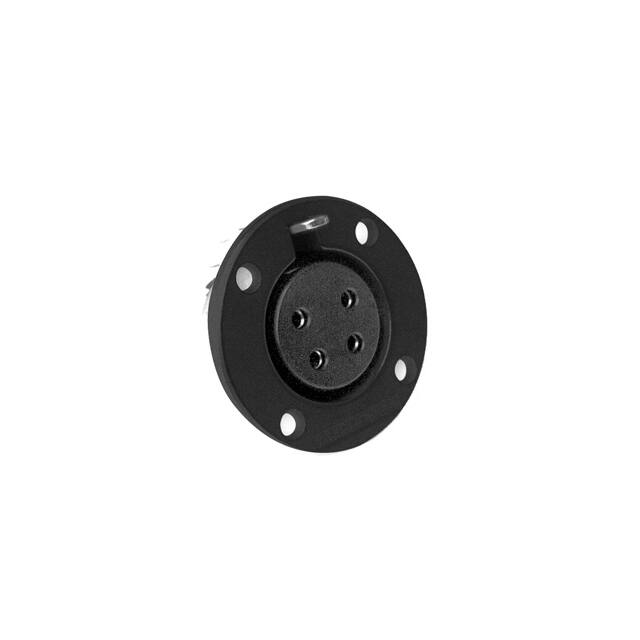

EP-8-13PB

EP / AP / SP / HP SERIES STANDARD DATA STANDARD DATA EP/AP VALUE GENERAL CHARACTERISTICS Number of contacts 3 4 5 12AWG 12AWG 12AWG UL94V-0 Environmental Complies with EU RoHS 2 Directive 2011/65/EU Service Voltage RMS 1) Test Voltage AC RMS 460V 660V 200V 200V 100V 2400V 3000V 1600V 1600V 1300V 20A 20A 20A 20A 15A Typicial Contact Resistance ≤3mΩ Insulation Resistance CLIMATIC CHARACTERISTICS Protection Class MECHANICAL CHARACTERISTICS Weight - EP 11 & 12 ≥1000MΩ IP40 Operating Temperature Weight - EP 13 & 14 Weight - AP 11 & 12 -25˚C to +75˚C (-13°F to +167°F) 2) 2) 2) Weight - AP 13, 14, 21 & 22 Rev 3 - 03/2013 14AWG Flammability Current carrying capacity Typical Cable retention force Mechanical operations 2) 12AWG SOLDER Wire Gauge - Stranded wire: 1) 8 Contact Arrangements (Front view of pin insert) Termination ELECTRICAL CHARACTERISTICS 6 2) 80g 84g 86g 86g 86g (0.176lb) (0.185lb) (0.189lb) (0.189lb) (0.189lb) 48g 50g 54g 54g 54g (0.105lb) (0.110lb) (0.119lb) (0.119lb) (0.119lb) N/A 42g 44g 44g 44g (0.092lb) (0.097lb) (0.097lb) (0.097lb) 26g 30g 30g 28g (0.057lb) (0.066lb) (0.066lb) (0.061lb) N/A 22Kg to 44Kg (50lb to 100lb) - Dependant on cable material and diameter 1000 mating cycles Not suitable for domestic applications above 50V Approximate weight only, does not include packaging. Please contact us for exact weight for shipping purposes. 67 ENTERTAINMENT INTERCONNECT CATALOGUE - Amphenol Australia Pty Ltd Telephone 61 3 8796 8888 Fax 61 3 8796 8801 www.amphenolaudio.com EP / AP / SP / HP SERIES STANDARD DATA STANDARD DATA EP/AP (CONT’D) DETAILS MATERIALS TYPE Connector shell Shell finish AP EP Modified PPE Resin Diecast Zinc Alloy Black Satin Nickel or Black Insulators Cable Bushing UL94V-0 PBT Resin Silicon Rubber UL94 HB Thermoplastic Elastomer Male contact Machined - Solder Material / Plating Brass / Bright Tin Female contact Machined - Solder CLAMPING CHARACTERISTICS Cable OD Range Retention Method Brass / Bright Tin 11mm to 17mm 9mm to 16mm (0.43” to 0.67”) (0.35” to 0.63”) Two opposing plastic screws Metal saddle clamp EP/AP SERIES PANEL CUTOUT DATA - FRONT VIEW EP 13/AP 13/AP 21 EP 14/AP 14/AP 22 68 ENTERTAINMENT INTERCONNECT CATALOGUE - Amphenol Australia Pty Ltd Telephone 61 3 8796 8888 Fax 61 3 8796 8801 www.amphenolaudio.com Rev 3 - 03/2013 Material / Plating
