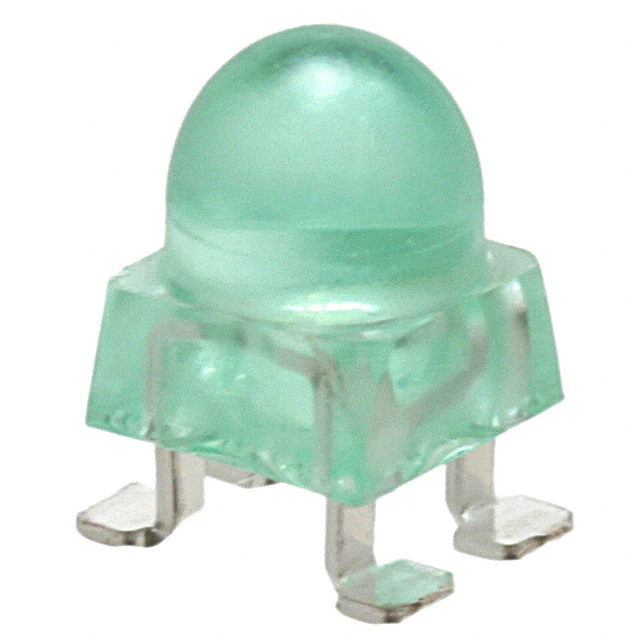

ALMD-CM3F,ALMD-CB3F
High Brightness SMT Round
Green & Blue LED Lamps
Data Sheet
Description
Features
The new Avago ALMD-xx3F LED series has the same or
just slightly less luminous intensity than conventional
high brightness, through-hole LEDs.
• Compact form factor
• High brightness material
• Available in Green and Blue Color
The new LED lamps can be assembled using common
SMT assembly processes and are compatible with industrial reflow soldering processes.
• Green InGaN 525nm
• Blue InGaN 470nm
The LEDs are made with an advanced optical grade epoxy
for superior performance in outdoor sign applications
• Jedec MSL 2A
For easy pick and place assembly, the LEDs are shipped in
tape and reel. Every reel is shipped from a single intensity
and color bin for better uniformity
• Tinted lens
• Compatible with reflow soldering process
• Typical viewing angle: 30°
Applications
Package Dimensions
• Mono color signs
Package Marking
A
A
4.20
C
C
A: Anode
C: Cathode
4.20
4.75 ± 0.50
6.50 ± 0.50
3.40 ± 0.50
1.60 ± 0.50
2.50
1.4 (4×)
C
A
1.00
Notes:
1. All dimensions in millimeters (inches).
2. Tolerance is ± 0.20 mm, unless otherwise specified.
3. Mildsteel leadframe.
CAUTION: InGaN devices are Class 1C HBM ESD sensitive, AlInGaP devices are Class 1B ESD sensitive per JEDEC Standard.
Please observe appropriate precautions during handling and processing. Refer to Application Note AN-1142 for additional details.
CAUTION: Customer is advised to always keep the LED in the MBB with 30°C /
60% RH at any time.
- The LED floor life exceeded 672hrs.
LED flange
4.4mm
Φ3.9mm
The recommended baking condition is: 60±5ºC
for 20hrs. Baking should only be done once.
f. Storage
Note:
1. Nozzle tip should touch the LED flange during pick and place.
2. Outer dimensions of the nozzle should be able to fit into the
carrier tape pocket.
2. Handling of moisture-sensitive device
This product has a Moisture Sensitive Level 2a rating
per JEDEC J-STD-020. Refer to Avago Application Note
AN5305, Handling of Moisture Sensitive Surface Mount
Devices, for additional details and a review of proper
handling procedures.
a. Before use
- An unopened moisture barrier bag (MBB) can
be stored at
