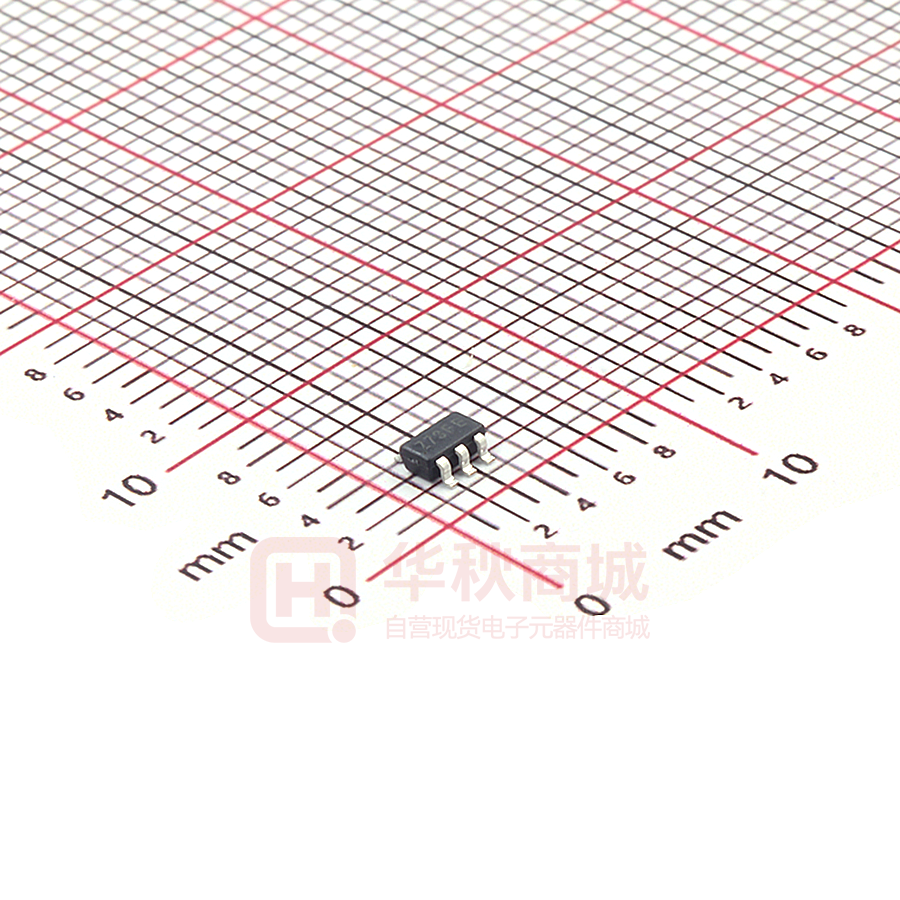

74LVC2G34
DUAL BUFFERS
Description
Pin Assignments
The DIODES™ 74LVC2G34 is a dual buffer gate with standard pushpull outputs. The device is designed for operation with a power supply
range of 1.65V to 5.5V. The inputs are tolerant to 5.5V allowing this
device to be used in a mixed voltage environment. The device is fully
specified for partial power down applications using I OFF. The IOFF
(Top View)
(Top View)
1A 1
GND 2
circuitry disables the output preventing damaging current backflow
when the device is powered down.
2A 3
6 1Y
5 Vcc
4 2Y
1A
1
6 1Y
GND
2
5 Vcc
2A
3
4 2Y
X2-DFN1410-6
The gate performs the positive Boolean function:
SOT26/SOT363
YA
( Top View)
( Bottom View)
Features
2A 3
Wide Supply Voltage Range from 1.65V to 5.5V
±24mA Output Drive at 3.0V
CMOS Low Power Consumption
IOFF Supports Partial-Power-Down Mode Operation
Inputs Accept up to 5.5V
ESD Protection Tested per JESD 22
Exceeds 2000V Human Body Model (A114)
Exceeds 1000V Charged Device Model (C101)
Latch-up Exceeds 100mA per JESD 78, Class I
X2-DFN1409-6 Package Designed as a Direct Replacement for
Chip Scale Packaging
Range of Package Options SOT26, SOT363,
X1-DFN1010-6 (Type B), X2-DFN1010-6, X2-DFN1409-6, and
X2-DFN1410-6
Leadless Packages Named per JESD30E
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive applications requiring specific change
control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP
capable, and manufactured in IATF 16949 certified facilities),
please contact us or your local Diodes representative.
https://www.diodes.com/quality/product-definitions/
Notes:
GND 2
1A 1
4 2Y
1A
1
6
1Y
GND
2A
2
5
Vcc
3
4
2Y
X1-DFN1010-6 (Type B)
5 Vcc
6 1Y
X2-DFN1409-6
Chip Scale
Alternative
(Top View)
1A
1
GND 2
2A 3
6 1Y
5 Vcc
4 2Y
X2-DFN1010-6
Applications
Voltage level shifting
General purpose logics
Power down signal isolations
Wide array of products such as:
PCs, networking, notebooks, netbooks, tablets
Computer peripherals, hard drives, SSD, CD/DVD ROM
TV, DVD, DVR, set-top boxes
Cell phones, personal navigations/GPS
MP3 players, cameras, video recorders
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
