NOT RECOMMENDED FOR NEW DESIGN
USE AH3774
AH3761
HIGH SENSITIVITY HALL EFFECT LATCH
Description
Pin Assignments
The AH3761 is an integrated Hall effect latched sensor designed for
electronic commutation of brush-less DC motor applications. The
device includes an on-chip Hall voltage generator for magnetic
sensing, a comparator that amplifies the Hall voltage, and a schmitt
trigger to provide switching hysteresis for noise rejection, and open
drain output. An internal bandgap regulator is used to provide
temperature compensated supply voltage for internal circuits and
allows a wide operating supply range.
( Top View )
3. OUT
2. GND
1. Vdd
SIP-3 (Bulk Pack)
If a magnetic flux density larger than threshold Bop, DO is turned on
(low). The output state is held until a magnetic flux density reversal
falls below Brp causing DO to be turned off (high).
( Top View )
3. OUT
GND 2.
1 . Vdd
Features
Notes:
3V to 28V DC Operation Voltage
Chopper Stabilized
Wide Operating Voltage Range
Built-in Power Reverse Protection
Built-in Voltage Overshoot Protection
Output Short Circuit Protection
Open Drain Pre-Driver
SIP-3 (Ammo Pack), SIP-3 (Bulk Pack) and SC59 (Commonly
known as SOT23 in Asia)
Available in “Green” Molding Compound (No Br, Sb)
Totally Lead-Free & Fully RoHS Compliant (Note 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)

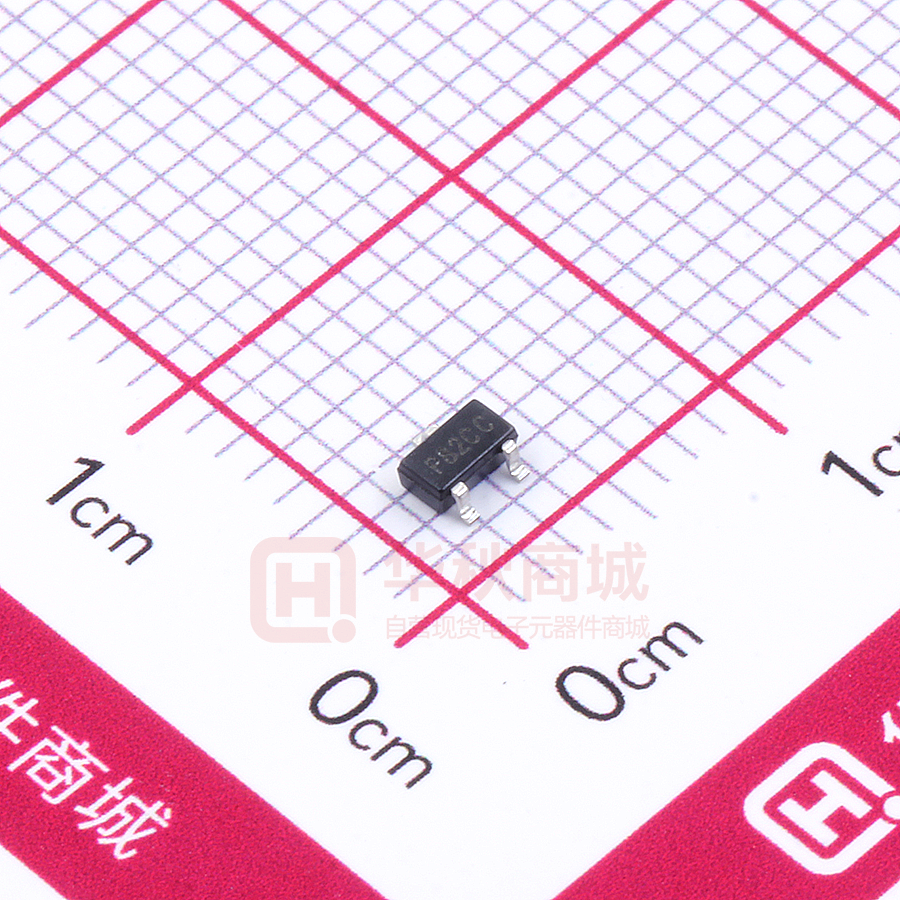

SC59
Applications
Brush-less DC Motor Commutation
RPM Detection
Consumer and Industrial Position Sensor
Flow Meters
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
