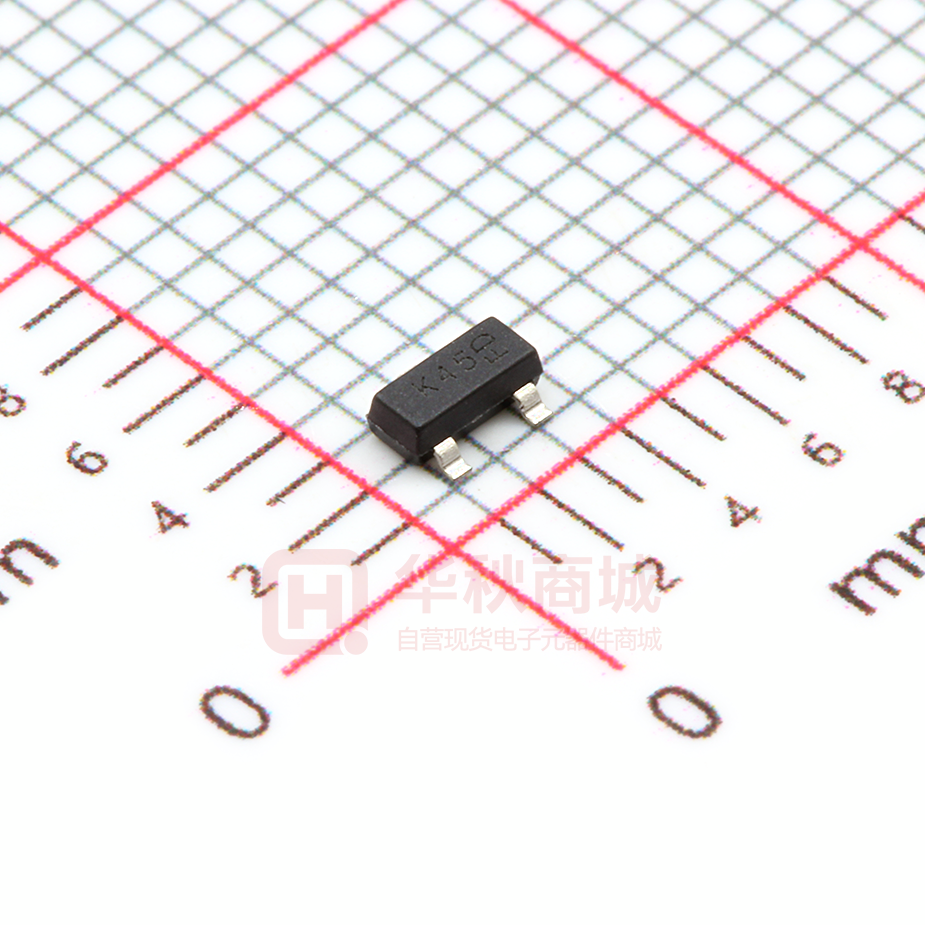

BAS40-05-7-F

BAS40/ -04/ -05/ -06 SURFACE MOUNT SCHOTTKY BARRIER DIODE Product Summary @TA = +25°C Features and Benefits VRRM (V) IO (mA) VFmax (V) IRmax (μA)  Low Forward Voltage Drop 40 200 1.0 0.2  Fast Switching  PN Junction Guard Ring for Transient and ESD Protection  Lead-Free Finish; RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)   Qualified to AEC-Q101 Standards for High Reliability Description Mechanical Data 200mA surface mount Schottky Barrier Diode in SOT23 package,  offers low forward voltage drop and fast switching capability, designed  with PN Junction Guard Ring for Transient and ESD Protection, totally lead-free finish and RoHS compliant, ”Green” device. Case: SOT23 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0  Moisture Sensitivity: Level 1 per J-STD-020D  Terminals: Solderable per MIL-STD-202, Method 208 e3  Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe). Top View BAS40  Polarity: See Diagrams Below  Weight: 0.008 grams (approximate) BAS40-04 BAS40-05 BAS40-06 Ordering Information (Note 4 & 5) Part Number BAS40-7-F / BAS40Q-7-F BAS40-04-7-F / BAS40-04Q-7-F BAS40-05-7-F / BAS40-05Q-7-F BAS40-06-7-F / BAS40-06Q-7-F BAS40-13-F / BAS40Q-13-F BAS40-04-13-F / BAS40-04Q-13-F BAS40-05-13-F / BAS40-05Q-13-F BAS40-06-13-F / BAS40-06Q-13-F Notes: Case SOT23 SOT23 SOT23 SOT23 SOT23 SOT23 SOT23 SOT23 Packaging 3000/Tape & Reel 3000/Tape & Reel 3000/Tape & Reel 3000/Tape & Reel 10000/Tape & Reel 10000/Tape & Reel 10000/Tape & Reel 10000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
