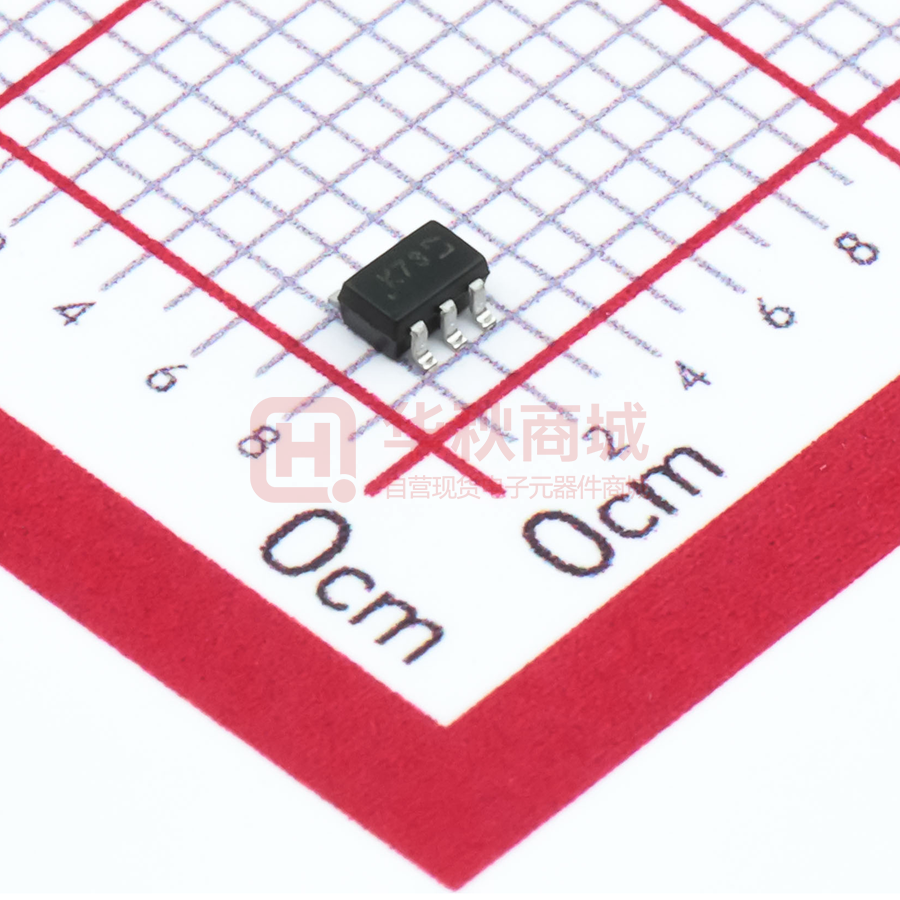

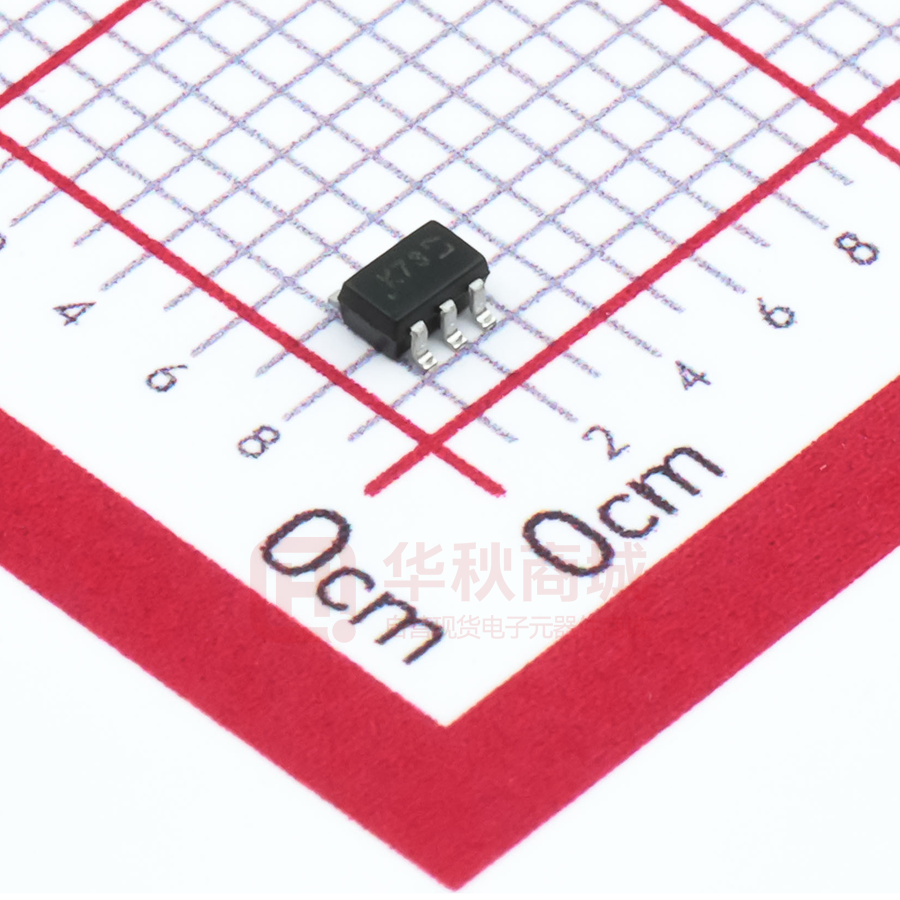

BAS70TW-7-F

BAS70TW /DW-04 /DW-05 /DW-06 /BRW SURFACE MOUNT SCHOTTKY BARRIER DIODE ARRAYS Product Summary VR (V) IF (mA) 70 1.0 Features VF MAX (V) @ +25°C 0.41        IR MAX (µA) @ +25°C 0.10 Description and Applications  This Schottky Barrier Arrays is designed with low leakage performance in a variety of configurations. This reduces component placement costs by requiring only one component. Designed to meet AEC-Q101 requirements. Configurations are ideally suited to use as:       Low Forward Voltage Drop Fast Switching Ultra-Small Surface Mount Package PN Junction Guard Ring for Transient and ESD Protection Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) The DIODES™ BAS70DW-05Q is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities. https://www.diodes.com/quality/product-definitions/ An Automotive-Compliant Part is Available Under Separate Datasheet (BAS70TWQ_BAS70DW-04Q) Polarity protection diodes Rail-to-rail data line protection for two data lines Multiplexing circuits High-efficiency, low-current bridge rectifier circuits Re-circulating diodes Switching diodes Mechanical Data   Package: SOT363 Package Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish – Matte Tin Plated Leads, Solderable per MILSTD-202, Method 208 Orientation: See Diagrams Below Weight: 0.006 grams (Approximate)     SOT363 (Standard) AC 1 A1 Top View C1 C2 AC A2 AC A1 2 BAS70BRW 1 C2 C1 A2 AC 2 BAS70DW-04* C1 A2 A2 A1 C2 C2 C1 C2 C3 A1 A1 C2 C1 C1 A2 A1 A2 A3 BAS70DW-05* BAS70DW-06* BAS70TW *Symmetrical configuration, no orientation indicator. Ordering Information (Notes 4 & 5) Notes: Part Number Package BAS70DW-04-7-F BAS70DW-04-13-F BAS70DW-05-7-F BAS70DW-05Q-7-F BAS70DW-06-7-F BAS70BRW-7-F BAS70TW-7-F BAS70TW-13-F SOT363 (Standard) SOT363 (Standard) SOT363 (Standard) SOT363 (Standard) SOT363 (Standard) SOT363 (Standard) SOT363 (Standard) SOT363 (Standard) Packing Qty. 3000 10000 3000 3000 3000 3000 3000 10000 Carrier Tape & Reel Tape & Reel Tape & Reel Tape & Reel Tape & Reel Tape & Reel Tape & Reel Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
