BCX54 /55 /56
NPN MEDIUM POWER TRANSISTORS IN SOT89
Features
Mechanical Data
•
•
•
•
BVCEO > 45V, 60V & 80V
IC = 1A Continuous Collector Current
ICM = 2A Peak Pulse Current
Low Saturation Voltage VCE(sat) < 500mV @ 0.5A
•
•
•
•
•
Gain Groups 10 and 16
Epitaxial Planar Die Construction
Complementary PNP Types: BCX51, 52, and 53
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive applications requiring specific change
control (i.e. parts qualified to AEC-Q100/101/200, PPAP
capable, and manufactured in IATF 16949 certified facilities),
please contact us or your local Diodes representative.
https://www.diodes.com/quality/product-definitions/
Case: SOT89
Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Leads.
Solderable per MIL-STD-202 Method 208
Weight: 0.055 grams (Approximate)
•
•

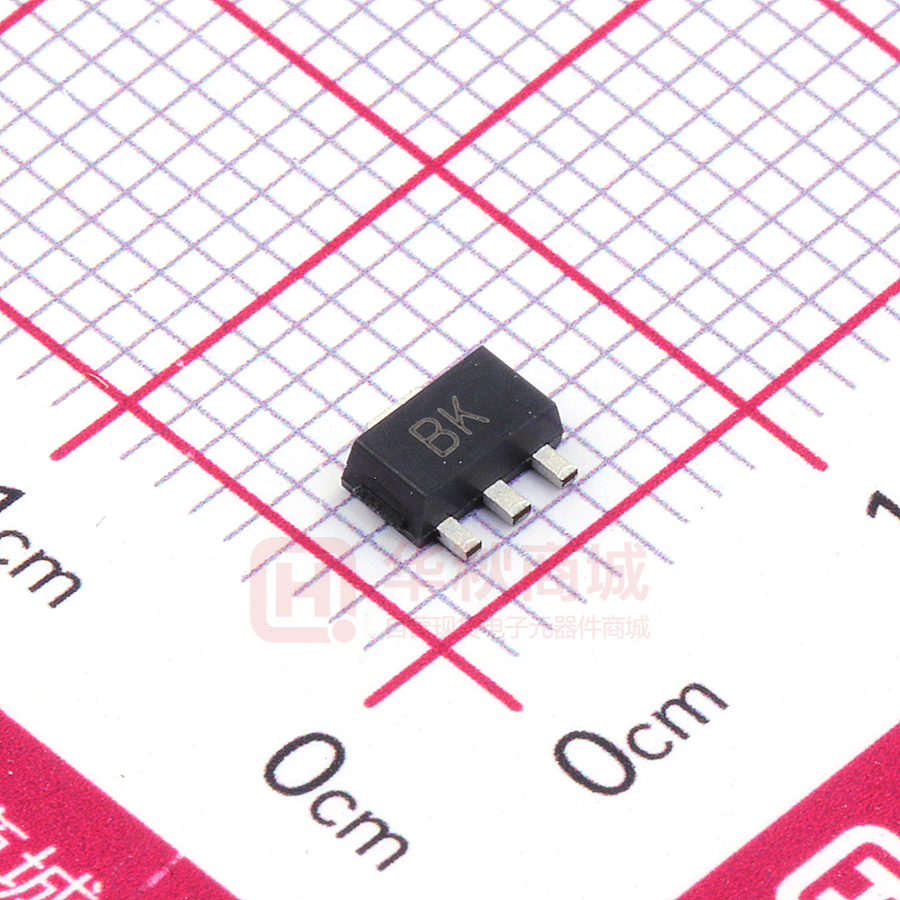

SOT89
•
•
•
Applications
Medium Power Switching or Amplification Applications
AF Driver and Output Stages
•
•
C
E
B
C
C
B
E
Top View
Device Symbol
Top View
Pin-Out
Ordering Information (Note 4)
Product
BCX54TA
BCX5410TA
BCX5416TA
BCX5416-13R
BCX55TA
BCX5510TA
BCX5516TA
BCX56TA
BCX5610TA
BCX5616TA
BCX5616TC
BCX5410TC
BCX5416TC
BCX54TC
BCX5510TC
BCX5516TC
BCX55TC
BCX5610TC
BCX56TC
Notes:
Compliance
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Marking
BA
BC
BD
BD
BE
BG
BM
BH
BK
BL
BL
BC
BD
BA
BG
BM
BE
BK
BH
Reel size (inches)
7
7
7
13
7
7
7
7
7
7
13
13
13
13
13
13
13
13
13
Tape width (mm)
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
Quantity per reel
1,000
1,000
1,000
4,000
1,000
1,000
1,000
1,000
1,000
1,000
4,000
4,000
4,000
4,000
4,000
4,000
4,000
4,000
4,000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
