DMG7430LFG
Green
N-CHANNEL ENHANCEMENT MODE MOSFET
®
POWERDI
Features and Benefits
•
Low RDS(ON) – ensures on state losses are minimized
•
Small form factor thermally efficient package enables higher
density end products
10.5A
•
Occupies just 33% of the board area occupied by SO-8 enabling
smaller end product
9.2A
•
•
" Green” component and RoHS compliant (Note 1)
Qualified to AEC-Q101 Standards for High Reliability
RDS(ON) max
ID max
TA = 25°C
11mΩ @ VGS = 10V
15mΩ @ VGS = 4.5V
V(BR)DSS
30V
Description and Applications
Mechanical Data
This MOSFET has been designed to minimize the on-state resistance
(RDS(on)) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
•
•
•
•
•
•
•
•
Backlighting
Power Management Functions
DC-DC Converters
•
®
Case: POWERDI 3333-8
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections Indicator: See diagram
Terminals: Finish ⎯ NiPdAu over Copper leadframe. Solderable
per MIL-STD-202, Method 208
Weight: 0.072 grams (approximate)
®

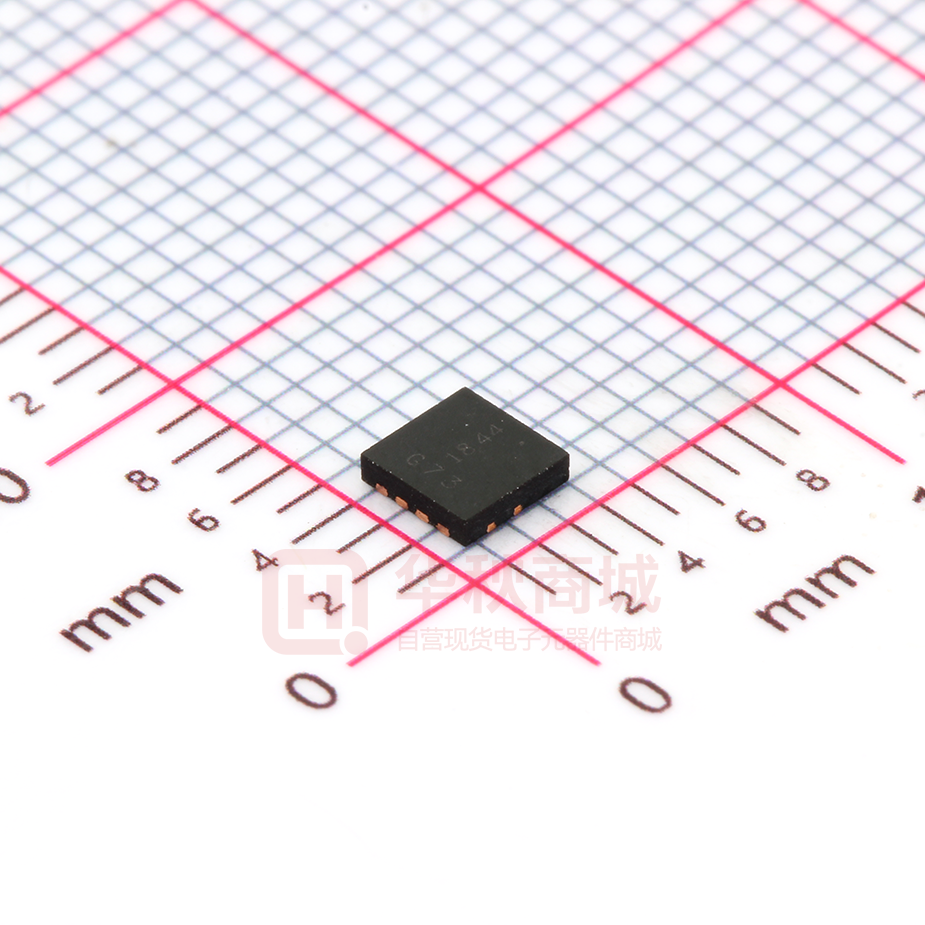

POWERDI 3333-8
Pin 1
S
S
S
G
1
8
2
7
3
6
4
5
D
D
D
D
Bottom View
Top View
Internal Schematic
Top View
Ordering Information (Note 2)
Part Number
DMG7430LFG-7
DMG7430LFG-13
Notes:
Case
®
POWERDI 3333-8
®
POWERDI 3333-8
Packaging
2000/Tape & Reel
3000/Tape & Reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2). All applicable RoHS exemptions applied.
2. For packaging details, go to our website at http://www.diodes.com.
Marking Information
YYWW
ADVANCE INFORMATION
Product Summary
G73
G73 = Product Type Marking Code
YYWW = Date Code Marking
YY = Last digit of year (ex: 11 = 2011)
WW = Week code (01 ~ 53)
POWERDI is a registered trademark of Diodes Incorporated
1 of 7
DMG7430LFG
Document number: DS35497 Rev. 5 - 2
www.diodes.com
February 2012
© Diodes Incorporated
DMG7430LFG
Characteristic
Symbol
VDSS
VGSS
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current (Note 4) VGS = 10V
TA = 25°C
TA = 70°C
TA = 25°C
TA = 70°C
Steady
State
t
