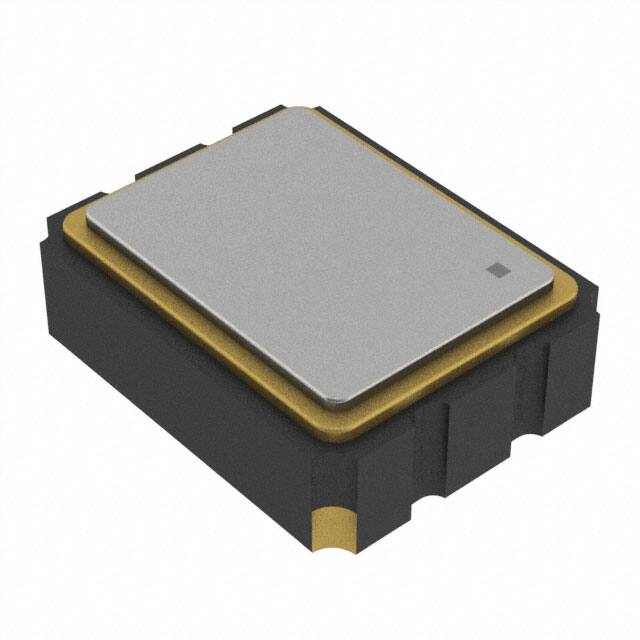

FK5000045

SPECIFICATION FOR APPROVAL CUSTOMER 50.000000 MHz NOMINAL FREQUENCY HOLDER TYPE TYPE FK 3.2x2.5 SEAM SEALED CRYSTAL CLOCK OSCILLATOR FK5000045 SPEC. NO. ( P/N ) 0 CUSTOMER P/N May 30, 2018 ISSUE DATE B VERSION APPROVED PREPARED QA Brenda Kuo Winnie Chang Dony Yang Diodes Incorporated No.2, Ziqiang 5th Rd., Zhongli Industrial Park,Park, Tzu-Chiang 5th Rd, Chung Li Industrial Zhongli 32063, Taiwan (R.O.C.) Chung LiDist., City,Taoyuan TaoyuanCity County, Taiwan (R.O.C.) TEL: 886-3-451-8888 FAX: 886-3-461-3865 https://www.diodes.com http://www.saronix-ecera.com.tw E0-R-4-014 Rev. F *Pb-free *RoHS Compliant *HF-Halogen Free *REACH Compliant Page -1 TYPE FK 3.2x2.5 SEAM SEALED CRYSTAL CLOCK OSCILLATOR FK5000045 VER. B 30-May-18 VERSION HISTORY Version No. Version Date A Sep.14,2015 Initial Release B May.30,2018 Updated Logo E0-R-4-014 Rev. F Description Notes Page 0 TYPE FK 3.2x2.5 SEAM SEALED CRYSTAL CLOCK OSCILLATOR FK5000045 VER. B 30-May-18 ELECTRICAL SPECIFICATIONS SRe Part Number : Item FK5000045 Symbol Specifications Units Nominal Frequency Fo 50.000000 MHz Frequency Stability FT ± 50 ppm Operating Temperature Range TR -40 to +85 °C Supply Voltage VDD +1.2 ± 5.0% V Logic Type LT LVCMOS Supply Current, Output Enabled IDD/OE 5 mA Max. Supply Current, Output Disabled IDD/OD 10 µA Max. Duty Cycle (Symmetry) DC/SY 45 / 55 % Measured 50% of Waveform TR/TF 4 ns Max. measured 20/80% of Waveform Output Voltage "0" Level VOL 10% VDD V Max at IOL = 4.0mA Min. Output Voltage "1" Level VOH 90% VDD V Min at IOH = -4.0mA Max. Output Load CL 15 pF Max. Jitter, Phase RMS 1 ps Max. 12KHz ~ 20MHz Frequency Band Jitter, Accumulated RMS(1-σ) 4 ps Max. 20,000 Consecutive Periods Jitter, Peak to Peak Pk-Pk 40 ps Max. 100,000 Random Periods 10 ms Max. -55 to +125 °C Rise / Fall Time Start Up Time Storage Temperature Range Notes **See note ※ This product doesn't include harmful substance that stipulated by SONY SS-00259 Level 1 and S-AT2-001 Level 1 standard. RoHS Compliant (Pb - Free). **Stability includes all combinations of Operating Temperature, Load changes, rated Input (Supply) Voltage changes, Initial Calibration Tolerance (25°C), Aging (1 year at 25°C Average Effective Ambient Temperature), Shock and Vibration. Output Enable / Disable Function Parameter Input Voltage (Pin1), Output Enable Min. Output Disable Delay E0-R-4-014 Rev. F Max. 0.7VDD 0.3VDD Input Voltage (Pin1), Output Disable (low power standby) Internal Pullup Resistance Typ. 30 Notes Units V Or Open V Output is Hi-Z KΩ 50 µs Page 1 TYPE FK 3.2x2.5 SEAM SEALED CRYSTAL CLOCK OSCILLATOR FK5000045 VER. B 30-May-18 TEST CIRCUIT OUTPUT WAVEFORM E0-R-4-014 Rev. F Page 2 TYPE FK 3.2x2.5 SEAM SEALED CRYSTAL CLOCK OSCILLATOR FK5000045 VER. B 30-May-18 RELIABILITY SPECIFICATIONS ENVIRONMENTAL: a) THERMAL SHOCK: MIL-STD-883, Method 1011, Condition A b) MOISTURE RESISTANCE: MIL-STD-883, Method 1004 c) VIBRATION: MIL-STD-883, Method 2007, Condition A d) RESISTANCE TO SOLDERING HEAT: J-STD-020D Table 5-2 Pb-free devices (except 2 cycles max) e) HAZARDOUS SUBSTANCE: Pb - free and RoHS Compliant. MECHANICAL: a) SHOCK: MIL-STD-883, Method 2002, Condition B b) SOLDERABILITY: JESD22-B102-D Method 2 (Preconditioning E) c) TERMINAL STRENGTH: MIL-STD-883, Method 2004, Test Condition D d) GROSS LEAK: MIL-STD-883, Method 1014, Condition C e) FINE LEAK: MIL-STD-883, Method 1014, Condition A2, R1=2x10-8 atm cc/s f) SOLVENT RESISTANCE: MIL-STD-202, Method 215 SUGGESTED IR REFLOW PROFILE *As per IPC-JEDEC J-STD-020D E0-R-4-014 Rev. F Page 3 TYPE FK 3.2x2.5 SEAM SEALED CRYSTAL CLOCK OSCILLATOR FK5000045 VER. B 30-May-18 MARKING Logo Dot Denotes Pin #1 e 500 ywwv y Year Code (last digit of year) Frequency Code Date & Factory Code ww v Week Code Factory Code MECHANICAL DRAWINGS ( Scale: None. Dimensions are in mm.) Recommended Land Pattern* Pin Function 1 OE 2 Ground 3 Clock Output 4 VDD (Bottom View) E0-R-4-014 Rev. F Page 4 TYPE FK 3.2x2.5 SEAM SEALED CRYSTAL CLOCK OSCILLATOR FK5000045 VER. B 30-May-18 TAPE&REEL 1. 230mm minimum leafer which consist of carrier and/or tape followed by a minimum of 160mm of empty carrier tape sealed with cover tape. 2. 160mm minimum trailer of empty carrier tape sealed with cover tape. E0-R-4-014 Rev. F Page 5 TYPE FK 3.2x2.5 SEAM SEALED CRYSTAL CLOCK OSCILLATOR FK5000045 VER. B 30-May-18 PACKING Begin Start Close End 3000pcs-Product Tape Inner Packing Carton Blue Qualified Label Storeroom Label Storeroom Storeroom Label Deliver Packing Carton (L29*W24*H30) Green Qualified Label E0-R-4-014 Rev. F Page 6
