PAM8904E
18VPP OUTPUT PIEZO SOUNDER DRIVER
Description
Pin Assignments
The PAM8904E is a piezo sounder driver with integrated charge
pump boost converter. The PAM8904E is capable of driving a
ceramic/piezo sounder with 27VPP from a 4.5V power supply. The
(Top View)
16
The boost converter operates at a fixed frequency of 100kHz and
provides a 3X VIN output with a minimum number of external
NEW PRODUCT
NC VIN CP2 VOUT
Pin 1
charge pump can operate in either 1x, 2x or 3x mode.
components. The PAM8904E can drive up to 47nF loading. Diodes
Incorporated’s unique drive technology provides a small inrush
current, low EMI and high efficiency.
1
12
NC
2
11
CP1
DIN
3
10
CN2
NC
4
9
VO1
Integrated Boost Converter Generates up to 13.5V Supply
Input Signal 20Hz to 300kHz
No Voltage Cross Output at Shutdown Mode
Low Current Consumption
Automatic Standby and Wake-up Control
Available in Space Saving Packages U-QFN3030-16 (Type B),
U-QFN3030-12 (Type A) and W-QFN2020-12 (Type US)
Packages
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Notes:
6
8
7
CN1 GND VO2 NC

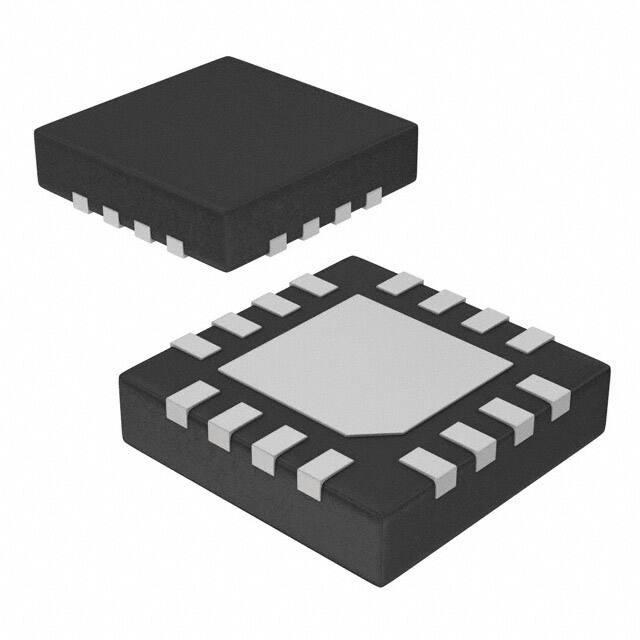

U-QFN3030-16 (Type B)
(Top View)
VIN CP2 VOUT
Pin 1
12
Features
13
EN2
5
The PAM8904E is available in U-QFN3030-16 (Type B), U-QFN303012 (Type A) and W-QFN2020-12 (Type US) packages.
Supply Voltage Range from 1.5V to 5.5V
18VPP Output from a 3V Supply
14
EN1
The PAM8904E includes built-in automatic shutdown and wake up
that guarantees longer battery life. The PAM8904E features thermal
shutdown, over current protection, over voltage protection and under
voltage lock-out.
15
11
10
EN1
1
9
CP1
EN2
2
8
CN2
DIN
3
7
VO1
4
5
6
CN1 GND VO2
U-QFN3030-12 (Type A)/W-QFN2020-12 (Type US)
Applications
Health Care Systems
Alarm Clocks
Security Devices
Home Appliances
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
