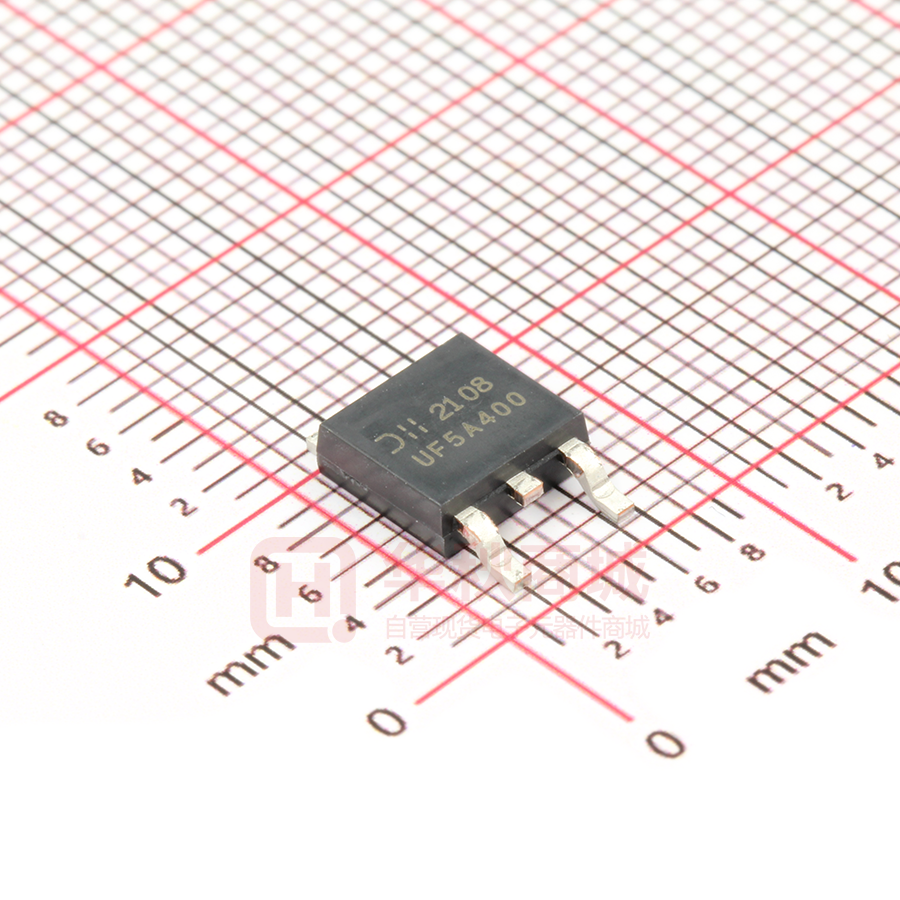

UF5A400D1-13

NOT RECOMMENDED FOR NEW DESIGN USE UF5GD1 Green UF5A400D1 5A ULTRA-FAST RECTIFIER Features Mechanical Data         Ultra-Fast Die Construction Soft, Fast Switching Capability Low Leakage Current Lead-Free Finish; RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/    Case: TO252 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish – Matte Tin Annealed Over Copper Leadframe. Solderable per MIL-STD-202, Method 208 Polarity: See Diagram C LEFT PIN RIGHT PIN BOTTOMSIDE HEAT SINK Note: Pins Left & Right must be electrically connected at the printed circuit board. Top View A A Top View Pin-Out Ordering Information (Note 4) Part Number UF5A400D1-13 Notes: Case TO252 Packaging 2500 Pieces/Reel 1. EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. All applicable RoHS exemptions applied. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
