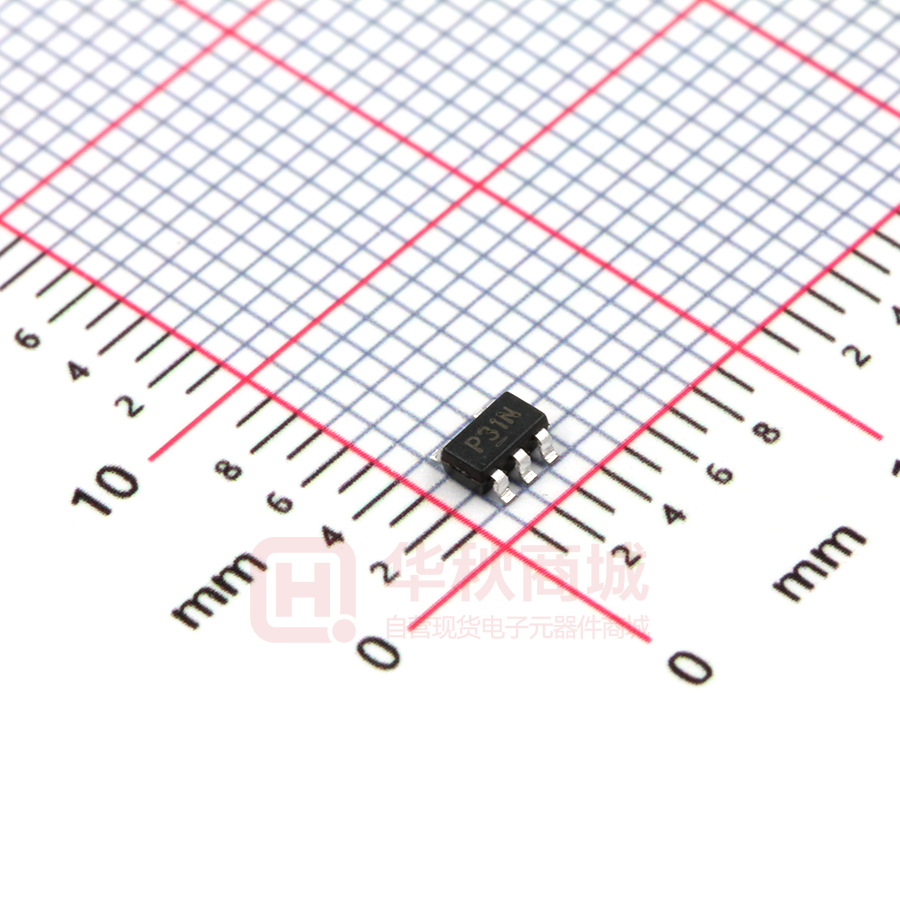

BL8075CB5TR33

BL8075 16V 500mA Low Consumption Linear Regulator DESCRIPTION FEATURES BL8075 series is a group of positive voltage output, low power consumption, low dropout voltage regulator. It can provide 300mA output current when input / output voltage differential drops to 600mV (Vout= 3.3V), and it also provides foldback short-circuit protection, thermal protection and output current limit function. The very low power consumption of BL8075 (Iq=10uA)can greatly improve natural life of batteries.        BL8075 can provide output value in the range of 1.2V~5.0V in 0.1V steps. It also can customize on command. Low Power Consumption: 10uA(Typ.) Maximum Output Current: 500mA Small Dropout Voltage 600mV@300mA (Vout=3.3V) 1.2V@500mA (Vout=3.3V) Input Voltage Range: 3V~16V Output Voltage Range: 1.2V~5.0V (customized on command in 0.1V steps) Highly Accurate:±2%(±1% customized) Output Current Limit: 650mA APPLICATIONS   BL8075 includes high accuracy voltage reference, error amplifier, current limit circuit and output driver module.  BL8075 has well load transient response and good temperature characteristic, And it uses trimming technique to guarantee output voltage accuracy within±2%. TYPICAL APPLICATION Battery Powered equipment Power Management of MP3、PDA、DSC、 Mouse、PS2 Games Reference Voltage Source Regulation after Switching Power ELECTRICAL CHARACTERISTICS Load Regulation 4.0 VIN Cin EN VOUT BL8075 LC1215 Output 3.5 3.0 Cout GND 2.5 Vout(V) Input On/Off 2.0 1.5 NOTE: Input capacitor (Cin=1uF) and Output capacitor (Cout=1uF) are recommended in all application circuit. Ceramic capacitor is recommended. 1.0 0.5 0.0 0 www.belling.com.cn 1 100 200 300 Iout(mA) 400 500 BL8075 ORDERING INFORMATION PIN CONFIGURATION BL8075 □ 1□ 2□ 3□ 4□ 5 Code □ 1 □ 2 □ 3 □ 4 □ 5 Product Classification BL8075CB5TR□□□ Marking SOT-23-5 Description Temperature&Rohs: C:-40~85C ,Pb Free Rohs Std. Package type: B5:SOT-23-5 C3:SOT-89-3 Packing type: TR:Tape&Reel (Standard) Output voltage: e.g. 12=1.2V 15=1.5V 50=5.0V Voltage accuracy: 1=±1% Blank(default)=±2% P:Product Code PXYW Value Max Input Voltage Operating Junction Temperature(Tj) Ambient Temperature(Ta) Power Dissipation SOT-23-5 SOT-89-3 (PD@Ta=25C) Storage Temperature(Ts) Lead Temperature & Time 20V 125C -40C -85C 400mW 500mW -40C -150C 260C,10S 3 EN 5 VOUT 4 NC PXYW GND 2 Product Classification BL8075CC3TR□□□ Marking P:Product Code XX:Output Voltage PXX LLXYW LL:LOT NO. X:FAB Code YW:Date Code SOT-89-3 1 GND 2 VIN 3 VOUT PXX LLXYW 1 2 3 Y: The Year of manufacturing,”1” stands for year 2011, “2” stands for year 2012, and “8” stands for year 2018. W: The week of manufacturing. ”A” stands for week 1,”Z” stands for week 26,” A ” stands for week 27,” Z ” stands for week 52. RECOMMENDED WORK CONDITIONS Note: Exceed these limits to damage to the device. Exposure to absolute maximum rating conditions may affect device reliability. www.belling.com.cn X:Output Voltage YW:Date Code ABSOLUTE MAXIMUM RATING Parameter VIN 1 Item Input Voltage Range Ambient Temperature 2 Min Recommended Max. Unit 3 16 V -40 85 C BL8075 ELECTRICAL CHARACTERISTICS (Test Conditions: Cin=1uF, Cout=1uF, Ta=25C, Unless Otherwise Specified) Symbol Vin Vout Iout(Max.) Dropout Voltage Parameter Output Voltage Vout>1.5V Vout≤1.5V Maximum Output Current Input-Output Voltage Differential Line Regulation Vout Load Regulation Vout T  Vout Min Input Voltage Vout Vin  Vout Iq Conditions Quiescent Current Output Voltage Temperature Coefficient 3 Vout x0.98 Vout -0.03 500 Vin-Vout=1.2V 1mA≤Iout≤30mA Vin-Vout=1.2V Type Vout Max Units 16 Vout X1.02 Vout +0.03 V V mA Iout=300mA, Vout = 3.3V 600 Iout=10mA, 4V≤Vin≤16V 0.2 0.3 %/V 20 40 mV 10 20 uA 1 uA Vin=Set Vout+1V 1mA≤Iout≤100mA Vin=Set Vout+1V, VEN=”H” Vin=12V, VEN=0V Iout=10mA mV ±100 ppm/C Venh EN Input Voltage “H” 1.5 Vin V Venl EN Input Voltage “L” 0 0.4 V Thermal Shutdown 150 °C BLOCK DIAGRAM VIN VOUT Current Limit EN + OTP - Fast Response Voltage Reference GND EXPLANATION BL8075 is a series of low dropout voltage and low power consumption regulator. Its application circuit is very simple, which only needs two outside capacitors. It is composed of these modules: high accuracy voltage reference, current limit circuit, error amplifier, output driver and power transistor. Current Limit module can keep chip and power system away from danger when load current is more than 500mA. BL8075 uses trimming technique to assure the accuracy of output value within±2%, at the same time, temperature compensation is elaborately considered in this chip, which makes BL8075’s temperature coefficient within ±100ppm/℃。 www.belling.com.cn 3 BL8075 TYPICAL PERFORMANCE CHARACTERISTICS Line Regulation 4.0 4.0 3.5 3.5 3.0 3.0 2.5 2.5 Vout(V) Vout(V) Load Regulation 2.0 2.0 1.5 1.5 1.0 1.0 0.5 0.5 0.0 0.0 0 100 200 300 Iout(mA) 400 0 500 4 16 Iq 120 1400 Vout=3.3V Vout=3.3V 1200 100 1000 80 Iq(uA) Dropout(mV) 12 Vin(V) Dropout 800 60 600 40 400 20 200 0 0 0 100 200 300 400 500 0 Iout(mA) Current Limit 3.0 2.5 2.0 1.5 1.0 0.5 0.0 0 100 200 300 400 500 600 700 Iout(mA) www.belling.com.cn 4 8 Vin(V) 3.5 Vout(V) 8 4 12 16 BL8075 Line transient response Load transient response Vin=5V~6V, Iout=10mA Ch1—Vin, Ch2—Vout Vin=5V, Iout=5mA~150mA Ch2—Vout, Ch4—Iout PACKAGE LINE Package SOT-23-5 Devices per reel 3000Pcs Package dimension： www.belling.com.cn 5 Unit mm BL8075 Package SOT-89-3 Devices per reel 1000Pcs Package Dimension: www.belling.com.cn 6 Unit mm
