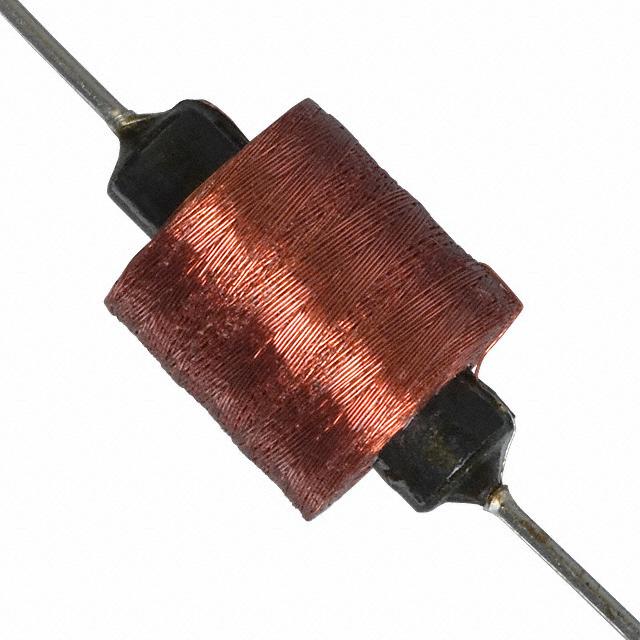

70F101AF-RC

T PL IA N † Ro HS CO M Varnished Chokes Special Features • High Q, high self-resonant frequency • High voltage application on phenolic and ferrite components • Universal wound • Low cost • Varnish coated • Operating temperature: phenolic -55 to +125 °C; iron, ferrite -55 to +105 °C 70F Series SRF DCR (MHz) Ω Min. Max. Part Number L (μH) ±5 % Q Min. Test Freq. (MHz) 70F502AF-RC 50,000 57 0.079 0.196 70F101AF-RC 100,000 48 0.079 0.157 I, DC* (mA) Dim. A Max Dim. B ±0.03 Core Material 175 37 0.4 0.63 Ferrite 278 29 0.44 0.63 Ferrite “-RC” suffix indicates RoHS compliance. Notes * Current to cause 35 °C max. temperature rise † RoHS Directive 2002/95/EC Jan 27 2003 including Annex. 1.18 MIN. 0.032 Dia. B A Dimensions: Inches Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and in this document are subject to specific legal disclaimers set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. 20.4 www.bourns.com REV. 01/17 Legal Disclaimer Notice This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and P[ZHɉSPH[LZJVSSLJ[P]LS`¸)V\YUZ¹ Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change ^P[OV\[UV[PJL
