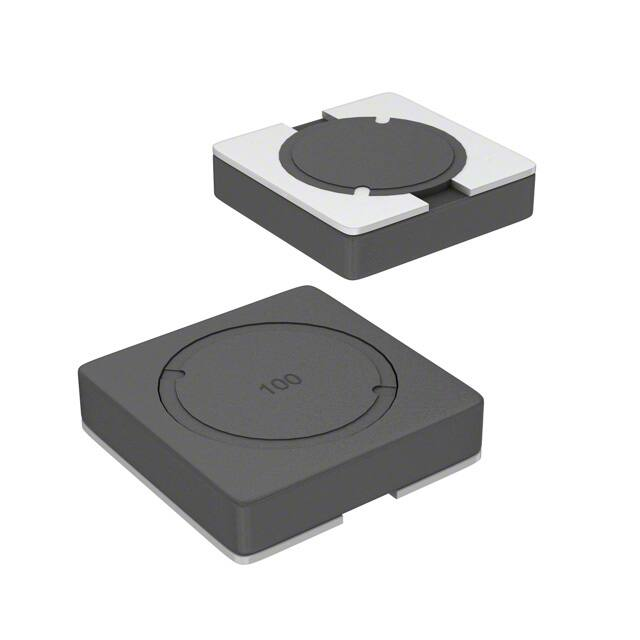

SRR4011-6R2YL

IA NT Features ■ Available in E6 values ■ Mounting height of only 1.15 mm ■ Inductance value to 0.47 µH ■ RoHS compliant* Applications ■ Input/output of DC/DC converters ■ Power supplies for: • Portable communication equipment • Camcorders • LCD TVs • Car radios *R oH S CO M PL 10 0 SRR4011 Series - Shielded SMD Power Inductors Electrical Specifications Inductance 100 kHz Bourns Part No. (µH) Tol. % Q Typ. Test Frequency (MHz) SRF Min. (MHz) RDC Max. (Ω) I rms Max. (A) I sat Typ. (A) SRR4011-R47YL SRR4011-1R2YL SRR4011-1R5YL SRR4011-2R2YL SRR4011-3R3YL SRR4011-4R7YL SRR4011-6R2YL SRR4011-8R2YL SRR4011-100YL SRR4011-150YL SRR4011-220YL SRR4011-330YL SRR4011-470YL SRR4011-680YL SRR4011-820YL SRR4011-101YL SRR4011-151YL 0.47 1.20 1.50 2.20 3.30 4.70 6.20 8.20 10.00 15.00 22.00 33.00 47.00 68.00 82.00 100.00 150.00 ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 7 10 11 11 10 13 7 8 14 11 13 15 10 12 13 18 39 25.2 7.96 7.96 7.96 7.96 7.96 7.96 7.96 2.52 2.52 2.52 2.52 2.52 2.52 2.52 0.796 0.796 221 133 121 92 67 61 51 39 41 33 23 20 18 14 11 11 8 0.030 0.048 0.056 0.075 0.110 0.165 0.195 0.215 0.240 0.400 0.580 0.860 1.250 1.800 2.200 2.400 3.800 3.20 2.70 2.30 2.00 1.60 1.35 1.20 1.10 1.00 0.90 0.60 0.55 0.48 0.35 0.33 0.31 0.25 3.80 2.50 2.10 1.80 1.40 1.20 1.00 0.92 0.83 0.70 0.57 0.47 0.40 0.32 0.30 0.27 0.22 General Specifications Test Voltage.....................................0.1 V Reflow Soldering ...230 °C, 50 sec. max. Operating Temperature .-40 °C to +125 °C (Temperature rise included) Storage Temperature..-40 °C to +125 °C Resistance to Soldering Heat ................................260 °C for 10 sec. Materials Core ............................Ferrite DR and RI Wire .............Enameled copper wire 130 Terminal.....................................Ag/Ni/Sn Rated Current ....................Ind. drop 30 % typ. at Isat Temperature Rise ..................40 °C max. at rated Irms Packaging ..................1200 pcs. per reel Product Dimensions 4.80 ± 0.30 (.190 ± .012) Electrical Schematic Recommended Layout 5.30 REF. (.209) 2.00 REF. (.079) 100 4.80 ± 0.30 (.190 ± .012) REF. 1.80 (.071) 1.15 ± 0.15 (.045 ± .006) 1.50 REF. (.059) 2.00 REF. (.079) 1.60 TYP. (.063) 1.60 TYP. (.063) 1.60 TYP. (.063) DIMENSIONS: MM (INCHES) *RoHS Directive 2002/95/EC Jan 27 2003 including Annex Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications. SRR4011 Series - Shielded SMD Power Inductors Packaging Specifications 178 DIA. (7.00) 2.0 ± 0.5 (.079 ± .020) 18.4 (.724) 13.0 ± 0.5 (.512 ± .020) DIA. 50.0 (1.969) 21.0 ± 0.8 (.827 ± .031) THICKNESS 0.10 (.004) MAX. EMBOSSED CAVITY 13.0 ± 0.5 DIA. (.512 ± .020) 14 (.551) 4 (.157) EMBOSSED CARRIER END START 12 (.472) 100 4 (.157) NO COMPONENT 100 5.3 (.209) 160 (6.299) COMPONENTS NO COMPONENT 390 (15.354) USER DIRECTION OF FEED QTY: 1200 PCS. PER REEL DIMENSIONS: MM (INCHES) REV. 05/05 Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications.
