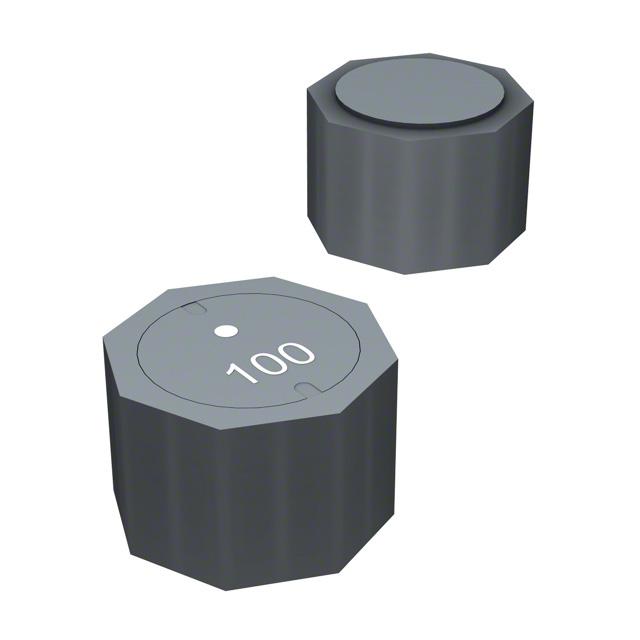

SRU1063-100Y

T PL IA N M CO *R oH S Features Applications ■ Maximum height of 6.7 mm ■ Input/output of DC/DC converters ■ Current up to 8 A ■ Power supplies for: • Portable communication equipment • Camcorders • LCD TVs ■ RoHS compliant* 100 SRU1063 Series - Shielded SMD Power Inductors Bourns Part Number Inductance @ 100 KHz Tol. L (μH) (%) Q Ref. Test Freq. (MHz) SRF Typ. (MHz) RDC Max. (mΩ) I rms Max. (A) I sat Typ. (A) **KFactor SRU1063-1R6Y 1.6 ±30 13 7.96 65 9 8.00 10.00 133 SRU1063-2R2Y 2.2 ±30 10 7.96 65 11 7.50 8.50 95 SRU1063-4R7Y 4.7 ±30 11 7.96 30 14 5.50 5.70 68 SRU1063-100Y 10 ±30 14 2.52 18 38 3.80 4.00 49 SRU1063-150Y SRU1063-220Y SRU1063-330Y SRU1063-470Y SRU1063-680Y SRU1063-101Y 15 22 33 47 68 100 ±30 ±30 ±30 ±30 ±30 ±30 12 15 12 10 8 12 2.52 2.52 2.52 2.52 2.52 2.52 14 10 8 6 5 4 42 60 105 150 210 320 3.20 3.00 2.20 1.40 1.20 1.10 3.40 3.20 2.40 1.60 1.35 1.20 41 33 26 22 20 15 Δ I (peak-to-peak ripple current, A), determine core loss from Core Loss vs. Flux Density plot. Test Voltage......................................0.1 V .... 230 °C, 50 sec. max. Operating Temp........... -40 °C to +125 °C (Temperature rise included) Storage Temperature .. -40 °C to +125 °C Resistance to Soldering Heat ...............................+260 °C for 10 sec. Moisture Sensitivity Level ...................... 1 .................. N/A Materials Core......................Ferrite DR and RI core Wire ..............................Enameled copper Terminal ......................................Ag/Ni/Sn Rated Current ...Ind. drop 35 % typ. at Isat Temp. Rise ........40 °C max. at rated Irms Packaging ..................... 500 pcs. per reel Product Dimensions Core Loss vs. Flux Density 10000 10.0 ± 0.30 (.394 ± .012) 4R7 Core Loss (mW) 1000 100 10.0 ± 0.30 (.394 ± .012) 1 MHz 500 KHz 300 KHz 200 KHz 100 KHz 50 KHz 10 6.50 ± 0.30 (.256 ± .012) 1 7.90 TYP. (.311) 0.1 100 1000 10000 3.30 (.130) TYP. Flux Density Bp-p (gauss) Electrical Schematic Recommended Layout 3.40 (.134) TYP. REF. 1.80 (.071) 1.80 (.071) REF. 7.20 REF. (.283) 1.80 (.071) REF. 7.20 (.283) REF. www.P65Warnings.ca.gov 1.80 (.071) REF. DIMENSIONS: MM (INCHES) * RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011. 3.80 (.150) REF. WARNING Cancer and Reproductive Harm 3.30 TYP. (.130) 3.80 REF. (.150) Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf SRU1063 Series SMD Power Inductors SRF0504 Series- -Shielded Line Filter 330 DIA. (12.99) 2.0 ± 0.5 (.079 ± .020) 21.0 ± 0.8 (.827 ± .031) 30.4 (1.20) 13.0 ± 0.5 (.512 ± .020) DIA. 50.0 (1.969) 13.0 ± 0.5 DIA. (.512 ± .020) 24 (.945) 26 (1.02) 4 (.157) END 4R7 START 4R7 4R7 16 (.63) NO COMPONENT 200 (7.874) NO COMPONENT 400 (15.748) COMPONENTS USER DIRECTION OF FEED QTY: 500 PCS. PER REEL DIMENSIONS: MM (INCHES) REV. 03/18 Specifications are subject to change without notice. Users should verify actual device performance in their specific applications. The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf. Legal Disclaimer Notice This legal disclaimer applies to purchasers and users of Bourns® products manufactured by or on behalf of Bourns, Inc. and P[ZHɉSPH[LZJVSSLJ[P]LS`¸)V\YUZ¹ Unless otherwise expressly indicated in writing, Bourns® products and data sheets relating thereto are subject to change ^P[OV\[UV[PJL
