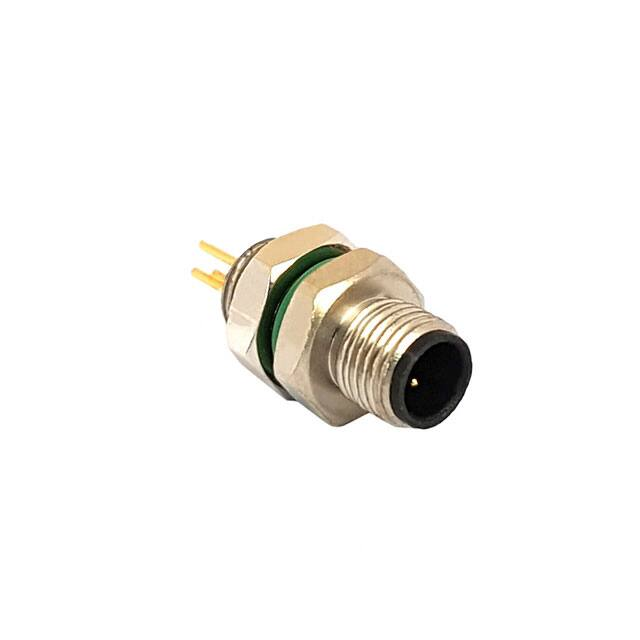

Buccaneer M5 Series The most compact connector type in the M-Series range, Bulgin’s waterproof M5 sensor connectors come in straight and angled forms with PVC or PUR overmolded cable options and a variety of panel mount receptacles. With an industry standard screw coupling mechanism and IP67 rating, this circular connector product line is particularly suited to automotive, process control, commercial electronics & instrumentation applications that require reliable and robust miniature sensors. Key features: Secure & reliable screw locking mechanism Straight & right angled cable connectors Robust PVC & PUR overmolded cables Rear & front panel mount receptacles Cable length from 1m - 15m Available with 3 or 4 Contacts High degree of environmental protection - IP67 rated Intermatable with other EN61076-2-105 M5 Series coding options: (Full Contact Diagrams Page 137) A-Coding 132 Circular Automation Connectors Buccaneer M5 Series M5 Rear Panel Mounting Female Available in 3 & 4 Contacts PCB or flying lead termination Mates with Inline Body connectors PXMBNI05RPF Part Number Contacts Code Termination Lead Length PXMBNI05RPF03AFL001 PXMBNI05RPF03AFL002 PXMBNI05RPF03AFL003 PXMBNI05RPF04AFL001 PXMBNI05RPF04AFL002 PXMBNI05RPF04AFL003 PXMBNI05RPF03APC PXMBNI05RPF04APC 03 03 03 04 04 04 03 04 A A A A A A A A Flying Lead Flying Lead Flying Lead Flying Lead Flying Lead Flying Lead PCB Terminal PCB Terminal 100 mm 200 mm 300 mm 100 mm 200 mm 300 mm - M5 Rear Panel Mounting Male Available in 3 & 4 Contacts PCB or flying lead termination Mates with Flex Body connectors PXMBNI05RPM Part Number Contacts Code Termination Lead Length PXMBNI05RPM03AFL001 PXMBNI05RPM03AFL002 PXMBNI05RPM03AFL003 PXMBNI05RPM04AFL001 PXMBNI05RPM04AFL002 PXMBNI05RPM04AFL003 PXMBNI05RPM03APC PXMBNI05RPM04APC 03 03 03 04 04 04 03 04 A A A A A A A A Flying Lead Flying Lead Flying Lead Flying Lead Flying Lead Flying Lead PCB Terminal PCB Terminal 100 mm 200 mm 300 mm 100 mm 200 mm 300 mm - M5 Front Panel Mounting Male Available in 3 & 4 Contacts PCB or flying lead termination Mates with Flex Body connectors PXMBNI05FPM Part Number Contacts Code Termination Lead Length PXMBNI05FPM03AFL001 PXMBNI05FPM03AFL002 PXMBNI05FPM03AFL003 PXMBNI05FPM04AFL001 PXMBNI05FPM04AFL002 PXMBNI05FPM04AFL003 PXMBNI05FPM03APC PXMBNI05FPM04APC 03 03 03 04 04 04 03 04 A A A A A A A A Flying Lead Flying Lead Flying Lead Flying Lead Flying Lead Flying Lead PCB Terminal PCB Terminal 100 mm 200 mm 300 mm 100 mm 200 mm 300 mm - Circular Automation Connectors 133 Buccaneer M5 Series M5 Right Angled Female Available in 3 & 4 Contacts 1,2,3,5,10 & 15m cable options Overmold Flex Body Mates with Inline Body & panel mount connectors PXPTPU05RAF PXPPVC05RAF Part Number Contacts Code Termination Lead Length Cable Material PXPPVC05RAF03ACL010PVC PXPTPU05RAF03ACL010PUR PXPPVC05RAF03ACL020PVC PXPTPU05RAF03ACL020PUR PXPPVC05RAF03ACL030PVC PXPTPU05RAF03ACL030PUR PXPPVC05RAF03ACL050PVC PXPTPU05RAF03ACL050PUR PXPPVC05RAF03ACL100PVC PXPTPU05RAF03ACL100PUR PXPPVC05RAF03ACL150PVC PXPTPU05RAF03ACL150PUR PXPPVC05RAF04ACL010PVC PXPTPU05RAF04ACL010PUR PXPPVC05RAF04ACL020PVC PXPTPU05RAF04ACL020PUR PXPPVC05RAF04ACL030PVC PXPTPU05RAF04ACL030PUR PXPPVC05RAF04ACL050PVC PXPTPU05RAF04ACL050PUR PXPPVC05RAF04ACL100PVC PXPTPU05RAF04ACL100PUR PXPPVC05RAF04ACL150PVC PXPTPU05RAF04ACL150PUR 03 03 03 03 03 03 03 03 03 03 03 03 04 04 04 04 04 04 04 04 04 04 04 04 A A A A A A A A A A A A A A A A A A A A A A A A Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable 1m 1m 2m 2m 3m 3m 5m 5m 10m 10m 15m 15m 1m 1m 2m 2m 3m 3m 5m 5m 10m 10m 15m 15m PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR M5 Right Angled Male Available in 3 & 4 Contacts 1,2,3,5,10 & 15m cable options Overmold Inline Body Mates with Flex Body & panel mount connectors PXPTPU05RAM PXPPVC05RAM Part Number Contacts Code Termination Lead Length Cable Material PXPPVC05RAM03ACL010PVC PXPTPU05RAM03ACL010PUR PXPPVC05RAM03ACL020PVC PXPTPU05RAM03ACL020PUR PXPPVC05RAM03ACL030PVC PXPTPU05RAM03ACL030PUR PXPPVC05RAM03ACL050PVC PXPTPU05RAM03ACL050PUR PXPPVC05RAM03ACL100PVC PXPTPU05RAM03ACL100PUR PXPPVC05RAM03ACL150PVC PXPTPU05RAM03ACL150PUR PXPPVC05RAM04ACL010PVC PXPTPU05RAM04ACL010PUR PXPPVC05RAM04ACL020PVC PXPTPU05RAM04ACL020PUR PXPPVC05RAM04ACL030PVC PXPTPU05RAM04ACL030PUR PXPPVC05RAM04ACL050PVC PXPTPU05RAM04ACL050PUR PXPPVC05RAM04ACL100PVC PXPTPU05RAM04ACL100PUR PXPPVC05RAM04ACL150PVC PXPTPU05RAM04ACL150PUR 03 03 03 03 03 03 03 03 03 03 03 03 04 04 04 04 04 04 04 04 04 04 04 04 A A A A A A A A A A A A A A A A A A A A A A A A Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable 1m 1m 2m 2m 3m 3m 5m 5m 10m 10m 15m 15m 1m 1m 2m 2m 3m 3m 5m 5m 10m 10m 15m 15m PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR 134 Circular Automation Connectors Buccaneer M5 Series M5 Flex Body Female Available in 3 & 4 Contacts Overmold Flex Body 1,2,3,5,10 & 15m cable options Mates with Inline Body & panel mount connectors PXPTPU05FBF PXPPVC05FBF Part Number Contacts Code Termination Lead Length Cable Material PXPPVC05FBF03ACL010PVC PXPTPU05FBF03ACL010PUR PXPPVC05FBF03ACL020PVC PXPTPU05FBF03ACL020PUR PXPPVC05FBF03ACL030PVC PXPTPU05FBF03ACL030PUR PXPPVC05FBF03ACL050PVC PXPTPU05FBF03ACL050PUR PXPPVC05FBF03ACL100PVC PXPTPU05FBF03ACL100PUR PXPPVC05FBF03ACL150PVC PXPTPU05FBF03ACL150PUR PXPPVC05FBF04ACL010PVC PXPTPU05FBF04ACL010PUR PXPPVC05FBF04ACL020PVC PXPTPU05FBF04ACL020PUR PXPPVC05FBF04ACL030PVC PXPTPU05FBF04ACL030PUR PXPPVC05FBF04ACL050PVC PXPTPU05FBF04ACL050PUR PXPPVC05FBF04ACL100PVC PXPTPU05FBF04ACL100PUR PXPPVC05FBF04ACL150PVC PXPTPU05FBF04ACL150PUR 03 03 03 03 03 03 03 03 03 03 03 03 04 04 04 04 04 04 04 04 04 04 04 04 A A A A A A A A A A A A A A A A A A A A A A A A Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable 1m 1m 2m 2m 3m 3m 5m 5m 10m 10m 15m 15m 1m 1m 2m 2m 3m 3m 5m 5m 10m 10m 15m 15m PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR M5 Inline Body Male Available in 3 & 4 Contacts 1,2,3,5,10 & 15m cable options Overmold Inline Body Mates with Flex Body & panel mount connectors PXPTPU05FIM PXPPVC05FIM Part Number Contacts Code Termination Lead Length Cable Material PXPPVC05FIM03ACL010PVC PXPTPU05FIM03ACL010PUR PXPPVC05FIM03ACL020PVC PXPTPU05FIM03ACL020PUR PXPPVC05FIM03ACL030PVC PXPTPU05FIM03ACL030PUR PXPPVC05FIM03ACL050PVC PXPTPU05FIM03ACL050PUR PXPPVC05FIM03ACL100PVC PXPTPU05FIM03ACL100PUR PXPPVC05FIM03ACL150PVC PXPTPU05FIM03ACL150PUR PXPPVC05FIM04ACL010PVC PXPTPU05FIM04ACL010PUR PXPPVC05FIM04ACL020PVC PXPTPU05FIM04ACL020PUR PXPPVC05FIM04ACL030PVC PXPTPU05FIM04ACL030PUR PXPPVC05FIM04ACL050PVC PXPTPU05FIM04ACL050PUR PXPPVC05FIM04ACL100PVC PXPTPU05FIM04ACL100PUR PXPPVC05FIM04ACL150PVC PXPTPU05FIM04ACL150PUR 03 03 03 03 03 03 03 03 03 03 03 03 04 04 04 04 04 04 04 04 04 04 04 04 A A A A A A A A A A A A A A A A A A A A A A A A Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable Overmold Cable 1m 1m 2m 2m 3m 3m 5m 5m 10m 10m 15m 15m 1m 1m 2m 2m 3m 3m 5m 5m 10m 10m 15m 15m PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR PVC PUR Circular Automation Connectors 135 Buccaneer M5 Series Specifications Electrical Mechanical: No. Contacts: 3 4 Current Rating: 1A 1A Voltage Rating (ac/dc) : 60V 60V Contact Resistance: 100MΩ AC Breakdown Voltage: 3 Contacts 1.5KV 4 Contacts 1.5KV Operating Temp Range: -25°C to 80°C Locking Mechanism: Screw coupling Rating: IP67 Contacts: Terminations: 3 Contacts 4 Contacts Flying Lead / PCB / Cable Flying Lead / PCB / Cable Mechanical Operation: 500 mating cycles Diameter over coupling ring: 6.5mm Panel Mounting Connectors: Cable Connectors: Body Material: Nickel Plated Brass TPU / PVC Coupling Nut Material: Nickel Plated Brass Nickel Plated Brass Colour: Grey Black Plug Contacts Material: Brass, Gold plating Brass, Gold plating Socket Contacts Material: Phosphor Bronze, Gold plating Phosphor Bronze, Gold plating O Rings & Gaskets Materials: Viton Viton RoHS: Compliant Compliant XXX XXX XX XX X XX X XX Series Material Series Size Body Style Orientation Contacts Code Termination PXM BNI = Brass Nickel 05 FB = Flex Body M = Male 03 A FL = Flying Lead PXP TPU = overmold for PUR FI = Inline Body F = Female 04 PVC = overmold for PVC FP = Front Panel Mounting RP = Rear Panel Mounting RA = Right Angle XXX XXX Lead Length Cable Material 001 = 100mm PUR 002 = 200mm PVC 003 = 300mm 010 = 1m 030 = 3m 050 = 5m 100 = 10m 150 = 15m 136 Circular Automation Connectors PC = PCB CL = Cable Buccaneer M5 Series Specifications Male Female +0 ContactØ 0.48 Diagrams (Front View ‘A’ Code): -0.03 4 3 4 pole XXXXXXXXXXM03XXXXXXXXX XXXXXXXXXXF03XXXXXXXXX 2 3 4 2 1 1.25 1 4 3 pole 3 3 1.25 1 4 1 Male +0 Ø 0.48 -0.03 4 pole P2 RED 1 3 GREEN 3 4 BLACK 4 3 3 4 1 2 2 1 1.25 P1 +0 Ø 0.48 -0.03 4 3 PAIR Female 4 PXPPVC05FBF03ACLXXXPVC 3 pole WIRE COLOUR 1 P1 +0 Ø 0.48 -0.03 3 1 4 PAIR P2 BROWN 1 3 BLUE 3 4 BLACK 4 1.25 1 WIRE COLOUR 1 XXXXXXXXXXM04XXXXXXXXX XXXXXXXXXXF04XXXXXXXXX Male +0 Ø 0.48 -0.03 4 3 3 4 1 2 2 1 1.25 4 pole Female P1 WIRE COLOUR P2 1 PAIR RED 1 2 WHITE 2 3 GREEN 3 4 BLACK 4 +0 Ø 0.48 -0.03 4 3 pole 3 3 4 1 1.25 1 Circular Automation Connectors 137
