Introduction
M16 Series
With a rugged metal housing and environmental
protection rating of IP67 when mated, Bulgin’s robust
M16 circular DIN connector range is an ideal solution
for ensuring that power and signal connections are
not compromised in harsh environments and industrial
applications.
Key features:
Screw locking compliant with DIN EN 61076-2-106
IP67 degree of protection
Robust metal connector
Excellent EMI shielding
Contact variants from 3 - 12
M16 Series coding options:
(Full Contact Diagrams Page 179)
A-Coding
Circular Automation Connectors 175
Buccaneer
M16 Series
M16 Inline Body Male
3, 4, 5, 6, 8 & 12 Contacts
Solder termination
Metal Inline Body
Mates with Flex Body and
panel mount connectors
PXMBNI16FIM
Part Number
Contacts
Code
Termination
PXMBNI16FIM03ASC
PXMBNI16FIM04ASC
PXMBNI16FIM05ASC
PXMBNI16FIM06ASC
PXMBNI16FIM08ASC
PXMBNI16FIM12ASC
03
04
05
06
08
12
A
A
A
A
A
A
Solder Terminal
Solder Terminal
Solder Terminal
Solder Terminal
Solder Terminal
Solder Terminal
M16 Flex Body Female
3, 4, 5, 6, 8 & 12 Contacts
Solder termination
Metal Flex Body
Mates with Inline Body
and panel mount connectors
PXMBNI16FBF
Part Number
Contacts
Code
Termination
PXMBNI16FBF03ASC
PXMBNI16FBF04ASC
PXMBNI16FBF05ASC
PXMBNI16FBF06ASC
PXMBNI16FBF08ASC
PXMBNI16FBF12ASC
03
04
05
06
08
12
A
A
A
A
A
A
Solder Terminal
Solder Terminal
Solder Terminal
Solder Terminal
Solder Terminal
Solder Terminal
176 Circular Automation Connectors
Buccaneer
M16 Series
M16 Rear Panel Mounting Male
3, 4, 5, 6, 8 & 12 Contacts
Solder termination
Mates with Flex body
connectors
PXMBNI16RPM
Part Number
Contacts
Code
Termination
PXMBNI16RPM03ASC
PXMBNI16RPM04ASC
PXMBNI16RPM05ASC
PXMBNI16RPM06ASC
PXMBNI16RPM08ASC
PXMBNI16RPM12ASC
03
04
05
06
08
12
A
A
A
A
A
A
Solder Terminal
Solder Terminal
Solder Terminal
Solder Terminal
Solder Terminal
Solder Terminal

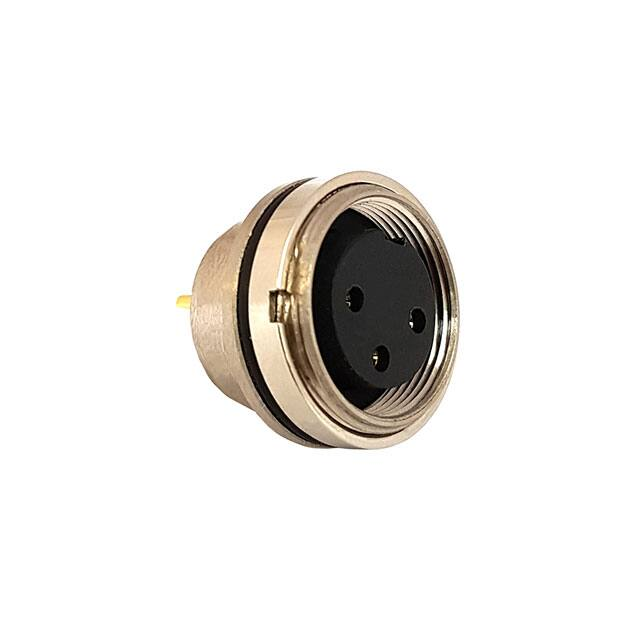

M16 Rear Panel Mounting Female
3, 4, 5, 6, 8 & 12 Contacts
Solder termination
Mates with Inline Body
connectors
PXMBNI16RPF
Part Number
Contacts
Code
Termination
PXMBNI16RPF03ASC
PXMBNI16RPF04ASC
PXMBNI16RPF05ASC
PXMBNI16RPF06ASC
PXMBNI16RPF08ASC
PXMBNI16RPF12ASC
03
04
05
06
08
12
A
A
A
A
A
A
Solder Terminal
Solder Terminal
Solder Terminal
Solder Terminal
Solder Terminal
Solder Terminal
Circular Automation Connectors 177
Buccaneer
M16 Series
Specifications
Electrical
Mechanical:
No. Contacts:
3
4
Current Rating:
Voltage Rating (ac/dc) :
7A
5
7A
6
6A
5A
250V 250V 250V 125V
8
12
Locking Mechanism:
Screw coupling
5A
3A
Sealing:
IP67
60V
60V
Contact Accomodation:
Contact Resistance:
