DRV3202EVM User's Guide
User's Guide
Literature Number: SLVU810
December 2012
Chapter 1
SLVU810 – December 2012
Overview
About This Manual
This document is a supplement to the DRV3202-Q1 Data Sheet. It details the hardware implementation of
DRV3202-Q1 evaluation module (EVM). This document does not cover the motor-driver application and
the software.
How to Use This Manual
Chapter 1 and Chapter 2 list the hardware descriptions of the EVM, Appendix A helps the user get started
with the evaluation, and Appendix B describes the 3.3-V interface (I/F) board.
Related Documents from TI
DRV3202-Q1 Data Sheet, SLVSBJ4
1.1
Introduction
The DRV3202EVM is an application board to evaluate the DRV3202-Q1 device. The DRV3202-Q1 device
is a field effect transistor (FET) pre-driver designed for 3-phase brushless DC motor control. The EVM
consists of the DRV3202-Q1 device, six N-channel MOSFETs, and passive devices. The DRV3202EVM
has a 5-V level interface to communicate with an external micro-controller unit (MCU). A 3.3-V I/F board is
also provided to support the 3.3-V MCU.
1.2
Block Diagram
CN3: Analog and Digital I/Os
CN2: Motor Output
DRV3202
R23: Current Sensing Resistor
CN1: Power Connector
LED1: Power Status
CN5: VCC Output Connector
CN4: CAN Connector
SW1: Watchdog Timer Switch

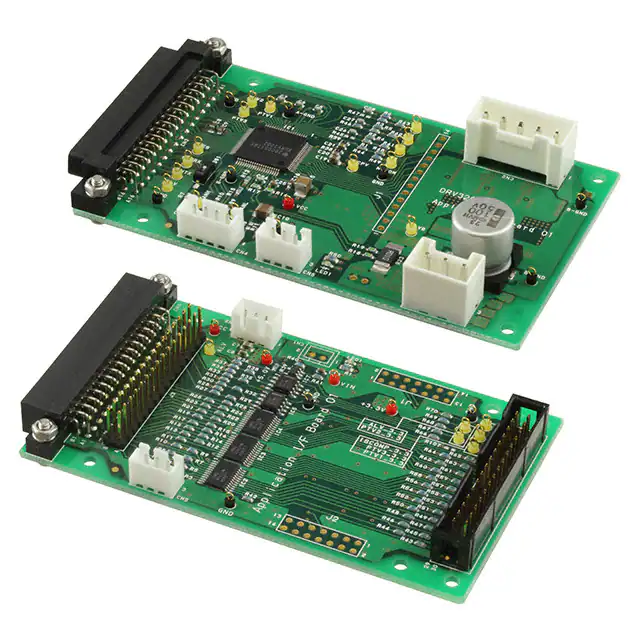

Figure 1-1. Board Layout (Front Side)
2
Overview
SLVU810 – December 2012
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
Block Diagram
www.ti.com
FETs
PNP Transistor for VCC
Figure 1-2. Board Layout (Back Side)
Motor
Outputs
Analog and Digital I/Os
Test Pins
J1
DRV3202-Q1
Switch
CAN
Connector
VCC
Outputs
LED
Power
Connector
Figure 1-3. Block Diagram
1.2.1 Power and Communication Connectors
The EVM offers terminal blocks for the application of power, motor outputs, as well as digital input/output
(I/O) and communication. This section briefly describes the functions. The pin assignments are described
in Chapter 2.
1.2.1.1
Power Connector
The VB power rail (typically 12 V) must be externally supplied. The power for the external MCU and other
analog and digital functions are supplied by the regulator implemented in the DRV3202-Q1 device.
SLVU810 – December 2012
Submit Documentation Feedback
Overview
Copyright © 2012, Texas Instruments Incorporated
3
Block Diagram
1.2.1.2
www.ti.com
Motor Outputs
A brushless DC motor is connected to the EVM through the motor outputs.
1.2.1.3
Analog and Digital I/O
The analog and digital I/O, controller area network (CAN) I/F and SPI communication of the DRV3202-Q1
can be used through the connector. All of the terminals are 5 volts.
1.2.1.4
CAN Connector
This EVM can be used to evaluate the applications of the CAN. The DRV3202-Q1 device integrates a
CAN transceiver, which provides a high-speed (up to 1 Mbps) communication interface through the CAN
bus to the external system.
1.2.1.5
VCC Output
A 5-V power supply is available through the VCC output terminal. It is used for components on the board,
and external devices such as the MCU.
1.2.2 LED
The LED turns on when the DRV3202EVM power is supplied.
1.2.3 Switch
Switch is connected to the active low watchdog timer enable (WDEN) input pin of DRV3202-Q1. Use the
disable watchdog timer while the MCU is in software debug mode.
1.2.4 FETs
Six N-channel MOSFETs are implemented on the board to drive the brushless DC motor. A 10-A
maximum brushless DC motor can be evaluated using this EVM board.
1.2.5 Test Pins
The DRV3202-Q1 pins are brought out to the test pin, test through-hole, or test pad (11 test pads are
located on the back side of the EVM). For each test pin, a label on the silkscreen identifies the signal. The
user can access the signals by using 14 through-holes, marked as J1.
4
Overview
SLVU810 – December 2012
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
Chapter 2
SLVU810 – December 2012
Connectors and Switches
This section describes the pin assignment of the connectors and switches.
2.1
Connectors
2.1.1 CN1
Table 2-1. Power Connectors
Pin No.
Name
Description
Part Number: B3P-VH-FB-B (LF) (SN) (JST)
1
VB
External power supply (typ 12 V, max 10 A)
2
NC
No connection
3
GND
Base ground (B-GND)
2.1.2 CN2
Table 2-2. Motor Outputs
Pin No.
Name
Description
Part Number: B5P-VH-FB-B (LF) (SN) (JST)
1
Motor1
Motor terminal 1
2
NC
3
Motor2
No connection
4
NC
No connection
5
NC
Motor terminal 3
Motor terminal 2
2.1.3 CN3
Table 2-3. Analog and Digital I/O
Pin No.
Name
Description
Part Number: FCN-365J032-AU (Fujitsu Component)
A1
PMV1
Phase comparator output 1
B1
PMV2
Phase comparator output 2
A2
PMV3
Phase comparator output 3
B2
PSS1
Sample and hold control signal input 1
A3
PSS2
Sample and hold control signal input 2
B3
PSS3
Sample and hold control signal input 3
A4
CS
B4
DOUT
SPI data signal output
A5
SCK
SPI clock signal input
B5
DIN
SPI data signal input
SPI chip select signal input
SLVU810 – December 2012
Submit Documentation Feedback
Connectors and Switches
Copyright © 2012, Texas Instruments Incorporated
5
Connectors
www.ti.com
Table 2-3. Analog and Digital I/O (continued)
Pin No.
Name
A6
CTLEN
Pre-driver parallel enable input
Description
B6
CTLWL
Pre-driver parallel input
A7
CTLWH
Pre-driver parallel input
B7
CTLVL
Pre-driver parallel input
A8
CTLVH
Pre-driver parallel input
B8
CTLUL
Pre-driver parallel input
A9
CTLUH
Pre-driver parallel input
B9
RES
Reset output
A10
PRN
Watchdog timer pulse input
B10
FAULT
Diagnosis output
A11
OVCR
Overcurrent reset input
B11
NC
A12
CANRX
No connection
CAN digital receive data output
B12
CANTX
CAN digital transmit data input
A13
NC
B13
PTV1
Phase amplifier output 1
A14
PTV2
Phase amplifier output 2
B14
PTV3
Phase amplifier output 3
A15
GND
Ground
B15
ALV
Motor current sense amp output
A16
GND
Ground
B16
VCC
5-V VCC supply output
No connection
2.1.4 CN4
Table 2-4. CAN Bus Connector
Pin No.
Name
Description
Part Number: B4B-XH-A (LF) (SN) (JST)
1
CANH
CAN driver I/O – High in dominant state
2
CANL
CAN driver I/O – Low in dominant state
3
GND
Ground
4
NC
No connection
2.1.5 CN5
Table 2-5. VCC Output Connector
Pin No.
Name
Description
Part Number: B3B-XH-A (LF) (SN) (JST)
1
6
VCC
2
NC
3
GND
VCC power supply output
No connection
Ground
Connectors and Switches
SLVU810 – December 2012
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
Switches
www.ti.com
2.2
Switches
EVM
SW1
OFF
O
N
ON
Figure 2-1. WDEN Switch
Table 2-6. WDEN Switch
Switch
Description
ON
DRV3202-Q1 WDEN = VCC (5 V)
Watchdog timer is disabled
OFF
DRV3202-Q1 WDEN = GND
Watchdog timer is enabled
A 1-KHz pulse must be generated by the CPU.
SLVU810 – December 2012
Submit Documentation Feedback
Connectors and Switches
Copyright © 2012, Texas Instruments Incorporated
7
Appendix A
SLVU810 – December 2012
Application Evaluation
This chapter gives an overview of an application evaluation environment. It uses an F28035 (C2000)
Control CARD and TI Code Composer Studio (CCS) to control and monitor the DRV3202-Q1 and motordriver application.
A.1
Example of Evaluation Environment
MOTOR
I/F Board
DRV3202EVM
Control CARD
(F28035)
Figure A-1. Example of Evaluation Environment
Figure A-1 shows a typical environment to evaluate the brushless DC motor system, Figure A-2 shows the
block diagram, and Table A-1 lists the components.
8
Application Evaluation
SLVU810 – December 2012
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
Example of Evaluation Environment
www.ti.com
Control CARD
I/F Board
DRV3202-Q1 MAIN Board
DRV3202-Q1 Chip
TI C2000 MCU
F28035
PWM Output
CAN I/F
Watchdog Charge
Timer
Pump
CS AMP
Current Sense
HSPD
CTRL
High-Side
Pre-Driver
LSPD
CTRL
Low-Side
Pre-Driver
DC 12-V
Power
Supply
Commutation
Control
Level Shifters
Zero-Cross
Detector
MOTOR
3.3 VÙ 5 V
ADC
FAULT
Detection
AMP
3.3-V
Reg
USB
Controller
10-MHz
Oscillator
USB
Connector
3.3-V, 5-V
Regulators
TI Code Composer Studio (CCS)
Figure A-2. EVM Block Diagram
Table A-1. Debugging Environment Example
Component
Description
CCS
CCS is the integrated development environment (IDE) for TI’s micro-controllers. It
provides a compiler of the user’s code, a source code editor, a project build
environment and a real-time debugger.
Control CARD
The Piccolo F28035 Control CARD is a TI 32-bit CPU suitable for motor-driver or
power management applications.
I/F board
The I/F board converts the I/O voltage level between the Control CARD (3.3 V) and the
DRV3202EVM (5 V).
MOTOR
A 3-phase brushless DC motor
Power supply
A 12-V power supply to the EVM board
SLVU810 – December 2012
Submit Documentation Feedback
Application Evaluation
Copyright © 2012, Texas Instruments Incorporated
9
Example of Evaluation Environment
www.ti.com
Real Time
Debug
Commutation
Pointer
AD Converted
Data
Figure A-3. TI Code Composer Studio Screen Capture
The TI CCS offers real-time debugging with a C2000 MCU. It controls the C2000 parameters or displays a
motor-control status.
For more information, refer to the DRV3202EVM User's Guide Using C2000.
10
Application Evaluation
SLVU810 – December 2012
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
Appendix B
SLVU810 – December 2012
I/F Board
B.1
I/F Board Overview
CN4: 3.3-V Analog and Digital I/Os
Level Shifters: 3.3 V Ù 5 V
CN5: VCC Output Connector
CN3: 5-V Analog and Digital I/Os
CN2: VCC Output Connector
Figure B-1. Board Layout (Front Side)
3.3-V Regulator
Figure B-2. Board Layout (Back Side)
B.2
Connectors
B.2.1 CN1
Not used
SLVU810 – December 2012
Submit Documentation Feedback
I/F Board
Copyright © 2012, Texas Instruments Incorporated
11
Connectors
www.ti.com
B.2.2 CN2 and CN5
CN2 and CN5 are 5-V power supplies to components on the board or external devices.
Table B-1. VCC Output Connector
Pin No.
Name
Description
Part Number: B3B-XH-A(LF)(SN) (JST)
1
VCC
2
NC
3
GND
VCC power supply output
No connection
Ground
B.2.3 CN3
CN3 is a 5-V voltage level I/F connector, and it is connected to CN3 on the DRV3202EVM. Refer to
Table 2-3, Analog and Digital I/O. The part number is: FCN-365P032-AU (Fujitsu Component).
B.2.4 CN4
CN4 is a 3.3-V voltage level I/F connector, and it is used on the C2000 Control CARD.
Table B-2. 3.3-V Analog and Digital I/O
Pin No.
Name
Description
Part Number: XG4C-3031 (omrom)
12
1
GND
Ground
2
ISCOMP
3
ALV
4
PTV3
Phase amplifier output 3
5
PTV2
Phase amplifier output 2
6
PTV1
Phase amplifier output 1
7
NC
8
PRN
Current comparator output
Motor current sense amp output
No connection
Pulse input
9
CTLUH
Pre-driver parallel input
10
CTLUL
Pre-driver parallel input
11
CTLVH
Pre-driver parallel input
12
CTLVL
Pre-driver parallel input
13
CTLWH
Pre-driver parallel input
14
CTLWL
Pre-driver parallel input
15
CTLEN
Pre-driver parallel enable input
16
DIN
SPI data signal input
17
SCK
SPI clock signal input
18
CS
19
PSS3
Sample and hold control signal input 3
20
PSS2
Sample and hold control signal input 2
21
PSS1
Sample and hold control signal input 1
22
OVCR
Overcurrent reset input
23
CANTX
CAN digital input
24
CANRX
CAN digital output
25
FAULT
Diagnosis output
26
RES
27
DOUT
SPI data signal output
28
PMV3
Phase comparator output 3
29
PMV2
Phase comparator output 2
SPI chip select signal input
Reset output
I/F Board
SLVU810 – December 2012
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
Connectors
www.ti.com
Table B-2. 3.3-V Analog and Digital I/O (continued)
Pin No.
Name
30
PMV1
Description
Phase comparator output 1
SLVU810 – December 2012
Submit Documentation Feedback
I/F Board
Copyright © 2012, Texas Instruments Incorporated
13
Connectors
www.ti.com
C14 NM
C24 4R7 (4.7 p)
C13 NM
C12 NM
CN4
1
2
3
4
CANH
CANL
GND
VBPD
B2B-XH-A
0Ω
R9 30 Ω
R10 30 Ω
R11
R13 8.2 kΩ
30 kΩ (0. 1%)
TP11
S-GND
C11 103
LED1
GND
R16
GND
TP10
B4B-XH-A
R8 NM
C25 103
C10 106 (25 V)
R50
104
475
C4
TP20
R12 8.2 kΩ
VBPD
1. 6 kΩ
VB
FR1111C(red)
B-GND
475
C3
100 µF
(50 V)
C2
VBPD
1
2
3
R15 10 kΩ
TP19
CN1
C1
B3P-VH-FB-B
VB
R14 10 kΩ
TP17
P-GND
TP13 TP12
TP16
R17
S-GND
P-GND
30 kΩ (0. 1%)
104
R7 10 kΩ
41
UL
RES
37
VL
CTLUH
WL
CTLUL
N/C
CTLVH
TEST1
CTLVL
69
70
GFB(PGND)
CTLWH
TEST3
CTLWL
9
10
71
72
TEST2
CTLEN
11
73
VH
12
13
74
75
WH
28
27
26
DOUT
CS
CPDR2
20 GND
17 PTV1
18 PTV2
19 PTV3
13 PH2T
14 PSC2
15 PH3T
16 PSC3
11 PSC1
12 AMPG
PMV3
9 GND
10 PH1T
PMV2
8
PH2M
PH3M
PMV1
6
7
PHTM
PH1M
FCN-365J032-AU
CN3
23
PSS2 22
PSS1 21
VBCP
AOUT
25
24
PSS3
GND
CPDR1
1
C22 105
GND
DIN
VDD
CPDR3
80
TP25
30
29
B16
A16
B15
A15
B14
A14
B13
A13
B12
A12
B11
A11
B10
A10
B9
A9
B8
A8
B7
A7
B6
A6
B5
A5
B4
A4
B3
A3
B2
A2
B1
A1
C9 104
CPDR4
78
79
32
31
C8 105
76
77
34
33
SCK
81 T-PAD
2
3
14
PM-61-14P
PDCPV
36
35
DGND
IC1
4
5
PDCPV
TP18
DRV3202
UH
SW1
CHS-01
43
42
CAN_M
48
47
46
CAN_L 45
44
CAN_H
N/C
CAN_TX
CAN_RX
50
49
GND
S_GND
55
54
ALV 53
AMPG 52
ADTH 51
ALFB
AREF
59
58
ALP 57
ALM 56
N/C
39
38
7
8
VL
UL
B-GND
VLVD
226(16 V)
C16
PRN
67
68
R38 0 Ω
WL
WDEN
VBPD
5
6
R39 0 Ω
R31 0 Ω
R37 1MΩ
S
4
VCFB
65
66
C21 473
D
G
40
3
4
C19
R34 1MΩ
WH
S-GND
OVCR
FAULT
64
225(50 V)
R28 0 Ω
GND
TP9
2
C20 473
D
8
7
6
5
S
1
S
2
S
3
8
7
6
5
D
4
SI4154DY
Q7
R30 0 Ω
1
S
2
S
3
S
4
D
D
D
G
D
G
SI4154DY
Q6
R29 0 Ω
D
R27 0 Ω
R36 1MΩ
R35 1MΩ
D
D
S
8
7
D
6
D
5
D
D
S
4
4
R33 1MΩ
1
S
2
S
3
R32 1MΩ
SI4154DY
Q5
G
1
S
2
S
3
8
7
D
6
D
5
D
D
S
8
7
6
D
5
CN2
D
G
1
S
2
S
3
8
7
6
D
5
D
D
1
S
2
S
3
B-GND
D
R26 0 Ω
SI4154DY
Q4
VCCT
VCCB
62
63
GND T-PAD10
1
TP14
CAN_PW
J1
TP15
NM
R24
R25 NM
R40 NM
B5P-VH-FB-B
5
4
3
2
1
4
T-PAD9
C23 104
1 kΩ (0.1%)
SI4154DY
Q3
61
C17 104
UH
VH
G
A-GND
C18 105
M-VB
SI4154DY
Q2
C15
T-PAD11
R19
CN5
1
2
3
60
10 mΩ (3 W. 1%)
R52
10 mΩ (3 W. 1%)
R51
R23
10 mΩ (3 W. 1%)
VBPD
R20 0 Ω
R18
1 kΩ (0.1%)
R22 0 Ω
R21 0.51 Ω
VB
VCC
P-GND
1
T-PAD8
C7 471
C5 471
T-PAD7
R44 5.6 kΩ
T-PAD6
R41 20 kΩ
C6 471
D-GND
0Ω
R49 10 kΩ
R48
R42 20 kΩ
T-PAD5
R43 20 kΩ
M-COM W V U
TP1 TP3 TP4 TP5
150
150
150
C28
T-PAD1
TP2
T-PAD4
R47 5.6 kΩ
T-PAD3
R45 5.6 kΩ
R46 5.6 kΩ
R3 20 kΩ
R5 10 kΩ
R1 20 kΩ
R2 20 kΩ
T-PAD2
GND
R4 10 kΩ
GND
C27
TP24
R6 10 kΩ
TP23
C26
GND
TP21 TP22
A-GND
B3B-XH-A
2SB1450
Q1
2
3
1
4
VCC
GND
ALV
GND
PTV3
PTV2
PTV1
NC
CANTX
CANRX
NC
OVCR
FAULT
PRN
RES
CTLUH
CTLUL
CTLVH
CTLVL
CTLWH
CTLWL
CTLEN
DIN
SCK
DOUT
CS
PSS3
PSS2
PSS1
PMV3
PMV2
PMV1
GND
TP8
TP7
TP6
GND
GND
Hole1 Hole2 Hole3 Hole4
B-GND P-GND S-GND
GND D-GND A-GND
Figure B-3. EVM Main Schematic
14
I/F Board
SLVU810 – December 2012
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
Connectors
www.ti.com
R39
100 Ω
C17
R40
VCC
LMV7235M5
IC7
CN3
R70
TP12
104
30 kΩ
B16
A16
B15
A15
B14
A14
B13
A13
B12
A12
B11
A11
B10
A10
B9
A9
B8
A8
B7
A7
B6
A6
B5
A5
B4
A4
B3
A3
B2
A2
B1
A1
10 kΩ
3
1
TP15
J3
2
T2
32
31
30
R41
29
28
10 kΩ
27
C18
GND
104
TP8
TP9
TP10 TP11
26
3.3 V
25
24
23
GND
1
8
V+
VOUT A
2
7
-IN A VOUT B
3
6
+IN A
-IN B
4
5
20
19
R36
20 kΩ R38
R37
30 kΩ
R33
20 kΩ R35
R34
30 kΩ
100 Ω
18
17
R68
100 Ω
R67
100 Ω
R66
100 Ω
OPA2365
100 Ω
14
13
100 Ω
104
C16
+IN B
V-
16
15
R69
IC6
22
21
IC5
12
8
1
V+
VOUT A
7
2
-IN A VOUT B
6
3
+IN A
-IN B
4
5
11
10
R30
9
20 kΩ R32
100 Ω
8
7
+IN B
V-
R31
30 kΩ
R27
20 kΩ R29
R28
30 kΩ
6
5
104
C15
GND
OPA2365
100 Ω
4
3
GND
5V
GND
WLW-8-16PW
C13
FCN-365P032-AU
R26
R25
R24
R23
R22
R21
R20
R19
3.3 V
IC4
104
1
2
3
4
5
6
7
8
9
10
11
12
100Ω
100Ω
100Ω
100Ω
100Ω
100Ω
100Ω
100Ω
GND
VCCA (5 V)
DIR
A1
A2
A3
A4
A5
A6
A7
A8
GND
GND
(3.3 V) VCCB
(3.3 V) VCCB
OE
B1
B2
B3
B4
B5
B6
B7
B8
GND
24
23
22
21
20
19
18
17
16
15
14
13
C14
24
23
22
21
20
19
18
17
16
15
14
13
C12
24
23
22
21
20
19
18
17
16
15
14
13
C10
104
100 kΩ*8
2
1
T1
R65
R64
R63
R62
R61
R60
R59
R58
VCC
GND
ALV
GND
PTV3
PTV2
PTV1
NC
CANTX
CANRX
NC
OVCR
FAULT
PRN
RES
CTLUH
CTLUL
CTLVH
CTLVL
CTLWH
CTLWL
CTLEN
DIN
SCK
DOUT
CS
PSS3
PSS2
PSS1
PMV3
PMV2
PMV1
3.3 V
5
4
5V
GND
TP46
CN4
IC3
104
1
2
3
4
5
6
7
8
9
10
11
12
R3
R4
R5
R6
R7
R8
R9
R10
100Ω
100Ω
100Ω
100Ω
100Ω
100Ω
100Ω
100Ω
IC2
104
1
2
3
4
5
6
7
8
9
10
11
12
0Ω
NM
2
GND
B2B-XH-A
IC1
TL1963A-33DCYR
1
C1
C2
C3
105
50V
105
50V
104
IN
2 GND
R106
1 R105
CN1
OUT
104
3.3 V
VCCA (5 V)
DIR
A1
A2
A3
A4
A5
A6
A7
A8
GND
GND
(3.3 V) VCCB
(3.3 V) VCCB
OE
B1
B2
B3
B4
B5
B6
B7
B8
GND
R49
R48
R47
R46
R45
R44
R43
R42
3.3 V
TP5
100 Ω
100 Ω
100 Ω
100 Ω
100 Ω
100 Ω
100 Ω
100 Ω
5V
C5
106
10V
104
HOLE5 HOLE6
TP48
R2
C4
HOLE1 HOLE2 HOLE3 HOLE4
GND
TP14 VCC
0Ω
3.3 V
5V
CN2
3
GND
ISCOMP_3.3
ALV_3.3
PTV3_3.3
PTV2_3.3
PTV1_3.3
NC
PRN_3.3
CTLUH_3.3
CTLUL_3.3
CTLVH_3.3
CTLVL_3.3
CTLWH_3.3
CTLWL_3.3
CTLEN_3.3
DIN_3.3
SCK_3.3
CS_3.3
PSS3_3.3
PSS2_3.3
PSS1_3.3
OVCR_3.3
CANTX_3.3
CANRX_3.3
FAULT_3.3
RES_3.3
DOUT_3.3
PMV3_3.3
PMV2_3.3
PMV1_3.3
XG4C-3031
TP47
GND
TP13
CN5
1
2
3
B3B-XH-A
1
2
3
C7
C8
C6
106
10V
104
106
10V
B3B-XH-A
GND
GND
R107
GND
104
SN74LVC4245APW
GND
4 GND
470 Ω
LED1
FR1111C(red)
R1
3.3 V
VIN
TP4
(3.3 V) VCCB
(3.3 V) VCCB
OE
B1
B2
B3
B4
B5
B6
B7
B8
GND
SN74LVC4245APW
C9
5V
VCCA (5 V)
DIR
A1
A2
A3
A4
A5
A6
A7
A8
GND
GND
100 kΩ*8
C11
R18
R17
R16
R15
R14
R13
R12
R11
R57
R56
R55
R54
R53
R52
R51
R50
SN74LVC4245APW
1
2
3
4
5
6
NM 7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
R104
GND
TP1
NM
TP2
TP3
GND
Figure B-4. EVM Interface Schematic
SLVU810 – December 2012
Submit Documentation Feedback
I/F Board
Copyright © 2012, Texas Instruments Incorporated
15
STANDARD TERMS AND CONDITIONS FOR EVALUATION MODULES
1.
Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, or
documentation (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms and conditions set forth herein.
Acceptance of the EVM is expressly subject to the following terms and conditions.
1.1 EVMs are intended solely for product or software developers for use in a research and development setting to facilitate feasibility
evaluation, experimentation, or scientific analysis of TI semiconductors products. EVMs have no direct function and are not
finished products. EVMs shall not be directly or indirectly assembled as a part or subassembly in any finished product. For
clarification, any software or software tools provided with the EVM (“Software”) shall not be subject to the terms and conditions
set forth herein but rather shall be subject to the applicable terms and conditions that accompany such Software
1.2 EVMs are not intended for consumer or household use. EVMs may not be sold, sublicensed, leased, rented, loaned, assigned,
or otherwise distributed for commercial purposes by Users, in whole or in part, or used in any finished product or production
system.
2
Limited Warranty and Related Remedies/Disclaimers:
2.1 These terms and conditions do not apply to Software. The warranty, if any, for Software is covered in the applicable Software
License Agreement.
2.2 TI warrants that the TI EVM will conform to TI's published specifications for ninety (90) days after the date TI delivers such EVM
to User. Notwithstanding the foregoing, TI shall not be liable for any defects that are caused by neglect, misuse or mistreatment
by an entity other than TI, including improper installation or testing, or for any EVMs that have been altered or modified in any
way by an entity other than TI. Moreover, TI shall not be liable for any defects that result from User's design, specifications or
instructions for such EVMs. Testing and other quality control techniques are used to the extent TI deems necessary or as
mandated by government requirements. TI does not test all parameters of each EVM.
2.3 If any EVM fails to conform to the warranty set forth above, TI's sole liability shall be at its option to repair or replace such EVM,
or credit User's account for such EVM. TI's liability under this warranty shall be limited to EVMs that are returned during the
warranty period to the address designated by TI and that are determined by TI not to conform to such warranty. If TI elects to
repair or replace such EVM, TI shall have a reasonable time to repair such EVM or provide replacements. Repaired EVMs shall
be warranted for the remainder of the original warranty period. Replaced EVMs shall be warranted for a new full ninety (90) day
warranty period.
3
Regulatory Notices:
3.1 United States
3.1.1
Notice applicable to EVMs not FCC-Approved:
This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit
to determine whether to incorporate such items in a finished product and software developers to write software applications for
use with the end product. This kit is not a finished product and when assembled may not be resold or otherwise marketed unless
all required FCC equipment authorizations are first obtained. Operation is subject to the condition that this product not cause
harmful interference to licensed radio stations and that this product accept harmful interference. Unless the assembled kit is
designed to operate under part 15, part 18 or part 95 of this chapter, the operator of the kit must operate under the authority of
an FCC license holder or must secure an experimental authorization under part 5 of this chapter.
3.1.2
For EVMs annotated as FCC – FEDERAL COMMUNICATIONS COMMISSION Part 15 Compliant:
CAUTION
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate the equipment.
FCC Interference Statement for Class A EVM devices
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
FCC Interference Statement for Class B EVM devices
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
•
•
•
•
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
3.2 Canada
3.2.1
For EVMs issued with an Industry Canada Certificate of Conformance to RSS-210
Concerning EVMs Including Radio Transmitters:
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Concernant les EVMs avec appareils radio:
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation
est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
Concerning EVMs Including Detachable Antennas:
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser)
gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type
and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for
successful communication. This radio transmitter has been approved by Industry Canada to operate with the antenna types
listed in the user guide with the maximum permissible gain and required antenna impedance for each antenna type indicated.
Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited
for use with this device.
Concernant les EVMs avec antennes détachables
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et
d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope
rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. Le
présent émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés dans le
manuel d’usage et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne
non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de
l'émetteur
3.3 Japan
3.3.1
Notice for EVMs delivered in Japan: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_01.page 日本国内に
輸入される評価用キット、ボードについては、次のところをご覧ください。
http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_01.page
3.3.2
Notice for Users of EVMs Considered “Radio Frequency Products” in Japan: EVMs entering Japan may not be certified
by TI as conforming to Technical Regulations of Radio Law of Japan.
If User uses EVMs in Japan, not certified to Technical Regulations of Radio Law of Japan, User is required by Radio Law of
Japan to follow the instructions below with respect to EVMs:
1.
2.
3.
Use EVMs in a shielded room or any other test facility as defined in the notification #173 issued by Ministry of Internal
Affairs and Communications on March 28, 2006, based on Sub-section 1.1 of Article 6 of the Ministry’s Rule for
Enforcement of Radio Law of Japan,
Use EVMs only after User obtains the license of Test Radio Station as provided in Radio Law of Japan with respect to
EVMs, or
Use of EVMs only after User obtains the Technical Regulations Conformity Certification as provided in Radio Law of Japan
with respect to EVMs. Also, do not transfer EVMs, unless User gives the same notice above to the transferee. Please note
that if User does not follow the instructions above, User will be subject to penalties of Radio Law of Japan.
SPACER
SPACER
SPACER
SPACER
SPACER
【無線電波を送信する製品の開発キットをお使いになる際の注意事項】 開発キットの中には技術基準適合証明を受けて
いないものがあります。 技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの
措置を取っていただく必要がありますのでご注意ください。
1.
2.
3.
電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用
いただく。
実験局の免許を取得後ご使用いただく。
技術基準適合証明を取得後ご使用いただく。
なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。
上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。 日本テキサス・イ
ンスツルメンツ株式会社
東京都新宿区西新宿６丁目２４番１号
西新宿三井ビル
3.3.3
Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page
電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧くださ
い。http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page
SPACER
4
EVM Use Restrictions and Warnings:
4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT
LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS.
4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling
or using the EVM, including without limitation any warning or restriction notices. The notices contain important safety information
related to, for example, temperatures and voltages.
4.3 Safety-Related Warnings and Restrictions:
4.3.1
User shall operate the EVM within TI’s recommended specifications and environmental considerations stated in the user
guide, other available documentation provided by TI, and any other applicable requirements and employ reasonable and
customary safeguards. Exceeding the specified performance ratings and specifications (including but not limited to input
and output voltage, current, power, and environmental ranges) for the EVM may cause personal injury or death, or
property damage. If there are questions concerning performance ratings and specifications, User should contact a TI
field representative prior to connecting interface electronics including input power and intended loads. Any loads applied
outside of the specified output range may also result in unintended and/or inaccurate operation and/or possible
permanent damage to the EVM and/or interface electronics. Please consult the EVM user guide prior to connecting any
load to the EVM output. If there is uncertainty as to the load specification, please contact a TI field representative.
During normal operation, even with the inputs and outputs kept within the specified allowable ranges, some circuit
components may have elevated case temperatures. These components include but are not limited to linear regulators,
switching transistors, pass transistors, current sense resistors, and heat sinks, which can be identified using the
information in the associated documentation. When working with the EVM, please be aware that the EVM may become
very warm.
4.3.2
EVMs are intended solely for use by technically qualified, professional electronics experts who are familiar with the
dangers and application risks associated with handling electrical mechanical components, systems, and subsystems.
User assumes all responsibility and liability for proper and safe handling and use of the EVM by User or its employees,
affiliates, contractors or designees. User assumes all responsibility and liability to ensure that any interfaces (electronic
and/or mechanical) between the EVM and any human body are designed with suitable isolation and means to safely
limit accessible leakage currents to minimize the risk of electrical shock hazard. User assumes all responsibility and
liability for any improper or unsafe handling or use of the EVM by User or its employees, affiliates, contractors or
designees.
4.4 User assumes all responsibility and liability to determine whether the EVM is subject to any applicable international, federal,
state, or local laws and regulations related to User’s handling and use of the EVM and, if applicable, User assumes all
responsibility and liability for compliance in all respects with such laws and regulations. User assumes all responsibility and
liability for proper disposal and recycling of the EVM consistent with all applicable international, federal, state, and local
requirements.
5.
Accuracy of Information: To the extent TI provides information on the availability and function of EVMs, TI attempts to be as accurate
as possible. However, TI does not warrant the accuracy of EVM descriptions, EVM availability or other information on its websites as
accurate, complete, reliable, current, or error-free.
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
6.
Disclaimers:
6.1 EXCEPT AS SET FORTH ABOVE, EVMS AND ANY WRITTEN DESIGN MATERIALS PROVIDED WITH THE EVM (AND THE
DESIGN OF THE EVM ITSELF) ARE PROVIDED "AS IS" AND "WITH ALL FAULTS." TI DISCLAIMS ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, REGARDING SUCH ITEMS, INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF ANY
THIRD PARTY PATENTS, COPYRIGHTS, TRADE SECRETS OR OTHER INTELLECTUAL PROPERTY RIGHTS.
6.2 EXCEPT FOR THE LIMITED RIGHT TO USE THE EVM SET FORTH HEREIN, NOTHING IN THESE TERMS AND
CONDITIONS SHALL BE CONSTRUED AS GRANTING OR CONFERRING ANY RIGHTS BY LICENSE, PATENT, OR ANY
OTHER INDUSTRIAL OR INTELLECTUAL PROPERTY RIGHT OF TI, ITS SUPPLIERS/LICENSORS OR ANY OTHER THIRD
PARTY, TO USE THE EVM IN ANY FINISHED END-USER OR READY-TO-USE FINAL PRODUCT, OR FOR ANY
INVENTION, DISCOVERY OR IMPROVEMENT MADE, CONCEIVED OR ACQUIRED PRIOR TO OR AFTER DELIVERY OF
THE EVM.
7.
USER'S INDEMNITY OBLIGATIONS AND REPRESENTATIONS. USER WILL DEFEND, INDEMNIFY AND HOLD TI, ITS
LICENSORS AND THEIR REPRESENTATIVES HARMLESS FROM AND AGAINST ANY AND ALL CLAIMS, DAMAGES, LOSSES,
EXPENSES, COSTS AND LIABILITIES (COLLECTIVELY, "CLAIMS") ARISING OUT OF OR IN CONNECTION WITH ANY
HANDLING OR USE OF THE EVM THAT IS NOT IN ACCORDANCE WITH THESE TERMS AND CONDITIONS. THIS OBLIGATION
SHALL APPLY WHETHER CLAIMS ARISE UNDER STATUTE, REGULATION, OR THE LAW OF TORT, CONTRACT OR ANY
OTHER LEGAL THEORY, AND EVEN IF THE EVM FAILS TO PERFORM AS DESCRIBED OR EXPECTED.
8.
Limitations on Damages and Liability:
8.1 General Limitations. IN NO EVENT SHALL TI BE LIABLE FOR ANY SPECIAL, COLLATERAL, INDIRECT, PUNITIVE,
INCIDENTAL, CONSEQUENTIAL, OR EXEMPLARY DAMAGES IN CONNECTION WITH OR ARISING OUT OF THESE
TERMS ANDCONDITIONS OR THE USE OF THE EVMS PROVIDED HEREUNDER, REGARDLESS OF WHETHER TI HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. EXCLUDED DAMAGES INCLUDE, BUT ARE NOT LIMITED
TO, COST OF REMOVAL OR REINSTALLATION, ANCILLARY COSTS TO THE PROCUREMENT OF SUBSTITUTE GOODS
OR SERVICES, RETESTING, OUTSIDE COMPUTER TIME, LABOR COSTS, LOSS OF GOODWILL, LOSS OF PROFITS,
LOSS OF SAVINGS, LOSS OF USE, LOSS OF DATA, OR BUSINESS INTERRUPTION. NO CLAIM, SUIT OR ACTION SHALL
BE BROUGHT AGAINST TI MORE THAN ONE YEAR AFTER THE RELATED CAUSE OF ACTION HAS OCCURRED.
8.2 Specific Limitations. IN NO EVENT SHALL TI'S AGGREGATE LIABILITY FROM ANY WARRANTY OR OTHER OBLIGATION
ARISING OUT OF OR IN CONNECTION WITH THESE TERMS AND CONDITIONS, OR ANY USE OF ANY TI EVM
PROVIDED HEREUNDER, EXCEED THE TOTAL AMOUNT PAID TO TI FOR THE PARTICULAR UNITS SOLD UNDER
THESE TERMS AND CONDITIONS WITH RESPECT TO WHICH LOSSES OR DAMAGES ARE CLAIMED. THE EXISTENCE
OF MORE THAN ONE CLAIM AGAINST THE PARTICULAR UNITS SOLD TO USER UNDER THESE TERMS AND
CONDITIONS SHALL NOT ENLARGE OR EXTEND THIS LIMIT.
9.
Return Policy. Except as otherwise provided, TI does not offer any refunds, returns, or exchanges. Furthermore, no return of EVM(s)
will be accepted if the package has been opened and no return of the EVM(s) will be accepted if they are damaged or otherwise not in
a resalable condition. If User feels it has been incorrectly charged for the EVM(s) it ordered or that delivery violates the applicable
order, User should contact TI. All refunds will be made in full within thirty (30) working days from the return of the components(s),
excluding any postage or packaging costs.
10. Governing Law: These terms and conditions shall be governed by and interpreted in accordance with the laws of the State of Texas,
without reference to conflict-of-laws principles. User agrees that non-exclusive jurisdiction for any dispute arising out of or relating to
these terms and conditions lies within courts located in the State of Texas and consents to venue in Dallas County, Texas.
Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief
in any United States or foreign court.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2015, Texas Instruments Incorporated
spacer
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other
changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest
issue. Buyers should obtain the latest relevant information before placing orders and should verify that such information is current and
complete. All semiconductor products (also referred to herein as “components”) are sold subject to TI’s terms and conditions of sale
supplied at the time of order acknowledgment.
TI warrants performance of its components to the specifications applicable at the time of sale, in accordance with the warranty in TI’s terms
and conditions of sale of semiconductor products. Testing and other quality control techniques are used to the extent TI deems necessary
to support this warranty. Except where mandated by applicable law, testing of all parameters of each component is not necessarily
performed.
TI assumes no liability for applications assistance or the design of Buyers’ products. Buyers are responsible for their products and
applications using TI components. To minimize the risks associated with Buyers’ products and applications, Buyers should provide
adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask work right, or
other intellectual property right relating to any combination, machine, or process in which TI components or services are used. Information
published by TI regarding third-party products or services does not constitute a license to use such products or services or a warranty or
endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the
third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of significant portions of TI information in TI data books or data sheets is permissible only if reproduction is without alteration
and is accompanied by all associated warranties, conditions, limitations, and notices. TI is not responsible or liable for such altered
documentation. Information of third parties may be subject to additional restrictions.
Resale of TI components or services with statements different from or beyond the parameters stated by TI for that component or service
voids all express and any implied warranties for the associated TI component or service and is an unfair and deceptive business practice.
TI is not responsible or liable for any such statements.
Buyer acknowledges and agrees that it is solely responsible for compliance with all legal, regulatory and safety-related requirements
concerning its products, and any use of TI components in its applications, notwithstanding any applications-related information or support
that may be provided by TI. Buyer represents and agrees that it has all the necessary expertise to create and implement safeguards which
anticipate dangerous consequences of failures, monitor failures and their consequences, lessen the likelihood of failures that might cause
harm and take appropriate remedial actions. Buyer will fully indemnify TI and its representatives against any damages arising out of the use
of any TI components in safety-critical applications.
In some cases, TI components may be promoted specifically to facilitate safety-related applications. With such components, TI’s goal is to
help enable customers to design and create their own end-product solutions that meet applicable functional safety standards and
requirements. Nonetheless, such components are subject to these terms.
No TI components are authorized for use in FDA Class III (or similar life-critical medical equipment) unless authorized officers of the parties
have executed a special agreement specifically governing such use.
Only those TI components which TI has specifically designated as military grade or “enhanced plastic” are designed and intended for use in
military/aerospace applications or environments. Buyer acknowledges and agrees that any military or aerospace use of TI components
which have not been so designated is solely at the Buyer's risk, and that Buyer is solely responsible for compliance with all legal and
regulatory requirements in connection with such use.
TI has specifically designated certain components as meeting ISO/TS16949 requirements, mainly for automotive use. In any case of use of
non-designated products, TI will not be responsible for any failure to meet ISO/TS16949.
Products
Applications
Audio
www.ti.com/audio
Automotive and Transportation
www.ti.com/automotive
Amplifiers
amplifier.ti.com
Communications and Telecom
www.ti.com/communications
Data Converters
dataconverter.ti.com
Computers and Peripherals
www.ti.com/computers
DLP® Products
www.dlp.com
Consumer Electronics
www.ti.com/consumer-apps
DSP
dsp.ti.com
Energy and Lighting
www.ti.com/energy
Clocks and Timers
www.ti.com/clocks
Industrial
www.ti.com/industrial
Interface
interface.ti.com
Medical
www.ti.com/medical
Logic
logic.ti.com
Security
www.ti.com/security
Power Mgmt
power.ti.com
Space, Avionics and Defense
www.ti.com/space-avionics-defense
Microcontrollers
microcontroller.ti.com
Video and Imaging
www.ti.com/video
RFID
www.ti-rfid.com
OMAP Applications Processors
www.ti.com/omap
TI E2E Community
e2e.ti.com
Wireless Connectivity
www.ti.com/wirelessconnectivity
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2015, Texas Instruments Incorporated
工商网监
湘ICP备2023018690号
