INA229 85-V, 20-Bit, Ultra-Precise Power/Energy/Charge Monitor With SPI Interface
1 Features
3 Description
•
•
The INA229 is an ultra-precise digital power monitor
with a 20-bit delta-sigma ADC specifically designed
for current-sensing applications. The device can
measure a full-scale differential input of ±163.84 mV
or ±40.96 mV across a resistive shunt sense element
with common-mode voltage support from –0.3 V to
+85 V.
•
•
•
•
•
•
•
•
•
•
•
•
High-resolution, 20-bit delta-sigma ADC
Current monitoring accuracy:
– Offset voltage: ±1 µV (maximum)
– Offset drift: ±0.01 µV/°C (maximum)
– Gain error: ±0.05% (maximum)
– Gain error drift: ±20 ppm/°C (maximum)
– Common mode rejection: 154 dB (minimum)
Power monitoring accuracy:
– 0.5 % full scale, –40 °C to 125 °C (maximum)
Energy and Charge accuracy:
– 1.0 % full scale (maximum)
Fast Alert response: 75 μs
Wide common-mode range: –0.3 V to +85 V
Bus voltage sense input: 0 V to 85 V
Shunt full-scale differential range:
±163.84 mV / ± 40.96 mV
Input bias current: 2.5 nA (maximum)
Temperature sensor: ±1 °C (maximum at 25 °C)
Programmable resistor temperature compensation
Programmable conversion time and averaging
10-MHz SPI communication interface
Operates from a 2.7-V to 5.5-V supply
– Operational current: 640 µA (typical)
– Shutdown current: 5 µA (maximum)
The INA229 reports current, bus voltage, temperature,
power, energy and charge accumulation while
employing a precision ±0.5 % integrated oscillator, all
while performing the needed calculations in the
background. The integrated temperature sensor is ±1
°C accurate for die temperature measurement and is
useful in monitoring the system ambient temperature.
The low offset and gain drift design of the INA229
allows it to be used in precise systems that do not
undergo
multi-temperature
calibration
during
manufacturing. Further, the very low offset voltage
and noise allow for use in mA to kA sensing
applications and provide a wide dynamic range
without significant power dissipation losses on the
sensing shunt element. The low input bias current of
the device permits the use of larger current-sense
resistors,
thus
providing
accurate
current
measurements in the micro-amp range.
The device allows for selectable ADC conversion
times from 50 µs to 4.12 ms as well as sample
averaging from 1x to 1024x which further helps
reduce the noise of the measured data.
2 Applications
•
•
•
•
•
DC-DC converters and power inverters
Industrial battery packs
Power-over-Ethernet (PoE)
Telecom equipment
Enterprise servers

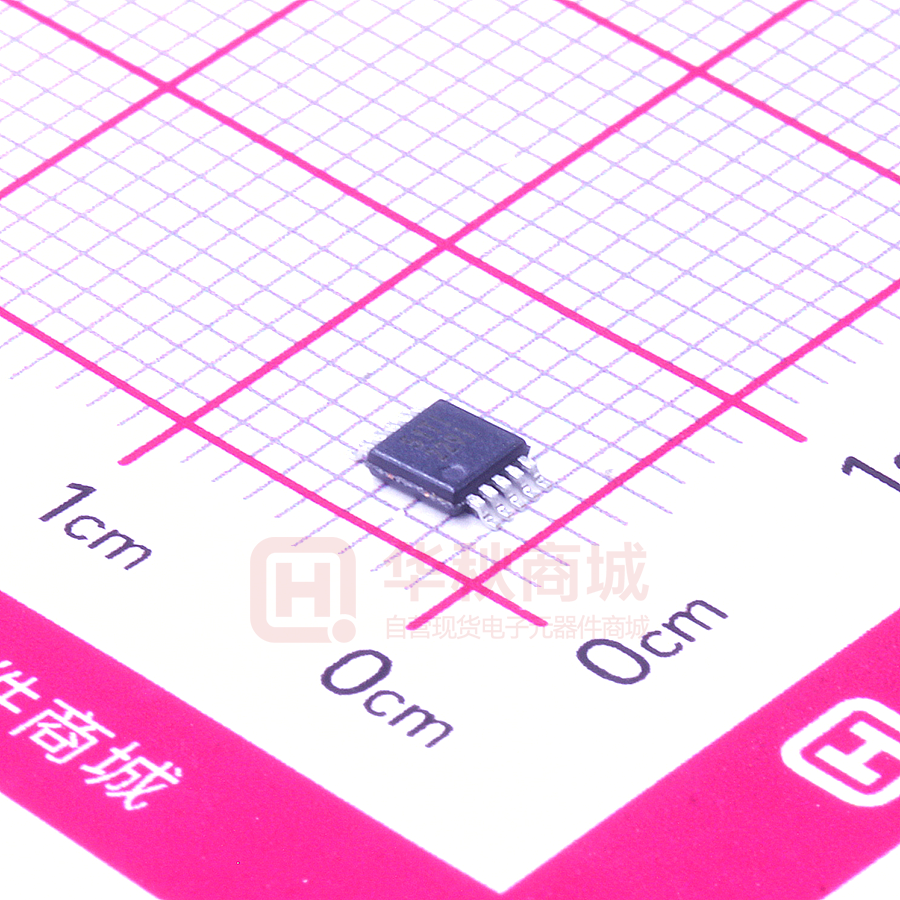

Device Information (1)
PART NUMBER
INA229
(1)
PACKAGE
VSSOP (10)
BODY SIZE (NOM)
3.00 mm × 3.00 mm
For all available packages, see the package option
addendum at the end of the data sheet.
VS
Power
Reference
IN+
INMUX
20 Bit
ADC
VBUS
Voltage
Current
Power
Energy
Charge
Temp
Oscillator
Out-of-range
Threshold
SCLK
SPI
MOSI
MISO
CS
+
ALERT
±
GND
Simplified Block Diagram
An©IMPORTANT
NOTICEIncorporated
at the end of this data sheet addresses availability, warranty, changes, use in
safety-critical
applications,
Copyright
2020 Texas Instruments
Submit
Document
Feedback
intellectual property matters and other important disclaimers. PRODUCTION DATA.
Product Folder Links: INA229
1
INA229
www.ti.com
SLYS023 – DECEMBER 2020
Table of Contents
1 Features............................................................................1
2 Applications..................................................................... 1
3 Description.......................................................................1
4 Revision History.............................................................. 2
5 Pin Configuration and Functions...................................3
6 Specifications.................................................................. 4
6.1 Absolute Maximum Ratings ....................................... 4
6.2 ESD Ratings .............................................................. 4
6.3 Recommended Operating Conditions ........................4
6.4 Thermal Information ...................................................4
6.5 Electrical Characteristics ............................................5
6.6 Timing Requirements (SPI) ........................................7
6.7 Timing Diagram ..........................................................7
6.8 Typical Characteristics................................................ 8
7 Detailed Description......................................................12
7.1 Overview................................................................... 12
7.2 Functional Block Diagram......................................... 12
7.3 Feature Description...................................................12
7.4 Device Functional Modes..........................................18
7.5 Programming............................................................ 18
7.6 Register Maps...........................................................20
8 Application and Implementation.................................. 29
8.1 Application Information............................................. 29
8.2 Typical Application.................................................... 33
9 Power Supply Recommendations................................37
10 Layout...........................................................................37
10.1 Layout Guidelines................................................... 37
10.2 Layout Example...................................................... 37
11 Device and Documentation Support..........................38
11.1 Receiving Notification of Documentation Updates.. 38
11.2 Support Resources................................................. 38
11.3 Trademarks............................................................. 38
11.4 Electrostatic Discharge Caution.............................. 38
11.5 Glossary.................................................................. 38
12 Mechanical, Packaging, and Orderable
Information.................................................................... 38
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
2
DATE
REVISION
NOTES
December 2020
*
Initial release
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: INA229
INA229
www.ti.com
SLYS023 – DECEMBER 2020
5 Pin Configuration and Functions
CS
1
10
IN+
MOSI
2
9
IN–
ALERT
3
8
VBUS
MISO
4
7
GND
SCLK
5
6
VS
Not to scale
Figure 5-1. DGS Package 10-Pin VSSOP Top View
Table 5-1. Pin Functions
PIN
NO.
NAME
TYPE
DESCRIPTION
1
CS
Digital input
SPI chip select (Active Low).
2
MOSI
Digital input
SPI digital data input.
3
ALERT
Digital output
Open-drain alert output, default state is active low.
4
MISO
Digital output
SPI digital data output (push-pull).
5
SCLK
Digital input
6
VS
Power supply
7
GND
Ground
8
VBUS
Analog input
Bus voltage input.
9
IN–
Analog input
Negative input to the device. For high-side applications, connect to load side of sense resistor. For
low-side applications, connect to ground side of sense resistor.
10
IN+
Analog input
Positive input to the device. For high-side applications, connect to power supply side of sense
resistor. For low-side applications, connect to load side of sense resistor.
SPI clock input.
Power supply, 2.7 V to 5.5 V.
Ground.
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: INA229
3
INA229
www.ti.com
SLYS023 – DECEMBER 2020
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)(1)
VS
MIN
MAX
6
V
–40
40
V
Supply voltage
VIN+, VIN– (2)
Differential (VIN+) – (VIN–)
Common-mode
VVBUS
VIO
MOSI, MISO, SCLK, ALERT
IIN
Input current into any pin
UNIT
–0.3
85
V
–0.3
85
V
GND – 0.3
Vs + 0.3
V
5
mA
IOUT
Digital output current
10
mA
TJ
Junction temperature
150
°C
Tstg
Storage temperature
150
°C
(1)
(2)
–65
Stresses beyond those listed under Absolute Maximum Rating may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under
Recommended Operating Condition. Exposure to absolute-maximum-rated conditions for extended periods may affect device
reliability.
VIN+ and VIN– are the voltages at the IN+ and IN– pins, respectively.
6.2 ESD Ratings
VALUE
V(ESD)
(1)
(2)
Electrostatic discharge
Human body model (HBM), per ANSI/ESDA/
JEDEC JS-001, all pins(1)
±2000
Charged device model (CDM), per JEDEC
specification JESD22-C101, all pins(2)
±1000
UNIT
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
MIN
VCM
Common-mode input range
NOM
–0.3
MAX
85
UNIT
V
VS
Operating supply range
2.7
5.5
V
TA
Ambient temperature
–40
125
°C
6.4 Thermal Information
INA229
THERMAL METRIC(1)
DGS
UNIT
10 PINS
RθJA
Junction-to-ambient thermal resistance
177.6
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
66.4
°C/W
RθJB
Junction-to-board thermal resistance
99.5
°C/W
ΨJT
Junction-to-top characterization parameter
9.7
°C/W
YJB
Junction-to-board characterization parameter
97.6
°C/W
RθJC(bot)
Junction-to-case (bottom) thermal resistance
N/A
°C/W
(1)
4
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report.
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: INA229
INA229
www.ti.com
SLYS023 – DECEMBER 2020
6.5 Electrical Characteristics
at TA = 25 °C, VS = 3.3 V, VSENSE = VIN+ – VIN– = 0 V, VCM = VIN– = 48 V (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
INPUT
VCM
Common-mode input range
VVBUS
Bus voltage input range
CMRR
Common-mode rejection
VDIFF
Shunt voltage input range
TA = –40 °C to +125 °C
–0.3 V < VCM < 85 V, TA = –40 °C to +125 °C
–0.3
85
V
0
85
V
154
TA = –40 °C to +125 °C, ADCRANGE = 0
–163.84
TA = –40 °C to +125 °C, ADCRANGE = 1
–40.96
170
VCM = 48 V, TCT > 280 µs
±0.3
dB
163.84
mV
40.96
mV
±1
µV
Vos
Shunt offset voltage
VCM = 0 V, TCT > 280 µs
±0.3
±1
µV
dVos/dT
Shunt offset voltage drift
TA = –40 °C to +125 °C
2
±10
nV/°C
Vos_bus
VBUS offset voltage
VBUS = 20 mV
±1.0
±2.5
mV
dVos/dT
VBUS offset voltage drift
TA = –40 °C to +125 °C
±4.0
±20
µV/°C
±0.05
±0.5
µV/V
0.1
2.5
nA
1
1.2
MΩ
PSRR
Power-supply rejection ratio
VS = 2.7 V to 5.5 V, TA = –40 °C to +125 °C
IB
Input bias current
Either input, IN+ or IN–, VCM = 85 V
ZVBUS
VBUS pin input impedance
Active mode
IVBUS
VBUS pin leakage current
Shutdown mode, VBUS = 85 V
0.8
10
nA
RDIFF
Input differential impedance
Active mode, VIN+ – VIN– < 164 mV
92
kΩ
DC ACCURACY
GSERR
Shunt voltage gain error
GS_DRFT
Shunt voltage gain error drift
GBERR
VBUS voltage gain error
GB_DRFT
VBUS voltage gain error drift
VCM = 24 V
±0.05
%
±20 ppm/°C
±0.01
±0.05
%
±20 ppm/°C
PTME
Power total measurement error (TME)
TA = –40 °C to +125 °C, at full scale
ETME
Energy and charge TME
at full scale power
ADC resolution
Shunt voltage, ADCRANGE = 0
1 LSB step size
±0.01
Shunt voltage, ADCRANGE = 1
Bus voltage
Temperature
±0.5
%
±1
%
20
Bits
312.5
nV
78.125
nV
195.3125
µV
7.8125
m°C
50
84
150
TCT
280
ADC conversion-time(1)
µs
540
1052
2074
4120
INL
Integral Non-Linearity
±2
m%
DNL
Differential Non-Linearity
0.2
LSB
1
MHz
CLOCK SOURCE
FOSC
Internal oscillator frequency
FOSC_TOL Internal oscillator frequency tolerance
TA = 25 °C
TA = –40 °C to +125 °C
±0.5
%
±1
%
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: INA229
5
INA229
www.ti.com
SLYS023 – DECEMBER 2020
at TA = 25 °C, VS = 3.3 V, VSENSE = VIN+ – VIN– = 0 V, VCM = VIN– = 48 V (unless otherwise noted)
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
TEMPERATURE SENSOR
Measurement range
Temperature accuracy
–40
TA = 25 °C
TA = –40 °C to +125 °C
+125
°C
±0.15
±1
°C
±0.2
±2
°C
5.5
V
POWER SUPPLY
VS
Supply voltage
IQ
Quiescent current
IQSD
Quiescent current, shutdown
TPOR
Device start-up time
2.7
VSENSE = 0 V
640
VSENSE = 0 V, TA = –40 °C to +125 °C
Shuntdown mode
2.8
Power-up (NPOR)
300
From shutdown mode
750
µA
1.1
mA
5
µA
µs
60
DIGITAL INPUT / OUTPUT
VIH
Logic input level, high
VIL
Logic input level, low
VS
V
0.4
V
VOL
Logic output level, low
IOL = 1 mA
GND
0.4
V
VOH
Logic output level, high
IOL = 1 mA
VS – 0.4
VS
V
IIO_LEAK
Digital leakage input current
0 ≤ VIN ≤ VS
–1
1
µA
(1)
6
1.2
GND
Subject to oscillator accuracy and drift
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: INA229
INA229
www.ti.com
SLYS023 – DECEMBER 2020
6.6 Timing Requirements (SPI)
MIN
NOM
MAX
UNIT
10
MHz
SERIAL INTERFACE
fSPI
SPI bit frequency
tSCLK_H
SCLK high time
40
ns
tSCLK_L
SCLK low time
40
ns
tCSF_SCLKR
CS fall to first SCLK rise time
10
ns
tSCLKF_CSR
Last SCLK fall to CS rise time
10
ns
tFRM_DLY
Sequential transfer delay (1)
50
tMOSI_RF
MOSI Rise and Fall time, 10 MHz SCLK
ns
15
ns
tMOSI_ST
MOSI data setup time
10
ns
tMOSI_HLD
MOSI data hold time
20
ns
tMISO_RF
MISO Rise and Fall time, CLOAD = 200 pF
15
ns
tMISO_ST
MISO data setup time
20
ns
tMISO_HLD
MISO data hold time
20
ns
tCS_MISO_DLY
CS falling edge to MISO data valid delay time
25
ns
tCS_MISO_HIZ
CS rising edge to MISO high impedance delay time
25
ns
(1)
Optional. The SPI interface can operate without the CS pin assistance as long as the pin is held low.
6.7 Timing Diagram
tFRM_DLY
CS
tCSF_SCLKR
tSCLK_H
tSCLK_L
tSCLK_L
tSCLKF_CSR
SCLK
tMOSI_RF
tMOSI_ST
MOSI
undefined
tMOSI_HLD
MSB
LSB
tCS_MISO_HIZ
tMISO_RF
MISO
High-Z
MSB
tCS_MISO_DLY
undefined
LSB
X
High-Z
tMISO_HLD
tMISO_ST
Figure 6-1. SPI Timing Diagram
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: INA229
7
INA229
www.ti.com
SLYS023 – DECEMBER 2020
6.8 Typical Characteristics
at TA = 25°C, VVS = 3.3 V, VCM = 48 V, VSENSE = 0, and VVBUS = 48 V (unless otherwise noted)
VCM = 48 V
VCM = 0 V
Figure 6-2. Shunt Input Offset Voltage Production
Distribution
Figure 6-3. Shunt Input Offset Voltage Production
Distribution
Figure 6-4. Shunt Input Offset Voltage vs
Temperature
Figure 6-5. Common-Mode Rejection Ratio
Production Distribution
VCM = 24 V
Figure 6-6. Shunt Input Common-Mode Rejection
Ratio vs Temperature
8
Figure 6-7. Shunt Input Gain Error Production
Distribution
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: INA229
INA229
www.ti.com
SLYS023 – DECEMBER 2020
VCM = 24 V
Figure 6-8. Shunt Input Gain Error vs Temperature
Figure 6-9. Shunt Input Gain Error vs CommonMode Voltage
VVBUS = 20 mV
VVBUS = 20 mV
Figure 6-10. Bus Input Offset Voltage Production
Distribution
Figure 6-11. Bus Input Offset Voltage vs
Temperature
Figure 6-12. Bus Input Gain Error Production
Distribution
Figure 6-13. Bus Input Gain Error vs Temperature
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: INA229
9
INA229
www.ti.com
SLYS023 – DECEMBER 2020
Figure 6-14. Input Bias Current vs Differential Input
Voltage
Figure 6-15. Input Bias Current (IB+ or IB-) vs
Common-Mode Voltage
Figure 6-16. Input Bias Current vs Temperature
Figure 6-17. Input Bias Current vs Temperature,
Shutdown
Figure 6-18. Active IQ vs Temperature
Figure 6-19. Active IQ vs Supply Voltage
10
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: INA229
INA229
www.ti.com
SLYS023 – DECEMBER 2020
Figure 6-20. Shutdown IQ vs Supply Voltage
Figure 6-21. Shutdown IQ vs Temperature
Figure 6-22. Active IQ vs Clock Frequency
Figure 6-23. Shutdown IQ vs Clock Frequency
Figure 6-24. Internal Clock Frequency vs Power
Supply
Figure 6-25. Internal Clock Frequency vs
Temperature
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: INA229
11
INA229
www.ti.com
SLYS023 – DECEMBER 2020
7 Detailed Description
7.1 Overview
The INA229 device is a digital current sense amplifier with a 4-wire SPI digital interface. It measures shunt
voltage, bus voltage and internal temperature while calculating current, power, energy and charge necessary for
accurate decision making in precisely controlled systems. Programmable registers allow flexible configuration for
measurement precision as well as continuous or triggered operation. Detailed register information is found in
Section 7.6.
7.2 Functional Block Diagram
VS
Power
Reference
IN+
IN-
Voltage
Current
Power
Energy
Charge
Temp
20 Bit
ADC
MUX
VBUS
Oscillator
SCLK
SPI
MOSI
MISO
CS
+
Out-of-range
Threshold
ALERT
±
GND
7.3 Feature Description
7.3.1 Versatile High Voltage Measurement Capability
The INA229 operates off a 2.7 V to 5.5 V supply but can measure voltage and current on rails as high as 85 V.
The current is measured by sensing the voltage drop across a external shunt resistor at the IN+ and IN– pins.
The input stage of the INA229 is designed such that the input common-mode voltage can be higher than the
device supply voltage, VS. The supported common-mode voltage range at the input pins is –0.3 V to +85 V,
which makes the device well suited for both high-side and low-side current measurements. There are no special
considerations for power-supply sequencing because the common-mode input range and device supply voltage
are independent of each other; therefore, the bus voltage can be present with the supply voltage off, and viceversa without damaging the device.
The device also measures the bus supply voltage through the VBUS pin and temperature through the integrated
temperature sensor. The differential shunt voltage is measured between the IN+ and IN– pins, while the bus
voltage is measured with respect to device ground. Monitored bus voltages can range from 0 V to 85 V, while
monitored temperatures can range from -40 ºC to +125 ºC.
Shunt voltage, bus voltage, and temperature measurements are multiplexed internally to a single ADC as shown
in Figure 7-1.
ADCp ADCn
Bus Voltage
VBUS
Shunt Voltage
Internal Temp.
IN+
ADC_IN+
To ADC Input
IN-
ADC_IN-
Vs
PTAT Temp.
Sensor
MUX digital
Control
Figure 7-1. High-Voltage Input Multiplexer
12
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: INA229
INA229
www.ti.com
SLYS023 – DECEMBER 2020
7.3.2 Internal Measurement and Calculation Engine
The current and charge are calculated after a shunt voltage measurement, while the power and energy are
calculated after a bus voltage measurement. Power and energy are calculated based on the previous current
calculation and the latest bus voltage measurement. If the value loaded into the SHUNT_CAL register is zero,
the power, energy and charge values will be reported as zero.
The current, voltage, and temperature values are immediate results when the number of averages is set to one
as shown in Figure 7-2. However, when averaging is used, each ADC measurement is an intermediate result
which is stored in the corresponding averaging registers. Following every ADC sample, the newly-calculated
values for current, voltage, and temperature are appended to their corresponding averaging registers until the
set number of averages is achieved. After all of the samples have been measured the average current and
voltage is determined, the power is calculated and the results are loaded to the corresponding output registers
where they can then be read.
The energy and charge values are accumulated for each conversion cycle. Therefore the INA229 averaging
function is not applied to these.
Calculations for power, charge and energy are performed in the background and do not add to the overall
conversion time.
ADC,
Temperature, Current,
Voltage
T
i
v
i
T
v
T
i
v
Power register
p1
p2
p3
Charge register
Q1 =
i1 x t1
Q.. =
i.. x t..
Q.. =
i.. x t..
E1 =
p1 x t2
Energy register
i
T
E.. =
p.. x t..
v
i
T
p4
v
T
i
p5
Q.. =
i.. x t..
Q.. =
i.. x t..
E.. =
p.. x t..
E.. =
p.. x t..
E.. =
p.. x t..
Figure 7-2. Power, Energy and Charge Calculation Scheme
7.3.3 Low Bias Current
The INA229 features very low input bias current which provides several benefits. The low input bias current of
the INA229 reduces the current consumed by the device in both active and shutdown state. Another benefit of
low bias current is that it allows the use of input filters to reject high-frequency noise before the signal is
converted to digital data. In traditional digital current-sense amplifiers, the addition of input filters comes at the
cost of reduced accuracy. However, as a result of the low bias current, the reduction in accuracy due to input
filters is minimized. An additional benefit of low bias current is the ability to use a larger shunt resistor to
accurately sense smaller currents. Use of a larger value for the shunt resistor allows the device to accurately
monitor currents in the sub-mA range.
The bias current in the INA229 is the smallest when the sensed current is zero. As the current starts to increase,
the differential voltage drop across the shunt resistor increases which results in an increase in the bias current
as shown in Figure 6-14.
7.3.4 High-Precision Delta-Sigma ADC
The integrated ADC is a high-performance, low-offset, low-drift, delta-sigma ADC designed to support
bidirectional current flow at the shunt voltage measurement channel. The measured inputs are selected through
the high-voltage input multiplexer to the ADC inputs as shown in Figure 7-1. The ADC architecture enables lower
drift measurement across temperature and consistent offset measurements across the common-mode voltage,
temperature, and power supply variations. A low-offset ADC is preferred in current sensing applications to
provide a near 0-V offset voltage that maximizes the useful dynamic range of the system.
The INA229 can measure the shunt voltage, bus voltage, and die temperature, or a combination of any based on
the selected MODE bits setting in the ADC_CONFIG register. This permits selecting modes to convert only the
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: INA229
13
INA229
www.ti.com
SLYS023 – DECEMBER 2020
shunt voltage or bus voltage to further allow the user to configure the monitoring function to fit the specific
application requirements. When no averaging is selected, once an ADC conversion is completed, the converted
values are independently updated in their corresponding registers where they can be read through the digital
interface at the time of conversion end. The conversion time for shunt voltage, bus voltage, and temperature
inputs are set independently from 50 µs to 4.12ms depending on the values programmed in the ADC_CONFIG
register. Enabled measurement inputs are converted sequentially so the total time to convert all inputs depends
on the conversion time for each input and the number of inputs enabled. When averaging is used, the
intermediate values are subsequently stored in an averaging accumulator, and the conversion sequence repeats
until the number of averages is reached. After all of the averaging has been completed, the final values are
updated in the corresponding registers that can then be read. These values remain in the data output registers
until they are replaced by the next fully completed conversion results. In this case, reading the data output
registers does not affect a conversion in progress.
The ADC has two conversion modes—continuous and triggered—set by the MODE bits in ADC_CONFIG
register. In continuous-conversion mode, the ADC will continuously convert the input measurements and update
the output registers as described above in an indefinite loop. In triggered-conversion mode, the ADC will convert
the input measurements as described above, after which the ADC will go into shutdown mode until another
single-shot trigger is generated by writing to the MODE bits. Writing the MODE bits will interrupt and restart
triggered or continuous conversions that are in progress. Although the device can be read at any time, and the
data from the last conversion remains available, the Conversion Ready flag (CNVRF bit in DIAG_ALRT register)
is provided to help coordinate triggered conversions. This bit is set after all conversions and averaging is
completed.
The Conversion Ready flag (CNVRF) clears under these conditions:
•
•
Writing to the ADC_CONFIG register (except for selecting shutdown mode); or
Reading the DIAG_ALRT Register
While the INA229 device is used in either one of the conversion modes, a dedicated digital engine is calculating
the current, power, charge and energy values in the background as described in Section 7.3.2. In triggered
mode, the accumulation registers (ENERGY and CHARGE) are invalid, as the device does not keep track of
elapsed time. For applications that need critical measurements in regards to accumulation of time for energy and
charge measurements, the device must be configured to use continuous conversion mode, as the accumulated
results are continuously updated and can provide true system representation of charge and energy consumption
in a system. All of the calculations are performed in the background and do not contribute to conversion time.
For applications that must synchronize with other components in the system, the INA229 conversion can be
delayed by programming the CONVDLY bits in CONFIG register in the range between 0 (no delay) and 510 ms.
The resolution in programming the conversion delay is 2 ms. The conversion delay is set to 0 by default.
Conversion delay can assist in measurement synchronization when multiple external devices are used for
voltage or current monitoring purposes. In applications where an time aligned voltage and current measurements
are needed, two devices can be used with the current measurement delayed such that the external voltage and
current measurements will occur at approximately the same time. Keep in mind that even though the internal
time base for the ADC is precise, synchronization will be lost over time due to internal and external time base
mismatch.
7.3.4.1 Low Latency Digital Filter
The device integrates a low-pass digital filter that performs both decimation and filtering on the ADC output data,
which helps with noise reduction. The digital filter is automatically adjusted for the different output data rates and
always settles within one conversion cycle. The user has the flexibility to choose different output conversion time
periods TCT from 50 µs to 4.12 ms. With this configuration the first amplitude notch appears at the Nyquist
frequency of the output signal which is determined by the selected conversion time period and defined as
fNOTCH= 1 / (2 x TCT). This means that the filter cut-off frequency will scale proportionally with the data output
rate as described. Figure 7-3 shows the filter response when the 1.052 ms conversion time period is selected.
14
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: INA229
INA229
www.ti.com
SLYS023 – DECEMBER 2020
0
−10
Gain (dB)
−20
−30
−40
−50
−60
1
10
100
1k
Frequency (Hz)
10k
100k
G001
Conversion time = 1.052 ms, single
conversion only
Figure 7-3. ADC Frequency Response
7.3.4.2 Flexible Conversion Times and Averaging
ADC conversion times for shunt voltage, bus voltage and temperature can be set independently from 50 μs to
4.12 ms. The flexibility in conversion time allows for robust operation in a variety of noisy environments. The
device also allows for programmable averaging times from a single conversion all the way to an average of 1024
conversions. The amount of averaging selected applies uniformly to all active measurement inputs. The
ADC_CONFIG register shown in Table 7-6 provides additional details on the supported conversion times and
averaging modes. The INA229 effective resolution of the ADC can be increased by increasing the conversion
time and increasing the number of averages. Figure 7-4 and Figure 7-5 shown below illustrate the effect of
conversion time and averaging on a constant input signal.
Figure 7-4. Noise vs Conversion Time (Averaging = 1)
Figure 7-5. Noise vs Conversion Time (Averaging = 128)
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: INA229
15
INA229
www.ti.com
SLYS023 – DECEMBER 2020
Settings for the conversion time and number of conversions averaged impact the effective measurement
resolution. For more detailed information on how averaging reduces noise and increases the effective number of
bits (ENOB) see Section 8.1.3.
7.3.5 Shunt Resistor Drift Compensation
The INA229 device has an internal temperature sensor which can measure die temperature from –40 °C to +125
°C. The accuracy of the temperature sensor is ±2 °C across the operational temperature range. The temperature
value is stored inside the DIETEMP register and can be read through the digital interface.
The device has the capability to utilize the temperature measurement to compensate for shunt resistor
temperature variance. This feature can be enabled by setting the TEMPCOMP bit in the CONFIG register, while
the SHUNT_TEMPCO is the register that can be programmed to enter the temperature coefficient of the used
shunt. The full scale value of the SHUNT_TEMPCO register is 16384 ppm/°C. The temperature compensation is
referenced to +25 °C . The shunt is always assumed to have a positive temperature coefficient and the
temperature compensation follows Equation 1:
RNOM x (DIETEMP - 25) x SHUNT_TEMPCO
RADJ = RNOM +
106
(1)
where
•
•
•
RNOM is the nominal shunt resistance in Ohms at 25 °C.
DIETEMP is the temperature value in the DIETEMP register in °C.
SHUNT_TEMPCO is the shunt temperature coefficient in ppm/°C.
When this feature is enabled and correctly programmed, the CURRENT register data is corrected by constantly
monitoring the die temperature and becomes a function of temperature. The effectiveness of the compensation
will depend on how well the resistor and the INA229 are thermally coupled since the die temperature of the
INA229 is used for the compensation.
Note
Warning: If temperature compensation is enabled under some conditions, the calculated current
result may be lower than the actual value. This condition typically occurs when there is a high value of
shunt voltage ( >70% of full range), there is a shunt with high temperature-coefficient value ( >2000
ppm/°C), and there is a high temperature ( >100°C). Consider the example of constant current flowing
through a high temperature coefficient shunt such that at lower temperatures the shunt voltage is in its
upper range. As the temperature increases, the device will correctly report a constant current until the
maximum shunt voltage is reached. As temperature continues to increase after the maximum shunt
voltage is reached, the device will start reporting lower currents. This is because the effective
resistance calculated will continue to increase while the detected shunt voltage will remain constant
due to the voltage exceeding the selected ADC range.
7.3.6 Integrated Precision Oscillator
The internal timebase of the device is provided by an internal oscillator that is trimmed to less than 0.5%
tolerance at room temperature. The precision oscillator is the timing source for ADC conversions, as well as the
time-count used for calculation of energy and charge. The digital filter response varies with conversion time;
therefore, the precise clock ensures filter response and notch frequency consistency across temperature. On
power up, the internal oscillator and ADC take roughly 300 µs to reach 0h, the output registers are updated after the averaging has
completed.
0h = 1
1h = 4
2h = 16
3h = 64
4h = 128
5h = 256
6h = 512
7h = 1024
7.6.1.3 Shunt Calibration (SHUNT_CAL) Register (Address = 2h) [reset = 1000h]
The SHUNT_CAL register is shown in Table 7-7.
Return to the Summary Table.
Table 7-7. SHUNT_CAL Register Field Descriptions
Bit
Field
Type
Reset
Description
15
RESERVED
R
0h
Reserved. Always reads 0.
CURRLSB
R/W
1000h
The register provides the device with a conversion constant value
that represents shunt resistance used to calculate current value in
Amperes.
This also sets the resolution for the CURRENT register.
Value calculation under Section 8.1.2.
14-0
22
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: INA229
INA229
www.ti.com
SLYS023 – DECEMBER 2020
7.6.1.4 Shunt Temperature Coefficient (SHUNT_TEMPCO) Register (Address = 3h) [reset = 0h]
The SHUNT_TEMPCO register is shown in Table 7-8.
Return to the Summary Table.
Table 7-8. SHUNT_TEMPCO Register Field Descriptions
Bit
Field
Type
Reset
Description
15-14
RESERVED
R
0h
Reserved. Always reads 0.
13-0
TEMPCO
R/W
0h
Temperature coefficient of the shunt for temperature compensation
correction. Calculated with respect to +25°C.
The full scale value of the register is 16383 ppm/°C.
The 16 bit register provides a resolution of 1ppm/°C/LSB
0h = 0 ppm/°C
3FFFh = 16383 ppm/°C
7.6.1.5 Shunt Voltage Measurement (VSHUNT) Register (Address = 4h) [reset = 0h]
The VSHUNT register is shown in Table 7-9.
Return to the Summary Table.
Table 7-9. VSHUNT Register Field Descriptions
Bit
Field
Type
Reset
Description
23-4
VSHUNT
R
0h
Differential voltage measured across the shunt output. Two's
complement value.
Conversion factor:
312.5 nV/LSB when ADCRANGE = 0
78.125 nV/LSB when ADCRANGE = 1
3-0
RESERVED
R
0h
Reserved. Always reads 0.
7.6.1.6 Bus Voltage Measurement (VBUS) Register (Address = 5h) [reset = 0h]
The VBUS register is shown in Table 7-10.
Return to the Summary Table.
Table 7-10. VBUS Register Field Descriptions
Bit
Field
Type
Reset
Description
23-4
VBUS
R
0h
Bus voltage output. Two's complement value, however always
positive.
Conversion factor: 195.3125 µV/LSB
3-0
RESERVED
R
0h
Reserved. Always reads 0.
7.6.1.7 Temperature Measurement (DIETEMP) Register (Address = 6h) [reset = 0h]
The DIETEMP register is shown in Table 7-11.
Return to the Summary Table.
Table 7-11. DIETEMP Register Field Descriptions
Bit
15-0
Field
Type
Reset
Description
DIETEMP
R
0h
Internal die temperature measurement. Two's complement value.
Conversion factor: 7.8125 m°C/LSB
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: INA229
23
INA229
www.ti.com
SLYS023 – DECEMBER 2020
7.6.1.8 Current Result (CURRENT) Register (Address = 7h) [reset = 0h]
The CURRENT register is shown in Table 7-12.
Return to the Summary Table.
Table 7-12. CURRENT Register Field Descriptions
Bit
Field
Type
Reset
Description
23-4
CURRENT
R
0h
Calculated current output in Amperes. Two's complement value.
Value description under Section 8.1.2.
3-0
RESERVED
R
0h
Reserved. Always reads 0.
7.6.1.9 Power Result (POWER) Register (Address = 8h) [reset = 0h]
The POWER register is shown in Table 7-13.
Return to the Summary Table.
Table 7-13. POWER Register Field Descriptions
Bit
23-0
Field
Type
Reset
Description
POWER
R
0h
Calculated power output.
Output value in watts.
Unsigned representation. Positive value.
Value description under Section 8.1.2.
7.6.1.10 Energy Result (ENERGY) Register (Address = 9h) [reset = 0h]
The ENERGY register is shown in Table 7-14.
Return to the Summary Table.
Table 7-14. ENERGY Register Field Descriptions
Bit
39-0
Field
Type
Reset
Description
ENERGY
R
0h
Calculated energy output.
Output value is in Joules.Unsigned representation. Positive value.
Value description under Section 8.1.2.
7.6.1.11 Charge Result (CHARGE) Register (Address = Ah) [reset = 0h]
The CHARGE register is shown in Table 7-15.
Return to the Summary Table.
Table 7-15. CHARGE Register Field Descriptions
Bit
39-0
24
Field
Type
Reset
Description
CHARGE
R
0h
Calculated charge output. Output value is in Coulombs.Two's
complement value.
Value description under Section 8.1.2.
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: INA229
INA229
www.ti.com
SLYS023 – DECEMBER 2020
7.6.1.12 Diagnostic Flags and Alert (DIAG_ALRT) Register (Address = Bh) [reset = 0001h]
The DIAG_ALRT register is shown in Table 7-16.
Return to the Summary Table.
Table 7-16. DIAG_ALRT Register Field Descriptions
Bit
Field
Type
Reset
Description
15
ALATCH
R/W
0h
When the Alert Latch Enable bit is set to Transparent mode, the Alert
pin and Flag bit reset to the idle state when the fault has been
cleared.
When the Alert Latch Enable bit is set to Latch mode, the Alert pin
and Alert Flag bit remain active following a fault until the DIAG_ALRT
Register has been read.
0h = Transparent
1h = Latched
14
CNVR
R/W
0h
Setting this bit high configures the Alert pin to be asserted when the
Conversion Ready Flag (bit 1) is asserted, indicating that a
conversion cycle has completed.
0h = Disable conversion ready flag on ALERT pin
1h = Enables conversion ready flag on ALERT pin
13
SLOWALERT
R/W
0h
ALERT function is asserted on the completed averaged value.
This gives the flexibility to delay the ALERT after the averaged value.
0h = ALERT comparison on non-averaged (ADC) value
1h = ALERT comparison on Averaged value
12
APOL
R/W
0h
Alert Polarity bit sets the Alert pin polarity.
0h = Normal (Active-low, open-drain)
1h = Inverted (active-high, open-drain )
11
ENERGYOF
R
0h
This bit indicates the health of the ENERGY register.
If the 40 bit ENERGY register has overflowed this bit is set to 1.
0h = Normal
1h = Overflow
Clears when the ENERGY register is read.
10
CHARGEOF
R
0h
This bit indicates the health of the CHARGE register.
If the 40 bit CHARGE register has overflowed this bit is set to 1.
0h = Normal
1h = Overflow
Clears when the CHARGE register is read.
9
MATHOF
R
0h
This bit is set to 1 if an arithmetic operation resulted in an overflow
error.
It indicates that current and power data may be invalid.
0h = Normal
1h = Overflow
Must be manually cleared by triggering another conversion or by
clearing the accumulators with the RSTACC bit.
8
RESERVED
R
0h
Reserved. Always read 0.
7
TMPOL
R/W
0h
This bit is set to 1 if the temperature measurement exceeds the
threshold limit in the temperature over-limit register.
0h = Normal
1h = Over Temp Event
When ALATCH =1 this bit is cleared by reading the DIAG_ALERT
register.
6
SHNTOL
R/W
0h
This bit is set to 1 if the shunt voltage measurement exceeds the
threshold limit in the shunt over-limit register.
0h = Normal
1h = Over Shunt Voltage Event
When ALATCH =1 this bit is cleared by reading the register.
5
SHNTUL
R/W
0h
This bit is set to 1 if the shunt voltage measurement falls below the
threshold limit in the shunt under-limit register.
0h = Normal
1h = Under Shunt Voltage Event
When ALATCH =1 this bit is cleared by reading the register.
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: INA229
25
INA229
www.ti.com
SLYS023 – DECEMBER 2020
Table 7-16. DIAG_ALRT Register Field Descriptions (continued)
Bit
Field
Type
Reset
Description
4
BUSOL
R/W
0h
This bit is set to 1 if the bus voltage measurement exceeds the
threshold limit in the bus over-limit register.
0h = Normal
1h = Bus Over-Limit Event
When ALATCH =1 this bit is cleared by reading the register.
3
BUSUL
R/W
0h
This bit is set to 1 if the bus voltage measurement falls below the
threshold limit in the bus under-limit register.
0h = Normal
1h = Bus Under-Limit Event
When ALATCH =1 this bit is cleared by reading the register.
2
POL
R/W
0h
This bit is set to 1 if the power measurement exceeds the threshold
limit in the power limit register.
0h = Normal
1h = Power Over-Limit Event
When ALATCH =1 this bit is cleared by reading the register.
1
CNVRF
R/W
0h
This bit is set to 1 if the conversion is completed.
0h = Normal
1h = Conversion is complete
When ALATCH =1 this bit is cleared by reading the register or
starting a new triggered conversion.
0
MEMSTAT
R/W
1h
This bit is set to 0 if a checksum error is detected in the device trim
memory space.
0h = Memory Checksum Error
1h = Normal Operation
7.6.1.13 Shunt Overvoltage Threshold (SOVL) Register (Address = Ch) [reset = 7FFFh]
If negative values are entered in this register, then a shunt voltage measurement of 0 V will trip this alarm. When
using negative values for the shunt under and overvoltage thresholds be aware that the over voltage threshold
must be set to the larger (that is, less negative) of the two values. The SOVL register is shown in Table 7-17.
Return to the Summary Table.
Table 7-17. SOVL Register Field Descriptions
Bit
Field
Type
Reset
Description
15-0
SOVL
R/W
7FFFh
Sets the threshold for comparison of the value to detect Shunt
Overvoltage (overcurrent protection). Two's complement value.
Conversion Factor: 5 µV/LSB when ADCRANGE = 0
1.25 µV/LSB when ADCRANGE = 1.
7.6.1.14 Shunt Undervoltage Threshold (SUVL) Register (Address = Dh) [reset = 8000h]
The SUVL register is shown in Table 7-18.
Return to the Summary Table.
Table 7-18. SUVL Register Field Descriptions
26
Bit
Field
Type
Reset
Description
15-0
SUVL
R/W
8000h
Sets the threshold for comparison of the value to detect Shunt
Undervoltage (undercurrent protection). Two's complement value.
Conversion Factor: 5 µV/LSB when ADCRANGE = 0
1.25 µV/LSB when ADCRANGE = 1.
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: INA229
INA229
www.ti.com
SLYS023 – DECEMBER 2020
7.6.1.15 Bus Overvoltage Threshold (BOVL) Register (Address = Eh) [reset = 7FFFh]
The BOVL register is shown in Table 7-19.
Return to the Summary Table.
Table 7-19. BOVL Register Field Descriptions
Bit
15
14-0
Field
Type
Reset
Description
Reserved
R
0h
Reserved. Always reads 0.
BOVL
R/W
7FFFh
Sets the threshold for comparison of the value to detect Bus
Overvoltage (overvoltage protection). Unsigned representation,
positive value only. Conversion factor: 3.125 mV/LSB.
7.6.1.16 Bus Undervoltage Threshold (BUVL) Register (Address = Fh) [reset = 0h]
The BUVL register is shown in Table 7-20.
Return to the Summary Table.
Table 7-20. BUVL Register Field Descriptions
Bit
15
14-0
Field
Type
Reset
Description
Reserved
R
0h
Reserved. Always reads 0.
BUVL
R/W
0h
Sets the threshold for comparison of the value to detect Bus
Undervoltage (undervoltage protection). Unsigned representation,
positive value only. Conversion factor: 3.125 mV/LSB.
7.6.1.17 Temperature Over-Limit Threshold (TEMP_LIMIT) Register (Address = 10h) [reset = 7FFFh]
The TEMP_LIMIT register is shown in Table 7-21.
Return to the Summary Table.
Table 7-21. TEMP_LIMIT Register Field Descriptions
Bit
Field
Type
Reset
Description
15-0
TOL
R/W
7FFFh
Sets the threshold for comparison of the value to detect over
temperature measurements. Two's complement value.
The value entered in this field compares directly against the value
from the DIETEMP register to determine if an over temperature
condition exists. Conversion factor: 7.8125 m°C/LSB.
7.6.1.18 Power Over-Limit Threshold (PWR_LIMIT) Register (Address = 11h) [reset = FFFFh]
The PWR_LIMIT register is shown in Table 7-22.
Return to the Summary Table.
Table 7-22. PWR_LIMIT Register Field Descriptions
Bit
Field
Type
Reset
Description
15-0
POL
R/W
FFFFh
Sets the threshold for comparison of the value to detect power overlimit measurements. Unsigned representation, positive value only.
The value entered in this field compares directly against the value
from the POWER register to determine if an over power condition
exists. Conversion factor: 256 × Power LSB.
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: INA229
27
INA229
www.ti.com
SLYS023 – DECEMBER 2020
7.6.1.19 Manufacturer ID (MANUFACTURER_ID) Register (Address = 3Eh) [reset = 5449h]
The MANUFACTURER_ID register is shown in Table 7-23.
Return to the Summary Table.
Table 7-23. MANUFACTURER_ID Register Field Descriptions
Bit
15-0
Field
Type
Reset
Description
MANFID
R
5449h
Reads back TI in ASCII.
7.6.1.20 Device ID (DEVICE_ID) Register (Address = 3Fh) [reset = 2290h]
The DEVICE_ID register is shown in Table 7-24.
Return to the Summary Table.
Table 7-24. DEVICE_ID Register Field Descriptions
28
Bit
Field
Type
Reset
Description
15-4
DIEID
R
229h
Stores the device identification bits.
3-0
REV_ID
R
1h
Device revision identification.
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: INA229
INA229
www.ti.com
SLYS023 – DECEMBER 2020
8 Application and Implementation
Note
Information in the following applications sections is not part of the TI component specification, and TI
does not warrant its accuracy or completeness. TI’s customers are responsible for determining
suitability of components for their purposes, as well as validating and testing their design
implementation to confirm system functionality.
8.1 Application Information
8.1.1 Device Measurement Range and Resolution
The INA229 device supports two input ranges for the shunt voltage measurement. The supported full scale
differential input across the IN+ and IN– pins can be either ±163.84 mV or ±40.96 mV depending on the
ADCRANGE bit in CONFIG register. The range for the bus voltage measurement is from 0 V to 85 V. The
internal die temperature sensor range extends from –256 °C to +256 °C but is limited by the package to –40 °C
to 125 °C.
Table 8-1 provides a description of full scale voltage on shunt, bus, and temperature measurements, along with
their associated step size.
Table 8-1. ADC Full Scale Values
PARAMETER
FULL SCALE VALUE
RESOLUTION
±163.84 mV (ADCRANGE = 0)
312.5 nV/LSB
±40.96 mV (ADCRANGE = 1)
78.125 nV/LSB
Bus voltage
0 V to 85 V
195.3125 µV/LSB
Temperature
–40°C to +125°C
7.8125 m°C/LSB
Shunt voltage
The device shunt voltage measurements, bus voltage, and temperature measurements can be read through the
VSHUNT, VBUS, and DIETEMP registers, respectively. The digital output in VSHUNT and VBUS registers is 20bits. The shunt voltage measurement can be positive or negative due to bidirectional currents in the system;
therefore the data value in VSHUNT can be positive or negative. The VBUS data value is always positive. The
output data can be directly converted into voltage by multiplying the digital value by its respective resolution size.
The digital output in the DIETEMP register is 16-bit and can be directly converted to °C by multiplying by the
above resolution size. This output value can also be positive or negative.
Furthermore, the device provides the flexibility to report calculated current in Amperes, power in Watts, charge in
Coulombs and energy in Joules as described in Section 8.1.2.
8.1.2 Current , Power, Energy and Charge Calculations
For the INA229 device to report current values in Ampere units, a constant conversion value must be written in
the SHUNT_CAL register that is dependent on the maximum measured current and the shunt resistance used in
the application. The SHUNT_CAL register is calculated based on Equation 2. The term CURRENT_LSB is the
LSB step size for the CURRENT register where the current in Amperes is stored. The value of CURRENT_LSB
is based on the maximum expected current as shown in Equation 3, and it directly defines the resolution of the
CURRENT register. While the smallest CURRENT_LSB value yields highest resolution, it is common to select a
higher round-number (no higher than 8x) value for the CURRENT_LSB in order to simplify the conversion of the
CURRENT.
The RSHUNT term is the resistance value of the external shunt used to develop the differential voltage across the
IN+ and IN– pins.
SHUNT_CAL = 13107.2 x 106 x CURRENT_LSB x RSHUNT
(2)
where
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: INA229
29
INA229
www.ti.com
SLYS023 – DECEMBER 2020
•
13107.2 x 10e6 is an internal fixed value used to ensure scaling is maintained properly
CURRENT_LSB =
Maximum Expected Current
219
(3)
Note that the current is calculated following a shunt voltage measurement based on the value set in the
SHUNT_CAL register. If the value loaded into the SHUNT_CAL register is zero, the current value reported
through the CURRENT register is also zero.
After programming the SHUNT_CAL register with the calculated value, the measured current in Amperes can be
read from the CURRENT register. The final value is scaled by CURRENT_LSB and calculated in Equation 4:
Current [A] = CURRENT_LSB x CURRENT
(4)
where
•
CURRENT is the value read from the CURRENT register
The power value can be read from the POWER register as a 24-bit value and converted to Watts by using
Equation 5:
Power [W] = 3.2 x CURRENT_LSB x POWER
(5)
where
•
•
POWER is the value read from the POWER register.
CURRENT_LSB is the lsb size of the current calculation as defined by Equation 3.
The energy value can be read from the ENERGY register as a 40-bit unsigned value in Joules units. The energy
value in Joules is converted by using Equation 6:
Energy [J] = 16 x 3.2 x CURRENT_LSB x ENERGY
(6)
The charge value can be read from the CHARGE register as a 40-bit, two's complement value in Coulombs. The
charge value in Coulomb is converted by using Equation 7:
Charge [C] = CURRENT_LSB x CHARGE
(7)
where
•
•
CHARGE is the value read from the CHARGE register.
CURRENT_LSB is the lsb size of the current calculation as described in Equation 3.
Upon overflow, the ENERGY and CHARGE registers will roll over and start from zero. The register values can
also be reset at any time by setting the RSTACC bit in the CONFIG register.
For a design example using these equations refer to Section 8.2.2.
8.1.3 ADC Output Data Rate and Noise Performance
The INA229 noise performance and effective resolution depend on the ADC conversion time. The device also
supports digital averaging which can further help decrease digital noise. The flexibility of the device to select
30
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: INA229
INA229
www.ti.com
SLYS023 – DECEMBER 2020
ADC conversion time and data averaging offers increased signal-to-noise ratio and achieves the highest
dynamic range with lowest offset. The profile of the noise at lower signals levels is dominated by the system
noise that is comprised mainly of 1/f noise or white noise. The INA229 effective resolution of the ADC can be
increased by increasing the conversion time and increasing the number of averages.
Table 8-2 summarizes the output data rate conversion settings supported by the device. The fastest conversion
setting is 50 µs. Typical noise-free resolution is represented as Effective Number of Bits (ENOB) based on
device measured data. The ENOB is calculated based on noise peak-to-peak values, which assures that full
noise distribution is taken into consideration.
Table 8-2. INA229 Noise Performance
ADC CONVERSION
TIME PERIOD [µs]
OUTPUT SAMPLE
AVERAGING [SAMPLES]
OUTPUT SAMPLE PERIOD
[ms]
50
0.05
84
150
NOISE-FREE ENOB
(±163.84-mV)
(ADCRANGE = 0)
NOISE-FREE ENOB
(±40.96-mV)
(ADCRANGE = 1)
12.4
10.4
0.084
12.6
10.4
0.15
13.3
11.4
0.28
13.8
11.8
0.54
14.2
12.4
1052
1.052
14.5
12.6
2074
2.074
15.3
13.3
4120
4.12
16.0
13.8
50
0.2
13.1
11.4
84
0.336
13.9
11.8
150
0.6
14.3
12.2
280
540
280
1
1.12
14.9
12.8
2.16
15.1
13.0
1052
4.208
15.8
13.8
2074
8.296
16.1
14.3
4120
16.48
16.5
14.4
50
0.8
13.9
12.3
84
1.344
14.7
12.9
150
2.4
15.1
13.0
280
4.48
15.8
13.7
540
540
4
16
8.64
16.3
14.3
1052
16.832
16.5
14.6
2074
33.184
17.1
15.3
4120
65.92
17.7
15.9
50
3.2
15.0
13.3
84
5.376
15.9
13.8
150
9.6
16.4
14.4
280
17.92
16.9
14.5
540
64
34.56
17.7
15.3
1052
67.328
17.7
15.9
2074
132.736
18.1
16.3
4120
263.68
18.7
16.5
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: INA229
31
INA229
www.ti.com
SLYS023 – DECEMBER 2020
Table 8-2. INA229 Noise Performance (continued)
ADC CONVERSION
TIME PERIOD [µs]
OUTPUT SAMPLE
AVERAGING [SAMPLES]
OUTPUT SAMPLE PERIOD
[ms]
NOISE-FREE ENOB
(±163.84-mV)
(ADCRANGE = 0)
50
6.4
84
10.752
16.3
14.3
150
19.2
16.9
14.7
35.84
17.1
15.2
69.12
18.1
15.9
1052
134.656
18.1
16.4
2074
265.472
18.7
16.9
4120
527.36
19.7
17.1
50
12.8
15.5
14.4
84
21.504
16.7
14.7
150
38.4
17.4
15.3
280
540
280
128
15.5
NOISE-FREE ENOB
(±40.96-mV)
(ADCRANGE = 1)
13.4
71.68
17.7
15.7
138.24
18.7
16.1
1052
269.312
18.7
16.7
2074
530.944
19.7
17.4
4120
1054.72
19.7
17.7
50
25.6
16.7
14.3
84
43
17.4
15.4
150
76.8
17.7
15.5
280
143.36
18.7
16.3
540
540
256
512
276.48
18.7
16.5
1052
538.624
19.7
17.4
2074
1061.888
19.7
17.7
4120
2109.44
19.7
18.7
50
51.2
17.1
15.0
84
86.016
17.7
15.9
150
153.6
18.1
16.0
280
286.72
18.7
16.9
540
1024
552.96
19.7
17.1
1052
1077.248
19.7
17.7
2074
2123.776
19.7
18.1
4120
4218.88
20
18.7
8.1.4 Input Filtering Considerations
As previously discussed, INA229 offers several options for noise filtering by allowing the user to select the
conversion times and number of averages independently in the ADC_CONFIG register. The conversion times
can be set independently for the shunt voltage and bus voltage measurements to allow added flexibility in
monitoring of the power-supply bus.
The internal ADC has good inherent noise rejection; however, the transients that occur at or very close to the
sampling rate harmonics can cause problems. Because these signals are at 1 MHz and higher, they can be
managed by incorporating filtering at the input of the device. Filtering high frequency signals enables the use of
low-value series resistors on the filter with negligible effects on measurement accuracy. For best results, filter
using the lowest possible series resistance (typically 100 Ω or less) and a ceramic capacitor. Recommended
values for this capacitor are between 0.1 µF and 1 µF. Figure 8-1 shows the device with a filter added at the
input.
32
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: INA229
INA229
www.ti.com
SLYS023 – DECEMBER 2020
Overload conditions are another consideration for the device inputs. The device inputs are specified to tolerate
±40 V differential across the IN+ and IN– pins. A large differential scenario might be a short to ground on the
load side of the shunt. This type of event can result in full power-supply voltage across the shunt (as long the
power supply or energy storage capacitors support it). Removing a short to ground can result in inductive
kickbacks that could exceed the 40-V differential or 85-V common-mode absolute maximum rating of the device.
Inductive kickback voltages are best controlled by Zener-type transient-absorbing devices (commonly called
transzorbs) combined with sufficient energy storage capacitance. See the Transient Robustness for Current
Shunt Monitors reference design which describes a high-side current shunt monitor used to measure the voltage
developed across a current-sensing resistor when current passes through it.
In applications that do not have large energy storage, electrolytic capacitors on one or both sides of the shunt,
an input overstress condition may result from an excessive dV/dt of the voltage applied to the input. A hard
physical short is the most likely cause of this event. This problem occurs because an excessive dV/dt can
activate the ESD protection in the device in systems where large currents are available. Testing demonstrates
that the addition of 10-Ω resistors in series with each input of the device sufficiently protects the inputs against
this dV/dt failure up to the 40-V maximum differential voltage rating of the device. Selecting these resistors in the
range noted has minimal effect on accuracy.
Load
Supply
VS = 2.7V± 5.5V
100 nF
VS
RFILTER
VBUS
