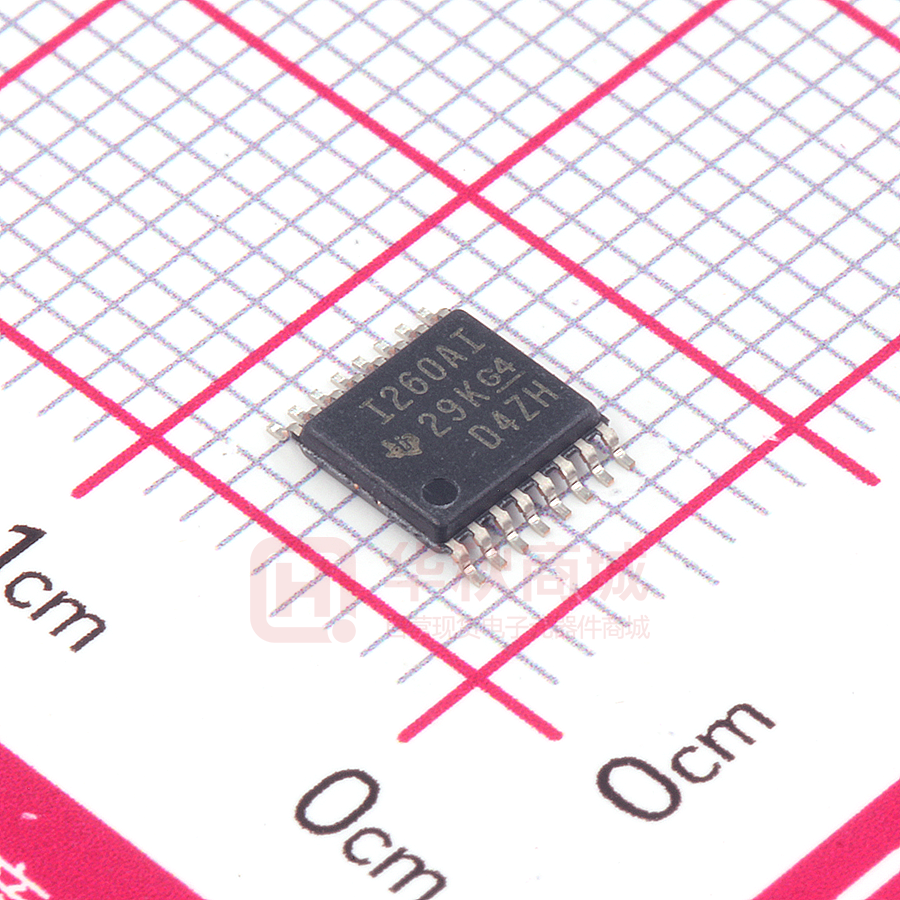

INA260AIPWR

INA260AIPWR

  • 厂商:

    BURR-BROWN(德州仪器)

  • 封装:

    TSSOP16_5.1X4.5MM

  • 描述:

    具有集成分流电阻的 36V、16 位、精密 I2C 输出电流/电压/功率监控器 TSSOP16

  • 数据手册
  • 价格&库存
INA260AIPWR 数据手册
Sample & Buy Product Folder Support & Community Tools & Software Technical Documents INA260 SBOS656C – JULY 2016 – REVISED DECEMBER 2016 INA260 Precision Digital Current and Power Monitor With Low-Drift, Precision Integrated Shunt 1 Features 3 Description • The INA260 is a digital-output, current, power, and voltage monitor with an I2C and SMBus™-compatible interface with an integrated precision shunt resistor. It enables high-accuracy current and power measurements and over-current detection at common-mode voltages that can vary from 0 V to 36 V, independent of the supply voltage. The device is a bidirectional, low- or high-side, current-shunt monitor that measures current flowing through the internal current-sensing resistor. The integration of the precision current-sensing resistor provides calibration-equivalent measurement accuracy with ultra-low temperature drift performance and ensures that an optimized Kelvin layout for the sensing resistor is always obtained. 1 • • • • • • • • Precision Integrated Shunt Resistor: – Current Sense Resistance: 2 mΩ – Tolerance Equivalent to 0.1% – 15-A Continuous From –40°C to +85°C – 10 ppm/°C Temperature Coefficient (0°C to +125°C ) Senses Bus Voltages From 0 V to 36 V High-Side or Low-Side Sensing Reports Current, Voltage, and Power High Accuracy: – 0.15% System Gain Error (Maximum) – 5-mA Offset (Maximum) Configurable Averaging Options 16 Programmable Addresses Operates From a 2.7-V to 5.5-V Power Supply 16-Pin, TSSOP Package The INA260 features up to 16 programmable addresses on the I2C-compatible interface. The digital interface allows programmable alert thresholds, analog-to-digital converter (ADC) conversion times, and averaging. To facilitate ease of use, an internal multiplier enables direct readouts of current in amperes and power in watts. 2 Applications • • • • • • • The device operates from a single 2.7-V to 5.5-V supply, drawing 310 μA (typical) of supply current. The INA260 is specified over the operating temperature range between –40°C and +125°C and is available in the 16-pin TSSOP package. Test Equipment Servers Telecom Equipment Computing Power Management Battery Chargers Power Supplies Device Information(1) PART NUMBER INA260 PACKAGE TSSOP (16) BODY SIZE (NOM) 5.00 mm x 4.40 mm (1) For all available packages, see the orderable addendum at the end of the datasheet. High-Side Sensing Application Power Supply (0 V to 36 V) IN+ C BYPASS 0.1 PF VS (Supply Voltage) VBUS SDA SCL u Power Register V ADC I Current Register I2C or SMBus Compatible Interface ALERT Voltage Register A0 Alert Register IN- A1 GND Load 1 An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. INA260 SBOS656C – JULY 2016 – REVISED DECEMBER 2016 www.ti.com Table of Contents 1 2 3 4 5 6 7 8 Features .................................................................. Applications ........................................................... Description ............................................................. Revision History..................................................... Related Products ................................................... Pin Configuration and Functions ......................... Specifications......................................................... 1 1 1 2 3 4 5 7.1 7.2 7.3 7.4 7.5 7.6 5 5 5 5 6 8 Absolute Maximum Ratings ...................................... ESD Ratings.............................................................. Recommended Operating Conditions....................... Thermal Information .................................................. Electrical Characteristics........................................... Typical Characteristics .............................................. Detailed Description ............................................ 12 8.1 8.2 8.3 8.4 Overview ................................................................. Functional Block Diagram ....................................... Feature Description................................................. Device Functional Modes........................................ 12 12 12 16 8.5 Programming .......................................................... 17 8.6 Register Maps ......................................................... 21 9 Application and Implementation ........................ 27 9.1 Application Information............................................ 27 9.2 Typical Application .................................................. 27 10 Power Supply Recommendations ..................... 29 11 Layout................................................................... 29 11.1 Layout Guidelines ................................................. 29 11.2 Layout Example .................................................... 29 12 Device and Documentation Support ................. 30 12.1 12.2 12.3 12.4 12.5 12.6 12.7 Device Support...................................................... Documentation Support ........................................ Receiving Notification of Documentation Updates Community Resources.......................................... Trademarks ........................................................... Electrostatic Discharge Caution ............................ Glossary ................................................................ 30 30 30 30 30 30 30 13 Mechanical, Packaging, and Orderable Information ........................................................... 30 4 Revision History NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from Revision B (December 2016) to Revision C • Changed parameter symbol for current sense offset from: VOS to: IOS in Electrical Characteristics table ............................. 8 Changes from Revision A (August 2016) to Revision B • 2 Page Page Changed device status to Production Data ........................................................................................................................... 1 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated Product Folder Links: INA260 INA260 www.ti.com SBOS656C – JULY 2016 – REVISED DECEMBER 2016 5 Related Products DEVICE DESCRIPTION INA250 36-V, Low- or High-Side, Bidirectional, Zero-Drift Current-Shunt Monitor with Precision Integrated Shunt Resistor INA226 High-Side or Low-Side Measurement, Bi-Directional Current and Power Monitor with I2C Compatible Interface INA230 High- or Low-Side Measurement, Bidirectional Current/Power Monitor with I2C Interface INA210, INA211, INA212, INA213, INA214, INA215 Voltage Output, Low- or High-Side Measurement, Bidirectional, Zero-Drift Series, Current-Shunt Monitors Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated Product Folder Links: INA260 3 INA260 SBOS656C – JULY 2016 – REVISED DECEMBER 2016 www.ti.com 6 Pin Configuration and Functions PW Package 16-Pin TSSOP Top View IN+ 1 16 IN± IN+ 2 15 IN± IN+ 3 14 IN± A1 4 13 NC A0 5 12 VBUS GND 6 11 GND ALERT 7 10 VS SDA 8 9 SCL Not to scale Pin Functions PIN NAME NO. I/O DESCRIPTION A0 5 Digital input Address pin. Connect to GND, SCL, SDA, or VS. Table 2 shows pin settings and corresponding addresses. A1 4 Digital input Address pin. Connect to GND, SCL, SDA, or VS. Table 2 shows pin settings and corresponding addresses. ALERT 7 Digital output GND 6, 11 Analog IN+ 1, 2, 3 Analog input Connect to supply for high side current sensing or to load ground for low side sensing. IN– 14, 15, 16 Analog input Connect to load for high side current sensing or to board ground for low side sensing. NC 13 — SCL 9 Digital input SDA 8 Digital I/O VBUS 12 Analog input VS 10 Analog 4 Multi-functional alert, open-drain output. Ground pin for both analog and digital circuits. No internal connection. Can be grounded or left floating. Serial bus clock line input. Serial bus data line, open-drain input/output. Bus voltage monitor input. Power supply input, connect a 2.7 V to 5.5 V supply to this pin. Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated Product Folder Links: INA260 INA260 www.ti.com SBOS656C – JULY 2016 – REVISED DECEMBER 2016 7 Specifications 7.1 Absolute Maximum Ratings over operating free-air temperature range (unless otherwise noted) (1) MIN Analog input current Continuous Conduction Analog inputs: IN+, IN– Common-mode (VIN+ + VIN–) / 2 –0.3 MAX UNIT ±15 A 40 V Supply, VS Voltage 6 VBUS pin –0.3 40 SDA, SCL, ALERT –0.3 6 Address Pins, A0, A1 –0.3 VS + 0.3 Open-drain digital output current, IOUT (1) 10 Junction, TJ Temperature V mA 150 Storage, Tstg –65 °C 150 Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. 7.2 ESD Ratings VALUE V(ESD) (1) (2) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001 (1) ±2000 Charged device model (CDM), per JEDEC specification JESD22-C101 (2) ±1000 UNIT V JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. 7.3 Recommended Operating Conditions over operating free-air temperature range (unless otherwise noted) MIN NOM MAX UNIT VCM Common-mode input voltage 0 36 VS Operating supply voltage 2.7 5.5 V V TA Operating free-air temperature –40 125 °C 7.4 Thermal Information INA260 THERMAL METRIC (1) PW (TSSOP) UNIT 16 PINS RθJA Junction-to-ambient thermal resistance 115.6 °C/W RθJC(top) Junction-to-case (top) thermal resistance 50.1 °C/W RθJB Junction-to-board thermal resistance 46.8 °C/W ψJT Junction-to-top characterization parameter 3.3 °C/W ψJB Junction-to-board characterization parameter 46.5 °C/W RθJC(bot) Junction-to-case (bottom) thermal resistance N/A °C/W (1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953. Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated Product Folder Links: INA260 5 INA260 SBOS656C – JULY 2016 – REVISED DECEMBER 2016 www.ti.com 7.5 Electrical Characteristics at TA = 25°C, VS = 3.3 V, VIN+ = 12 V, VSENSE = (VIN+ – VIN–) = 0 mV and VVBUS = 12 V (unless otherwise noted) PARAMETER TEST CONDITIONS MIN TYP MAX UNIT INPUT VCM Common-mode input range 0 36 Bus voltage input range (1) 0 36 V 150 µA/V CMRR Common-mode rejection IOS Current sense offset, RTI (2) 0 V ≤ VIN+ ≤ 36 V Current sense offset drift, RTI (2) –40°C ≤ TA ≤ 125°C PSRR Current sense offset voltage, RTI (2) vs power supply 2.7 V ≤ VS ≤ 5.5 V VOS Bus offset voltage, RTI (2) Bus offset voltage, RTI (2) vs temperature PSRR Bus offset voltage, RTI (2) vs power supply IB Input bias current (IIN+, IIN– pins) –40°C ≤ TA ≤ 125°C (IN+ pin) + (IN– pin), ISENSE = 0A VBUS input impedance Input leakage (3) (IN+ pin) + (IN– pin), power-down mode 0 V ±1.25 ±5 mA 1 50 µA/°C 1.6 3 mA/V ±1.25 ±7.5 0.6 40 mV µV/°C 1.5 mV/V 17 µA 830 kΩ 0.1 0.5 0.02% 0.15% 0.2% 0.5% µA DC ACCURACY ISENSE = –15 A to 15 A, TA = 25°C System current sense gain error ISENSE = –10 A to 10 A, –40°C ≤ TA ≤ 125°C –40°C ≤ TA ≤ 125°C 10 35 0.02% 0.1% VBUS = 0 V to 36 V, –40°C ≤ TA ≤ 125°C 0.1% 0.4% –40°C ≤ TA ≤ 125°C 15 40 VBUS = 0 V to 36 V, TA = 25°C Bus voltage gain error ppm/°C ppm/°C INTEGRATED ADC ADC native resolution 1-LSB step size 16 Bits Current 1.25 mA Bus voltage 1.25 mV 10 mW Power tCT ADC conversion time CT bit = 000 140 154 CT bit = 001 204 224 CT bit = 010 332 365 CT bit = 011 588 646 CT bit = 100 1.1 1.21 CT bit = 101 2.116 2.328 CT bit = 110 4.156 4.572 CT bit = 111 8.244 9.068 Differential nonlinearity µs ms ±0.1 LSB 4.5 mΩ INTEGRATED SHUNT (1) (2) (3) 6 Package resistance IN+ to IN– Maximum continuous current –40°C ≤ TA ≤ 85°C Short time overload change ISENSE = 30 A for 5 seconds ±15 A ±0.05% Although the input range is 36 V, the full-scale range of the ADC scaling is 40.96 V; see the Basic ADC Functions section. Do not apply more than 36 V. RTI = Referred-to-input. Input leakage is positive (current flowing into the pin) for the conditions shown at the top of this table. Negative leakage currents can occur under different input conditions. Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated Product Folder Links: INA260 INA260 www.ti.com SBOS656C – JULY 2016 – REVISED DECEMBER 2016 Electrical Characteristics (continued) at TA = 25°C, VS = 3.3 V, VIN+ = 12 V, VSENSE = (VIN+ – VIN–) = 0 mV and VVBUS = 12 V (unless otherwise noted) PARAMETER TEST CONDITIONS Change due to thermal shock –65°C ≤ TA ≤ 150°C, 500 cycles Resistance change to solder heat 260°C solder, 10 s High temperature exposure change 1000 hours, TA = 150°C Cold temperature storage change 24 hours, TA = –65°C MIN TYP MAX UNIT ±0.1% ±0.1% ±0.15% ±0.025% SMBus SMBus timeout (4) 28 35 ms DIGITAL INPUT/OUTPUT Input capacitance Leakage input current 3 0 V ≤ VSCL ≤ VS, 0 V ≤ VSDA ≤ VS, 0 V ≤ VALERT ≤ VS, 0 V ≤ VA0 ≤ VS, 0 V ≤ VA1 ≤ VS 0.1 pF 1 µA VIH High-level input voltage 0.7 × VS 6 V VIL Low-level input voltage 0 0.3 × VS V VOL Low-level output voltage, SDA, ALERT 0 0.4 V IOL = 3 mA SDA, SCL Hysteresis 500 mV POWER SUPPLY Operating supply range IQ VPOR (4) 5.5 V Quiescent current 2.7 310 420 µA Quiescent current, power-down (shutdown) mode 0.5 2 µA Power-on reset threshold 2 V SMBus timeout in the INA260 resets the interface any time SCL is low for more than 28 ms. Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated Product Folder Links: INA260 7 INA260 SBOS656C – JULY 2016 – REVISED DECEMBER 2016 www.ti.com 7.6 Typical Characteristics At TA = 25°C, VS = 3.3 V, VIN+ = 12 V, VSENSE = (VIN+ – VIN–) = 0 mV and VVBUS = 12 V, unless otherwise noted. 1.25 1 0.75 Offset (mA) Population 0.5 0.25 0 -0.25 -0.5 -0.75 5 3.75 2.5 1.25 0 -1.25 -2.5 -3.75 -5 -1 -1.25 -50 -25 0 25 50 75 Temperature (°C) Offset Current (mA) 100 125 150 Figure 2. Current Sense Offset vs Temperature Figure 1. Current Sense Offset Production Distribution 150 50 Population CMRR ( PA/V) 100 0 -50 0.15 0.12 0.09 0.06 150 0.03 125 0.00 100 -0.03 25 50 75 Temperature (°C) -0.06 0 -0.09 -25 -0.15 -150 -50 -0.12 -100 Figure 4. Current Sense Gain Error Production Distribution 0.240 0.150 0.180 0.125 0.120 0.100 Gain Error (%) Gain Error (%) Gain Error (%) Figure 3. Current Sense Common-Mode Rejection Ratio vs Temperature 0.060 0.000 -0.060 0.050 0.025 -0.120 0.000 -0.180 -0.025 -0.240 -50 -0.050 -25 0 25 50 75 Temperature (°C) 100 125 150 Figure 5. Current Sense Gain Error vs Temperature 8 0.075 0 4 8 12 16 20 24 28 Common-Mode Input Voltage (V) 32 36 Figure 6. Current Sense Gain Error vs Common-Mode Voltage Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated Product Folder Links: INA260 INA260 www.ti.com SBOS656C – JULY 2016 – REVISED DECEMBER 2016 Typical Characteristics (continued) At TA = 25°C, VS = 3.3 V, VIN+ = 12 V, VSENSE = (VIN+ – VIN–) = 0 mV and VVBUS = 12 V, unless otherwise noted. 2.4 1.8 Population Offset (mV) 1.2 0.6 0 -1.2 -50 7.5 6.25 5 3.75 2.5 1.25 0 -1.25 -2.5 -3.75 -5 -7.5 -6.25 -0.6 -25 0 25 50 75 Temperature (°C) 100 125 150 Offset Voltage (mV) Figure 7. Bus Offset Voltage Production Distribution Figure 8. Bus Offset Voltage vs Temperature 0.240 0.180 Population Gain Error (%) 0.120 0.060 0.000 -0.060 -0.120 100 80 60 40 20 0 -20 -40 -60 -100 -80 -0.180 -0.240 -50 -25 0 25 50 75 Temperature (°C) 100 125 150 Input Gain Error (m%) Figure 10. Bus Gain Error vs Temperature Figure 9. Bus Gain Error Production Distribution 9 0.240 0.180 6 0.060 Offset (mW) Gain Error (%) 0.120 0.000 -0.060 3 0 -3 -0.120 -6 -0.180 -0.240 -50 -25 0 25 50 75 Temperature (°C) 100 125 Figure 11. Power Gain Error vs Temperature 150 -9 -50 -25 0 25 50 75 Temperature (°C) 100 125 150 Figure 12. Power Offset Error vs Temperature Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated Product Folder Links: INA260 9 INA260 SBOS656C – JULY 2016 – REVISED DECEMBER 2016 www.ti.com Typical Characteristics (continued) At TA = 25°C, VS = 3.3 V, VIN+ = 12 V, VSENSE = (VIN+ – VIN–) = 0 mV and VVBUS = 12 V, unless otherwise noted. 0 20 −10 Bias Current (PA) 16 Gain (dB) −20 −30 −40 1 10 100 1k Frequency (Hz) 10k 0 100k 0 19 1600 Bias Current - Shutdown (nA) Bias Current (PA) 2000 18 17 16 15 -25 0 25 50 75 Temperature (°C) 100 125 12 16 20 24 28 Common-Mode Voltage (V) 32 36 1200 800 400 0 -400 -50 150 -25 0 25 50 75 Temperature (°C) 100 125 150 Figure 16. Input Bias Current vs Temperature, Shutdown (Both Inputs, IN+ and IN-) 420 4.8 Quiescent Current - Shutdown (PA) Figure 15. Input Bias Current vs Temperature (Both Inputs, IN+ and IN-) 390 360 330 300 270 240 -50 -25 0 25 50 75 Temperature (°C) 100 125 150 4 3.2 2.4 1.6 0.8 0 -50 Figure 17. Active IQ vs Temperature 10 8 Figure 14. Input Bias Current vs Common-Mode Voltage (Both Inputs, IN+ and IN-) 20 14 -50 4 G001 Figure 13. Frequency Response Quiescent Current (PA) 8 4 −50 −60 12 Submit Documentation Feedback -25 0 25 50 75 Temperature (°C) 100 125 150 Figure 18. Shutdown IQ vs Temperature Copyright © 2016, Texas Instruments Incorporated Product Folder Links: INA260 INA260 www.ti.com SBOS656C – JULY 2016 – REVISED DECEMBER 2016 Typical Characteristics (continued) At TA = 25°C, VS = 3.3 V, VIN+ = 12 V, VSENSE = (VIN+ – VIN–) = 0 mV and VVBUS = 12 V, unless otherwise noted. 160 Quiescent Current - Shutdown (PA) Quiescent Current (PA) 420 390 Continuous I2C Write Commands 360 Idle SDA, Clocking SCL 330 300 Continuous I2C Write Commands 120 Idle SDA, Clocking SCL 80 40 0 1 10 100 Frequency (kHz) 1000 2000 Figure 19. Active IQ vs I2C Clock Frequency 1 10 100 Frequency (kHz) 1000 2000 Figure 20. Shutdown IQ vs I2C Clock Frequency Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated Product Folder Links: INA260 11 INA260 SBOS656C – JULY 2016 – REVISED DECEMBER 2016 www.ti.com 8 Detailed Description 8.1 Overview The INA260 is an integrated shunt digital current sense amplifier with an I2C- and SMBus-compatible interface. It provides digital current, voltage, and power readings necessary for accurate decision-making in preciselycontrolled systems. Programmable registers allow flexible configuration for conversion times as well as continuous-versus-triggered operation. Detailed register information appears at the end of this data sheet, beginning with Table 4. See the Functional Block Diagram section for a block diagram of the INA260 device. 8.2 Functional Block Diagram IN+ VS VBUS SDA SCL u Power Register V ADC I Current Register Voltage Register I2C or SMBus Compatible Interface ALERT A0 Alert Register IN- A1 GND 8.3 Feature Description 8.3.1 Integrated Shunt Resistor The INA260 features a precise, low-drift, current-sensing resistor to allow for precision measurements over the entire specified temperature range of –40°C to +125°C. The integrated current-sensing resistor ensures measurement stability over temperature as well as simplifying printed-circuit board (PCB) layout difficulties common in high precision current sensing measurements. The onboard current-sensing resistor is designed as a 4-wire (or Kelvin) connected resistor that enables accurate measurements through a force-sense connection. The Kelvin connections to the shunt are done internally eliminating many of the parasitic impedances commonly found in typical very-low sensing-resistor level measurements. Although the shunt resistor can be accessed through the IN+ and IN– pins, this resistor is not intended to be used as a stand-alone component. The INA260 is internally calibrated to ensure that the currentsensing resistor and current-sensing amplifier are both precisely matched to one another. The INA260 has approximately 4.5 mΩ of total resistance between the IN+ and IN- pins. 2 mΩ of this total package resistance is a precisely-controlled resistance from the Kelvin-connected current-sensing resistor used by the internal analog to digital converter (ADC). The power dissipation requirements of the system and package are based on the total 4.5-mΩ package resistance. The heat dissipated across the package when current flows through the device ultimately determines the maximum current that can be safely handled by the package. The current consumption of the silicon is relatively low, leaving the total package resistance carrying the high load current as the primary contributor to the total power dissipation of the package. The maximum safe-operating current level is set to ensure that the heat dissipated across the package is limited so that no damage to the resistor or the package itself occurs or that the internal junction temperature of the silicon does not exceed a 150°C limit. 12 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated Product Folder Links: INA260 INA260 www.ti.com SBOS656C – JULY 2016 – REVISED DECEMBER 2016 Feature Description (continued) External factors (such as ambient temperature, external air flow, and PCB layout) can contribute to how effectively the heat developed as a result of the current flowing through the total package resistance can be removed from within the device. Under the conditions of no air flow, a maximum ambient temperature of 85°C, and 1-oz. copper input power planes, the INA260 can accommodate continuous current levels up to 15 A. As shown in Figure 21, the current handling capability is derated at temperatures above the 85°C level with safe operation up to 10 A at a 125°C ambient temperature. With air flow and larger 2-oz. copper input power planes, the INA260 can safely accommodate continuous current levels up to 15 A over the entire –40°C to +125°C temperature range. 20 Maximum Continuous Current (A) 17.5 15 12.5 10 7.5 5 ±50 ±25 0 25 50 75 100 125 Temperature (ƒC) 150 C026 Figure 21. Maximum Current vs Temperature 8.3.2 Over-Current Capability The INA260 features a physical shunt resistance that is able to withstand current levels higher than the continuous handling limit of 15 A without sustaining damage to the current-sensing resistor or the current-sensing amplifier if the excursions are very brief. Figure 22 shows the maximum overload current versus time curve for the INA260. CAUTION Operation at or above this curve, Figure 22, can result in device damage or permanent erroneous current readings. 100 Current (A) 80 60 40 20 0 0.1 1 10 Time (s) 100 C027 TA = 25°C Figure 22. Maximum Overload Current vs Time Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated Product Folder Links: INA260 13 INA260 SBOS656C – JULY 2016 – REVISED DECEMBER 2016 www.ti.com Feature Description (continued) 8.3.3 Basic ADC Functions The INA260 device performs two measurements on the power-supply bus of interest. The current which is internally calculated by measuring the voltage developed across a known internal shunt resistor, and the power supply bus voltage from the external VBUS pin to ground. The device is typically powered by a separate supply that can range from 2.7 V to 5.5 V. The bus that is being monitored can range in voltage from 0 V to 36 V. Based on the fixed 1.25-mV LSB for the Bus Voltage Register that a full-scale register results in a 40.96 V value. NOTE Do not apply more than 36 V of actual voltage to the input pins. There are no special considerations for power-supply sequencing because the common-mode input range and power-supply voltage are independent of each other; therefore, the bus voltage can be present with the supply voltage off, and vice-versa. The device has two operating modes, continuous and triggered, that determine how the ADC operates following these conversions. When the device is in the normal operating mode (that is, MODE bits of the Configuration Register (00h) are set to '111'), it continuously converts an internal shunt voltage reading followed by a bus voltage reading. After the measurement of the internal shunt voltage reading, the current value is calculated. This current value is then used to calculate the power result. These values are subsequently stored in an accumulator, and the measurement/calculation sequence repeats until the number of averages set in the Configuration Register (00h) is reached. Following every sequence, the present set of values, measured and calculated, are appended to previously collected values. After all of the averaging has been completed, the final values for bus voltage, current, and power are updated in the corresponding registers that can then be read. These values remain in the data output registers until they are replaced by the next fully completed conversion results. Reading the data output registers does not affect a conversion in progress. The mode control in the Configuration Register (00h) also permits selecting modes to convert only the current or the bus voltage in order to further allow the user to configure the monitoring function to fit the specific application requirements. In triggered mode, writing any of the triggered convert modes into the Configuration Register (00h) (that is, MODE bits of the Configuration Register (00h) are set to ‘001’, ‘010’, or ‘011’) triggers a single-shot conversion. This action produces a single set of measurements; thus, to trigger another single-shot conversion, the Configuration Register (00h) must be written to a second time, even if the mode does not change. In addition to the two operating modes (continuous and triggered), the device also has a power-down mode that reduces the quiescent current and turns off current into the device inputs, reducing the impact of supply drain when the device is not being used. Full recovery from power-down mode requires 40 µs. The registers of the device can be written to and read from while the device is in power-down mode. The device remains in powerdown mode until one of the active modes settings are written into the Configuration Register (00h) . Although the device can be read at any time, and the data from the last conversion remain available, the Conversion Ready flag bit (Mask/Enable Register, CVRF bit) is provided to help coordinate one-shot or triggered conversions. The Conversion Ready flag (CVRF) bit is set after all conversions, averaging, and multiplication operations are complete. The Conversion Ready flag (CVRF) bit clears under these conditions: • Writing to the Configuration Register (00h), except when configuring the MODE bits for power-down mode; or • Reading the Mask/Enable Register (06h) 8.3.3.1 Power Calculation The power is calculated following current and bus voltage measurements; see Figure 23. Calculations for both the current and power are performed in the background and do not add to the overall conversion time. These current and power values are considered intermediate results (unless the averaging is set to 1) and are stored in an internal accumulation register, not the corresponding output registers. Following every measured sample, the newly-calculated values for current and power are appended to this accumulation register until all of the samples have been measured and averaged based on the number of averages set in the Configuration Register (00h). 14 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated Product Folder Links: INA260 INA260 www.ti.com SBOS656C – JULY 2016 – REVISED DECEMBER 2016 Feature Description (continued) Bus and Power Limit Detect Following Every Bus Voltage Conversion Current Limit Detect Following Every Shunt Voltage Conversion I V I P V I P V I P V I V P I V P I P V I P V I P V I V P I P V I P V I P V I P V I P V I V P P Power Average Bus Voltage Average Current Average NOTE: I = current, V = voltage, and P = power. Figure 23. Power Calculation Scheme In addition to the current and power accumulating after every sample, the bus voltage measurement is also collected. After all of the samples have been measured and the corresponding current and power calculations have been made, the accumulated average for each of these parameters is then loaded to the corresponding output registers, where they can be read. 8.3.3.2 ALERT Pin The INA260 has a single Alert Limit Register (07h), that allows the ALERT pin to be programmed to respond to a single user-defined event or to a Conversion Ready notification if desired. The Mask/Enable Register allows the user to select from one of the five available functions to monitor as well as setting the Conversion Ready bit to control the response of the ALERT pin. Based on the function being monitored, enter a value into the Alert Limit Register to set the corresponding threshold value that asserts the ALERT pin. The ALERT pin allows for one of several available alert functions to be monitored to determine if a user-defined threshold has been exceeded. The five alert functions that can be monitored are: • Shunt Over Current-Limit (OCL) • Shunt Under Current-Limit (UCL) • Bus Voltage Over-Limit (BOL) • Bus Voltage Under-Limit (BUL) • Power Over-Limit (POL) The ALERT pin is an open-drain output. This pin is asserted when the alert function selected in the Mask/Enable Register exceeds the value programmed into the Alert Limit Register. Only one of these alert functions can be enabled and monitored at a time. If multiple alert functions are enabled, the selected function in the highest significant bit position takes priority and responds to the Alert Limit Register value. For example, if the shunt over and under current limit functions are both selected, the Alert pin asserts when the shunt current exceeds the value in the Alert Limit Register. The Conversion Ready state of the device can also be monitored at the ALERT pin to inform the user when the device has completed the previous conversion and is ready to begin a new conversion. Conversion Ready can be monitored at the ALERT pin along with one of the alert functions. If an alert function and the Conversion Ready are both enabled to be monitored at the ALERT pin, after the ALERT pin is asserted, the Mask/Enable Register must be read following the alert to determine the source of the alert. By reading the Conversion Ready Flag (CVRF, bit 3), and the Alert Function Flag (AFF, bit 4) in the Mask/Enable Register, the source of the alert can be determined. If the Conversion Ready feature is not desired and the CNVR bit is not set, the ALERT pin only responds to an exceeded alert limit based on the alert function enabled. If the alert function is not used, the ALERT pin can be left floating without impacting the operation of the device. Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated Product Folder Links: INA260 15 INA260 SBOS656C – JULY 2016 – REVISED DECEMBER 2016 www.ti.com Feature Description (continued) Refer to Figure 23 to see the relative timing of when the value in the Alert Limit Register is compared to the corresponding converted value. For example, if the alert function that is enabled is Shunt Overcurrent-Limit (OCL), following every shunt current conversion the value in the Alert Limit Register is compared to the measured shunt voltage to determine if the measurements has exceeded the programmed limit. The AFF, bit 4 of the Mask/Enable Register, asserts high any time the measured voltage exceeds the value programmed into the Alert Limit Register. In addition to the AFF being asserted, the Alert pin is asserted based on the Alert Polarity Bit (APOL, bit 1 of the Mask/Enable Register). If the Alert Latch is enabled, the AFF and Alert pin remain asserted until either the Configuration Register (00h) is written to or the Mask/Enable Register is read. The Bus Voltage alert functions compare the measured bus voltage to the Alert Limit Register following every bus voltage conversion and assert the AFF bit and ALERT pin if the limit threshold is exceeded. The Power Over-Limit alert function is also compared to the calculated power value following every bus voltage measurement conversion and asserts the AFF bit and ALERT pin if the limit threshold is exceeded. 8.4 Device Functional Modes 8.4.1 Averaging and Conversion Time Considerations The INA260 device offers programmable conversion times (tCT) for both the shunt current and bus voltage measurements. The conversion times for these measurements can be selected from as fast as 140 μs to as long as 8.244 ms. The conversion time settings, along with the programmable averaging mode, allow the device to be configured to optimize the available timing requirements in a given application. For example, if a system requires that data be read every 5 ms, the device could be configured with the conversion times set to 588 μs for both shunt and bus voltage measurements and the averaging mode set to 4. This configuration results in the data updating approximately every 4.7 ms. The device could also be configured with a different conversion time setting for the shunt and bus voltage measurements. This type of approach is common in applications where the bus voltage tends to be relatively stable. This situation allows reduced time focused on the bus voltage measurement relative to the shunt voltage measurement. The shunt voltage conversion time could be set to 4.156 ms with the bus voltage conversion time set to 588 μs and with the averaging mode set to 1. This configuration also results in data updating approximately every 4.7 ms. There are trade-offs associated with the settings for conversion time and the averaging mode used. The averaging feature can significantly improve the measurement accuracy by effectively filtering the signal. This approach allows the device to reduce any noise in the measurement that may be caused by noise coupling into the signal. A greater number of averages enables the device to be more effective in reducing the noise component of the measurement. The conversion times selected can also have an impact on the measurement accuracy. Figure 24 shows multiple conversion times to illustrate the impact of noise on the measurement. To achieve the highest accuracy measurement possible, use a combination of the longest allowable conversion times and highest number of averages, based on the timing requirements of the system. 5mA/div Conversion Time: 140μs Conversion Time: 1.1ms Conversion Time: 8.244ms 0 200 400 600 800 1000 Number of Conversions Figure 24. Noise vs Conversion Time 16 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated Product Folder Links: INA260 INA260 www.ti.com SBOS656C – JULY 2016 – REVISED DECEMBER 2016 8.5 Programming 8.5.1 Calculating Returned Values The LSB size for the Bus Voltage Register (02h), Current Register, and Power Register are fixed and are shown in Table 1. To calculate any of the values for current, voltage or power take the decimal value returned by the device and multiply that value by the LSB size. For example, the LSB for the bus voltage is 1.25 mV/bit, if the device returns a decimal value of 9584 (2570h), the value of the bus voltage is calculated to be 1.25 mV × 9584 = 11.98 V. Because the INA260 supports current measurements in either direction, the returned value for negative currents (currents flowing from IN- to IN+) is represented in two's complement format. Returned values for power will always be positive even when the current is negative. Table 1. Calculating Current and Power (1) (1) REGISTER NAME ADDRESS CONTENTS DEC LSB Current Register 01h 2710h 10000 1.25 mA VALUE 12.5 A Bus Voltage Register 02h 2570h 9584 1.25 mV 11.98 V Power Register 03h 3A7Fh 14975 10 mW 149.75 W Conditions: Load = 12.5 A, VCM = 11.98 V. 8.5.2 Default Settings The default power-up states of the registers are shown in the Register Maps section of this data sheet. These registers are volatile, and if programmed to a value other than the default values shown in Table 4, they must be re-programmed at every device power-up. 8.5.3 Communications Bus Overview The INA260 offers compatibility with both I2C and SMBus interfaces. The I2C and SMBus protocols are essentially compatible with one another. The I2C interface is used throughout this data sheet as the primary example, with SMBus protocol specified only when a difference between the two systems is discussed. Two lines, SCL and SDA, connect the device to the bus. Both SCL and SDA connect to the bus and require external pullup resistors. The device that initiates a data transfer is called a master, and the devices controlled by the master are slaves. The bus must be controlled by a master device that generates the serial clock (SCL), controls the bus access, and generates START and STOP conditions. The SCL pin on the INA260 is an input only and will not stretch the clock by holding the clock line low. To address a specific device, the master initiates a start condition by pulling the data signal line (SDA) from a high to a low logic level while SCL is high. All slaves on the bus shift in the slave address byte on the rising edge of SCL, with the last bit indicating whether a read or write operation is intended. During the ninth clock pulse, the slave being addressed responds to the master by generating an Acknowledge and pulling SDA low. Data transfer is then initiated and eight bits of data are sent, followed by an Acknowledge bit. During data transfer, SDA must remain stable while SCL is high. Any change in SDA while SCL is high is interpreted as a start or stop condition. After all data have been transferred, the master generates a stop condition, indicated by pulling SDA from low to high while SCL is high. The device includes a 28-ms timeout on its interface to prevent locking up the bus. 8.5.3.1 Serial Bus Address To communicate with the device, the master must first address the INA260 through a slave address byte. The slave address byte consists of seven address bits and a direction bit that indicates whether the action is to be a read or write operation. The device has two address pins, A0 and A1 that can be connected to GND, VS, SCL or SDA to set the desired address. Table 2 lists the pin connections for each of the 16 possible addresses. The device samples the state of pins A0 and A1 on every bus communication in order to establish the pin states before any activity on the interface occurs. Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated Product Folder Links: INA260 17 INA260 SBOS656C – JULY 2016 – REVISED DECEMBER 2016 www.ti.com Table 2. Address Pins and Slave Addresses A1 A0 SLAVE ADDRESS GND GND 1000000 GND VS 1000001 GND SDA 1000010 GND SCL 1000011 VS GND 1000100 VS VS 1000101 VS SDA 1000110 VS SCL 1000111 SDA GND 1001000 SDA VS 1001001 SDA SDA 1001010 SDA SCL 1001011 SCL GND 1001100 SCL VS 1001101 SCL SDA 1001110 SCL SCL 1001111 8.5.3.2 Serial Interface The INA260 operates only as a slave device on both the I2C bus and the SMBus. Connections to the bus are made through the open-drain SDA and SCL lines. The SDA and SCL pins feature integrated spike suppression filters and Schmitt triggers to minimize the effects of input spikes and bus noise. Although the device integrates spike suppression into the digital I/O lines, proper layout techniques help minimize the amount of coupling into the communication lines. This noise introduction could occur from capacitively coupling signal edges between the two communication lines themselves or from other switching noise sources present in the system. Routing traces in parallel with ground in between layers on a PCB typically reduces the effects of coupling between the communication lines. Shielded communication lines reduces the possibility of unintended noise coupling into the digital I/O lines that could be incorrectly interpreted as start or stop commands. The INA260 supports the transmission protocol for fast mode (1 kHz to 400 kHz) and high-speed mode (1 kHz to 2.94 MHz). All data bytes are transmitted most significant byte first. 8.5.3.3 Writing to and Reading From the INA260 Accessing a specific register on the INA260 is accomplished by writing the appropriate value to the register pointer. See Table 4 for a complete list of registers and corresponding addresses. The value for the register pointer (as shown in Figure 28) is the first byte transferred after the slave address byte with the R/W bit low. Every write operation to the device requires a value for the register pointer. Writing to a register begins with the first byte transmitted by the master. This byte is the slave address, with the R/W bit low. The device then acknowledges receipt of a valid address. The next byte transmitted by the master is the address of the register which data is written to. This register address value updates the register pointer to the desired register. The next two bytes are written to the register addressed by the register pointer. The device acknowledges receipt of each data byte. The master may terminate data transfer by generating a start or stop condition. When reading from the device, the last value stored in the register pointer by a write operation determines which register is read during a read operation. To change the register pointer for a read operation, a new value must be written to the register pointer. This write is accomplished by issuing a slave address byte with the R/W bit low, followed by the register pointer byte. No additional data are required. The master then generates a start condition and sends the slave address byte with the R/W bit high to initiate the read command. The next byte is transmitted by the slave and is the most significant byte of the register indicated by the register pointer. This byte is followed by an Acknowledge from the master; then the slave transmits the least significant byte. The master acknowledges receipt of the data byte. The master may terminate data transfer by generating a NotAcknowledge after receiving any data byte, or generating a start or stop condition. If repeated reads from the same register are desired, it is not necessary to continually send the register pointer bytes; the device retains the register pointer value until it is changed by the next write operation. 18 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated Product Folder Links: INA260 INA260 www.ti.com SBOS656C – JULY 2016 – REVISED DECEMBER 2016 Figure 25 shows the write operation timing diagram. Figure 26 shows the read operation timing diagram. NOTE Register bytes are sent most-significant byte first, followed by the least significant byte. 1 9 9 1 9 1 9 1 SCL SDA 1 0 0 A3 A2 A1 A0 R/W Start By Master P7 P6 P5 P3 P2 P1 D15 D14 P0 D13 D12 D11 D10 D9 D8 (1) D7 D6 D5 D4 D3 D2 D1 D0 ACK By Slave ACK By Slave Frame 1 Two-Wire Slave Address Byte (1) P4 ACK By Slave Frame 2 Register Pointer Byte ACK By Slave Frame 3 Data MSByte Stop By Master Frame 4 Data LSByte The value of the Slave Address byte is determined by the settings of the A0 and A1 pins. See Table 2. Figure 25. Timing Diagram for Write Word Format 1 9 1 1 9 9 SCL SDA 1 0 0 A3 A2 A1 R/W A0 D15 D14 Start By Master D13 D12 D11 D10 D9 (1) Frame 1 Two-Wire Slave Address Byte Frame 2 Data MSByte D7 D8 From Slave ACK By Slave D6 D5 D4 D3 D2 D1 From Slave ACK By Master (2) D0 No ACK By Master (3) Stop (2) Frame 3 Data LSByte (1) The value of the Slave Address byte is determined by the settings of the A0 and A1 pins. See Table 2. (2) Read data is from the last register pointer location. If a new register is desired, the register pointer must be updated. See Figure 28. (3) ACK by Master can also be sent. Figure 26. Timing Diagram for Read Word Format Figure 27 provides a timing diagram for the SMBus Alert response operation. Figure 28 illustrates a typical register pointer configuration. ALERT 1 9 1 9 SCL SDA 0 0 0 1 1 0 0 R/W Start By Master 1 0 A3 A2 A1 A0 0 From Slave Frame 1 SMBus ALERT Response Address Byte (1) 0 ACK By Slave NACK By Master Frame 2 Slave Address Byte Stop By Master (1) The value of the Slave Address Byte is determined by the settings of the A0 and A1 pins. See Table 2. Figure 27. Timing Diagram for SMBus ALERT Response 1 9 1 9 ¼ SCL SDA 1 0 0 A3 A2 A1 A0 R/W Start By Master (1) Frame 1 Two-Wire Slave Address Byte (1) P7 P6 P5 P4 P3 P2 P1 ACK By Slave P0 Stop ACK By Slave Frame 2 Register Pointer Byte The value of the Slave Address Byte is determined by the settings of the A0 and A1 pins. See Table 2. Figure 28. Typical Register Pointer Set Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated Product Folder Links: INA260 19 INA260 SBOS656C – JULY 2016 – REVISED DECEMBER 2016 www.ti.com 8.5.3.3.1 High-Speed I2C Mode To initiate high-speed mode operation, the master generates a start condition followed by a valid serial byte containing high-speed (HS) master code 00001XXX. This transmission is made in fast (400 kHz) or standard (100 kHz) (F/S) mode at no more than 400 kHz. When the INA260 receives the high-speed code it does not send an acknowledgement but does change the internal logic deglich filters to support high-speed operation. The master then generates a repeated start condition (a repeated start condition has the same timing as the start condition). After this repeated start condition, the protocol is the same as F/S mode, except that transmission speeds up to 2.94 MHz are allowed. Instead of using a stop condition, use repeated start conditions to secure the bus in HS-mode. A stop condition ends the HS-mode and switches all the internal filters of the device to support the F/S mode. See Figure 29 and Table 3 for relevant fast mode and high-speed mode timing requirements. t(LOW) tF tR t(HDSTA) SCL t(HDSTA) t(HIGH) t(HDDAT) t(SUSTO) t(SUSTA) t(SUDAT) SDA t(BUF) P S S P Figure 29. Bus Timing Diagram Table 3. Bus Timing Diagram Definitions (1) FAST MODE PARAMETER HIGH-SPEED MODE MIN MAX MIN MAX 0.4 0.001 2.94 UNIT SCL operating frequency f(SCL) 0.001 Bus free time between stop and start conditions t(BUF) 600 160 ns t(HDSTA) 100 100 ns Repeated start condition setup time t(SUSTA) 100 100 ns STOP condition setup time t(SUSTO) 100 100 Data hold time t(HDDAT) 10 Data setup time Hold time after repeated START condition. After this period, the first clock is generated. 900 10 MHz ns 100 ns t(SUDAT) 100 20 ns SCL clock low period t(LOW) 1300 200 ns SCL clock high period t(HIGH) 600 60 ns Data fall time tF 300 80 ns Clock fall time tF 300 40 ns Clock rise time tR 300 40 ns Clock/data rise time for SCLK ≤ 100kHz tR 1000 — ns (1) 20 Values based on a statistical analysis of a one-time sample of devices. Minimum and maximum values are specified by design, but not production tested. Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated Product Folder Links: INA260 INA260 www.ti.com SBOS656C – JULY 2016 – REVISED DECEMBER 2016 8.5.3.4 SMBus Alert Response When SMBus Alerts are latched, the INA260 is designed to respond to the SMBus Alert Response address. The SMBus Alert Response provides a quick fault identification for simple slave devices. When an Alert occurs, the master can broadcast the Alert Response slave address (0001 100) with the Read/Write bit set high. Following this Alert Response, any slave device that generates an alert identifies itself by acknowledging the Alert Response and sending its address on the bus. The Alert Response can activate several different slave devices simultaneously, similar to the I2C General Call. If more than one slave attempts to respond, bus arbitration rules apply and the device with the lowest address will win and be serviced first. The losing devices do not generate an Acknowledge and continues to hold the Alert line low until the interrupt is cleared. The winning device responds with its address and releases the SMBus alert line. Even though the INA260 releases the SMBus line the internal error flags are not cleared until done so by the host. 8.6 Register Maps The INA260 uses a bank of registers for holding configuration settings, measurement results, minimum/maximum limits, and status information. Table 4 summarizes the device registers; see the Functional Block Diagram section for an illustration of the registers. Table 4. Register Set Summary POINTER ADDRESS TYPE (1) FUNCTION BINARY HEX 00h Configuration Register All-register reset, shunt voltage and bus voltage ADC conversion times and averaging, operating mode. 01100001 00100111 6127 R/W 01h Current Register Contains the value of the current flowing through the shunt resistor. 00000000 00000000 0000 R 02h Bus Voltage Register Bus voltage measurement data. 00000000 00000000 0000 R 03h Power Register Contains the value of the calculated power being delivered to the load. 00000000 00000000 0000 R 06h Mask/Enable Register Alert configuration and Conversion Ready flag. 00000000 00000000 0000 R/W 07h Alert Limit Register Contains the limit value to compare to the selected Alert function. 00000000 00000000 0000 R/W FEh Manufacturer ID Register Contains unique manufacturer identification number. 0101010001001001 5449 R FFh Die ID Register Contains unique die identification number. 0010001001110000 2270 R HEX (1) POWER-ON RESET REGISTER NAME Type: R = Read-Only, R/W = Read/Write. 8.6.1 Configuration Register (00h) (Read/Write) The Configuration Register settings control the operating modes for the device. This register controls the conversion time settings for both shunt current and bus voltage measurements as well as the averaging mode used. The operating mode that controls what signals are selected to be measured is also programmed in the Configuration Register. The Configuration Register can be read from at any time without impacting or affecting the device settings or a conversion in progress. Writing to the Configuration Register halts any conversion in progress until the write sequence is completed resulting in a new conversion starting based on the new contents of the Configuration Register (00h). This halt prevents any uncertainty in the conditions used for the next completed conversion. Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated Product Folder Links: INA260 21 INA260 SBOS656C – JULY 2016 – REVISED DECEMBER 2016 www.ti.com Figure 30. Configuration Register (00h) (Read/Write) 15 RST 0 R/W 7 VBUSCT1 0 14 — 1 13 — 1 R 5 ISHCT2 1 6 VBUSCT0 0 12 — 0 11 AVG2 0 10 AVG1 0 4 ISHCT1 0 3 ISHCT0 0 2 MODE3 1 9 AVG0 0 8 VBUSCT2 1 1 MODE2 1 0 MODE1 1 R/W R/W LEGEND: R/W = Read/Write; R = Read only; -n = value after reset Table 5. Configuration Register Field Descriptions Bit Field Type Reset Description 15 RST R/W 0 Reset Bit Setting this bit to '1' generates a system reset that is the same as power-on reset. Resets all registers to default values; this bit self-clears. (1) 22 14–12 — R 110 11–9 AVG R/W 000 Averaging Mode Determines the number of samples that are collected and averaged. The following shows all the AVG bit settings and related number of averages for each bit setting. AVG2 = 0, AVG1 = 0, AVG0 = 0, number of averages = 1 (1) AVG2 = 0, AVG1 = 0, AVG0 = 1, number of averages = 4 AVG2 = 0, AVG1 = 1, AVG0 = 0, number of averages = 16 AVG2 = 0, AVG1 = 1, AVG0 = 1, number of averages = 64 AVG2 = 1, AVG1 = 0, AVG0 = 0, number of averages = 128 AVG2 = 1, AVG1 = 0, AVG0 = 1, number of averages = 256 AVG2 = 1, AVG1 = 1, AVG0 = 0, number of averages = 512 AVG2 = 1, AVG1 = 1, AVG0 = 1, number of averages = 1024 8–6 VBUSCT R/W 100 Bus Voltage Conversion Time Sets the conversion time for the bus voltage measurement. The following shows the VBUSCT bit options and related conversion times for each bit setting. VBUSCT2 = 0, VBUSCT1 = 0, VBUSCT0 = 0, conversion time = 140 µs VBUSCT2 = 0, VBUSCT1 = 0, VBUSCT0 = 1, conversion time = 204 µs VBUSCT2 = 0, VBUSCT1 = 1, VBUSCT0 = 0, conversion time = 332 µs VBUSCT2 = 0, VBUSCT1 = 1, VBUSCT0 = 1, conversion time = 588 µs VBUSCT2 = 1, VBUSCT1 = 0, VBUSCT0 = 0, conversion time = 1.1 ms (1) VBUSCT2 = 1, VBUSCT1 = 0, VBUSCT0 = 1, conversion time = 2.116 ms VBUSCT2 = 1, VBUSCT1 = 1, VBUSCT0 = 0, conversion time = 4.156 ms VBUSCT2 = 1, VBUSCT1 = 1, VBUSCT0 = 1, conversion time = 8.244 ms 5–3 ISHCT R/W 100 Shunt Current Conversion Time The following shows the ISHCT bit options and related conversion times for each bit setting. ISHCT2 = 0, ISHCT1 = 0, ISHCT0 = 0, conversion time = 140 µs ISHCT2 = 0, ISHCT1 = 0, ISHCT0 = 1, conversion time = 204 µs ISHCT2 = 0, ISHCT1 = 1, ISHCT0 = 0, conversion time = 332 µs ISHCT2 = 0, ISHCT1 = 1, ISHCT0 = 1, conversion time = 588 µs ISHCT2 = 1, ISHCT1 = 0, ISHCT0 = 0, conversion time = 1.1 ms (1) ISHCT2 = 1, ISHCT1 = 0, ISHCT0 = 1, conversion time = 2.116 ms ISHCT2 = 1, ISHCT1 = 1, ISHCT0 = 0, conversion time = 4.156 ms ISHCT2 = 1, ISHCT1 = 1, ISHCT0 = 1, conversion time = 8.244 ms 2–0 MODE R/W 111 Operating Mode Selects continuous, triggered, or power-down mode of operation. These bits default to continuous shunt and bus measurement mode. The following shows mode settings. MODE2 = 0, MODE1 = 0, MODE0 = 0, mode = Power-Down (or Shutdown) MODE2 = 0, MODE1 = 0, MODE0 = 1, mode = Shunt Current, Triggered MODE2 = 0, MODE1 = 1, MODE0 = 0, mode = Bus Voltage, Triggered MODE2 = 0, MODE1 = 1, MODE0 = 1, mode = Shunt Current and Bus Voltage, Triggered MODE2 = 1, MODE1 = 0, MODE0 = 0, mode = Power-Down (or Shutdown) MODE2 = 1, MODE1 = 0, MODE0 = 1, mode = Shunt Current, Continuous MODE2 = 1, MODE1 = 1, MODE0 = 0, mode = Bus Voltage, Continuous MODE2 = 1, MODE1 = 1, MODE0 = 1, mode = Shunt Current and Bus Voltage, Continuous (1) These values are default. Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated Product Folder Links: INA260 INA260 www.ti.com SBOS656C – JULY 2016 – REVISED DECEMBER 2016 8.6.2 Current Register (01h) (Read-Only) The value in the current register is represented in two's complement format to support negative current values. The LSB size for the current register is set to 1.25 mA. If averaging is enabled, this register will report the averaged value. Figure 31. Current Register (01h) (Read-Only) 15 CSIGN 0 14 CD14 0 13 CD13 0 12 CD12 0 7 CD7 0 6 CD6 0 5 CD5 0 4 CD4 0 11 CD11 0 10 CD10 0 9 CD9 0 8 CD8 0 3 CD3 0 2 CD2 0 1 CD1 0 0 CD0 0 R R LEGEND: R/W = Read/Write; R = Read only; -n = value after reset 8.6.3 Bus Voltage Register (02h) (Read-Only) The Bus Voltage Register stores the most recent bus voltage reading, VBUS. If averaging is enabled, this register reports the averaged value. Full-scale range = 40.96 V (decimal = 32767); LSB = 1.25 mV. Figure 32. Bus Voltage Register (02h) (Read-Only) 15 (1) — 0 14 BD14 0 13 BD13 0 12 BD12 0 7 BD7 0 6 BD6 0 5 BD5 0 4 BD4 0 11 BD11 0 10 BD10 0 9 BD9 0 8 BD8 0 3 BD3 0 2 BD2 0 1 BD1 0 0 BD0 0 R R LEGEND: R/W = Read/Write; R = Read only; -n = value after reset (1) Bit 15 is always zero because bus voltage can only be positive. 8.6.4 Power Register (03h) (Read-Only) If averaging is enabled, this register reports the averaged value. The Power Register LSB is fixed to 10 mW. The Power Register records power in Watts by multiplying the decimal values of the Current Register with the decimal value of the Bus Voltage Register. Values stored in the power register will always be positive regardless of the direction of current flow. The maximum value that can be returned by the power register is A3D7h or 419.43 W. Figure 33. Power Register (03h) (Read-Only) 15 PD15 0 14 PD14 0 13 PD13 0 12 PD12 0 7 PD7 0 6 PD6 0 5 PD5 0 4 PD4 0 11 PD11 0 10 PD10 0 9 PD9 0 8 PD8 0 3 PD3 0 2 PD2 0 1 PD1 0 0 PD0 0 R R LEGEND: R/W = Read/Write; R = Read only; -n = value after reset Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated Product Folder Links: INA260 23 INA260 SBOS656C – JULY 2016 – REVISED DECEMBER 2016 www.ti.com 8.6.5 Mask/Enable Register (06h) (Read/Write) The Mask/Enable Register selects the function that is enabled to control the ALERT pin as well as how that pin functions. If multiple functions are enabled, the highest significant bit position Alert Function (D15-D11) takes priority and responds to the Alert Limit Register. Figure 34. Mask/Enable Register (06h) (Read/Write) 15 OCL 0 14 UCL 0 13 BOL 0 7 — 0 6 — 0 5 — 0 12 BUL 0 11 POL 0 10 CNVR 0 9 — 0 4 AFF 0 3 CVRF 0 2 OVF 0 1 APOL 0 R/W 8 — 0 R R 0 LEN 0 R/W LEGEND: R/W = Read/Write; R = Read only; -n = value after reset Table 6. Mask/Enable Register Field Descriptions Bit Field Type Reset Description 15 OCL R/W 0 Over Current Limit Setting this bit high configures the ALERT pin to be asserted if the current measurement following a conversion exceeds the value programmed in the Alert Limit Register. 14 UCL R/W 0 Under Current Limit Setting this bit high configures the ALERT pin to be asserted if the current measurement following a conversion drops below the value programmed in the Alert Limit Register. 13 BOL R/W 0 Bus Voltage Over-Voltage Setting this bit high configures the ALERT pin to be asserted if the bus voltage measurement following a conversion exceeds the value programmed in the Alert Limit Register. 12 BUL R/W 0 Bus Voltage Under-Voltage Setting this bit high configures the ALERT pin to be asserted if the bus voltage measurement following a conversion drops below the value programmed in the Alert Limit Register. 11 POL R/W 0 Power Over-Limit Setting this bit high configures the ALERT pin to be asserted if the Power calculation made following a bus voltage measurement exceeds the value programmed in the Alert Limit Register. 10 CNVR R/W 0 Conversion Ready Setting this bit high configures the ALERT pin to be asserted when the Conversion Ready Flag, Bit 3, is asserted indicating that the device is ready for the next conversion. 9–5 — R 00000 Not used. AFF R 0 Alert Function Flag While only one Alert Function can be monitored at the ALERT pin at a time, the Conversion Ready can also be enabled to assert the ALERT pin. Reading the Alert Function Flag following an alert allows the user to determine if the Alert Function was the source of the Alert. 4 When the Alert Latch Enable bit is set to Latch mode, the Alert Function Flag bit clears only when the Mask/Enable Register is read. When the Alert Latch Enable bit is set to Transparent mode, the Alert Function Flag bit is cleared following the next conversion that does not result in an Alert condition. 3 CVRF R 0 Conversion Ready Although the device can be read at any time, and the data from the last conversion is available, the Conversion Ready Flag bit is provided to help coordinate one-shot or triggered conversions. The Conversion Ready Flag bit is set after all conversions, averaging, and multiplications are complete. Conversion Ready Flag bit clears under the following conditions: 1.) Writing to the Configuration Register (except for Power-Down selection) 2.) Reading the Mask/Enable Register 24 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated Product Folder Links: INA260 INA260 www.ti.com SBOS656C – JULY 2016 – REVISED DECEMBER 2016 Table 6. Mask/Enable Register Field Descriptions (continued) Bit Field Type Reset Description 2 OVF R 0 Math Overflow Flag This bit is set to '1' if an arithmetic operation resulted in an overflow error. It indicates that power data may have exceeded the maximum reportable value of 419.43 W. 1 APOL R/W 0 Alert Polarity bit 1 = Inverted (active-high open collector) 0 = Normal (active-low open collector) (default) 0 LEN R/W 0 Alert Latch Enable; configures the latching feature of the ALERT pin and Alert Flag bits. 1 = Latch enabled 0 = Transparent (default) When the Alert Latch Enable bit is set to Transparent mode, the ALERT pin and Flag bit resets to the idle states when the fault has been cleared. When the Alert Latch Enable bit is set to Latch mode, the ALERT pin and Alert Flag bit remains active following a fault until the Mask/Enable Register has been read. 8.6.6 Alert Limit Register (07h) (Read/Write) The Alert Limit Register contains the value used to compare to the register selected in the Mask/Enable Register to determine if a limit has been exceeded. The format for this register will match the format of the register that is selected for comparison. Figure 35. Alert Limit Register (07h) (Read/Write) 15 AUL15 0 14 AUL14 0 13 AUL13 0 12 AUL12 0 7 AUL7 0 6 AUL6 0 5 AUL5 0 4 AUL4 0 11 AUL11 0 10 AUL10 0 9 AUL9 0 8 AUL8 0 3 AUL3 0 2 AUL2 0 1 AUL1 0 0 AUL0 0 R/W R/W LEGEND: R/W = Read/Write; R = Read only; -n = value after reset 8.6.7 Manufacturer ID Register (FEh) (Read-Only) The Manufacturer ID Register stores a unique identification number for the manufacturer. Figure 36. Manufacturer ID Register (FEh) (Read-Only) 15 ID15 0 14 ID14 1 13 ID13 0 12 ID12 1 7 ID7 0 6 ID6 1 5 ID5 0 4 ID4 0 11 ID11 0 10 ID10 1 9 ID9 0 8 ID8 0 3 ID3 1 2 ID2 0 1 ID1 0 0 ID0 1 R R LEGEND: R/W = Read/Write; R = Read only; -n = value after reset Table 7. Manufacturer ID Register Field Descriptions Bit 15–0 Field Type Reset ID R 5449h /TI (ascii) Manufacturer ID Stores the manufacturer identification bits Description Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated Product Folder Links: INA260 25 INA260 SBOS656C – JULY 2016 – REVISED DECEMBER 2016 www.ti.com 8.6.8 Die ID Register (FFh) (Read-Only) The Die ID Register stores a unique identification number and the revision ID for the die. Figure 37. Die ID Register (FFh) (Read-Only) 15 DID11 0 14 DID10 0 13 DID9 1 12 DID8 0 7 DID3 0 6 DID2 1 5 DID1 1 4 DID0 1 11 DID7 0 10 DID6 0 9 DID5 1 8 DID4 0 3 RID3 0 2 RID2 0 1 RID1 0 0 RID0 0 R R LEGEND: R/W = Read/Write; R = Read only; -n = value after reset Table 8. Die ID Register Field Descriptions Bit 26 Field Type Reset Description 15–4 DID R 227h Device ID Stores the device identification bits. 3–0 RID R 0h Die Revision ID Stores the device revision identification bits. Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated Product Folder Links: INA260 INA260 www.ti.com SBOS656C – JULY 2016 – REVISED DECEMBER 2016 9 Application and Implementation NOTE Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Validate and test the design implementation to confirm system functionality. 9.1 Application Information The INA260 is a current shunt and power monitor with an I2C-compatible interface. The device monitors both a shunt current and bus supply voltage. The internally calibrated integrated current sense resistor combined with an internal multiplier, enable direct readouts of current in amperes and power in watts. 9.2 Typical Application Power Supply (0 V to 36 V) IN+ C BYPASS 0.1 PF VS (Supply Voltage) VBUS SDA SCL u Power Register V ADC Current Register I2C or SMBus Compatible Interface ALERT I Voltage Register A0 A1 Alert Register IN- GND Load Figure 38. Typical Circuit Configuration, INA260 9.2.1 Design Requirements The INA260 measures current and the bus supply voltage and calculates power. It comes with alert capability where the ALERT pin can be programmed to respond to a user-defined event or to a conversion ready notification. This design illustrates the ability of the ALERT pin to respond to a set threshold. Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated Product Folder Links: INA260 27 INA260 SBOS656C – JULY 2016 – REVISED DECEMBER 2016 www.ti.com Typical Application (continued) 9.2.2 Detailed Design Procedure The ALERT pin can be configured to respond to one of the five alert functions described in the ALERT Pin section. The ALERT pin must be pulled up to the VS pin voltage through an external pullup resistor. The configuration register is set based on the required conversion time and averaging. The Mask/Enable Register is set to identify the required alert function and the Alert Limit Register is set to the limit value used for comparison. 9.2.3 Application Curves LIMIT (5.5 V) LIMIT (5.5 V) Figure 40 shows the ALERT pin response to a bus over voltage limit of 5.5 V for a conversion time (tCT) of 1.1 ms and averaging set to 1. Figure 39 shows the response for the same limit but with the conversion time reduced to 140 µs. For the scope shots shown in these figures, persistence was enabled on the ALERT channel. This shows how the ALERT response time can vary depending on when the fault condition occurs relative to the internal ADC clock of the INA260. For fault conditions that are just exceeding the limit threshold the response time for the ALERT pin can vary from 1 to 2 conversion cycles. As mentioned, the variation is due to the timing on when the fault event occurs relative to the start time of the internal ADC conversion cycle. For fault events that greatly exceed the limit threshold it is possible for the alert to respond in less than one conversion cycle. This is because it takes fewer samples for the average to exceed the limit threshold value. 2.2 ms (2 conversions) BUS Voltage/LIMIT (1V /div) BUS Voltage/LIMIT (1V /div) ALERT (1V /div) ALERT (1V /div) 280 Ps (2 conversions) 140 Ps (1 conversion) 1.1 ms (1 conversion) TIME (500 Ps /div) TIME (50 Ps /div) See Table 9 See Table 11 See Table 10 See Table 11 tCT = 140 µs See Table 12 tCT = 1.1 ms See Table 12 Figure 40. Alert Response Figure 39. Alert Response Table 9. Configuration Register (00h) Settings for Figure 39 (Value = 6006h) BIT # 15 14 13 12 11 BIT NAME RST — — — AVG2 POR VALUE 0 1 1 0 0 10 9 8 7 6 5 4 3 2 1 0 AVG1 AVG0 VBUSC T2 VBUSC T1 VBUSC T0 ISHCT2 ISHCT1 ISHCT0 MODE3 MODE2 MODE1 0 0 0 0 0 0 0 0 1 1 0 Table 10. Configuration Register (00h) Settings for Figure 40 (Value = 6126h) BIT # 15 14 13 12 11 BIT NAME RST — — — AVG2 POR VALUE 0 1 1 0 0 10 9 8 7 6 5 4 3 2 1 0 AVG1 AVG0 VBUSC T2 VBUSC T1 VBUSC T0 ISHCT2 ISHCT1 ISHCT0 MODE3 MODE2 MODE1 0 0 1 0 0 1 0 0 1 1 0 Table 11. Mask/Enable Register (06h) Settings for Figure 39 and Figure 40 (Value = 2008h) BIT # 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 BIT NAME OCL UCL BOL BUL POL CNVR — — — — — AFF CVRF OVF APOL LEN POR VALUE 0 0 1 0 0 0 0 0 0 0 0 0 1 0 0 0 28 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated Product Folder Links: INA260 INA260 www.ti.com SBOS656C – JULY 2016 – REVISED DECEMBER 2016 Table 12. Alert Limit Register (07h) Settings for Figure 39 and Figure 40 (Value = 1130h) BIT # 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 BIT NAME AUL15 AUL14 AUL13 AUL12 AUL11 AUL10 AUL9 AUL8 AUL7 AUL6 AUL5 AUL4 AUL3 AUL2 AUL1 AUL0 POR VALUE 0 0 0 1 0 0 0 1 0 0 1 1 0 0 0 0 10 Power Supply Recommendations The input circuitry of the device can accurately measure signals on common-mode voltages beyond its power supply voltage, VVS. For example, the voltage applied to the power supply terminal (VS) can be 5 V, whereas the load power-supply voltage being monitored (the common-mode voltage) can be as high as 36 V. Note also that the device can withstand the full 0-V to 36-V range at the input terminals, regardless of whether the device has power applied or not. Place the required power-supply bypass capacitors as close as possible to the supply and ground terminals of the device. A typical value for this supply bypass capacitor is 0.1 μF. Applications with noisy or high-impedance power supplies may require additional decoupling capacitors to reject power-supply noise. 11 Layout 11.1 Layout Guidelines Connections to the internal shunt resistor should be connected directly into and out of the shunt resistor pins to encourage uniform current flow through the device. The trace width should be sized correctly to handle the desired current flow. Place the power-supply bypass capacitor as close as possible to the supply and ground pins. Use of multiple vias to connect the device ground to the bypass capacitor grounds is recommended if there is not direct connection on the top layer. 11.2 Layout Example Large copper fill areas between device pins and PCB connectors provide low resistance current paths and effective heat sinking INA260 IN+ 1 16 IN- IN+ 2 15 IN- IN+ 3 14 IN- A1 4 13 NC A0 5 12 VBUS GND 6 11 GND ALERT 7 10 VS SDA 8 9 SCL Straight current paths in the vicinity of the INA260 ensure uniform current density for more consistent current measurements CBUS CBYPASS ALERT, SDA, and SCL require external pullup resistors to the digital supply voltage. The layout of these resistors have been omitted and are not as critical to device performance. Place all bypass capacitors close to the device and connect directly (no vias) to intended pin using a thick copper trace Use multiple vias to connect ground planes to lower inductance between layers Copyright © 2016, Texas Instruments Incorporated NOTE: Connect the VBUS pin to the power supply rail. Figure 41. INA260 Layout Example Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated Product Folder Links: INA260 29 INA260 SBOS656C – JULY 2016 – REVISED DECEMBER 2016 www.ti.com 12 Device and Documentation Support 12.1 Device Support 12.1.1 Third-Party Products Disclaimer TI'S PUBLICATION OF INFORMATION REGARDING THIRD-PARTY PRODUCTS OR SERVICES DOES NOT CONSTITUTE AN ENDORSEMENT REGARDING THE SUITABILITY OF SUCH PRODUCTS OR SERVICES OR A WARRANTY, REPRESENTATION OR ENDORSEMENT OF SUCH PRODUCTS OR SERVICES, EITHER ALONE OR IN COMBINATION WITH ANY TI PRODUCT OR SERVICE. 12.2 Documentation Support 12.2.1 Related Documentation For related documentation see the following: INA260EVM Evaluation Board and Software Tutorial User Guide (SBOU113) 12.3 Receiving Notification of Documentation Updates To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper right corner, click on Alert me to register and receive a weekly digest of any product information that has changed. For change details, review the revision history included in any revised document. 12.4 Community Resources The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of Use. TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help solve problems with fellow engineers. Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and contact information for technical support. 12.5 Trademarks E2E is a trademark of Texas Instruments. SMBus is a trademark of Intel Corporation. All other trademarks are the property of their respective owners. 12.6 Electrostatic Discharge Caution This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications. 12.7 Glossary SLYZ022 — TI Glossary. This glossary lists and explains terms, acronyms, and definitions. 13 Mechanical, Packaging, and Orderable Information The following pages include mechanical, packaging, and orderable information. This information is the most current data available for the designated devices. This data is subject to change without notice and revision of this document. For browser-based versions of this data sheet, refer to the left-hand navigation. 30 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated Product Folder Links: INA260 PACKAGE OPTION ADDENDUM www.ti.com 10-Dec-2020 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) (4/5) (6) INA260AIPW ACTIVE TSSOP PW 16 90 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 125 I260AI INA260AIPWR ACTIVE TSSOP PW 16 2000 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 125 I260AI (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
