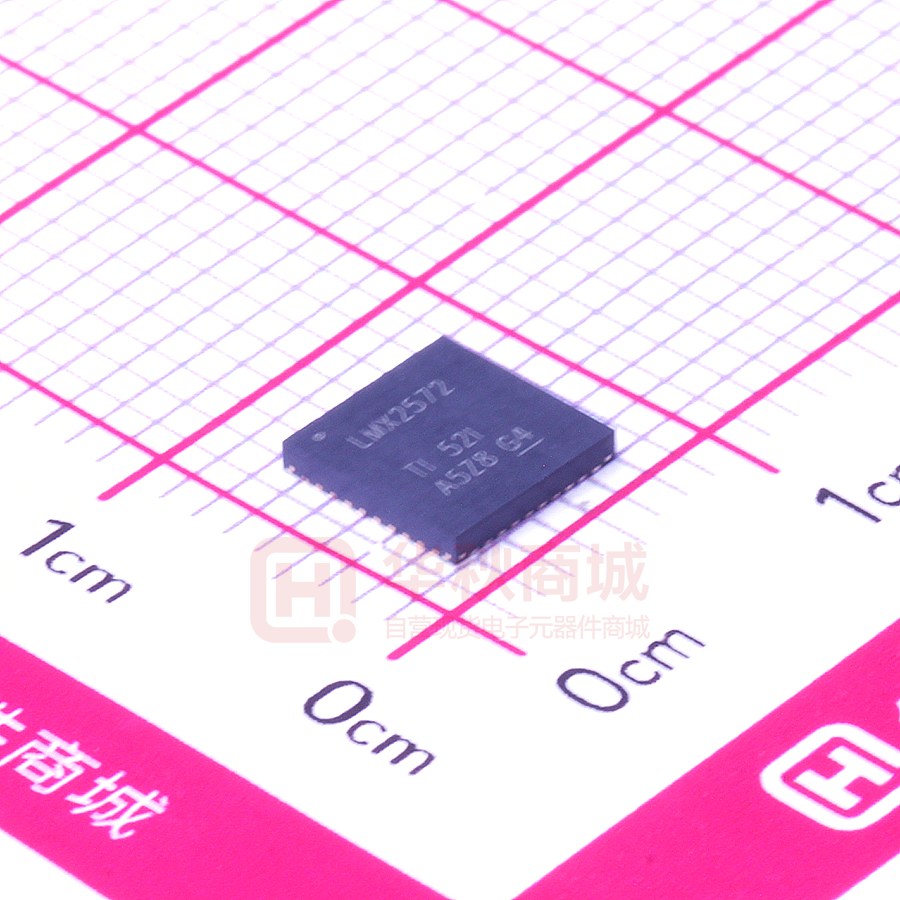

LMX2572RHAR

Product Folder Order Now Support & Community Tools & Software Technical Documents LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 LMX2572 6.4-GHz Low power wideband RF synthesizer with phase synchronization and JESD204B support 1 Features 3 Description • • • The LMX2572 is a low-power, high-performance wideband synthesizer that can generate any frequency from 12.5 MHz to 6.4 GHz without using an internal doubler. The PLL delivers excellent performance while consuming just 75 mA from a single 3.3-V supply. 1 • • • • • • • • • • • Output frequency: 12.5 MHz to 6.4 GHz Low power consumption: 75 mA at 3.3-V supply –106-dBc/Hz Phase noise at 100-kHz offset with 6.4-GHz carrier PLL figure of merit: –232 dBc/Hz PLL normalized 1/f noise: –123.5 dBc/Hz 32-Bit Fractional-N divider Remove integer boundary spurs with programmable input multiplier Synchronization of output phase across multiple devices Support for JESD204B SYSREF with programmable delay Support for ramp and chirp functions Support for FSK direct digital modulation Two programmable output power level differential outputs Fast VCO calibration speed: < 20 µs Single 3-V to 3.5-V power supply 2 Applications • • • • • • • • • Test and measurement equipment Digital 2-way radios Low power radio communication systems Satellite communication Wireless microphones Propriety wireless connectivity MIMO RADAR High-speed data converter clocking For applications like digital mobile radio (DMR) and wireless microphones, the LMX2572 supports FSK modulation. Discrete level FSK and pulse-shaping FSK are supported. Direct digital FSK modulation is achievable through programming or pins. The LMX2572 allows users to synchronize the output of multiple devices and also enables applications that need deterministic delay between input and output. The LMX2572 provides an option to adjust the phase with fine granularity to account for delay mismatch on the board or within devices. A frequency ramp generator can synthesize up to two segments of ramp in an automatic ramp generation option or a manual option for maximum flexibility. The fast calibration algorithm allows the user to change frequencies faster than 20 µs. The LMX2572 also supports generating or repeating SYSREF (compliant to JESD204B standard) making it an ideal low-power, low-noise clock source for clocking high-speed data converters. Fine delay adjustment is provided in this configuration to account for delay differences of board traces. The LMX2572 integrates LDOs from a single 3.3-V supply, thus eliminating the need for onboard lownoise LDOs. Device Information(1) PART NUMBER LMX2572 PACKAGE BODY SIZE (NOM) VQFN (40) 6.00 mm × 6.00 mm (1) For all available packages, see the orderable addendum at the end of the data sheet. Functional Block Diagram CPout MUXout Serial Interface Lock Detect or Register Readback Pre-R Divider MULT Post-R Divider , Charge Pump N-Divider LDOs Phase Sync Enable SYNC CE Ramp Generator FSK Generator RampClk RampDir û Modulator RFoutAP MUX B CSB SCK SDI x2 MUX A OSCinP OSCinM Vtune RFoutBP RFoutAM ÷2/4/8«/256 RFoutBM SYSREF SysRefReq 1 An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com Table of Contents 1 2 3 4 5 6 Features .................................................................. Applications ........................................................... Description ............................................................. Revision History..................................................... Pin Configuration and Functions ......................... Specifications......................................................... 6.1 6.2 6.3 6.4 6.5 6.6 6.7 6.8 7 1 1 1 2 4 5 Absolute Maximum Ratings ...................................... 5 ESD Ratings.............................................................. 5 Recommended Operating Conditions....................... 6 Thermal Information .................................................. 6 Electrical Characteristics........................................... 6 Timing Requirements ................................................ 8 Timing Diagrams ....................................................... 9 Typical Characteristics ............................................ 10 Detailed Description ............................................ 15 7.1 7.2 7.3 7.4 Overview ................................................................. Functional Block Diagram ....................................... Feature Description................................................. Device Functional Modes........................................ 15 15 15 20 7.5 Programming........................................................... 21 7.6 Register Maps ......................................................... 24 8 Application and Implementation ........................ 64 8.1 Application Information............................................ 64 8.2 Typical Application .................................................. 76 8.3 Do's and Don'ts ....................................................... 78 9 Power Supply Recommendations...................... 79 10 Layout................................................................... 80 10.1 Layout Guidelines ................................................. 80 10.2 Layout Example .................................................... 80 11 Device and Documentation Support ................. 81 11.1 11.2 11.3 11.4 11.5 11.6 11.7 Device Support...................................................... Documentation Support ........................................ Receiving Notification of Documentation Updates Community Resources.......................................... Trademarks ........................................................... Electrostatic Discharge Caution ............................ Glossary ................................................................ 81 81 81 81 81 81 81 12 Mechanical, Packaging, and Orderable Information ........................................................... 81 4 Revision History NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from Revision A (October 2017) to Revision B Page • Changed RampDir pin description from: …ramp size selection… to: …ramp segment selection… ..................................... 4 • Changed RFoutAM pin description from: High impedance… to: Low impedance….............................................................. 4 • Changed RFoutAP pin description from: High impedance… to: Low impedance… .............................................................. 4 • Changed RFoutBM pin description from: High impedance… to: Low impedance….............................................................. 4 • Changed RFoutBP pin description from: High impedance… to: Low impedance… .............................................................. 4 • Changed VbiasVCO pin decoupling capacitor requirement ................................................................................................... 5 • Changed VbiasVCO2 pin decoupling capacitor requirement ................................................................................................. 5 • Changed VccMASH pin decoupling capacitor requirement ................................................................................................... 5 • Changed VccVCO pin decoupling capacitor requirement ...................................................................................................... 5 • Changed VccVCO2 pin decoupling capacitor requirement .................................................................................................... 5 • Changed VregVCO pin decoupling capacitor requirement .................................................................................................... 5 • Added Vtune pin shunt capacitor requirement ....................................................................................................................... 5 • Changed VOH and VOL data in Electrical Characteristics ........................................................................................................ 8 • Changed SCK to CSB low time symbol ................................................................................................................................ 8 • Changed Figure 28............................................................................................................................................................... 13 • Added charge pump gain table............................................................................................................................................. 16 • Deleted sentence 'When the device comes out of the powered down state, either by resuming the POWERDOWN bit to zero or by pulling back CE pin HIGH (if it was powered down by CE pin), it is required that register R0 with FCAL_EN = 1 be programmed again to re-calibrate the device.' from the Powerdown section.......................................... 18 • Added sentence 'The wake-up time for the device to come out of the powered state is adjustable.' to the Powerdown section............................................................................................................................................................... 18 • Changed Programming Sequence step from: Wait 100 µs… to: Wait 500 µs… ................................................................. 21 • Changed R6 initial programming from: No to: Depends....................................................................................................... 21 • Changed R52 initial programming from: No to: Yes............................................................................................................. 22 2 Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 Revision History (continued) • Added LDO_DLY in register R6 .......................................................................................................................................... 24 • Changed R15[0] from: 1 to: 0 .............................................................................................................................................. 24 • Changed R15 POR value .................................................................................................................................................... 24 • Changed R20[14] from: 0 to: 1 ............................................................................................................................................. 24 • Changed R52[0] from: 0 to: 1 .............................................................................................................................................. 25 • Changed register R0, FCAL_HPFD_ADJ value definition ................................................................................................... 28 • Added sentence 'Writing 0 to this field is prohibited.' to FCAL_EN bit description .............................................................. 28 • Added LDO_DLY in register R6 ........................................................................................................................................... 30 • Changed MULT bit description from: …30 MHz… to: …40 MHz… ..................................................................................... 32 • Changed register R14 default value ..................................................................................................................................... 33 • Changed R15[0] from: 1 to: 0 ............................................................................................................................................... 33 • Changed register R20 default value ..................................................................................................................................... 35 • Deleted VCO_SEL_STRT_EN = 1 in Register 20 Field Descriptions .................................................................................. 35 • Changed register R46, OUTB_MUX value definition ........................................................................................................... 42 • Changed register R52 programming value........................................................................................................................... 44 • Changed register R58, INPIN_LVL value definition ............................................................................................................. 45 • Changed from: MASH reset count… to: This register… ...................................................................................................... 48 • Changed VCO_CAPCTRL_STRT reset value .................................................................................................................... 51 • Changed register R114, FSK_MODE_SEL value definition................................................................................................. 61 • Changed Figure 165 and Figure 166 ................................................................................................................................... 65 • Changed setup procedure step from: …divide N… to: …set N = N' / 2… .......................................................................... 68 • Changed RAMP_MODE = 1 to RAMP_MANUAL = 1 in the Manual Ramping Mode section ............................................. 69 • Changed RAMP_THRESH value suggestion....................................................................................................................... 69 • Deleted paragraph 'For ramping that are not calibration free, the ramp waveform is more like a staircase ramp. For all automatic ramping waveforms, be aware that there is a very small phase disturbance as the VCO crosses over the integer boundary, so one might consider using the input Multiplier to avoid these or timing the VCO calibration at integer boundaries.' from the Automatic Ramping Mode section......................................................................................... 70 • Changed ADR_HOLD = 1 to ADD_HOLD = 1 ..................................................................................................................... 74 • Added an application section for external loop filter............................................................................................................. 75 • Added an application section for powerup wake up time ..................................................................................................... 75 Changes from Original (August 2017) to Revision A • Page Changed Advance Information to Production Data Release ................................................................................................. 1 Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 3 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com 5 Pin Configuration and Functions GND GND VregVCO VccVCO VrefVCO Vtune GND VbiasVARAC RampDir GND 40 39 38 37 36 35 34 33 32 31 RHA Package 40-Pin VQFN Top View CE 1 30 RampClk GND 2 29 VrefVCO2 VbiasVCO 3 28 SysRefReq GND 4 27 VbiasVCO2 SYNC 5 26 VccVCO2 GND 6 25 GND DAP 16 17 18 19 20 SDI RFoutBM RFoutBP MUXout VccBUF SCK 21 15 10 VregIN 14 RFoutAM GND 22 VccMASH 9 13 OSCinM GND RFoutAP 12 CSB 23 11 24 8 CPout 7 VccCP VccDIG OSCinP Not to scale Pin Functions PIN NAME NO. I/O DESCRIPTION Chip enable. High impedance CMOS input. 1.8-V to 3.3-V logic. Active HIGH powers on the device. CE 1 Input CPout 12 Output Charge pump output. Place C1 of loop filter close to this pin. CSB 24 Input SPI latch. High impedance CMOS input. 1.8-V to 3.3-V logic. DAP — Ground RF ground. 2, 4, 25, 31, 34, 39 Ground VCO ground. 6, 14, 40 Ground Digital ground. 13 Ground Charge pump ground. MUXout 20 Output Multiplexed output pin. Configurable between lock detect and register readback. OSCinM 9 Input Reference input clock (–). High impedance self-biasing pin. Requires AC-coupling. OSCinP 8 Input Reference input clock (+). High impedance self-biasing pin. Requires AC-coupling. RampClk 30 Input Ramp trigger in automatic ramping mode or ramp clock in manual ramping mode. High impedance CMOS input. 1.8-V to 3.3-V logic. RampDir 32 Input Ramp trigger in automatic ramping mode or ramp segment selection in manual ramping mode. High impedance CMOS input. 1.8-V to 3.3-V logic. RFoutAM 22 Output Differential output A (–). Low impedance output. Requires AC-coupling. RFoutAP 23 Output Differential output A (+). Low impedance output. Requires AC-coupling. RFoutBM 18 Output Differential output B (–). Low impedance output. Requires AC-coupling. Configurable between RF output or SYSREF output. RFoutBP 19 Output Differential output B (+). Low impedance output. Requires AC-coupling. Configurable between RF output or SYSREF output. GND 4 Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 Pin Functions (continued) PIN NAME NO. I/O DESCRIPTION SCK 16 Input SPI clock. High impedance CMOS input. 1.8-V to 3.3-V logic. SDI 17 Input SPI data. High impedance CMOS input. 1.8-V to 3.3-V logic. SYNC 5 Input Phase synchronization trigger. Configurable to accept CMOS input (1.8-V to 3.3-V logic) or differential input. SysRefReq 28 Input SYSREF request for JESD204B support. Configurable to accept CMOS input (1.8-V to 3.3-V logic) or differential input. VbiasVARAC 33 Bypass VCO Varactor bias. Connect a 10-µF decoupling capacitor to VCO ground. VbiasVCO 3 Bypass VCO bias. Connect a 470-nF (X7R) decoupling capacitor to VCO ground as close to this pin as possible. VbiasVCO2 27 Bypass VCO bias. Connect a 100-nF (X7R) decoupling capacitor to VCO ground. VccBUF 21 Supply Supply for output buffers. Connect a 0.1-µF decoupling capacitor to RF ground. VccCP 11 Supply Supply for charge pump. Connect a 0.1-µF decoupling capacitor to charge pump ground. VccDIG 7 Supply Digital power supply. Connect a 0.1-µF decoupling capacitor to digital ground. VccMASH 15 Supply Digital power supply. Connect a 1-µF decoupling capacitor to digital ground. VccVCO 37 Supply Supply for VCO. Connect a 1-µF decoupling capacitor to VCO ground. VccVCO2 26 Supply Supply for VCO. Connect a 1-µF decoupling capacitor to VCO ground. VrefVCO 36 Bypass VCO supply reference. Connect a 10-µF decoupling capacitor to VCO ground. VrefVCO2 29 Bypass VCO supply reference. Connect a 10-µF decoupling capacitor to VCO ground. VregIN 10 Bypass Input reference path regulator output. Connect a 1-µF decoupling capacitor to RF ground as close to this pin as possible. VregVCO 38 Bypass VCO regulator node. Connect a 10-nF decoupling capacitor to VCO ground. Vtune 35 Input VCO tuning voltage input. Connect a 1.5-nF or more capacitor to VCO ground. See External Loop Filter for details. 6 Specifications 6.1 Absolute Maximum Ratings over operating free-air temperature range (unless otherwise noted) (1) VCC Power supply voltage VIN Digital IO input voltage TJ Junction temperature Tstg Storage temperature (1) MIN MAX UNIT –0.3 3.6 V VCC + 0.3 V 150 °C 150 °C –65 Stresses beyond those listed under Absolute Maximum Rating may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Condition. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. 6.2 ESD Ratings VALUE V(ESD) (1) (2) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins (1) ±2000 Charged device model (CDM), per JEDEC specification JESD22-C101, all pins (2) ±500 UNIT V JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 5 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com 6.3 Recommended Operating Conditions over operating free-air temperature range (unless otherwise noted) MIN TA Ambient temperature TJ Junction temperature NOM MAX –40 UNIT 85 °C 125 °C 6.4 Thermal Information LMX2572 THERMAL METRIC (1) RHA (VQFN) UNIT 40 PINS RθJA Junction-to-ambient thermal resistance 25.5 °C/W RθJC(top) Junction-to-case (top) thermal resistance 14.4 °C/W RθJB Junction-to-board thermal resistance 8.0 °C/W ΨJT Junction-to-top characterization parameter 0.2 °C/W ΨJB Junction-to-board characterization parameter 7.9 °C/W RθJC(bot) Junction-to-case (bottom) thermal resistance 1.2 °C/W (1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report. 6.5 Electrical Characteristics 3.0 V ≤ VCC ≤ 3.5 V, –40°C ≤ TA ≤ 85°C. Typical values are at VCC = 3.3 V, 25°C (unless otherwise noted) PARAMETER TEST CONDITIONS MIN TYP MAX 3 3.3 3.5 UNIT POWER SUPPLY VCC Supply voltage fPD = 20 MHz; ICPout = 1.25 mA ICC Supply current fPD = 100 MHz; ICPout = 2.5 mA fPD = 20 MHz; ICPout = 1.25 mA fPD = 100 MHz; ICPout = 2.5 mA ICCPD Direct VCO output (1) 75 Divided down output (2) 82 V 79 mA 86 Power down current 2.5 INPUT SIGNAL PATH fOSCin OSCin input frequency VOSCin OSCin input voltage (3) fMULTin Multiplier input frequency fMULTout Multiplier output frequency OSC_2X = 0 (Doubler bypassed) 5 250 OSC_2X = 1 (Doubler enabled) 5 125 0.3 3.6 0.15 1 Single-ended input buffer Differential input buffer 10 40 60 150 0.25 250 5 200 3 order modulator 5 160 4th order modulator 5 MULT ≥ 3 MHz V MHz PLL Integer channel Phase detector frequency (4) fPD ICPout Charge pump current 1st and 2nd order modulator rd 625 CPG = 2 1250 CPG = 3 1875 6 µA ··· CPG = 15 (1) (2) (3) (4) 120 CPG = 1 ··· MHz 6875 fOSCin = 100 MHz; fVCO = fOUT = 6.4 GHz; POUT = 0 dBm; OSC_2X = 0; MULT = 1; one RF output. fOSCin = 100 MHz; fVCO = 6.4 GHz; fOUT = 3.2 GHz; POUT = 0 dBm; OSC_2X = 0; MULT = 1; one RF output. See OSCin Configuration for definition of OSCin input voltage. For lower VCO frequencies, the N-divider minimum value can limit the phase detector frequency. Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 Electrical Characteristics (continued) 3.0 V ≤ VCC ≤ 3.5 V, –40°C ≤ TA ≤ 85°C. Typical values are at VCC = 3.3 V, 25°C (unless otherwise noted) PARAMETER PNPLL_1/f PNPLL_Flat Normalized PLL 1/f noise TEST CONDITIONS MIN (5) Normalized PLL noise floor (5) TYP MAX UNIT –123.5 Integer channel (6) –232 Fractional channel (7) –232 dBc/Hz VCO fVCO VCO frequency 3200 fVCO = 3.4 GHz fVCO = 3.9 GHz fVCO = 4.4 GHz PNVCO Open loop VCO phase noise fVCO = 4.9 GHz fVCO = 5.4 GHz –88 100 kHz –111 1 MHz –131 10 MHz –150 10 kHz –87.5 100 kHz 1 MHz 10 kHz –86.5 100 kHz –111 1 MHz –131 10 MHz –150 10 kHz –85 –130.5 10 MHz –149.5 10 kHz –84.5 100 kHz –109 1 MHz VCO gain 100 kHz –84 –108.5 –129 –148 fVCO = 3.4 GHz 39 fVCO = 3.9 GHz 44 fVCO = 4.4 GHz 55 fVCO = 4.9 GHz 60 fVCO = 5.4 GHz 69 MHz/V 62 tVCOcal VCO calibration-time (8) fOSCin = fPD = 100 MHz; Switch between 3.2 GHz and 6.4 GHz |ΔTCL| Allowable temperature drift (9) VCO not being re-calibrated, –40°C ≤ TA ≤ 85°C Partial assist Full assist (6) (7) (8) (9) –149 10 MHz No assist (5) –129.5 1 MHz fVCO = 5.9 GHz dBc/Hz –110 1 MHz 10 kHz KVCO –111 –150 100 kHz MHz –131.5 10 MHz 10 MHz fVCO = 5.9 GHz 6400 10 kHz 130 50 µs 5 125 °C Measured with a clean OSCin signal with a high slew rate using a wide loop bandwidth. The noise metrics model the PLL noise for an infinite loop bandwidth as: PLL_Total = 10*log[10(PLL_Flat/10)+10(PLL_Flicker/10)]; PLL_Flat = PN1 Hz + 20*log(N) + 10*log(fPD); PLL_Flicker = PN10 kHz - 10*log(Offset/10 kHz) + 20*log(fOUT/1 GHz) fOSCin = 200 MHz; fPD = 100 MHz; fVCO = fOUT = 6 GHz fOSCin = 200 MHz; fPD = 100 MHz; fVCO = fOUT = 6.001 GHz; Fractional denominator = 1000. See VCO Calibration for details. Not tested in production. Ensured by characterization. Allowable temperature drift refers to programming the device at an initial temperature and allowing this temperature to drift WITHOUT reprogramming the device, and still have the device stay at lock. This change could be up or down in temperature and the specification does not apply to temperatures that go outside the recommended operating temperatures of the device. Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 7 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com Electrical Characteristics (continued) 3.0 V ≤ VCC ≤ 3.5 V, –40°C ≤ TA ≤ 85°C. Typical values are at VCC = 3.3 V, 25°C (unless otherwise noted) PARAMETER TEST CONDITIONS MIN TYP MAX UNIT 6400 MHz RF OUTPUT fOUT RF output frequency POUT Single-ended output power H2OUT Second harmonic H3OUT Third harmonic |tskewCH| Channel to channel skew 12.5 fOUT = 6.4GHz 4.5 fVCO = fOUT = 6.4 GHz fVCO = 6.4 GHz, fOUT = 3.2 GHz dBm –20 OUTx_PWR = 50 –37 fVCO = fOUT = 6.4 GHz –25 fVCO = 6.4 GHz, fOUT = 3.2 GHz –13 fOUT = 3.2 GHz dBc 14 ps PHASE SYNCHRONIZATION fOSCinSYNC OSCin input frequency with SYNC |tskewSYNC| OSCin to RFout skew Category 3 5 100 Categories 1 and 2 5 200 After phase synchronization; fOSCinSYNC = fOUT = 100 MHz 2 MHz ns DIGITAL INTERFACE VIH High-level input voltage VIL Low-level input voltage 1.4 VCC IIH High-level input current –25 25 IIL Low-level input current –25 25 VOH High-level output voltage Load current = –5 mA VOL Low-level output voltage Load current = 5 mA 0.4 MUXout pin VCC – 0.5 0.5 V µA V 6.6 Timing Requirements 3.0 V ≤ VCC ≤ 3.5 V, –40°C ≤ TA ≤ 85°C. Typical values are at VCC = 3.3 V, 25°C (unless otherwise noted) MIN NOM MAX UNIT 75 MHz SERIAL INTERFACE WRITE TIMING fSCK SCK frequency 1 / (tCWL+ tCWH) tCE SCK to CSB low time 5 ns tCS SDI to SCK setup time 2 ns tCH SDI to SCK hold time 2 ns tCWH SCK pulse width high 5 ns tCWL SCK pulse width low 5 ns tCES CSB to SCK setup time 5 ns tEWH CSB pulse width high 2 ns Figure 1 SERIAL INTERFACE READ TIMING fSCK SCK frequency tCE SCK to CSB low time 1 / (tCWL+ tCWH) 10 ns tCS SDI to SCK setup time 10 ns tCH SDI to SCK hold time 10 ns tCWH SCK pulse width high 10 ns tCWL SCK pulse width low 10 ns tCES CSB to SCK setup time 10 ns tEWH CSB pulse width high 10 ns 2.5 ns 2 ns Figure 1 50 MHz SYNC AND SYSREFREQ TIMING tCS Pin to OSCin setup time tCH Pin to OSCin hold time 8 Figure 2 Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 6.7 Timing Diagrams MSB (R/W) SDI Address (7-bit) tCS SCK LSB (D0) (D15 ± D1) tCH 1st 2nd tCES 3rd ± 7th 8th 9th ± 23rd 24th tCE tCWH tEWH tCWL Read back register value 16-bit MUXout CSB Figure 1. Serial Interface Timing Diagram SYNC SysRefReq tCS tCH OSCin Figure 2. Trigger Signals Timing Diagram Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 9 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com 6.8 Typical Characteristics At TA = 25°C, unless otherwise noted -40 -40 3400 MHz 3900 MHz -60 Phase noise (dBc/Hz) Phase noise (dBc/Hz) -60 -80 -100 -120 -140 -160 -80 -100 -120 -140 -160 1 10 100 1000 10000 40000 Offset (kHz) 1 10 100 1000 Figure 3. Open-Loop VCO Phase Noise at 3.4 GHz D010 Figure 4. Open-Loop VCO Phase Noise at 3.9 GHz -40 -40 4400 MHz 4900 MHz -60 Phase noise (dBc/Hz) Phase noise (dBc/Hz) -60 -80 -100 -120 -140 -160 -80 -100 -120 -140 -160 1 10 100 1000 10000 40000 Offset (kHz) 1 10 100 1000 D012 Figure 6. Open-Loop VCO Phase Noise at 4.9 GHz -40 -40 5400 MHz 5900 MHz -60 Phase noise (dBc/Hz) -60 Phase noise (dBc/Hz) 10000 40000 Offset (kHz) D011 Figure 5. Open-Loop VCO Phase Noise at 4.4 GHz -80 -100 -120 -140 -160 -80 -100 -120 -140 -160 1 10 100 Offset (kHz) 1000 10000 40000 1 10 100 Offset (kHz) D013 Figure 7. Open-Loop VCO Phase Noise at 5.4 GHz 10 10000 40000 Offset (kHz) D009 1000 10000 40000 D014 Figure 8. Open-Loop VCO Phase Noise at 5.9 GHz Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 Typical Characteristics (continued) At TA = 25°C, unless otherwise noted -60 -60 3400 MHz 3400 MHz -70 -80 Phase noise (dBc/Hz) Phase noise (dBc/Hz) -70 -90 -100 -110 -120 -130 -140 -150 -80 -90 -100 -110 -120 -130 -140 -150 -160 -160 1 10 100 1000 10000 100000 Offset (kHz) 1 1000 10000 100000 D024 Figure 10. Narrow Band Phase Noise at 3.4 GHz -60 -60 3900 MHz -70 -80 -90 -100 -110 -120 -130 -140 -80 -90 -100 -110 -120 -130 -140 -150 -150 -160 -160 1 10 100 1000 10000 100000 Offset (kHz) 3900 MHz -70 Phase noise (dBc/Hz) Phase noise (dBc/Hz) 100 Offset (kHz) Figure 9. Wide Band Phase Noise at 3.4 GHz 1 10 100 1000 10000 100000 Offset (kHz) D016 Figure 11. Wide Band Phase Noise at 3.9 GHz D025 Figure 12. Narrow Band Phase Noise at 3.9 GHz -60 -60 4400 MHz -70 -80 -90 -100 -110 -120 -130 -140 -80 -90 -100 -110 -120 -130 -140 -150 -150 -160 -160 1 10 100 1000 10000 100000 Offset (kHz) 4400 MHz -70 Phase noise (dBc/Hz) Phase noise (dBc/Hz) 10 D015 1 10 Figure 13. Wide Band Phase Noise at 4.4 GHz 100 1000 10000 100000 Offset (kHz) D017 D026 Figure 14. Narrow Band Phase Noise at 4.4 GHz Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 11 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com Typical Characteristics (continued) At TA = 25°C, unless otherwise noted -60 -60 4900 MHz 4900 MHz -70 -80 Phase noise (dBc/Hz) Phase noise (dBc/Hz) -70 -90 -100 -110 -120 -130 -140 -150 -80 -90 -100 -110 -120 -130 -140 -150 -160 -160 1 10 100 1000 10000 100000 Offset (kHz) 1 10000 100000 D027 -60 5400 MHz -70 -80 -90 -100 -110 -120 -130 -140 -80 -90 -100 -110 -120 -130 -140 -150 -150 -160 -160 1 10 100 1000 10000 100000 Offset (kHz) 5400 MHz -70 Phase noise (dBc/Hz) Phase noise (dBc/Hz) 1000 Figure 16. Narrow Band Phase Noise at 4.9 GHz -60 1 10 100 1000 10000 100000 Offset (kHz) D019 Figure 17. Wide Band Phase Noise at 5.4 GHz D028 Figure 18. Narrow Band Phase Noise at 5.4 GHz -60 -60 5900 MHz -70 -80 -90 -100 -110 -120 -130 -140 -80 -90 -100 -110 -120 -130 -140 -150 -150 -160 -160 1 10 100 1000 10000 100000 Offset (kHz) 5900 MHz -70 Phase noise (dBc/Hz) Phase noise (dBc/Hz) 100 Offset (kHz) Figure 15. Wide Band Phase Noise at 4.9 GHz 1 10 100 1000 10000 100000 Offset (kHz) D020 Figure 19. Wide Band Phase Noise at 5.9 GHz 12 10 D018 D029 Figure 20. Narrow Band Phase Noise at 5.9 GHz Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 Typical Characteristics (continued) At TA = 25°C, unless otherwise noted -75 -75 6400 MHz 3200 MHz 1600 MHz 800 MHz 400 MHz 200 MHz 100 MHz 50 MHz 25 MHz -95 -105 -115 -125 6400 MHz 3200 MHz 1600 MHz 800 MHz 400 MHz 200 MHz 100 MHz 50 MHz 25 MHz -85 Phase noise (dBc/Hz) Phase noise (dBc/Hz) -85 -135 -145 -155 -95 -105 -115 -125 -135 -145 -155 -165 -165 1 10 100 1000 10000 100000 Offset (kHz) 1 1000 10000 100000 D030 Figure 22. Direct and Divided Down Outputs -80 Phase noise (dBc/Hz) -80 Phase noise (dBc/Hz) 100 Offset (kHz) Figure 21. Direct and Divided Down Outputs -100 -120 -140 -160 -100 -120 -140 -160 1 10 100 1000 10000 100000 6800 6400 6000 5600 5200 4800 4400 4000 3600 3200 2800 2400 2000 1600 -20 1 VCO frequency jump from 3200 MHz to 6400 MHz 0 20 40 60 80 100 120 140 Time (µs) 160 180 10 100 1000 10000 100000 Offset (kHz) D023 fVCO = 6397 MHz; fPD = 100 MHz; 3rd order modulator; Fractional 32 denominator = 2 – 1; Loop filter bandwidth = 115 kHz Figure 24. Wide Band Fractional Spurs fOUT (MHz) Offset (kHz) D022 fVCO = 6397 MHz; fPD = 100 MHz; 3rd order modulator; Fractional denominator = 1000; Loop filter bandwidth = 115 kHz Figure 23. Wide Band Fractional Spurs fOUT (MHz) 10 D021 6800 6400 6000 5600 5200 4800 4400 4000 3600 3200 2800 2400 2000 1600 -20 D003 Figure 25. VCO Calibration Time VCO frequency jump from 6400 MHz to 3200 MHz 0 20 40 60 80 100 120 140 160 Time (µs) Product Folder Links: LMX2572 D004 Figure 26. VCO Calibration Time Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated 180 13 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com Typical Characteristics (continued) At TA = 25°C, unless otherwise noted 6240 10 RAMP_THRESH = 30 MHz 8 6200 6 POUT (dBm) fOUT (MHz) 6160 6120 6080 6040 4 2 OUTx_PWR = 15 OUTx_PWR = 31 OUTx_PWR = 63 0 -2 -4 6000 5960 -100 -6 -8 0 100 200 300 400 500 600 700 800 Time (µs) 900 0 487.5026 425.051 487.5019 425.034 487.5013 fOUT (MHz) fOUT (MHz) 487.5032 425.068 425.017 425 424.983 4800 5600 6400 D001 487.4994 487.4987 487.4981 424.932 487.4974 424.915 -250 -200 -150 -100 487.4968 -500 150 Time (µs) 200 250 D007 Figure 29. 4-Level GFSK Modulation 14 4000 487.5 424.949 100 3200 487.5006 424.966 50 2400 Figure 28. Output Power vs Frequency 425.085 0 1600 fOUT (MHz) Figure 27. Automatic Ramping -50 800 D005 Submit Documentation Feedback -300 -100 100 300 Time (µs) 500 D008 Figure 30. Discrete-Level FSK Modulation Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 7 Detailed Description 7.1 Overview The LMX2572 is a low-power, high-performance, wideband frequency synthesizer with integrated VCO and output divider. The VCO operates from 3.2 to 6.4 GHz, and this can be combined with the output divider to produce any frequency in the range of 12.5 MHz to 6.4 GHz. Within the input path, there are two dividers and a multiplier for flexible frequency planning. The multiplier also allows reduction of spurs by moving the frequencies away from the integer boundary. The PLL is a fractional-N PLL with a programmable delta-sigma modulator up to 4th order. The fractional denominator is a programmable 32-bit long that can supply fine frequency steps easily below the 1-Hz resolution. The denominator can also be used to do exact fractions like 1/3, 7/1000, and many others. For applications where deterministic or adjustable phase is desired, the SYNC pin can be used to get the phase relationship between the OSCin and RFout pins deterministic. Once this is done, the phase can be adjusted in very fine steps of the VCO period divided by the fractional denominator. The ultra-fast VCO calibration is ideal for applications where the frequency must be swept or abruptly changed. The frequency can be manually programmed, or the device can be set up to do ramps and chirps. The JESD204B support includes using the RFoutB output to create a differential SYSREF output that can be either a single pulse, series of pulse, or a continuous stream of pulses. These pulses are synchronous with the RFoutA signal with an adjustable delay. The FSK generator can support FSK generation in discrete 2-, 4-, or 8-level FSK, or it can any arbitrary level FSK making it ideal to support pulse-shaped FSK modulation such as GFSK. The LMX2572 device requires only a single 3.3-V power supply and uses very low current. The internal power supplies are provided by integrated LDOs, eliminating the need for high performance external LDOs. Digital logic interface is compatible with 1.8-V input. The user can program the device through the serial interface. The device can be powered down through register programming or by toggling the Chip Enable (CE) pin. 7.2 Functional Block Diagram CPout MUXout Serial Interface Lock Detect or Register Readback Pre-R Divider MULT Post-R Divider , Charge Pump N-Divider LDOs Phase Sync Enable SYNC CE Ramp Generator FSK Generator RampClk û Modulator RampDir RFoutAP MUX B CSB SCK SDI x2 MUX A OSCinP OSCinM Vtune RFoutBP RFoutAM ÷2/4/8«/256 RFoutBM SYSREF SysRefReq 7.3 Feature Description 7.3.1 Reference Oscillator Input The OSCin pins are used as a frequency reference input to the device. The input is high impedance and requires AC-coupling capacitors at the pin. The OSCin pins can be driven single-ended with a CMOS clock, XO, or singleended differential clock. Differential clock input is also supported, which makes the device easier to interface with high-performance system clock devices such as TI’s LMK series clock devices. As the OSCin signal is used as a clock for the VCO calibration, a proper reference signal must be applied at the OSCin pin at the time of programming FCAL_EN. Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 15 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com Feature Description (continued) 7.3.2 Reference Path The reference path consists of an OSCin doubler (OSC_2X), Pre-R divider (PLL_R_PRE), Multiplier (MULT), and a Post-R divider (PLL_R). OSCin Pre-R Divider Doubler Post-R Divider Multiplier Phase Frequency Detector Figure 31. Reference Path The Doubler allows one to double the input reference frequency up to 250 MHz. The Doubler adds minimal noise and is useful for raising the phase detector frequency for better phase noise. The Doubler can also be used to avoid spurs. The Doubler uses both the rising and falling edges of the input signal, so the input signal must have 50% duty cycle if the Doubler is enabled. Note that the Multiplier cannot be used if the Doubler is engaged. The Pre-R divider can help reduce input frequency so that the Multiplier can be used and the maximum 200-MHz input frequency limitation of the Post-R divider can be met. The Multiplier multiplies the frequency up under the allowable multiplications of 3, 4, 5, 6, and 7. In combination with the Pre-R and Post-R dividers, the Multiplier offers the flexibility to shift the phase detector frequency away from frequencies that may create integer boundary spurs with the VCO and the output frequencies. Be aware that unlike the Doubler, the Multiplier degrades the PLL figure of merit. This degradation would only matter, however, for a very clean reference oscillator input and if the loop bandwidth was wide. The user should not use the Doubler while using the Multiplier. The Multiplier is bypassed if its value is set to 1. The Post-R divider can be used to further divide down the frequency to the phase detector frequency. When it is used (PLL_R > 1), the input frequency to this divider is limited to 200 MHz. Use Equation 1 to calculate the phase detector frequency, fPD. fPD = fOSCin × OSC_2X × MULT / (PLL_R_PRE × PLL_R) (1) Table 1 summarizes the usage boundaries of these functional blocks in the reference path. Table 1. Reference Path Boundaries PARAMETER VALUE INPUT FREQUENCY (MHz) OUTPUT FREQUENCY (MHz) MIN MAX MIN MAX NOTES OSCin N/A 5 250 Doubler 0 (Bypassed), 1 (x2) 5 125 10 250 When OSC_2X = 1, Multiplier cannot be used at the same time. Pre-R divider 1 (Bypassed), 2, 3, …, 254, 255 5 200 0.25 200 Keep it equals 1 unless when necessary. Multiplier 1 (Bypassed), 3, 4, 5, 6, 7 10 40 60 150 When the output frequency is greater than 100MHz, set MULT_HI = 1. Post-R divider 1 (Bypass), 2, 3, …, 254, 255 5 200 0.25 200 7.3.3 PLL Phase Detector and Charge Pump The phase detector compares the outputs of the Post-R divider and N divider and generates a correction current corresponding to the phase error until the two signals are aligned in phase. This charge-pump current is software programmable to many different levels, allowing modification of the closed-loop bandwidth of the PLL. Table 2. Charge Pump Gain 16 CGP 0 1 2 3 4 or 8 5 or 9 6 or 10 7 or 11 12 13 14 15 UNIT Gain Tri-state 625 1250 1875 2500 3125 3750 4375 5000 5625 6250 6875 µA Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 7.3.4 PLL N Divider and Fractional Circuitry The N divider includes fractional compensation and can achieve any fractional denominator (PLL_DEN) from 1 to (232 – 1). The integer portion of N (PLL_N) is the whole part of the N divider value, and the fractional portion, Nfrac = PLL_NUM / PLL_DEN, is the remaining fraction. PLL_N, PLL_NUM and PLL_DEN are software programmable. The higher the denominator, the finer the resolution step of the output. For example, even when using fPD = 200 MHz, the output can increment in steps of 200 MHz / (232 – 1) = 0.0466 Hz. Equation 2 shows the relationship between the phase detector and VCO frequencies. Note that in SYNC mode, there is an extra divider that is not shown in Equation 2. fVCO = fPD × [PLL_N + (PLL_NUM / PLL_DEN)] (2) The multi-stage noise-shaping (MASH) sigma-delta modulator that controls the fractional division is also programmable from integer mode to fourth order. All of these settings work for integer channel where PLL_NUM = 0. To make the fractional spurs consistent, the modulator is reset any time that the R0 register is programmed. The N divider has minimum value restrictions based on the modulator order. Furthermore, the PFD_DLY_SEL bit must be programmed in accordance to Table 3. Table 3. Minimum N Divider Restrictions VCO FREQUENCY (GHz) MASH ORDER INTEGER FIRST ORDER SECOND ORDER THIRD ORDER FOURTH ORDER N PFD_DLY_SEL N PFD_DLY_SEL N PFD_DLY_SEL N PFD_DLY_SEL N PFD_DLY_SEL fVCO < 4 20 0 25 1 26 1 32 2 44 4 4 ≤ fVCO < 4.9 24 1 29 2 30 2 32 2 44 4 4.9 ≤ fVCO ≤ 6.4 24 1 29 2 30 2 36 3 48 5 7.3.5 Voltage-Controlled Oscillator The LMX2572 includes a fully integrated VCO. The VCO generates a frequency which varies with the tuning voltage from the loop filter. The entire VCO frequency range, 3.2 to 6.4 GHz, covers an octave that allows the channel divider to take care of frequencies below the lower bound. To reduce the VCO tuning gain, thus improving the VCO phase noise performance, the VCO frequency range is divided into 6 different frequency bands. This creates the need for frequency calibration to determine the correct frequency band given in a desired output frequency. The VCO is also calibrated for amplitude to optimize phase noise. These calibration routines are activated any time that the R0 register is programmed with the FCAL_EN bit equals one. It is important that a valid OSCin signal must present before VCO calibration begins. This device will support a full sweep of the valid temperature range of 125°C (–40°C to 85°C) without having to re-calibrate the VCO. This is important for continuous operation of the synthesizer under the most extreme temperature variation. 7.3.6 Channel Divider To go below the VCO lower bound of 3.2 GHz, the channel divider can be used. The channel divider consists of several segments, and the total division value is equal to the multiplication of them. Therefore, not all values are valid. SYSREF RFoutA MUX B ÷2,4,8,16, 32,64,128, 256 MUX A VCO RFoutB Figure 32. Channel Divider The channel divider is automatically powered up whenever the MUXs have selected divided down output or SYSREF output, regardless of whether the RF output buffers are turned on or not. When an output is not used, TI recommends selecting the VCO output (OUTx_MUX = 1) to ensure that the channel divider is not unnecessarily powered up. Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 17 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com Table 4. Channel Divider OUTA_MUX OUTB_MUX 0: Channel divider output Don't care Don't care 0: Channel divider output 2: SYSREF output CHANNEL DIVIDER Powered up All other cases Powered down 7.3.7 Output Buffer The output buffers are differential push-pull type buffers, thus no external pullup to VCC is required. The output impedance of the buffer is very small, and as such, the buffer can be AC-coupled to drive a 50-Ω load. Output power of the buffer can be programed to various levels. The buffer can be disabled while still keeping the PLL in lock. Buffer A supports direct VCO output or divided down output. Buffer B supports direct VCO output, divided down output or SYSREF output. 7.3.8 Lock Detect The MUXout pin can be configured to output a signal that gives an indication for the PLL being locked. If the MUXout pin is configured as a lock detect output (MUXOUT_LD_SEL = 1), the MUXout pin output is a logic HIGH voltage when the device is locked. When the device is unlocked, the MUXout pin output is a logic LOW voltage. There are options to select the definition of PLL being locked. If LD_TYPE = 0, lock detect asserts a HIGH output after the VCO has finished calibration and the LD_DLY timeout counter is finished. If LD_TYPE = 1, in addition to the VCO calibration and counter check, lock detect will assert a HIGH output if the VCO tuning voltage is also within an acceptable limits. 7.3.9 Register Readback The MUXout pin can also be configured to read back useful information from the device. Common uses for readback are: • Read back registers to ensure that they have been programmed to the correct value. LMX2572 allows any of its registers to be read back. • Read back the lock detect status to determine if the PLL is in lock. • Read back VCO calibration information so that it can be used to improve the lock time. 7.3.10 Powerdown The LMX2572 can be powered up and down using the CE pin or the POWERDOWN bit. All registers are preserved in memory while the device is powered down. The wake-up time for the device to come out of the powered state is adjustable. See Power-Up, Wake-Up Time for details. 7.3.11 Phase Synchronization The SYNC pin allows the user to synchronize the LMX2572 such that the delay from the rising edge of th OSCin signal to the RF output signal is deterministic. Phase synchronization is especially useful if there are multiple LMX2572 devices in a system and it is desirable to have all the RF outputs aligned in phase. fOSCin Device 1 fOUT1 fOUT1 fOUT2 SYNC fOSCin Device 2 fOUT2 SYNC t1 t2 Figure 33. Phase Synchronization 18 Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 Initially, the devices are locked to the input but are not synchronized. The user sends a synchronization pulse that is re-clocked to the next rising edge of the OSCin pulse. After a given time, t1, the devices are synchronized. This time is dominated by the sum of the VCO calibration time, the analog settling time of the PLL loop, and the MASH_RST_COUNT, if used in fractional mode. After synchronization, both devices will have a deterministic delay of t2, related to OSCin. 7.3.12 Phase Adjustment The LMX2572 can use the sigma-delta modulator to adjust the output signal phase with respect to the input reference. The phase shift every time you write the value of MASH_SEED is Equation 3: Phase shift in degree = 360° × (MASH_SEED / PLL_DEN) × (P / CHDIV) where • P = 2 when VCO_PHASE_SYNC_EN = 1, else P = 1 (3) For example, if • MASH_SEED = 800 • PLL_DEN = 1000 • CHDIV = 32 • VCO_PHASE_SYNC_EN = 0 Phase shift = 360° × (800 / 1000) × (1 / 32) = 9°. If we write 800 to MASH_SEED 40 times, then we will shift the phase by 360°. There are a couple of restrictions when using phase adjustment: • Phase adjustment does not work with MASH_ORDER equals 0 (Integer mode) or 1 (First order). • Phase adjustment is possible with integer channels (PLL_NUM = 0) as long as MASH_ORDER is greater than 1. • PLL_DEN must be greater than PLL_NUM + MASH_SEED. 7.3.13 Ramping Function The LMX2572 supports the ability to make frequency ramping waveforms using manual mode or automatic mode. In manual ramping mode, the user defines a step and uses the RampClk and RampDir pins to create the ramp. The output frequency jumps from one frequency to another frequency on each ramp. In automatic ramping mode, the user sets up the ramp with up to two linear segments in advance and the device automatically creates this ramp. The output waveform is a continuous frequency sweep between the start and end frequencies. If the frequency ramping range is small (approximately 10 MHz), no VCO calibration break is necessary in the middle of the ramp. Output frequency Output frequency When using ramp, the following must be set accordingly: • Phase detector frequency must be between fOSCin / 2CAL_CLK_DIV and 125 MHz. • OUT_FORCE = 1 to force the RF outputs not to be automatically muted during VCO calibration. • LD_DLY = 0 to avoid interfering with VCO calibration. • PLL_DEN = 232 – 1. The actual denominator value being used in ramping mode is 224. Time Manual Ramping Mode Time Automatic Ramping Mode Figure 34. Ramping Modes Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 19 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com 7.3.14 SYSREF RFoutB of LMX2572 can be used to generate or duplicate SYSREF signal. The output of RFoutB can be a single pulse, series of pulse, or a continuous stream of pulses. These pulses are synchronous with the RFoutA signal with an adjustable delay. To use the SYSREF capability, the PLL must be in SYNC mode with VCO_PHASE_SYNC_EN = 1. SYSREF output is triggered when there is a 0 → 1 transition at the SysRefReq pin. In SYSREF Pulsed mode, a maximum of 15 consecutive pulses can be generated at a time. RFoutA LMX2572 SysRefReq RFoutB Programmable delay SYSREF Pulsed/Continuous Mode RFoutA tp tp LMX2572 SysRefReq RFoutB Programmable delay SYSREF Repeater Mode Figure 35. SYSREF Modes 7.3.15 FSK Modulation Output frequency Direct digital FSK modulation is supported in LMX2572. FSK modulation is achieved by changing the output frequency by changing the N divider value. The LMX2572 supports two different types of FSK operation. 1. FSK SPI mode. This mode supports discrete 2-, 4- and 8-level FSK modulation. There are eight dedicated registers used to pre-store the desired FSK frequency deviations. Program FSK_SPI_DEV_SEL to select one of the FSK deviations at a time. 2. FSK SPI FAST mode. In this mode, instead of selecting one of the pre-stored FSK deviations, change the FSK deviation directly by writing to FSK_SPI_FAST_DEV. As a result, this mode supports arbitrary-level FSK, which is useful to construct pulse-shaping or analog-FM modulation. Time Figure 36. FSK Modulation 7.4 Device Functional Modes Table 5 lists the device functional modes of the LMX2572. Table 5. Device Functional Modes MODE Normal operation mode 20 DESCRIPTION The device is used as a high frequency signal source without any addition features. FSK mode Generates discrete-level FSK or arbitrary-level pulse-shaped FSK modulation. SYNC mode This mode is used to ensure deterministic phase between OSCin and RFout. SYSREF mode The device is used as a JESD204B SYSREF clock generator or repeater. Ramping mode Automatic frequency sweeping without the need of continuous SPI programming. Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 7.5 Programming The LMX2572 is programmed using several 24-bit shift registers. The shift register consists of a data field, an address field, and a R/W bit. The MSB is the R/W bit. 0 means register write while 1 means register read. The following seven bits, ADDR[6:0], form the address field which is used to decode the internal register address. The remaining 16 bits form the data field DATA[15:0]. Serial data is shifted MSB first into the shift register. See Figure 1 for timing diagram details. To write registers: • The R/W bit must be set to 0. • The data on SDI pin is clocked into the shift register upon the rising edge of the clocks on SCK pin. On the rising edge of the 24th clock cycle, the data is transferred from the data field into the selected register bank. • The CSB pin may be held high after programming, which causes the LMX2572 to ignore clock pulses. • If the SCK and SDI lines are toggled while the VCO is in lock, as is sometimes the case when these lines are shared between devices, the phase noise may be degraded during the time of this programming. To • • • read back registers: The R/W bit must be set to 1. The data field contents on the SDI line are ignored. The read back data on MUXout pin is clocked out starting from the falling edge of the 8th clock cycle. 7.5.1 Recommended Initial Power-On Programming 7.5.1.1 Programming Sequence When the device is first powered up, it must be initialized, and the ordering of this programming is important. The sequence is listed below. After this sequence is completed, the device should be running and locked to the proper frequency. 1. Apply power to the device and ensure all the supply pins are at the proper levels. 2. If CE is low, pull it high. 3. Wait 500 µs for the internal LDOs to become stable. 4. Ensure that a valid reference clock is applied to the OSCin pins. 5. Program register R0 with RESET = 1. This will ensure all the registers are reset to their default values. This bit is self-clearing. 6. Program in sequence registers R125, R124, R123, ..., R1 and then R0. 7.5.1.2 Programming Register There are altogether 126 programmable registers. However, not every register is required to be programmed at initial power-on. For example, most of the registers have fixed field value which is also equal to their silicon default value. After programming R0 with RESET = 1, these register fields have returned to their silicon default values. As such, it is not necessary to program these registers again. Similarly, for those registers having configurable fields, if the desired field values are equal to the silicon default values, again it is not necessary to program these registers again after programming R0 with RESET = 1. In Table 6, Depends means it is up to the user's decision of whether programming the register or not based upon the application need. Table 6. Suggested Register Programming REGISTER PROGRAM REGISTER PROGRAM REGISTER PROGRAM REGISTER PROGRAM REGISTER PROGRAM REGISTER PROGRAM 0 Yes 21 No 42 Yes 63 No 84 Depends 105 Depends 1 Depends 22 No 43 Yes 64 No 85 Depends 106 Depends 2 No 23 No 44 Depends 65 No 86 Depends 107 No 3 No 24 No 45 Depends 66 No 87 No 108 No 4 No 25 No 46 Depends 67 No 88 No 109 No 5 Depends 26 No 47 No 68 No 89 No 110 No 6 Depends 27 No 48 No 69 Depends 90 No 111 No Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 21 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com Programming (continued) Table 6. Suggested Register Programming (continued) REGISTER PROGRAM REGISTER PROGRAM REGISTER PROGRAM REGISTER PROGRAM REGISTER PROGRAM REGISTER PROGRAM 7 Depends 28 No 49 No 70 Depends 91 No 112 No 8 Depends 29 Yes 50 No 71 Yes 92 No 113 No 9 Depends 30 Yes 51 No 72 Depends 93 No 114 Depends 10 Depends 31 No 52 Yes 73 Depends 94 No 115 Depends 11 Depends 32 No 53 No 74 Depends 95 No 116 Depends 12 Depends 33 No 54 No 75 Depends 96 Depends 117 Depends 13 No 34 Depends 55 No 76 No 97 Depends 118 Depends 14 Depends 35 No 56 No 77 No 98 Depends 119 Depends 15 No 36 Yes 57 Yes 78 Yes 99 Depends 120 Depends 16 Depends 37 Yes 58 Depends 79 Depends 100 Depends 121 Depends 17 Depends 38 Yes 59 Depends 80 Depends 101 Depends 122 Depends 18 No 39 Yes 60 Depends 81 Depends 102 Depends 123 Depends 19 Depends 40 Depends 61 No 82 Depends 103 Depends 124 Depends 20 Depends 41 Depends 62 Depends 83 Depends 104 Depends 125 No 7.5.2 Recommended Sequence for Changing Frequencies The recommended sequence for changing frequencies in different scenarios is as follows: 1. If the N divider is changing, program the relevant registers and then program R0 with FCAL_EN = 1. 2. In FSK and Ramp mode, the fractional numerator is changing; program the relevant registers only. 7.5.3 Double Buffering Some register fields support double buffering. That is, the change to these fields would not be effective immediately. To latch the new values into the device requires programming R0 again with FCAL_EN = 1. The following register fields support double buffering, see Table 70 for details. • MASH order (MASH_ORDER) • Fractional numerator (PLL_NUM) • N divider (PLL_N) • Doubler (OSC_2X); Pre-R divider (PLL_R_PRE); Multiplier (MULT); Post-R divider (PLL_R) For example, 1. Program PLL_R and PLL_N to new values. If double buffering for these fields is enabled, the PLL will remain unchanged. 2. Program R0 with FCAL_EN = 1. The PLL will calibrate and lock using the new PLL_R and PLL_N values. 7.5.4 Block Programming In a register write sequence, instead of sending 24 bits (one W/R bit, seven address bits, and 16 data bits) of payload for each register (with Block Programming), only the first register write requires the W/R bit and the address bits. The succeeding registers require sending only the 16-bit of data. However, the succeeding registers must be in descending order. For example, if the first register is R20, then all 24 bits of payload must be sent for R20. The next register must be R19, but only the 16-bit data is required. The programming sequence is as follows: 1. Pull CSB pin LOW. 2. Write 0x14aaaa for R20. 3. Write 0xbbbb for R19, followed by 0xcccc for R18, and so on. 4. After the last register write is completed, pull CSB pin HIGH to finish Block Programming. Since there is no CSB pulse between each register, the 16-bit of data field of each register can be sent immediately after the previous one. 22 Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 SDI SCK MSB (R/W) Address (7-bit) 1st 2nd±8th Data (R20) 9th±24th Data (R19) 25th±40th Data (R18) 41th±56th CSB Figure 37. Block Programming Timing Example Block Programming applies to both register write and read. Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 23 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com 7.6 Register Maps DATA[15:0] REG. POR 15 14 13 12 11 10 9 R0 RAMP_EN VCO_PHASE_ SYNC_EN 1 0 ADD_HOLD 0 OUT_MUTE R1 0 0 0 0 1 0 0 0 0 0 R2 0 0 0 0 0 1 0 1 0 0 R3 0 0 0 0 0 1 1 1 1 R4 0 0 0 0 1 0 1 0 1 IPBUF_ TYPE IPBUF_ TERM 0 0 0 0 R5 0 0 R6 LDO_DLY R7 0 OUT_ FORCE R8 0 VCO_ DACISET_ FORCE 1 0 VCO_ CAPCTRL_ FORCE 0 0 0 8 7 4 3 2 1 0 1 FCAL_EN MUXOUT_ LD_SEL RESET POWER DOWN 0 0 1 0 0 0 0 0 0 020500h 0 0 0 0 0 1 0 030782h 0 1 0 0 0 0 1 1 040A43h 0 1 1 0 0 1 0 0 0 0530C8h 0 0 0 0 0 0 0 1 0 06C802h FCAL_HPFD_ADJ 6 5 FCAL_LPFD_ADJ CAL_CLK_DIV 00221Ch 010808h 0 0 0 0 0 0 1 0 1 1 0 0 1 0 0700B2h 0 0 0 0 0 0 0 0 0 0 082000h 0 0 0 0 0 0 0 1 0 0 090004h 1 1 1 1 0 0 0 0A10F8h 1 0 0 0 0BB018h 0 0 0 0 0D4000h 0 0 0 0E1840h 1 1 0 0F060Eh R9 0 MULT_HI 0 OSC_2X R10 0 0 0 1 R11 1 0 1 1 R12 0 1 0 1 R13 0 1 0 0 0 0 0 0 0 R14 0 0 0 1 1 0 0 0 0 R15 0 0 0 0 0 1 1 0 0 R16 0 0 0 0 0 0 0 VCO_DACISET R17 0 0 0 0 0 0 0 VCO_DACISET_STRT R18 0 0 0 0 0 0 0 0 R19 0 0 1 0 0 1 1 1 VCO_SEL_ FORCE MULT PLL_R PLL_R_PRE 0C5001h 0 0 CPG 0 1 0 1 0 0 1 100080h 0 110096h 1 0 0 VCO_CAPCTRL 120064h 1327B7h R20 0 1 0 0 0 1 0 0 1 0 0 0 143048h R21 0 0 0 0 0 1 0 0 0 0 0 0 1 0 0 1 150409h R22 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 160001h R23 0 0 0 0 0 0 0 0 0 1 1 1 1 1 0 0 17007Ch R24 0 0 0 0 0 1 1 1 0 0 0 1 1 0 1 0 18071Ah R25 0 0 0 0 0 1 1 0 0 0 1 0 0 1 0 0 190624h R26 0 0 0 0 1 0 0 0 0 0 0 0 1 0 0 0 1A0808h R27 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1B0002h R28 0 0 0 0 0 1 0 0 1 0 0 0 1 0 0 0 1C0488h R29 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1D18C6h R30 0 0 0 1 1 0 0 0 1 0 1 0 0 1 1 0 1E18C6h R31 1 1 0 0 0 0 1 1 1 1 1 0 0 1 1 0 1FC3E6h R32 0 0 0 0 0 1 0 1 1 0 1 1 1 1 1 1 2005BFh R33 0 0 0 1 1 1 1 0 0 0 0 0 0 0 0 1 211E01h R34 0 0 0 0 0 0 0 0 0 0 0 1 0 24 VCO_SEL 0 0 Submit Documentation Feedback PLL_N[18:16] 220010h Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 Register Maps (continued) DATA[15:0] REG. R35 POR 15 14 13 12 11 10 9 0 0 0 0 0 0 0 R36 R37 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 1 0 0 PLL_N MASH_ SEED_EN 0 230004h 240028h PFD_DLY_SEL 0 0 0 0 0 1 0 1 250205h R38 PLL_DEN[31:16] 26FFFFh R39 PLL_DEN[15:0] 27FFFFh R40 MASH_SEED[31:16] 280000h R41 MASH_SEED[15:0] 290000h R42 PLL_NUM[31:16] 2A0000h R43 PLL_NUM[15:0] OUTA_PWR 2B0000h OUTB_ PD OUTA_ PD MASH_ RESET_N 0 0 R44 0 0 R45 1 1 0 1 1 0 0 0 R46 0 0 0 0 0 1 1 1 1 1 1 1 0 0 R47 0 0 0 0 0 0 1 1 0 0 0 0 0 0 0 0 2F0300h R48 0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 3003E0h R49 0 1 0 0 0 0 0 1 1 0 0 0 0 0 0 0 314180h R50 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 320080h R51 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 330080h R52 0 0 0 0 0 1 0 0 0 0 1 0 0 0 0 1 340420h R53 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 350000h R54 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 360000h R55 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 370000h R56 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 380000h R57 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 390000h R58 INPIN_ IGNORE INPIN_ HYST 0 0 0 0 0 0 0 0 1 3A8001h R59 0 0 0 0 0 0 0 0 0 0 LD_TYPE 3B0001h OUTA_MUX INPIN_LVL 0 INPIN_FMT 0 0 0 0 R60 MASH_ORDER 2C22A2h OUTB_PWR 2DC622h OUTB_MUX LD_DLY 2E07F0h 3C03E8h R61 0 0 0 0 0 0 0 0 1 0 1 0 1 0 0 0 3D00A8h R62 DBLBUF_ EN_5 DBLBUF_ EN_4 DBLBUF_ EN_3 DBLBUF_ EN_2 DBLBUF_ EN_1 DBLBUF_ EN_0 0 0 1 0 1 0 1 1 1 1 3E00AFh R63 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 3F0000h R64 0 0 0 1 0 0 1 1 1 0 0 0 1 0 0 0 401388h R65 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 410000h R66 0 0 0 0 0 0 0 1 1 1 1 1 0 1 0 0 4201F4h R67 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 430000h R68 0 0 0 0 0 0 1 1 1 1 1 0 1 0 0 0 4403E8h R69 MASH_RST_COUNT[31:16] 450000h R70 MASH_RST_COUNT[15:0] 46C350h Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 25 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com Register Maps (continued) DATA[15:0] REG. POR 15 14 13 12 11 10 9 8 R71 0 0 0 0 0 0 0 0 R72 0 0 0 0 0 R73 0 0 0 0 R74 7 1 R76 0 0 0 0 0 0 0 0 0 R77 0 0 0 0 0 0 0 0 0 R78 0 0 0 0 RAMP_ THRESH[32] 0 QUICK_ RECAL_EN CHDIV RAMP_THRESH[31:16] R80 RAMP_THRESH[15:0] 0 0 0 RAMP_LIMIT_HIGH[31:16] R83 RAMP_LIMIT_HIGH[15:0] 0 0 0 0 SYSREF_ EN SYSREF_ REPEAT 0 1 0 0 0 480001h 49003Fh 4A0000h 0 0 0 0 0 0 4B0800h 0 0 0 1 1 0 0 4C000Ch 0 0 0 0 0 0 0 4D0000h 1 4E0064h 500000h 0 RAMP_LIMIT_LOW[31:16] R86 RAMP_LIMIT_LOW[15:0] 0 0 0 0 0 RAMP_LIMIT_ HIGH[32] 510000h 520000h 530000h 0 R85 470080h 4F0000h 0 R82 0 SYSREF_ PULSE VCO_CAPCTRL_STRT R79 R84 0 JESD_DAC3_CTRL 0 0 1 JESD_DAC4_CTRL 0 0 2 JESD_DAC1_CTRL 0 0 3 JESD_DAC2_CTRL 0 0 4 SYSREF_DIV SYSREF_PULSE_CNT 0 5 SYSREF_DIV_PRE R75 R81 6 0 0 0 0 0 0 RAMP_LIMIT_ LOW[32] 540000h 550000h 560000h R87 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 570000h R88 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 580000h R89 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 590000h R90 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 5A0000h R91 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 5B0000h R92 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 5C0000h R93 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 5D0000h R94 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 5E0000h R95 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 5F0000h R96 RAMP_ BURST_EN 0 0 600000h R97 RAMP0_RST RAMP_BURST_COUNT 0 0 0 0 RAMP_TRIGB R98 RAMP_TRIGA 0 RAMP0_INC[29:16] 0 R99 RAMP0_INC[15:0] R100 RAMP0_LEN R101 0 0 R102 0 0 0 0 0 0 0 RAMP_BURST_TRIG RAMP0_DLY 610000h 620000h 630000h 640000h 0 0 RAMP1_ DLY RAMP1_INC[29:16] RAMP1_ RST RAMP0_ NEXT 0 0 RAMP0_NEXT_TRIG 650000h 660000h R103 RAMP1_INC[15:0] 670000h R104 RAMP1_LEN 680000h 26 Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 Register Maps (continued) DATA[15:0] REG. POR 15 14 13 12 R105 11 10 9 8 7 6 RAMP_DLY_CNT 5 4 3 2 RAMP_ MANUAL RAMP1_ NEXT 0 0 1 0 RAMP1_NEXT_TRIG 694440h R106 0 0 0 0 0 0 0 0 0 0 0 RAMP_ TRIG_CAL 0 R107 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 6B0000h R108 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 6C0000h R109 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 6D0000h R110 0 0 0 0 0 0 0 0 0 0 6E0000h R111 0 0 0 0 0 0 0 R112 0 0 0 0 0 0 0 R113 0 0 0 0 0 0 0 0 0 R114 0 1 1 1 1 FSK_EN 0 0 0 R115 0 0 0 0 0 0 0 0 rb_LD_VTUNE 0 rb_VCO_SEL 0 RAMP_SCALE_COUNT 6A0007h rb_VCO_CAPCTRL 6F0000h rb_VCO_DACISET 0 0 0 FSK_SPI_LEVEL 700000h 0 0 FSK_SPI_DEV_SEL FSK_DEV_SCALE 0 0 0 710000h FSK_MODE_SEL 727800h 0 730000h 0 R116 FSK_DEV0 740000h R117 FSK_DEV1 750000h R118 FSK_DEV2 760000h R119 FSK_DEV3 770000h R120 FSK_DEV4 780000h R121 FSK_DEV5 790000h R122 FSK_DEV6 7A0000h R123 FSK_DEV7 7B0000h R124 FSK_SPI_FAST_DEV R125 0 0 1 0 0 0 1 0 1 7C0000h 0 0 0 1 0 0 0 7D2288h Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 27 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com Table 7 lists the access codes for the LMX2572 registers. Table 7. Access Type Codes ACCESS TYPE CODE DESCRIPTION R Read W Write Read Type R Write Type W Reset or Default Value -n Value after reset 7.6.1 Register R0 (offset = 00h) [reset = 221Ch] Figure 38. Register R0 15 14 13 12 11 10 9 4 3 2 1 0 RAMP_E N VCO_PH ASE_SY NC_EN 1 0 ADD_HO LD 0 OUT_MU TE FCAL_HPFD_ADJ FCAL_LPFD_ADJ 1 FCAL_E N MUXOU T_LD_S EL RESET POWER DOWN R/W-0h R/W-0h R/W-0h R/W-0h R/W-1h R/W-0h R/W-0h R/W-1h R/W-1h R/W-1h R/W-0h R/W-0h R/W-2h 8 7 6 5 Table 8. Register R0 Field Descriptions Bit Field Type Reset Description 15 RAMP_EN R/W 0h Enables frequency ramping. The action of programming register R0 with RAMP_EN = 1 starts the ramping. Be aware that this is in the same register as FCAL_EN, so toggling this bit also can active the ramping if RAMP_EN = 1. RAMP_EN applies to both automatic and manual ramping modes. 0: Normal operation 1: Starts frequency ramping 14 VCO_PHASE_SYNC_EN R/W 0h Enables phase sync mode. In this state, part of the channel divider is put in the feedback path to ensure deterministic phase. The action of toggling this bit from 0 to 1 also sends an asynchronous SYNC pulse. 0: Normal operation 1: Phase sync mode R/W 2h Program 2h to this field. R/W 0h Freeze the register address in Block Programming. See Block Programming for details. 13 - 12 11 ADD_HOLD 10 R/W 0h Program 0h to this field. OUT_MUTE R/W 1h Mutes RF outputs (RFoutA and RFoutB) when the VCO is calibrating. 0: Disabled 1: Muted 8-7 FCAL_HPFD_ADJ R/W 0h Set this field in accordance to the phase detector frequency for optimal VCO calibration. 0: fPD ≤ 37.5 MHz 1: 37.5 MHz < fPD ≤ 75 MHz 2: 75 MHz < fPD ≤ 100 MHz 3: fPD > 100 MHz 6-5 FCAL_LPFD_ADJ R/W 0h Set this field in accordance to the phase detector frequency for optimal VCO calibration. 0: fPD ≥ 10 MHz 1: 10 MHz > fPD ≥ 5 MHz 2: 5 MHz > fPD ≥ 2.5 MHz 3: fPD < 2.5 MHz R/W 1h Program 1h to this field. R/W 1h Enables and activates VCO frequency calibration. Writing register R0 with this bit set to a 1 enables and triggers the VCO frequency calibration. Writing 0 to this field is prohibited. 0: Invalid 1: Enabled 9 4 3 28 FCAL_EN Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 Table 8. Register R0 Field Descriptions (continued) Bit Field Type Reset Description 2 MUXOUT_LD_SEL R/W 1h Selects the functionality of the MUXout pin. 0: Register readback 1: Lock detect 1 RESET R/W 0h Resets all registers to silicon default values. This bit is self-clearing. 0: Normal operation 1: Reset 0 POWERDOWN R/W 0h Powers down the device. 0: Normal operation 1: Power down 7.6.2 Register R1 (offset = 01h) [reset = 0808h] Figure 39. Register R1 15 14 13 12 11 10 9 8 7 6 5 4 3 0 0 0 0 1 0 0 0 0 0 0 0 1 2 1 0 CAL_CLK_DIV R/W-101h R/W-0h Table 9. Register R1 Field Descriptions Bit Field 15 - 3 2-0 CAL_CLK_DIV Type Reset Description R/W 101h Program 101h to this field. R/W 0h Divides down the state machine clock during VCO calibration. Maximum state machine clock frequency is 200 MHz. State machine clock frequency = fOSCin / (2CAL_CLK_DIV). 0: fOSCin ≤ 200 MHz 1: 200 MHz < fOSCin ≤ 250 MHz All other values are not used. 7.6.3 Register R2 (offset = 02h) [reset = 0500h] Figure 40. Register R2 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 1 0 1 0 0 0 0 0 0 0 0 R/W-500h Table 10. Register R2 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 500h to this field. After programming R0 with RESET = 1, no need to program this register. 500h 7.6.4 Register R3 (offset = 03h) [reset = 0782h] Figure 41. Register R3 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 1 1 1 1 0 0 0 0 0 1 0 R/W-782h Table 11. Register R3 Field Descriptions Bit 15 - 0 Field Type Reset Description R/W Program 782h to this field. After programming R0 with RESET = 1, no need to program this register. 782h Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 29 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com 7.6.5 Register R4 (offset = 04h) [reset = 0A43h] Figure 42. Register R4 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 1 0 1 0 0 1 0 0 0 0 1 1 R/W-A43h Table 12. Register R4 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program A43h to this field. After programming R0 with RESET = 1, no need to program this register. A43h 7.6.6 Register R5 (offset = 05h) [reset = 30C8h] Figure 43. Register R5 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 1 IPBUF_T YPE IPBUF_T ERM 0 0 0 1 1 0 0 1 0 0 0 R/W-1h R/W-0h R/W-1h R/W-C8h Table 13. Register R5 Field Descriptions Bit Field 15 - 13 Type Reset Description R/W 1h Program 1h to this field. 12 IPBUF_TYPE R/W 1h Selects OSCin input type. 0: Differential input 1: Single-ended input 11 IPBUF_TERM R/W 0h Enables internal 50-Ω terminations on both OSCin and OSCin* pins. This function is valid even if OSCin input is configured as single-ended input. 0: Normal operation 1: OSCin and OSCin* pins are internally 50-Ω terminated R/W C8h Program C8h to this field. 10 - 0 7.6.7 Register R6 (offset = 06h) [reset = C802h] Figure 44. Register R6 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 1 0 LDO_DLY R/W-19h R/W-2h Table 14. Register R6 Field Descriptions Type Reset Description 15 - 11 LDO_DLY Bit R/W 19h LDO start up delay. Delay duration is a function of state machine clock. See PowerUp, Wake-Up Time for details. 10 - 0 R/W 2h Program 2h to this field. 30 Field Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 7.6.8 Register R7 (offset = 07h) [reset = 00B2h] Figure 45. Register R7 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 OUT_FO RCE 0 0 0 0 0 0 1 0 1 1 0 0 1 0 R/W-0h R/W-0h R/W-B2h Table 15. Register R7 Field Descriptions Bit Field 15 14 OUT_FORCE 13 - 0 Type Reset Description R/W 0h Program 0h to this field. R/W 0h Forces the RF outputs not to be automatically muted during VCO calibration. This bit should be enabled during frequency ramping. 0: Mute setting depends on OUT_MUTE 1: No mute during VCO calibration R/W B2h Program B2h to this field. 7.6.9 Register R8 (offset = 08h) [reset = 2000h] Figure 46. Register R8 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 VCO_DA CISET_F ORCE 1 0 VCO_CA PCTRL_ FORCE 0 0 0 0 0 0 0 0 0 0 0 R/W-0h R/W-0h R/W-2h R/W-0h R/W-0h Table 16. Register R8 Field Descriptions Bit Field 15 14 VCO_DACISET_FORCE 13 - 12 11 10 - 0 VCO_CAPCTRL_FORCE Type Reset Description R/W 0h Program 0h to this field. R/W 0h Forces VCO_DACISET value. Useful for fully-assisted VCO calibration and debugging purposes. 0: Normal operation 1: Use VCO_DACISET value instead of the value obtained from VCO calibration R/W 2h Program 2h to this field. R/W 0h Forces VCO_CAPCTRL value. Useful for fully-assisted VCO calibration and debugging purposes. 0: Normal operation 1: Use VCO_CAPCTRL value instead of the value obtained from VCO calibration R/W 0h Program 0h to this field. Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 31 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com 7.6.10 Register R9 (offset = 09h) [reset = 0004h] Figure 47. Register R9 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 MULT_H I 0 OSC_2X 0 0 0 0 0 0 0 0 0 1 0 0 R/W-0h R/W-0h R/W-0h R/W-0h R/W-4h Table 17. Register R9 Field Descriptions Bit Field 15 14 MULT_HI 13 12 OSC_2X 11 - 0 Type Reset Description R/W 0h Program 0h to this field. R/W 0h Sets this bit to 1 if the output frequency of the Multiplier is greater than 100 MHz. 0: Multiplier output ≤ 100 MHz 1: Multiplier output > 100 MHz R/W 0h Program 0h to this field. R/W 0h Enables reference path Doubler. 0: Disabled 1: Enabled R/W 4h Program 4h to this field. 7.6.11 Register R10 (offset = 0Ah) [reset = 10F8h] Figure 48. Register R10 15 14 13 12 0 0 0 1 11 10 9 8 7 MULT R/W-1h 6 5 4 3 2 1 0 1 1 1 1 0 0 0 R/W-1h R/W-78h Table 18. Register R10 Field Descriptions Bit Field 15 - 12 11 - 7 MULT 6-0 Type Reset Description R/W 1h Program 1h to this field. R/W 1h Reference path frequency Multiplier. Input frequency to the Multiplier: 10 to 40 MHz. Multiplier output frequency: 60 to 150 MHz. 0: Not used 1: Bypassed 2: Not recommended. Use OSC_2X instead of MULT 3: 3X ····· 7: 7X 8 - 31: Not recommended R/W 78h Program 78h to this field. 7.6.12 Register R11 (offset = 0Bh) [reset = B018h] Figure 49. Register R11 15 14 13 12 1 0 1 1 11 10 9 8 7 6 5 PLL_R R/W-Bh R/W-1h 4 3 2 1 0 1 0 0 0 R/W-8h Table 19. Register R11 Field Descriptions Bit Field 15 - 12 11 - 4 3-0 32 PLL_R Type Reset Description R/W Bh Program Bh to this field. R/W 1h Reference path Post-R divider. It is the divider after the frequency Multiplier. R/W 8h Program 8h to this field. Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 7.6.13 Register R12 (offset = 0Ch) [reset = 5001h] Figure 50. Register R12 15 14 13 12 0 1 0 1 11 10 9 8 7 6 5 4 3 2 1 0 PLL_R_PRE R/W-5h R/W-1h Table 20. Register R12 Field Descriptions Bit Field 15 - 12 11 - 0 PLL_R_PRE Type Reset Description R/W 5h Program 5h to this field. R/W 1h Reference path Pre-R divider. It is the divider before the frequency Multiplier. 7.6.14 Register R13 (offset = 0Dh) [reset = 4000h] Figure 51. Register R13 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 2 1 0 0 0 0 R/W-4000h Table 21. Register R13 Field Descriptions Bit Field Type Reset 15 - 0 R/W Description 4000h Program 4000h to this field. After programming R0 with RESET = 1, no need to program this register. 7.6.15 Register R14 (offset = 0Eh) [reset = 1840h] Figure 52. Register R14 15 14 13 12 11 10 9 8 7 0 0 0 1 1 0 0 0 0 6 5 4 3 CPG R/W-30h R/W-8h R/W-0h Table 22. Register R14 Field Descriptions Bit Field 15 - 7 6-3 CPG 2-0 Type Reset Description R/W 30h Program 30h to this field. R/W 8h Effective charge pump gain. This is the sum of the up and down currents. Each increment represents 625 µA. 0: Tri-state 1: 625 µA 2: 1250 µA 3: 1875 µA ····· 15: 6875 µA R/W 0h Program 0h to this field. 7.6.16 Register R15 (offset = 0Fh) [reset = 060Eh] Figure 53. Register R15 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 1 1 0 0 0 0 0 1 1 1 0 R/W-60Eh Table 23. Register R15 Field Descriptions Bit 15 - 0 Field Type Reset Description R/W Program 60Eh to this field. After programming R0 with RESET = 1, no need to program this register. 60Eh Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 33 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com 7.6.17 Register R16 (offset = 10h) [reset = 0080h] Figure 54. Register R16 15 14 13 12 11 10 9 0 0 0 0 0 0 0 8 7 6 5 4 3 2 1 0 2 1 0 VCO_DACISET R/W-0h R/W-80h Table 24. Register R16 Field Descriptions Bit Field 15 - 9 8-0 VCO_DACISET Type Reset Description R/W 0h Program 0h to this field. R/W 80h Programmable current setting for the VCO that is applied when VCO_DACISET_FORCE = 1. Useful for fully-assisted VCO calibration. 7.6.18 Register R17 (offset = 11h) [reset = 0096h] Figure 55. Register R17 15 14 13 12 11 10 9 0 0 0 0 0 0 0 8 7 6 5 4 3 VCO_DACISET_STRT R/W-0h R/W-96h Table 25. Register R17 Field Descriptions Bit Field 15 - 9 8-0 VCO_DACISET_STRT Type Reset Description R/W 0h Program 0h to this field. R/W 96h Starting calibration value for VCO_DACISET. 7.6.19 Register R18 (offset = 12h) [reset = 0064h] Figure 56. Register R18 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 1 1 0 0 1 0 0 1 0 R/W-64h Table 26. Register R18 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 64h to this field. After programming R0 with RESET = 1, no need to program this register. 64h 7.6.20 Register R19 (offset = 13h) [reset = 27B7h] Figure 57. Register R19 15 14 13 12 11 10 9 8 0 0 1 0 0 1 1 1 7 6 5 4 3 2 VCO_CAPCTRL R/W-27h R/W-B7h Table 27. Register R19 Field Descriptions Bit Field 15 - 8 7-0 34 VCO_CAPCTRL Type Reset Description R/W 27h Program 27h to this field. R/W B7h Programmable band within VCO core that applies when VCO_CAPCTRL_FORCE = 1. Valid values are 183 to 0, where the higher number is a lower frequency. Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 7.6.21 Register R20 (offset = 14h) [reset = 3048h] Figure 58. Register R20 15 14 0 1 13 R/W-0h 10 9 8 7 6 5 4 3 2 1 0 VCO_SEL 12 11 VCO_SE L_FORC E 0 0 0 1 0 0 1 0 0 0 R/W-6h R/W-0h R/W-48h Table 28. Register R20 Field Descriptions Type Reset Description 15 - 14 Bit R/W 0h Program 1h to this field. 13 - 11 VCO_SEL R/W 6h User specified start VCO for calibration. This sets the VCO that is used when VCO_SEL_FORCE = 1. 1: VCO1 2: VCO2 ····· 6: VCO6 All other values are not used. R/W 0h Forces the VCO to use the core specified by VCO_SEL. 0: Disabled 1: Enabled R/W 48h Program 48h to this field. 10 Field VCO_SEL_FORCE 9-0 7.6.22 Register R21 (offset = 15h) [reset = 0409h] Figure 59. Register R21 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 1 0 0 0 0 0 0 1 0 0 1 R/W-409h Table 29. Register R21 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 409h to this field. After programming R0 with RESET = 1, no need to program this register. 409h 7.6.23 Register R22 (offset = 16h) [reset = 0001h] Figure 60. Register R22 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 R/W-1h Table 30. Register R22 Field Descriptions Bit 15 - 0 Field Type Reset Description R/W Program 1h to this field. After programming R0 with RESET = 1, no need to program this register. 1h Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 35 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com 7.6.24 Register R23 (offset = 17h) [reset = 007Ch] Figure 61. Register R23 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 0 0 R/W-7Ch Table 31. Register R23 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 7Ch to this field. After programming R0 with RESET = 1, no need to program this register. 7Ch 7.6.25 Register R24 (offset = 18h) [reset = 071Ah] Figure 62. Register R24 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 1 1 1 0 0 0 1 1 0 1 0 R/W-71Ah Table 32. Register R24 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 71Ah to this field. After programming R0 with RESET = 1, no need to program this register. 71Ah 7.6.26 Register R25 (offset = 19h) [reset = 0624h] Figure 63. Register R25 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 1 1 0 0 0 1 0 0 1 0 0 R/W-624h Table 33. Register R25 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 624h to this field. After programming R0 with RESET = 1, no need to program this register. 624h 7.6.27 Register R26 (offset = 1Ah) [reset = 0808h] Figure 64. Register R26 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 1 0 0 0 0 0 0 0 1 0 0 0 R/W-808h Table 34. Register R26 Field Descriptions Bit 15 - 0 36 Field Type Reset Description R/W Program 808h to this field. After programming R0 with RESET = 1, no need to program this register. 808h Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 7.6.28 Register R27 (offset = 1Bh) [reset = 0002h] Figure 65. Register R27 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 R/W-2h Table 35. Register R27 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 2h to this field. After programming R0 with RESET = 1, no need to program this register. 2h 7.6.29 Register R28 (offset = 1Ch) [reset = 0488h] Figure 66. Register R28 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 1 0 0 1 0 0 0 1 0 0 0 R/W-488h Table 36. Register R28 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 488h to this field. After programming R0 with RESET = 1, no need to program this register. 488h 7.6.30 Register R29 (offset = 1Dh) [reset = 18C6h] Figure 67. Register R29 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R/W-18C6h Table 37. Register R29 Field Descriptions Bit Field Type Reset 15 - 0 R/W Description 18C6h Program 0h to this field. 7.6.31 Register R30 (offset = 1Eh) [reset = 18C6h] Figure 68. Register R30 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 1 1 0 0 0 1 0 1 0 0 1 1 0 R/W-18C6h Table 38. Register R30 Field Descriptions Bit 15 - 0 Field Type Reset R/W Description 18C6h Program 18A6h to this field. Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 37 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com 7.6.32 Register R31 (offset = 1Fh) [reset = C3E6h] Figure 69. Register R31 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 1 1 0 0 0 0 1 1 1 1 1 0 0 1 1 0 R/W-C3E6h Table 39. Register R31 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program C3E6h to this field. After programming R0 with RESET = 1, no need to program this register. C3E6h 7.6.33 Register R32 (offset = 20h) [reset = 05BFh] Figure 70. Register R32 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 1 0 1 1 0 1 1 1 1 1 1 R/W-5BFh Table 40. Register R32 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 5BFh to this field. After programming R0 with RESET = 1, no need to program this register. 5BFh 7.6.34 Register R33 (offset = 21h) [reset = 1E01h] Figure 71. Register R33 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 1 1 1 1 0 0 0 0 0 0 0 0 1 1 0 R/W-1E01h Table 41. Register R33 Field Descriptions Bit Field Type Reset 15 - 0 R/W Description 1E01h Program 1E01h to this field. After programming R0 with RESET = 1, no need to program this register. 7.6.35 Register R34 (offset = 22h) [reset = 0010h] Figure 72. Register R34 15 14 13 12 11 10 9 8 7 6 5 4 3 0 0 0 0 0 0 0 0 0 0 0 1 0 R/W-2h 2 PLL_N[18:16] R/W-0h Table 42. Register R34 Field Descriptions Bit Field 15 - 3 2-0 38 PLL_N[18:16] Type Reset Description R/W 2h Program 2h to this field. R/W 0h Upper 3 bits of N-divider. Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 7.6.36 Register R35 (offset = 23h) [reset = 0004h] Figure 73. Register R35 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 R/W-4h Table 43. Register R35 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 4h to this field. After programming R0 with RESET = 1, no need to program this register. 4h 7.6.37 Register R36 (offset = 24h) [reset = 0028h] Figure 74. Register R36 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 PLL_N R/W-28h Table 44. Register R36 Field Descriptions Bit 15 - 0 Field Type Reset Description PLL_N R/W Lower 16 bits of N-divider. 28h 7.6.38 Register R37 (offset = 25h) [reset = 0205h] Figure 75. Register R37 15 14 MASH_S EED_EN 0 13 12 PFD_DLY_SEL 11 10 R/W-0h R/W-0h R/W-2h 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 1 0 1 R/W-5h Table 45. Register R37 Field Descriptions Bit Field Type Reset Description 15 MASH_SEED_EN R/W 0h Enables the MASH_SEED value to be used. This can be used for programmable phase stepping or fractional spur optimization. 0: Disabled 1: Enabled R/W 0h Program 0h to this field. R/W 2h PFD_DLY_SEL must be adjusted in accordance to the N-divider value. See Table 3 for details. R/W 5h Program 5h to this field. 14 13 - 8 PFD_DLY_SEL 7-0 7.6.39 Register R38 (offset = 26h) [reset = FFFFh] Figure 76. Register R38 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 PLL_DEN[31:16] R/W-FFFFh Table 46. Register R38 Field Descriptions Bit 15 - 0 Field Type Reset Description PLL_DEN[31:16] R/W Upper 16 bits of fractional denominator (DEN). FFFFh Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 39 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com 7.6.40 Register R39 (offset = 27h) [reset = FFFFh] Figure 77. Register R39 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 4 3 2 1 0 PLL_DEN[15:0] R/W-FFFFh Table 47. Register R39 Field Descriptions Bit 15 - 0 Field Type Reset Description PLL_DEN[15:0] R/W Lower 16 bits of fractional denominator (DEN). FFFFh 7.6.41 Register R40 (offset = 28h) [reset = 0000h] Figure 78. Register R40 15 14 13 12 11 10 9 8 7 6 5 MASH_SEED[31:16] R/W-0h Table 48. Register R40 Field Descriptions Bit 15 - 0 Field Type Reset Description MASH_SEED[31:16] R/W Upper 16 bits of MASH_SEED. MASH_SEED sets the initial state of the fractional engine. Useful for producing a phase shift and fractional spur optimization. 0h 7.6.42 Register R41 (offset = 29h) [reset = 0000h] Figure 79. Register R41 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 MASH_SEED[15:0] R/W-0h Table 49. Register R41 Field Descriptions Bit 15 - 0 Field Type Reset Description MASH_SEED[15:0] R/W Lower 16 bits of MASH_SEED. MASH_SEED sets the initial state of the fractional engine. Useful for producing a phase shift and fractional spur optimization. 0h 7.6.43 Register R42 (offset = 2Ah) [reset = 0000h] Figure 80. Register R42 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 PLL_NUM[31:16] R/W-0h Table 50. Register R42 Field Descriptions Bit 15 - 0 40 Field Type Reset Description PLL_NUM[31:16] R/W Upper 16 bits of fractional numerator (NUM). 0h Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 7.6.44 Register R43 (offset = 2Bh) [reset = 0000h] Figure 81. Register R43 15 14 13 12 11 10 9 8 7 6 5 4 3 2 2 1 0 1 0 PLL_NUM[15:0] R/W-0h Table 51. Register R43 Field Descriptions Bit 15 - 0 Field Type Reset Description PLL_NUM[15:0] R/W Lower 16 bits of fractional numerator (NUM). 0h 7.6.45 Register R44 (offset = 2Ch) [reset = 22A2h] Figure 82. Register R44 15 14 0 0 13 R/W-0h 12 11 7 6 5 4 3 OUTA_PWR 10 9 8 OUTB_P D OUTA_P D MASH_R ESET_N 0 0 R/W-22h R/W-1h R/W-0h R/W-1h R/W-0h MASH_ORDER R/W-2h Table 52. Register R44 Field Descriptions Bit Field Type Reset Description R/W 0h Program 0h to this field. OUTA_PWR R/W 22h Adjusts RFoutA output power. Higher numbers give more output power. 7 OUTB_PD R/W 1h Powers down RF output B. 0: Normal operation 1: Power down 6 OUTA_PD R/W 0h Powers down RF output A. 0: Normal operation 1: Power down 5 MASH_RESET_N R/W 1h Resets MASH. 0: Reset 1: Normal operation R/W 0h Program 0h to this field. R/W 2h Sets the MASH order. 0: Integer mode 1: First order modulator 2: Second order modulator 3: Third order modulator 4: Fourth order modulator 5 - 7: Not used 15 - 14 13 - 8 4-3 2-0 MASH_ORDER Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 41 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com 7.6.46 Register R45 (offset = 2Dh) [reset = C622h] Figure 83. Register R45 15 14 13 1 1 0 12 11 10 9 8 7 6 1 1 0 0 0 OUTA_MUX R/W-6h R/W-0h 5 4 3 2 1 0 0 OUTB_PWR R/W-18h R/W-22h Table 53. Register R45 Field Descriptions Type Reset Description 15 - 13 Bit R/W 6h Program 6h to this field. 12 - 11 OUTA_MUX R/W 0h Selects the input source to RFoutA. 0: Channel divider 1: VCO 2: Not used 3: High impedance 10 - 6 R/W 18h Program 18h to this field. R/W 22h Adjusts RFoutB output power. Higher numbers give more output power. 5-0 Field OUTB_PWR 7.6.47 Register R46 (offset = 2Eh) [reset = 07F0h] Figure 84. Register R46 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 1 1 1 1 1 1 1 0 0 OUTB_MUX R/W-1FCh R/W-0h Table 54. Register R46 Field Descriptions Bit Field 15 - 2 1-0 OUTB_MUX Type Reset Description R/W 1FCh Program 1FCh to this field. R/W 0h Selects the input source to RFoutB. 0: Channel divider 1: VCO 2: SYSREF 3: High impedance 7.6.48 Register R47 (offset = 2Fh) [reset = 0300h] Figure 85. Register R47 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 1 1 0 0 0 0 0 0 0 0 R/W-300h Table 55. Register R47 Field Descriptions Bit 15 - 0 42 Field Type Reset Description R/W Program 300h to this field. After programming R0 with RESET = 1, no need to program this register. 300h Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 7.6.49 Register R48 (offset = 30h) [reset = 03E0h] Figure 86. Register R48 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 1 1 1 1 1 0 0 0 0 0 R/W-3E0h Table 56. Register R48 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 3E0h to this field. After programming R0 with RESET = 1, no need to program this register. 3E0h 7.6.50 Register R49 (offset = 31h) [reset = 4180h] Figure 87. Register R49 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 1 0 0 0 0 0 1 1 0 0 0 0 0 0 0 R/W-4180h Table 57. Register R49 Field Descriptions Bit Field Type Reset 15 - 0 R/W Description 4180h Program 4180h to this field. After programming R0 with RESET = 1, no need to program this register. 7.6.51 Register R50 (offset = 32h) [reset = 0080h] Figure 88. Register R50 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 R/W-80h Table 58. Register R50 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 80h to this field. After programming R0 with RESET = 1, no need to program this register. 80h 7.6.52 Register R51 (offset = 33h) [reset = 0080h] Figure 89. Register R51 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 R/W-80h Table 59. Register R51 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 80h to this field. After programming R0 with RESET = 1, no need to program this register. 80h 7.6.53 Register R52 (offset = 34h) [reset = 0420h] Figure 90. Register R52 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 1 0 0 0 0 1 0 0 0 0 1 R/W-420h Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 43 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com Table 60. Register R52 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 421h to this field. 420h 7.6.54 Register R53 (offset = 35h) [reset = 0000h] Figure 91. Register R53 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R/W-0h Table 61. Register R53 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 0h to this field. After programming R0 with RESET = 1, no need to program this register. 0h 7.6.55 Register R54 (offset = 36h) [reset = 0000h] Figure 92. Register R54 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R/W-0h Table 62. Register R54 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 0h to this field. After programming R0 with RESET = 1, no need to program this register. 0h 7.6.56 Register R55 (offset = 37h) [reset = 0000h] Figure 93. Register R55 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R/W-0h Table 63. Register R55 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 0h to this field. After programming R0 with RESET = 1, no need to program this register. 0h 7.6.57 Register R56 (offset = 38h) [reset = 0000h] Figure 94. Register R56 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R/W-0h Table 64. Register R56 Field Descriptions Bit 15 - 0 44 Field Type Reset Description R/W Program 0h to this field. After programming R0 with RESET = 1, no need to program this register. 0h Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 7.6.58 Register R57 (offset = 39h) [reset = 0000h] Figure 95. Register R57 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 R/W-0h Table 65. Register R57 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 20h to this field. 0h 7.6.59 Register R58 (offset = 3Ah) [reset = 8001h] Figure 96. Register R58 15 14 INPIN_I GNORE INPIN_H YST 13 INPIN_LVL 12 11 INPIN_FMT 10 R/W-1h R/W-0h R/W-0h R/W-0h 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 1 R/W-1h Table 66. Register R58 Field Descriptions Bit Field Type Reset Description 15 INPIN_IGNORE R/W 1h Ignore SYNC and SysRefReq pins when VCO_PHASE_SYNC = 0. This bit should be set to 1 unless VCO_PHASE_SYNC = 1. 14 INPIN_HYST R/W 0h Enables high hysteresis for LVDS input to SysRefReq and SYNC pin. 0: Disabled 1: Enabled 13 - 12 INPIN_LVL R/W 0h Sets bias level for LVDS input to SysRefReq and SYNC pin. 0: Vin / 4 1: Vin 2: Vin / 2 3: Invalid 11 - 9 R/W 0h Defines the input format of SysRefReq and SYNC pin. 0: SYNC = SysRefReq = CMOS 1: SYNC = LVDS; SysRefReq = CMOS 2: SYNC = CMOS; SysRefReq = LVDS 3: SYNC = SysRefReq = LVDS 4: SYNC = SysRefReq = CMOS 5: SYNC = LVDS (filtered); SysRefReq = CMOS 6: SYNC = CMOS; SysRefReq = LVDS (filtered) 7: SYNC = SysRefReq = LVDS (filtered) R/W 1h Program 1h to this field. INPIN_FMT 8-0 7.6.60 Register R59 (offset = 3Bh) [reset = 0001h] Figure 97. Register R59 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 LD_TYP E R/W-0h R/W-1h Table 67. Register R59 Field Descriptions Bit Field 15 - 1 0 LD_TYPE Type Reset Description R/W 0h Program 0h to this field. R/W 1h Defines lock detect type. 0: VCOCal. Lock detect asserts a HIGH output after the VCO has finished calibration and the LD_DLY timeout counter is finished. 1: Vtune and VCOCal. Lock detect asserts a HIGH output when VCOCal lock detect would assert a HIGH signal and the tuning voltage to the VCO is within acceptable limits. Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 45 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com 7.6.61 Register R60 (offset = 3Ch) [reset = 03E8h] Figure 98. Register R60 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 LD_DLY R/W-3E8h Table 68. Register R60 Field Descriptions Bit 15 - 0 Field Type Reset Description LD_DLY R/W For the VCOCal lock detect, this is the delay in ¼ fPD cycles that is added after the calibration is finished before the VCOCal lock detect is asserted HIGH. 3E8h 7.6.62 Register R61 (offset = 3Dh) [reset = 00A8h] Figure 99. Register R61 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 1 0 1 0 1 0 0 0 R/W-A8h Table 69. Register R61 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program A8h to this field. After programming R0 with RESET = 1, no need to program this register. A8h 7.6.63 Register R62 (offset = 3Eh) [reset = 00AFh] Figure 100. Register R62 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 DBLBUF _EN_5 DBLBUF _EN_4 DBLBUF _EN_3 DBLBUF _EN_2 DBLBUF _EN_1 DBLBUF _EN_0 0 0 1 0 1 0 1 1 1 1 R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-AFh Table 70. Register R62 Field Descriptions Bit Field Type Reset Description 15 DBLBUF_EN_5 R/W 0h Enables double buffering for the MASH order. 0: Disabled 1: Enabled 14 DBLBUF_EN_4 R/W 0h Enables double buffering for fractional numerator NUM. 0: Disabled 1: Enabled 13 DBLBUF_EN_3 R/W 0h Enables double buffering for the integer portion of the N-divider. 0: Disabled 1: Enabled 12 DBLBUF_EN_2 R/W 0h Enables double buffering for the Pre-R and Post-R dividers in the reference path. Effective only if DBL_BUF_EN_3 = 1. 0: Disabled 1: Enabled 11 DBLBUF_EN_1 R/W 0h Enables double buffering for the Multiplier in the reference path. Effective only if DBL_BUF_EN_3 = 1. 0: Disabled 1: Enabled 10 DBLBUF_EN_0 R/W 0h Enables double buffering for the Doubler in the reference path. Effective only if DBL_BUF_EN_3 = 1. 0: Disabled 1: Enabled R/W AFh Program AFh to this field. 9-0 46 Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 7.6.64 Register R63 (offset = 3Fh) [reset = 0000h] Figure 101. Register R63 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R/W-0h Table 71. Register R63 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 0h to this field. After programming R0 with RESET = 1, no need to program this register. 0h 7.6.65 Register R64 (offset = 40h) [reset = 1388h] Figure 102. Register R64 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 1 0 0 1 1 1 0 0 0 1 0 0 0 R/W-1388h Table 72. Register R64 Field Descriptions Bit Field Type Reset 15 - 0 R/W Description 1388h Program 1388h to this field. After programming R0 with RESET = 1, no need to program this register. 7.6.66 Register R65 (offset = 41h) [reset = 0000h] Figure 103. Register R65 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R/W-0h Table 73. Register R65 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 0h to this field. After programming R0 with RESET = 1, no need to program this register. 0h 7.6.67 Register R66 (offset = 42h) [reset = 01F4h] Figure 104. Register R66 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 1 1 1 1 1 0 1 0 0 R/W-1F4h Table 74. Register R66 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 1F4h to this field. After programming R0 with RESET = 1, no need to program this register. 1F4h 7.6.68 Register R67 (offset = 43h) [reset = 0000h] Figure 105. Register R67 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R/W-0h Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 47 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com Table 75. Register R67 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 0h to this field. After programming R0 with RESET = 1, no need to program this register. 0h 7.6.69 Register R68 (offset = 44h) [reset = 03E8h] Figure 106. Register R68 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 1 1 1 1 1 0 1 0 0 0 1 0 R/W-3E8h Table 76. Register R68 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 3E8h to this field. After programming R0 with RESET = 1, no need to program this register. 3E8h 7.6.70 Register R69 (offset = 45h) [reset = 0000h] Figure 107. Register R69 15 14 13 12 11 10 9 8 7 6 5 4 3 2 MASH_RST_COUNT[31:16] R/W-0h Table 77. Register R69 Field Descriptions Bit 15 - 0 Field Type Reset Description MASH_RST_COUNT [31:16] R/W Upper 16 bits of MASH_RST_COUNT. This register is used to add a delay when using phase SYNC. The delay should be set at least four times the PLL lock time. This delay is expressed in state machine clock periods. One of these periods is equal to 2CAL_CLK_DIV / fOSCin. 0h 7.6.71 Register R70 (offset = 46h) [reset = C350h] Figure 108. Register R70 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 MASH_RST_COUNT[15:0] R/W-C350h Table 78. Register R70 Field Descriptions Bit 15 - 0 Field Type Reset MASH_RST_COUNT [15:0] R/W Description C350h Lower 16 bits of MASH_RST_COUNT. 7.6.72 Register R71 (offset = 47h) [reset = 0080h] Figure 109. Register R71 15 14 13 12 11 10 9 8 0 0 0 0 0 0 0 0 R/W-0h 48 7 4 3 2 1 0 SYSREF_DIV_PRE 6 SYSREF _PULSE SYSREF _EN SYSREF _REPEA T 0 1 R/W-4h R/W-0h R/W-0h R/W-0h Submit Documentation Feedback 5 R/W-0h Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 Table 79. Register R71 Field Descriptions Bit Field Type Reset Description R/W 0h Program 0h to this field. SYSREF_DIV_PRE R/W 4h This divider is used to get the frequency input to the Post-SR divider within acceptable limits. See Application for SYSREF for details. 2: Divide by 2 4: Divide by 4 All other values are invalid. 4 SYSREF_PULSE R/W 0h When in master mode (SYSREF_REPEAT = 0), this allows multiple pulses (as determined by SYSREF_PULSE_CNT) to be sent out whenever the SysRefReq pin goes high. 0: Disabled 1: Enabled 3 SYSREF_EN R/W 0h Enables SYSREF mode. 0: Disabled 1: Enabled 2 SYSREF_REPEAT R/W 0h Defines SYSREF mode. 0: Master mode. In this mode, SYSREF pulses are generated continuously at the output. 1: Repeater Mode. In this mode, SYSREF pulses are generated in response to the SysRefReq pin. R/W 0h Program 1h to this field. 15 - 8 7-5 1-0 7.6.73 Register R72 (offset = 48h) [reset = 0001h] Figure 110. Register R72 15 14 13 12 11 0 0 0 0 0 10 9 8 7 6 5 4 3 2 1 0 SYSREF_DIV R/W-0h R/W-1h Table 80. Register R72 Field Descriptions Bit Field 15 - 11 10 - 0 SYSREF_DIV Type Reset Description R/W 0h Program 0h to this field. R/W 1h This divider further divides the output frequency for the SYSREF. See Application for SYSREF for details. 7.6.74 Register R73 (offset = 49h) [reset = 003Fh] Figure 111. Register R73 15 14 13 12 0 0 0 0 11 10 9 8 7 6 5 4 3 2 JESD_DAC2_CTRL JESD_DAC1_CTRL R/W-0h R/W-3Fh R/W-0h 1 0 1 0 Table 81. Register R73 Field Descriptions Bit Field 15 - 12 Type Reset Description R/W 0h Program 0h to this field. 11 - 6 JESD_DAC2_CTRL R/W 0h Programmable delay adjustment for SYSREF mode. 5-0 JESD_DAC1_CTRL R/W 3Fh Programmable delay adjustment for SYSREF mode. 7.6.75 Register R74 (offset = 4Ah) [reset = 0000h] Figure 112. Register R74 15 14 13 12 11 10 9 8 7 6 5 4 3 2 SYSREF_PULSE_CNT JESD_DAC4_CTRL JESD_DAC3_CTRL R/W-0h R/W-0h R/W-0h Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 49 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com Table 82. Register R74 Field Descriptions Type Reset Description 15 - 12 SYSREF_PULSE_CNT Bit Field R/W 0h Used in SYSREF_REPEAT mode to define how many pulses are sent. 11 - 6 JESD_DAC4_CTRL R/W 0h Programmable delay adjustment for SYSREF mode. 5-0 JESD_DAC3_CTRL R/W 0h Programmable delay adjustment for SYSREF mode. 7.6.76 Register R75 (offset = 4Bh) [reset = 0800h] Figure 113. Register R75 15 14 13 12 11 0 0 0 0 1 10 9 8 7 6 CHDIV R/W-1h 5 4 3 2 1 0 0 0 0 0 0 0 R/W-0h R/W-0h Table 83. Register R75 Field Descriptions Bit Field 15 - 11 10 - 6 CHDIV 5-0 Type Reset Description R/W 1h Program 1h to this field. R/W 0h Channel divider. 0: Divide by 2 1: Divide by 4 3: Divide by 8 5: Divide by 16 7: Divide by 32 9: Divide by 64 12: Divide by 128 14: Divide by 256 All other values are not used. R/W 0h Program 0h to this field. 7.6.77 Register R76 (offset = 4Ch) [reset = 000Ch] Figure 114. Register R76 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 0 0 R/W-Ch Table 84. Register R76 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program Ch to this field. After programming R0 with RESET = 1, no need to program this register. Ch 7.6.78 Register R77 (offset = 4Dh) [reset = 0000h] Figure 115. Register R77 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R/W-0h Table 85. Register R77 Field Descriptions Bit 15 - 0 50 Field Type Reset Description R/W Program 0h to this field. After programming R0 with RESET = 1, no need to program this register. 0h Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 7.6.79 Register R78 (offset = 4Eh) [reset = 0064h] Figure 116. Register R78 15 14 13 12 11 10 9 0 0 0 0 RAMP_T HRESH[ 32] 0 QUICK_ RECAL_ EN VCO_CAPCTRL_STRT 1 R/W-0h R/W-0h R/W-0h R/W-32h R/W-0h R/W-0h 8 7 6 5 4 3 2 1 0 Table 86. Register R78 Field Descriptions Bit Field 15 - 12 11 RAMP_THRESH[32] 10 9 8-1 Type Reset Description R/W 0h Program 0h to this field. R/W 0h The 33rd bit of RAMP_THRESH. RAMP_THRESH sets how much the ramp can change the VCO frequency before a VCO calibration is required. If the frequency is chosen to be Δf, then RAMP_THRESH = (Δf / fPD) × 224. R/W 0h Program 0h to this field. QUICK_RECAL_EN R/W 0h This sets the initial VCO starting calibration values. Especially useful if the frequency change is smaller, say < 50 MHz or so. 0: Calibration starts with VCO_SEL, VCO_CAPCTRL_START, VCO_DACISET_START 1: Calibration starts with the current value VCO_CAPCTRL_STRT R/W 32h This sets the starting VCO_CAPCTRL value that is used for VCO frequency calibration. Smaller values yield a higher frequency band within a VCO core. Valid number range is 0 to 183. R/W 0h Program 1h to this field. 0 7.6.80 Register R79 (offset = 4Fh) [reset = 0000h] Figure 117. Register R79 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 2 1 0 RAMP_THRESH[31:16] R/W-0h Table 87. Register R79 Field Descriptions Bit 15 - 0 Field Type Reset Description RAMP_THRESH[31:16] R/W Upper 16 bits of RAMP_THRESH. See Table 86 for description. 0h 7.6.81 Register R80 (offset = 50h) [reset = 0000h] Figure 118. Register R80 15 14 13 12 11 10 9 8 7 6 5 4 3 RAMP_THRESH[15:0] R/W-0h Table 88. Register R80 Field Descriptions Bit 15 - 0 Field Type Reset Description RAMP_THRESH[15:0] R/W Lower 16 bits of RAMP_THRESH. See Table 86 for description. 0h 7.6.82 Register R81 (offset = 51h) [reset = 0000h] Figure 119. Register R81 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 RAMP_L IMIT_HI GH[32] R/W-0h R/W-0h Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 51 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com Table 89. Register R81 Field Descriptions Bit Field 15 - 1 0 RAMP_LIMIT_HIGH[32] Type Reset Description R/W 0h Program 0h to this field. R/W 0h The 33rd bit of RAMP_LIMIT_HIGH. RAMP_LIMIT_HIGH sets a maximum frequency that the ramp cannot exceed so that the VCO does not get set beyond a valid frequency range. Suppose fHIGH is this frequency and fVCO is the starting VCO frequency, then: fHIGH ≥ fVCO; RAMP_LIMIT_HIGH = 224 × (fHIGH – fVCO) / fPD 7.6.83 Register R82 (offset = 52h) [reset = 0000h] Figure 120. Register R82 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 1 0 RAMP_LIMIT_HIGH[31:16] R/W-0h Table 90. Register R82 Field Descriptions Bit 15 - 0 Field Type Reset Description RAMP_LIMIT_HIGH [31:16] R/W Upper 16 bits of RAMP_LIMIT_HIGH. See Table 89 for description. 0h 7.6.84 Register R83 (offset = 53h) [reset = 0000h] Figure 121. Register R83 15 14 13 12 11 10 9 8 7 6 5 4 3 2 RAMP_LIMIT_HIGH[15:0] R/W-0h Table 91. Register R83 Field Descriptions Bit 15 - 0 Field Type Reset RAMP_LIMIT_HIGH[15:0] R/W 0h Description Lower 16 bits of RAMP_LIMIT_HIGH. See Table 89 for description. 7.6.85 Register R84 (offset = 54h) [reset = 0000h] Figure 122. Register R84 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 RAMP_L IMIT_LO W[32] R/W-0h R/W-0h Table 92. Register R84 Field Descriptions Bit Field 15 - 1 0 52 RAMP_LIMIT_LOW[32] Type Reset Description R/W 0h Program 0h to this field. R/W 0h The 33rd bit of RAMP_LIMIT_LOW. RAMP_LIMIT_LOW sets a minimum frequency that the ramp cannot exceed so that the VCO does not get set beyond a valid frequency range. Suppose fLOW is this frequency and fVCO is the starting VCO frequency, then: fLOW ≤ fVCO; RAMP_LIMIT_LOW = 233 – 224 × (fVCO – fLOW) / fPD Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 7.6.86 Register R85 (offset = 55h) [reset = 0000h] Figure 123. Register R85 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 1 0 RAMP_LIMIT_LOW[31:16] R/W-0h Table 93. Register R85 Field Descriptions Bit 15 - 0 Field Type Reset Description RAMP_LIMIT_LOW [31:16] R/W Upper 16 bits of RAMP_LIMIT_LOW. See Table 92 for description. 0h 7.6.87 Register R86 (offset = 56h) [reset = 0000h] Figure 124. Register R86 15 14 13 12 11 10 9 8 7 6 5 4 3 2 RAMP_LIMIT_LOW[15:0] R/W-0h Table 94. Register R86 Field Descriptions Bit 15 - 0 Field Type Reset Description RAMP_LIMIT_LOW[15:0] R/W Lower 16 bits of RAMP_LIMIT_LOW. See Table 92 for description. 0h 7.6.88 Register R87 (offset = 57h) [reset = 0000h] Figure 125. Register R87 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R/W-0h Table 95. Register R87 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 0h to this field. After programming R0 with RESET = 1, no need to program this register. 0h 7.6.89 Register R88 (offset = 58h) [reset = 0000h] Figure 126. Register R88 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R/W-0h Table 96. Register R88 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 0h to this field. After programming R0 with RESET = 1, no need to program this register. 0h 7.6.90 Register R89 (offset = 59h) [reset = 0000h] Figure 127. Register R89 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R/W-0h Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 53 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com Table 97. Register R89 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 0h to this field. After programming R0 with RESET = 1, no need to program this register. 0h 7.6.91 Register R90 (offset = 5Ah) [reset = 0000h] Figure 128. Register R90 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R/W-0h Table 98. Register R90 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 0h to this field. After programming R0 with RESET = 1, no need to program this register. 0h 7.6.92 Register R91 (offset = 5Bh) [reset = 0000h] Figure 129. Register R91 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R/W-0h Table 99. Register R91 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 0h to this field. After programming R0 with RESET = 1, no need to program this register. 0h 7.6.93 Register R92 (offset = 5Ch) [reset = 0000h] Figure 130. Register R92 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R/W-0h Table 100. Register R92 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 0h to this field. After programming R0 with RESET = 1, no need to program this register. 0h 7.6.94 Register R93 (offset = 5Dh) [reset = 0000h] Figure 131. Register R93 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R/W-0h Table 101. Register R93 Field Descriptions Bit 15 - 0 54 Field Type Reset Description R/W Program 0h to this field. After programming R0 with RESET = 1, no need to program this register. 0h Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 7.6.95 Register R94 (offset = 5Eh) [reset = 0000h] Figure 132. Register R94 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R/W-0h Table 102. Register R94 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 0h to this field. After programming R0 with RESET = 1, no need to program this register. 0h 7.6.96 Register R95 (offset = 5Fh) [reset = 0000h] Figure 133. Register R95 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 R/W-0h Table 103. Register R95 Field Descriptions Bit Field 15 - 0 Type Reset Description R/W Program 0h to this field. After programming R0 with RESET = 1, no need to program this register. 0h 7.6.97 Register R96 (offset = 60h) [reset = 0000h] Figure 134. Register R96 15 14 13 12 11 10 9 8 7 RAMP_B URST_E N RAMP_BURST_COUNT R/W-0h R/W-0h 6 5 4 3 2 R/W-0h Table 104. Register R96 Field Descriptions Bit Field Type Reset Description 15 RAMP_BURST_EN R/W 0h This enables ramp burst mode. In this mode, a number of ramps equal to RAMP_BURST_COUNT is sent out whenever RAMP_EN is set to 1. This is intended to produce a finite pattern of ramps, instead of a continuous pattern. 0: Disabled 1: Enabled RAMP_BURST_COUNT R/W 0h When RAMP_BURST_EN = 1, this sets the number of ramps that is sent out. R/W 0h Program 0h to this field. 14 - 2 1-0 7.6.98 Register R97 (offset = 61h) [reset = 0000h] Figure 135. Register R97 15 14 13 12 11 RAMP0_ RST 0 0 0 0 R/W-0h 10 R/W-0h 9 8 7 6 5 4 3 2 1 0 RAMP_TRIGB RAMP_TRIGA 0 RAMP_BURST_TRI G R/W-0h R/W-0h R/W-0h R/W-0h Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 55 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com Table 105. Register R97 Field Descriptions Bit Field Type Reset Description 15 RAMP0_RST R/W 0h Resets RAMP0 at start of ramp to eliminate round-off errors. Applies to automatic ramping mode only. 0: Disabled 1: Reset R/W 0h Program 0h to this field. 14 - 11 10 - 7 RAMP_TRIGB R/W 0h Definition of ramp trigger B. 0: Disabled 1: RampClk pin rising edge 2: RampDir pin rising edge 4: Always triggered 9: RampClk pin falling edge 10: RampDir pin falling edge All other values are not used. 6-3 RAMP_TRIGA R/W 0h Definition of ramp trigger A. Options are same as RAMP_TRIGB. R/W 0h Program 0h to this field. R/W 0h Sets what triggers the next ramp in burst mode. 0: Ramp transition 1: Trigger A 2: Trigger B 3: Not used 2 1-0 RAMP_BURST_TRIG 7.6.99 Register R98 (offset = 62h) [reset = 0000h] Figure 136. Register R98 15 14 13 12 11 10 1 0 RAMP0_INC[29:16] 9 8 7 6 5 4 3 2 0 RAMP0_ DLY R/W-0h R/W-0h R/W-0h Table 106. Register R98 Field Descriptions Bit 15 - 2 Field Type Reset Description RAMP0_INC[29:16] R/W 0h Upper 14 bits of RAMP0_INC. RAMP0_INC sets the 2's compliment of the number added to the fractional numerator on every ramp cycle. R/W 0h Program 0h to this field. R/W 0h When enabled, increases RAMP0 length by basing the ramp clock on two phase detector cycles instead of one. 0: Ramp clock = 1 fPD cycle 1: Ramp clock = 2 fPD cycles 1 0 RAMP0_DLY 7.6.100 Register R99 (offset = 63h) [reset = 0000h] Figure 137. Register R99 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 RAMP0_INC[15:0] R/W-0h Table 107. Register R99 Field Descriptions Bit 15 - 0 56 Field Type Reset Description RAMP0_INC[15:0] R/W Lower 16 bits of RAMP0_INC. See Table 106 for description. 0h Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 7.6.101 Register R100 (offset = 64h) [reset = 0000h] Figure 138. Register R100 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 1 0 RAMP0_LEN R/W-0h Table 108. Register R100 Field Descriptions Bit 15 - 0 Field Type Reset Description RAMP0_LEN R/W Length of the ramp in phase detector cycles. 0h 7.6.102 Register R101 (offset = 65h) [reset = 0000h] Figure 139. Register R101 15 14 13 12 11 10 9 8 7 6 5 4 3 2 0 0 0 0 0 0 0 0 0 RAMP1_ DLY RAMP1_ RST RAMP0_ NEXT 0 0 R/W-0h R/W-0h R/W-0h R/W-0h RAMP0_NEXT_TRI G R/W-0h R/W-0h Table 109. Register R101 Field Descriptions Bit Field 15 - 7 Type Reset Description R/W 0h Program 0h to this field. 6 RAMP1_DLY R/W 0h When enabled, increases RAMP1 length by basing the ramp clock on two phase detector cycles instead of one. 0: Ramp clock = 1 fPD cycle 1: Ramp clock = 2 fPD cycles 5 RAMP1_RST R/W 0h Resets RAMP1 at start of ramp to eliminate round-off errors. Applies to automatic ramping mode only. 0: Disabled 1: Reset 4 RAMP0_NEXT R/W 0h Defines what ramp comes after RAMP0. 0: RAMP0 1: RAMP1 R/W 0h Program 0h to this field. R/W 0h Defines what triggers the next ramp. 0: RAMP0_LEN timeout counter 1: Trigger A 2: Trigger B 3: Not used 3-2 1-0 RAMP0_NEXT_TRIG 7.6.103 Register R102 (offset = 66h) [reset = 0000h] Figure 140. Register R102 15 14 0 0 13 12 11 10 9 8 7 6 5 4 3 2 1 0 RAMP1_INC[29:16] R/W-0h R/W-0h Table 110. Register R102 Field Descriptions Bit Field 15 - 14 13 - 0 RAMP1_INC[29:16] Type Reset Description R/W 0h Program 0h to this field. R/W 0h Upper 14 bits of RAMP1_INC. RAMP1_INC sets the 2's compliment of the number added to the fractional numerator on every ramp cycle. Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 57 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com 7.6.104 Register R103 (offset = 67h) [reset = 0000h] Figure 141. Register R103 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 1 0 1 0 RAMP1_INC[15:0] R/W-0h Table 111. Register R103 Field Descriptions Bit 15 - 0 Field Type Reset Description RAMP1_INC[15:0] R/W Lower 16 bits of RAMP1_INC. See Table 110 for description. 0h 7.6.105 Register R104 (offset = 68h) [reset = 0000h] Figure 142. Register R104 15 14 13 12 11 10 9 8 7 6 5 4 3 2 RAMP1_LEN R/W-0h Table 112. Register R104 Field Descriptions Bit 15 - 0 Field Type Reset Description RAMP1_LEN R/W Length of the ramp in phase detector cycles. 0h 7.6.106 Register R105 (offset = 69h) [reset = 4440h] Figure 143. Register R105 15 14 13 12 5 4 3 2 RAMP_DLY_CNT 11 10 9 8 7 6 RAMP_ MANUAL RAMP1_ NEXT 0 0 R/W-111h R/W-0h R/W-0h RAMP1_NEXT_TRI G R/W-0h R/W-0h Table 113. Register R105 Field Descriptions Bit Field Type Reset Description 15 - 6 RAMP_DLY_CNT R/W 111h For ramping mode, RAMP_DLY_CNT and RAMP_SCALE_COUNT determine the minimum necessary time taken for VCO calibration during the ramp. Min. VCOCal time = (1 / fsmc) / (RAMP_DLY_CNT × 2RAMP_SCALE_COUNT), where fsmc = fOSCin / 2CAL_CLK_DIV. 5 RAMP_MANUAL R/W 0h Selects the ramping mode. 0: Automatic ramping mode 1: Manual (Pin) ramping mode 4 RAMP1_NEXT R/W 0h Defines what ramp comes after RAMP1. 0: RAMP0 1: RAMP1 R/W 0h Program 0h to this field. R/W 0h Defines what triggers the next ramp. 0: RAMP1_LEN timeout counter 1: Trigger A 2: Trigger B 3: Not used 3-2 1-0 RAMP1_NEXT_TRIG 7.6.107 Register R106 (offset = 6Ah) [reset = 0007h] Figure 144. Register R106 15 14 13 12 11 10 9 8 7 6 5 4 3 2 0 0 0 0 0 0 0 0 0 0 0 RAMP_T RIG_CA L 0 RAMP_SCALE_COUNT R/W-0h R/W-0h R/W-7h R/W-0h 58 Submit Documentation Feedback 1 0 Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 Table 114. Register R106 Field Descriptions Bit Field 15 - 5 4 RAMP_TRIG_CAL 3 2-0 RAMP_SCALE_COUNT Type Reset Description R/W 0h Program 0h to this field. R/W 0h Enabling this bit causes VCO calibration to occur in automatic ramping mode at the beginning of each ramp. 0: Disabled 1: Enabled R/W 0h Program 0h to this field. R/W 7h For ramping mode, RAMP_DLY_CNT and RAMP_SCALE_COUNT determine the minimum necessary time taken for VCO calibration during the ramp. Min. VCOCal time = (1 / fsmc) / (RAMP_DLY_CNT × 2RAMP_SCALE_COUNT), where fsmc = fOSCin / 2CAL_CLK_DIV. 7.6.108 Register R107 (offset = 6Bh) [reset = 0000h] Figure 145. Register R107 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R-0h Table 115. Register R107 Field Descriptions Bit Field 15 - 0 Type Reset Description R Not used. (Read back only) 0h 7.6.109 Register R108 (offset = 6Ch) [reset = 0000h] Figure 146. Register R108 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 R-0h Table 116. Register R108 Field Descriptions Bit Field 15 - 0 Type Reset Description R Not used. (Read back only) 0h 7.6.110 Register R109 (offset = 6Dh) [reset = 0000h] Figure 147. Register R109 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 4 3 2 1 0 0 0 0 0 0 R-0h Table 117. Register R109 Field Descriptions Bit Field 15 - 0 Type Reset Description R Not used. (Read back only) 0h 7.6.111 Register R110 (offset = 6Eh) [reset = 0000h] Figure 148. Register R110 15 14 13 12 11 10 0 0 0 0 0 rb_LD_VTUNE 9 8 7 0 6 rb_VCO_SEL 5 R-0h Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 59 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com Table 118. Register R110 Field Descriptions Field Type Reset Description 10 - 9 Bit rb_LD_VTUNE R 0h Readback of Vtune lock detect. 0: Unlocked 1: Unlocked 2: Locked 3: Invalid 7-5 rb_VCO_SEL R 0h Reads back the actual VCO that the calibration has selected. 1: VCO1 2: VCO2 ····· 6: VCO6 All other values are not used. 7.6.112 Register R111 (offset = 6Fh) [reset = 0000h] Figure 149. Register R111 15 14 13 12 11 10 9 8 0 0 0 0 0 0 0 0 7 6 5 4 3 2 1 0 rb_VCO_CAPCTRL R-0h Table 119. Register R111 Field Descriptions Bit 7-0 Field Type Reset Description rb_VCO_CAPCTRL R Reads back the actual CAPCTRL value that the VCO calibration has chosen. 0h 7.6.113 Register R112 (offset = 70h) [reset = 0000h] Figure 150. Register R112 15 14 13 12 11 10 9 0 0 0 0 0 0 0 8 7 6 5 4 3 2 1 0 rb_VCO_DACISET R-0h Table 120. Register R112 Field Descriptions Bit 8-0 Field Type Reset Description rb_VCO_DACISET R Reads back the actual DACISET value that the VCO calibration has chosen. 0h 7.6.114 Register R113 (offset = 71h) [reset = 0000h] Figure 151. Register R113 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 3 2 1 0 R-0h Table 121. Register R113 Field Descriptions Bit Field 15 - 0 Type Reset Description R Not used. (Read back only) 0h 7.6.115 Register R114 (offset = 72h) [reset = 7800h] Figure 152. Register R114 15 14 13 12 11 10 0 1 1 1 1 FSK_EN 0 FSK_SPI_LEVEL FSK_SPI_DEV_SEL FSK_MODE_SEL R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-Fh 60 9 8 7 6 5 Submit Documentation Feedback 4 Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 Table 122. Register R114 Field Descriptions Bit Field 15 - 11 10 FSK_EN 9-7 Type Reset Description R/W Fh Program Fh to this field. R/W 0h Enables all FSK modes. 0: Disabled 1: Enabled R/W 0h Program 0h to this field. 6-5 FSK_SPI_LEVEL R/W 0h Defines the desired FSK level in FSK SPI mode. When this bit is zero, FSK operation in this mode is disabled even if FSK_EN = 1. 0: Disabled 1: 2FSK 2: 4FSK 3: 8FSK 4-2 FSK_SPI_DEV_SEL R/W 0h In FSK SPI mode, these bits select one of the FSK deviations as defined in registers R116 - R123. 0: FSK_DEV0 1: FSK_DEV1 ····· 7: FSK_DEV7 1-0 FSK_MODE_SEL R/W 0h Defines FSK mode. 0: Not used 1: Not used 2: FSK SPI 3: FSK SPI FAST 7.6.116 Register R115 (offset = 73h) [reset = 0000h] Figure 153. Register R115 15 14 13 12 11 10 9 8 0 0 0 0 0 0 0 0 7 6 5 4 3 FSK_DEV_SCALE R/W-0h 2 1 0 0 0 0 R/W-0h R/W-0h Table 123. Register R115 Field Descriptions Bit Field 15 - 8 7-3 FSK_DEV_SCALE 2-0 Type Reset Description R/W 0h Program 0h to this field. R/W 0h The FSK deviation will be scaled by 2FSK_DEV_SCALE. R/W 0h Program 0h to this field. 7.6.117 Register R116 (offset = 74h) [reset = 0000h] Figure 154. Register R116 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 2 1 0 FSK_DEV0 R/W-0h Table 124. Register R116 Field Descriptions Bit 15 - 0 Field Type Reset Description FSK_DEV0 R/W Defines the desired frequency deviation in FSK SPI mode. 0h 7.6.118 Register R117 (offset = 75h) [reset = 0000h] Figure 155. Register R117 15 14 13 12 11 10 9 8 7 6 5 4 3 FSK_DEV1 R/W-0h Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 61 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com Table 125. Register R117 Field Descriptions Bit 15 - 0 Field Type Reset Description FSK_DEV1 R/W Defines the desired frequency deviation in FSK SPI mode. 0h 7.6.119 Register R118 (offset = 76h) [reset = 0000h] Figure 156. Register R118 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 2 1 0 2 1 0 2 1 0 FSK_DEV2 R/W-0h Table 126. Register R118 Field Descriptions Bit 15 - 0 Field Type Reset Description FSK_DEV2 R/W Defines the desired frequency deviation in FSK SPI mode. 0h 7.6.120 Register R119 (offset = 77h) [reset = 0000h] Figure 157. Register R119 15 14 13 12 11 10 9 8 7 6 5 4 3 FSK_DEV3 R/W-0h Table 127. Register R119 Field Descriptions Bit 15 - 0 Field Type Reset Description FSK_DEV3 R/W Defines the desired frequency deviation in FSK SPI mode. 0h 7.6.121 Register R120 (offset = 78h) [reset = 0000h] Figure 158. Register R120 15 14 13 12 11 10 9 8 7 6 5 4 3 FSK_DEV4 R/W-0h Table 128. Register R120 Field Descriptions Bit 15 - 0 Field Type Reset Description FSK_DEV4 R/W Defines the desired frequency deviation in FSK SPI mode. 0h 7.6.122 Register R121 (offset = 79h) [reset = 0000h] Figure 159. Register R121 15 14 13 12 11 10 9 8 7 6 5 4 3 FSK_DEV5 R/W-0h Table 129. Register R121 Field Descriptions Bit 15 - 0 62 Field Type Reset Description FSK_DEV5 R/W Defines the desired frequency deviation in FSK SPI mode. 0h Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 7.6.123 Register R122 (offset = 7Ah) [reset = 0000h] Figure 160. Register R122 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 2 1 0 2 1 0 FSK_DEV6 R/W-0h Table 130. Register R122 Field Descriptions Bit 15 - 0 Field Type Reset Description FSK_DEV6 R/W Defines the desired frequency deviation in FSK SPI mode. 0h 7.6.124 Register R123 (offset = 7Bh) [reset = 0000h] Figure 161. Register R123 15 14 13 12 11 10 9 8 7 6 5 4 3 FSK_DEV7 R/W-0h Table 131. Register R123 Field Descriptions Bit 15 - 0 Field Type Reset Description FSK_DEV7 R/W Defines the desired frequency deviation in FSK SPI mode. 0h 7.6.125 Register R124 (offset = 7Ch) [reset = 0000h] Figure 162. Register R124 15 14 13 12 11 10 9 8 7 6 5 4 3 FSK_SPI_FAST_DEV R/W-0h Table 132. Register R124 Field Descriptions Bit 15 - 0 Field Type Reset Description FSK_SPI_FAST_DEV R/W Defines the desired frequency deviation in FSK SPI FAST mode. 0h 7.6.126 Register R125 (offset = 7Dh) [reset = 2288h] Figure 163. Register R125 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 0 0 1 0 0 0 1 0 1 0 0 0 1 0 0 0 R/W-2288h Table 133. Register R125 Field Descriptions Bit 15 - 0 Field Type Reset R/W Description 2288h Program 2288h to this field. After programming R0 with RESET = 1, no need to program this register. Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 63 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com 8 Application and Implementation NOTE Information in the following applications sections is not part of the TI component specification, and TI does not warrant its accuracy or completeness. TI’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality. 8.1 Application Information 8.1.1 OSCin Configuration OSCin supports single-ended and differential clock. Register R5 defines OSCin configuration. Table 134. OSCin Configuration OSCin TYPE SINGLE-ENDED CLOCK DIFFERENTIAL CLOCK VT VT OSCin Configuration Diagram OSCin OSCin* OSCin* 50Ÿ 50Ÿ Register Setting IPBUF_TYPE = 0 IPBUF_TERM = 1 IPBUF_TYPE = 1 Single-ended and differential input clock definitions are shown in Figure 164. VOSCin VOSCin CMOS VOSCin Sine wave Differential Figure 164. Input Clock Definition 8.1.2 OSCin Slew Rate The slew rate of the OSCin signal can have an impact on the spurs and phase noise of the LMX2572 if it is too low. In general, the best performance is for a high slew rate but a lower amplitude signal, such as LVDS. 8.1.3 VCO Gain The VCO gain varies between the six VCO cores and is the lowest at the lowest end of the band and highest at the highest end of each band. The typical VCO gain over each VCO core is listed in Table 135. Table 135. VCO Gain 64 VCO CORE fMin (MHz) fMax (MHz) KVCOMin (MHz/V) KVCOMax (MHz/V) VCO1 3200 3650 32 47 VCO2 3650 4200 35 54 VCO3 4200 4650 47 64 VCO4 4650 5200 50 73 VCO5 5200 5750 61 82 VCO6 5750 6400 57 79 Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 For an arbitrary VCO frequency, the VCO gain can be estimated as Equation 4: KVCO = KVCOMin + (KVCOMax – KVCOMin) × (fVCO – fMin) / (fMax – fMin) (4) 8.1.4 VCO Calibration The purpose of VCO calibration is to find out: (1) the correct VCO core, (2) the best band within the core, and (3) the best VCO amplitude setting. The LMX2572 allows the user to assist the VCO calibration. In general, there are three kinds of assistance. 8.1.4.1 Partial Assist Upon every frequency change, before the FCAL_EN bit is checked, the user provides a good estimate of the initial starting point for the VCO core (VCO_SEL), band (VCO_CAPCTRL_STRT), and amplitude (VCO_DACISET_STRT). To do the partial assist for the VCO calibration, follow this procedure: 1. Pick a VCO core that includes the desired VCO frequency. If at the boundary of two cores, choose based on phase noise or performance. 2. Use Equation 5 to find the approximate band: VCO_CAPCTRL_STRT = Round[CMin – (fVCO – fMin) × (CMin – CMax) / (fMax – fMin)] (5) 3. Use Equation 6 to find the approximate amplitude setting. VCO_DACISET_STRT = Round[AMin – (fVCO – fMin) × (AMin – AMax) / (fMax – fMin)] (6) Table 136. VCO Core Parametric VCO CORE fMin (MHz) fMax (MHz) CMin CMax AMin AMax VCO1 3200 3650 131 19 138 137 VCO2 3650 4200 143 25 162 142 VCO3 4200 4650 135 34 126 114 VCO4 4650 5200 136 25 195 172 VCO5 5200 5750 133 20 190 163 VCO6 5750 6400 151 27 256 204 8.1.4.2 Close Frequency Assist Upon initialization of the device, the user enables the QUICK_RECAL_EN bit. The next VCO calibration will use the current VCO core, band, and amplitude settings as the initial starting point. This approach is useful if the frequency change is small, say 50 MHz or so. 8.1.4.3 Full Assist The user forces the VCO core (VCO_SEL), band (VCO_CAPCTRL), and amplitude (VCO_DACISET) and manually sets the value. No VCO calibration will be performed. To force the set values, set VCO_SEL_FORCE, VCO_CAPCTRL_FORCE, and VCO_DACISET_FORCE equal 1. First do a VCO calibration and then read back the values to obtain the set values. 8.1.5 Output Buffer Control 8.1.5.1 Output Power The OUTA_PWR and OUTB_PWR registers can be used to control the output power of the output buffers. The change in output power becomes not obvious when these registers values are over 35. Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 65 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com 10 10 8 0 4 POUT (dBm) POUT (dBm) 6 2 OUTx_PWR = 15 OUTx_PWR = 31 OUTx_PWR = 63 0 -2 -10 -20 fOUT 3200 MHz 4000 MHz 4800 MHz 5600 MHz 6400 MHz -30 -4 -40 -6 -8 -50 0 800 1600 2400 3200 4000 4800 5600 fOUT (MHz) 6400 0 8 Figure 165. Output Power vs Frequency 16 24 32 40 OUTx_PWR D001 48 56 64 D002 Figure 166. Output Power vs Power Control Bits 8.1.5.2 Power-Up Response Use the OUTx_PD bits to power up or power down the output buffers. The RF output will vanish immediately when the buffer is powered down. However, it takes some tiny amount of time for it to power up. The response time is shorter if the output frequency is lower. Figure 167. Buffer Power Up at 400-MHz Output Figure 168. Buffer Power Up at 6400-MHz Output 8.1.5.3 Unused Output Pin Each output buffer has two differential pair pins. The buffer can be used as a single differential output or two single-ended outputs. If only one single-ended output is necessary, the unused pin cannot be left open. The pin should be terminated properly as shown in Figure 169. System device RFout Figure 169. Unused Output Buffer Differential Pin 66 Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 8.1.6 Application for SYNC The requirements for SYNC depend on certain setup conditions. In cases where the SYNC is not timing critical, the setup can be done through software by toggling the VCO_PHASE_SYNC_EN bit from 0 to 1. When the SYNC is timing critical, then setup must be done through the SYNC pin and the setup and hold times for the OSCin pin are critical. Determine SYNC category M=1 No &+',9 ” 2 No x M = 2 when Doubler is ON x M = 08/7 ZKHQ 08/7 • 3 Yes Yes fOUT is an integer multiple of fOSCin fOUT is an integer multiple of M x fOSCin Yes Yes &+',9 ” 2 PLL_NUM = 0 Yes Yes Category 3 SYNC required SYNC timing critical fOSCin ” 100 MHz Category 4 No No Device cannot be reliably used in SYNC mode Category 2 SYNC required SYNC timing not critical No limitation on fOSCin No No Category 1b SYNC not required SYNC mode required No CHDIV = 1 (VCO_PHASE_SYNC_EN = 1) Yes Category 1a SYNC not required SYNC mode not required Figure 170. SYNC Category Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 67 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com The procedure for using SYNC in different SYNC categories is shown in Table 137. Table 137. Procedure for Using SYNC CATEGORY CHARACTERISTIC SETUP PROCEDURE 1a • • SYNC not required. SYNC mode not required. 1. 2. Setup as usual. Program all the registers as usual. The phase relationship between OSCin and fOUT will always be deterministic. 1b • • SYNC not required. SYNC mode required. 1. 2. Set N = N' / 2, where N' is the normal N divider value. Program all the registers with R0 VCO_PHASE_SYNC_EN = 1. • • • SYNC required. SYNC timing not critical. No limitation on fOSCin. 1. 2. 3. 4. 5. 6. 7. Setup as usual. Program all the registers as usual. The device is now locked. Program N = N' / 2, where N' is the normal (original) N divider value. Program R0 with VCO_PHASE_SYNC_EN = 1. Program N = N'. Program R0 with VCO_PHASE_SYNC_EN = 0. Alternatively, step 3 to 6 can be replaced by applying a SYNC signal (0 → 1 transition) to the SYNC pin and the timing on this in not critical. • • • SYNC required. SYNC timing critical. fOSCin ≤ 100 MHz 1. Ensure that the maximum fOSCin for SYNC is not violated and there are hardware accommodations to use the SYNC pin. If neither OUTA_MUX nor OUTB_MUX is equal to 0 (Channel divider output), program N divider as usual. If one of the OUTA_MUX or OUTB_MUX is equal to 1, set N = N' / 2, where N' is the normal N divider (integer + fraction) value. Program all the registers with R0 VCO_PHASE_SYNC_EN = 1. Apply a SYNC signal (0 → 1 transition) to the SYNC pin. The timing of the SYNC signal as shown in Timing Requirements must be obey. 2 3 2. 3. 4. 5. Set these bits to drive the SYNC pin with a LVDS signal: • Set INPIN_FMT to 1 or 3 to enable LVDS input • Set INPIN_LVL to one of the options • Set INPIN_HYST, if necessary The LVDS driver that is driving the SYNC pin should be configured as shown in Figure 171: SYNC 100 LMX2572 Copyright © 2017, Texas Instruments Incorporated Figure 171. Driving SYNC Pin With Differential Signal 68 Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 8.1.7 Application for Ramp 8.1.7.1 Manual Ramping Mode Manual ramping is enabled when the user sets RAMP_EN = 1 and RAMP_MANUAL = 1. In this mode, the ramp is clocked by the rising edges applied to the RampClk pin. The size of the frequency change is defined by RAMP0_INC and RAMP1_INC. If a LOW is seen at the RampDir pin on the rising edge of RampClk, the output frequency will be incremented by RAMP0_INC. On the contrary, the output frequency will be incremented by RAMP1_INC if a HIGH is captured. If a rising edge is seen on the RampClk pin while the VCO is calibrating, then this rising edge is ignored. The frequency for the RampClk must be limited to a frequency of 250 kHz or less, and the rising edge of the RampDir signal must be targeted to the falling edge of the RampClk pin. The necessary register fields for use in manual ramping mode are shown in Table 138. Table 138. Manual Ramping Mode Programming REGISTER FIELD RAMP_EN VALUE DESCRIPTION 1 = Enable ramp Set this bit to 1 to enable frequency ramping. 1 = Manual ramping mode To select manual ramping mode, set this bit to 1. RAMP_LIMIT_HIGH Greater than the highest VCO ramp frequency This sets the upper ramp limit that the ramp cannot go above. Suppose fHigh is this frequency and fStart is the starting VCO ramp frequency, then, for fHigh > fStart, RAMP_LIMIT_HIGH = 224 × (fHigh – fStart) / fPD RAMP_LIMIT_LOW Smaller than the lowest VCO ramp frequency This sets the lower ramp limit that the ramp cannot go below. Suppose fLow is this frequency and fStart is the starting VCO ramp frequency, then, for fStart > fLow, RAMP_LIMIT_LOW = 233 – 224 × (fStart – fLow) / fPD RAMP0_INC RAMP1_INC Equal to the ramp size Suppose the ramp size is Δf, then RAMPx_INC = (Δf / fPD) × 224 or = 230 – (Δf / fPD) × 224 if Δf is a negative number. Suggest less than 50 MHz If the amount of frequency ramp exceeds this threshold, a VCO calibration will be initiated. For example, if the ramp size is 50 MHz while this threshold is 30 MHz, then VCO calibration will be executed every time it ramps. Suppose the threshold frequency is fTH, then RAMP_THRESH = (fTH / fPD) × 224 1 = RampClk rising edge trigger In manual ramping mode, the ramp is triggered by the rising edges applied to the RampClk pin. Either RAMP_TRIGA or RAMP_TRIGB can be selected as the trigger source for the next ramp. RAMP_MANUAL RAMP_THRESH RAMP_TRIGA RAMP_TRIGB These fields define what triggers the next ramp. They must be set to the same trigger source selected above. Output frequency RAMP0_NEXT_TRIG Equal to the selected RAMP1_NEXT_TRIG RAMP_TRIGx RampDir RampClk RAMPx_INC Figure 172. Manual Ramp Waveform Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 69 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com 8.1.7.2 Automatic Ramping Mode Automatic ramping mode is enabled when RAMP_EN = 1 with RAMP_MANUAL = 0. In this mode, there are two ramps profiles that one can use to set the length and frequency change. In addition to this, there are ramp limits that can be used to create more complicated waveforms. The output frequency will ramp once on each phase detector cycle. Automatic ramping can really be divided into two classes depending on whether the VCO must calibrate in the middle of the ramping or not. If the VCO can go the entire range without calibrating, this is calibration-free ramping. Note that this range is less at hot temperatures and less for lower frequency VCOs. This range is not ensured, so margin must be built into the design. For ramping that are not calibration free, the ramp waveform is more like a staircase ramp. Table 139. Automatic Ramping Mode Programming REGISTER FIELD RAMP_EN VALUE DESCRIPTION 1 = Enable ramp Set this bit to 1 to enable frequency ramping. 0 = Automatic ramping mode To select automatic ramping mode, set this bit to 0. RAMP_LIMIT_HIGH Greater than the highest VCO ramp frequency This sets the upper ramp limit that the ramp cannot go above. Suppose fHigh is this frequency and fStart is the starting VCO ramp frequency, then, for fHigh > fStart, RAMP_LIMIT_HIGH = 224 × (fHigh – fStart) / fPD RAMP_LIMIT_LOW Smaller than the lowest VCO ramp frequency This sets the lower ramp limit that the ramp cannot go below. Suppose fLow is this frequency and fStart is the lowest VCO ramp frequency, then, for fStart > fLow, RAMP_LIMIT_LOW = 233 – 224 × (fStart – fLow) / fPD RAMP0_INC RAMP1_INC Equal to the ramp size Suppose the ramp size is Δf, then RAMPx_INC = (Δf / fPD) × 224 or = 230 – (Δf / fPD) x 224 if Δf is a negative number. Suggest less than 50 MHz If the amount of frequency ramp exceed this threshold, a VCO calibration will be initiated. For example, if the ramp size is 15 MHz while this threshold is 20 MHz, then VCO calibration will be executed every two ramps. Suppose the threshold frequency is fTH, then RAMP_THRESH = (fTH / fPD) × 224 RAMP0_LEN RAMP1_LEN 0 to 216 Set the number of ramp required in each ramp profile. Maximum value is 216. If this number is exceeded, enable the RAMPx_DLY bit or reduce the phase detector frequency. RAMPx_LEN = Ramp duration of a ramp profile × fPD RAMP0_DLY RAMP1_DLY 0 or 1 If this bit is set to 1, the output frequency will ramp every two fPD cycles. Equal to the next ramp Set the next ramping profile when the present profile is finished. RAMP_MANUAL RAMP_THRESH RAMP0_NEXT RAMP1_NEXT RAMP0_NEXT_TRIG 0 = RAMP_LENx time Set these bits to 0 in order to start the next ramp immediately after the previous ramp. RAMP1_NEXT_TRIG out counter RAMP0_RST RAMP1_RST 0 or 1 RAMP_SCALE_COU Suggest a minimum NT pause time of 50 µs RAMP_DLY_CNT 70 If the stop frequency of the present ramp profile is different from the start frequency of the next ramp profile, set this bit to 1. These two register fields set the minimum pause time when RAMP_THRESH is hit. This pause time must be sufficient to allow the VCO to complete a calibration, otherwise it will be overwritten by the actual VCO calibration time. Minimum pause time = RAMP_DLY_CNT × 2RAMP_SCALE_COUNT × 2CAL_CLK_DIV / fOSCin Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 RAMPx_INC Configurable pause time RAMP_THRESH 1 / fPD Accumulated ramp frequency. RAMP_THRESH Total ramp time = Desired ramp duration + sum of all pause time. Figure 173. Auto Ramp Waveform 8.1.8 Application for SYSREF SYSREF consists of multiple dividers and a delay circuitry. The dividers include two fixed value dividers, a PreSR divider (SYSREF_DIV_PRE), and a Post-SR divider (SYSREF_DIV). VCO Pre-SR Divider ÷2 Post-SR Divider ÷2 RFoutB (SYSREF) Delay Figure 174. SYSREF SYSREF output frequency, fSYSREF, is calculated by Equation 7: fSYSREF = fVCO / (4 × SYSREF_DIV_PRE × SYSREF_DIV) (7) The delay circuitry is consist of 4 counters (JESD_DAC1_CTRL, JESD_DAC2_CTRL, JESD_DAC3_CTRL, and JESD_DAC4_CTRL). Altogether, there are 200 useful programmable steps and each step is approximately a 5 ps (Pre-SR divider = 2) or 10 ps (Pre-SR divider = 4) delay. The values of the counters must be set in accordance to Table 140. Table 140. SYSREF Delay Step DELAY STEP NUMBER JESD_DAC1_CTRL JESD_DAC2_CTRL JESD_DAC3_CTRL JESD_DAC4_CTRL 0 36 27 0 0 36 0 63 0 0 37 0 62 1 0 99 0 0 63 0 100 0 0 62 1 162 0 0 0 63 163 1 0 0 62 … … … … 200 38 0 0 25 > 200 Invalid Invalid Invalid Invalid Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 71 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com Table 141 summarizes the usage boundaries of all functional blocks in SYSREF. Table 141. SYSREF Boundaries PARAMETER VALUE Pre-SR divider 1 (Bypassed), 2, 4 Post-SR divider 4, 6, 8, 10, …, 4096, 4098 NOTES Input frequency range: 400 to 2300 MHz Number of SYSREF pulse in Pulsed mode 1, 2, 3, …, 14, 15 Number of delay step 0 (No additional delay), 1, 2, 3, …, 199, 200 Since SYSREF operation requires enabling the VCO_PHASE_SYNC_EN bit, during programming, set N = N' / 2, where N' is the normal N divider value. 8.1.8.1 Driving SysRefReq Pin With Differential Signal By default, the SysRefReq pin is configured as CMOS type input. VIO and VIH as shown in the Electrical Specifications apply. In Repeater mode (SYSREF_REPEAT = 1), there is an option to program this pin to support LVDS input signal. • Set INPIN_FMT to 2 or 3 to enable LVDS input • Set INPIN_LVL to one of the options • Set INPIN_HYST if necessary The LVDS driver that is driving the SysRefReq pin should be configured like Figure 175: SysRefReq 100 LMX2572 Copyright © 2017, Texas Instruments Incorporated Figure 175. Driving SysRefReq Pin With Differential Signal 8.1.8.2 SYSREF Output The SYSREF output comes in differential format through RFoutB. The common mode output voltage of this driver is between 1.9 V to 2.3 V. If DC-coupling to the receiving device is not possible, there are two strategies for AC-coupling. 1. Send a series of pulses to establish a DC-bias level across the AC-coupling capacitor. 2. Establish a bias voltage at the receiving device that is below the threshold voltage by using a resistive divider. 8.1.9 Application for FSK In fractional mode, the finest delta frequency difference between two programmable output frequencies is equal to Equation 8: f1 – f2 = Δfmin = fPD × {[(PLL_N + 1) / PLL_DEN] – (PLL_N / PLL_DEN)} = fPD / PLL_DEN (8) In other words, when the fractional numerator is incremented by 1 (one step), the output frequency will change by Δfmin. A two steps increment will therefore change the frequency by 2 × Δfmin. In FSK operation, the instantaneous carrier frequency is kept changing among some pre-defined frequencies. In general, the instantaneous carrier frequency is defined as a certain frequency deviation from the nominal carrier frequency. The frequency deviation could be positive and negative. 72 Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 Nominal carrier frequency Negative deviation Instantaneous carrier frequencies fDEV0 Postivie deviation fDEV1 Figure 176. General FSK Definition Equation 9 and Equation 10 define the number of steps required for the desired frequency deviation with respect to the nominal carrier frequency output. Assume ΔfDEV is the frequency deviation, For positive deviation, FSK step = Round[(ΔfDEV × PLL_DEN x CHDIV) / (fPD × 2FSK_DEV_SCALE)] For negative deviation, FSK step = 216 – the positive deviation, FSK step answer (9) (10) In FSK SPI mode, registers R116 – R123 are used to store the desired FSK steps as defined in Equation 9 and Equation 10. The order of the registers, 0 to 7, depends on the application system. A typical 4FSK definition is shown in Figure 177. In this case, the FSK_DEV0 and FSK_DEV1 are calculated using Equation 9, while the FSK_DEV2 and FSK_DEV3 are calculated using Equation 10. 01 FSK_DEV1 00 FSK_DEV0 10 FSK_DEV2 FSK_DEV3 4FSK symbol: 11 Frequency Figure 177. Typical 4FSK Definition FSK SPI mode assumes the user knows which symbol to send. The user can directly write to FSK_SPI_DEV_SEL to select the desired frequency deviation. For example, to enable the device to support 4FSK modulation in FSK SPI mode, set: • FSK_MODE_SEL = 2 (FSK SPI) • FSK_SPI_LEVEL = 2 (4FSK) • FSK_EN = 1 Table 142. FSK SPI Mode Example DESIRED SYMBOL WRITE REGISTER FSK_SPI_DEV_SEL REGISTER SELECTED 10 2 FSK_DEV2 11 3 FSK_DEV3 10 2 FSK_DEV2 11 3 FSK_DEV3 01 1 FSK_DEV1 00 0 FSK_DEV0 … … … Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 73 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com FSK SPI mode supports up to eight levels of FSK. To support an arbitrary-level FSK, use FSK SPI FAST mode. Constructing pulse-shaping FSK modulation by over-sampling the FSK modulation waveform is one of the used cases of this mode. Analog-FM modulation can also be produced in this mode. For example, with a 1-kHz sine wave modulation signal with peak frequency deviation of ±2 kHz, the signal can be oversampled, say 10 times. Each sample point corresponding to a scaled frequency deviation. Frequency deviation +2 kHz t5 t0 t1 t2 t3 t6 t7 t8 t9 t4 Time í2 kHz Figure 178. Oversampling Modulation Signal In FSK SPI FAST mode, write the desired FSK steps directly to FSK_SPI_FAST_DEV. To enable this mode, set: • FSK_MODE_SEL = 3 (FSK SPI FAST) • FSK_EN = 1 Table 143. FSK SPI FAST Mode Example (1) TIME FREQUENCY DEVIATION (Hz) CORRESPONDING FSK STEPS (1) WRITE TO FSK_SPI_FAST_DEV t0 618.034 396 396 t1 1618.034 1036 1036 t2 2000 1280 1280 … … … … t6 –1618.034 64500 64500 t7 –2000 64256 64256 … … … … fVCO = 3840 MHz, fOUT = 480 MHz, fPD = 100 MHz, CHDIV = 8, PLL_DEN = 8000000, FSK_DEV_SCALE = 0. Block Programming is possible with FSK SPI FAST mode programming as long as ADD_HOLD = 1, which will freeze the register address after the first register write. The same programming sequent as shown in Figure 37 applies. 8.1.10 Unused Pins TI • • • • 74 recommends to pull these pins low if they are not used: Pin 5, SYNC Pin 28, SysRefReq Pin 30, RampClk Pin 32, RampDir Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 8.1.11 External Loop Filter The LMX2572 requires an external loop filter that is application-specific and can be configured by PLLatinum Sim. For the LMX2572, it matters what impedance is seen from the Vtune pin looking outwards. This impedance is dominated by the component C3 for a third order filter or C1 for a second order filter. If there is at least 1.5 nF for the capacitance that is shunt with this pin, the VCO phase noise will be close to the best it can be. If there is less, the VCO phase noise in the 100-kHz to 1-MHz region will degrade. This capacitor should be placed close to the Vtune pin. 3 1 3 2 3 5 3 6 3 3 3 0 Vtune 1 3 4 3 7 3 8 3 9 4 0 C3 2 3 4 2 9 2 8 2 7 2 6 2 4 2 3 2 2 2 0 1 9 1 8 2 1 1 7 1 1 1 0 1 6 9 2 5 1 5 8 1 4 7 1 3 6 1 2 CPout 5 R3 C1 R2 C2 Figure 179. External Loop Filter 8.1.12 Power-Up, Wake-Up Time When the device comes out of the powered-down state, either by resuming the POWERDOWN bit to zero or by pulling back CE pin HIGH (if it was powered down by CE pin), it takes time for the device to acquire lock again. This wake-up time depends on LDO_DLY setting, loop bandwidth, and the state machine clock frequency (= fOSCin / 2CAL_CLK_DIV). If the loop bandwidth is greater than 20 kHz, the wake-up time could be adjusted to less than 1.5 ms with the LDO_DLY setting listed in Table 144. Table 144. LDO_DLY Setting STATE MACHINE CLOCK FREQUENCY LDO_DLY 130 MHz ≤ f ≤ 200MHz 8 80 MHz ≤ f < 130 MHz 5 50 MHz ≤ f < 80 MHz 3 30 MHz ≤ f < 50 MHz 2 f < 30 MHz 1 Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 75 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com 8.2 Typical Application This application example demonstrates how to set up the LMX2572 in FSK SPI FAST mode to synthesize 4-level GFSK modulation. XO 100MHz 100pF RFoutAP RFoutAM OSCin OSCin* 100pF LMX2572 Vtune CPout SCK SDI CSB FSK data stream 50 330Ÿ 15nF 2.2nF Copyright © 2017, Texas Instruments Incorporated Figure 180. Application Example Schematic 8.2.1 Design Requirements Table 145 lists the design parameters for this example. Table 145. Design Parameters PARAMETER EXAMPLE VALUE OSCin frequency 100 MHz RFout frequency 490 MHz 4FSK modulation baud rate 125 kSps BT of Gaussian filter 0.4 FSK frequency deviation ±17 kHz and ±51 kHz Fractional denominator 8000000 8.2.2 Detailed Design Procedure First, determine all the elementary blocks of a synthesizer. OSCin 100 Doubler 1 Pre-R 1 MULT 1 Post-R 1 PDF 100 VCO 3920 CHDIV 8 Output 490 N 39.2 Figure 181. Application Example Frequency Plan 76 Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 Then, program these registers to make LMX2572 locks to the target output frequency: • OSC_2X = 0 • PLL_R_PRE = 1 • MULT = 1 • PLL_R = 1 • PLL_N[18:16] = 0; PLL_N[15:0] = 39 • PLL_NUM[31:16] = 24; PLL_NUM[15:0] = 27136 • PLL_DEN[31:16] = 122; PLL_DEN[15:0] = 4680 • CHDIV = 8 Then program these registers to enable FSK SPI FAST mode: • FSK_MODE_SEL = 3 • FSK_DEV_SCALE = 1 • FSK_EN = 1 A Mathlab script is then developed to generate the necessary codes that will be used to continuously bit-stream the LMX2572. These codes are uploaded to the data generator DG2020, which will generate the SPI data to modulate the LMX2572. Mathlab DG2020 Creates and generates codes Generates the electrical signals LMX2572 CLK DATA LE Signal Analyzer SCK SDI CSB Figure 182. Application Example Test Setup 8.2.3 Application Curves Figure 183. Gaussian 4FSK Modulated Spectrum Figure 184. Gaussian 4FSK Modulation Quality Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 77 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com 8.3 Do's and Don'ts • • RFout output buffers do not need an external pullup. An AC-couple to the load is good enough. The last shunt capacitor of the loop filter should be placed close to the Vtune pin. VCC X 2 3 8 2 2 9 2 1 1 0 3 1 3 2 3 5 3 6 3 4 3 7 3 8 3 3 2 7 2 6 2 5 2 4 2 3 2 2 2 1 2 0 7 2 8 1 9 2 4 2 9 1 8 6 1 7 2 5 3 0 Vtune 5 1 6 4 2 6 1 5 2 7 1 4 3 3 9 4 0 2 2 8 2 0 1 9 1 8 1 7 1 1 1 0 1 6 9 1 5 8 1 4 7 1 3 6 1 2 CPout 5 1 2 9 CPout 4 3 0 1 3 3 1 1 2 1 2 3 1 3 2 3 5 3 3 3 6 Vtune 1 3 4 3 7 3 8 3 9 RFout 4 0 RFout X Figure 185. Do's and Don'ts 78 Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 9 Power Supply Recommendations TI recommends placing a 100-nF capacitor close to each of the power supply pins. If fractional spurs are a large concern, use a ferrite bead to each of these power supply pins to reduce spurs to a small degree. This device has integrated LDOs, which improves the resistance to power supply noise. Figure 186 is a typical application example. This device can be powered by an external DC/DC buck converter, such as the TPS62150. Note that although Rtps1 and Rtps2 are 1.5 Ω in the schematic, they could be potentially replaced with a larger resistor value or inductor value for better power supply filtering. Alternatively, the use of a larger capacitance value for C2 and C4 could also result in better power supply filtering. Figure 186. Power Supply With a DC/DC Converter LDO output = 3.3 V; Current = 80 mA Figure 187. Phase Noise With LDO Power Supply DC/DC input = 5 V; DC/DC output = 3.3 V; Current = 56 mA Figure 188. Phase Noise With DC/DC Power Supply The power consumption of LMX2572 depends on its configuration. The data as shown in the Electrical Characteristics table represent the current consumption at some specific conditions. It is possible to get a smaller or higher current consumption than what is specified in the data sheet. To get a rough estimation on current consumption at a particular configuration, use TICS Pro. Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 79 LMX2572 SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 www.ti.com 10 Layout 10.1 Layout Guidelines In general, the layout guidelines are similar to most other PLL devices. Here are some specific guidelines: • GND pins may be routed on the package back to the DAP. • The OSCin pins are internally biased and must be AC-coupled. • The RampClk, RampDir, and SysRefReq can be grounded to the DAP if not used. • Get a loop filter capacitor as close to the Vtune pin as possible to this. This may mean separating it from the rest of the loop filter. • If a single-ended output is necessary, the other side must have the same loading. However, the routing for the used side can be optimized by routing the complementary side through a via to the other side of the board. On this side, make the load look equivalent to the side that is used. • Ensure the DAP on the device is well-grounded with many vias, preferably copper filled. • Have a thermal pad that is as large as the exposed pad. Add vias to the thermal pad to maximize thermal performance. • Use a low loss dielectric material, such as Rogers 4003, for optimal output power. 10.2 Layout Example Figure 189. Layout Example 80 Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 LMX2572 www.ti.com SNAS740B – OCTOBER 2017 – REVISED JANUARY 2019 11 Device and Documentation Support 11.1 Device Support 11.1.1 Development Support Texas Instruments has several software tools to aid in the development at www.ti.com. Among these tools are: • PLLatinum Sim program for designing loop filters, simulating phase noise and spurs. • TICS Pro software to understand how to program the device and for programming the EVM board. 11.2 Documentation Support 11.2.1 Related Documentation For related documentation see the following: • TPS62150 3–17V 1A Step-down converter with dcs-control (SLVSAL5) • AN-1879 Fractional N frequency synthesis (SNAA062) • Frequency shift keying with LMX2571 (SNAA309) • PLL performance, simulation, and design handbook (SNAA106) • LMX2572EVM User's guide (SNAU217) 11.3 Receiving Notification of Documentation Updates To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper right corner, click on Alert me to register and receive a weekly digest of any product information that has changed. For change details, review the revision history included in any revised document. 11.4 Community Resources The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of Use. TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help solve problems with fellow engineers. Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and contact information for technical support. 11.5 Trademarks E2E is a trademark of Texas Instruments. All other trademarks are the property of their respective owners. 11.6 Electrostatic Discharge Caution This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications. 11.7 Glossary SLYZ022 — TI Glossary. This glossary lists and explains terms, acronyms, and definitions. 12 Mechanical, Packaging, and Orderable Information The following pages include mechanical, packaging, and orderable information. This information is the most current data available for the designated devices. This data is subject to change without notice and revision of this document. For browser-based versions of this data sheet, refer to the left-hand navigation. Submit Documentation Feedback Copyright © 2017–2019, Texas Instruments Incorporated Product Folder Links: LMX2572 81 PACKAGE OPTION ADDENDUM www.ti.com 10-Dec-2020 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) (4/5) (6) LMX2572RHAR ACTIVE VQFN RHA 40 2500 RoHS & Green NIPDAU Level-3-260C-168 HR -40 to 85 LMX2572 LMX2572RHAT ACTIVE VQFN RHA 40 250 RoHS & Green NIPDAU Level-3-260C-168 HR -40 to 85 LMX2572 (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
