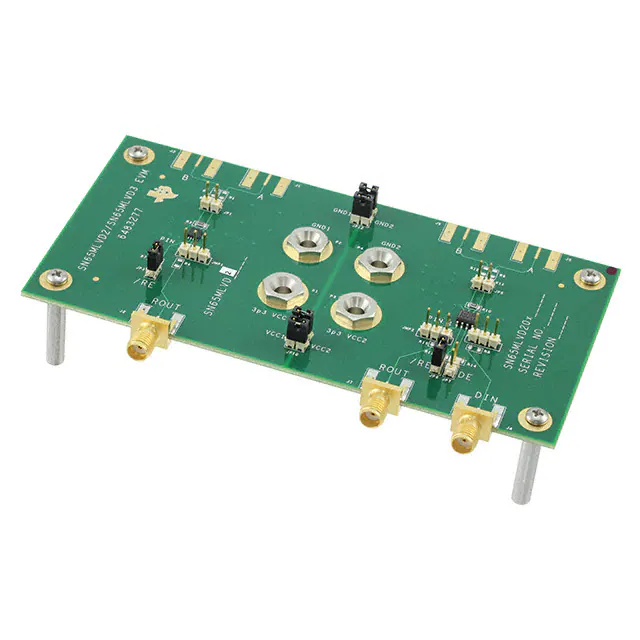

SN65MLVD2-3EVM

SN65MLVD2 SN65MLVD3 www.ti.com SLLS767 – NOVEMBER 2006 SINGLE M-LVDS RECEIVERS FEATURES APPLICATIONS • • • • • • • • • • (1) Low-Voltage Differential 30-Ω to 55-Ω Line Receivers for Signaling Rates(1) up to 250Mbps; Clock Frequencies up to 125MHz SN65MLVD2 Type-1 Receiver Incorporates 25 mV of Input Threshold Hysteresis SN65MLVD3 Type-2 Receiver Provides 100 mV Offset Threshold to Detect Open-Circuit and Idle-Bus Conditions Wide Receiver Input Common-Mode Voltage Range, –1 V to 3.4 V, Allows 2 V of Ground Noise Improved VIT (35 mV) Meets or Exceeds the M-LVDS Standard TIA/EIA-899 for Multipoint Topology High Input Impedance with Low Supply Voltage Bus-Pin HBM ESD Protection Exceeds 9 kV Packaged in 8-Pin SON (DRB) 70% Smaller Than 8-Pin SOIC • • • Parallel Multipoint Data and Clock Transmission via Backplanes and Cables Cellular Base Stations Central Office Switches Network Switches and Routers PACKAGE AND PIN-OUT SN65MLVD2DRB SN65MLVD3DRB SON-8 VCC 1 8 VCC RE 2 7 B R 3 6 A GND 4 5 GND The signaling rate of a line is the number of voltage transitions that are made per second, expressed in the units bps (bits per second). DESCRIPTION The SN65MLVD2 and SN65MLVD3 are single-channel M-LVDS receivers. These devices are designed in full compliance with the TIA/EIA-899 (M-LVDS) standard, which are optimized to operate at signaling rates up to 250 Mbps. Each receiver channel is controlled by a receive enable (RE). When RE = low, the corresponding channel is enabled; when RE = high, the corresponding channel is disabled. The M-LVDS standard defines two types of receivers, designated as Type-1 and Type-2. Type-1 receivers (SN65MLVD2) have thresholds centered about zero with 25 mV of hysteresis to prevent output oscillations with loss of input; Type-2 receivers (SN65MLVD3) implement a failsafe by using an offset threshold. Receiver outputs are slew rate controlled to reduce EMI and crosstalk effects associated with large current surges. The devices are characterized for operation from –40°C to 85°C. Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of the Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters. Copyright © 2006, Texas Instruments Incorporated SN65MLVD2 SN65MLVD3 www.ti.com SLLS767 – NOVEMBER 2006 TYPICAL APPLICATION (System Clock - Primary) (System Clock - Secondary) User defined frequency < 100 MHz 19.44 MHz 8 KHz M-LVDS Transceiver M-LVDS Transceiver 19.44 MHz 8 KHz M-LVDS Transceiver M-LVDS Transceiver User defined frequency < 100 MHz M-LVDS Transceiver 80 RT CLK1A (8 KHz) 80 RT 80 RT CLK1B (8KHz) 80 RT 80 R CLK2A (19.44 MHz) 80 R CLK2B (19.44 MHz) 80 R 80 R T T T T 80 RT CLK3A (user defined frequency) 80 RT 80 R CLK3B (user defined frequency) 80 R T M-LVDS Receivers CLK1A 8 KHz M-LVDS Receivers CLK1B 8 KHz M-LVDS Receivers CLK2A 19.44 MHz M-LVDS Receivers CLK2B 19.44 MHz M-LVDS Receivers AdvancedTCA Backplane - Synchronized System Clock Submit Documentation Feedback M-LVDS Receivers CLK3A CLK3B User defined frequency Line Card 1 - N 2 M-LVDS Transceiver T SN65MLVD2 SN65MLVD3 www.ti.com SLLS767 – NOVEMBER 2006 These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates. ORDERING INFORMATION (1) PART NUMBER FUNCTION PART MARKING PACKAGE / CARRIER SN65MLVD2DRBT M-LVDS Type 1 Receiver MF2 8-Pin SON / Small Tape and Reel SN65MLVD2DRBR M-LVDS Type 1 Receiver MF2 8-Pin SON / Tape and Reel SN65MLVD3DRBT M-LVDS Type 2 Receiver MF3 8-Pin SON / Small Tape and Reel SN65MLVD3DRBR M-LVDS Type 2 Receiver MF3 8-Pin SON / Tape and Reel (1) For the most current package and ordering information, see the Package Option Addendum at the end of this document, or see the TI website at www.ti.com. ABSOLUTE MAXIMUM RATINGS over operating free-air temperature range (unless otherwise noted) VCC (1) VALUE UNIT –0.5 to 4 V RE –0.5 to 4 V A or B –1.8 to 4 V R –0.3 to 4 V Supply voltage range (2) Input voltage range Output voltage range Human-body model (3) Electrostatic discharge All other pins ±7 A, B ±9 Machine model (4) All pins ±200 V Field-induced-charged-device model (5) All pins ±2 kV Continuous power dissipation (1) (2) (3) (4) (5) kV See Dissipation Rating Table Stresses beyond those listed under absolute maximum ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under recommended operating conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. All voltage values, except differential I/O bus voltages, are with respect to network ground terminal. Tested in accordance with JEDEC Standard 22, Test Method A114-A. Bus pin stressed with respect to a common connection of GND and VCC. Tested in accordance with JEDEC Standard 22 Test Method A115-A. Tested in accordance with EIA-JEDEC JESD22-C101C. PACKAGE DISSIPATION RATINGS (1) PACKAGE 8-SON DRB (1) (2) PCB TYPE TA≤ 25°C POWER RATING DERATING FACTOR (2) ABOVE TA = 25°C TA = 85°C POWER RATING Low-K 280 mW 2.80 mW/°C 112 mW High-K 662 mW 6.62 mW/°C 264 mW The thermal dissipations are in the consideration of soldering down the powerPAD without via on each type of boards. This is the inverse of the junction-to-ambient thermal resistance when board-mounted and with no air flow. THERMAL CHARACTERISTICS PARAMETER θJB Junction-to-board thermal resistance θJC Junction-to-case thermal resistance PD Device power dissipation TEST CONDITIONS MIN TYP MAX ° C/W 98 RE at 0 V, CL = 15 pF, VID = 400 mV, 125 MHz Submit Documentation Feedback UNIT ° C/W 89 90 mW 3 SN65MLVD2 SN65MLVD3 www.ti.com SLLS767 – NOVEMBER 2006 RECOMMENDED OPERATING CONDITIONS over operating free-air temperature range (unless otherwise noted) MIN NOM MAX VCC Supply voltage 3 3.3 3.6 V VIH High-level input voltage 2 VCC V VIL Low-level input voltage GND 0.8 V VA or VB Voltage at any bus terminal –1.4 3.8 V |VID| Magnitude of differential input voltage 0.035 VCC V VIC Differential common-mode input voltage –1 RL Differential load resistance 30 1/tUI Signaling rate TA Operating free-air temperature 3.4 V Ω 50 –40 UNIT 250 Mbps 85 °C DEVICE ELECTRICAL CHARACTERISTICS over recommended operating conditions (unless otherwise noted) PARAMETER ICC (1) Supply current TEST CONDITIONS MIN TYP (1) MAX RE at 0 V, CL = 15 pF, VID = 400 mV, 125 MHz 25 UNIT mA All typical values are at 25°C and with a 3.3-V supply voltage. RECEIVER ELECTRICAL CHARACTERISTICS over recommended operating conditions (unless otherwise noted) PARAMETER VIT+ Positive-going differential input voltage threshold VIT– Differential input voltage hysteresis (VIT+– VIT–) MIN TYP (1) MAX Type 1 35 Type 2 135 Negative-going differential input voltage Type 1 threshold Type 2 VHYS See Figure 1, Table 1 and Table 2 –35 UNIT mV mV 65 Type 1 25 Type 2 0 mV VOH High-level output voltage IOH = –8 mA VOL Low-level output voltage IOL = 8 mA IIH High-level input current VIH = 2 V to VCC –10 IIL Low-level input current VIL = GND to 0.8 V –10 IOZ High-impedance output current VO = 0 V or VCC –10 15 µA IA or IB Receiver input current One input (VA or VB) = –1.4 V or 3.8 V, Other input = 1.2 V –20 20 µA IAB –4 4 µA –20 20 µA –4 4 µA Receiver differential input current (IA– IB) VA = VB = –1.4 V or 3.8 V IA(OFF) or IB(OFF) Receiver input current One input (VA or VB) = –1.4 V or 3.8 V, Other input = 1.2 V, VCC = GND or 1.5 V IAB(OFF) Receiver power-off differential input current (IA– IB) VA = VB = –1.4 V or 3.8 V, VCC = GND or 1.5 V CA or CB Input capacitance VI = 0.4sin(30E6πt) + 0.5V, (2) Other input at 1.2 V CAB Differential input capacitance VAB = 0.4sin(30E6πt) + 0.5 V (2) CA/B Input capacitance balance, (CA/CB) (1) (2) 4 TEST CONDITIONS 2.4 Submit Documentation Feedback V µA µA 3 pF 2.5 0.99 All typical values are at 25°C and with a 3.3-V supply voltage. HP4194A impedance analyzer (or equivalent) V 0.4 1.01 pF SN65MLVD2 SN65MLVD3 www.ti.com SLLS767 – NOVEMBER 2006 RECEIVER SWITCHING CHARACTERISTICS over recommended operating conditions (unless otherwise noted) PARAMETER TEST CONDITIONS MIN TYP (1) MAX UNIT tPLH Propagation delay time, low-to-high-level output 2 6 ns tPHL Propagation delay time, high-to-low-level output 2 6 ns tr Output signal rise time 1 2.3 tf Output signal fall time CL = 15 pF, See Figure 2 tsk(p) Pulse skew (|tPHL– tPLH|) tsk(pp) Part-to-part skew tjit(per) Period jitter, rms (1 standard deviation) (2) tjit(c-c) Cycle-to-cycle jitter, 2.3 Type 1 90 210 Type 2 45 250 125 MHz clock input rms (3) 125 MHz clock Type 1 Deterministic jitter (2) tjit(det) 1 Type 2 Type 1 input (4) 250 Mbps 215-1 PRBS input (5) ps 1 ns 10 ps 8 ps 500 ps 450 ps 8 ps tjit(ran) Random jitter (2) 8 ps tPZH Enable time, high-impedance-to-high-level output CL = 15 pF, See Figure 3 15 ns tPZL Enable time, high-impedance-to-low-level output CL = 15 pF, See Figure 3 15 ns tPHZ Disable time, high-level-to-high-impedance output CL = 15 pF, See Figure 3 10 ns tPLZ Disable time, low-level-to-high-impedance output CL = 15 pF, See Figure 3 10 ns (1) (2) (3) (4) (5) Type 2 250 Mbps 215-1 PRBS input (5) ns All typical values are at 25°C and with a 3.3-V supply voltage. Jitter measured by triggering off of the input source to track out the associated input jitter. Stimulus jitter has been subtracted from the numbers. Measured over 75K samples Measured over BER = 10–6. TERMINAL FUNCTIONS TERMINAL NAME NO. I/O DESCRIPTION A 6 I M-LVDS Non-inverting input B 7 I M-LVDS Inverting input R 3 O Data output from receivers RE 2 I Receiver enable, active low, enables all receivers GND 4, 5 Circuit ground VCC 1, 8 Supply voltage DEVICE FUNCTION TABLES TYPE-1 RECEIVER (SN65MLVD2) INPUTS (1) (1) TYPE-2 RECEIVER (SN65MLVD3) OUTPUT (1) VID = VA– VB RE R INPUTS (1) OUTPUT (1) VID = VA– VB RE R VID ≥ 35 mV L H VID ≥ 135 mV L H –35 mV ≤ VID ≤ 35 mV L ? 65 mV ≤ VID ≤ 135 mV L ? VID ≤– 35 mV L L VID ≤ 65 mV L L X H Z X H Z X Open Z X Open Z Open Circuit L ? Open Circuit L L H=high level, L=low level, Z=high impedance, X=Don’t care, ?=indeterminate Submit Documentation Feedback 5 SN65MLVD2 SN65MLVD3 www.ti.com SLLS767 – NOVEMBER 2006 EQUIVALENT INPUT AND OUTPUT SCHEMATIC DIAGRAMS Receiver Enable VCC 360 kW 400 W RE 7V Receiver Input VCC Receiver Output VCC 100 kW 100 kW 250 kW 250 kW 10 W R B A 10 W 200 kW 200 kW 7V 6 Submit Documentation Feedback SN65MLVD2 SN65MLVD3 www.ti.com SLLS767 – NOVEMBER 2006 PARAMETER MEASUREMENT INFORMATION IA A IO R V ID (V A +V B )/2 V CM B VA VO IB VB Figure 1. Receiver Voltage and Current Definitions Table 1. Type-1 Receiver Input Threshold Test Voltages APPLIED VOLTAGES (1) RESULTING DIFFERENTIAL INPUT VOLTAGE RESULTING COMMON-MODE INPUT VOLTAGE VID VIC RECEIVER OUTPUT (1) VIA VIB 2.400 0.000 2.400 1.200 0.000 2.400 – 2.400 1.200 L 3.400 3.365 0.035 3.3825 H H 3.365 3.400 – 0.035 3.3825 L –0.965 –1 0.035 –0.9825 H –1 –0.965 – 0.035 –0.9825 L H= high level, L = low level, output state assumes receiver is enabled (RE = L) Table 2. Type-2 Receiver Input Threshold Test Voltages APPLIED VOLTAGES (1) RESULTING DIFFERENTIAL INPUT VOLTAGE RESULTING COMMON-MODE INPUT VOLTAGE RECEIVER OUTPUT (1) VIA VIB VID VIC 2.400 0.000 2.400 1.200 0.000 2.400 – 2.400 1.200 L 3.400 3.265 0.135 3.3325 H 3.4000 3.335 0.065 3.3675 L –0.865 –1 0.135 –0.9325 H –0.935 –1 0.065 –0.9675 L H H= high level, L = low level, output state assumes receiver is enabled (RE = L) Submit Documentation Feedback 7 SN65MLVD2 SN65MLVD3 www.ti.com SLLS767 – NOVEMBER 2006 VID VA CL 15 pF VB VO VA 1.2 V VB 0.8 V VID 0.4 V 0V -0.4 V tPHL tPLH VO 90% 10% tf tr VOH VCC 2 VOL A. All input pulses are supplied by a generator having the following characteristics: tr or tf ≤ 1 ns, Frequency = 1 MHz, duty cycle = 50 ± 5%. CL is a combination of a 20%-tolerance, low-loss ceramic, surface-mount capacitor and fixture capacitance within 2 cm of the D.U.T. B. The measurement is made on test equipment with a –3dB bandwidth of at least 1 GHz. Figure 2. Receiver Timing Test Circuit and Waveforms 8 Submit Documentation Feedback SN65MLVD2 SN65MLVD3 www.ti.com SLLS767 – NOVEMBER 2006 1.2 V B RL 499 W A CL 15 pF Inputs RE VO VTEST VTEST VCC 0.8 V A VCC VCC 2 0V RE tPZL tPLZ VO VCC VCC V 2 + 0.5 V OL VOL VTEST 0V 1.6 V A VCC VCC 2 0V RE tPZH tPHZ VO VOH VOH VCC 2 0V 0.5 V A. All input pulses are supplied by a generator having the following characteristics: tr or tf ≤ 1 ns, frequency = 1 MHz, duty cycle = 50 ± 5%. B. RL is 1% tolerance, metal film, surface mount, and located within 2 cm of the D.U.T C. CL is the instrumentation and fixture capacitance within 2 cm of the D.U.T. and ±20%. The measurement is made on test equipment with a –3dB bandwidth of at least 1GHz. Figure 3. Receiver Enable/Disable Time Test Circuit and Waveforms Submit Documentation Feedback 9 SN65MLVD2 SN65MLVD3 www.ti.com SLLS767 – NOVEMBER 2006 INPUTS VA - VB VCM CLOCK INPUT VA - VB 0.4 V 1/fo 1.0 V Period Jitter IDEAL OUTPUT VOH VCC /2 VOL VA 1/fo PRBS INPUT ACTUAL OUTPUT V OH VB VCC/2 VOL Peak to Peak Jitter VOH tc(n) OUTPUT tjit(per) = | tc(n) - 1/fo | VCC/2 VOL Cycle to Cycle Jitter OUTPUT t jit(pp) VOH VCC /2 VOL tc(n) tc(n+1) tjit(cc) = | tc(n) - tc(n+1)| A. All input pulses are supplied by the Agilent 81250 Parallel BERT Stimulus System with plug-in E4832A. B. The cycle-to-cycle jitter measurement is made on a TEK TDS6604 running TDSJIT3 application software C. Period jitter is measured using a 125-MHz 50 ± 1% duty cycle clock input. D. Deterministic jitter and random jitter are measured using a 250-Mbps 215-1 PRBS input Figure 4. Receiver Jitter Measurement Waveforms 10 Submit Documentation Feedback SN65MLVD2 SN65MLVD3 www.ti.com SLLS767 – NOVEMBER 2006 TYPICAL CHARACTERISTICS SUPPLY CURRENT vs FREQUENCY RECEIVER (TYPE-1) PROPAGATION DELAY TIME vs FREE-AIR TEMPERATURE 6 12 5.5 MLVD3 (Type 2) PD - Propagation Delay Time - ns ICC - Supply Current - mA 10 MLVD2 (Type 1) 8 6 4 VCC = 3.3 V, TA = 25ºC, VID = 400 mV, VIC = 1 V 2 50 75 100 f - Frequency - MHz 4 tPLH 3.5 tPHL 3 2 -40 125 -8.75 22.5 53.75 TA - Free-Air Temperature - ºC Figure 5. Figure 6. RECEIVER (TYPE-2) PROPAGATION DELAY TIME vs FREE-AIR TEMPERATURE RECEIVER (TYPE-1) TRANSITION TIME vs FREE-AIR TEMPERATURE 5 2.2 VCC = 3.3 V, f = 1 MHz, CL = 15 pF tr/tf - Rising/Falling Transition Time - ns 5.5 85 2.3 6 PD - Propagation Delay Time - ns 4.5 2.5 0 25 5 VCC = 3.3 V, f = 1 MHz, CL = 15 pF 4.5 4 tPHL 3.5 tPLH 3 2.5 2.1 VCC = 3.3 V, f = 1 MHz, CL = 15 pF 2 1.9 1.8 tr 1.7 1.6 1.5 1.4 tf 1.3 1.2 1.1 2 -40 -8.75 22.5 53.75 TA - Free-Air Temperature - ºC 85 1 -40 Figure 7. -8.75 22.5 53.75 TA - Free-Air Temperature - ºC 85 Figure 8. Submit Documentation Feedback 11 SN65MLVD2 SN65MLVD3 www.ti.com SLLS767 – NOVEMBER 2006 TYPICAL CHARACTERISTICS (continued) RECEIVER (TYPE-2) TRANSITION TIME vs FREE-AIR TEMPERATURE RECEIVER (TYPE-1) TRANSITION TIME vs OUTPUT LOAD CAPACITOR 2.3 1.8 VCC = 3.3 V, f = 1 MHz, CL = 15 pF 2.1 2 1.9 1.8 1.7 tr 1.6 1.5 1.4 tf 1.3 1.2 1.1 1.6 1.5 1.4 tr 1.3 1.2 1.1 1 tf 0.9 0.8 0.7 0.6 1 -40 -8.75 22.5 53.75 TA - Free-Air Temperature - ºC 0.5 85 5 7.5 11 13 CL - Output Load Capacitor - pF Figure 9. Figure 10. RECEIVER (TYPE-2) TRANSITION TIME vs OUTPUT LOAD CAPACITOR ADDED RECEIVER PEAK-TO-PEAK JITTER vs SIGNALING RATE 1.8 15 500 VCC = 3.3 V, f = 1 MHz, CL = 15 pF 1.6 450 tjit(pp) - Peak-to-Peak Jitter - ps 1.7 tr/tf - Rising/Falling Transition Time - ns VCC = 3.3 V, f = 1 MHz, CL = 15 pF 1.7 tr/tf - Rising/Falling Transition Time - ns tr/tf - Rising/Falling Transition Time - ns 2.2 1.5 1.4 1.3 tr 1.2 1.1 1 0.9 0.8 tf 0.7 VCC = 3.3 V, TA = 25ºC, 15 2 - 1 PRBS NRZ, See Figure 4 400 MLVD2 (Type 1) 350 MLVD3 (Type 2) 300 250 200 150 0.6 0.5 5 7.5 11 13 CL - Output Load Capacitor - pF 15 100 50 Figure 11. 12 100 200 150 Signaling Rate - Mbps Figure 12. Submit Documentation Feedback 250 SN65MLVD2 SN65MLVD3 www.ti.com SLLS767 – NOVEMBER 2006 TYPICAL CHARACTERISTICS (continued) ADDED RECEIVER PERIOD JITTER vs CLOCK FREQUENCY ADDED RECEIVER CYCLE-TO-CYCLE JITTER vs CLOCK FREQUENCY 5 5 tjit(c-c) rms - Cycle-to-Cycle Jitter - ps VCC = 3.3 V, TA = 25ºC, See Figure 4 tjit(per) rms - Period Jitter - ps 4 3 2 MLVD2 (Type 1) MLVD3 (Type 2) 1 0 25 VCC = 3.3 V, TA = 25ºC, See Figure 4 4 3 MLVD2 (Type 1) 2 1 MLVD3 (Type 2) 0 50 75 100 fCLK - Clock Frequency - MHz 125 25 Figure 13. 75 100 50 fCLK - Clock Frequency - MHz 125 Figure 14. 33.5 mV/div EYE PATTERNS 666.9 ps/div Figure 15. SN65MLVD2 Output (VCC = 3.3 V, CL = 15 pF) 250 Mbps 215–1 PRBS Submit Documentation Feedback 13 SN65MLVD2 SN65MLVD3 www.ti.com SLLS767 – NOVEMBER 2006 33.5 mV/div TYPICAL CHARACTERISTICS (continued) 666.9 ps/div Figure 16. SN65MLVD3 Output (VCC = 3.3 V, CL = 15 pF) 250 Mbps 215–1 PRBS 14 Submit Documentation Feedback PACKAGE OPTION ADDENDUM www.ti.com 10-Dec-2020 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) (4/5) (6) SN65MLVD2DRBR ACTIVE SON DRB 8 3000 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 85 MF2 SN65MLVD2DRBT ACTIVE SON DRB 8 250 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 85 MF2 SN65MLVD3DRBR ACTIVE SON DRB 8 3000 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 85 MF3 SN65MLVD3DRBT ACTIVE SON DRB 8 250 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 85 MF3 (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
