SCAS554D − NOVEMBER 1995 − REVISED OCTOBER 2003
D
SN54AC534 . . . J OR W PACKAGE
SN74AC534 . . . DB, DW, N, NS, OR PW PACKAGE
(TOP VIEW)
2-V to 6-V VCC Operation
Inputs Accept Voltages to 6 V
Max tpd of 11 ns at 5 V
3-State Inverting Outputs Drive Bus Lines
Directly
Full Parallel Access for Loading
OE
1Q
1D
2D
2Q
3Q
3D
4D
4Q
GND
description/ordering information
These octal edge-triggered D-type flip-flops
feature 3-state outputs designed specifically for
driving
highly
capacitive
or
relatively
low-impedance loads. The devices are
particularly suitable for implementing buffer
registers, I/O ports, bidirectional bus drivers, and
working registers.
1
20
2
19
3
18
4
17
5
16
6
15
7
14
8
13
9
12
10
11
VCC
8Q
8D
7D
7Q
6Q
6D
5D
5Q
CLK
SN54AC534 . . . FK PACKAGE
(TOP VIEW)
1D
1Q
OE
VCC
On the positive transition of the clock (CLK) input,
the Q outputs are set to the complements of the
logic levels set up at the data (D) inputs.
2D
2Q
3Q
3D
4D
4
3 2 1 20 19
18
5
17
6
16
7
15
8
14
9 10 11 12 13
8D
7D
7Q
6Q
6D
4Q
GND
CLK
5Q
5D
A buffered output-enable (OE) input can be used
to place the eight outputs in either a normal logic
state (high or low logic levels) or the
high-impedance state. In the high-impedance
state, the outputs neither load nor drive the bus
lines significantly. The high-impedance state and
increased drive provide the capability to drive bus
lines without need for interface or pullup
components.
8Q
D
D
D
D
OE does not affect internal operations of the flip-flops. Old data can be retained or new data can be entered
while the outputs are in the high-impedance state.
ORDERING INFORMATION

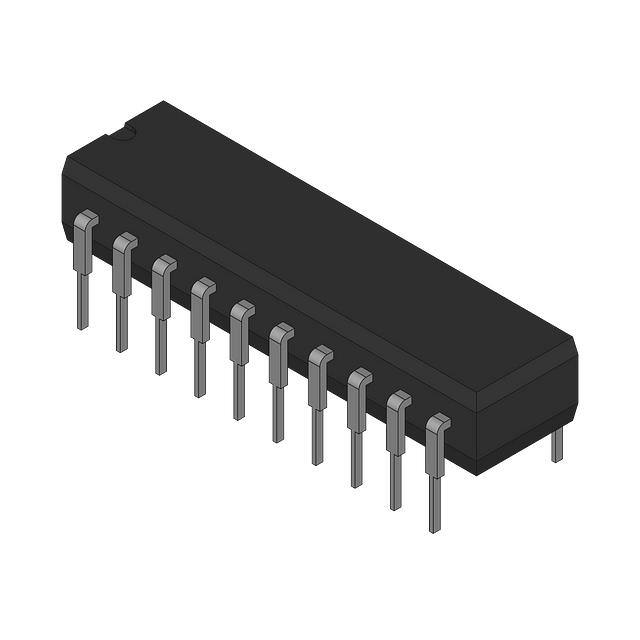

PDIP − N
SN74AC534N
Tube
SN74AC534DW
Tape and reel
SN74AC534DWR
SOP − NS
Tape and reel
SN74AC534NSR
AC534
SSOP − DB
Tape and reel
SN74AC534DBR
AC534
Tube
SN74AC534PW
Tape and reel
SN74AC534PWR
CDIP − J
Tube
SNJ54AC534J
SNJ54AC534J
CFP − W
Tube
SNJ54AC534W
SNJ54AC534W
LCCC − FK
Tube
SNJ54AC534FK
SNJ54AC534FK
TSSOP − PW
−55°C
−55
C to 125
125°C
C
TOP-SIDE
MARKING
Tube
SOIC − DW
−40°C
−40
C to 85
85°C
C
ORDERABLE
PART NUMBER
PACKAGE†
TA
SN74AC534N
AC534
AC534
† Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are
available at www.ti.com/sc/package.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
Copyright 2003, Texas Instruments Incorporated
!"#$ $%$
$&'"%$ !''#$ % & (!)*%$ %#+ '! $&'"
(#&%$ (#' # #'" & #,% $'!"#$ %$%' -%''%$.+
'!$ ('#$/ # $ $##%'*. $*!# #$/ & %**
(%'%"##'+
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265
1
SCAS554D − NOVEMBER 1995 − REVISED OCTOBER 2003
description/ordering information (continued)
To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup
resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
FUNCTION TABLE
(each flip-flop)
INPUTS
OE
CLK
D
OUTPUT
Q
L
↑
H
L
L
↑
L
H
L
H or L
X
Q0
H
X
X
Z
logic diagram (positive logic)
OE
LE
1
11
C1
1D
3
2
1Q
1D
To Seven Other Channels
absolute maximum ratings over operating free-air temperature range (unless otherwise noted)†
Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 7 V
Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to VCC + 0.5 V
Output voltage range, VO (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0 or VI > VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±20 mA
Output clamp current, IOK (VO < 0 or VO > VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±20 mA
Continuous output current, IO (VO = 0 to VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
Continuous current through VCC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±200 mA
Package thermal impedance, θJA (see Note 2): DB package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70°C/W
DW package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58°C/W
N package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69°C/W
NS package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60°C/W
PW package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83°C/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65°C to 150°C
† Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.
2. The package thermal impedance is calculated in accordance with JESD 51-7.
2
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265
SCAS554D − NOVEMBER 1995 − REVISED OCTOBER 2003
recommended operating conditions (see Note 3)
SN54AC534
VCC
VIH
Supply voltage
VCC = 3 V
VCC = 4.5 V
High-level input voltage
VCC = 5.5 V
VCC = 3 V
VIL
Input voltage
IOL
∆t/∆v
2
6
Low-level output current
MAX
2
6
2.1
3.15
3.15
3.85
3.85
0
High-level output current
MIN
2.1
0
Output voltage
IOH
MAX
VCC = 4.5 V
VCC = 5.5 V
Low-level input voltage
VI
VO
MIN
SN74AC534
0.9
1.35
1.35
1.65
1.65
0
0
VCC
VCC
VCC = 3 V
VCC = 4.5 V
−12
−12
−24
−24
VCC = 5.5 V
VCC = 3 V
−24
−24
12
12
VCC = 4.5 V
VCC = 5.5 V
24
24
24
24
8
8
Input transition rise or fall rate
V
V
0.9
VCC
VCC
UNIT
V
V
V
mA
mA
ns/V
TA
Operating free-air temperature
−55
125
−40
85
°C
NOTE 3: All unused inputs of the device must be held at VCC or GND to ensure proper device operation. Refer to the TI application report,
Implications of Slow or Floating CMOS Inputs, literature number SCBA004.
electrical characteristics over recommended operating free-air temperature range (unless
otherwise noted)
PARAMETER
TEST CONDITIONS
IOH = −50 µA
VOH
VOL
IOH = −12 mA
TA = 25°C
TYP
MAX
SN54AC534
SN74AC534
VCC
MIN
3V
2.9
2.9
2.9
4.5 V
4.4
4.4
4.4
5.5 V
5.4
5.4
5.4
3V
2.56
2.4
2.46
MIN
MAX
MIN
MAX
UNIT
V
4.5 V
3.86
3.7
3.76
IOH = −24 mA
5.5 V
4.86
4.7
4.76
3V
0.1
0.1
0.1
IOL = 50 µA
4.5 V
0.1
0.1
0.1
5.5 V
0.1
0.1
0.1
3V
0.36
0.5
0.44
4.5 V
0.36
0.5
0.44
5.5 V
0.36
0.5
0.44
5.5 V
±0.5
±5
±2.5
µA
5.5 V
±0.1
±1
±1
µA
4
80
40
µA
IOL = 12 mA
IOL = 24 mA
IOZ
II
VO = VCC or GND
VI = VCC or GND
ICC
Ci
VI = VCC or GND,
VI = VCC or GND
IO = 0
5.5 V
5V
4.5
V
pF
0
$&'"%$ $#'$ ('! $ # &'"%1# '
#/$ (%# & #1#*("#$+ %'%#' %% %$ #'
(#&%$ %'# #/$ /%*+ #,% $'!"#$ '##'1# # '/
%$/# ' $$!# ## ('! -! $#+
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265
3
SCAS554D − NOVEMBER 1995 − REVISED OCTOBER 2003
timing requirements over recommended operating free-air temperature range, VCC = 3.3 V ± 0.3 V
(unless otherwise noted) (see Figure 1)
TA = 25°C
MIN
MAX
SN54AC534
MIN
70
SN74AC534
MAX
MIN
60
MAX
70
UNIT
fclock
tw
Clock frequency
Pulse duration, CLK high or low
5
8
6.5
MHz
ns
tsu
th
Setup time, data before CLK↑
5
8
6.5
ns
Hold time, data after CLK↑
1
3
1.5
ns
timing requirements over recommended operating free-air temperature range, VCC = 5 V ± 0.5 V
(unless otherwise noted) (see Figure 1)
TA = 25°C
MIN
MAX
SN54AC534
MIN
150
SN74AC534
MAX
MIN
Clock frequency
Pulse duration, CLK high or low
3.5
5.5
4
ns
tsu
th
Setup time, data before CLK↑
3.5
5.5
4
ns
1
3
1.5
ns
switching characteristics over recommended operating
VCC = 3.3 V ± 0.3 V (unless otherwise noted) (see Figure 1)
PARAMETER
FROM
(INPUT)
TO
(OUTPUT)
fmax
TA = 25°C
MIN
MAX
CLK
Q
tPZH
tPZL
OE
Q
tPHZ
tPLZ
OE
Q
MIN
TO
(OUTPUT)
MAX
MIN
MAX
70
14
2
17.5
2.5
16
3
13
2
16.5
2.5
15
3
12.5
2
15.5
2.5
14
3
12.5
2
15.5
2.5
14
2
13.5
1
16.5
1.5
15
2
12
1
15
1.5
13.5
TA = 25°C
MIN
MAX
temperature
SN54AC534
MIN
range,
UNIT
MHz
3
free-air
MHz
SN74AC534
60
switching characteristics over recommended operating
VCC = 5 V ± 0.5 V (unless otherwise noted) (see Figure 1)
FROM
(INPUT)
temperature
SN54AC534
70
tPLH
tPHL
PARAMETER
free-air
140
UNIT
fclock
tw
Hold time, data after CLK↑
75
MAX
ns
ns
ns
range,
SN74AC534
MAX
75
MIN
MAX
fmax
150
tPLH
tPHL
2.5
10.5
1.5
13.5
140
2
12
CLK
Q
2.5
9.5
1.5
12.5
2
11
tPZH
tPZL
2.5
10
1.5
13
2
11.5
OE
Q
2.5
10
1.5
13
2
11.5
tPHZ
tPLZ
OE
Q
1.5
11.5
1
14
1
12.5
1.5
10
1
12.5
1
11
UNIT
MHz
ns
ns
ns
operating characteristics, VCC = 5 V, TA = 25°C
PARAMETER
Cpd
TEST CONDITIONS
Power dissipation capacitance
CL = 50 pF,
0
$&'"%$ $#'$ ('! $ # &'"%1# '
#/$ (%# & #1#*("#$+ %'%#' %% %$ #'
(#&%$ %'# #/$ /%*+ #,% $'!"#$ '##'1# # '/
%$/# ' $$!# ## ('! -! $#+
4
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265
f = 1 MHz
TYP
UNIT
40
pF
SCAS554D − NOVEMBER 1995 − REVISED OCTOBER 2003
PARAMETER MEASUREMENT INFORMATION
2 × VCC
S1
500 Ω
From Output
Under Test
CL = 50 pF
(see Note A)
Open
500 Ω
TEST
S1
tPLH/tPHL
tPLZ/tPZL
tPHZ/tPZH
Open
2 × VCC
Open
LOAD CIRCUIT
VCC
50% VCC
Timing Input
0V
tw
tsu
VCC
50% VCC
Input
th
50% VCC
VCC
50% VCC
Data Input
50% VCC
0V
0V
VOLTAGE WAVEFORMS
VOLTAGE WAVEFORMS
Output
Control
(low-level
enabling)
VCC
50% VCC
Input
50% VCC
0V
tPLH
tPHL
50% VCC
In-Phase
Output
tPHL
Out-of-Phase
Output
VOH
50% VCC
VOL
tPLZ
tPZL
VOH
50% VCC
VOL
50% VCC
0V
Output
Waveform 1
S1 at 2 × VCC
(see Note B)
≈VCC
50% VCC
VOL + 0.3 V
VOL
tPHZ
tPZH
tPLH
50% VCC
VCC
50% VCC
Output
Waveform 2
S1 at Open
(see Note B)
50% VCC
VOH − 0.3 V
VOH
≈0 V
VOLTAGE WAVEFORMS
VOLTAGE WAVEFORMS
NOTES: A. CL includes probe and jig capacitance.
B. Waveform 1 is for an output with internal conditions such that the output is low except when disabled by the output control.
Waveform 2 is for an output with internal conditions such that the output is high except when disabled by the output control.
C. All input pulses are supplied by generators having the following characteristics: PRR ≤ 1 MHz, ZO = 50 Ω, tr ≤ 2.5 ns, tf ≤ 2.5 ns.
D. The outputs are measured one at a time with one input transition per measurement.
Figure 1. Load Circuit and Voltage Waveforms
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265
5
PACKAGE OPTION ADDENDUM
www.ti.com
10-Dec-2020
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
SN74AC534DBR
ACTIVE
SSOP
DB
20
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 85
AC534
SN74AC534DW
ACTIVE
SOIC
DW
20
25
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 85
AC534
SN74AC534DWR
ACTIVE
SOIC
DW
20
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 85
AC534
SN74AC534N
ACTIVE
PDIP
N
20
20
RoHS &
Non-Green
NIPDAU
N / A for Pkg Type
-40 to 85
SN74AC534N
SN74AC534NSR
ACTIVE
SO
NS
20
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 85
AC534
SN74AC534PW
ACTIVE
TSSOP
PW
20
70
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 85
AC534
SN74AC534PWR
ACTIVE
TSSOP
PW
20
2000
RoHS & Green
NIPDAU
Level-1-260C-UNLIM
-40 to 85
AC534
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
