SN74LVC1G3157
SCES424L – JANUARY 2003 – REVISED MAY 2017
SN74LVC1G3157 Single-Pole Double-Throw Analog Switch
1 Features
3 Description
•
This single channel single-pole double-throw (SPDT)
analog switch is designed for 1.65-V to 5.5-V VCC
operation.
1
•
•
•
•
•
•
•
•
ESD Protection Exceeds JESD 22
– 2000-V Human Body Model (A114-A)
– 1000-V Charged-Device Model (C101)
1.65-V to 5.5-V VCC Operation
Qualified For 125°C operation
Specified Break-Before-Make Switching
Rail-to-Rail Signal Handling
Operating Frequency Typically 340 MHz at Room
Temperature
High Speed, Typically 0.5 ns
(VCC = 3 V, CL = 50 pF)
Low ON-State Resistance, Typically ≉6 Ω
(VCC = 4.5 V)
Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
Applications include signal gating, chopping,
modulation or demodulation (modem), and signal
multiplexing for analog-to-digital and digital-to-analog
conversion systems.
Device Information(1)
PART NUMBER
SN74LVC1G3157
2 Applications
•
•
•
•
•
•
•
•
•
•
The SN74LVC1G3157 device can handle both analog
and digital signals. The SN74LVC1G3157 device
permits signals with amplitudes of up to VCC (peak) to
be transmitted in either direction.
Wearables and Mobile Devices
Portable Computing
Internet of Things (IoT)
Audio Signal Routing
Remote Radio Unit
Portable Medical Equipment
Surveillance
Home Automation
I2C/SPI/UART Bus Multiplexing
Wireless Charging
PACKAGE
BODY SIZE (NOM)
SOT-23 (DBV)
2.90 mm × 1.60 mm

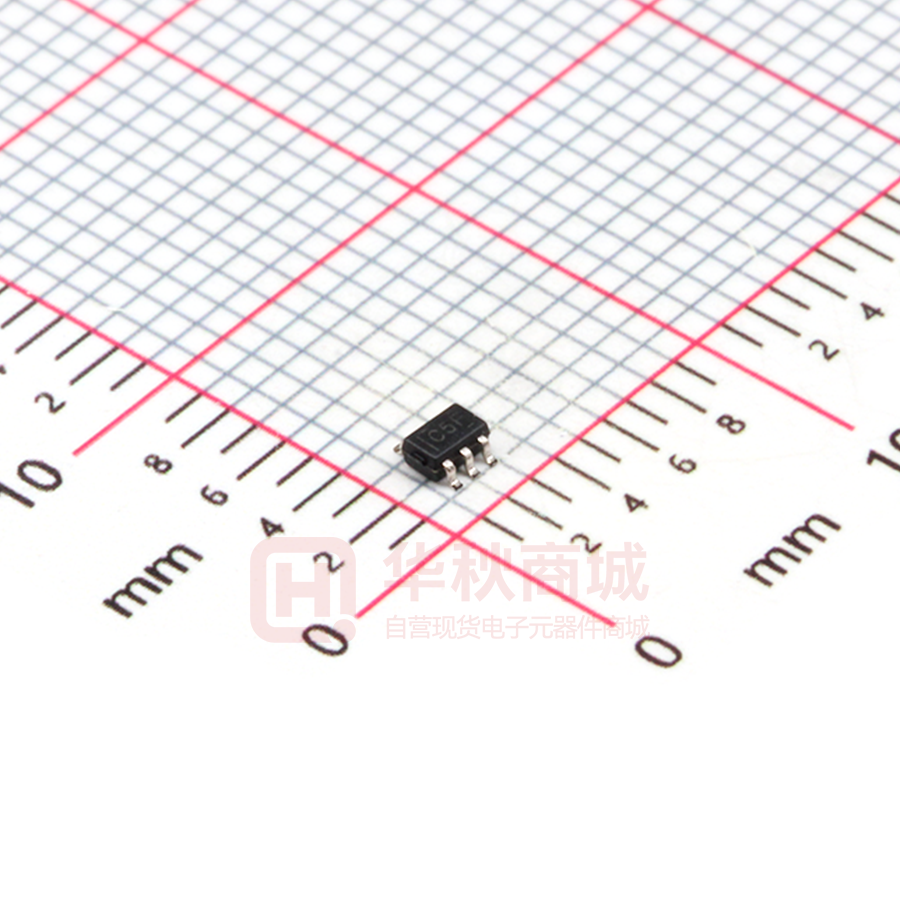

SC70 (DCK)
2.00 mm × 1.25 mm
SOT (DRL)
1.60 mm × 1.20 mm
SON (DRY)
1.45 mm × 1.00 mm
DSBGA (YZP)
1.41 mm × 0.91 mm
SON (DSF)
1.00 mm × 1.00 mm
X2SON (DTB)
0.80 mm × 1.00 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
Simplified Schematic
1
B2
6
S
B1
4
A
3
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
SN74LVC1G3157
SCES424L – JANUARY 2003 – REVISED MAY 2017
www.ti.com
Table of Contents
1
2
3
4
5
6
7
8
Features ..................................................................
Applications ...........................................................
Description .............................................................
Revision History.....................................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
2
4
5
6.1
6.2
6.3
6.4
6.5
6.6
6.7
6.8
6.9
5
5
6
6
7
8
9
9
9
Absolute Maximum Ratings .....................................
ESD Ratings..............................................................
Recommended Operating Conditions ......................
Thermal Information ..................................................
Electrical Characteristics...........................................
Analog Switch Characteristics .................................
Switching Characteristics 85°C.................................
Switching Characteristics 125°C...............................
Typical Characteristics ..............................................
Parameter Measurement Information ................ 10
Detailed Description ............................................ 15
8.1 Overview ................................................................. 15
8.2 Functional Block Diagram ....................................... 15
8.3 Feature Description................................................. 15
8.4 Device Functional Modes........................................ 15
9
Application and Implementation ........................ 16
9.1 Application Information............................................ 16
9.2 Typical Application ................................................. 16
10 Power Supply Recommendations ..................... 18
11 Layout................................................................... 18
11.1 Layout Guidelines ................................................. 18
11.2 Layout Example .................................................... 18
12 Device and Documentation Support ................. 19
12.1
12.2
12.3
12.4
12.5
12.6
Documentation Support ........................................
Receiving Notification of Documentation Updates
Community Resources..........................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
19
19
19
19
19
19
13 Mechanical, Packaging, and Orderable
Information ........................................................... 19
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision K (January 2017) to Revision L
Page
•
Deleted Feature "Useful for Both Analog and Digital Applications" ...................................................................................... 1
•
Deleted Feature "High Degree of Linearity" .......................................................................................................................... 1
•
Changed the first sentence of the Description From: "This single-pole double-throw (SPDT)..." To: "This single
channel single pole double-throw (SPDT)..." ......................................................................................................................... 1
•
Added the X2SON (DTB) package to the Device Information ............................................................................................... 1
•
Added the X2SON (DTB) package to the Pin Configuration and Functions .......................................................................... 4
•
Changed II/O To: II/OK for I/O port diode current in the Absolute Maximum Ratings ............................................................... 5
•
Added the DTB (X2SON) package to the Thermal Information table .................................................................................... 6
•
Changed Note 1 and Note 2 n the Analog Switch Characteristics table................................................................................ 9
•
Deleted Note 3 "Specified by design" from the Analog Switch Characteristics tables........................................................... 9
•
Deleted Note 4 "Specified by design" from the Switch Characteristics 85°C tables .............................................................. 9
•
Deleted Note 4 "Specified by design" from the Switch Characteristics 125°C tables ............................................................ 9
•
Changed Figure 3, From: SW1 = VIL to SW1 = VIH, From: SW2 = VIH to: SW2 = VIL .......................................................... 10
•
Changed Figure 6 ................................................................................................................................................................ 12
•
Added a series 50-Ω resistor on B1 in Figure 7 ................................................................................................................... 12
•
Changed Figure 8 ................................................................................................................................................................ 13
Changes from Revision J (June 2016) to Revision K
Page
•
Added new applications to Applications section .................................................................................................................... 1
•
Added Operating free-air temperature, TA for BGA and all other packages in Recommended Operating Conditions .......... 6
•
Added 125°C data to Electrical Characteristics table. ........................................................................................................... 7
•
Added 85°C to title to differentiate from new 125°C Switching Characteristics section. ....................................................... 9
•
Added 125°C Switching Characteristics section and data. ................................................................................................... 9
2
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1G3157
SN74LVC1G3157
www.ti.com
SCES424L – JANUARY 2003 – REVISED MAY 2017
Changes from Revision I (June 2015) to Revision J
Page
•
Deleted 200-V Machine Model (A115-A) from Features ........................................................................................................ 1
•
Changed Feature From: "Operating Frequency Typically 300 MHz at Room Temperature" To: "Operating Frequency
Typically 340 MHz at Room Temperature"............................................................................................................................. 1
•
Updated Device Information table .......................................................................................................................................... 1
•
Updated pinout images for all packages ................................................................................................................................ 4
•
Added temperature ranges for Storage temperature, Tstg and Junction temperature, TJ in Absolute Maximum Ratings...... 5
•
Changed MAX value ±1 to ±0.1 for Ioff and IIN in Electrical Characteristics table................................................................... 7
•
Added Receiving Notification of Documentation Updates section ....................................................................................... 19
Changes from Revision H (May 2012) to Revision I
Page
•
Added Device Information table, Pin Configuration and Functions section, ESD Ratings table, Feature Description
section, Device Functional Modes, Application and Implementation section, Power Supply Recommendations
section, Layout section, Device and Documentation Support section, and Mechanical, Packaging, and Orderable
Information section ................................................................................................................................................................ 1
•
Updated Features. .................................................................................................................................................................. 1
Changes from Revision G (September 2011) to Revision H
Page
•
Changed YZP with correct pin labels. ................................................................................................................................... 4
•
Added Thermal Information table ........................................................................................................................................... 6
•
Changed to correct Pin Label "S" ........................................................................................................................................... 7
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1G3157
3
SN74LVC1G3157
SCES424L – JANUARY 2003 – REVISED MAY 2017
www.ti.com
5 Pin Configuration and Functions
DBV Package
6-Pin SOT-23
Top View
DCK Package
6-Pin SC70
Top View
B2
1
6
S
GND
2
5
VCC
B1
3
4
A
B2
1
6
S
GND
2
5
VCC
B1
3
4
A
Not to scale
Not to scale
DRY Package
6-Pin SON
Top View
DRL Package
6-Pin SOT
Top View
B2
1
6
S
GND
2
5
VCC
B1
3
4
A
B2
1
6
S
GND
2
5
VCC
B1
3
4
A
Not to scale
Not to scale
DSF Package
6-Pin SON
Top View
YZP Package
6-Pin DSBGA
Bottom View
B2
1
6
S
GND
2
5
VCC
B1
3
4
A
1
2
C
B1
A
B
GND
A
B2
VCC
Not to scale
DTB Package
6-Pin X2SON
Top View
B2
1
B1
4
Not to scale
6
2
GND
5
3
S
S
VCC
4
A
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1G3157
SN74LVC1G3157
www.ti.com
SCES424L – JANUARY 2003 – REVISED MAY 2017
Pin Functions
PIN
SOT-23,
SC70, SON,
X2SON, or
SOT
DSBGA
B2
1
A1
I/O
Switch I/O. Set S high to enable.
GND
2
B1
—
Ground
B1
3
C1
I/O
Switch I/O. Set S low to enable.
A
4
C2
I/O
Common terminal
VCC
5
B2
—
Power supply
S
6
A2
I
NAME
I/O
DESCRIPTION
Select
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted) (1)
MIN
MAX
UNIT
VCC
Supply voltage (2)
–0.5
6.5
V
VIN
Control input voltage (2) (3)
–0.5
6.5
V
–0.5
(2) (3) (4) (5)
VI/O
Switch I/O voltage
VCC + 0.5
V
IIK
Control input clamp current
VIN < 0
–50
mA
II/OK
I/O port diode current
VI/O < 0 or VI/O > VCC
±50
mA
VI/O = 0 to VCC
II/O
±128
mA
Continuous current through VCC or GND
±100
mA
TJ
Junction temperature
150
°C
Tstg
Storage temperature
150
°C
(1)
(2)
(3)
(4)
(5)
(6)
On-state switch current
(6)
–65
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating
Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
All voltages are with respect to ground unless otherwise specified.
The input and output negative-voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
This value is limited to 5.5 V maximum.
VI, VO, VA, and VBn are used to denote specific conditions for VI/O.
II, IO, IA, and IBn are used to denote specific conditions for II/O.
6.2 ESD Ratings
VALUE
V(ESD)
(1)
(2)
Electrostatic discharge
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001
(1)
Charged-device model (CDM), per JEDEC specification JESD22-C101 (2)
UNIT
±2000
±1000
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1G3157
5
SN74LVC1G3157
SCES424L – JANUARY 2003 – REVISED MAY 2017
www.ti.com
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted) (1)
MIN
MAX
UNIT
VCC
Supply voltage
1.65
5.5
V
VI/O
Switch input or output voltage
0
VCC
V
VIN
Control input voltage
0
5.5
V
VIH
High-level input voltage, control input
VIL
Low-level input voltage, control input
Δt/Δv
VCC = 1.65 V to 1.95 V
VCC × 0.75
VCC = 2.3 V to 5.5 V
VCC = 1.65 V to 1.95 V
VCC × 0.25
VCC = 2.3 V to 5.5 V
Input transition rise or fall rate
V
VCC × 0.7
VCC × 0.3
VCC = 1.65 V to 1.95 V
20
VCC = 2.3 V to 2.7 V
20
VCC = 3 V to 3.6 V
10
VCC = 4.5 V to 5.5 V
TA
(1)
Operating free-air temperature
V
ns/V
10
BGA package (YZP)
–40
85
°C
All other packages (DBV, DCK,
DRL, DRY, DSF)
–40
125
°C
All unused inputs of the device must be held at VCC or GND to ensure proper device operation. See the TI application report,
Implications of Slow or Floating CMOS Inputs (SCBA004).
6.4 Thermal Information
SN74LVC1G3157
THERMAL METRIC
(1)
DBV (SOT-23)
DCK (SC70)
DRL (SOT)
DRY (SON)
DTB
(X2SON)
YZP
(DSBGA)
UNIT
6 PINS
6 PINS
6 PINS
6 PINS
6 PINS
6 PINS
RθJA
Junction-to-ambient thermal resistance
234.9
269.5
244.1
284.2
324.5
129.4
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
150.4
189.5
112.5
138.6
150.5
1.9
°C/W
RθJB
Junction-to-board thermal resistance
86.4
84.7
109.9
170.9
239.0
40.0
°C/W
ψJT
Junction-to-top characterization
parameter
60.8
62.7
9.3
13.7
17.2
0.6
°C/W
ψJB
Junction-to-board characterization
parameter
86.1
84.0
109.3
167.9
238.3
40.2
°C/W
RθJC(bot)
Junction-to-case (bottom) thermal
resistance
n/a
n/a
n/a
n/a
n/a
n/a
°C/W
(1)
6
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report.
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1G3157
SN74LVC1G3157
www.ti.com
SCES424L – JANUARY 2003 – REVISED MAY 2017
6.5 Electrical Characteristics
over recommended operating free-air temperature range (unless otherwise noted)
PARAMETER
ron
rrange
Δron
ron(flat)
TEST CONDITIONS
See Figure 1 and
Figure 2
ON-state switch resistance (2)
ON-state switch resistance over
signal range (2) (3)
Difference of ON-state
resistance between switches (2) (4) (5)
ON resistance flatness (2) (4) (6)
TA = -40 to 85°C
MIN
TA = -40 to 125°C
TYP (1)
MAX
MIN
UNIT
TYP (1)
MAX
VI = 0 V
IO = 4 mA
11
20
11
20
VI = 1.65 V
IO = –4 mA
15
50
15
50
VI = 0 V
IO = 8 mA
8
12
8
12
VI = 2.3 V
IO = –8 mA
11
30
11
30
VI = 0 V
IO = 24 mA
7
9
7
9
VI = 3 V
IO = –24 mA
9
20
9
20
VI = 0 V
IO = 30 mA
6
7
6
7
VI = 2.4 V
IO = –30 mA
7
12
7
12
VI = 4.5 V
IO = –30 mA
15
7
0 ≤ VBn ≤ VCC
(see Figure 1 and Figure 2)
See Figure 2
VCC
1.65 V
2.3 V
4.5 V
7
15
IA = –4 mA
1.65 V
140
140
IA = –8 mA
2.3 V
45
45
IA = –24 mA
3V
18
18
IA = –30 mA
4.5 V
VBn = 1.15 V
IA = –4 mA
1.65 V
0.5
0.5
VBn = 1.6 V
IA = –8 mA
2.3 V
0.1
0.3
VBn = 2.1 V
IA = –24 mA
3V
0.1
0.3
VBn = 3.15 V
IA = –30 mA
4.5 V
0.1
0.2
IA = –4 mA
1.65 V
110
110
IA = –8 mA
2.3 V
26
40
IA = –24 mA
3V
9
10
4.5 V
4
0 ≤ VBn ≤ VCC
IA = –30 mA
Ω
3V
10
Ω
10
Ω
Ω
5
0 ≤ VI, VO ≤ VCC
(see Figure 3 )
1.65 V
to
5.5 V
ON-state switch leakage current
VI = VCC or GND, VO = Open
(see Figure 4)
5.5 V
IIN
Control input current
0 ≤ VIN ≤ VCC
0 V to
5.5 V
±0.05
ICC
Supply current
S = VCC or GND
5.5 V
1
ΔICC
Supply-current change
S = VCC – 0.6 V
5.5 V
Ci
Control input capacitance
S
5V
2.7
2.7
pF
Cio(off)
Switch input/output
capacitance
Bn
5V
5.2
5.2
pF
Switch input/output
capacitance
17.3
17.3
Cio(on)
17.3
17.3
Ioff (7)
OFF-state switch leakage current
IS(on)
(1)
(2)
(3)
(4)
(5)
(6)
(7)
Bn
±1
±0.05
±0.1 (1)
±1
µA
±0.05
±0.1
±1
±1
±0.1 (1)
±0.1 (1)
±1
±0.1 (1)
±1
µA
±0.05
±0.1
10
35
µA
500
500
µA
5V
A
µA
pF
TA = 25°C
Measured by the voltage drop between I/O pins at the indicated current through the switch. ON-state resistance is determined by the
lower of the voltages on the two (A or B) ports.
Specified by design
Δron = ron(max) – ron(min) measured at identical VCC, temperature, and voltage levels
This parameter is characterized, but not production tested.
Flatness is defined as the difference between the maximum and minimum values of on-state resistance over the specified range of
conditions.
Ioff is the same as IS(off) (off-state switch leakage current).
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1G3157
7
SN74LVC1G3157
SCES424L – JANUARY 2003 – REVISED MAY 2017
www.ti.com
6.6 Analog Switch Characteristics
TA = 25°C
FROM
(INPUT)
PARAMETER
Frequency response
(switch on)
TO
(OUTPUT)
(1)
A or Bn
Bn or A
(2)
Crosstalk
(between switches)
Feed through
attenuation (2)
(switch off)
Charge injection
Total harmonic distortion
(1)
(2)
8
B1 or B2
A or Bn
S
A or Bn
B2 or B1
TEST CONDITIONS
RL = 50 Ω, fin = sine wave
(see Figure 6)
RL = 50 Ω, fin = 10 MHz (sine wave)
(see Figure 7)
Bn or A
CL = 5 pF, RL = 50 Ω,
fin = 10 MHz (sine wave)
(see Figure 8)
A
CL = 0.1 nF, RL = 1 MΩ
(see Figure 9)
Bn or A
VI = 0.5 Vp-p, RL = 600 Ω,
fin = 600 Hz to 20 kHz (sine wave)
(see Figure 10)
VCC
TYP
1.65 V
340
2.3 V
340
3V
340
4.5 V
340
1.65 V
–54
2.3 V
–54
3V
–54
4.5 V
–54
1.65 V
–57
2.3 V
–57
3V
–57
4.5 V
–57
3.3 V
3
5V
7
1.65 V
0.1%
2.3 V
0.025%
3V
0.015%
4.5 V
0.01%
UNIT
MHz
dB
dB
pC
Set fin to 0 dBm and provide a bias of 0.4 V. Increase fin frequency until the gain is 3 dB below the insertion loss.
Set fin to 0 dBm and provide a bias of 0.4 V.
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1G3157
SN74LVC1G3157
www.ti.com
SCES424L – JANUARY 2003 – REVISED MAY 2017
6.7 Switching Characteristics 85°C
TA = –40 to +85°C (see Figure 5 and )Figure 11
PARAMETER
tpd (1)
ten (2)
tdis (3)
FROM
(INPUT)
TO
(OUTPUT)
A or Bn
Bn or A
S
(2)
(3)
VCC = 2.5 V
± 0.2 V
MIN
VCC = 3.3 V
± 0.3 V
MAX
7
24
3.5
14
2.5
7.6
1.7
5.7
3
13
2
7.5
1.5
5.3
0.8
3.8
0.5
1.2
MAX
MIN
UNIT
MAX
2
MIN
VCC = 5 V
± 0.5 V
MIN
Bn
tB-M
(1)
VCC = 1.8 V
± 0.15 V
0.8
0.5
0.5
MAX
0.3
0.5
ns
ns
ns
tpd is the slower of tPLH or tPHL. The propagation delay is calculated RC time constant of the typical ON-state resistance of the switch
and the specified load capacitance when driven by an ideal voltage source (zero output impedance).
ten is the slower of tPZL or tPZH.
tdis is the slower of tPLZ or tPHZ.
6.8 Switching Characteristics 125°C
TA = –40 to +125°C (see Figure 5 and Figure 11)
PARAMETER
tpd (1)
ten (2)
tdis (3)
FROM
(INPUT)
TO
(OUTPUT)
A or Bn
Bn or A
S
Bn
tB-M
(1)
(2)
(3)
VCC = 1.8 V
± 0.15 V
VCC = 2.5 V
± 0.2 V
MIN
MAX
1
2.5
VCC = 3.3 V
± 0.3 V
MAX
24.5
1
14.5
2.5
8
1.7
6
13.5
2
8
1.5
5.5
0.8
4
0.5
1.2
MAX
MIN
UNIT
MIN
2
MIN
VCC = 5 V
± 0.5 V
0.8
0.5
0.5
MAX
0.5
0.5
ns
ns
ns
tpd is the slower of tPLH or tPHL. The propagation delay is calculated RC time constant of the typical ON-state resistance of the switch
and the specified load capacitance when driven by an ideal voltage source (zero output impedance).
ten is the slower of tPZL or tPZH.
tdis is the slower of tPLZ or tPHZ.
6.9 Typical Characteristics
120
VCC = 1.65 V
100
ron
80
60
40
VCC = 2.3 V
20
VCC = 3 V
VCC = 4.5 V
0
0
1
2
3
4
5
VI - V
Figure 1. Typical ron as a Function of Input Voltage (VI) for VI = 0 to VCC
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1G3157
9
SN74LVC1G3157
SCES424L – JANUARY 2003 – REVISED MAY 2017
www.ti.com
7 Parameter Measurement Information
ron =
VI – V O
Ω
IO
Figure 2. ON-State Resistance Test Circuit
VCC
VCC
SW
S
1
VIH
2
VIL
S
VIL or VIH
1
B1
SW
VO
B2
2
VI
A
A
GND
Condition 1: VI = GND, VO = VCC
Condition 2: VI = VCC, VO = GND
Figure 3. OFF-State Switch Leakage-Current Test Circuit
VCC
VIL or VIH
S
VCC
B1
B2
A
S
1
VIL
2
VIH
1
SW
VI
SW
2
VO
VO = Open
A
GND
VI = VCC or GND
Figure 4. ON-State Switch Leakage-Current Test Circuit
10
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1G3157
SN74LVC1G3157
www.ti.com
SCES424L – JANUARY 2003 – REVISED MAY 2017
Parameter Measurement Information (continued)
VLOAD
S1
RL
From Output
Under Test
Open
TEST
GND
CL
(see Note A)
S1
Open
VLOAD
tPLH/tPHL
tPLZ/tPZL
tPHZ/tPZH
RL
GND
LOAD CIRCUIT
INPUTS
VCC
1.8 V ± 0.15 V
2.5 V ± 0.2 V
3.3 V ± 0.3 V
5 V ± 0.5 V
VI
tr/tf
VCC
VCC
VCC
VCC
£2 ns
£2 ns
£2.5 ns
£2.5 ns
VM
VLOAD
CL
RL
VD
VCC/2
VCC/2
VCC/2
VCC/2
2 × VCC
2 × VCC
2 × VCC
2 × VCC
50 pF
50 pF
50 pF
50 pF
500 W
500 W
500 W
500 W
0.3 V
0.3 V
0.3 V
0.3 V
VI
Timing Input
VM
0V
tW
tsu
VI
Input
VM
VM
th
VI
Data Input
VM
VM
0V
0V
VOLTAGE WAVEFORMS
PULSE DURATION
VOLTAGE WAVEFORMS
SETUP AND HOLD TIMES
VI
VM
Input
VM
0V
tPLH
VOH
Output
VM
VOL
tPHL
VM
VM
0V
tPLZ
Output
Waveform 1
S1 at VLOAD
(see Note B)
tPLH
VLOAD/2
VM
tPZH
VOH
Output
VM
tPZL
tPHL
VM
VI
Output
Control
VM
VOL
VOLTAGE WAVEFORMS
PROPAGATION DELAY TIMES
INVERTING AND NONINVERTING OUTPUTS
Output
Waveform 2
S1 at GND
(see Note B)
VOL + VD
VOL
tPHZ
VM
VOH – VD
VOH
»0 V
VOLTAGE WAVEFORMS
ENABLE AND DISABLE TIMES
LOW- AND HIGH-LEVEL ENABLING
NOTES: A. CL includes probe and jig capacitance.
B. Waveform 1 is for an output with internal conditions such that the output is low, except when disabled by the output control.
Waveform 2 is for an output with internal conditions such that the output is high, except when disabled by the output control.
C. All input pulses are supplied by generators having the following characteristics: PRR £ 10 MHz, ZO = 50 W.
D. The outputs are measured one at a time, with one transition per measurement.
E. tPLZ and tPHZ are the same as tdis.
F. tPZL and tPZH are the same as ten.
G. tPLH and tPHL are the same as tpd.
H. All parameters and waveforms are not applicable to all devices.
Figure 5. Load Circuit and Voltage Waveforms
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1G3157
11
SN74LVC1G3157
SCES424L – JANUARY 2003 – REVISED MAY 2017
www.ti.com
Parameter Measurement Information (continued)
VCC
SW
S
1
VIL
2
VIH
VCC
S
VIL or VIH
1
B1
SW
VO
B2
2
50
RL = 50
A
fin
GND
Figure 6. Frequency Response (Switch On)
VCC
VCC
B1
VIL or VIH
50
VB1
S
S
TEST CONDITION
VIL
20log10(VO2/VI)
VIH
20log10(VO1/VI)
fin
1
VB2
B2
Analyzer
2
RL = 50
GND
Figure 7. Crosstalk (Between Switches)
12
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1G3157
SN74LVC1G3157
www.ti.com
SCES424L – JANUARY 2003 – REVISED MAY 2017
Parameter Measurement Information (continued)
VCC
VCC
SW
S
1
VIL
2
VIH
S
VIL or VIH
1
B1
SW
Analyzer
B2
2
50
RL = 50
A
fin
GND
Figure 8. Feed Through
VCC
VCC
S
B1
LOGIC
INPUT
1
SW
B2
VOUT
2
RGEN
VGE
A
GND
RL
CL
RL/CL = 1 MΩ/100 pF
LOGIC
INPUT
OFF
VOUT
ON
OFF
∆VOUT
Q = (∆VOUT) (CL)
Figure 9. Charge-Injection Test
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1G3157
13
SN74LVC1G3157
SCES424L – JANUARY 2003 – REVISED MAY 2017
www.ti.com
Parameter Measurement Information (continued)
10 kΩ
600 Ω
Figure 10. Total Harmonic Distortion
VCC
VCC
S
B1
VI = VCC/2
B2
VO
A
GND
VS
RL
CL
RL/CL = 50 Ω/35 pF
VO
0.9 x VO
tD
Figure 11. Break-Before-Make Internal Timing
14
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1G3157
SN74LVC1G3157
www.ti.com
SCES424L – JANUARY 2003 – REVISED MAY 2017
8 Detailed Description
8.1 Overview
The SN74LVC1G3157 device is a single-pole double-throw (SPDT) analog switch designed for 1.65-V to 5.5-V
VCC operation. The SN74LVC1G3157 device can handle analog and digital signals. The device permits signals
with amplitudes of up to VCC (peak) to be transmitted in either direction.
8.2 Functional Block Diagram
B2
S
B1
1
6
4
A
3
Figure 12. Logic Diagram (Positive Logic)
8.3 Feature Description
The 1.65-V to 5.5-V supply operation allows the device to function in many different systems comprised of
different logic levels, allowing rail-to-rail signal switching. Either the B1 channel or the B2 channel is activated
depending upon the control input. If the control input is low, B1 channel is selected. If the control input is high, B2
channel is selected.
8.4 Device Functional Modes
Table 1 lists the ON channel when one of the control inputs is selected.
Table 1. Function Table
CONTROL
INPUTS
ON
CHANNEL
L
B1
H
B2
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1G3157
15
SN74LVC1G3157
SCES424L – JANUARY 2003 – REVISED MAY 2017
www.ti.com
9 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
9.1 Application Information
The SN74LVC1G3157 SPDT analog switch is flexible enough for use in a variety of circuits such as analog audio
routing, power-up monitor, memory sharing, and so on. For details on the applications, see SCYB014.
9.2 Typical Application
Figure 13. Typical Application Schematic
9.2.1 Design Requirements
The inputs can be analog or digital, but TI recommends waiting until VCC has ramped to a level in Recommended
Operating Conditions before applying any signals. Appropriate termination resistors should be used depending
on the type of signal and specification. The Select pin should not be left floating; either pull up or pull down with a
resistor that can be overdriven by a GPIO.
16
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1G3157
SN74LVC1G3157
www.ti.com
SCES424L – JANUARY 2003 – REVISED MAY 2017
Typical Application (continued)
9.2.2 Detailed Design Procedure
Using this circuit idea, a system designer can ensure a component or subsystem power has ramped up before
allowing signals to be applied to its input. This is useful for integrated circuits that do not have overvoltage
tolerant inputs. The basic idea uses a resistor divider on the VCC1 power rail, which is ramping up. The RC time
constant of the resistor divider further delays the voltage ramp on the select pin of the SPDT bus switch. By
carefully selecting values for R1, R2, and C, it is possible to ensure that VCC1 will reach its nominal value before
the path from A to B2 is established, thus preventing a signal being present on an I/O before the device/system
is powered up. To ensure the minimum desired delay is achieved, the designer should use Equation 1 to
calculate the time required from a transition from ground (0 V) to half the supply voltage (VCC1/2).
R2
Set
× VCC1 > VIH of the select pin
R1 R2
(1)
(
)
Choose Rs and C to achieve the desired delay.
When VS goes high, the signal will be passed.
9.2.3 Application Curve
Figure 14. VS Voltage Ramp
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1G3157
17
SN74LVC1G3157
SCES424L – JANUARY 2003 – REVISED MAY 2017
www.ti.com
10 Power Supply Recommendations
Most systems have a common 3.3-V or 5-V rail that can supply the VCC pin of this device. If this is not available,
a Switch-Mode-Power-Supply (SMPS) or a Linear Dropout Regulator (LDO) can be used to provide supply to this
device from another voltage rail.
11 Layout
11.1 Layout Guidelines
TI recommends keeping signal lines as short as possible. TI also recommends incorporating microstrip or
stripline techniques when signal lines are greater than 1 inch in length. These traces must be designed with a
characteristic impedance of either 50 Ω or 75 Ω, as required by the application. Do not place this device too
close to high-voltage switching components, as they may interfere with the device.
11.2 Layout Example
Figure 15. Recommended Layout Example
18
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1G3157
SN74LVC1G3157
www.ti.com
SCES424L – JANUARY 2003 – REVISED MAY 2017
12 Device and Documentation Support
12.1 Documentation Support
12.1.1 Related Documentation
For related documentation see the following:
• Implications of Slow or Floating CMOS Inputs, SCBA004.
• SN74LVC1G3157 and SN74LVC2G53 SPDT Analog Switches, SCYB014
12.2 Receiving Notification of Documentation Updates
To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper
right corner, click on Alert me to register and receive a weekly digest of any product information that has
changed. For change details, review the revision history included in any revised document.
12.3 Community Resources
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
12.4 Trademarks
E2E is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
12.5 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
12.6 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
13 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
Submit Documentation Feedback
Copyright © 2003–2017, Texas Instruments Incorporated
Product Folder Links: SN74LVC1G3157
19
PACKAGE OPTION ADDENDUM
www.ti.com
24-Jun-2019
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
Lead/Ball Finish
MSL Peak Temp
(2)
(6)
(3)
Op Temp (°C)
Device Marking
(4/5)
74LVC1G3157DBVRE4
ACTIVE
SOT-23
DBV
6
3000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
(CC5F, CC5R)
74LVC1G3157DBVRG4
ACTIVE
SOT-23
DBV
6
3000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 85
(CC5F, CC5R)
74LVC1G3157DCKRE4
ACTIVE
SC70
DCK
6
3000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
(C55, C5F, C5K, C5
R)
74LVC1G3157DCKRG4
ACTIVE
SC70
DCK
6
3000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
(C55, C5F, C5K, C5
R)
74LVC1G3157DRYRG4
ACTIVE
SON
DRY
6
5000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
C5
SN74LVC1G3157DBVR
ACTIVE
SOT-23
DBV
6
3000
Green (RoHS
& no Sb/Br)
CU NIPDAU | CU SN
Level-1-260C-UNLIM
-40 to 125
(CC55, CC5F, CC5K,
CC5R)
SN74LVC1G3157DCK3
ACTIVE
SC70
DCK
6
3000
Pb-Free
(RoHS)
CU SNBI
Level-1-260C-UNLIM
-40 to 125
C5Z
SN74LVC1G3157DCKR
ACTIVE
SC70
DCK
6
3000
Green (RoHS
& no Sb/Br)
CU NIPDAU | CU SN
Level-1-260C-UNLIM
-40 to 125
(C55, C5F, C5K, C5
R)
SN74LVC1G3157DRLR
ACTIVE
SOT-5X3
DRL
6
4000
Green (RoHS
& no Sb/Br)
CU NIPDAU |
CU NIPDAUAG
Level-1-260C-UNLIM
-40 to 125
(C57, C5R)
SN74LVC1G3157DRY2
ACTIVE
SON
DRY
6
5000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
C5
SN74LVC1G3157DRYR
ACTIVE
SON
DRY
6
5000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
C5
SN74LVC1G3157DSFR
ACTIVE
SON
DSF
6
5000
Green (RoHS
& no Sb/Br)
CU NIPDAU |
CU NIPDAUAG
Level-1-260C-UNLIM
-40 to 125
C5
SN74LVC1G3157DTBR
ACTIVE
X2SON
DTB
6
3000
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-1-260C-UNLIM
-40 to 125
7X
SN74LVC1G3157YZPR
ACTIVE
DSBGA
YZP
6
3000
Green (RoHS
& no Sb/Br)
SNAGCU
Level-1-260C-UNLIM
-40 to 85
C5N
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
Addendum-Page 1
Samples
PACKAGE OPTION ADDENDUM
www.ti.com
24-Jun-2019
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
