TPS2013APWPR

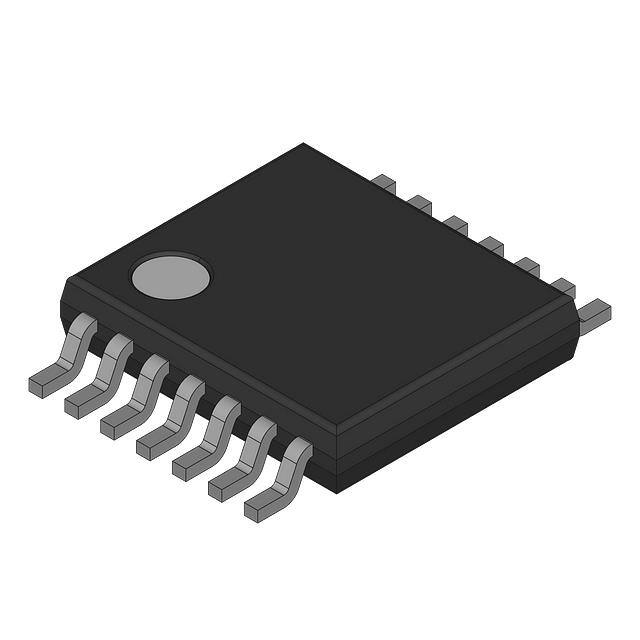

TPS2013APWPR

  • 厂商:

    BURR-BROWN(德州仪器)

  • 封装:

    TSSOP14

  • 描述:

    TPS2013A 2.6A, 2.7 TO 5.5V SINGL

  • 数据手册
  • 价格&库存
TPS2013APWPR 数据手册
TPS2010A, TPS2011A TPS2012A, TPS2013A www.ti.com SLVS189C – DECEMBER 1998 – REVISED SEPTEMBER 2007 POWER-DISTRIBUTION SWITCHES FEATURES 1 • • • • • • • • • • • 33-mΩ (5-V Input) High-Side MOSFET Switch Short-Circuit and Thermal Protection Operating Range . . . 2.7 V to 5.5 V Logic-Level Enable Input Typical Rise Time. . . 6.1 ms Undervoltage Lockout Maximum Standby Supply Current. . . 10 μA No Drain-Source Back-Gate Diode Available in 8-pin SOIC and 14-Pin TSSOP Packages Ambient Temperature Range, –40°C to 85°C 2-kV Human-Body-Model, 200-V Machine-Model ESD Protection DESCRIPTION The TPS201xA family of power distribution switches is intended for applications where heavy capacitive loads and short circuits are likely to be encountered. These devices are 50-mΩ N-channel MOSFET high-side power switches. The switch is controlled by a logic enable compatible with 5-V logic and 3-V logic. Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7 V. When the output load exceeds the current-limit threshold or a short is present, the TPS201xA limits the output current to a safe level by switching into a constant-current mode. When continuous heavy overloads and short circuits increase the power dissipation in the switch, causing the junction temperature to rise, a thermal protection circuit shuts off the switch to prevent damage. Recovery from a thermal shutdown is automatic once the device has cooled sufficiently. Internal circuitry ensures the switch remains off until valid input voltage is present. TPS201xA TPS202x TPS203x 0.2 A - 2 A 0.2 A - 2 A 0.2 A - 2 A TPS2014 TPS2015 TPS2041B TPS2051B TPS2045A TPS2049 TPS2055A TPS2061 TPS2065 TPS2068 TPS2069 600 mA 1A 500 mA 500 mA 250 mA 100 mA 250 mA 1A 1A 1.5 A 1.5 A 1 Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of the Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters. Copyright © 1998–2007, Texas Instruments Incorporated TPS2010A, TPS2011A TPS2012A, TPS2013A www.ti.com SLVS189C – DECEMBER 1998 – REVISED SEPTEMBER 2007 These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates. DESCRIPTION (CONTINUED) The TPS201xA devices differ only in short-circuit current threshold. The TPS2010A limits at 0.3-A load, the TPS2011 at 0.9-A load, the TPS2012A at 1.5-A load, and the TPS2013A at 2.2-A load (see Available Options). The TPS201xA is available in an 8-pin small-outline integrated-circuit (SOIC) package and in a 14-pin thin-shrink small-outline package (TSSOP) and operates over a junction temperature range of -40°C to 125°C.) AVAILABLE OPTIONS TA ENABLE –40°C to 85°C (1) (2) (3) PACKAGED DEVICES (1) RECOMMENDED MAXIMUM CONTINUOUS LOAD CURRENT (A) TYPICAL SHORT-CIRCUIT CURRENT LIMIT AT 25°C (A) SMALL OUTLINE (D) (2) TSSOP (PWP) (3) 0.2 0.3 TPS2010AD TPS2010APWPR 0.6 0.9 TPS2011AD TPS2011APWPR 1 1.5 TPS2012AD TPS2012APWPR 1.5 2.2 TPS2013AD TPS2013APWPR Active low For the most current package and ordering information, see the Package Option Addendum at the end of this document, or see the TI website at www.ti.com. The D package is available taped and reeled. Add an R suffix to device type (e.g., TPS2010DR) The PWP package is only available left-end taped-and-reeled. TPS201xA FUNCTIONAL BLOCK DIAGRAM TERMINAL FUNCTIONS TERMINAL NAME NO. I/O DESCRIPTION D PWP EN 4 7 I Enable input. Logic low turns on power switch. GND 1 1 I Ground IN 2, 3 2–6 I Input voltage OUT 5–8 8–14 O Power-switch output 2 Submit Documentation Feedback Copyright © 1998–2007, Texas Instruments Incorporated Product Folder Link(s): TPS2010A, TPS2011A TPS2012A, TPS2013A TPS2010A, TPS2011A TPS2012A, TPS2013A www.ti.com SLVS189C – DECEMBER 1998 – REVISED SEPTEMBER 2007 DETAILED DESCRIPTION POWER SWITCH The power switch is an N-channel MOSFET with a maximum on-state resistance of 50 mΩ (VI(IN) = 5V). Configured as a high-side switch, the power switch prevents current flow from OUT to IN and IN to OUT when disabled. CHARGE PUMP An internal charge pump supplies power to the driver circuit and provides the necessary voltage to pull the gate of the MOSFET above the source. The charge pump operates from input voltages as low as 2.7 V and requires very little supply current. DRIVER The driver controls the gate voltage of the power switch. To limit large current surges and reduce the associated electromagnetic interference (EMI) produced, the driver incorporates circuitry that controls the rise times and fall times of the output voltage. The rise and fall times are typically in the 2-ms to 9-ms range. ENABLE (EN) The logic enable disables the power switch, the bias for the charge pump, driver, and other circuitry to reduce the supply current to less than 10 μA when a logic high is present on EN . A logic zero input on EN restores bias to the drive and control circuits and turns the power on. The enable input is compatible with both TTL and CMOS logic levels. CURRENT SENSE A sense FET monitors the current supplied to the load. The sense FET measures current more efficiently than conventional resistance methods. When an overload or short circuit is encountered, the current-sense circuitry sends a control signal to the driver. The driver, in turn, reduces the gate voltage and drives the power FET into its saturation region, which switches the output into a constant current mode and holds the current constant while varying the voltage on the load. THERMAL SENSE An internal thermal-sense circuit shuts off the power switch when the junction temperature rises to approximately 140°C. Hysteresis is built into the thermal sense circuit. After the device has cooled approximately 20°C, the switch turns back on. The switch continues to cycle off and on until the fault is removed. UNDERVOLTAGE LOCKOUT A voltage sense circuit monitors the input voltage. When the input voltage is below approximately 2 V, a control signal turns off the power switch. Copyright © 1998–2007, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Link(s): TPS2010A, TPS2011A TPS2012A, TPS2013A 3 TPS2010A, TPS2011A TPS2012A, TPS2013A www.ti.com SLVS189C – DECEMBER 1998 – REVISED SEPTEMBER 2007 ABSOLUTE MAXIMUM RATINGS over operating free-air temperature range (unless otherwise noted) (1) VI(IN) Input voltage range (2) VO(OUT) Output voltage range (2) VI(EN) Input voltage range IO(OUT) Continuous output current VALUE UNIT –0.3 to 6 V –0.3 to VI(IN) + 0.3 V –0.3 to 6 V Internally Limited Continuous total power dissipation See Dissipation Rating Table TJ Operating virtual junction temperature range –40 to 125 °C Tstg Storage temperature range –65 to 150 °C 260 °C 2 kV 200 V Lead temperature soldering 1,6 mm (1/16 inch) from case for 10 seconds ESD (1) (2) Electrostatic discharge protection Human body model Machine model Stresses beyond those listed under absolute maximum ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under recommended operating conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. All voltages are with respect to GND. DISSIPATION RATINGS PACKAGE TA ≤ 25°C POWER RATING DERATING FACTOR ABOVE TA = 25°C TA = 70°C POWER RATING TA = 85°C POWER RATING D 725 mW 5.8 mW/°C 464 mW 377 mW PWP 700 mW 5.6 mW/°C 448 mW 364 mW RECOMMENDED OPERATING CONDITIONS over operating free-air temperature range (unless otherwise noted) VI(IN) VIH MIN MAX 2.7 5.5 0 5.5 TPS2010A 0 0.2 TPS2011A 0 0.6 TPS2012A 0 1 Input voltage IO Continuous output current TJ Operating virtual junction temperature TPS2013A 4 Submit Documentation Feedback 0 1.5 –40 125 UNIT V A °C Copyright © 1998–2007, Texas Instruments Incorporated Product Folder Link(s): TPS2010A, TPS2011A TPS2012A, TPS2013A TPS2010A, TPS2011A TPS2012A, TPS2013A www.ti.com SLVS189C – DECEMBER 1998 – REVISED SEPTEMBER 2007 ELECTRICAL CHARACTERISTICS over recommended operating junction temperature range, VI(IN) = 5.5 V, IO = rated current, EN = 0 V (unless otherwise noted) TEST CONDITIONS (1) PARAMETER MIN TYP MAX UNIT POWER SWITCH rDS(on) Static drain-source on-state resistance tr Rise time, output tf Rise time, output VI(IN) = 5 V, TJ = 25°C, IO = 1.5 A 33 36 VI(IN) = 5 V, TJ = 85°C, IO = 1.5 A 38 46 VI(IN) = 5 V, TJ = 125°C, IO = 1.5 A 44 50 VI(IN) = 3.3 V, TJ = 25°C, IO = 1.5 A 37 41 VI(IN) = 3.3 V, TJ = 85°C, IO = 1.5 A 43 52 VI(IN) = 3.3 V, TJ = 125°C, IO = 1.5 A 51 61 VI(IN) = 5 V, TJ = 25°C, IO = 0.18 A 30 34 VI(IN) = 5 V, TJ = 85°C, IO = 0.18 A 35 41 VI(IN) = 5 V, TJ = 125°C, IO = 0.18 A 39 47 VI(IN) = 3.3 V, TJ = 25°C, IO = 0.18 A 33 37 VI(IN) = 3.3 V, TJ = 85°C, IO = 0.18 A 39 46 VI(IN) = 3.3 V, TJ = 125°C, IO = 0.18 A 44 56 VI(IN) = 5.5 V, TJ = 25°C, CL = 1 μF, RL = 10 Ω 6.1 VI(IN) = 2.7 V, TJ = 25°C, CL = 1 μF, RL = 10 Ω 8.6 VI(IN) = 5.5 V, TJ = 25°C, CL = 1 μF, RL = 10 Ω 3.4 VI(IN) = 2.7 V, TJ = 25°C, CL = 1 μF, RL = 10 Ω 3 TPS2013A TPS2010A mΩ mΩ ms ms ENABLE INPUT (EN) VIH 2.7 V ≤ VI(IN) ≤ 5.5 V High-level input voltage 2 V 4.5 V ≤ VI(IN) ≤ 5.5 V 0.8 2.7 V ≤ VI(IN) ≤ 4.5 V 0.5 VIL Low-level input voltage II Input current EN = 0 V or EN = VI(IN) ton Turnon time CL = 100 μF, toff Turnoff time CL = 100 μF, V 0.5 μA RL = 10 Ω 20 ms RL = 10 Ω 40 ms –0.5 CURRENT LIMIT IOS (1) Short-circuit output current TJ = 25°C, VI = 5.5 V, OUT connected to GND, Device enable into short circuit TPS2010A 0.22 0.3 0.4 TPS2011A 0.66 0.9 1.1 TPS2012A 1.1 1.5 1.8 TPS2013A 1.65 2.2 2.7 A Pulse-testing techniques maintain junction temperature close to ambient temperature; thermal effects must be taken into account separately. Copyright © 1998–2007, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Link(s): TPS2010A, TPS2011A TPS2012A, TPS2013A 5 TPS2010A, TPS2011A TPS2012A, TPS2013A www.ti.com SLVS189C – DECEMBER 1998 – REVISED SEPTEMBER 2007 ELECTRICAL CHARACTERISTICS (Continued) over recommended operating junction temperature range, VI(IN) = 5.5 V, IO = rated current, EN = 0 V (unless otherwise noted) TEST CONDITIONS (1) PARAMETER MIN TYP MAX UNIT SUPPLY CURRENT Supply current, low-level output No Load on OUT EN = VI(IN) Supply current, high-level output No Load on OUT EN = 0 V Leakage current OUT connected to ground EN = VI(IN) TJ = 25°C 0.3 –40°C ≤ TJ ≤ 125°C 1 10 TJ = 25°C 58 75 –40°C ≤ TJ ≤ 125°C 75 100 –40°C ≤ TJ ≤ 125°C 10 μA μA μA UNDERVOLTAGE LOCKOUT Low-level input voltage Hysteresis (1) 6 2 TJ = 25°C 2.5 100 V mV Pulse-testing techniques maintain junction temperature close to ambient temperature; thermal effects must be taken into account separately. Submit Documentation Feedback Copyright © 1998–2007, Texas Instruments Incorporated Product Folder Link(s): TPS2010A, TPS2011A TPS2012A, TPS2013A TPS2010A, TPS2011A TPS2012A, TPS2013A www.ti.com SLVS189C – DECEMBER 1998 – REVISED SEPTEMBER 2007 PARAMETER MEASUREMENT INFORMATION Figure 1. Test Circuit and Voltage Waveforms Table 1. Timing Diagrams FIGURE Turnon Delay and Rise Time 2 Turnoff Delay and Fall Time 3 Turnon Delay and Rise TIME with 1-μF Load 4 Turnoff Delay and Rise TIME with 1-μF Load 5 Device Enabled into Short 6 TPS2010A, TPS2011A, TPS2012A, and TPS2013A, Ramped Load on Enabled Device 7, 8, 9, 10 TPS2013A, Inrush Current 11 7.9-Ω Load Connected to an Enabled TPS2010A Device 12 3.7-Ω Load Connected to an Enabled TPS2010A Device 13 3.7-Ω Load Connected to an Enabled TPS2011A Device 14 2.6-Ω Load Connected to an Enabled TPS2011A Device 15 2.6-Ω Load Connected to an Enabled TPS2012A Device 16 1.2-Ω Load Connected to an Enabled TPS2012A Device 17 1.2-Ω Load Connected to an Enabled TPS2013A Device 18 0.9-Ω Load Connected to an Enabled TPS2013A Device 19 Copyright © 1998–2007, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Link(s): TPS2010A, TPS2011A TPS2012A, TPS2013A 7 TPS2010A, TPS2011A TPS2012A, TPS2013A www.ti.com SLVS189C – DECEMBER 1998 – REVISED SEPTEMBER 2007 8 Figure 2. Turnon Delay and Rise Time Figure 3. Turnoff Delay and Fall Time Figure 4. Turnon Delay and Rise Time With 1-μF Load Figure 5. Turnoff Delay and Fall Time With 1-μF Load Submit Documentation Feedback Copyright © 1998–2007, Texas Instruments Incorporated Product Folder Link(s): TPS2010A, TPS2011A TPS2012A, TPS2013A TPS2010A, TPS2011A TPS2012A, TPS2013A www.ti.com SLVS189C – DECEMBER 1998 – REVISED SEPTEMBER 2007 Figure 6. Device Enabled Into Short Figure 7. TPS2010A, Ramped Load on Enabled Device Figure 8. TPS2011A, Ramped Load on Enabled Device Figure 9. TPS2012A, Ramped Load on Enabled Device Copyright © 1998–2007, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Link(s): TPS2010A, TPS2011A TPS2012A, TPS2013A 9 TPS2010A, TPS2011A TPS2012A, TPS2013A www.ti.com SLVS189C – DECEMBER 1998 – REVISED SEPTEMBER 2007 10 Figure 10. TPS2013A, Ramped Load on Enabled Device Figure 11. TPS2013A, Inrush Current Figure 12. 7.9-Ω Load Connected to an Enabled TPS2010A Device Figure 13. 3.7-Ω Load Connected to an Enabled TPS2010A Device Submit Documentation Feedback Copyright © 1998–2007, Texas Instruments Incorporated Product Folder Link(s): TPS2010A, TPS2011A TPS2012A, TPS2013A TPS2010A, TPS2011A TPS2012A, TPS2013A www.ti.com SLVS189C – DECEMBER 1998 – REVISED SEPTEMBER 2007 Figure 14. 3.7-Ω Load Connected to an Enabled TPS2011A Device Figure 15. 2.6-Ω Load Connected to an Enabled TPS2011A Device Figure 16. 2.6-Ω Load Connected to an Enabled TPS2012A Device Figure 17. 1.2-Ω Load Connected to an Enabled TPS2012A Device Copyright © 1998–2007, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Link(s): TPS2010A, TPS2011A TPS2012A, TPS2013A 11 TPS2010A, TPS2011A TPS2012A, TPS2013A www.ti.com SLVS189C – DECEMBER 1998 – REVISED SEPTEMBER 2007 Figure 18. 1.2-Ω Load Connected to an Enabled TPS2013A Device Figure 19. 0.9-Ω Load Connected to an Enabled TPS2013A Device 12 Submit Documentation Feedback Copyright © 1998–2007, Texas Instruments Incorporated Product Folder Link(s): TPS2010A, TPS2011A TPS2012A, TPS2013A TPS2010A, TPS2011A TPS2012A, TPS2013A www.ti.com SLVS189C – DECEMBER 1998 – REVISED SEPTEMBER 2007 TYPICAL CHARACTERISTICS Table of Graphs FIGURE td(on) Turnon delay time vs Output voltage 20 td(off) Turnoff delay time vs Input voltage 21 tr Rise time vs Load current 22 tf Fall time vs Load current 23 Supply current (enabled) vs Junction temperature 24 Supply current (disabled) vs Junction temperature 25 Supply current (enabled) vs Input voltage 26 Supply current (disabled) vs Input voltage 27 Short-circuit current limit vs Input voltage 28 vs Junction temperature 29 vs Input voltage 30 vs Junction temperature 31 vs Input voltage 32 vs Junction temperature 33 Input voltage vs Temperature 34 IOS rDS(on) Static drain-source on-state resistance Undervoltage lockout TURNON DELAY TIME vs OUTPUT VOLTAGE TURNOFF DELAY TIME vs INPUT VOLTAGE Figure 20. Figure 21. Copyright © 1998–2007, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Link(s): TPS2010A, TPS2011A TPS2012A, TPS2013A 13 TPS2010A, TPS2011A TPS2012A, TPS2013A www.ti.com SLVS189C – DECEMBER 1998 – REVISED SEPTEMBER 2007 14 RISE TIME vs LOAD CURRENT FALL TIME vs LOAD CURRENT Figure 22. Figure 23. SUPPLY CURRENT (ENABLED) vs JUNCTION TEMPERATURE SUPPLY CURRENT (DISABLED) vs JUNCTION TEMPERATURE Figure 24. Figure 25. Submit Documentation Feedback Copyright © 1998–2007, Texas Instruments Incorporated Product Folder Link(s): TPS2010A, TPS2011A TPS2012A, TPS2013A TPS2010A, TPS2011A TPS2012A, TPS2013A www.ti.com SLVS189C – DECEMBER 1998 – REVISED SEPTEMBER 2007 SUPPLY CURRENT (ENABLED) vs INPUT VOLTAGE SUPPLY CURRENT (DISABLED) vs INPUT VOLTAGE Figure 26. Figure 27. SHORT-CIRCUIT CURRENT LIMIT vs INPUT VOLTAGE SHORT-CIRCUIT CURRENT LIMIT vs JUNCTION TEMPERATURE Figure 28. Figure 29. Copyright © 1998–2007, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Link(s): TPS2010A, TPS2011A TPS2012A, TPS2013A 15 TPS2010A, TPS2011A TPS2012A, TPS2013A www.ti.com SLVS189C – DECEMBER 1998 – REVISED SEPTEMBER 2007 16 STATIC DRAIN-SOURCE ON-STATE RESISTANCE vs INPUT VOLTAGE STATIC DRAIN-SOURCE ON-STATE RESISTANCE vs JUNCTION TEMPERATURE Figure 30. Figure 31. STATIC DRAIN-SOURCE ON-STATE RESISTANCE vs INPUT VOLTAGE STATIC DRAIN-SOURCE ON-STATE RESISTANCE vs JUNCTION TEMPERATURE Figure 32. Figure 33. Submit Documentation Feedback Copyright © 1998–2007, Texas Instruments Incorporated Product Folder Link(s): TPS2010A, TPS2011A TPS2012A, TPS2013A TPS2010A, TPS2011A TPS2012A, TPS2013A www.ti.com SLVS189C – DECEMBER 1998 – REVISED SEPTEMBER 2007 UNDERVOLTAGE LOCKOUT Figure 34. Copyright © 1998–2007, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Link(s): TPS2010A, TPS2011A TPS2012A, TPS2013A 17 TPS2010A, TPS2011A TPS2012A, TPS2013A www.ti.com SLVS189C – DECEMBER 1998 – REVISED SEPTEMBER 2007 APPLICATION INFORMATION Figure 35. Typical Application POWER-SUPPLY CONSIDERATIONS A 0.01-μF to 0.1-μF ceramic bypass capacitor between IN and GND, close to the device, is recommended. Placing a high-value electrolytic capacitor on the output and input pins is recommended when the output load is heavy. This precaution reduces power supply transients that may cause ringing on the input. Additionally, bypassing the output with a 0.01-μF to 0.1-μF ceramic capacitor improves the immunity of the device to short-circuit transients. OVERCURRENT A sense FET checks for overcurrent conditions. Unlike current-sense resistors, sense FETs do not increase the series resistance of the current path. When an overcurrent condition is detected, the device maintains a constant output current and reduces the output voltage accordingly. Complete shutdown occurs only if the fault is present long enough to activate thermal limiting. Three possible overload conditions can occur. In the first condition, the output has been shorted before the device is enabled or before VI(IN) has been applied (see Figure 6). The TPS201xA senses the short and immediately switches into a constant-current output. In the second condition, the excessive load occurs while the device is enabled. At the instant the excessive load occurs, very high currents may flow for a short time before the current-limit circuit can react (see Figure 12–Figure 19). After the current-limit circuit has tripped (reached the overcurrent trip threshold) the device switches into constant-current mode. In the third condition, the load has been gradually increased beyond the recommended operating current. The current is permitted to rise until the current-limit threshold is reached or until the thermal limit of the device is exceeded (see Figures Figure 77–Figure 10). The TPS201xA is capable of delivering current up to the current-limit threshold without damaging the device. Once the threshold has been reached, the device switches into its constant-current mode. POWER DISSIPATION AND JUNCTION TEMPERATURE The low on-resistance on the n-channel MOSFET allows small surface-mount packages, such as SOIC, to pass large currents. The thermal resistance of these packages are high compared to those of power packages; it is good design practice to check power dissipation and junction temperature. The first step is to find rDS(on) at the input voltage and operating temperature. As an initial estimate, use the highest operating ambient temperature of interest and read rDS(on) from SLVS1892074Figure 30–Figure 33 . Next, calculate the power dissipation using: P +r I2 D DS(on) (1) Finally, calculate the junction temperature: T +P R )T J D qJA A 18 Submit Documentation Feedback (2) Copyright © 1998–2007, Texas Instruments Incorporated Product Folder Link(s): TPS2010A, TPS2011A TPS2012A, TPS2013A TPS2010A, TPS2011A TPS2012A, TPS2013A www.ti.com SLVS189C – DECEMBER 1998 – REVISED SEPTEMBER 2007 Where: TA = Ambient Temperature °C RθJA = Thermal resistance SOIC = 172°C/W Compare the calculated junction temperature with the initial estimate. If they do not agree within a few degrees, repeat the calculation, using the calculated value as the new estimate. Two or three iterations are generally sufficient to get an acceptable answer. THERMAL PROTECTION Thermal protection prevents damage to the IC when heavy-overload or short-circuit faults are present for extended periods of time. The faults force the TPS201xA into constant current mode, which causes the voltage across the high-side switch to increase; under short-circuit conditions, the voltage across the switch is equal to the input voltage. The increased dissipation causes the junction temperature to rise to high levels. The protection circuit senses the junction temperature of the switch and shuts it off. Hysteresis is built into the thermal sense circuit, and after the device has cooled approximately 20 degrees, the switch turns back on. The switch continues to cycle in this manner until the load fault or input power is removed. UNDERVOLTAGE LOCKOUT (UVLO) An undervoltage lockout ensures that the power switch is in the off state at power up. Whenever the input voltage falls below approximately 2 V, the power switch will be quickly turned off. This facilitates the design of hot-insertion systems where it is not possible to turn off the power switch before input power is removed. The UVLO will also keep the switch from being turned on until the power supply has reached at least 2 V, even if the switch is enabled. Upon reinsertion, the power switch will be turned on, with a controlled rise time to reduce EMI and voltage overshoots. GENERIC HOT-PLUG APPLICATIONS (see Figure 36) In many applications it may be necessary to remove modules or p-c boards while the main unit is still operating. These are considered hot-plug applications. Such implementations require the control of current surges seen by the main power supply and the card being inserted. The most effective way to control these surges is to limit and slowly ramp the current and voltage being applied to the card, similar to the way in which a power supply normally turns on. Because of the controlled rise times and fall times of the TPS201xA series, these devices can be used to provide a softer start-up to devices being hot-plugged into a powered system. The UVLO feature of the TPS201xA also ensures the switch will be off after the card has been removed, and the switch will be off during the next insertion. The UVLO feature guarantees a soft start with a controlled rise time for every insertion of the card or module. Figure 36. Typical Hot-Plug Implementation By placing the TPS201xA between the VCC input and the rest of the circuitry, the input power will reach this device first after insertion. The typical rise time of the switch is approximately 9 ms, providing a slow voltage ramp at the output of the device. This implementation controls system surge currents and provides a hot-plugging mechanism for any device. Copyright © 1998–2007, Texas Instruments Incorporated Submit Documentation Feedback Product Folder Link(s): TPS2010A, TPS2011A TPS2012A, TPS2013A 19 PACKAGE OPTION ADDENDUM www.ti.com 13-Aug-2021 PACKAGING INFORMATION Orderable Device Status (1) Package Type Package Pins Package Drawing Qty Eco Plan (2) Lead finish/ Ball material MSL Peak Temp Op Temp (°C) Device Marking (3) (4/5) (6) TPS2010AD ACTIVE SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 2010A TPS2010ADR ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 2010A TPS2011AD ACTIVE SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 2011A TPS2011ADR ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 2011A TPS2011ADRG4 ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 2011A TPS2011APWP ACTIVE HTSSOP PWP 14 90 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 85 2011A TPS2012AD ACTIVE SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 2012A TPS2012ADR ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 2012A TPS2013AD ACTIVE SOIC D 8 75 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 2013A TPS2013ADR ACTIVE SOIC D 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 85 2013A TPS2013APWP ACTIVE HTSSOP PWP 14 90 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 85 2013A TPS2013APWPR ACTIVE HTSSOP PWP 14 2000 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 85 2013A (1) The marketing status values are defined as follows: ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device. (2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may reference these types of products as "Pb-Free". RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption. Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
