TPS22962
ZHCSCL1A – JUNE 2014 – REVISED JUNE 2014
TPS22962 5.5V，
，10A，
，4.4mΩ 导通电阻负载开关
1 特性
•
•
•
•
1
•
•
•
•
•
•
•
•
3 说明
集成单通道负载开关
VBIAS 电压范围：2.5V 至 5.5V
VIN 电压范围：0.8V 至 5.5V
超低 RON 电阻
– VIN = 5V (VBIAS = 5V) 时，RON = 4.4mΩ
10A 最大持续开关电流
低静态电流（VBIAS = 5V 时为 20µA）
低关断电流（VBIAS = 5V 时为 1µA）
低控制输入阀值允许使用 1.2V 或更高电压的通用
输入输出 (GPIO) 接口
VBIAS 和 VIN 范围内的受控和固定转换率
– VIN = 5V (VBIAS = 5V) 时，tR = 2663µs
快速输出放电 (QOD)
带有散热焊盘的小外形尺寸无引线 (SON) 8 端子封
装
静电放电 (ESD) 性能经测试符合 JESD 22 规范
– 2kV 人体模式 (HBM)
– 1kV 充电器件模型 (CDM)
2 应用范围
•
•
•
•
•
•
服务器
医疗
电信系统
计算
工业系统
高电流电压轨
TPS22962 是一款小型，超低 RON，单通道负载开
关，此开关具有受控接通功能。 此器件包含一个可在
0.8V 至 5.5V 输入电压范围内运行的 N 通道金属氧化
物半导体场效应晶体管 (MOSFET)，并且支持最大
10A 的持续电流。
器件的超低 RON 和高电流处理能力的组合使得此器件
非常适合于驱动具有非常严格压降耐受的处理器电源
轨。 器件的受控上升时间大大减少了由大容量负载电
容导致的涌入电流，从而减少或消除了电源损耗。 此
开关可由 ON 端子单独控制，此端子能够与微控制器
或低压离散逻辑电路生成的低压控制信号直接对接。
通过集成一个在开关关闭时实现快速输出放电 (QOD)
的 224Ω 下拉电阻器，此器件进一步减少总体解决方
案尺寸。
TPS22962 采用小型 3mm x 3mm 超薄小外形尺寸无
引线 (WSON)-8 封装 (DNY)。 DNY 封装集成有一个
散热焊盘，此散热焊盘可在高电流和高温应用中实现高
功率耗散。 器件在自然通风环境下的额定运行温度范
围为 -40°C 至 85°C。
器件信息(1)
产品型号
封装
TPS22962
封装尺寸（标称值）
WSON (8)
3.00mm x 3.00mm
(1) 如需了解所有可用封装，请见数据表末尾的可订购产品附录。
4 简化电路原理图
VBIAS
(2.5 V to 5.5 V)
VIN
Power
Supply
RON 与 VIN 之间的关系 (VBIAS = 5V，
，IOUT = -200mA)
6
VOUT
Load
5.5
CL
CIN
ON
TPS22962
RON (m
)
OFF
5
GND
ON
4.5
4
3.5
-40C
3
25C
2.5
85C
2
0.8
1.2
1.6
2
2.4
2.8
3.2
3.6
4
4.4
4.8
VIN (V)
DG007
1
PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not necessarily include testing of all parameters.
English Data Sheet: SLVSCN3
TPS22962
ZHCSCL1A – JUNE 2014 – REVISED JUNE 2014
www.ti.com.cn
目录
1
2
3
4
5
6
7
8
特性 ..........................................................................
应用范围...................................................................
说明 ..........................................................................
简化电路原理图 ........................................................
修订历史记录 ...........................................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
1
2
3
3
7.1
7.2
7.3
7.4
7.5
7.6
7.7
7.8
3
4
4
4
5
6
7
9
Absolute Maximum Ratings ......................................
Handling Ratings.......................................................
Recommended Operating Conditions.......................
Thermal Information ..................................................
Electrical Characteristics, VBIAS = 5.0 V ...................
Electrical Characteristics, VBIAS = 2.5 V ...................
Switching Characteristics ..........................................
Typical Characteristics ..............................................
Detailed Description ............................................ 14
8.1
8.2
8.3
8.4
9
Overview .................................................................
Functional Block Diagram .......................................
Feature Description.................................................
Device Functional Modes........................................
14
14
14
15
Applications and Implementation ...................... 16
9.1 Application Information............................................ 16
9.2 Typical Application .................................................. 16
10 Power Supply Recommendations ..................... 19
11 Layout................................................................... 19
11.1 Layout Guidelines ................................................. 19
11.2 Layout Example .................................................... 20
12 器件和文档支持 ..................................................... 21
12.1 Trademarks ........................................................... 21
12.2 Electrostatic Discharge Caution ............................ 21
12.3 术语表 ................................................................... 21
13 机械封装和可订购信息 .......................................... 21
5 修订历史记录
Changes from Original (June 2014) to Revision A
Page
•
完整版的最初发布版本。 ....................................................................................................................................................... 1
2
Copyright © 2014, Texas Instruments Incorporated
TPS22962
www.ti.com.cn
ZHCSCL1A – JUNE 2014 – REVISED JUNE 2014
6 Pin Configuration and Functions
WSON (DNY) PACKAGE
8 PIN
VIN
1
VIN
2
VIN
8
VOUT
VOUT
8
7
VOUT
VOUT
7
(Exposed thermal
VBIAS
3
ON
4
pad)
VIN
1
VIN
2
VIN
3
VBIAS
4
ON
(Exposed thermal
6
VOUT
VOUT
6
5
GND
GND
5
Top View
pad)
Bottom View
Pin Functions
PIN
I/O
DESCRIPTION
NAME
NO.
VIN
1, 2
I
Switch input. Place ceramic bypass capacitor(s) between this pin and GND. See the Detailed
Description section for more information.
VIN
Exposed thermal
Pad
I
Switch input. Place ceramic bypass capacitor(s) between this pin and GND. See the Detailed
Description section for more information.
VBIAS
3
I
Bias voltage. Power supply to the device.
ON
4
I
Active high switch control input. Do not leave floating.
GND
5
–
Ground.
VOUT
6, 7, 8
O
Switch output. Place ceramic bypass capacitor(s) between this pin and GND. See the Detailed
Description section for more information.
7 Specifications
7.1 Absolute Maximum Ratings
Over operating free-air temperature range (unless otherwise noted) (1)
MIN
MAX
VIN
Input voltage range
–0.3
6
V
VBIAS
Bias voltage range
–0.3
6
V
VOUT
Output voltage range
–0.3
6
V
VON
ON pin voltage range
–0.3
6
V
IMAX
Maximum Continuous Switch Current, TA = 70°C
10
A
IPLS
Maximum Pulsed Switch Current, pulse < 300 µs, 2% duty cycle
TJ
Maximum junction temperature
(1)
UNIT
12
A
125
°C
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
Copyright © 2014, Texas Instruments Incorporated
3
TPS22962
ZHCSCL1A – JUNE 2014 – REVISED JUNE 2014
www.ti.com.cn
7.2 Handling Ratings
MIN
Tstg
Storage temperature range
V(ESD)
(1)
(2)
Electrostatic discharge
MAX
UNIT
–65
150
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all
pins (1)
0
2
Charged device model (CDM), per JEDEC specification
JESD22-C101, all pins (2)
0
1
°C
kV
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
7.3 Recommended Operating Conditions
Over operating free-air temperature range (unless otherwise noted)
MIN
MAX
UNIT
VIN
Input voltage range
0.8
VBIAS
V
VBIAS
Bias voltage range
2.5
5.5
V
VON
ON voltage range
0
5.5
V
VOUT
Output voltage range
VIN
V
VIH,
V
ON
High-level voltage, ON
VBIAS = 2.5 V to 5.5 V
1.2
5.5
VIL, ON
Low-level voltage, ON
VBIAS = 2.5 V to 5.5 V
0
0.5
V
TA
Operating free-air temperature range
–40
85
°C
CIN
Input Capacitor
1 (1)
(1)
µF
Refer to Detailed Description section.
7.4 Thermal Information
TPS22962
THERMAL METRIC (1)
DNY
8 PINS
RθJA
Junction-to-ambient thermal resistance
44.6
RθJCtop
Junction-to-case (top) thermal resistance
44.4
RθJB
Junction-to-board thermal resistance
17.6
ψJT
Junction-to-top characterization parameter
0.4
ψJB
Junction-to-board characterization parameter
17.4
RθJCbot
Junction-to-case (bottom) thermal resistance
1.1
(1)
4
UNIT
°C/W
For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.
Copyright © 2014, Texas Instruments Incorporated
TPS22962
www.ti.com.cn
ZHCSCL1A – JUNE 2014 – REVISED JUNE 2014
7.5 Electrical Characteristics, VBIAS = 5.0 V
Unless otherwise noted, the specification in the following table applies over the operating ambient temperature
–40°C ≤ TA ≤ 85°C (Full) and VBIAS = 5.0 V. Typical values are for TA = 25°C (unless otherwise noted).
PARAMETER
TEST CONDITIONS
TA
MIN
TYP
MAX
UNIT
CURRENTS AND THRESHOLDS
IQ, VBIAS
VBIAS quiescent current
IOUT = 0, VIN = VBIAS,
VON = 5.0 V
Full
20.4
26.0
µA
ISD, VBIAS
VBIAS shutdown current
VON = 0 V, VOUT = 0 V
Full
1.1
1.5
µA
VIN = 5.0 V
ISD, VIN
VIN shutdown current
VON = 0 V,
VOUT = 0 V
0.1
VIN = 3.3 V
VIN = 1.8 V
0.1
Full
0.1
VIN = 1.05 V
0.1
VIN = 0.8 V
0.1
ION
ON pin leakage current
VON = 5.5 V
Full
VHYS,
ON pin hysteresis
VBIAS = VIN
25°C
113
25°C
4.4
ON
µA
0.1
µA
mV
RESISTANCE CHARACTERISTICS
VIN = 5.0 V
VIN = 3.3 V
RON
On-state resistance
IOUT = –200 mA,
VBIAS = 5.0 V
VIN = 2.5 V
VIN = 1.8 V
VIN = 1.05 V
VIN = 0.8 V
RPD
Output pulldown resistance
Copyright © 2014, Texas Instruments Incorporated
VIN = 5.0 V, VON = 0 V, VOUT = 1 V
Full
25°C
5.6
4.4
Full
25°C
4.4
4.4
4.4
5.0
5.6
4.4
Full
Full
5.0
5.6
Full
25°C
5.0
5.6
Full
25°C
5.0
5.6
Full
25°C
5.0
5.0
5.6
224
233
mΩ
mΩ
mΩ
mΩ
mΩ
mΩ
Ω
5
TPS22962
ZHCSCL1A – JUNE 2014 – REVISED JUNE 2014
www.ti.com.cn
7.6 Electrical Characteristics, VBIAS = 2.5 V
Unless otherwise noted, the specification in the following table applies over the operating ambient temperature
–40°C ≤ TA ≤ 85°C (Full) and VBIAS = 2.5 V. Typical values are for TA = 25°C unless otherwise noted.
PARAMETER
TEST CONDITIONS
TA
MIN
TYP
MAX
UNIT
CURRENTS AND THRESHOLDS
IQ, VBIAS
VBIAS quiescent current
IOUT = 0, VIN = VBIAS,
VON = 5.0 V
Full
9.9
12.5
µA
ISD, VBIAS
VBIAS shutdown current
VON = 0 V, VOUT = 0 V
Full
0.5
0.65
µA
ISD, VIN
VIN shutdown current
VON = 0 V,
VOUT = 0 V
ION
ON pin input leakage current
VON = 5.5 V
Full
VHYS,
ON pin hysteresis
VBIAS = VIN
25°C
83
25°C
4.7
VIN = 2.5 V
VIN = 1.8 V
VIN = 1.05 V
0.1
0.1
Full
0.1
VIN = 0.8 V
ON
µA
0.1
0.1
µA
mV
RESISTANCE CHARACTERISTICS
VIN =2.5 V
RON
On-state resistance
IOUT = –200 mA,
VBIAS = 2.5 V
VIN =1.8 V
VIN =1.05 V
VIN = 0.8 V
RPD
6
Output pulldown resistance
VIN = 2.5 V, VON = 0 V, VOUT = 1 V
Full
25°C
6.0
4.6
Full
25°C
4.5
5.1
5.7
4.5
Full
Full
5.2
5.8
Full
25°C
5.3
5.1
5.7
224
233
mΩ
mΩ
mΩ
mΩ
Ω
Copyright © 2014, Texas Instruments Incorporated
TPS22962
www.ti.com.cn
ZHCSCL1A – JUNE 2014 – REVISED JUNE 2014
7.7 Switching Characteristics
Refer to the timing test circuit in Figure 1 (unless otherwise noted) for references to external components used for the test
condition in the switching characteristics table. Switching characteristics shown below are only valid for the power-up
sequence where VIN and VBIAS are already in steady state condition before the ON pin is asserted high.
PARAMETER
TEST CONDITION
MIN
TYP
MAX
UNIT
VIN = 5 V, VON = VBIAS = 5 V, TA = 25ºC (unless otherwise noted)
tON
Turn-on time
tOFF
Turn-off time
tR
VOUT rise time
tF
VOUT fall time
tD
Delay time
2397
4
RL = 10 Ω, CL = 0.1 µF
2663
µs
2
1009
VIN = 3.3 V, VON = VBIAS = 5 V, TA = 25ºC (unless otherwise noted)
tON
Turn-on time
1811
tOFF
Turn-off time
4
tR
VOUT rise time
tF
VOUT fall time
tD
Delay time
RL = 10 Ω, CL = 0.1 µF
1756
µs
2
897
VIN = 0.8 V, VON = VBIAS = 5 V, TA = 25ºC (unless otherwise noted)
tON
Turn-on time
981
tOFF
Turn-off time
4
tR
VOUT rise time
tF
VOUT fall time
tD
Delay time
RL = 10 Ω, CL = 0.1 µF
500
µs
2
714
VIN = 2.5 V, VON = 5 V, VBIAS = 2.5 V, TA = 25ºC (unless otherwise noted)
tON
Turn-on time
tOFF
Turn-off time
tR
VOUT rise time
tF
VOUT fall time
tD
Delay time
1576
8
RL = 10Ω, CL = 0.1 µF
1372
µs
2
865
VIN = 1.8V, VON = 5 V, VBIAS = 2.5 V, TA = 25ºC (unless otherwise noted)
tON
Turn-on time
tOFF
Turn-off time
tR
VOUT rise time
tF
VOUT fall time
tD
Delay time
1343
7
RL = 10 Ω, CL = 0.1 µF
1006
µs
2
815
VIN = 0.8 V, VON = 5V, VBIAS = 2.5 V, TA = 25ºC (unless otherwise noted)
tON
Turn-on time
tOFF
Turn-off time
tR
VOUT rise time
tF
VOUT fall time
tD
Delay time
Copyright © 2014, Texas Instruments Incorporated
994
8
RL = 10 Ω, CL = 0.1 µF
502
µs
2
723
7

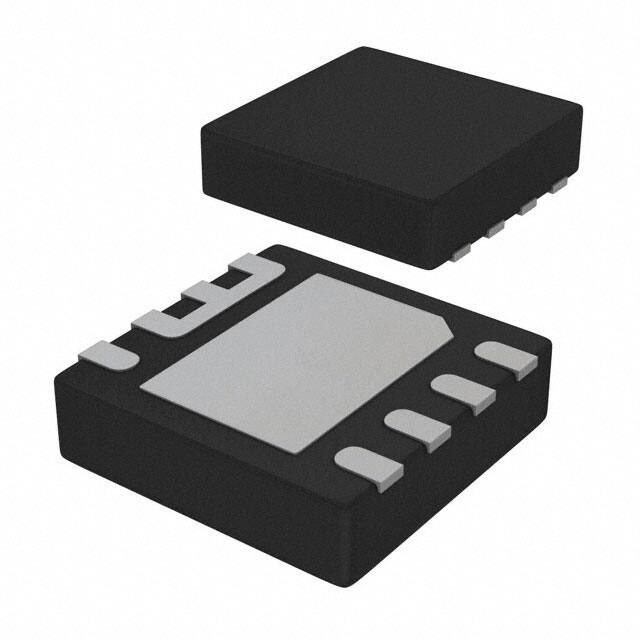

TPS22962
ZHCSCL1A – JUNE 2014 – REVISED JUNE 2014
www.ti.com.cn
VIN
VOUT
CIN = 1µF
CL
+
-
ON
(A)
RL
ON
GND
TPS22962
OFF
GND
GND
(1)
Rise and fall times of the control signal is 100ns.
Figure 1. Test Circuit
VON
50%
50%
t OFF
t ON
VOUT
50%
50%
tF
tR
90%
VOUT
10%
10%
90%
10%
tD
Figure 2. Timing Waveforms
8
Copyright © 2014, Texas Instruments Incorporated
TPS22962
www.ti.com.cn
ZHCSCL1A – JUNE 2014 – REVISED JUNE 2014
7.8 Typical Characteristics
25
1.6
1.4
20
ISD,VBIAS ( A)
IQ,VBIAS ( A)
1.2
15
10
-40C
5
1
0.8
0.6
-40C
0.4
25C
25C
0.2
85C
85C
0
0
2.5
3
3.5
4
4.5
5
5.5
VBIAS (V)
VIN = VBIAS
2.5
3
VON = 5 V
4
4.5
5
5.5
VBIAS (V)
IOUT = 0 A
VIN = VBIAS
Figure 3. IQ,VBIAS vs VBIAS
DG002
VON = 0 V
VOUT = 0 V
Figure 4. ISD,VBIAS vs VBIAS
0.03
6.0
0.025
5.5
0.02
5.0
RON (m
ISD,VIN ( A)
3.5
DG001
0.015
4.5
4.0
0.01
-40C
0.005
3.5
25C
85C
3.0
0
0.8
1.2
1.6
2
2.4
2.8
3.2
3.6
4
4.4
VIN (V)
VBIAS = 5 V
±40
4.8
VIN = 1.05V
VIN =1.2V
VIN =1.5V
VIN =1.8V
VIN =2.5V
10
±15
35
60
85
110
Junction Temperature (C)
DG003_5V
VON = 0 V
VIN = 0.8V
VOUT = 0 V
VBIAS = 2.5 V
Figure 5. ISD,VIN vs VIN
VON = 5 V
C006
IOUT = –200 mA
Figure 6. RON vs Junction Temperature
6.0
6
5.5
5.5
5
RON (m
)
RON (m
5.0
4.5
4.0
VIN = 0.8V
VIN = 1.2V
VIN = 2.5V
VIN = 4.2V
3.5
3.0
±40
±15
10
35
60
85
VBIAS = 5 V
VON = 5 V
3.5
-40C
25C
2.5
85C
2
110
0.8
1
IOUT = –200 mA
1.2
1.4
1.6
1.8
VIN (V)
C006
Figure 7. RON vs Junction Temperature
Copyright © 2014, Texas Instruments Incorporated
4
3
VIN = 1.05V
VIN = 1.8V
VIN = 3.3V
VIN =5V
Junction Temperature (C)
4.5
VBIAS = 2.5 V
VON = 5 V
2
2.2
2.4
DG006
IOUT = –200 mA
Figure 8. RON vs VIN
9
TPS22962
ZHCSCL1A – JUNE 2014 – REVISED JUNE 2014
www.ti.com.cn
6
6
5.5
5.5
5
5
4.5
4.5
4
3.5
-40C
3
RON (m
)
RON (m
)
Typical Characteristics (continued)
4
3.5
3
25C
2.5
VBIAS = 2.5V
2.5
85C
2
VBIAS = 5V
2
0.8
1.2
1.6
2
2.4
2.8
3.2
3.6
4
4.4
4.8
VIN (V)
VBIAS = 5 V
0.8
1.2
1.6
2
2.4
VON = 5 V
2.8
3.2
3.6
4
4.4
4.8
VIN (V)
DG007
IOUT = –200 mA
TA = 25°C
DG012
VON = 5 V
Figure 9. RON vs VIN
IOUT = –200 mA
Figure 10. RON vs VIN
7
240
235
6
225
RON (m
RPD (
)
230
220
215
4
-40°C
-40C
210
5
3
25°C
25C
205
85°C
85C
2
200
0.8
2.5 2.75 3 3.25 3.5 3.75 4 4.25 4.5 4.75 5 5.25 5.5
VBIAS (V)
VON = 0 V
1.0
1.4
DG016
VIN = 1.05 V
1.6
1.8
2.0
2.2
2.4
VIN (V)
VBIAS = 2.5 V
VOUT = 1 V
C002
VON = 5 V
IOUT = –10 A
Figure 12. RON vs VIN at 10A load
Figure 11. RPD vs VBIAS
6.0
7.0
5.5
6.5
5.0
VIN = 0.8V
VIN = 1.05V
VIN =1.2V
VIN =1.5V
VIN =1.8V
VIN =2.5V
6.0
RON (m
RON (m
)
1.2
4.5
4.0
5.5
5.0
3.5
-40°C
3.0
25°C
4.5
85°C
2.5
4.0
0.8
1.2
1.6
2.0
2.4
2.8
3.2
3.6
4.0
VIN (V)
VBIAS = 5 V
VON = 5 V
Figure 13. RON vs VIN at 10A load
10
4.4
4.8
1
2
4
5
6
7
IOUT (A)
C001
IOUT = –10 A
3
VBIAS = 2.5 V
VON = 5 V
8
9
10
C002
TA = 25°C
Figure 14. RON vs IOUT
Copyright © 2014, Texas Instruments Incorporated
TPS22962
www.ti.com.cn
ZHCSCL1A – JUNE 2014 – REVISED JUNE 2014
Typical Characteristics (continued)
6.5
VIN = 0.8V
VIN = 1.2V
VIN = 1.8V
VIN = 3.3V
VIN =5V
6.0
0.12
0.1
VHYS (V)
RON (m
)
5.5
0.14
VIN = 1.05V
VIN = 1.5V
VIN = 2.5V
VIN = 4.2V
5.0
4.5
4.0
3.5
0.08
0.06
0.04
-40C
0.02
25C
85C
3.0
1
2
3
4
5
6
7
8
9
IOUT (A)
VBIAS = 5 V
0
10
2.5 2.75 3 3.25 3.5 3.75 4 4.25 4.5 4.75 5 5.25 5.5
VBIAS (V)
C001
VON = 5 V
TA = 25°C
VIN = VBIAS
Figure 15. RON vs IOUT
Figure 16. VHYS vs VBIAS
1.2
1.2
1.1
1.1
1
1
VIH,ON (V)
VIL,ON (V)
DG017HYS
0.9
0.8
0.7
-40C
0.6
25C
0.9
0.8
0.7
-40C
0.6
25C
85C
85C
0.5
0.5
2.5 2.75 3 3.25 3.5 3.75 4 4.25 4.5 4.75 5 5.25 5.5
VBIAS (V)
VIN = VBIAS
2.5 2.75 3 3.25 3.5 3.75 4 4.25 4.5 4.75 5 5.25 5.5
VBIAS (V)
DG098
IOUT = 0 A
VIN = VBIAS
Figure 17. VIL,ON vs VBIAS
DG017H
IOUT = 0 A
Figure 18. VIH,ON vs VBIAS
1000
1200
1100
900
1000
900
tD (
s)
tD (
s)
800
700
800
700
600
-40C
500
25C
-40C
600
25C
500
85C
85C
400
400
0.8
1.05
1.3
1.55
1.8
VIN (V)
VBIAS = 2.5 V
RL = 10 Ω
Figure 19. tD vs VIN
Copyright © 2014, Texas Instruments Incorporated
2.05
2.3
0.8
1.2
1.6
CL = 0.1 µF
2
2.4
2.8
3.2
3.6
VIN (V)
DG018
VBIAS = 5 V
RL = 10 Ω
4
4.4
4.8
DG019
CL = 0.1 µF
Figure 20. tD vs VIN
11
TPS22962
ZHCSCL1A – JUNE 2014 – REVISED JUNE 2014
www.ti.com.cn
4
4
3
3
tF (
s)
tF (
s)
Typical Characteristics (continued)
2
-40C
1
2
-40C
1
25C
25C
85C
85C
0
0
0.8
1.05
1.3
1.55
1.8
2.05
2.3
VIN (V)
RL = 10 Ω
VBIAS = 2.5 V
0.8
1.2
1.6
2
2.4
2.8
3.2
3.6
4
4.4
4.8
VIN (V)
DG020
CL = 0.1 µF
RL = 10 Ω
VBIAS = 5 V
Figure 21. tF vs VIN
DG021
CL = 0.1 µF
Figure 22. tF vs VIN
12
6
11
5
9
tOFF (
s)
tOFF (
s)
10
8
7
-40C
6
4
-40C
3
25C
5
25C
85C
85C
4
2
0.8
1.05
1.3
1.55
1.8
2.05
2.3
VIN (V)
1.2
1.6
2
2.4
2.8
3.2
3.6
4
4.4
4.8
VIN (V)
DG022
RL = 10 Ω
VBIAS = 2.5 V
0.8
CL = 0.1 µF
Figure 23. tOFF vs VIN
DG024
RL = 10 Ω
VBIAS = 5 V
CL = 0.1 µF
Figure 24. tOFF vs VIN
1800
3000
1600
2500
tON (
s)
tON (
s)
1400
1200
2000
1500
1000
-40C
800
-40C
1000
25C
25C
85C
85C
600
500
0.8
1.05
1.3
1.55
1.8
VIN (V)
VBIAS = 2.5 V
RL = 10 Ω
Figure 25. tON vs VIN
12
2.05
2.3
0.8
1.2
1.6
CL = 0.1 µF
2
2.4
2.8
3.2
3.6
VIN (V)
DG025
VBIAS = 5 V
RL = 10 Ω
4
4.4
4.8
DG026
CL = 0.1 µF
Figure 26. tON vs VIN
Copyright © 2014, Texas Instruments Incorporated
TPS22962
www.ti.com.cn
ZHCSCL1A – JUNE 2014 – REVISED JUNE 2014
1600
3000
1400
2500
1200
2000
tR (
s)
tR (
s)
Typical Characteristics (continued)
1000
800
1500
1000
-40C
600
-40C
500
25C
25C
85C
85C
400
0
0.8
1.05
1.3
1.55
1.8
2.05
2.3
VIN (V)
RL = 10 Ω
VBIAS = 2.5 V
0.8
CL = 0.1 µF
3750
3000
3250
2750
2750
2250
tR (
s)
tR (
s)
2500
2000
1750
VBIAS = 2.5V
VBIAS = 3.3V
VBIAS = 3.6V
VBIAS = 4.2V
VBIAS = 5.0V
VBIAS = 5.5V
1500
1250
1000
750
500
4
RL = 10 Ω
3.2
3.6
4
4.4
4.8
DG028
RL = 10 Ω
VIN = 0.8V
VIN =1.2V
VIN =1.8V
VIN =3.3V
VIN =4.2V
CL = 0.1 µF
CL = 0.1 µF
VIN = 1.05V
VIN =1.5V
VIN =2.5V
VIN =3.6V
VIN =5.0V
1750
1250
750
250
2.5 2.75 3 3.25 3.5 3.75 4 4.25 4.5 4.75 5 5.25 5.5
VBIAS (V)
DG023
Figure 29. tR vs VIN for Various VBIAS
Copyright © 2014, Texas Instruments Incorporated
2.8
2250
4.4 4.8 5.2
VIN (V)
TA = 25°C
2.4
Figure 28. tR vs VIN
3250
2.4 2.8 3.2 3.6
2
VBIAS = 5 V
3500
2
1.6
VIN (V)
Figure 27. tR vs VIN
0.8 1.2 1.6
1.2
DG027
TA = 25°C
RL = 10 Ω
DG030
CL = 0.1 µF
Figure 30. tR vs VBIAS for Various VIN
13
TPS22962
ZHCSCL1A – JUNE 2014 – REVISED JUNE 2014
www.ti.com.cn
8 Detailed Description
8.1 Overview
The device is a 5.5 V, 10 A load switch in a 8-pin SON package. To reduce voltage drop for low voltage and high
current rails, the device implements an ultra-low resistance N-channel MOSFET which reduces the drop out
voltage through the device.
The device has a controlled and fixed slew rate which helps reduce or eliminate power supply droop due to large
inrush currents. During shutdown, the device has very low leakage currents, thereby reducing unnecessary
leakages for downstream modules during standby. Integrated control logic, driver, charge pump, and output
discharge FET eliminates the need for any external components, which reduces solution size and bill of materials
(BOM) count.
8.2 Functional Block Diagram
VIN
Charge
Pump
VBIAS
ON
Control
Logic
Driver
VOUT
GND
8.3 Feature Description
8.3.1 On/off Control
The ON pin controls the state of the load switch, and asserting the pin high (active high) enables the switch. The
ON pin is compatible with standard GPIO logic threshold and can be used with any microcontroller or discrete
logic with 1.2-V or higher GPIO voltage. This pin cannot be left floating and must be tied either high or low for
proper functionality.
14
Copyright © 2014, Texas Instruments Incorporated
TPS22962
www.ti.com.cn
ZHCSCL1A – JUNE 2014 – REVISED JUNE 2014
Feature Description (continued)
8.3.2
Input Capacitor (CIN)
To limit the voltage drop on the input supply caused by transient in-rush currents when the switch turns on into a
discharged load capacitor or short-circuit, a capacitor needs to be placed between VIN and GND. A 1-µF ceramic
capacitor, CIN, placed close to the pins, is usually sufficient. Higher values of CIN can be used to further reduce
the voltage drop in high-current application. When switching heavy loads, it is recommended to have an input
capacitor 10 times higher than the output capacitor to avoid excessive voltage drop; however, a 10 to 1 ratio for
capacitance is not required for proper functionality of the device, but a ratio smaller than 10 to 1 (such as 1 to 1)
could cause a VIN dip upon turn-on due to inrush currents based on external factor such as board parasitics and
output bulk capacitance.
8.3.3 Output Capacitor (CL)
Due to the integrated body diode in the N-channel MOSFET, a CIN greater than CL is highly recommended. A CL
greater than CIN can cause VOUT to exceed VIN when the system supply is removed. This could result in current
flow through the body diode from VOUT to VIN. A CIN to CL ratio of 10 to 1 is recommended for minimizing VIN
dip caused by inrush currents during startup, however a 10 to 1 ratio for capacitance is not required for proper
functionality of the device. A ratio smaller than 10 to 1 (such as 1 to 1) could cause a VIN dip upon turn-on due to
inrush currents based on external factor such as board parasitics and output bulk capacitance.
8.3.4 VIN and VBIAS Voltage Range
For optimal RON performance, make sure VIN ≤ VBIAS. The device may still be functional if VIN > VBIAS but it will
exhibit RON greater than what is listed in the Electrical Characteristics table. See Figure 31 for an example of a
typical device. Notice the increasing RON as VIN increases. Be sure to never exceed the maximum voltage rating
for VIN and VBIAS. Performance of the device is not guaranteed for VIN > VBIAS.
10
9
RON (m
)
8
VBIAS = 2.5V
VBIAS = 3.0V
VBIAS = 3.3V
VBIAS = 3.6V
VBIAS = 4.2V
VBIAS =5.0V
VBIAS =5.5V
7
6
5
4
3
0.8 1.2 1.6
2
2.4 2.8 3.2 3.6
4
4.4 4.8 5.2
VIN (V)
DG055
Figure 31. RON vs VIN (VIN > VBIAS)
8.4 Device Functional Modes
Table 1 shows the connection of VOUT depending on the state of the ON pin.
Table 1. VOUT Connection
ON
VOUT
L
GND
H
VIN
Copyright © 2014, Texas Instruments Incorporated
15
TPS22962
ZHCSCL1A – JUNE 2014 – REVISED JUNE 2014
www.ti.com.cn
9 Applications and Implementation
9.1 Application Information
This section will highlight some of the design considerations when implementing this device in various
applications. A PSPICE model for this device is also available in the product page of this device on www.ti.com
for further aid.
9.2 Typical Application
This application demonstrates how the TPS22962 can be used to power downstream modules with large
capacitances. The example below is powering a 100-µF capacitive output load.
VIN
VIN
VIN
(exposed
pad)
CIN
ON
ON
VOUT
VOUT
VBIAS
VBIAS
CL = 100µF
GND
Figure 32. Typical Application Schematic for Powering a Downstream Module
9.2.1 Design Requirements
For this design example, use the following as the input parameters.
Table 2. Design Parameters
DESIGN PARAMETER
EXAMPLE VALUE
VIN
5.0 V
VBIAS
5.0 V
Load current
10 A
9.2.2 Detailed Design Procedure
To
•
•
•
begin the design process, the designer needs to know the following:
VIN voltage
VBIAS voltage
Load current
9.2.2.1
VIN to VOUT Voltage Drop
The VIN to VOUT voltage drop in the device is determined by the RON of the device and the load current. The
RON of the device depends upon the VIN and VBIAS conditions of the device. Refer to the RON specification of the
device in the Electrical Characteristics table of this datasheet. Once the RON of the device is determined based
upon the VIN and VBIAS conditions, use Equation 1 to calculate the VIN to VOUT voltage drop:
DV = ILOAD ´ RON
(1)
where
• ΔV = voltage drop from VIN to VOUT
• ILOAD = load current
• RON = On-resistance of the device for a specific VIN and VBIAS combination
An appropriate ILOAD must be chosen such that the IMAX specification of the device is not violated.
16
Copyright © 2014, Texas Instruments Incorporated
TPS22962
www.ti.com.cn
ZHCSCL1A – JUNE 2014 – REVISED JUNE 2014
9.2.2.2 Inrush Current
To determine how much inrush current will be caused by the CL capacitor, use Equation 2:
dV
IINRUSH = CL ´ OUT
dt
(2)
where
• IINRUSH = amount of inrush caused by CL
• CL = capacitance on VOUT
• dt = time it takes for change in VOUT during the ramp up of VOUT when the device is enabled
• dVOUT = change in VOUT during the ramp up of VOUT when the device is enabled
An appropriate CL value should be placed on VOUT such that the IMAX and IPLS specficiations of the device are
not violated.
Figure 33. Inrush Current (VBIAS = 5 V, VIN = 5 V, CL = 100 µF)
9.2.2.3 Thermal Considerations
The maximum IC junction temperature should be restricted to 125°C under normal operating conditions. To
calculate the maximum allowable dissipation, PD(max) for a given output current and ambient temperature, use
Equation 3.
PD(MAX) =
TJ(MAX) - TA
θJA
(3)
where
• PD(max) = maximum allowable power dissipation
• TJ(max) = maximum allowable junction temperature (125°C for the TPS22962)
• TA = ambient temperature of the device
• θJA = junction to air thermal impedance. See Thermal Information section. This parameter is highly
dependent upon board layout.
Copyright © 2014, Texas Instruments Incorporated
17
TPS22962
ZHCSCL1A – JUNE 2014 – REVISED JUNE 2014
www.ti.com.cn
9.2.3 Application Curves
VBIAS = 5 V
CL = 0.1 µF
VIN = 5 V
CIN = 1 µF
VBIAS = 5 V
CL = 0.1 µF
VIN = 1.05 V
Figure 34. tR at VBIAS = 5 V
VBIAS = 2.5 V
CL = 0.1 µF
VIN = 2.5 V
Figure 35. tR at VBIAS = 5 V
CIN = 1 µF
Figure 36. tR at VBIAS = 2.5 V
VBIAS = 5 V
CL = 0.1 µF
VIN = 5 V
Figure 38. tF at VBIAS = 5 V
18
CIN = 1 µF
VBIAS = 2.5 V
CL = 0.1 µF
VIN = 1.05 V
CIN = 1 µF
Figure 37. tR at VBIAS = 2.5 V
CIN = 1 µF
VBIAS = 5 V
CL = 0.1 µF
VIN = 2.5 V
CIN = 1 µF
Figure 39. tF at VBIAS = 5 V
Copyright © 2014, Texas Instruments Incorporated
TPS22962
www.ti.com.cn
VBIAS = 2.5 V
CL = 0.1 µF
ZHCSCL1A – JUNE 2014 – REVISED JUNE 2014
VIN = 2.5 V
CIN = 1 µF
Figure 40. tF at VBIAS = 2.5 V
VBIAS = 2.5 V
CL = 0.1 µF
VIN = 0.8 V
CIN = 1 µF
Figure 41. tF at VBIAS = 2.5 V
10 Power Supply Recommendations
The device is designed to operate from a VBIAS range of 2.5 V to 5.5 V and VIN range of 0.8 V to 5.5 V. This
supply must be well regulated and placed as close to the device pin as possible with the recommended 1µF
bypass capacitor. If the supply is located more than a few inches from the device pins, additional bulk
capacitance may be required in addition to the ceramic bypass capacitors. If additional bulk capacitance is
required, an electrolytic, tantalum, or ceramic capacitor of 10 µF may be sufficient.
11 Layout
11.1 Layout Guidelines
•
•
•
•
•
VIN and VOUT traces should be as short and wide as possible to accommodate for high current.
Use vias under the exposed thermal pad for thermal relief for high current operation.
The VIN pin should be bypassed to ground with low ESR ceramic bypass capacitors. The typical
recommended bypass capacitance is 1-µF ceramic with X5R or X7R dielectric. This capacitor should be
placed as close to the device pins as possible.
The VOUT pin should be bypassed to ground with low ESR ceramic bypass capacitors. The typical
recommended bypass capacitance is one-tenth of the VIN bypass capacitor of X5R or X7R dielectric rating.
This capacitor should be placed as close to the device pins as possible.
The VBIAS pin should be bypassed to ground with low ESR ceramic bypass capacitors. The typical
recommended bypass capacitance is 0.1-µF ceramic with X5R or X7R dielectric.
Copyright © 2014, Texas Instruments Incorporated
19
TPS22962
ZHCSCL1A – JUNE 2014 – REVISED JUNE 2014
www.ti.com.cn
11.2 Layout Example
VIA to Power Ground Plane
VIA to VIN Plane
VIN
VOUT
VIN Bypass
Capacitor
VIN
VIN
To Bias Supply
VOUT Bypass
Capacitor
VBIAS
GND
ON
To GPIO
control
Exposed Thermal
Pad Area
Figure 42. Recommended Board Layout
20
Copyright © 2014, Texas Instruments Incorporated
TPS22962
www.ti.com.cn
ZHCSCL1A – JUNE 2014 – REVISED JUNE 2014
12 器件和文档支持
12.1 Trademarks
All trademarks are the property of their respective owners.
12.2 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
12.3 术语表
SLYZ022 — TI 术语表。
这份术语表列出并解释术语、首字母缩略词和定义。
13 机械封装和可订购信息
以下页中包括机械封装和可订购信息。 这些信息是针对指定器件可提供的最新数据。 这些数据会在无通知且不对
本文档进行修订的情况下发生改变。 欲获得该数据表的浏览器版本，请查阅左侧的导航栏。
Copyright © 2014, Texas Instruments Incorporated
21
重要声明
德州仪器(TI) 及其下属子公司有权根据 JESD46 最新标准, 对所提供的产品和服务进行更正、修改、增强、改进或其它更改， 并有权根据
JESD48 最新标准中止提供任何产品和服务。客户在下订单前应获取最新的相关信息, 并验证这些信息是否完整且是最新的。所有产品的销售
都遵循在订单确认时所提供的TI 销售条款与条件。
TI 保证其所销售的组件的性能符合产品销售时 TI 半导体产品销售条件与条款的适用规范。仅在 TI 保证的范围内，且 TI 认为 有必要时才会使
用测试或其它质量控制技术。除非适用法律做出了硬性规定，否则没有必要对每种组件的所有参数进行测试。
TI 对应用帮助或客户产品设计不承担任何义务。客户应对其使用 TI 组件的产品和应用自行负责。为尽量减小与客户产品和应 用相关的风险，
客户应提供充分的设计与操作安全措施。
TI 不对任何 TI 专利权、版权、屏蔽作品权或其它与使用了 TI 组件或服务的组合设备、机器或流程相关的 TI 知识产权中授予 的直接或隐含权
限作出任何保证或解释。TI 所发布的与第三方产品或服务有关的信息，不能构成从 TI 获得使用这些产品或服 务的许可、授权、或认可。使用
此类信息可能需要获得第三方的专利权或其它知识产权方面的许可，或是 TI 的专利权或其它 知识产权方面的许可。
对于 TI 的产品手册或数据表中 TI 信息的重要部分，仅在没有对内容进行任何篡改且带有相关授权、条件、限制和声明的情况 下才允许进行
复制。TI 对此类篡改过的文件不承担任何责任或义务。复制第三方的信息可能需要服从额外的限制条件。
在转售 TI 组件或服务时，如果对该组件或服务参数的陈述与 TI 标明的参数相比存在差异或虚假成分，则会失去相关 TI 组件 或服务的所有明
示或暗示授权，且这是不正当的、欺诈性商业行为。TI 对任何此类虚假陈述均不承担任何责任或义务。
客户认可并同意，尽管任何应用相关信息或支持仍可能由 TI 提供，但他们将独力负责满足与其产品及在其应用中使用 TI 产品 相关的所有法
律、法规和安全相关要求。客户声明并同意，他们具备制定与实施安全措施所需的全部专业技术和知识，可预见 故障的危险后果、监测故障
及其后果、降低有可能造成人身伤害的故障的发生机率并采取适当的补救措施。客户将全额赔偿因 在此类安全关键应用中使用任何 TI 组件而
对 TI 及其代理造成的任何损失。
在某些场合中，为了推进安全相关应用有可能对 TI 组件进行特别的促销。TI 的目标是利用此类组件帮助客户设计和创立其特 有的可满足适用
的功能安全性标准和要求的终端产品解决方案。尽管如此，此类组件仍然服从这些条款。
TI 组件未获得用于 FDA Class III（或类似的生命攸关医疗设备）的授权许可，除非各方授权官员已经达成了专门管控此类使 用的特别协议。
只有那些 TI 特别注明属于军用等级或“增强型塑料”的 TI 组件才是设计或专门用于军事/航空应用或环境的。购买者认可并同 意，对并非指定面
向军事或航空航天用途的 TI 组件进行军事或航空航天方面的应用，其风险由客户单独承担，并且由客户独 力负责满足与此类使用相关的所有
法律和法规要求。
TI 已明确指定符合 ISO/TS16949 要求的产品，这些产品主要用于汽车。在任何情况下，因使用非指定产品而无法达到 ISO/TS16949 要
求，TI不承担任何责任。
产品
应用
数字音频
www.ti.com.cn/audio
通信与电信
www.ti.com.cn/telecom
放大器和线性器件
www.ti.com.cn/amplifiers
计算机及周边
www.ti.com.cn/computer
数据转换器
www.ti.com.cn/dataconverters
消费电子
www.ti.com/consumer-apps
DLP® 产品
www.dlp.com
能源
www.ti.com/energy
DSP - 数字信号处理器
www.ti.com.cn/dsp
工业应用
www.ti.com.cn/industrial
时钟和计时器
www.ti.com.cn/clockandtimers
医疗电子
www.ti.com.cn/medical
接口
www.ti.com.cn/interface
安防应用
www.ti.com.cn/security
逻辑
www.ti.com.cn/logic
汽车电子
www.ti.com.cn/automotive
电源管理
www.ti.com.cn/power
视频和影像
www.ti.com.cn/video
微控制器 (MCU)
www.ti.com.cn/microcontrollers
RFID 系统
www.ti.com.cn/rfidsys
OMAP应用处理器
www.ti.com/omap
无线连通性
www.ti.com.cn/wirelessconnectivity
德州仪器在线技术支持社区
www.deyisupport.com
IMPORTANT NOTICE
邮寄地址： 上海市浦东新区世纪大道1568 号，中建大厦32 楼邮政编码： 200122
Copyright © 2014, 德州仪器半导体技术（上海）有限公司
PACKAGE OPTION ADDENDUM
www.ti.com
10-Dec-2020
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
(2)
Lead finish/
Ball material
MSL Peak Temp
Op Temp (°C)
Device Marking
(3)
(4/5)
(6)
TPS22962DNYR
ACTIVE
WSON
DNY
8
3000
RoHS & Green
NIPDAU
Level-2-260C-1 YEAR
-40 to 85
962A0
TPS22962DNYT
ACTIVE
WSON
DNY
8
250
RoHS & Green
NIPDAU
Level-2-260C-1 YEAR
-40 to 85
962A0
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
