TPS55340-Q1
SLVSBV5C – JUNE 2014 – REVISED SEPTEMBER 2021
TPS55340-Q1 Integrated 5-A, Wide Input Range
Boost, SEPIC, or Flyback DC/DC Converter
1 Features
3 Description
•
•
The TPS55340-Q1 device is a monolithic nonsynchronous switching converter with an integrated
5-A, 40-V power switch. The device can be configured
in several standard switching regulator topologies,
including boost, SEPIC, and isolated flyback. The
device has a wide input voltage range to support
applications with input voltage from 2.9 V to 38 V.
•
•
•
•
•
•
•
The TPS55340-Q1 device regulates the output
voltage with current mode PWM (pulse width
modulation) control, and has an internal oscillator.
The switching frequency of PWM is set by either an
external resistor or by synchronizing to an external
clock signal. The user can program the switching
frequency from 100 kHz to 2.5 MHz.
The device features a programmable soft-start
function to limit inrush current during start-up and
has other built-in protection features including cycleby-cycle overcurrent limit and thermal shutdown.

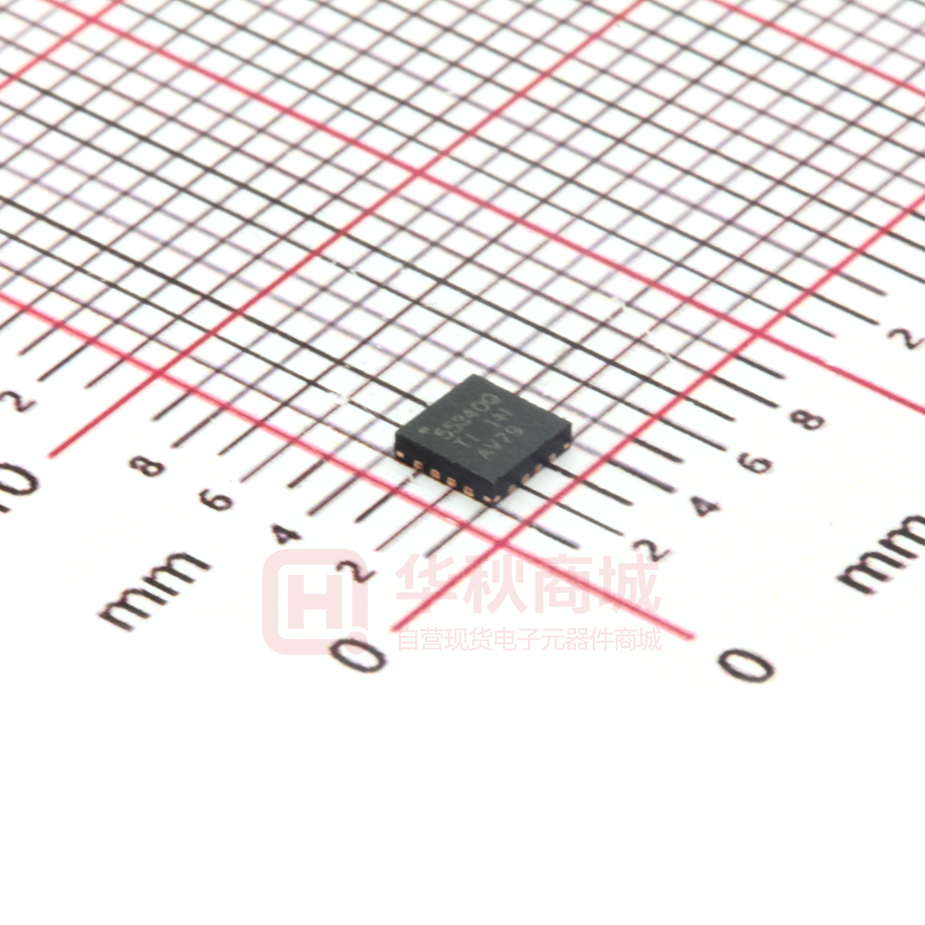

The TPS55340-Q1 device is available in a small 3mm × 3-mm 16-pin WQFN package with PowerPad
for enhanced thermal performance.
Device Information
2 Applications
•
•
•
•
PART NUMBER
Boost, SEPIC, and flyback topologies
Automotive pre-boost applications to support startstop requirements
USB power delivery
Industrial power systems
L
VI
D
TPS55340-Q1
(1)
PACKAGE(1)
BODY SIZE (NOM)
WQFN (16)
3.00 mm × 3.00 mm
For all available packages, see the orderable addendum at
the end of the data sheet.
100
VO
95
CI
TPS55340-Q1
VIN
SW
EN
SW
FREQ
SW
SS
R(FREQ)
CSS
R(C)
85
R(SH)
FB
COMP
PGND
SYNC
PGND
AGND
PGND
90
CO
Efficiency (%)
•
•
•
•
•
•
•
Qualified for automotive applications
AEC-Q100 qualified with the following results:
– Device temperature grade 1: –40°C to 125°C
– Device HBM ESD classification level 2
– Device CDM ESD classification level C6
Internal 5-A, 40-V low-side MOSFET switch
2.9 to 38-V input voltage range
±0.7% reference voltage
0.5-mA operating quiescent current
2.7-µA shutdown supply current
Fixed-frequency current mode PWM control
Frequency adjustable from 100 kHz to 2.5 MHz
(see Section 7.3.2)
Synchronization capability to external clock
Adjustable soft-start time
Pulse-skipping for higher efficiency at light loads
Cycle-by-cycle current-limit, thermal shutdown,
and UVLO protection
WQFN-16 (3 mm × 3 mm) package with
PowerPad™
Wide –40°C to +150°C operating TJ range
Create a custom design using the TPS55340-Q1
with the WEBENCH Power Designer
80
75
70
65
R(SL)
C(C)
60
55
VO = 24 V
VI
VI =
=5
5V
V
VI
12 V
V
VI == 12
ƒS = 600 kHz
VI == 15
VI
15 V
V
50
0.0
Typical Application for Boost
0.4
0.8
1.2
1.6
2.0
Output Current (A)
2.4
C021
Efficiency Versus Output Current
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
TPS55340-Q1
www.ti.com
SLVSBV5C – JUNE 2014 – REVISED SEPTEMBER 2021
Table of Contents
1 Features............................................................................1
2 Applications..................................................................... 1
3 Description.......................................................................1
4 Revision History.............................................................. 2
5 Pin Configuration and Functions...................................3
6 Specifications.................................................................. 4
6.1 Absolute Maximum Ratings........................................ 4
6.2 ESD Ratings............................................................... 4
6.3 Recommended Operating Conditions.........................4
6.4 Thermal Information....................................................4
6.5 Electrical Characteristics.............................................5
6.6 Typical Characteristics................................................ 6
7 Detailed Description........................................................9
7.1 Overview..................................................................... 9
7.2 Functional Block Diagram........................................... 9
7.3 Feature Description.....................................................9
7.4 Device Functional Modes..........................................12
8 Application and Implementation.................................. 14
8.1 Application Information............................................. 14
8.2 Typical Applications.................................................. 14
9 Power Supply Recommendations................................29
10 Layout...........................................................................30
10.1 Layout Guidelines................................................... 30
10.2 Layout Example...................................................... 30
11 Device and Documentation Support..........................31
11.1 Device Support........................................................31
11.2 Receiving Notification of Documentation Updates.. 31
11.3 Support Resources................................................. 31
11.4 Trademarks............................................................. 31
11.5 Electrostatic Discharge Caution.............................. 31
11.6 Glossary.................................................................. 31
12 Mechanical, Packaging, and Orderable
Information.................................................................... 31
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision B (January 2019) to Revision C (September 2021)
Page
• Updated the numbering format for tables, figures, and cross-references throughout the document. ................1
Changes from Revision A (July 2016) to Revision B (January 2019)
Page
• Added links for Webench ...................................................................................................................................1
• Added text note under pin configuration diagram. ............................................................................................. 3
2
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TPS55340-Q1
TPS55340-Q1
www.ti.com
SLVSBV5C – JUNE 2014 – REVISED SEPTEMBER 2021
SW
SW
NC
PGND
5 Pin Configuration and Functions
16
15
14
13
SW
1
12
PGND
VIN
2
11
PGND
EN
3
10
NC
SS
4
PowerPAD
5
6
7
8
SYNC
AGND
COMP
FB
9
FREQ
TI recommends connecting NC with AGND.
Figure 5-1. 16-Pin QFN With PowerPAD RTE Package (Top View)
Table 5-1. Pin Functions
PIN
NAME
DESCRIPTION
NO.
AGND
6
Signal ground of the IC
COMP
7
Output of the transconductance error amplifier. An external RC network connected to this pin compensates the regulator
feedback loop.
EN
3
Enable pin. When the voltage of this pin falls below the enable threshold for more than 1 ms, the IC turns off.
FB
8
Error amplifier input and feedback pin for positive voltage regulation. Connect the FB pin to the center tap of a resistor divider to
program the output voltage.
FREQ
9
Switching frequency program pin. An external resistor connected between the FREQ pin and the AGND pin sets the switching
frequency.
NC
10
14
This pin is reserved and must be connected to ground.
11
PGND
12
Power ground of the IC. The PGND pin is connected to the source of the internal power MOSFET switch.
13
SS
4
Soft-start programming pin. A capacitor between the SS pin and AGND pin programs soft-start timing.
1
SW
15
SW is the drain of the internal power MOSFET. Connect the SW pin to the switched side of the boost or SEPIC inductor or the
flyback transformer.
16
SYNC
5
Switching frequency synchronization pin. An external clock signal can set the switching frequency between 200 kHz and 1 MHz.
If this pin is not used, it must be tied to AGND.
VIN
2
The input supply pin to the IC. Connect the VIN pin to a supply voltage between 2.9 V and 32 V. The voltage on the VIN pin can
be different from the boost power stage input.
PowerPAD
The PowerPAD must be soldered to AGND. If possible, use thermal vias to connect the PowerPAD to PCB ground plane layers
for improved power dissipation.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TPS55340-Q1
3
TPS55340-Q1
www.ti.com
SLVSBV5C – JUNE 2014 – REVISED SEPTEMBER 2021
6 Specifications
6.1 Absolute Maximum Ratings
over operating temperature range (unless otherwise noted)(1)
MIN
MAX
UNIT
VIN(2)
–0.3
40
V
EN(2)
–0.3
40
V
FB, FREQ, and COMP(2)
–0.3
3
V
SS(2)
–0.3
5
V
SYNC(2)
–0.3
7
V
SW(2)
–0.3
40
V
–5
40
V
Operating junction temperature
–40
150
°C
Storage temperature, Tstg
–65
150
°C
Input voltage
Output voltage
(1)
(2)
SW ( VI
(4)
7.3.3 Overcurrent Protection and Frequency Foldback
The TPS55340-Q1 device provides cycle-by-cycle overcurrent protection that turns off the power switch when
the inductor current reaches the overcurrent limit threshold. The PWM circuitry resets at the beginning of the
next switch cycle. During an overcurrent event, the output voltage begins to droop as a function of the load on
the output. When the FB voltage through the feedback resistors, drops lower than 0.9 V, the switching frequency
is automatically reduced to 1/4 of the normal value. Figure 6-9 shows the non-foldback frequency with an 80-kΩ
timing resistor and the corresponding foldback frequency. The switching frequency does not return to normal
10
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TPS55340-Q1
TPS55340-Q1
www.ti.com
SLVSBV5C – JUNE 2014 – REVISED SEPTEMBER 2021
until the overcurrent condition is removed and the FB voltage increases above 0.9 V. The frequency foldback
feature is disabled during soft start.
7.3.3.1 Minimum On Time and Pulse Skipping
The TPS55340-Q1 PWM control system has a minimum PWM pulse width of 77 ns (typical). This minimum
on-time determines the minimum duty cycle of the PWM, for any set switching frequency. When the voltage
regulation loop of the TPS55340-Q1 device requires a minimum on-time pulse width less than 77 ns, the IC
enters pulse-skipping mode. In this mode, the device power switches off for several switching cycles to prevent
the output voltage from rising above the desired regulated voltage. This operation typically occurs in light load
conditions when the PWM operates in discontinuous conduction mode. Pulse skipping increases the output
ripple as shown in Figure 8-7.
7.3.4 Voltage Reference and Setting Output Voltage
An internal voltage reference provides a precise 1.229-V voltage reference at the error amplifier non-inverting
input. To set the output voltage, select the FB pin resistor R(SH) and R(SL) as shown in Equation 5.
æ R(SH)
ö
VO = 1.229 V ´ ç
+ 1÷
ç R(SL )
÷
è
ø
(5)
7.3.5 Soft Start
The TPS55340-Q1 device has a built-in soft-start circuit that significantly reduces the start-up current spike and
output voltage overshoot. When the IC is enabled, an internal bias current source (6 µA typical) charges a
capacitor (C(SS)) on the SS pin. The voltage at the capacitor clamps the output of the internal error amplifier
that determines the peak current and duty cycle of the PWM controller. Limiting the peak switch current during
start-up with a slow ramp on the SS pin reduces in-rush current and output voltage overshoot. When the
capacitor reaches 1.8 V, the soft-start cycle is complete and the soft-start voltage no longer clamps the error
amplifier output. When the EN is pulled low for at least 1 ms, the IC enters Shutdown mode and the SS capacitor
is discharged through a 5-kΩ resistor to prepare for the next soft-start sequence.
7.3.6 Slope Compensation
To prevent subharmonic oscillations, the TPS55340-Q1 device uses internal slope compensation. Use Equation
6 to calculate the sensed current slope of boost converter.
V
= I ´R
(n ) L (SENSE )
S
(6)
Use Equation 7 to calculate the slope compensation dv/dt.
æ
ö
ç 0.32 V ÷
çR
÷
ç (FREQ ) ÷
0.5 µA
è
ø
S
(e ) = 16 ´ (1 - D) ´ 6 pF + 6 pF
(7)
In a converter with current mode control, in addition to the output voltage feedback loop, the inner current loop
including the inductor current sampling effect and the slope compensation on the small-signal response must be
taken into account as calculated in Equation 8.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TPS55340-Q1
11
TPS55340-Q1
www.ti.com
SLVSBV5C – JUNE 2014 – REVISED SEPTEMBER 2021
He (s) =
1
éæ
ù
S(e ) ö
÷ ´ (1 - D) - 0.5 ú
s ´ êç 1 +
êç
ú
S(n ) ÷
ø
ëè
û+
1+
ƒS
s2
(p ´ ƒS )
2
(8)
where
•
•
•
R(SENSE) (15 mΩ) is the equivalent current-sense resistor.
R(FREQ) is the timing resistor used to set frequency.
D is the duty cycle.
Note
If S(n)
很抱歉,暂时无法提供与“TPS55340QRTERQ1”相匹配的价格&库存,您可以联系我们找货
免费人工找货
