TPS92200
SLVSER4A – MAY 2020 – REVISED SEPTEMBER 2021
TPS92200 4-V to 30-V Input Voltage, 1.5-A Output Current,
Synchronous Buck LED Driver With Flexible Dimming Options
1 Features
3 Description
•
•
The TPS92200 device is a 1.5-A synchronous
buck LED driver with 30-V maximum input voltage.
By integrating the high-side and low-side NMOS
switches, the TPS92200 device provides high power
density with high efficiency in an ultra-small solution
size. The TPS92200 device uses peak-current-mode
control and full internal compensation to provide high
transient response performance over a wide range of
operating conditions.
•
•
•
•
•
•
•
•
•
•
4-V to 30-V wide input range
Integrated 150-mΩ and 90-mΩ MOSFETs for
1.5-A continuous output current
Ultra-low shut-down current: 1 μA
Ultra-low output discharge current from load: 1 μA
1-MHz switching frequency
Maximum duty cycle up to 99%
Peak current mode with internal compensation
Flexible dimming options:
– TPS92200D1: PWM dimming with digital input
and analog dimming with analog input
– TPS92200D2: analog dimming with digital input
Ultra-low and accurate FB voltage: 99 mV ±3 mV
Full protection features:
– LED open-load protection
– LED+ short-to-GND protection with auto-retry
– LED+ and LED– short circuitry protection with
auto-retry
– Sense-resistor open-load and short-to-GND
protection with auto-retry
– Thermal shutdown protection with auto-retry
SOT23 (6) package
VQFN-HR (6) package
2 Applications
•
•
•
•
•
•
Video surveillance IR/White LED driver
Facial recognition IR LED driver
Stage lighting LED driver
General industrial and commercial illumination
Medical UV LED driver
AA or Li-Ion battery charger
The TPS92200 device supports flexible dimming
methods. TPS92200D1 implements both PWM and
analog dimming modes. In PWM dimming mode,
LEDs turn on and off according to PWM duty cycle
periodically. The device's analog dimming mode is
achieved by changing the internal reference voltage
proportional to the voltage level of the analog input in
5% to 100% range. TPS92200D2 implements deeper
analog dimming by changing the internal reference
voltage proportional to the duty cycle of the PWM
signal input in 1% to 100% range.
For safety and protection, the TPS92200 devices
implement full protections, including LED open, LED+
short-to-GND, LED short, sense resistor open and
short, and device thermal protection.
Device Information
PART NUMBER
PACKAGE
BODY SIZE (NOM)

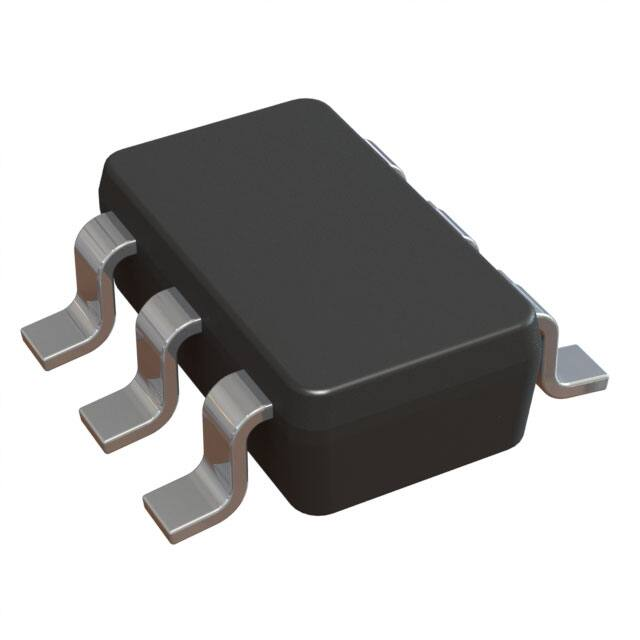

TPS92200D1DDCR
SOT-23-THIN (6)
1.60 mm × 2.90 mm

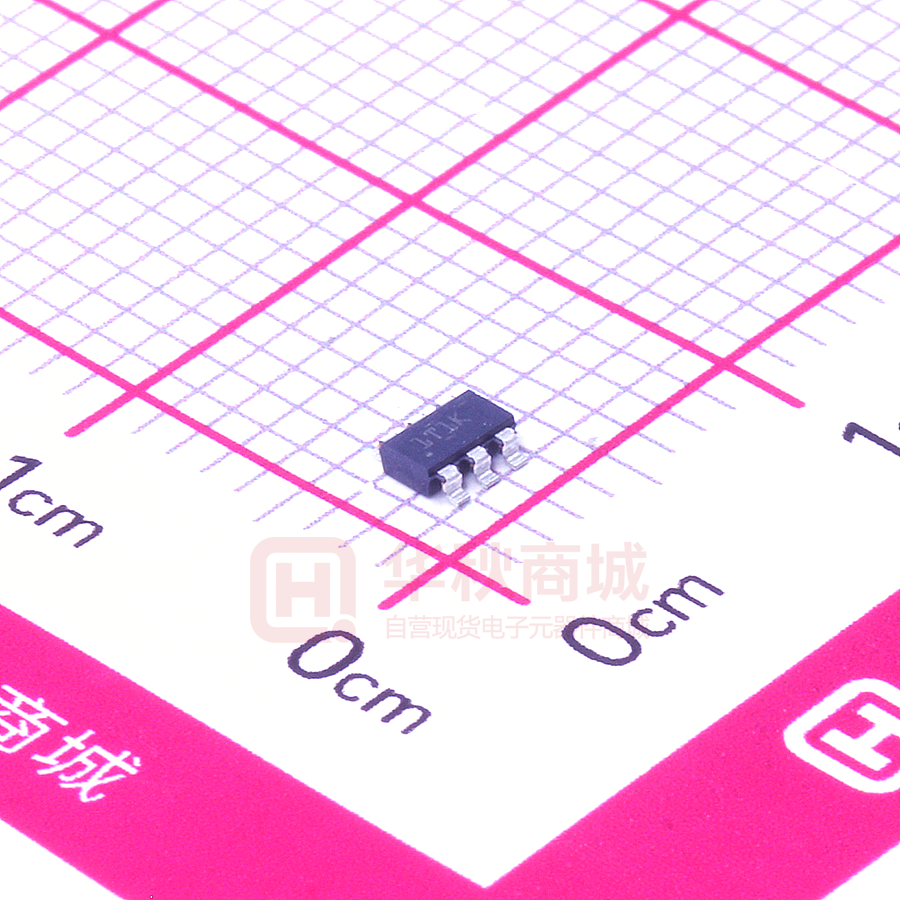

TPS92200D2DDCR
SOT-23-THIN (6)
1.60 mm × 2.90 mm
TPS92200D1RXLR(1)
VQFN-HR (6)
1.50 mm × 2.00 mm
TPS92200D2RXLR(1)
VQFN-HR (6)
1.50 mm × 2.00 mm
(1)
Product preview status only.
COUT
L
RSENSE
RFB
FB
BOOT
DIM
SW
GND
VIN
CBOOT
EN/DIM Input
RDIM
VIN
CIN
Simplified Schematic
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
TPS92200
www.ti.com
SLVSER4A – MAY 2020 – REVISED SEPTEMBER 2021
Table of Contents
1 Features............................................................................1
2 Applications..................................................................... 1
3 Description.......................................................................1
4 Revision History.............................................................. 2
5 Pin Configuration and Functions...................................3
6 Specifications.................................................................. 4
6.1 Absolute Maximum Ratings ....................................... 4
6.2 ESD Ratings .............................................................. 4
6.3 Recommended Operating Conditions ........................4
6.4 Thermal Information ...................................................4
6.5 Electrical Characteristics ............................................5
6.6 Timing Requirements ................................................. 6
6.7 Switching Characteristics ...........................................6
6.8 Typical Characteristics................................................ 7
7 Detailed Description......................................................10
7.1 Overview................................................................... 10
7.2 Functional Block Diagram......................................... 10
7.3 Feature Description...................................................11
7.4 Device Functional Modes..........................................15
8 Application and Implementation.................................. 17
8.1 Application Information............................................. 17
8.2 Typical Application.................................................... 17
9 Power Supply Recommendations................................30
10 Layout...........................................................................30
10.1 Layout Guidelines................................................... 30
10.2 Layout Example...................................................... 30
11 Device and Documentation Support..........................32
11.1 Receiving Notification of Documentation Updates.. 32
11.2 Support Resources................................................. 32
11.3 Trademarks............................................................. 32
11.4 Electrostatic Discharge Caution.............................. 32
11.5 Glossary.................................................................. 32
12 Mechanical, Packaging, and Orderable
Information.................................................................... 32
4 Revision History
Changes from Revision * (May 2020) to Revision A (September 2021)
Page
• Updated the numbering format for tables, figures and cross-references throughout the document...................1
• Added VQFN-HR package information...............................................................................................................1
• Added VQFN-HR package information...............................................................................................................1
• Add VQFN-HR package information...................................................................................................................3
• Added VQFN-HR package information.............................................................................................................30
2
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TPS92200
TPS92200
www.ti.com
SLVSER4A – MAY 2020 – REVISED SEPTEMBER 2021
5 Pin Configuration and Functions
FB
1
6
BOOT
DIM
2
5
SW
GND
3
4
VIN
Not to scale
Figure 5-1. DDC Package 6-Pin SOT-23-THIN Top View
BOOT
1
SW
2
VIN
3
6
FB
5
DIM
4
GND
Figure 5-2. RXL Package 6-Pin VQFN-HR Top View
Table 5-1. Pin Functions
PIN
NAME
DDC NO. RXL NO.
BOOT
6
1
(1)
TYPE(1)
DESCRIPTION
O
A bootstrap capacitor is required between BOOT and SW.
FB
1
6
I
LED current detection feedback
GND
3
4
G
Power ground
DIM
2
5
I
Dimming input. In PWM dimming mode, LED current is turned ON and
OFF according to PWM duty cycle periodically (TPS92200D1). In analog
dimming mode, the internal reference is proportional to the analog voltage
on DIM pin (TPS92200D1) or the PWM duty input (TPS92200D2).
SW
5
2
O
Switching node to external inductor
VIN
4
3
P
Input supply voltage
I = Input, O = Output, P = Supply, G = Ground
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TPS92200
3
TPS92200
www.ti.com
SLVSER4A – MAY 2020 – REVISED SEPTEMBER 2021
6 Specifications
6.1 Absolute Maximum Ratings
over operating ambient temperature range (unless otherwise noted)(1)
MIN
MAX
IN
–0.3
32
V
DIM
–0.3
7
V
FB
–0.3
7
V
BOOT-SW
–0.3
7
V
SW
–0.3
32
V
–5
32
V
Operating junction temperature, TJ
–40
150
°C
Storage temperature range, Tstg
–65
150
°C
Input voltage range, VI
Output voltage range, VO
SW (20 ns transient)
(1)
UNIT
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. Theseare stress
ratings only, which do not imply functional operation of the device at these or anyother conditions beyond those indicated
under Recommended OperatingConditions. Exposure to absolute-maximum-rated conditions for extended periods mayaffect device
reliability.
6.2 ESD Ratings
VALUE
V(ESD)
(1)
(2)
Electrostatic discharge
Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1)
±2000
Charged-device model (CDM), per JEDEC specification JESD22-C101(2)
±500
UNIT
V
JEDEC document JEP155 states that 500-V HBM allows safemanufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safemanufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
over operating ambient temperature range (unless otherwise noted)
MIN
MAX
4
30
V
DIM
–0.1
6
V
FB
–0.1
6
V
BOOT-SW
–0.1
6
V
SW
–0.1
30
V
–40
125
°C
IN
Input voltage range
Output voltage range
Operating Junction temperature, TJ
UNIT
6.4 Thermal Information
THERMAL METRIC(1)
TPS92200
RXL (VQFN-HR-6)
6 PINS
6 PINS
UNIT
RθJA
Junction-to-ambient thermal resistance
123.4
136.1
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
60.5
95.3
°C/W
RθJB
Junction-to-board thermal resistance
41.4
49.3
°C/W
ψJT
Junction-to-top characterization parameter
12.3
4.6
°C/W
ψJB
Junction-to-board characterization parameter
40.9
48.1
°C/W
(1)
4
TPS92200
DDC (SOT-23-6)
For more information about traditional and new thermalmetrics, see the Semiconductor and IC Package Thermal Metricsapplication
report, SPRA953.
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TPS92200
TPS92200
www.ti.com
SLVSER4A – MAY 2020 – REVISED SEPTEMBER 2021
6.5 Electrical Characteristics
The electrical ratings specified in this section apply to all specifications in thisdocument, unless otherwise noted. These
specifications are interpreted as conditions that do notdegrade the device parametric or functional specifications for the life of
the product containingit. TJ = –40°C to +125°C, VIN = 4 V to 30 V, (unlessotherwise noted).
PARAMETER
TEST CONDITIONS
MIN
TYP
MAX
UNIT
INPUT SUPPLY
VIN
VIN_UVLO
Input voltage range
4
VIN undervoltage lockout
30
V
Rising VIN
3.5
3.7
3.9
V
Falling VIN
3.3
3.5
3.7
V
Hysteresis
0.2
V
ISD
Shut down current from VIN
VIN = 12 V, VDIM = 0 V
1
3
µA
IDISC
Discharge current from SW and BOOT
VIN floating, VDIM = 0 V
1
3
uA
IOP
Normal operating current
VDIM = 3.3 V
0.5
1
mA
DIMMING
VDIM_L
Low-level input voltage
VDIM_H
High-level input voltage
0.65
0.3
VANA
Analog dimming range (TPS92200D1 only)
0.65
tDIM_ON1
DIM minimum on time to enable device
(TPS92200D2 only)
VDIM = 3.3 V
tDIM_ON2
DIM minimum on time when PWM dimming
(TPS92200D2 only)
VDIM = 3.3 V
tDIM_OFF
DIM minimum off time to disable device
VDIM = 0 V
V
V
190
1.2
V
300
nS
150
nS
36
mS
FEEDBACK AND ERROR AMPLIFIER
VFB_REF
FB pin reference voltage
VDIM = 3.3 V
VFB_OVP
FB pin overvoltage protection threshold
VDIM = 3.3 V
140
mV
VFB_DMAX
FB reference voltage when maximum dimming
input (TPS92200D1 only)
VDIM = 1.2 V
99
mV
FB reference voltage when minimum dimming
input (TPS92200D1 only)
VDIM = 0.65 V
5
mV
FB reference voltage when minimum dimming
duty cycle (TPS92200D2 only)
DIM pin duty cycle
很抱歉,暂时无法提供与“TPS92200D1DDCR”相匹配的价格&库存,您可以联系我们找货
免费人工找货- 国内价格
- 1+2.85120
- 10+2.32200
- 30+2.09520
- 100+1.80360
