CEDM7004TR

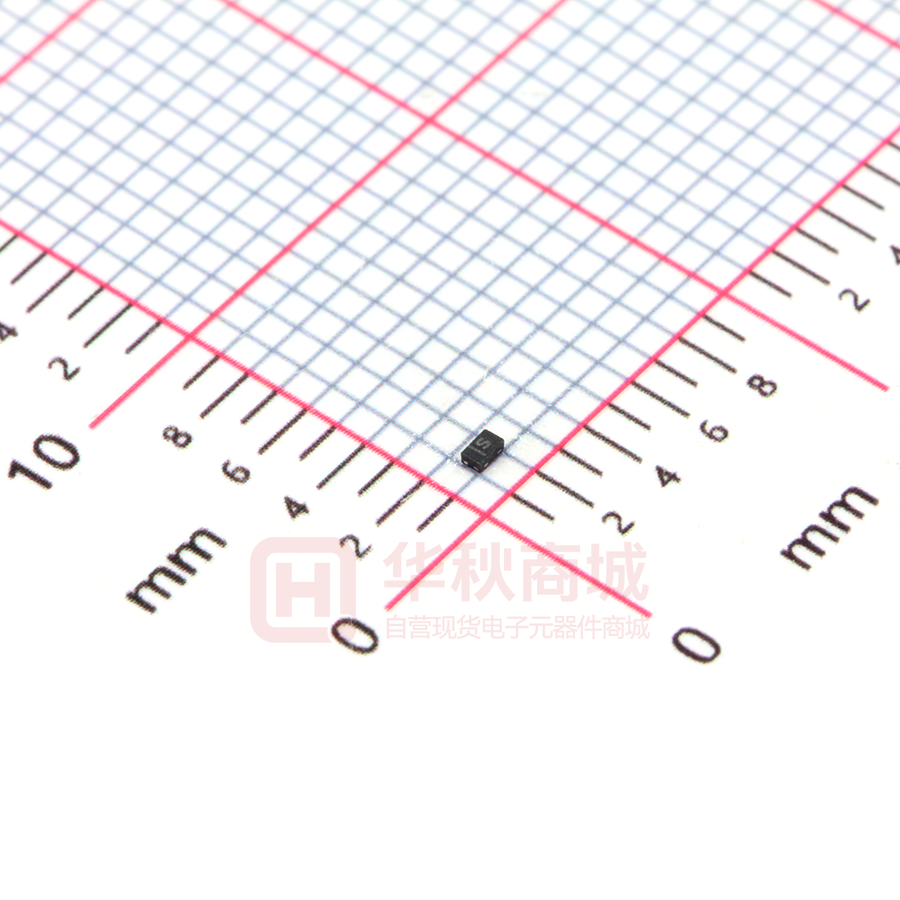

CEDM7004 SURFACE MOUNT SILICON N-CHANNEL ENHANCEMENT-MODE MOSFET w w w. c e n t r a l s e m i . c o m DESCRIPTION: The CENTRAL SEMICONDUCTOR CEDM7004 is an N-Channel Enhancement-mode MOSFET, manufactured by the N-Channel DMOS Process, designed for high speed pulsed amplifier and driver applications. This MOSFET offers Low rDS(on) and Low Threshold Voltage. MARKING CODE: S COMPLEMENTARY P-CHANNEL: CEDM8004 SOT-883L CASE APPLICATIONS: • Load/Power switches • Power supply converter circuits • Battery powered portable devices FEATURES: • ESD protection up to 2kV • 0.4mm low package profile • Low rDS(ON) • Low threshold voltage • Logic level compatible • Small leadless surface mount package MAXIMUM RATING: (TA=25°C) Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TL=25°C) Peak Drain Current, tp≤10μs (TL=25°C) Continuous Source Current (TL=25°C) Peak Source Current, tp≤10μs (TL=25°C) Power Dissipation Operating and Storage Junction Temperature SYMBOL VDS VGS ID IDM IS ISM PD TJ, Tstg UNITS V V A A A A mW °C 30 8.0 1.78 3.56 1.78 3.56 100 -65 to +150 ELECTRICAL CHARACTERISTICS: (TA=25°C unless otherwise noted) SYMBOL TEST CONDITIONS MIN TYP IGSSF, IGSSR VGS=8.0V, VDS=0 IDSS VDS=30V, VGS=0 BVDSS VGS=0, ID=10μA 30 VGS(th) VDS=VGS, ID=250μA 0.5 VSD VGS=0, IS=400mA 0.5 rDS(ON) VGS=4.5V, ID=200mA 280 rDS(ON) VGS=2.5V, ID=100mA 390 rDS(ON) VGS=1.8V, ID=75mA 550 Qg(tot) VDS=15V, VGS=4.5V, ID=1.0A 0.792 Qgs VDS=15V, VGS=4.5V, ID=1.0A 0.15 Qgd VDS=15V, VGS=4.5V, ID=1.0A 0.23 gFS VDS =10V, ID=100mA 200 Crss VDS=25V, VGS=0, f=1.0MHz 5.0 Ciss VDS=25V, VGS=0, f=1.0MHz 43 Coss VDS=25V, VGS=0, f=1.0MHz 8.0 ton VDS=5.0V, VGS=4.0V, ID=75mA, RG=10Ω 20 toff VDS=5.0V, VGS=4.0V, ID=75mA, RG=10Ω 75 MAX 3.0 1.0 1.0 1.1 460 560 730 UNITS μA μA V V V mΩ mΩ mΩ nC nC nC mS pF pF pF ns ns R5 (29-September 2014) CEDM7004 SURFACE MOUNT SILICON N-CHANNEL ENHANCEMENT-MODE MOSFET SOT-883L CASE - MECHANICAL OUTLINE PIN CONFIGURATION (Bottom View) 2 3 1 LEAD CODE: 1) Gate 2) Source 3) Drain MARKING CODE: S Package Type Options (all dimensions are maximum - in mm) Package Length Width Height SOT-883L 1.05 0.65 0.40 PD (mW) 100 Central Item Number SOT-883VL 1.05 0.65 0.32 100 CEDM7004VL SOT-523 1.70 1.70 0.78 250 CMUDM7004 CEDM7004 R5 (29-September 2014) w w w. c e n t r a l s e m i . c o m CEDM7004 SURFACE MOUNT SILICON N-CHANNEL ENHANCEMENT-MODE MOSFET TYPICAL ELECTRICAL CHARACTERISTICS R5 (29-September 2014) w w w. c e n t r a l s e m i . c o m OUTSTANDING SUPPORT AND SUPERIOR SERVICES PRODUCT SUPPORT Central’s operations team provides the highest level of support to insure product is delivered on-time. • Supply management (Customer portals) • Custom bar coding for shipments • Inventory bonding • Custom product packing • Consolidated shipping options DESIGNER SUPPORT/SERVICES Central’s applications engineering team is ready to discuss your design challenges. Just ask. • Free quick ship samples (2nd day air) • Special wafer diffusions • Online technical data and parametric search • PbSn plating options • SPICE models • Package details • Custom electrical curves • Application notes • Environmental regulation compliance • Application and design sample kits • Customer specific screening • Custom product and package development • Up-screening capabilities REQUESTING PRODUCT PLATING 1. If requesting Tin/Lead plated devices, add the suffix “ TIN/LEAD” to the part number when ordering (example: 2N2222A TIN/LEAD). 2. If requesting Lead (Pb) Free plated devices, add the suffix “ PBFREE” to the part number when ordering (example: 2N2222A PBFREE). CONTACT US Corporate Headquarters & Customer Support Team Central Semiconductor Corp. 145 Adams Avenue Hauppauge, NY 11788 USA Main Tel: (631) 435-1110 Main Fax: (631) 435-1824 Support Team Fax: (631) 435-3388 www.centralsemi.com Worldwide Field Representatives: www.centralsemi.com/wwreps Worldwide Distributors: www.centralsemi.com/wwdistributors For the latest version of Central Semiconductor’s LIMITATIONS AND DAMAGES DISCLAIMER, which is part of Central’s Standard Terms and Conditions of sale, visit: www.centralsemi.com/terms w w w. c e n t r a l s e m i . c o m (001)
