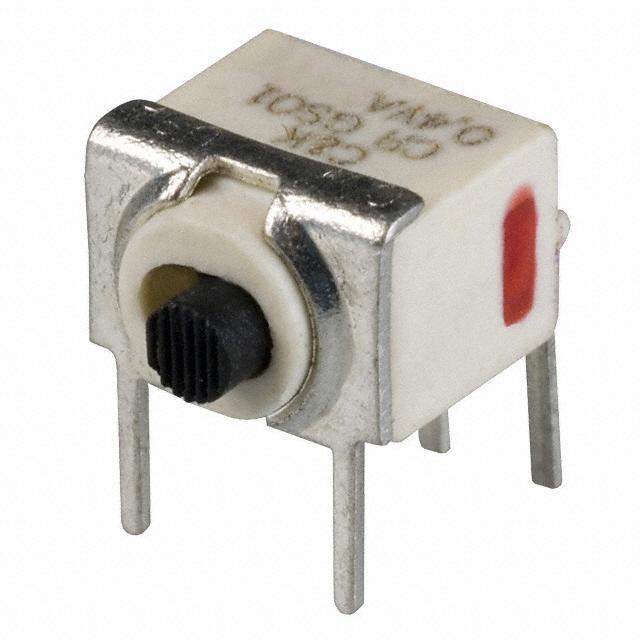

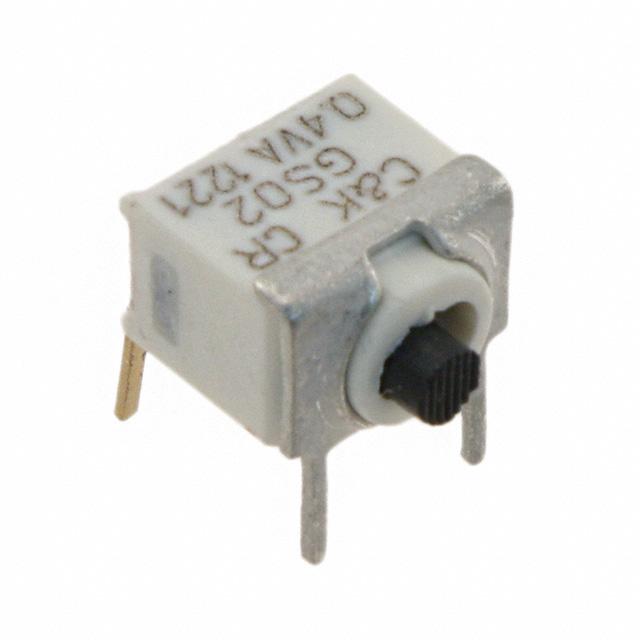

GS01MABE

GS Series Sealed Ultraminiature Slide Switches Features/Benefits • Ultraminiature design saves PCB space • Sealed construction, process compatible with most PCB wash processes Typical Applications • Computer peripherals & network products • Available in thru-hole and surface mount • Long life contact design • RoHS compliant • Test & measurement equipment • Telephone & cable modems Specifications CONTACT RATING: 0.4 VA max. @ 20 V AC or DC max. MECHANICAL & ELECTRICAL LIFE: 40,000 make-and-break cycles at full load. CONTACT RESISTANCE: Below 50 m Ω typ. initial @ 2–4 V DC, 100 mA. INSULATION RESISTANCE: 109 Ω min. DIELECTRIC STRENGTH: 500 Vrms min. @ sea level. STORAGE & OPERATING TEMPERATURE: –30ºC to 85ºC. SOLDERABILITY: Per MIL-STD-202F method 208D, or EIA RS-186E method 9 (1 hour steam aging). PACKAGING: Switches available in embossed anti-static tape and reels per EIA 481A. Some models available on embossed anti-static tape and reels per EIA 481-3, consult Customer Service Center. Materials HOUSING & BASE: Glass filled 4/6, flame retardant, heat stabilized (UL 94V-0). ACTUATOR: Polyetherimide PEI (UL 94V-0), with standard internal seal. SWITCH SUPPORT: Brass, matte-tin plated. MOVABLE CONTACT: Copper with gold plate over nickel plate. STATIONARY CONTACTS: Copper alloy, with gold plate over nickel plate. TERMINALS: Copper alloy, with gold plate over nickel plate. TERMINAL SEAL: Epoxy. All terminals insert molded. NOTE: All models are RoHS compliant and compatible with all options. NOTE: Specifications and materials listed above are for switches with standard options. For information on specific and custom switches, consult Customer Service Center. I Slide How To Order Complete part numbers for GS Series Sealed Ultraminiature Slide Switches are shown below and on page I–18. C & K MARKING ON OPPOSITE SIDE SWITCH FUNCTION POS.1 PART NUMBER POS. 2 SCHEMATIC ON 2-1 ON 2-3 Actuator Shown In Pos. 1 TOTAL TRAVEL GS01MCBE Conn. Terms. SPDT PC MOUNTING GS02MCBE Conn. Terms. OFF OPEN ON 3-1 Actuator Shown In Pos. 1 SPST GS04MCBE Conn. Terms. ON 1-3 OFF OPEN SPST GS02-omit center hole. GS02 Model GS01MCBE SPDT Dimensions are shown: Inches (mm) Specifications and dimensions subject to change I–17 www.ck-components.com GS Series Sealed Ultraminiature Slide Switches SWITCH FUNCTION POS.1 TOTAL TRAVEL POS. 2 SCHEMATIC PART NUMBER GS01MABE Conn. Terms. Actuator Shown PC MOUNTING ON 2-1 ON 2-3 SPDT GS02MABE Conn. Terms. OFF OPEN ON 3-1 I Slide GS01MABE Horizontal Actuation GS02 Model SPST GS04MABE Conn. Terms. ON 1-3 OFF OPEN SPST SPDT SWITCH FUNCTION TOTAL TRAVEL POS.1 PART NUMBER POS. 2 SCHEMATIC GS01MSABE GS02 Model Actuator Shown In Pos. 1 PC MOUNTING ON 2-1 ON 2-3 Conn. Terms. SPDT GS02MSABE Conn. Terms. OFF OPEN ON 3-1 SMT GS01MSABE Horizontal Actuation SPST GS04MSABE Conn. Terms. ON 1-3 OFF OPEN SPST SPDT TAPE & REEL FOR PART NUMBERS GS01MSABE, GS02MSABE, GS04MSABE REEL INFORMATION OUTSIDE DIAMETER PILOT HOLE QUANTITY PER REEL 13.00 (330,0) .512 (13,0) 600 Dimensions are shown: Inch (mm) Specifications and dimensions subject to change I–18 www.ck-components.com
