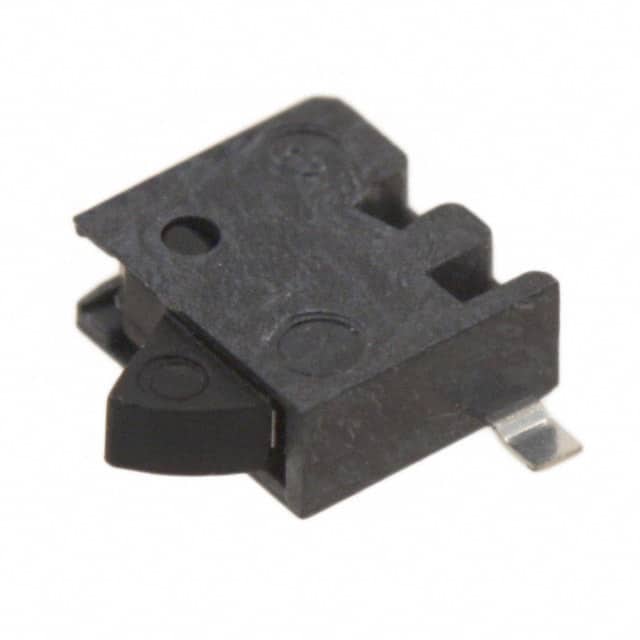

HDS001R

HDS Series Micro Mini Side Actuated Surface Mount Detect Switches Features/Benefits • Low profile package sits just 1.4 mm off PCB • Design allows top or side actuation • Right and left options available • Low actuation force, 30 grams max. •  Pick and place compatible, available in Typical Applications • Consumer electronics • Computers • Medical devices • Mobile Communications • ATCA and MicroTCA devices tape & reel packaging • RoHS compliant and compatible Specifications Materials CONTACT RATING: 1 mA 5 VDC BASE: LCP MECHANICAL AND ELECTRICAL LIFE: 100,000 cycles min. COVER: PA 46 (UL94V-0) CONTACT RESISTANCE: 1 Ω max. initial. ACTUATOR: PA 46 (UL94V-0) INSULATION RESISTANCE: 100 M Ω min. between adjacent contacts. MOVABLE BLADE: Stainless Steel, Ag over Ni plating. HDS001L: Gray HDS001R: Black HDS001L: Gray HDS001R: Black TERMINALS: Phosphor Bronze, Ag plating. OPERATING TEMPERATURE: -40ºC to + 80ºC STORAGE TEMPERATURE: -40ºC to + 80ºC PACKAGING: tape & reel; 5,000 per reel. TRAVEL: Pre-travel Overtravel: Total: NOTE: Specifications and materials listed above are for switches with standard options. For information on specific and custom switches, consult Customer Service Center. .17 mm min. .5 mm min. 1.07 mm How To Order Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select desired option from each category and place it in the appropriate box. H D S 0 0 1 R Right Actuation L Left Actuation Detect E Dimensions are shown: mm Specifications and dimensions subject to change 8 Mar 22 E–12 www.ckswitches.com HDS Series Micro Mini Side Actuated Surface Mount Detect Switches Complete part numbers for HDS Series are shown below. PART NUMBER PACKAGING HDS001R TAPE & REEL SCHEMATIC A 0.05±0.05 HDS001R 2X ø 0.7 HOLE 1.87 1.5 ±0.2 4.2 TAPE & REEL SCHEMATIC 2X ø 0.6 ±0.05 2X 0.6 3 1.7 1.4 0.5 1.6 ±0.05 2X 0.8 1.2 OR LESS ACTUATION 0.05±0.05 0.05 ± 0.05 R 2.27 2X 45˚ X 0.15 CHAMFER TOTAL TRAVEL POSITION ON STARTING POSITION 5.5 PCB MOUNTING HDS001L B A 2X 0.9 PACKAGING 0.8 0.8 1.6 PART NUMBER 0.75 0.85 0.3 0.7 0.4 2X PADS 1.2 OR LESS 3.5 B N.O. 1.7 RECOMMENDED STROKE ACTUATION 0.05±0.05 RECOMMENDED STROKE A 1.7 2X ø 0.7 HOLE 2X PADS 1.6 2X 0.9 B HDS001L 3.5 ( 0.85) N.O. 0.4 0.3 0.75 0.8 R 2.27 0.7 ø 0.6± 0.05 0.8 3 1.7 A 1.5± 0.2 1.87 2X 45˚ X 0.15 CHAMFER 1.6 ±0.05 B 4.2 TOTAL TRAVEL POSITION 5.5 ON STARTING POSITION 2X 0.6 1.4 0.5 2X 0.8 PCB MOUNTING E Detect Third Angle Projection Dimensions are shown: mm Specifications and dimensions subject to change 8 Mar 22 E–13 www.ckswitches.com HDS Series Micro Mini Side Actuated Surface Mount Detect Switches TAPE & REEL HDS001R 8 2 4 ø 1.5 +0.1 0 A 1.7 2.2 1.75 2.35 7.5 16 ± 0.3 3.2 B B 1.4 A 2.35 0.4 ±0.05 SECTION A-A FEED DIRECTION CARRIER REEL ø 380 6 3˚ TYP 3.7 1.2 SECTION B-B HDS001L 4 8 2 A 1.75 ø 1.5 +0.1 0 1.7 2.2 2.35 7.5 16 ± 0.3 B B A 3.2 2.35 1.4 0.4 ± 0.05 FEED DIRECTION SECTION A-A CARRIER REEL ø 380 6 3˚ TYP 3.7 1.2 SECTION B-B NOTE: Quantity per reel: 5,000 pieces Detect E Third Angle Projection Dimensions are shown: mm Specifications and dimensions subject to change 8 Mar 22 E–14 www.ckswitches.com
