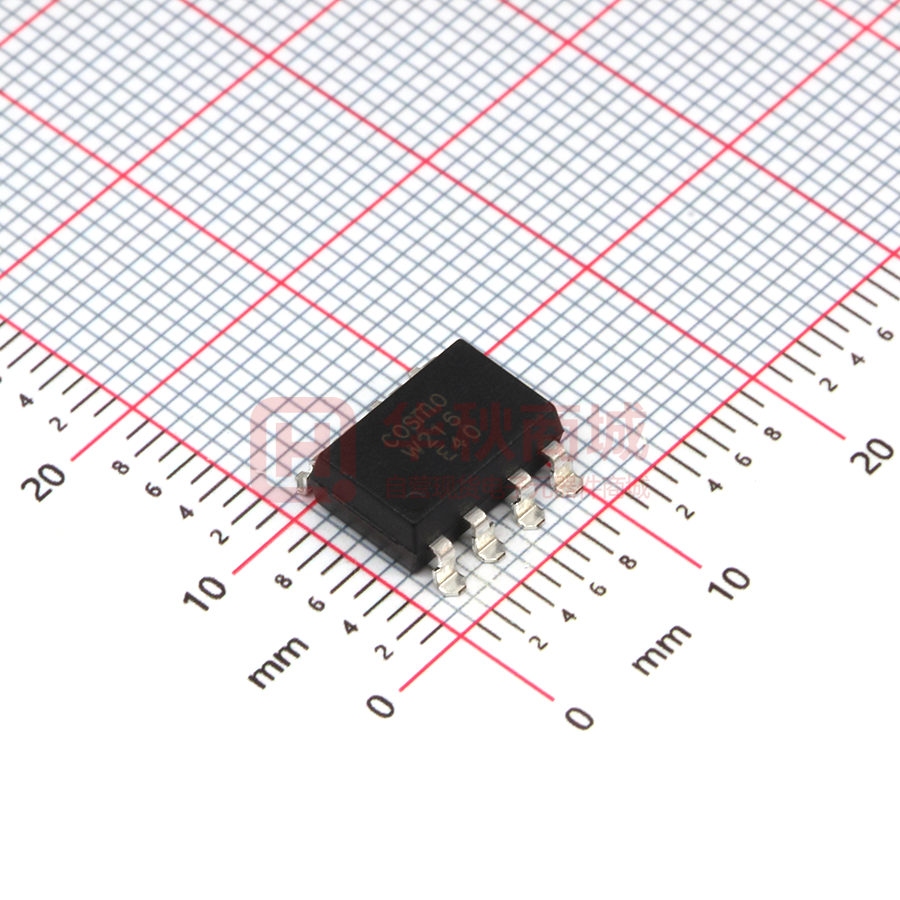

KAQW216 Series cosmo 8PIN 600V N.O. TYPE SOLID STATE RELAY-MOSFET OUTPUT  Description  Schematic The KAQW216 series contains two normally open 8 7 6 5 1 2 3 4 switches that can be used as two independent SPST relays or as one DPST relay. The relay is constructed using a GaAlAs LED for actuation control and an integrated monolithic dies for the switch output. The die, fabricated in a high-voltage dielectrically isolated technology, is comprised of a photodiode array, switch control circuitry and MOSFET switches. DUAL 1 FORM A NORMALLY OPEN 8 7 1 2 6 5 3 4  Features 1. Normally open, double pole single throw 2. Control 600V AC or DC voltage 3. Switch 120mA loads 4. Controls low-level analog signals 5. High sensitivity, low ON resistance 6. Low-level off state leakage current 7. High isolation voltage 5KV (DIP / SMD) 8. Pb free and RoHS compliant 9. MSL class 1 10. Agency Approvals： • UL Approved (No. E169586): UL1577 • C-UL Approved (No. E169586) • VDE Approved (No. 40020973): DIN EN60747-5-5  Application • Telecommunications (PC, electronic notepad) • Modem • Telephone equipment • Security equipment • Sensors • Measuring and testing equipment • Factory automation equipment • High speed inspection machines Cosmo Electronics Corp. Document No. 69M20006.3 -1- http://www.cosmo-ic.com KAQW216 Series cosmo 8PIN 600V N.O. TYPE SOLID STATE RELAY-MOSFET OUTPUT  Outside Dimension Unit：mm 1. Dual-in-line type. 2. Surface mount type. KAQW216 KAQW216A 7.62 9.68 6.50 7.62 9.68 10.00±0.4 0.25 0.50 1.20 13.00 ° 0.25 1.00 0.10±0.1 0~ 10° 2.70 3.00 0.40 3.50 3.50 6.50 1.20 2.54 2.54 13.00 ° 3. Small outline for surface mount type. KAQW216S 4.40 2.35Max. 2.30 0.05 +0-0.05 9.80 0.50±0.3 6.8±0.4 0.40 TOLERANCE ：±0.2mm 2.54  Device Marking Notes： cosmo cosmo □ W 216 YW W Cosmo Electronics Corp. Document No. 69M20006.3 W216□ □：Pin forming YWW -2- Y：Year code / W：Week code http://www.cosmo-ic.com KAQW216 Series cosmo 8PIN 600V N.O. TYPE SOLID STATE RELAY-MOSFET OUTPUT  Absolute Maximum Ratings Item Input (Ta=25℃) Symbol Rating Unit Continuous forward current IF 50 mA Peak forward current IFP 1 A Reverse voltage VR 5 V Power dissipation Pin 100 mW - 1.3 mW/℃ Breakdown voltage VB 600 V Continuous load current IL 120 mA Pout 500 mW KAQW216S KAQW216 1500Vrms 5000Vrms Derate linearly from 25℃ Output Power dissipation Isolation voltage Viso Isolation resistance (Vio=500V) 10 ≧ 10 Riso Ω Total power dissipation Pt 550 mW Derate linearly from 25℃ - 2.5 mW/℃ Operating temperature Topr -40 to +85 ℃ Storage temperature Tstg -40 to +125 ℃ Junction temperature Tj 100 ℃ Tsot 260 ℃ Soldering temperature 10 seconds  Electro-optical Characteristics Parameter Input Symbol Conditions Min. Typ. Max. Unit Forward voltage VF IF=10mA - 1.2 1.5 V Operation input current IFON VL=20V, IL=100mA - - 3.0 mA Recovery input current IFOFF VL=20V, IL≦5μA 0.2 - - mA IB=50μA 600 - - V Breakdown voltage Output (Ta=25℃) VB Off-state leakage current ILEAK VL=600V, IF=0mA - 0.2 1.0 μA I/O capacitance Ciso VB=0V, f=1MHz - 6 - pF ON resistance RON IF=10mA, IL=100mA - 35 80 Ω Turn-on time TON IF=10mA, VL=20V - 0.3 1.0 ms Turn-off time TOFF IL=100mA, t=10ms - 0.1 1.5 ms  Turn-on / Turn-off Time Input 90% 10% Output TON Cosmo Electronics Corp. Document No. 69M20006.3 TOFF -3- http://www.cosmo-ic.com KAQW216 Series cosmo 8PIN 600V N.O. TYPE SOLID STATE RELAY-MOSFET OUTPUT  Schematic and Wiring Diagrams Output Configuration Schematic Load Connection Wiring Diagrams (1) Two independent 1 Form A use VIN1 VIN2 VIN1 1 VIN2 8 2 7 3 6 4 5 2a AC DC I F1 I F2 I F1 I F2 1 8 2 7 3 6 4 5 1 8 2 7 3 6 4 5 I L1 I L2 I L1 I L2 VL2 (AC,DC) Load Load VL1 (AC,DC) Load VL2 (AC,DC) - (2) 2 Form A use 1 8 2 7 3 6 4 5 Load 1 8 I L1 Load 2 7 3 6 4 5 I L1 VIN IF I L2 VIN Cosmo Electronics Corp. Document No. 69M20006.3 VL1 (AC,DC) Load -4- IF I L2 VL1 (AC,DC) Load VL2 (AC,DC) VL1 (AC,DC) Load VL2 (AC,DC) http://www.cosmo-ic.com KAQW216 Series cosmo 8PIN 600V N.O. TYPE SOLID STATE RELAY-MOSFET OUTPUT Fig.1 Load Current vs. Ambient Temperature Fig.2 On Resistance vs. Ambient Temperature 60 140 50 100 On Resistance (Ω) Load Current (mA) 120 80 60 40 20 40 30 20 0 0 -4 0 -2 0 0 20 40 60 80 100 -40 Ambient Temperature Ta (℃) -20 0 20 40 60 80 Ambient Temperature Ta (℃) Fig.3 Turn-on Time vs. Ambient Temperature Fig.4 Turn-off Time vs. Ambient Temperature 1 .0 1 .0 0 .8 Turn-off Time (ms) Turn-on Time (ms) 0 .8 0 .6 0 .4 0 .2 0 -4 0 -2 0 0 20 40 60 0 .6 0 .4 0 .2 0 80 -4 0 Ambient Temperature Ta (℃) 0 20 40 60 80 Ambient Temperature Ta (℃) Fig.5 LED Operate Current vs. Ambient Temperature Fig.6 LED Turn-off Current vs. Ambient Temperature 2 .5 LED Turn-off Current (mA) 5 LED Operate Current (mA) -2 0 4 3 2 1 2 .0 1 .5 1 .0 0 .5 0 0 -4 0 -2 0 0 20 40 60 -4 0 80 Ambient Temperature Ta (℃) Cosmo Electronics Corp. Document No. 69M20006.3 -2 0 0 20 40 60 80 Ambient Temperature Ta (℃) -5- http://www.cosmo-ic.com KAQW216 Series cosmo 8PIN 600V N.O. TYPE SOLID STATE RELAY-MOSFET OUTPUT Fig.7 LED Dropout Voltage vs. Ambient Temperature Fig.8 Voltage vs. Current Characteristics of Output at MOSFET Portion 120 1 .7 100 80 50m A 30m A 20m A 10m A 1 .5 1 .3 Current (mA) LED Dropout Voltage (V) 1 .9 5m A 1 .1 60 40 20 -5 -4 -3 -2 -1 1 2 3 4 5 -2 0 -4 0 -6 0 0 .9 -8 0 -1 0 0 0 -4 0 -2 0 0 20 40 60 -1 2 0 80 Voltage (V) Ambient Temperature Ta (℃) Fig.9 Turn-on Time vs. LED Forward Current Fig.10 Off-state Leakage Current vs. Load Voltage Turn-on Time (ms) 0 .8 0 .6 0 .4 0 .2 0 0 10 20 30 40 50 60 Off-state Leakage Current (A) 1 .0 -3 10 -6 10 -9 10 -1 2 10 0 20 LED Forward Current (mA) 40 60 80 100 Load Voltage (V) Fig.11 Turn-off Time vs. LED Forward Current Fig.12 Output Capacitance vs. Applied Voltage Output Capacitance (PF) 0.5 Turn-off Time (ms) 0.4 0.3 0.2 0.1 50 40 30 20 10 0 0 0 10 20 30 40 50 60 LED Forward Current (mA) Cosmo Electronics Corp. Document No. 69M20006.3 0 10 20 30 40 60 80 Applied Voltage (V) -6- http://www.cosmo-ic.com KAQW216 Series cosmo 8PIN 600V N.O. TYPE SOLID STATE RELAY-MOSFET OUTPUT  Using Methods Examples of resistance value to control LED forward current (IF=5mA) R E R E 1 8 2 7 3 6 4 5 E 3.3V 5V 12V 15V 24V R Approx. 330 Ω Approx. 640 Ω Approx. 1.9K Ω Approx. 2.5K Ω Approx. 4.1K Ω 1. LED forward current must be more than 5mA，at E min. 2. LED forward current must be less than 50mA，at E max. Emax. Emin. Regulate the spike voltage generated on the inductive load as follows： 1 8 2 7 3 6 4 5 1 8 2 7 3 6 4 5 Load Load Load Load R-C Snubber Cosmo Electronics Corp. Document No. 69M20006.3 -7- http://www.cosmo-ic.com KAQW216 Series cosmo 8PIN 600V N.O. TYPE SOLID STATE RELAY-MOSFET OUTPUT  Recommended Soldering Conditions (a) Infrared reflow soldering：  Peak reflow soldering： 260℃ or below (package surface temperature)  Time of peak reflow temperature: 10 sec  Time of temperature higher than 230℃： 30-60 sec  Time to preheat temperature from 60-120 sec 180~190℃： Two  Number of reflows： Rosin flux containing small amount of chlorine (The  Flux： flux with a maximum chlorine content of 0.2 Wt% is recommended.) Recommended Temperature Profile of Infrared Reflow 10 sec M ax. temperature 260℃ 230℃ 190℃ 3 0 -6 0 s e c 180℃ 6 0 -1 2 0 s e c t (s ) (b) Wave soldering：  Temperature： 260℃ or below (molten solder temperature)  Time： 10 seconds or less  Preheating conditions: 120℃ or below (package surface temperature)  Number of times： One  Flux： Rosin flux containing small amount of chlorine (The flux with a maximum chlorine content of 0.2 Wt% is recommended.) (c) Cautions：  Fluxes： Avoid removing the residual flux with freon-based and chlorine-based cleaning solvent.  Avoid shorting between portion of frame and leads. Cosmo Electronics Corp. Document No. 69M20006.3 -8- http://www.cosmo-ic.com KAQW216 Series cosmo 8PIN 600V N.O. TYPE SOLID STATE RELAY-MOSFET OUTPUT  Numbering System KAQW216 X (Y) Note： KAQW216 = Part No. X = Lead form option ( blank、S or A ) Y = Tape and reel option ( TL、TR ) Option Description Packing quantity A (TL) surface mount type package + TL tape & reel option 1000 units per reel A (TR) surface mount type package + TR tape & reel option 1000 units per reel S (TL) S (TR) small outline for surface mount type package + 2000 units per reel TL tape & reel option small outline for surface mount type package + 2000 units per reel TR tape & reel option  Recommended Pad Layout for Surface Mount Lead Form 1. Surface mount type. 2. Small outline for surface mount type. 2.54 1.2 8.3 2.54 2.54 2.54 1.9 0.8 2.54 8-pin SOP 2.54 1.5 8-pin SMD 6 Unit：mm Cosmo Electronics Corp. Document No. 69M20006.3 -9- http://www.cosmo-ic.com KAQW216 Series cosmo 8PIN 600V N.O. TYPE SOLID STATE RELAY-MOSFET OUTPUT  8-pin SMD Carrier Tape & Reel Unit： mm 7.50 10.35 12.00 10.35 2.00 16.0±0.30 1.75 4.00 0.35 4.90 TOLERANCE：±0.2mm TL TR Direction of feed from reel Direction of feed from reel 1.5 16.4 Cosmo Electronics Corp. Document No. 69M20006.3 - 10 - 2.0 http://www.cosmo-ic.com KAQW216 Series cosmo 8PIN 600V N.O. TYPE SOLID STATE RELAY-MOSFET OUTPUT Unit： mm 0.30 10.5 16.00±0.3 7.50 4.0 1.75  8-pin SOP Carrier Tape & Reel 2.4 12.00 TOLERANCE： ±0.2mm 8.30 TL TR Direction of feed from reel Direction of feed from reel 1.5 16.4 Cosmo Electronics Corp. Document No. 69M20006.3 - 11 - 2.0 http://www.cosmo-ic.com KAQW216 Series cosmo 8PIN 600V N.O. TYPE SOLID STATE RELAY-MOSFET OUTPUT  Application Notice The content of datasheet is the guidance for product use only. cosmo takes no responsibility to the accuracy of the information provided here. For continuously improving all of products, including quality, reliability, function...etc., cosmo reserves the right to change the specification, characteristics, data, materials, and structure of products without notice. Please contact with cosmo to obtain the latest specification. It would be required to comply with the absolute maximum ratings listed in the specification. cosmo has no liability and responsibility to the damage caused by improper use of the products. cosmo products are intended to be designed for use in general electronics application list below: a. Personal computer b. OA machine c. Audio / Video d. Instrumentation e. Electrical application f. Measurement equipment g. Consumer electronics h. Telecommunication cosmo devices shall not be used or related with equipment requiring higher level of quality / reliability, or malfunction, or failure which may cause loss of human life, bodily injury, includes, without limitation: a. Medical and other life supporting equipments b. Space application c. Telecommunication equipment (trunk lines) d. Nuclear power control e. Equipment used for automotive vehicles, trains, ships...etc. This publication is the property of cosmo. No part of this publication may be reproduced or copied in any form or any means electronically or mechanically for any purpose, in whole or in part without any written permission expressed from cosmo. Cosmo Electronics Corp. Document No. 69M20006.3 - 12 - http://www.cosmo-ic.com
