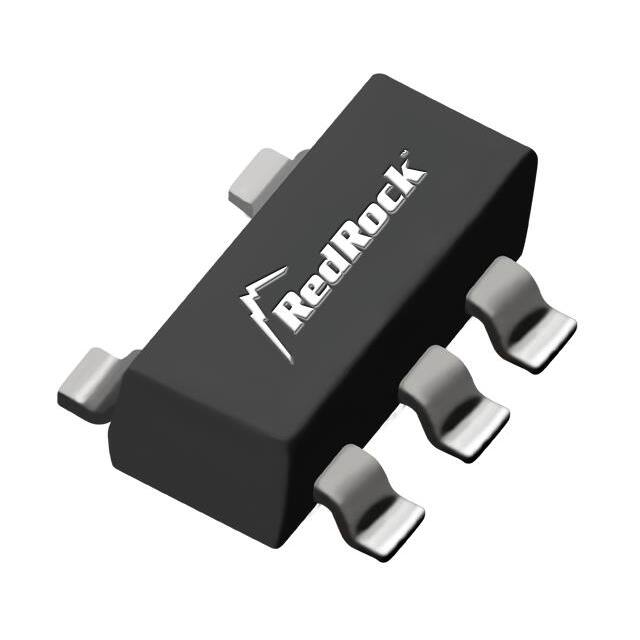

REDROCK® RR122-3CU2-515 REDROCK® RR122-3CU3-515 ® TMR DIGITAL PUSH-PULL MAGNETIC SENSOR WITH TURBO MODE 1 Description 2 Features The RedRock® RR122-3CU2-515 and RR122-3CU3-515 are digital magnetic sensors ideal for use in medical, industrial, automotive, and consumer applications, based on patented Tunneling Magnetoresistance (TMR) technology with seamless CMOS integration. u Operate sensitivity from -10 G to +10 G Lowest Average Current < 600 nA u Wide Supply Voltage Ranges Available Down to 1.7V, Up to 5.5V u Bipolar Latching Push-Pull Response u Operating Frequencies up to 10 kHz u Toggleable 10 kHz “Turbo Mode” Available u Temperature Rated up to 125°C u RoHS & REACH Compliant u The RR122-3CU2-515 and RR122-3CU3-515 feature an operate sensitivity of 10 G (1.0 mT) with a bipolar magnetic field response. The wide supply voltage range from 1.7 up to 5.5 V is ideal for applications ranging from small battery-powered electronics to industrial machinery. They have low average current drain (600 nA) for an active magnetic sensor with an operating frequency up to 10 kHz and high operating temperature ranges from -40°C up to 125°C. 3 Applications Proximity Detection Linear Position Sensing u Rotary Sensing u Fluid Level Detection u Door & Lid Closure Detection u Utility Meters u Portable Medical Devices u Motor Controllers u Consumer Electronics u Wake-Up mProcessor u u The RR122-3CU2-515 and RR122-3CU3-515 have an available “turbo” mode that can be toggled via an input pin when faster than usual sampling is required. When provided a logic "high" signal from a microcontroller or similar, it switches the base internal clock frequency up to 10 kHz. This is particularly useful for maximizing battery life in applications involving intermittent high speed rotation sensing, where a slow clock is sufficient to detect the start of rotation but then a faster sampling period is needed to ensure that no rotations are missed. Device Packages Device Information Part Series Package RR122-3CU2-515 RR122-3CU3-515 Body Size (mm) Temp Rating ºC 2.9 x 1.6 x 1.2 2.9 x 1.6 x 1.2 - 40 to +125 SOT-23-5 SOT-23-5 - 40 to +85 SO T-2 3- 5 Device Nomenclature Ordering Information Functional Block Diagram for Digital Push-Pull Output RR122-X X X X-Y Y Y Series Magnetic Polarity Response 1 = Omnipolar 3 = Bipolar/Latch 2 = Unipolar VDD CURRENT SOURCE DUTY CYCLE CONTROL TMR SENSOR Bop /Brp Comparators VREF OUTPUT LOGIC & LATCH DIGITAL PUSHPULL OUTPUT GND (401) 943-2686 | redrock@cotorelay.com | www.cotorelay.com Magnetic Sensitivity (G) A: Op 9, Rel 5 E: Op 15, Rel 10 B: Op 30, Rel 20 F: Op 70, Rel 50 C: Op 10, Rel -10 G: Op 100, Rel 70 Clock Frequency (Hz) 1: 2 5: 250 9: 10000 2: 10 6: 500 U: 100+Turbo (10000) 3: 20 7: 2500 Package 1: SOT-23-3 2: LGA-4 5: SOT-23-5 Output Response 1: Active Low Supply Voltage (V) 5: 1.7 -- 5.5 Temp Rating (ºC) 2: - 40 -- +85 3: - 40 -- +125 © Coto Technology 2021. All rights reserved. | rev.10292021 | page 1 REDROCK® RR122-3CU2-515 REDROCK® RR122-3CU3-515 TMR DIGITAL PUSH-PULL MAGNETIC SENSOR WITH TURBO MODE ® 4 Specifications 4.1 Absolute Environmental Ratings1,2 Parameters Units Min Operating Temperature (TOP) (RR122-3CU2-515) ºC -40 +85 Operating Temperature (TOP) (RR122-3CU3-515) ºC -40 +125 Storage Temperature (TSTG) ºC -65 +150 Junction Temperature (TJ) ºC +150 Soldering Temperature (3 cycles, 1 min.) (TSOL) ºC +260 ESD Level Human Body Model per JESD22-A114 V ±4000 ESD Level Charged Device Model (CDM) per JESD22-C1010 V ±500 Junction-to-Ambient Thermal Resistance (SOT-23-5) ºC/W Maximum Magnetic Field Exposure (BMAX) G Typ Max 202 ±600 4.2 Absolute Electrical Ratings1,2 Parameters Units Min Supply Voltage (VDD) V -0.3 6.0 Push-pull Output (Active Low)(VOUT_PP) V -0.3 VDD Input and Output Current (IIN/IOUT) Typ mA Max ±20 Notes: 1. Exceeding Absolute Ratings may cause permanent damage to the device. Exposure at the maximum rated conditions for extended periods of time may also affect device reliability. 2. Unless otherwise specified, all characteristics are measured at 25ºC. ESD Note: This product uses semiconductors that can be damaged by electrostatic discharge (ESD). When handling, proper ESD precautions should be taken to avoid performance degradation or loss of functionality. Damage due to inappropriate handling is not covered under warranty. page 2 | © Coto Technology 2021. All rights reserved. | rev.10292021 (401) 943-2686 | redrock@cotorelay.com | www.cotorelay.com REDROCK® RR122-3CU2-515 REDROCK® RR122-3CU3-515 ® TMR DIGITAL PUSH-PULL MAGNETIC SENSOR WITH TURBO MODE 4.3 Operating Electrical Characteristics for RR122-3CU2-515 and RR122-3CU3-5151 Parameters Units Min Supply Voltage (VDD) V +1.7 Power-On Time (tON)(VDD > 90%) ms Peak Power-On Current mA Output Voltage (High)3 (VOUTH) V Output Voltage (Low)3 (VOUTL) V Under Voltage Lockout Threshold Rising VDD (VUVLO-RISE) V Under Voltage Lockout Threshold Falling VDD (VUVLO-FALL) V Typ Max 5.5 50 75 1.4 90% VDD 10% VDD 1.60 1.40 1.64 1.53 Under Voltage Lockout Hysteresis (VUV-HYST) mV 70 Average Supply Current @ VDD = 1.7V, fSW = 100 Hz (IDD (AVG))2 mA 0.6 Average Supply Current @ VDD = 3.0V, fSW = 100 Hz (IDD (AVG))2 mA 0.8 Average Supply Current @ VDD = 1.7V, fSW = 10 kHz (IDD (AVG))2 mA 41.0 Average Supply Current @ VDD = 3.0V, fSW = 10 kHz (IDD (AVG))2 mA 46.0 4.4 Operating Characteristics for RR122-3CU2-515 and RR122-3CU3-5151 Parameters Units Min Typ Max NORMAL MODE Switching Frequency (fSW) (Base Frequency)3 Hz 100 Idle Mode Time (tIDLE) (Base Frequency) ms 10 ms 1.4 Switching Frequency (fSW) (Turbo Frequency)3 kHz 10 Idle Mode Time (tIDLE) (Turbo Frequency) ms 100 Active Mode Time (tACT) (Turbo Frequency) ms 1.4 TURBO LOGIC CONTROL Logic High Threshold (VIH) V Logic Low Threshold (VIL) V 0.5 Input Bias Current (IEN) mA 1.0 Time Delay for 1st Sample After Turbo Mode Enabled ms MAGNETIC Operate Point (BOPN) G Release Point (BRPS) G 3 Active Mode Time (tACT) (Base Frequency) 3 TURBO MODE 3 3 1.2 100 110 7 10 13 -13 -10 -7 Notes: 1. Unless otherwise specified, VDD = 1.7 V to 5.5 V, TA = -40ºC to +85ºC (3CU2), -40ºC to +125ºC (3CU3). Typical values are VDD = 3.0 V and TA = +25ºC. 2. Conditions: t = 10 seconds 3. Turbo Mode Switching Frequency is activated by sending a logic "HIGH" signal to the turbo pin on the device. A logic "LOW" signal will set the switching frequency to the base frequency. ESD Note: This product uses semiconductors that can be damaged by electrostatic discharge (ESD). When handling, proper ESD precautions should be taken to avoid performance degradation or loss of functionality. Damage due to inappropriate handling is not covered under warranty. (401) 943-2686 | redrock@cotorelay.com | www.cotorelay.com © Coto Technology 2021. All rights reserved. | rev.10292021 | page 3 REDROCK® RR122-3CU2-515 REDROCK® RR122-3CU3-515 TMR DIGITAL PUSH-PULL MAGNETIC SENSOR WITH TURBO MODE 5 Output Response vs. Magnetic Flux VOUT Output HIGH BRPS BOPN Output LOW S - Pole N - Pole 0 BHYS 6 Application Information RR122 Push-Pull Output Application Circuit The output voltage on the RR122 is active low, meaning that while a sufficiently strong magnetic field is present, the output voltage is low. The output voltage can be connected to a digital I/O pin on a microcontroller. A decoupling capacitor between the supply voltage and ground is required with placement close to the magnetic sensor. A capacitor with a value of 1.0mF, placed not more than 10 mm from the sensor, is required. Application Circuit (SOT-23-5) VDD 1 1.0mF 3 RR122 4 2 VOUT VI (Turbo Selector) GND 7 Axis of Sensitivity Axis of Sensitivity N GND DNC TURBO 3 5 4 3 OUT N S 2 VDD LGA-4 Package (Active Low) S N S 1 2 1 2 3 VDD OUT VDD GND OUT SOT-23-3 Package page 4 | © Coto Technology 2021. All rights reserved. | rev.10292021 SOT-23-5 Package (401) 943-2686 | redrock@cotorelay.com | www.cotorelay.com ® REDROCK® RR122-3CU2-515 REDROCK® RR122-3CU3-515 ® TMR DIGITAL PUSH-PULL MAGNETIC SENSOR WITH TURBO MODE 8 Dimensions SOT-23-5 Package Millimeters (Inches) Top View End View 2.90 ± 0.15 (0.114 ± .006) 1.45 ± 0.20 (0.057 ± .008) 1.20 ± 0.20 (.047 ± .008) 0.40 ± 0.15 (.016 ± .006) 5 4 0.10 ± 0.10 (.004 ± .004) 2.80 ± 0.25 (.110± .010) 0.44 ± 0.15 (.017 ± .006) 0.6 (0.024) 1.60 ± 0.15 (0.063 ± .006) 1 2 Side View 3 1.10 ± 0.15 (.043± .006) 1.90 (0.075) 1.20 ± 0.15 (.047± .006) 0.10 ± 0.10 (.004 ± .004) 9 TMR Sensor Location SOT-23-5 Package 5 4 1.45 mm 1.60 mm 0.80 mm 1 2 3 2.90 mm (401) 943-2686 | redrock@cotorelay.com | www.cotorelay.com © Coto Technology 2021. All rights reserved. | rev.10292021 | page 5 REDROCK® RR122-3CU2-515 REDROCK® RR122-3CU3-515 TMR DIGITAL PUSH-PULL MAGNETIC SENSOR WITH TURBO MODE ® 10 Output Behavior vs. Magnetic Field Diagrams Output Behavior vs. Magnetic Field - Bipolar Characteristics Conditions Output South Pole B < BRPS High (OFF) North Pole B > BOPN Low (ON) 11 Sample Frequency Selection for Turbo Mode Trims Characteristics Conditions Sample Frequency VI < 0.5 V Base Frequency VI > 1.2 V 10 kHz Turbo Pin Input Voltage page 6 | © Coto Technology 2021. All rights reserved. | rev.10292021 (401) 943-2686 | redrock@cotorelay.com | www.cotorelay.com REDROCK® RR122-3CU2-515 REDROCK® RR122-3CU3-515 ® TMR DIGITAL PUSH-PULL MAGNETIC SENSOR WITH TURBO MODE 12 TMR Sensor & Switch Packaging SOT-23-5 Tape & Reel Packaging Standard packaging is Tape & Reel containing 3,000 pieces. MSL Rating is 1. 4.0 ± 0.01 Ø1.5 +0.1 -0 2.0 ± 0.05 8.0 ± 0.2 1.75 ± 0.1 3.5 ± 0.05 2.75 4.0 ± 0.01 see Fig. B below see Fig. A below Ø1.1 ± 0.1 0.20 ± 0.05 Ao3.3 ± 0.1 2.55 ± 0.1 Bo3.2 ± 0.1 .3 R0 Fig. B 0.2 0.4 0.6 0.8 Ø60.0±0.05 0.8 0.6 0.4 0.2 Ø178.0±0.05 5 4 3 2 1 00.75mm Ø60.0±0.05 Ø178.0±0.05 00.95mm 2.2±0.05 +1.5 9.0 -0 10.6 1 2 .3 .3 Ko1.47 ± 0.1 1.5 1.5 4 5º MAX. R0 R0 0.6 Fig. A 3 R 1.1 ± 0.1 5º MAX.(2X) 5º MAX.(2X) 3 0. 5º MAX.(2X) Ø13.5±0.05 (401) 943-2686 | redrock@cotorelay.com | www.cotorelay.com EIAJ +1.5 9.0 -0 © Coto Technology 2021. All rights reserved. | rev.10292021 | page 7 REDROCK® RR122-3CU2-515 REDROCK® RR122-3CU3-515 TMR DIGITAL PUSH-PULL MAGNETIC SENSOR WITH TURBO MODE ® 13 Suggested Pb-Free Reflow Profile Notes: 1. Fully compatible with standard no-lead solder profile, 260 ºC for 30 seconds max (3 cycles max). 2. Profile shown as example. Users are advised to develop their own board-level profile. 3. Suggested Pb-free reflow profile derived from IPC/JEDEC J-STD-020E. 4. Temperature tolerance: +0 ºC, as measured at any point on the package or leads 5. MSL rating of 1 (SOT-23-3 only) compatible with J-STD-020 or equivalent. 6. All temperatures refer to the center of the package, measured on the package body surface that is facing up during assembly reflow (e.g., livebug). If parts are reflowed in other than the normal live bug assembly reflow orientation (i.e., dead-bug), Tp shall be within ± 2 °C of the live bug Tp and still meet the Tc requirements, otherwise, the profile shall be adjusted to achieve the latter. To accurately measure actual peak package body temperatures, refer to JEP140 for recommended thermocouple use. 7. Reflow profiles in this document are for classification/preconditioning and are not meant to specify board assembly profiles. Actual board assembly profiles should be developed based on specific process needs and board designs and should not exceed the parameters in this table. 260ºC Max. Ramp Up Rate = 3ºC/s Max. Ramp Down Rate = 6ºC/s 217ºC Preheat Area Temperature 200ºC 255ºC 30 seconds max. 60-150 seconds 150ºC 60-120 seconds 25 Time 25ºC to Peak Time 14 Suggested Solder Pad Layout SOT-23-5 Solder Pad Layout 0.76 (.030) 1.12 (.044) 1.58 (0.062) 3.16 (.124) 0.94 (.037) 1.90 (.075) page 8 | © Coto Technology 2021. All rights reserved. | rev.10292021 (401) 943-2686 | redrock@cotorelay.com | www.cotorelay.com ® REDROCK® RR122-3CU2-515 REDROCK® RR122-3CU3-515 TMR DIGITAL PUSH-PULL MAGNETIC SENSOR WITH TURBO MODE Revision History Date Description 1 09/14/2021 Modified Magnetic Parameters (Table 4.4) 2 09/14/2021 Modified Output Response vs. Magnetic Flux Drawing (Section 5) 3 09/14/2021 Modified Output Behavior vs. Magnetic Field Diagrams (Section 10) 4 10/29/2021 Modified Operate Point and Release Point Values (Table 4.4) (401) 943-2686 | redrock@cotorelay.com | www.cotorelay.com © Coto Technology 2021. All rights reserved. | rev.10292021 | page 9
