CVS-2308

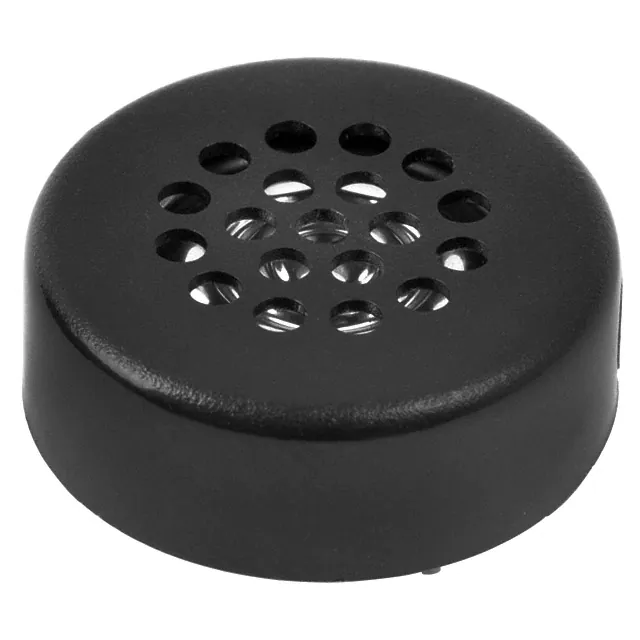

Additional Resources: Product Page | 3D Model | PCB Footprint date 08/05/2022 page 1 of 4 MODEL: CVS-2308 | DESCRIPTION: SPEAKER FEATURES • plastic frame • PET cone • plastic case RoHS SPECIFICATIONS parameter conditions/description min typ diameter depth input power max. power: IEC-60268-5, filter 60 s on / 120 s off, 10 cycles at room temp impedance at 2 kHz, 1 V resonant frequency at 1 V sound pressure level 0.1 W, 10 cm ave. at 2.0, 2.5, 3.0, 4.0 kHz 1 W, 1 m ave. at 2.0, 2.5, 3.0, 4.0 kHz at 2 kHz, 0.1 W buzz, rattle, etc. must be normal at sine wave 0.89 V magnet size ø6.5 x 1.5 mm 15 mm 0.1 0.15 W 6.8 8 9.2 Ω 1,200 1,500 1,800 Hz 85 74 88 77 91 80 dB dB 6,000 Hz 10 % 55 °C operating temperature -20 weight 3.2 material ABS UL-94 1/16” HB (black) washable yes RoHS yes SOLDERABILITY parameter conditions/description hand soldering 350 ±5°C for 3 seconds MECHANICAL DRAWING units: mm tolerance: ± 0.3mm removable masking label 6.4 0.252 (2 PLCS) 0.8 0.031 0.05 (2 PLCS) + 10.0 0.394 23.0 0.906 8.4 0.331 cuidevices.com units mm response distortion max 23 g Additional Resources: Product Page | 3D Model CUI DEVICES | MODEL: CVS-2308 | DESCRIPTION: SPEAKER | PCB Footprint date 08/05/2022 | page 2 of 4 FREQUENCY RESPONSE CURVE cuidevices.com Additional Resources: Product Page | 3D Model CUI DEVICES | MODEL: CVS-2308 | DESCRIPTION: SPEAKER | PCB Footprint date 08/05/2022 | page 3 of 4 PACKAGING cuidevices.com Additional Resources: Product Page | 3D Model | PCB Footprint CUI DEVICES | MODEL: CVS-2308 | DESCRIPTION: SPEAKER date 08/05/2022 | page 4 of 4 REVISION HISTORY rev. description date 1.0 initial release 11/15/2011 1.01 changed solder time from 5 seconds to 3 seconds 08/06/2012 1.02 brand update 01/21/2020 logo, datasheet style update 08/05/2022 1.03 The revision history provided is for informational purposes only and is believed to be accurate. CUI Devices offers a one (1) year limited warranty. Complete warranty information is listed on our website. CUI Devices reserves the right to make changes to the product at any time without notice. Information provided by CUI Devices is believed to be accurate and reliable. However, no responsibility is assumed by CUI Devices for its use, nor for any infringements of patents or other rights of third parties which may result from its use. CUI Devices products are not authorized or warranted for use as critical components in equipment that requires an extremely high level of reliability. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness. cuidevices.com
