1N4007G

1N4007G

  • 厂商:

    DIODES

  • 封装:

  • 描述:

    1N4007G - 1.0A GLASS PASSIVATED RECTIFIER - Diodes Incorporated

  • 数据手册
  • 价格&库存
1N4007G 数据手册
1N4001G - 1N4007G 1.0A GLASS PASSIVATED RECTIFIER Please click here to visit our online spice models database. Features • • • • Glass Passivated Die Construction High Current Capability and Low Forward Voltage Drop Surge Overload Rating to 30A Peak Lead Free Finish, RoHS Compliant (Note 4) Mechanical Data • • • • • • • • Case: DO-41 Plastic Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020D Terminals: Finish - Tin. Plated Leads Solderable per MIL-STD202, Method 208 Polarity: Cathode Band Ordering Information: See Page 3 Marking: Type Number Weight: 0.30 grams (approximate) Dim DO-41 Plastic Min Max A 25.40 ⎯ B 4.06 5.21 C 0.71 0.864 D 2.00 2.72 All Dimensions in mm Maximum Ratings and Electrical Characteristics @TA = 25°C unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current (Note 1) @ TA = 75°C Non-Repetitive Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load Forward Voltage @ IF = 1.0A Peak Reverse Current @TA = 25°C at Rated DC Blocking Voltage @ TA = 125°C Reverse Recovery Time (Note 3) Typical Total Capacitance (Note 2) Typical Thermal Resistance Junction to Ambient Operating and Storage Temperature Range Notes: 1. 2. 3. 4. Symbol VRRM VRWM VR VR(RMS) IO IFSM VFM IRM trr CT RθJA TJ, TSTG 1N4001 1N4002 1N4003 1N4004 1N4005 1N4006 1N4007 G G G G G G G 50 35 100 70 200 140 400 280 1.0 30 1.0 5.0 50 2.0 8.0 100 -65 to +175 600 420 800 560 1000 700 Unit V V A A V µA µs pF °C/W °C Leads maintained at ambient temperature at a distance of 9.5mm from the case. Measured at 1.0 MHz and applied reverse voltage of 4.0V DC. Measured with IF = 0.5A, IR = -1A, Irr = 0.25A. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes. DS29002 Rev. 7 - 2 1 of 3 www.diodes.com 1N4001G-1N4007G © Diodes Incorporated I(AV), AVERAGE FORWARD RECTIFIED CURRENT (A) 1.0 IF, INSTANTANEOUS FORWARD CURRENT (A) 10 0.8 1.0 0.6 0.4 0.1 0.2 0 40 60 80 100 120 140 160 180 0.01 0.6 0.8 1.0 1.2 1.4 1.6 TA, AMBIENT TEMPERATURE (ºC) Fig. 1 Forward Current Derating Curve 30 IFSM, PEAK FORWARD SURGE CURRENT (A) VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics 100 T j = 25ºC f = 1MHz 20 CT, TOTAL CAPACITANCE (pF) 10 10 0 1 10 100 1.0 1.0 10 VR, REVERSE VOLTAGE (V) Fig. 4 Typical Total Capacitance 100 NUMBER OF CYCLES AT 60 Hz Fig. 3 Max Non-Repetitive Peak Fwd Surge Current 100 Tj = 100°C 10 1.0 0.1 0 20 40 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLTAGE (%) Fig. 5 Typical Reverse Characteristics DS29002 Rev. 7 - 2 2 of 3 www.diodes.com 1N4001G-1N4007G © Diodes Incorporated Ordering Information (Note 5) Device 1N4001G-T 1N4002G-T 1N4003G-T 1N4004G-T 1N4005G-T 1N4006G-T 1N4007G-T Notes: Packaging DO-41 Plastic DO-41 Plastic DO-41 Plastic DO-41 Plastic DO-41 Plastic DO-41 Plastic DO-41 Plastic Shipping 5K/Tape & Reel, 13-inch 5K/Tape & Reel, 13-inch 5K/Tape & Reel, 13-inch 5K/Tape & Reel, 13-inch 5K/Tape & Reel, 13-inch 5K/Tape & Reel, 13-inch 5K/Tape & Reel, 13-inch 5. For packaging details, visit our website at http://www.diodes.com/datasheets/ap02008.pdf. IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. DS29002 Rev. 7 - 2 3 of 3 www.diodes.com 1N4001G-1N4007G © Diodes Incorporated
1N4007G 价格&库存

很抱歉,暂时无法提供与“1N4007G”相匹配的价格&库存,您可以联系我们找货

免费人工找货
1N4007G
  •  国内价格
  • 1+0.10594
  • 100+0.09906
  • 300+0.09218
  • 500+0.0853
  • 2000+0.08186
  • 5000+0.0798

库存:474

1N4007G
  •  国内价格
  • 1+0.05544
  • 10+0.05324
  • 100+0.04796
  • 500+0.04532

库存:970

1N4007G
  •  国内价格
  • 20+0.04349
  • 100+0.03974
  • 500+0.03724
  • 1000+0.03474
  • 5000+0.03174
  • 10000+0.0305

库存:3257

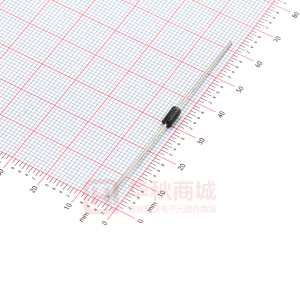

1N4007G-T
  •  国内价格
  • 1+0.20866
  • 10+0.19261
  • 30+0.1894
  • 100+0.17977

库存:0

1N4007G_AY_00001
  •  国内价格
  • 50+0.08946
  • 500+0.08001
  • 5000+0.07371
  • 10000+0.07056
  • 30000+0.06741
  • 50000+0.06552

库存:0
