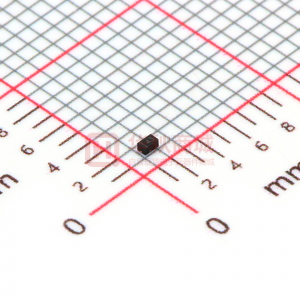

BAS40LP

BAS40LP SURFACE MOUNT SCHOTTKY BARRIER DIODE Please click here to visit our online spice models database. Features • • • • • • • Low Forward Voltage Drop Fast Switching Ultra-Small Leadless Surface Mount Package PN Junction Guard Ring for Transient and ESD Protection Lead Free By Design/RoHS Compliant (Note 1) "Green" Device (Note 2) Qualified to AEC-Q101 Standards for High Reliability Mechanical Data • • • • • • • • Case: DFN1006-2 Case Material: Molded Plastic, "Green" Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020D Terminal Connections: Cathode Dot Terminals: Finish - NiPdAu annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 Marking Information: See Page 2 Ordering Information: See Page 2 Weight: 0.001 grams (approximate) Bottom View Maximum Ratings @TA = 25°C unless otherwise specified Symbol VRRM VRWM VR IFM IFSM Value 40 200 600 Unit V mA mA Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Forward Continuous Current Forward Surge Current @ t < 1.0s Thermal Characteristics Characteristic Power Dissipation Thermal Resistance, Junction to Ambient Air Operating Temperature Range Storage Temperature Range Symbol PD RθJA TJ TSTG Value 250 400 -55 to +125 -65 to +150 Unit mW °C/W °C °C Electrical Characteristics Characteristic Reverse Breakdown Voltage (Note 3) Forward Voltage (Note 3) Reverse Leakage Current (Note 3) Total Capacitance Reverse Recovery Time Notes: 1. 2. 3. @TA = 25°C unless otherwise specified Symbol V(BR)R VF IR CT trr Min 40 — — — — Typ — — 20 2.3 — Max — 380 1000 200 5.0 5.0 Unit V mV nA pF ns Test Condition IR = 10μA tp < 300μs, IF = 1.0mA tp < 300μs, IF = 40mA tp < 300μs, VR = 30V VR = 0V, f =1.0MHz IF = IR = 10mA to IR = 1.0mA, RL = 100Ω No purposefully added lead. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php. Short duration pulse test used to minimize self-heating effect. BAS40LP Document number: DS30503 Rev. 11 - 2 1 of 3 www.diodes.com July 2008 © Diodes Incorporated BAS40LP IF, INSTANTANEOUS FORWARD CURRENT (A) IR, INSTANTANEOUS REVERSE CURRENT (nA) 1 10,000 1,000 0.1 100 0.01 10 0.001 1 0.0001 0 0.2 0.4 0.6 0.8 1.0 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 1 Typical Forward Voltage 0.1 0 30 40 10 20 VR, INSTANTANEOUS REVERSE VOLTAGE (V) Fig. 2 Typical Reverse Characteristics 300 250 PD, POWER DISSIPATION (mW) 200 150 100 50 0 0 25 50 75 100 125 TA, AMBIENT TEMPERATURE (°C) Fig. 3 Power Derating Curve 150 Ordering Information Part Number BAS40LP-7 Notes: (Note 4) Case DFN1006-2 Packaging 3000/Tape & Reel 4. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information 43 = Product Type Marking Code Dot Denotes Cathode Side BAS40LP Document number: DS30503 Rev. 11 - 2 2 of 3 www.diodes.com July 2008 © Diodes Incorporated BAS40LP Package Outline Dimensions DFN1006-2 A Dim A1 D Min 0.47 0 0.45 0.95 0.55 ⎯ 0.20 0.05 Max 0.53 0.05 0.55 1.075 0.675 ⎯ 0.30 0.15 Typ 0.50 0.03 0.50 1.00 0.60 0.40 0.25 0.10 A A1 b D R E b E e L R L e All Dimensions in mm Suggested Pad Layout C X Dimensions Value (in mm) Z 1.1 G 0.3 X 0.7 Y 0.4 C 0.7 Y G Z IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. BAS40LP Document number: DS30503 Rev. 11 - 2 3 of 3 www.diodes.com July 2008 © Diodes Incorporated
