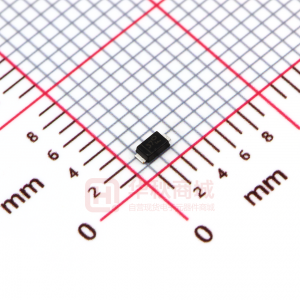

PD3S160-7

SPICE MODEL: PD3S160 PD3S160 NEW PRODUCT Features · · · · · · Guard Ring Die Construction for Transient Protection High Surge Capability Lead Free Finish, RoHS Compliant (Note 1) "Green" Molding Compound (No Br, Sb) Qualified to AEC-Q101 Standards for High Reliability Ultra-Small Surface Mount Package 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER PowerDI ä323 Mechanical Data · · · · · · · · · Case: PowerDIä323 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Polarity: Cathode Band Terminals: Finish - Matte Tin annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 Marking: Date Code & Type Code, See Page 3 Type Code: 37 Ordering Information: See Page 3 Weight: 0.006 grams (approximate) e3 TOP VIEW BOTTOM VIEW Maximum Ratings @ TA = 25°C unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Forward Current (See also figure 4) Non-Repetitive Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load Symbol VRRM VRWM VR VR(RMS) IF(AV) IFSM Value 60 42 1.0 22 Unit V V A A Thermal Characteristics Characteristic Thermal Resistance Junction to Soldering Point Thermal Resistance Junction to Ambient Air (Note 2) Thermal Resistance Junction to Ambient Air (Note 3) Operating Temperature Range Storage Temperature Range Notes: Symbol RqJS RqJA RqJA Tj TSTG Typ ¾ 173 125 -65 to +150 -65 to +150 Max 6 ¾ ¾ Unit °C/W °C/W °C/W °C °C 1. RoHS revision 13.2.2003. Glass and High Temperature Solder Exemptions Applied, see EU Directive Annex Notes 5 and 7. 2. FR-4 PCB, 2 oz. Copper, minimum recommended pad layout per http://www.diodes.com/datasheets/ap02001.pdf. TA = 25°C. 3. Polymide PCB, 2 oz. Copper, minimum recommended pad layout per http://www.diodes.com/datasheets/ap02001.pdf. TA = 25°C. Electrical Characteristics Characteristic Reverse Breakdown Voltage (Note 4) Forward Voltage Leakage Current (Note 4) Total Capacitance (See also figure 3) Notes: @ TA = 25°C unless otherwise specified Symbol V(BR)R VF IR CT Min 60 ¾ ¾ ¾ ¾ ¾ ¾ Typ ¾ 0.40 0.55 ¾ 0.3 3 38 Max ¾ 0.45 0.58 0.64 5 100 ¾ Unit V V mA pF Test Condition IR = 100mA IF = 0.1A IF = 0.7A IF = 1.0A VR = 5V, TA = 25°C VR = 60V, TA = 25°C VR = 10V, f = 1.0MHz 4. Short duration pulse test to minimize self-heating effect. DS30899 Rev. 4 - 2 PowerDI is a trademark of Diodes Incorporated. 1 of 4 www.diodes.com PD3S160 ã Diodes Incorporated IF, INSTANTANEOUS FORWARD CURRENT (mA) 10,000 10,000 TA = 150°C NEW PRODUCT 1,000 TA = 150°C TA = 125°C IR, LEAKAGE CURRENT (uA) 1,000 TA = 125°C 100 10 1 0.1 0.01 0.001 TA = 85°C 100 TA = 85°C TA = 25°C 10 TA = 25°C TA = 0°C TA = -65°C TA = 0°C 1 TA = -65°C 0.1 0 0.2 0.4 0.6 0.8 1.0 0 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 1, Typical Forward Characteristics 150 f = 1MHz 20 40 30 50 VR, REVERSE VOLTAGE (V) Fig. 2, Typical Reverse Characteristics 10 60 1.2 IF, DC FORWARD CURRENT (A) 1.0 CT, TOTAL CAPACITANCE (pF) 120 Note 3 0.8 Note 2 90 0.6 60 0.4 30 0.2 0 0 5 15 20 25 10 VR, REVERSE VOLTAGE (V) Fig. 3, Typical Total Capacitance 30 0 0 25 50 75 100 125 150 TA, AMBIENT TEMPERATURE (°C) Fig. 4, DC Forward Current Derating 180 PF, FORWARD POWER DISSIPATION (W) 1.2 TA, DERATED AMBIENT TEMPERATURE (°C) 1.0 IPK IAV Note 2 =1(DC) 150 0.8 120 0.6 90 0.4 60 0.2 30 0 0 0.5 1.0 1.5 2.0 0 0 10 20 30 40 50 60 VR, DC REVERSE VOLTAGE (V) Fig. 6, Operating Temperature Derating IF, FORWARD CURRENT (A) Fig. 5, Forward Power Dissipation DS30899 Rev. 4 - 2 PowerDI is a trademark of Diodes Incorporated. 2 of 4 www.diodes.com PD3S160 NEW PRODUCT Package Outline Dimensions C PowerDIä323 Dim B Min 2.40 1.85 1.20 0.60 0.78 0.50 0.08 0.20 ¾ ¾ 0.40 Max 2.60 1.95 1.30 0.70 0.98 0.70 0.18 0.40 ¾ ¾ 0.80 Typ 2.50 1.90 1.25 0.65 0.88 0.60 0.13 0.30 1.40 0.20 0.60 A B C D D H E E1 H L L L L1 L3 L4 E L4 E1 L1 A L3 All Dimensions in mm Suggested Pad Layout Dimensions Value (in mm) X G C Z1 Z2 G 0.8 1.1 0.5 2.0 0.8 Z2 Z1 X C Ordering Information Device PD3S160-7 Notes: (Note 5) Packaging PowerDIä323 Shipping 3,000/Tape & Reel 5. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information 37 Date Code Key Year Code Month Code Jan 1 2006 T Feb 2 2007 U Mar 3 37 = Product Type Marking Code YM = Date Code Marking Y = Year (ex: T = 2006) M = Month (ex: 9 = September) YM 2008 V Apr 4 May 5 Jun 6 2009 W Jul 7 2010 X Aug 8 Sep 9 2011 Y Oct O Nov N 2012 Z Dec D DS30899 Rev. 4 - 2 PowerDI is a trademark of Diodes Incorporated. 3 of 4 www.diodes.com PD3S160 NEW PRODUCT IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. DS30899 Rev. 4 - 2 PowerDI is a trademark of Diodes Incorporated. 4 of 4 www.diodes.com PD3S160
