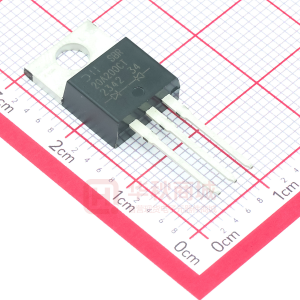

SBR20A200CT

SBR20A200CT SBR20A200CTFP 20A SBR® Super Barrier Rectifier Features • • • • • • Low Forward Voltage Drop Excellent High Temperature Stability Super Barrier Design Soft, Fast Switching Capability Molded Plastic TO-220AB and ITO-220AB packages Lead Free Finish, RoHS Compliant (Note 2) Mechanical Data • • • • • Case Material: Molded Plastic, UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Terminals: Matte Tin Finish annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 Marking: See Page 3 Ordering Information: See Page 3 Maximum Ratings @ TA = 25ºC unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current @ TC = 150ºC Non-Repetitive Peak Forward Surge Current 8.3ms Single Half Sine-Wave Superimposed on Rated Load Peak Repetitive Reverse Surge Current (2uS-1Khz) Maximum Thermal Resistance (per leg) Package = TO-220AB Package = ITO-220AB Operating and Storage Temperature Range Symbol VRRM VRWM VRM VR(RMS) IO IFSM IRRM RӨJC TJ, TSTG Value 200 141 20 180 3 2 4 -65 to +175 Unit V V A A A °C/W ºC Electrical Characteristics @ TA = 25ºC unless otherwise specified Characteristic Reverse Breakdown Voltage (Note 1) Forward Voltage Drop Symbol V(BR)R VF Min 200 Typ 0.66 Max 0.86 0.72 0.96 0.1 10 Unit V V Test Condition IR = 0.1 mA IF = 10A, TJ = 25ºC IF = 10A,TJ = 125ºC IF = 20A, TJ = 25ºC VR = 200V, TJ = 25 ºC VR = 200V, TJ = 125 ºC Leakage Current (Note 1) Notes: 1. 2. IR - mA Short duration pulse test used to minimize self-heating effect. RoHS revision 13.2.2003. High temperature solder exemption applied, see EU Directive Annex Note 7. __________ SBR is a registered trademark of Diodes Incorporated. SBR20A200 Rev. 2 1 of 3 www.diodes.com January 2007 © Diodes Incorporated SBR20A200CT SBR20A200CTFP IF(AVE), AVERAGE FORWARD CURRENT (A) 10 IF, INSTANTANEOUS FORWARD CURRENT (A) 100 10 Tj=175°C 5 1 Tj=125°C Tj=75°C Tj=25°C 0 0 25 50 75 100 125 150 175 TC CASE TEMPERATURE (°C) 0.1 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 VF, INSTANTANEOUS FORWARD VOLT AGE (V) Figure 1: Current Derating Curve, Per Element 10 IR, INSTANTANEOUS REVERSE CURRENT (mA) Figure 2: Typical Forward Characteristics, Per Element Tj=175°C 1 0.1 Tj=125°C 0.01 Tj=75°C 0.001 Tj=25°C 0.0001 0 50 100 150 200 VR, INSTANTANEOUS REVERSE VOLTAGE (V) Figure 3: Typical Reverse Characteristics, Per Element Package Outline Drawings TO-220AB TO-220AB DIM. MIN. MAX. ITO-220AB A b b1 c D D1 E e e1 F J1 L L1 ØP Q 4.47 4.67 0.71 0.91 1.17 1.37 0.31 0.53 14.65 15.35 8.50 8.90 10.01 10.31 2.54 typ 4.98 5.18 1.17 1.37 2.52 2.82 13.40 13.80 3.56 3.96 3.735 3.935 2.59 2.89 ITO-220AB DIM. MIN. MAX. All Dimensions in Millimeters A b b1 b2 c D E e F J1 L L1 ØP Q 4.30 4.70 0.50 0.75 1.10 1.35 1.50 1.75 0.50 0.75 14.80 15.20 9.96 10.36 2.54 typ 2.80 3.20 2.50 2.90 12.80 13.60 1.70 1.90 3.50 typ 2.70 typ All Dimensions in Millimeters SBR20A200 Rev. 2 2 of 3 www.diodes.com January 2007 © Diodes Incorporated SBR20A200CT SBR20A200CTFP Marking, Polarity, Weight & Ordering Information SBR20A200CT SBR20A200CTFP Case Style TO-220AB Case ITO-220AB t Polarity t Common Anode Cathode Anode Common Anode Cathode Anode Marking Weight 2.1g 1.9g Ordering Information Date Code Other Marking Information SBR20A200CT 50 pieces/tube YY = Last two digits of year, ex = 06 = 2006 WW = Week (01-52) A = Foundry Code B = Assembly Code SBR20A200CTFP 50 pieces/tube IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. SBR20A200 Rev. 2 3 of 3 www.diodes.com January 2007 © Diodes Incorporated
