DI2579N
DI2579N
IC
=1A
hFE = 15 ... 30
Tjmax = 150°C
SMD High Voltage NPN Transistors
SMD Hochspannungs-NPN-Transistoren
VCES = 700 V
Ptot = 1.25 W
Version 2019-12-17
Typical Applications
Signal processing,
Switching, Amplification
Commercial grade
Suffix -Q: AEC-Q101 compliant 1)
Suffix -AQ: in AEC-Q101 qualification 1)
6.5
±0.2
1.65
±0.1
3
0.7
2.3
2
3
3.25
Features
High collector emitter voltage
Low saturation voltage
Compliant to RoHS, REACH,
Conflict Minerals 1)
Mechanical Data 1)
Taped and reeled
1 = B 2/4 = C 3 = E
Dimensions - Maße [mm]
RoHS
Pb
EE
WE
1
7 ±0.3
Type
Code
3.5 ±0.2
4
EL
V

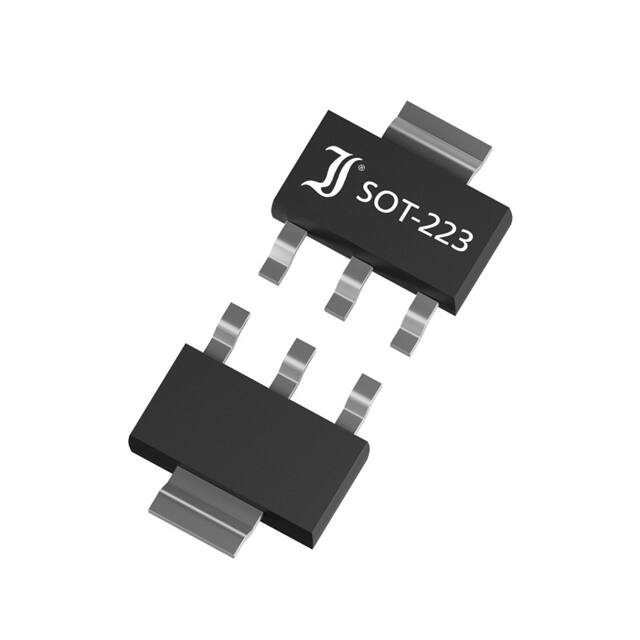

SOT-223
Typische Anwendungen
Signalverarbeitung,
Schalten, Verstärken
Standardausführung
Suffix -Q: AEC-Q101 konform 1)
Suffix -AQ: in AEC-Q101 Qualifikation 1)
Besonderheiten
Hohe Kollektor-Emitterspannung
Niedrige Sättigungsspannung
Konform zu RoHS, REACH,
Konfliktmineralien 1)
Mechanische Daten 1)
4000 / 13“
Weight approx.
Gegurtet auf Rolle
0.04 g
Gewicht ca.
Case material
UL 94V-0
Gehäusematerial
Solder & assembly conditions
260°C/10s
Löt- und Einbaubedingungen
MSL = 1
Maximum ratings 2)
Grenzwerte 2)
DI83003N
Collector-Emitter-voltage – Kollektor-Emitter-Spannung
B-E short
VCES
700 V
Collector-Emitter-voltage – Kollektor-Emitter-Spannung
B open
VCEO
400 V
Emitter-Base-voltage – Emitter-Basis-Spannung
C open
VEBO
9V
Ptot
1.25 W 3)
Power dissipation
Verlustleistung
Collector current – Kollektorstrom
DC
IC
1A
Peak Collector current – Kollektor-Spitzenstrom
t < 5 ms
ICM
2A
Base current – Basisstrom
DC
IB
500 mA
Peak Base current – Basis-Spitzenstrom
t < 5 ms
IBM
1000 mA
Tj
TS
-55...+150°C
-55…+150°C
Junction temperature – Sperrschichttemperatur
Storage temperature – Lagerungstemperatur
1
2
3
Please note the detailed information on our website or at the beginning of the data book
Bitte beachten Sie die detaillierten Hinweise auf unserer Internetseite bzw. am Anfang des Datenbuches
TA = 25°C, unless otherwise specified – TA = 25°C, wenn nicht anders angegeben
Mounted on P.C. board with 100 mm2 copper pad at collector terminal 4
Montage auf Leiterplatte mit 100 mm2 Kupferbelag (Lötpad) am Kollektor-Anschluss 4
© Diotec Semiconductor AG
http://www.diotec.com/
1
DI2579N
Characteristics
Kennwerte
Tj = 25°C
Min.
Typ.
Max.
hFE
15
4
20
–
30
–
)
VCEsat
–
–
1V
)
VBEsat
–
–
1V
ICES
–
–
1 mA
tr
ts
–
1.5 µs
–
0.1 µs
2.9 µs
DC current gain – Kollektor-Basis-Stromverhältnis
IC = 350 mA
IC = 1000 mA
VCE = 5 V
)
1
Collector-Emitter saturation voltage – Kollektor-Emitter-Sättigungsspannung
IC = 350 mA
IB = 50 mA
1
Base-Emitter-voltage – Basis-Emitter-Spannung
IC = 350 mA
IB = 50 mA
1
Collector-Emitter cutoff current – Kollektor-Basis-Reststrom
VCB = 700 V
B-E short
Switching times – Schaltzeiten
IC = 100 mA
resistive load
Typical thermal resistance junction to ambient
Typischer Wärmewiderstand Sperrschicht – Umgebung
RthA
80 K/W 2)
120
[%]
100
80
60
40
20
Ptot
0
0
TA
50
100
150
[°C]
Power dissipation versus ambient temperature 1)
1
Verlustleistung in Abh. von d. Umgebungstemp. )
Disclaimer: See data book page 2 or website
Haftungssauschluss: Siehe Datenbuch Seite 2 oder Internet
1
2
2
Tested with pulses tp = 300 µs, duty cycle ≤ 2% – Gemessen mit Impulsen tp = 300 µs, Schaltverhältnis ≤ 2%
Mounted on P.C. board with 100 mm2 copper pad at the collector terminal
Montage auf Leiterplatte mit 100 mm2 Kupferbelag (Lötpad) am Kollektor-Anschluss
http://www.diotec.com/
© Diotec Semiconductor AG
