E1WC Series
REGULATORY COMPLIANCE
2011/65 +
2015/863
191 SVHC
ITEM DESCRIPTION

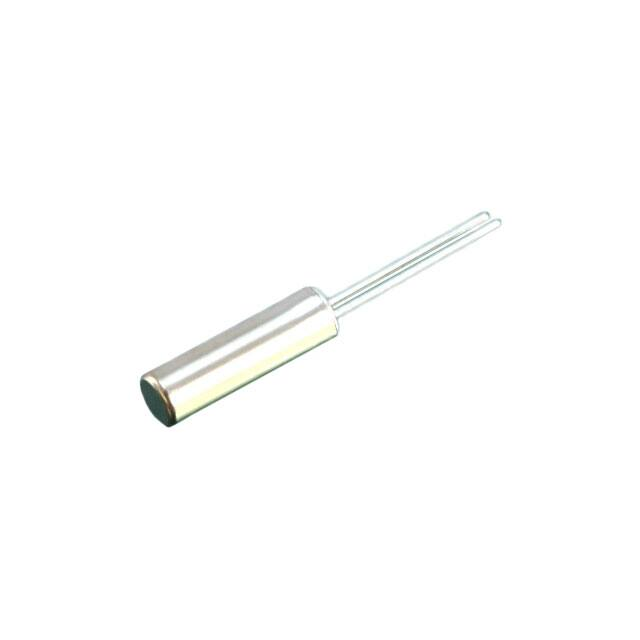

Watch Crystal Resonator 2.1mm x 6.2mm Thru-Hole Metal Cylindrical 32.768KHz
ELECTRICAL SPECIFICATIONS
Nominal Frequency
32.768kHz
Frequency Tolerance
±20ppm at 25°C
Frequency Stability
Temperature Coefficient
Turn over Temperature
-0.035±0.01ppm/(Change in °C)² Maximum
Aging at 25°C
±3ppm/year Maximum
Operating Temperature Range
-10°C to +60°C (See options)
Load Capacitance
Shunt Capacitance
6 pF Parallel Resonant
7 pF Parallel Resonant
9 pF Parallel Resonant
12.5pF Parallel Resonant
0.8 to 1.7pF Typical
Motional Capacitance
1.0 to 4.0fF Typical
Equivalent Series Resistance
35,000 Ohms Maximum
Mode of Operation
Drive Level
Fundamental
1µWatt Maximum
Crystal Cut
Storage Temperature Range
Tuning Fork
-40°C to +85°C
Insulation Resistance
(Measured at 100Vdc) 500 Megaohms Minimum
25°C ±5°C
Revised C: 11/03/2020
Page 1 of 5
www.ecliptek.com
E1WC Series
PART NUMBERING GUIDE
Revised C: 11/03/2020
Page 2 of 5
www.ecliptek.com
E1WC Series
MECHANICAL DIMENSIONS
Revised C: 11/03/2020
Page 3 of 5
www.ecliptek.com
E1WC Series
RECOMMENDED SOLDER REFLOW METHOD
HIGH TEMPERATURE INFRARED/CONVECTION
TS MAX to TL (Ramp-up Rate)
3°C/Second Maximum
Preheat
- Temperature Minimum (TS MIN)
- Temperature Typical (TS TYP)
- Temperature Maximum(TS MAX)
- Time (tS)
150°C
175°C
200°C
60 - 180 Seconds
Ramp-up Rate (TL to TP)
Time Maintained Above:
- Temperature (TL)
- Time (tL)
3°C/Second Maximum
Peak Temperature (TP)
260°C Maximum for 10 Seconds Maximum
Target Peak Temperature(TP Target)
250°C +0/-5°C
Time within 5°C of actual peak (tp)
20 - 40 Seconds
Ramp-down Rate
6°C/Second Maximum
Time 25°C to Peak Temperature (t)
8 Minutes Maximum
Moisture Sensitivity Level
Level 1
Additional Notes
Temperatures shown are applied to body of device.
217°C
60 - 150 Seconds
High Temperature Manual Soldering
260°C Maximum for 5 Seconds Maximum, 2 times Maximum. (Temperatures shown are applied to body of device.)
Revised C: 11/03/2020
Page 4 of 5
www.ecliptek.com
E1WC Series
RECOMMENDED SOLDER REFLOW METHOD
LOW TEMPERATURE INFRARED/CONVECTION
TS MAX to TL (Ramp-up Rate)
5°C/Second Maximum
Preheat
- Temperature Minimum (Ts MIN)
- Temperature Typical (Ts TYP)
- Temperature Maximum(Ts MAX)
- Time (ts)
N/A
150°C
N/A
30 - 60 Seconds
Ramp-up Rate (TL to TP)
Time Maintained Above:
- Temperature (TL)
- Time (tL)
5°C/Second Maximum
Peak Temperature (TP)
245°C Maximum
Target Peak Temperature (TP Target)
245°C Maximum 2 Times / 230˚C Maximum 1 Time
Time within 5°C of actual peak (tp)
10 Seconds Maximum 2 Times / 80 Seconds Maximum 1 Time
Ramp-down Rate
5°C/Second Maximum
Time 25°C to Peak Temperature (t)
N/A
Moisture Sensitivity Level
Level 1
Additional Notes
Temperatures shown are applied to body of device.
150°C
200 Seconds Maximum
Low Temperature Manual Soldering
185°C Maximum for 10 Seconds Maximum, 2 times Maximum. (Temperatures shown are applied to body of device.)
Revised C: 11/03/2020
Page 5 of 5
www.ecliptek.com
